Victron battery monitor

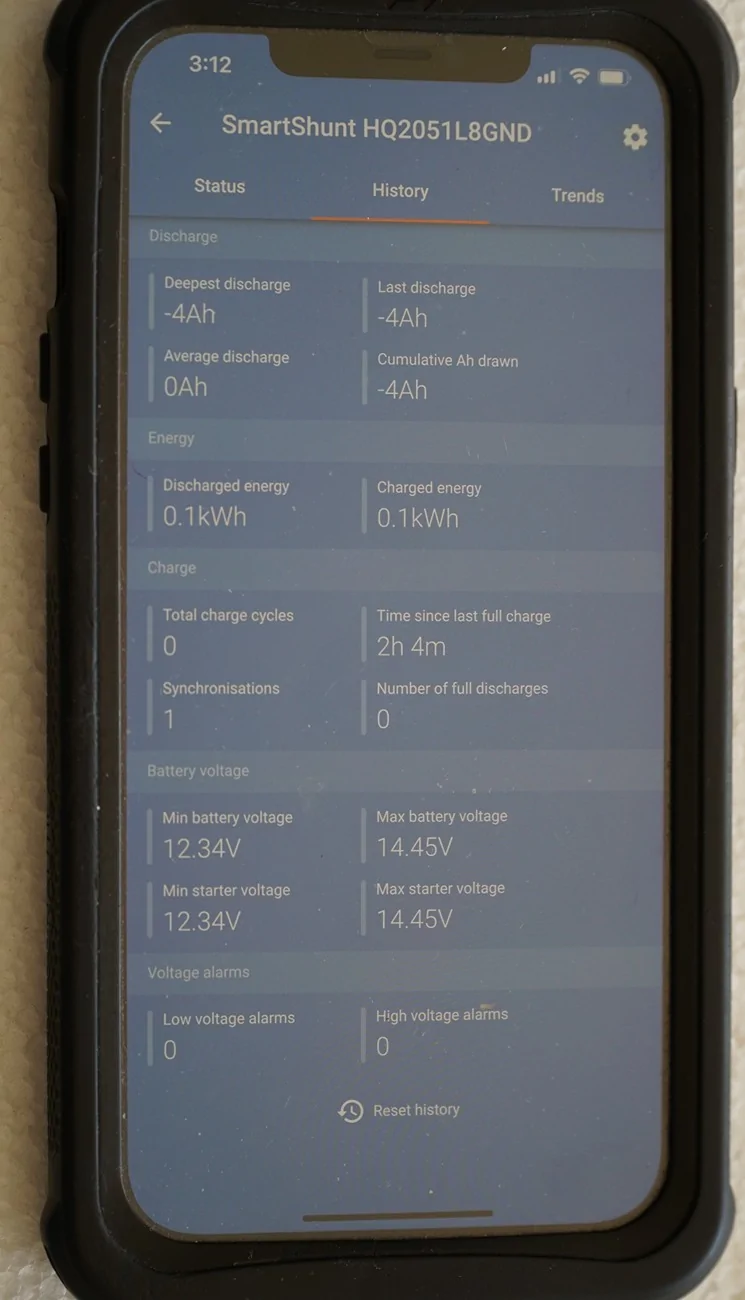

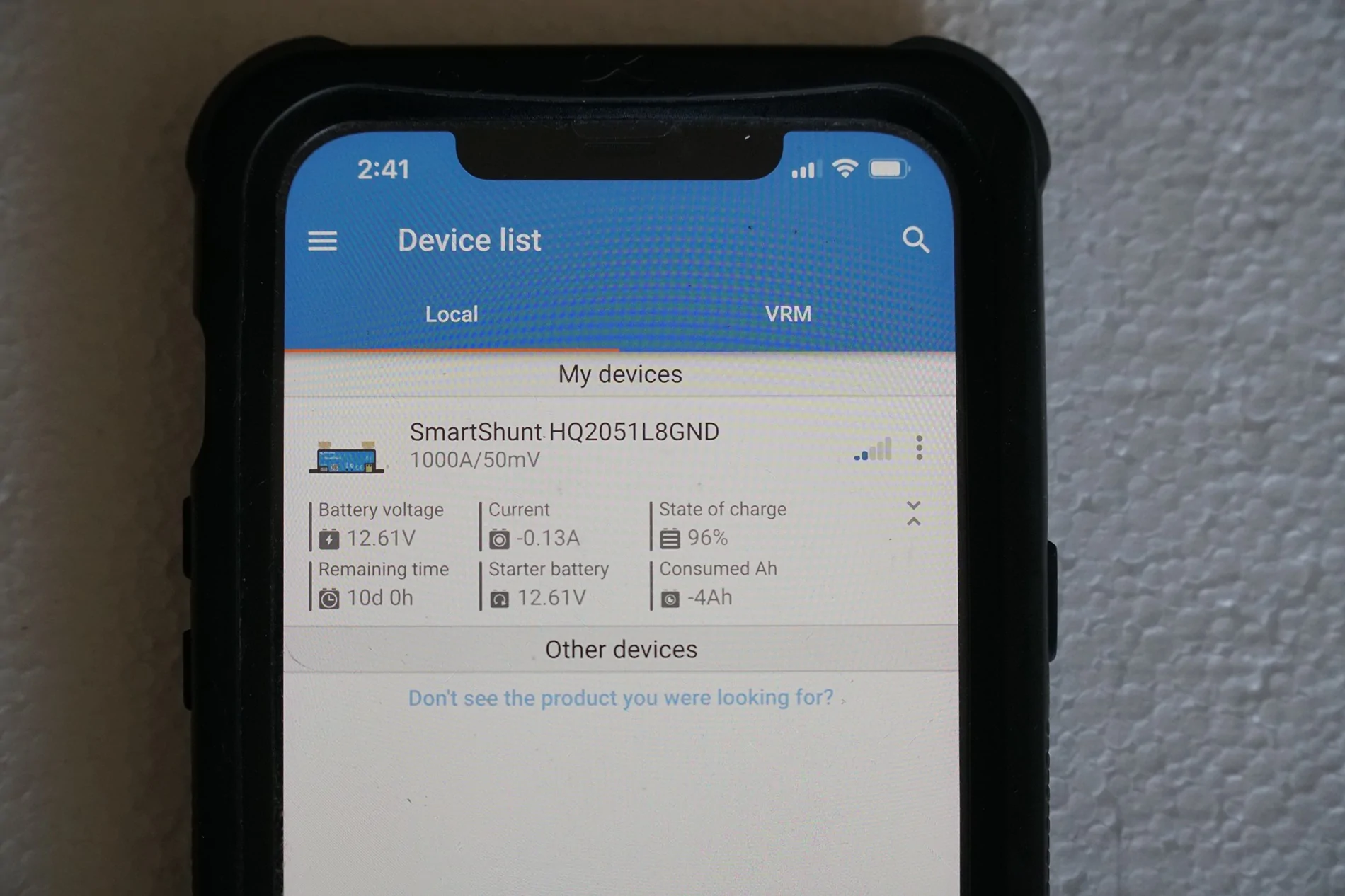

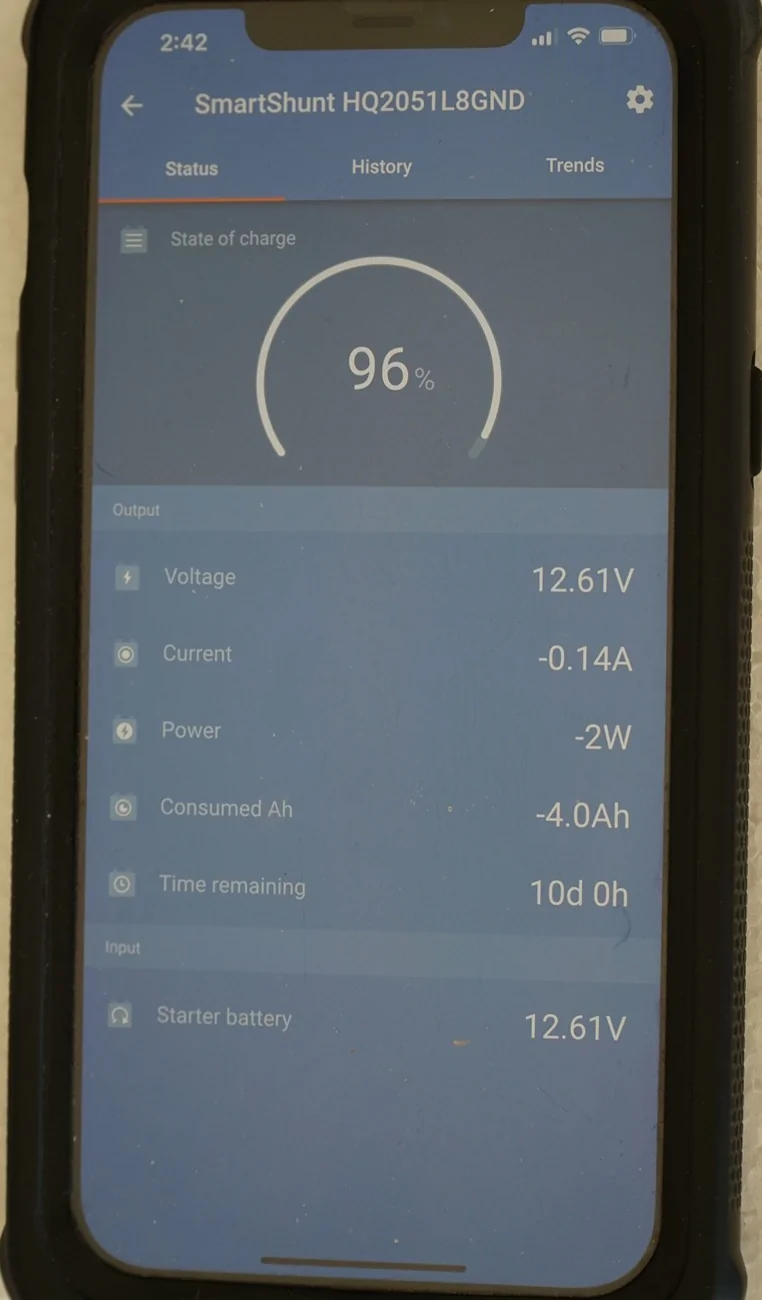

The graph only works 10 feet from Jeep, but the volts and amps from the first picture I can see inside the house.

Sponsored



[J Sierra]

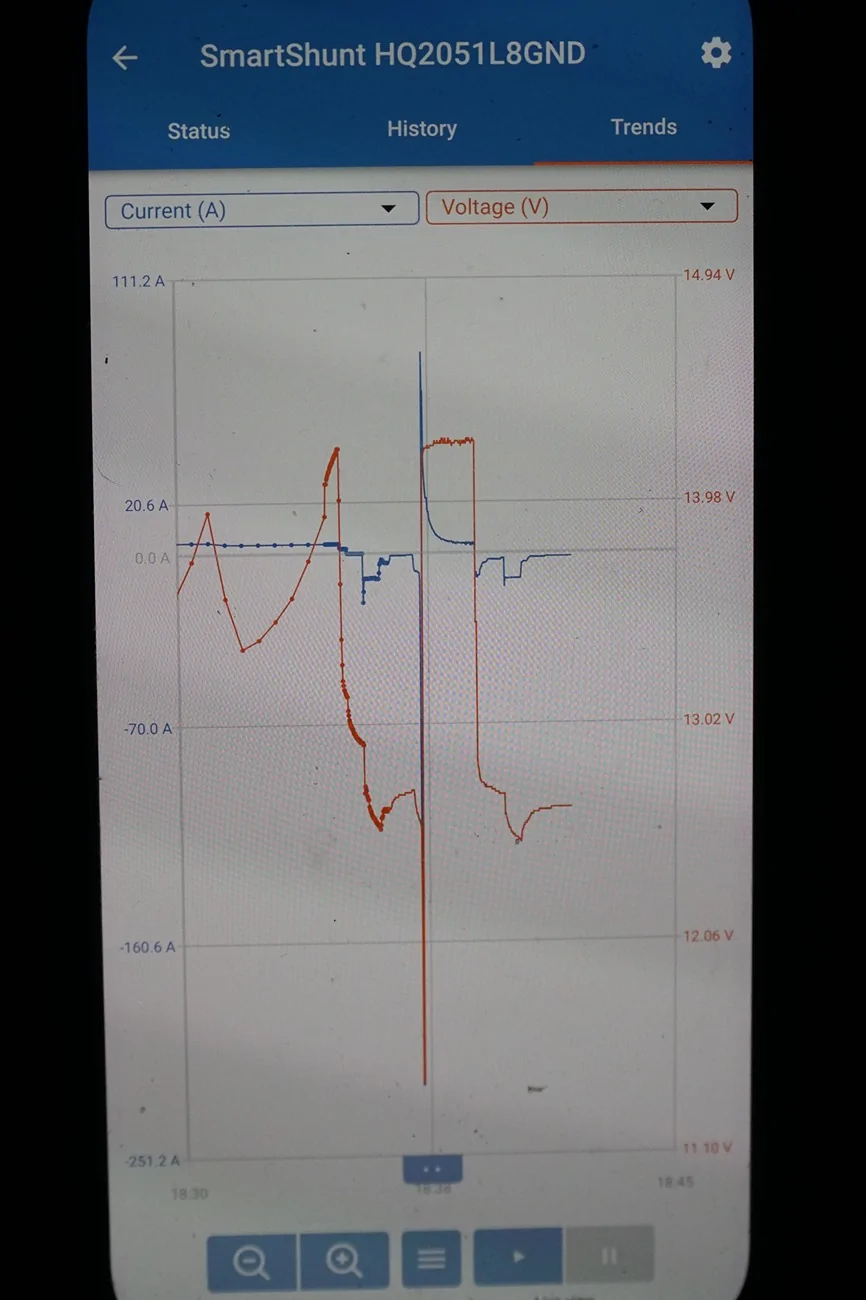

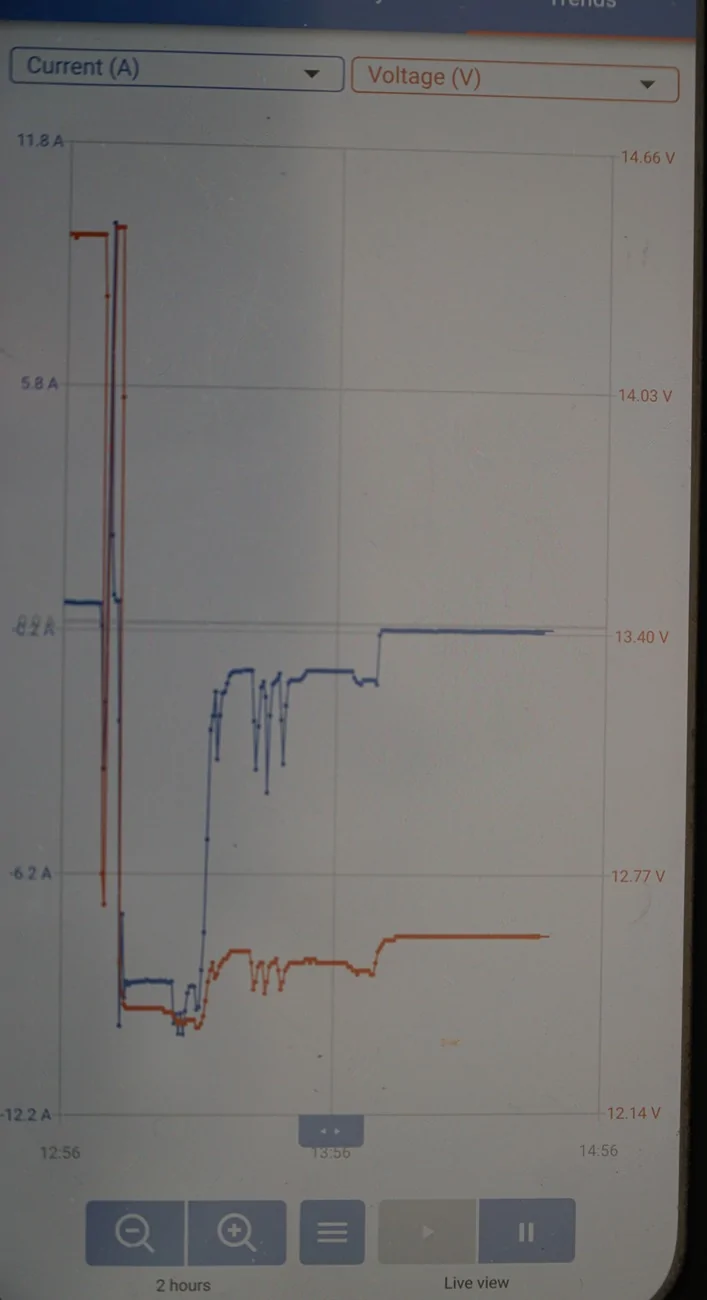

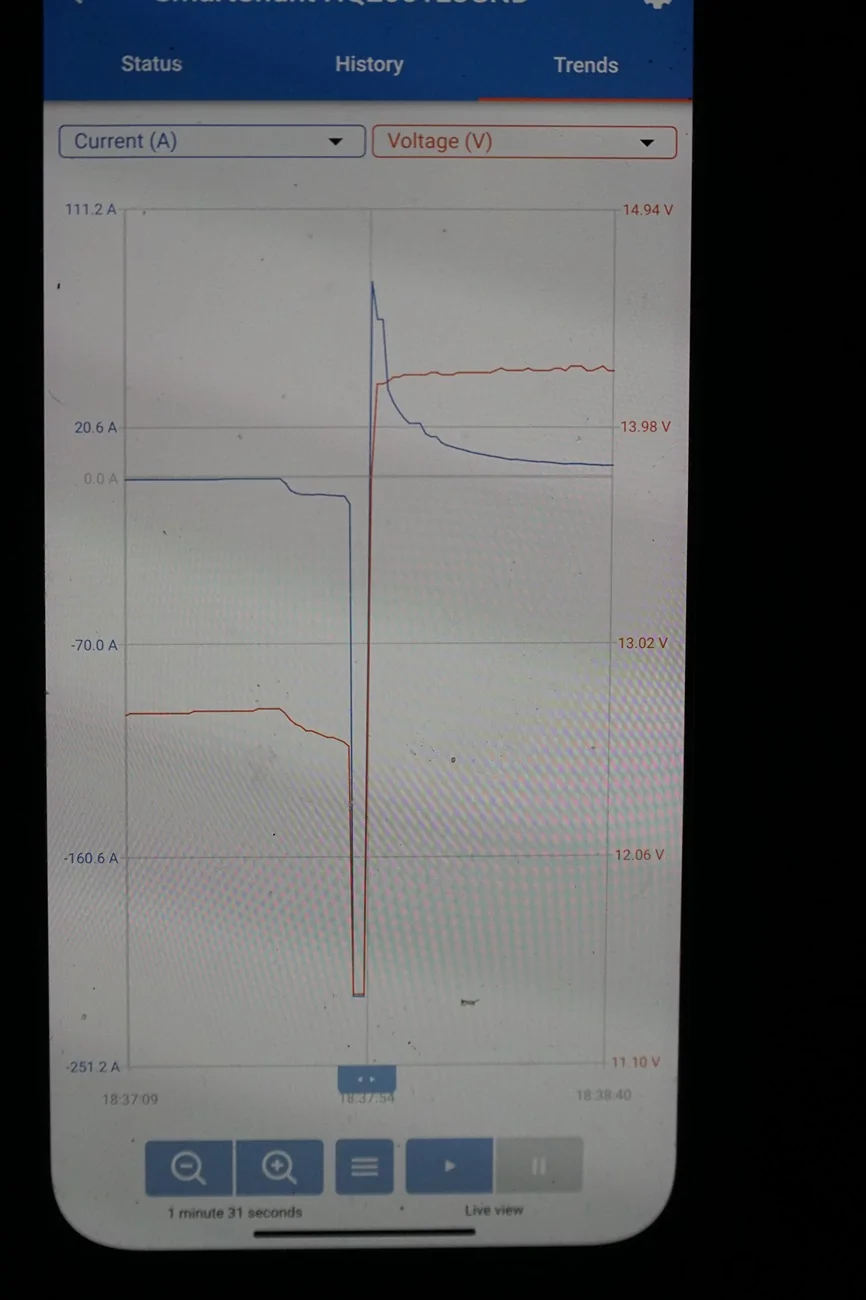

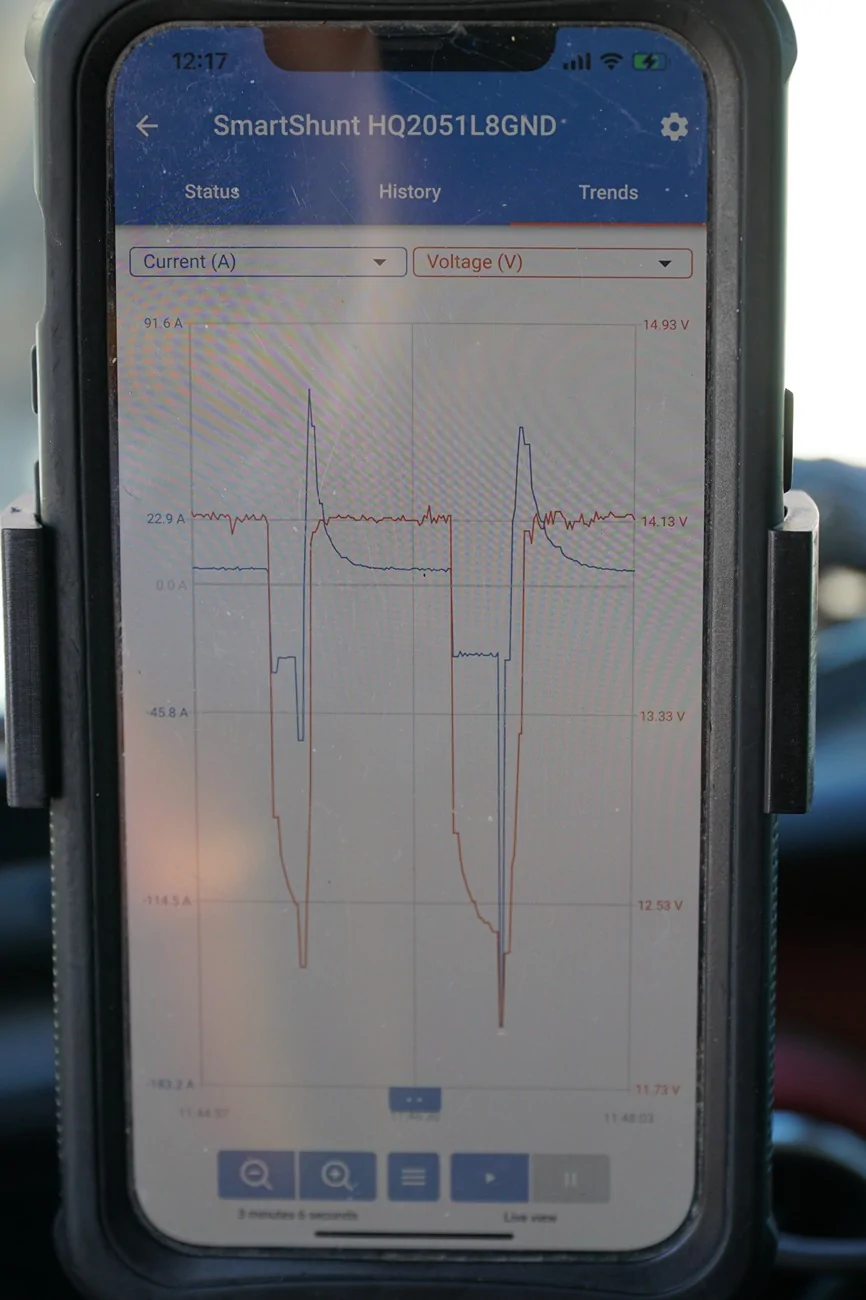

I have a current shut on my batteries. It records voltage and current. Minus is out of batteries and plus is into batteries. During the ESS event the current is -25A that is stereo on a/c off. So, the time the engine is shut off the current is -25A. After starting the current is +50A for less than 3 sec then down to +5 amps. I never see more than +20A for any length of time. The Jeep is cautious when charging batteries. First picture is two ESS starts, next cold start and longer view of cold start.



[AdamC149]

What did you do with the IBS? Not concerned for the shunt under the hood as it is only IP21 rated? I run these on my lifepo4 banks. I love them.



[J Sierra]

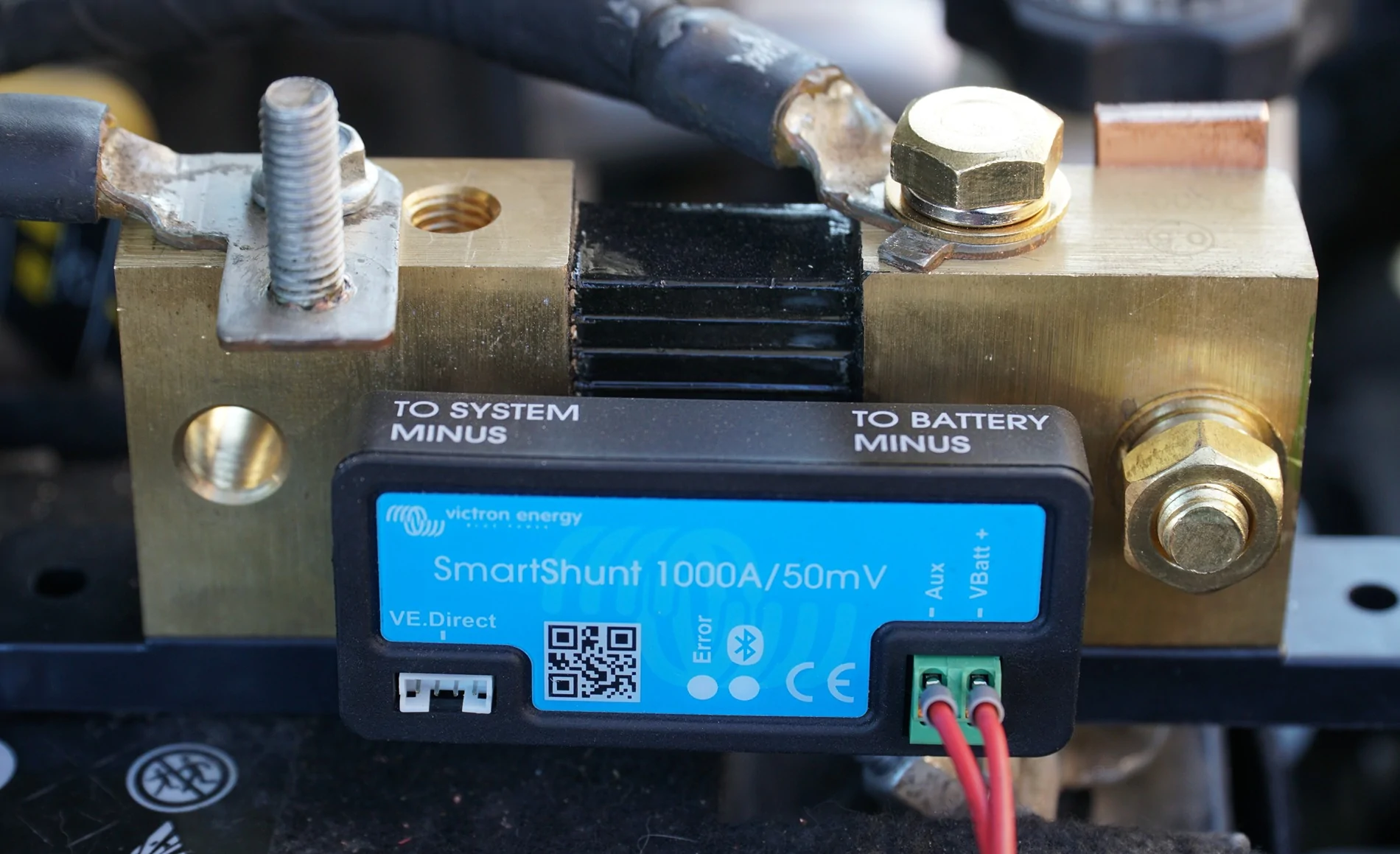

The shunt is connected to the IBS with a right angle copper bar.



[AdamC149]

The shunt is connected to the IBS with a right angle copper bar.

Ah I see it now. No issues since install?



[J Sierra]

No issues, I am putting a dual battery system in. So I wanted to see before and after current readings.
