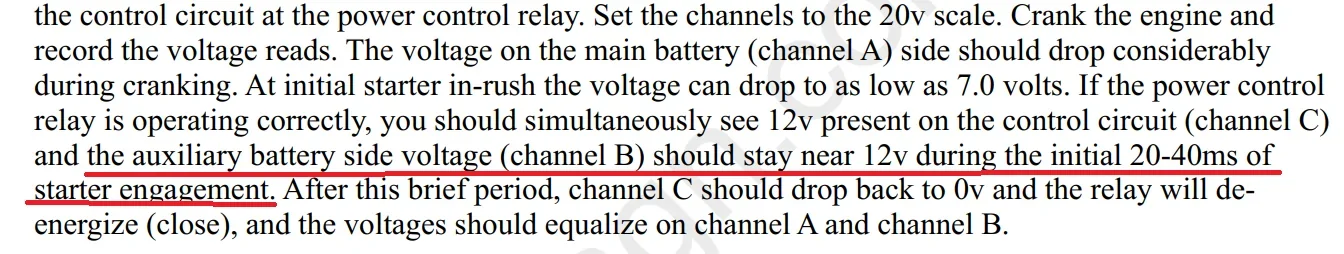

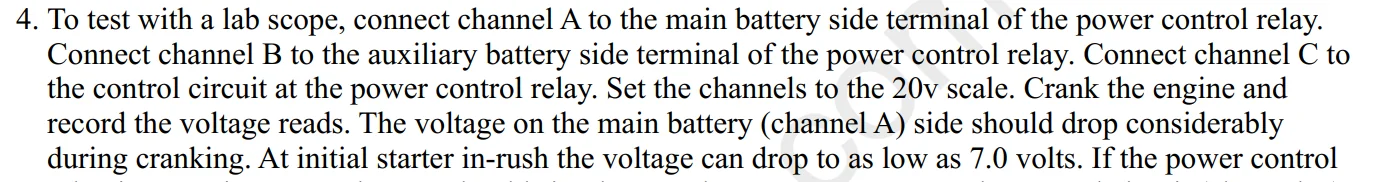

I'm glad you finally agree with point I've been making all along, that the aux battery voltage pattern on your oscilloscope image follows the pattern of powering the starter. I appreciate the time your are putting into this, but it would have saved a lot time if you would have attributed that to the shared ground wire sooner.Bingo.

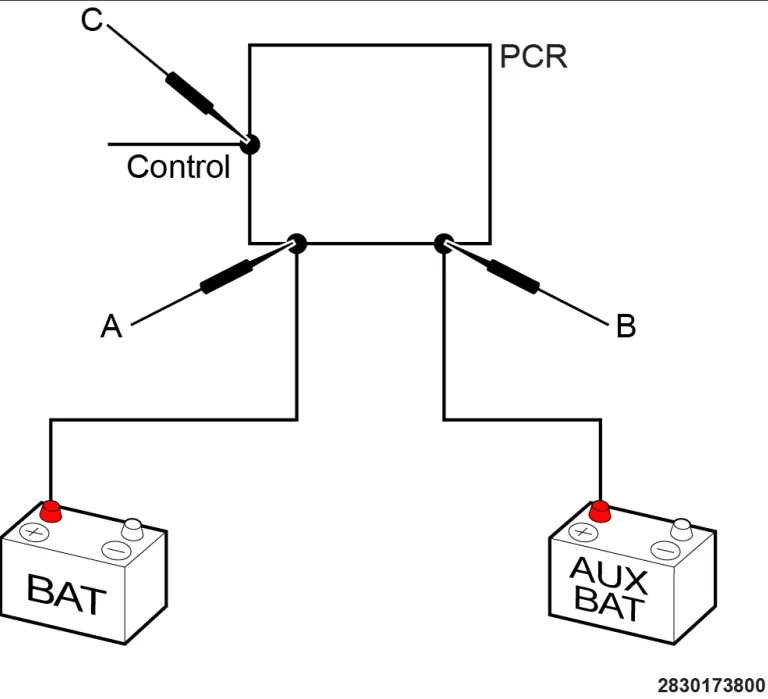

The probes were at N1 and N2, and the ground clips were on the chassis. When both batteries are discharging,
Chassis potential > MAIN negative potential > AUX negative potential.
Yes, a dip at N1 should be expected, not because AUX positive is being pulled down, but because chassis ground is being pulled up relative to AUX negative.
I would have mentioned this earlier but you've been raving like a lunatic and I can't figure out what you're talking about most of the time. I didn't want to further muddy the waters.
Thanks for your help (not meant sarcastically).
