Brake Controller Adapter Wiring

[Mbryson]

No, it's a silly tazer thing. If you had said you were messing around with a tazer and turning trailer lights on and off with a tazer, we'd have said - there's your problem - you.

No one else has ever had any issues with connecting in a brake controller. Your issue was caused by you and tazer.
Zero issues with the stock Jeep trailer setup. It works fine for anyone else, plug and play.

I don't know what you were doing or thinking you were doing using tazer to do what with trailer lights? Why did you use tazer trailer lights - what does that even mean?

Why are you screwing around with trailer lights using a tazer? What's the point or goal?

I hadn't turned the lights on or off with the Tazer. It's only in there to correct for my 37" tires and let me control the auto-start-stop (which isn't that big of a deal since I've left it on).

I noticed that in the Tazer controller, I could turn trailer lights on or off. Thought I'd give it a shot as I assume that's in the body control module? (I was about to just wire to the brake switch but that wire MIGHT be 22 guage? I thought better of that and decided to check through the Tazer manual and see if there's a toggle for trailer lighting)

I didn't want to work with the Tazer but after checking every fuse in the box and such, I didn't really have any other avenue other than taking it to the dealer for $200+ to have them "fix" something I was able to fix with my Tazer. Turns out that turning the option off, resetting, turning it back on and resetting works. That's the odd part

Sponsored



[ShadowsPapa]

Trailer lights wouldn't matter unless a trailer was connected. And the feed to the trailer brake controller isn't trailer lights - it's the truck's brake lights.

The only connections to the trailer brake controller connector by the left kick panel in the truck are:
* Ground
* Power to trailer brake controller (which is fuse F36 and is 30 amps because that's what it uses to power the trailer brakes so it needs some power - trailer brakes can pull 16 amps or more if I recall correctly) See note *** below
* Brake signal (From the truck to the trailer bake controller connector - which comes from the ABS and goes here and to the BCM for lighting)
* Power FROM the trailer brake controller TO the trailer connector at the rear to power the trailer brakes (and nothing else)

Trailer lights, including trailer brake lights, have no involvement in the trailer brake controller connector nor any of its feeds.
It still had to be tazer doing something weird. I'd bet that if you had never installed a tazer at all, or didn't have it in the system at the time of trying to install a trailer brake controller, it would have been fine.

*** Note - the line from the F36 fuse goes directly to the trailer brake controller. There is nothing else in between. You can't disable or turn this on or off short of pulling the fuse. There is either power there, or there is not. It leaves the PDC, through fuse F36 and goes right to the brake controller connector in the cabin at the left kick panel. there are no other electronics in the way. In other words, it's pretty much impossible for anything to interfere with getting power to the trailer brake controller connector.

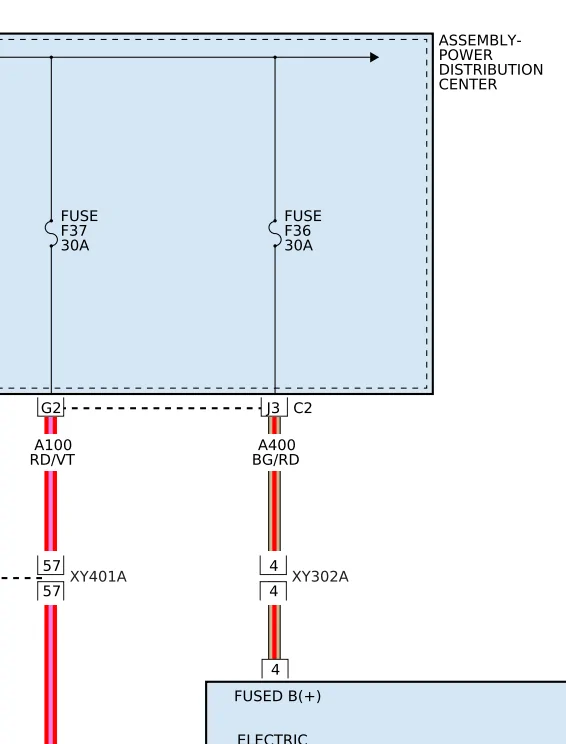

The blue box at the bottom of this image is the trailer brake controller connector - check out the wiring diagram - from F36 in the PDC right to that connector -
