I recently ordered the Max-modular steel 10'' rack with the mopar tonneau cover brackets, without the trail rail system, and installing with the mopar factory tonneau on the truck. build quality is fantastic the instructions to install are just kind of lacking.

@Max Modular or anyone who has this rack/setup installed can you post photos up close of how the mopar tonneau brackets attach to the truck? I'm extremely confused by the install instructions provided and do not see any photos anywhere to better understand this. More photos and better insight here please otherwise this thing is just gonna sit in my garage.

Specifically looking for up close pics on the truck where the brackets fit on the bed and how you attach it to the vehicle that doesn't have the trail rail system.

Greatly appreciated, patiently awaiting info while the rack collects dust in my garage.

-obviously not mechanical enough to figure it out myself...



Advertisement




OP
nortski3

nortski3

Member
First Name
Andrew
Joined
Apr 25, 2019
Messages
22
Reaction score
35
Location
Iowa
Vehicle(s)
Jeep Gladiator Rubicon & BMW F800GS
  • Thread starter
  • Thread Starter
  • #2

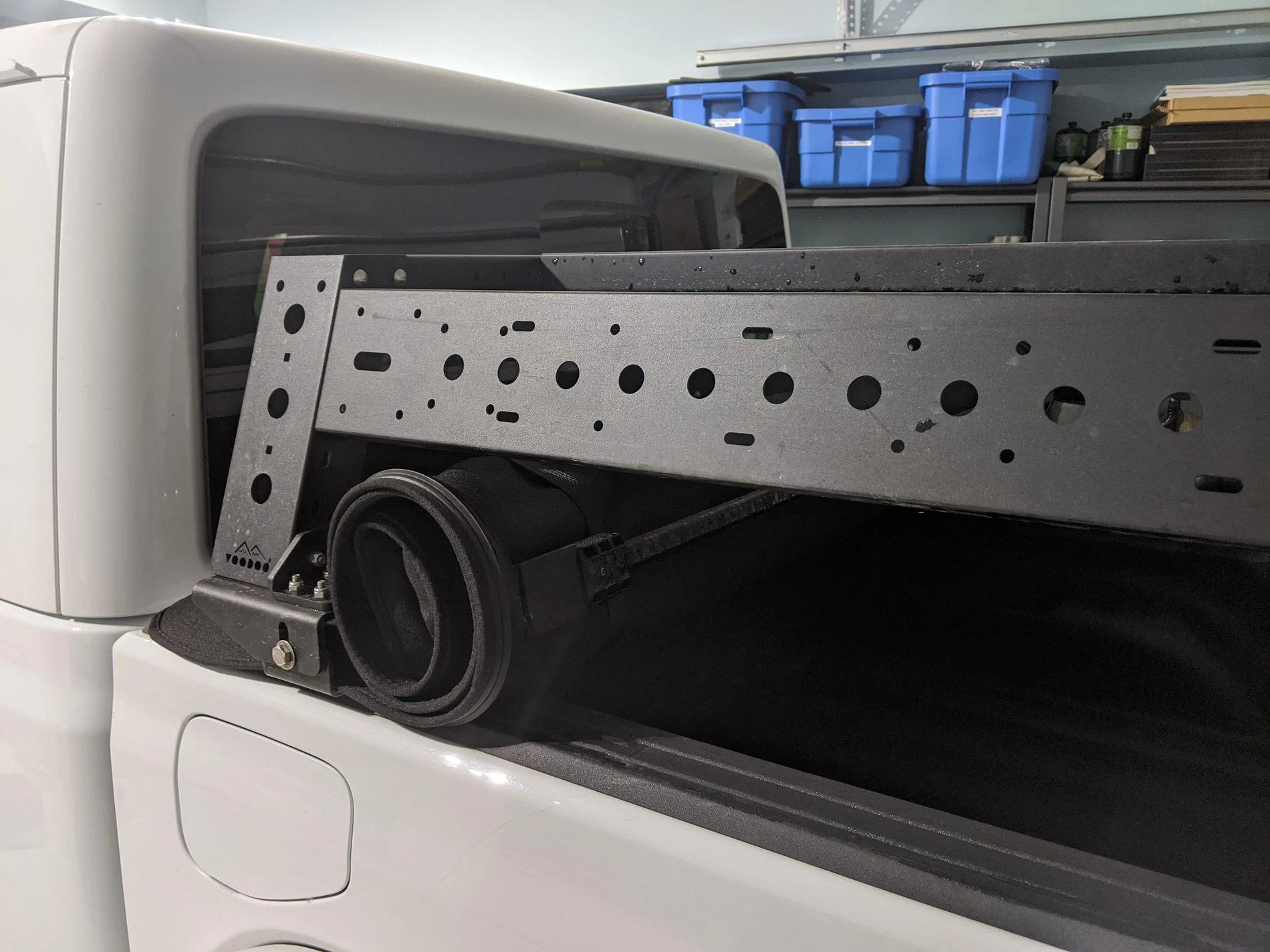

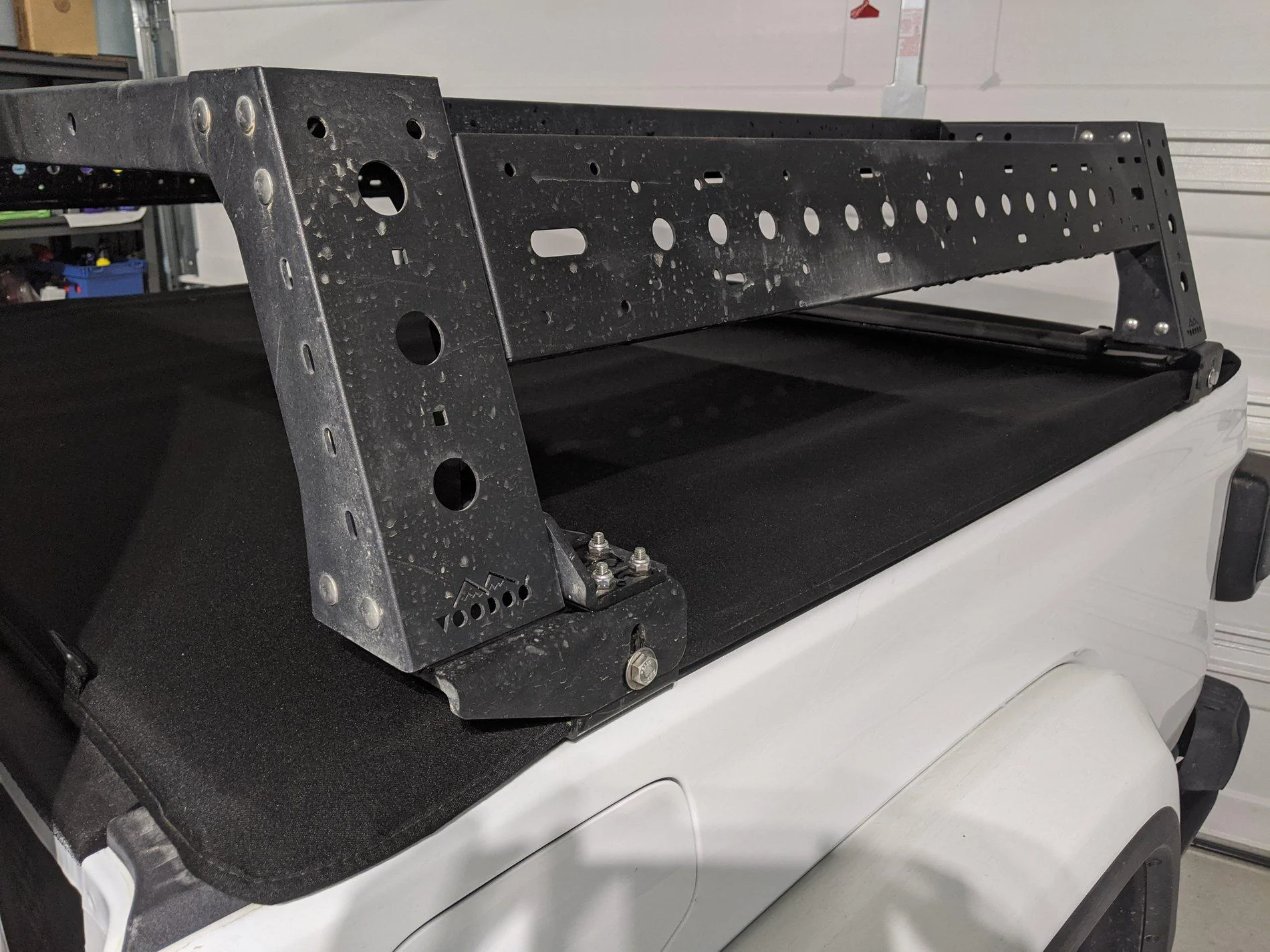

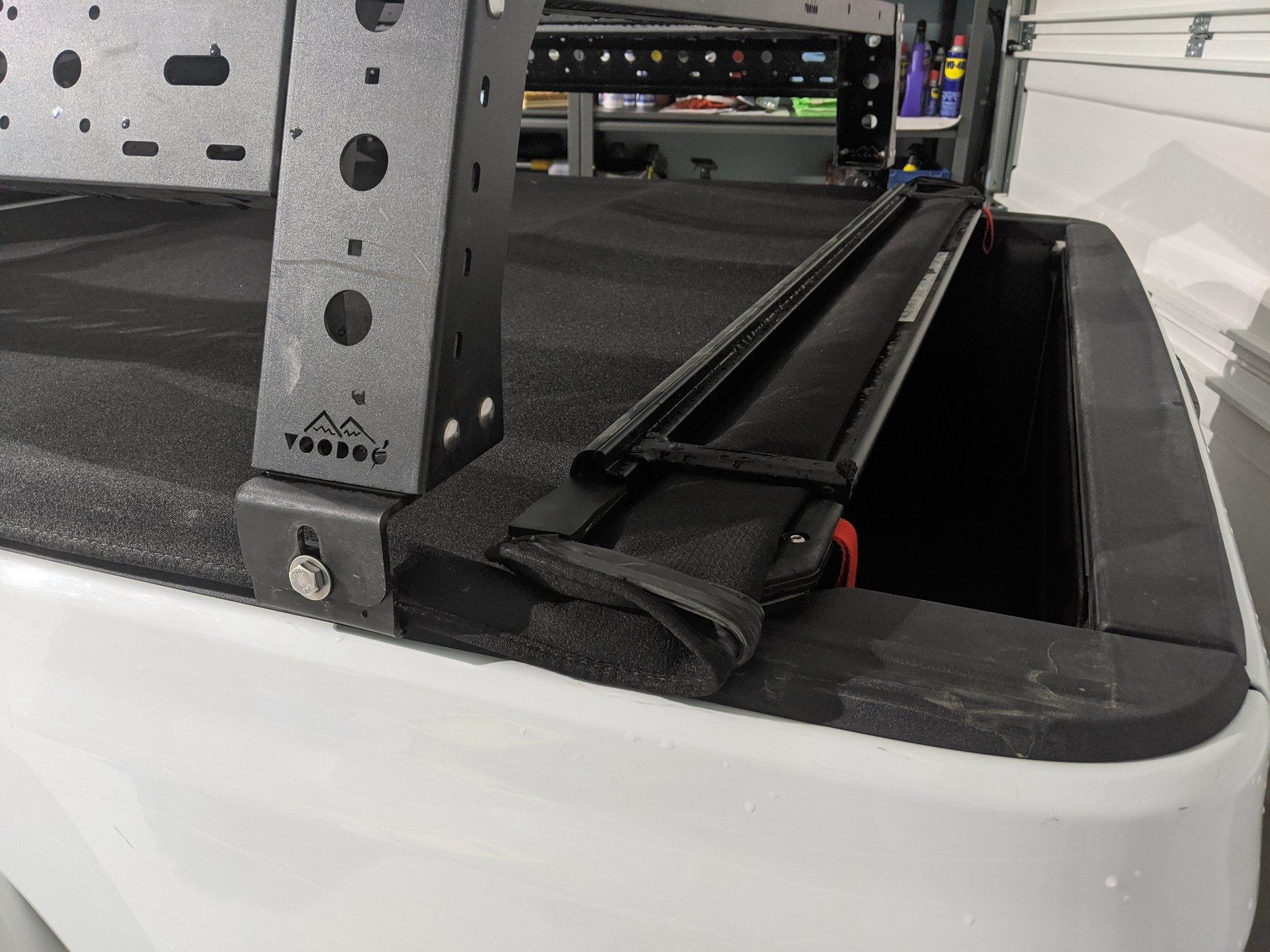

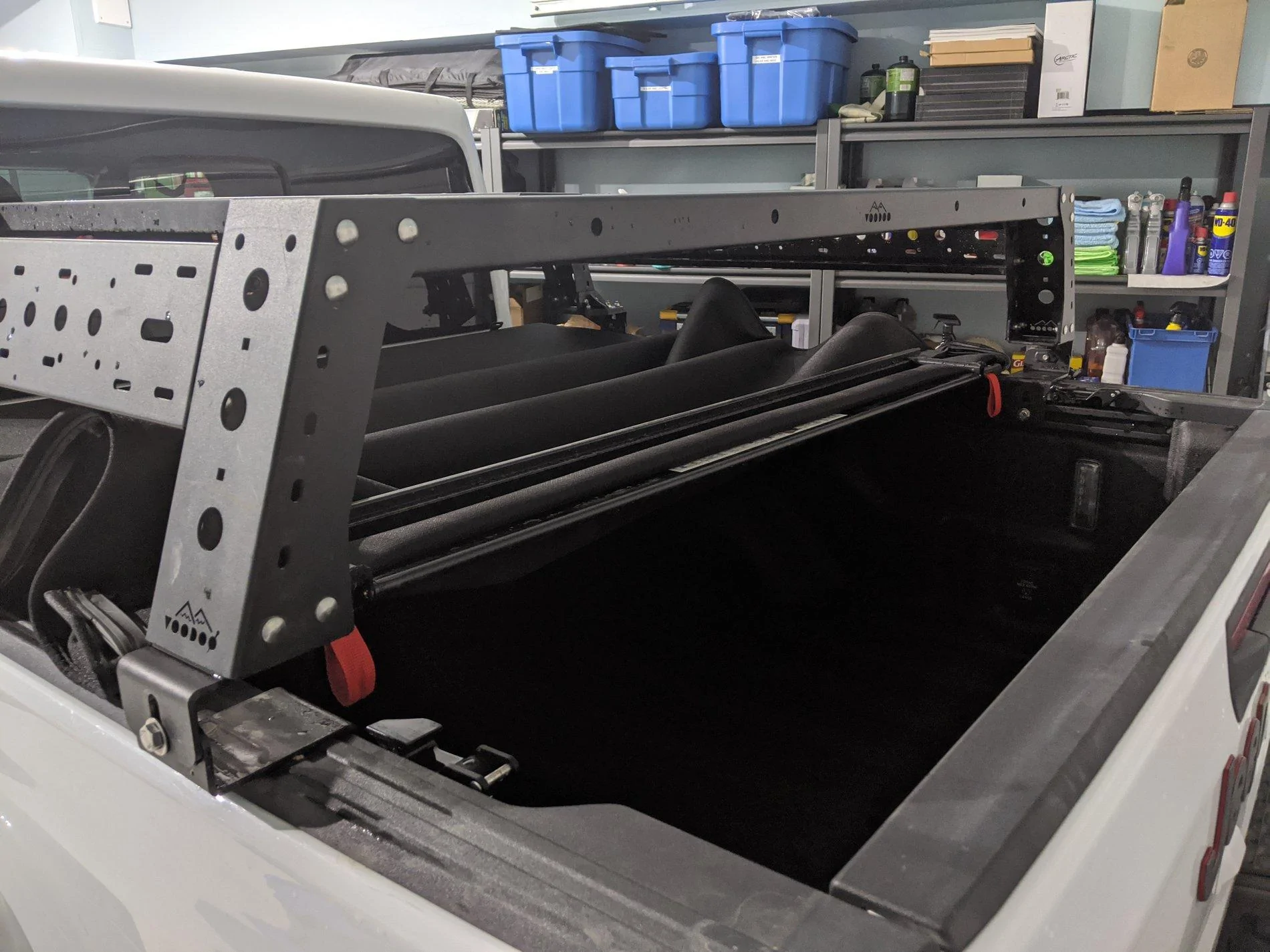

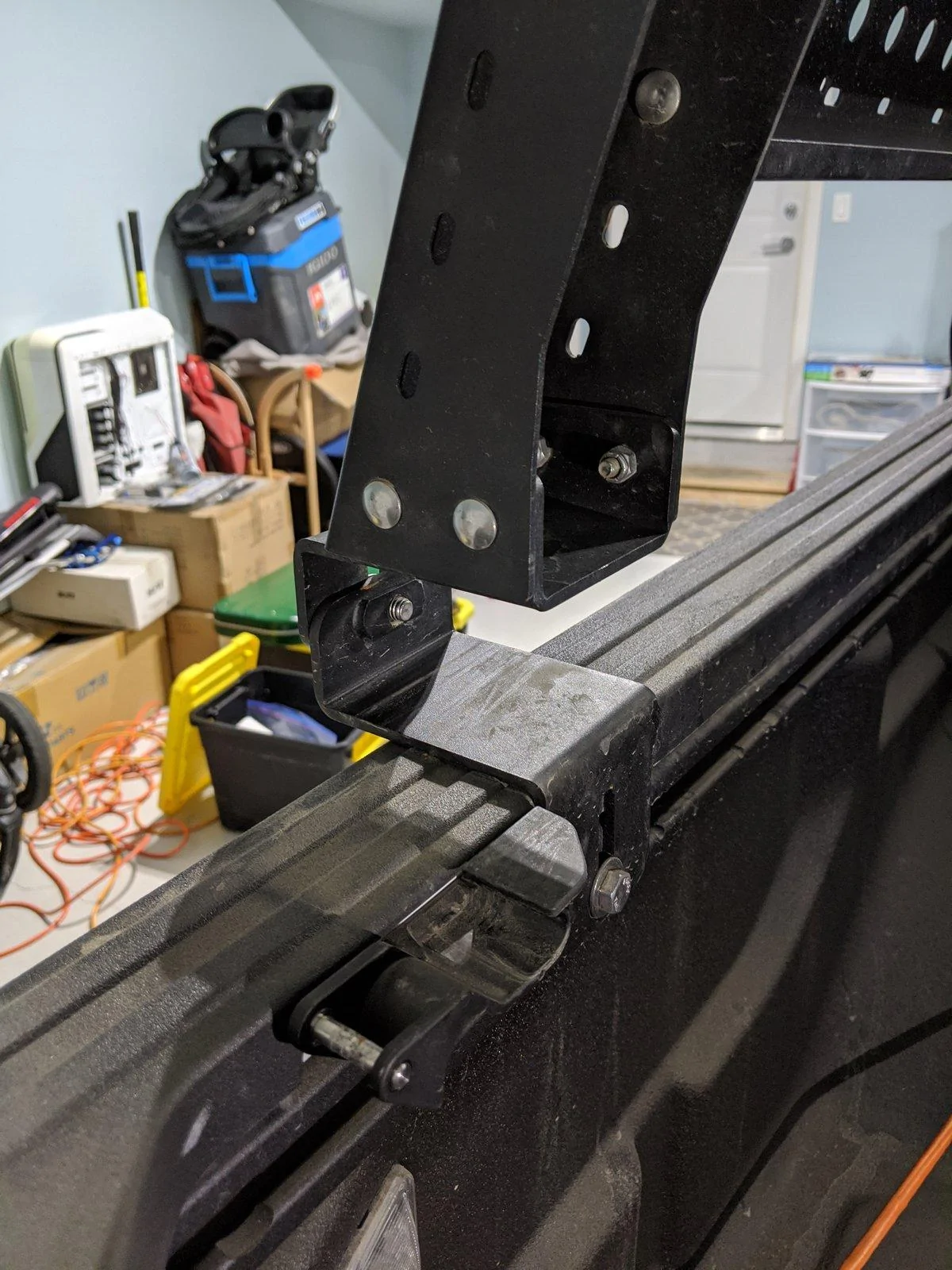

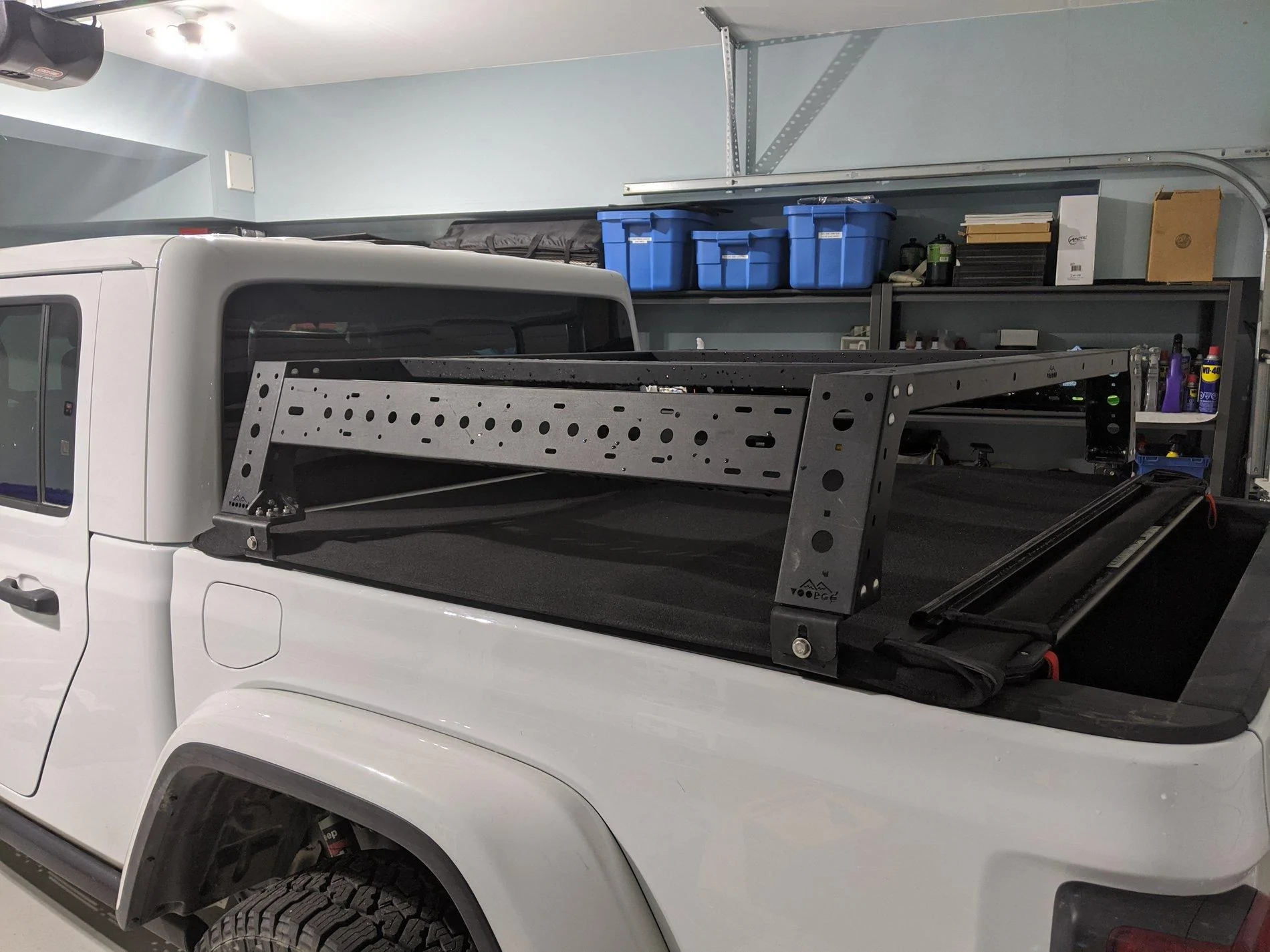

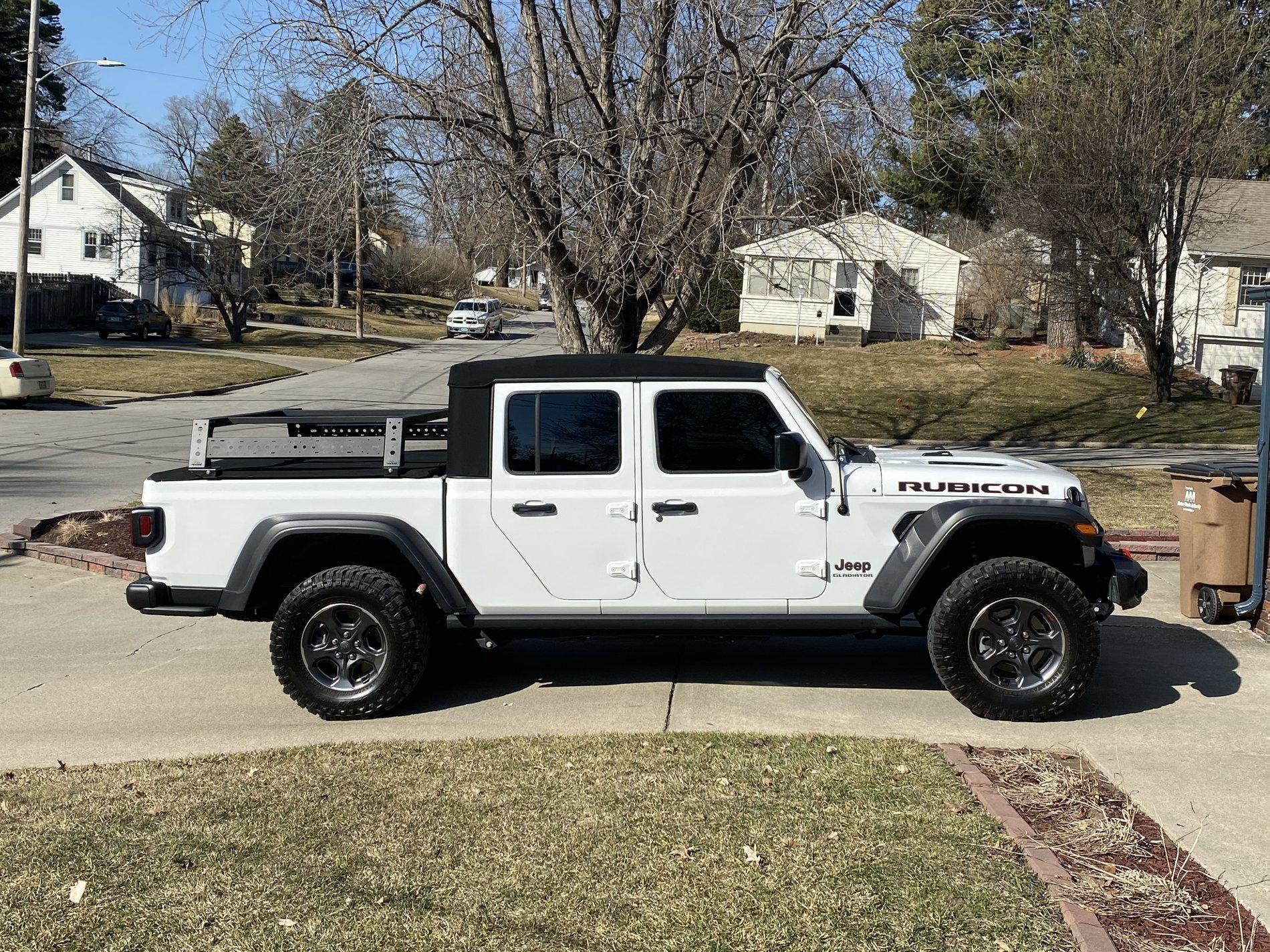

I was able to get it installed yesterday. The side rail needs adjusted upward so that the rear rack brace can fit correctly. Not going to lie the instructions were not all that great but I'm pretty happy with the build quality of the rack. This is the 10" rack with the mopar tonneau brackets. The cover will not roll back beyond the initial flip open as it hits the legs. A solid solution to work with the cover.



The Peripatetic Cajun

Active Member
Joined
Dec 14, 2019
Messages
30
Reaction score
7
Location
NC
Vehicle(s)
2020 Jeep Gladiator Rubicon
Hey there, looks great! Was going to ask you about which of the Brackets MaxMod sent you, I have somewhat of the same situation. I think the test bracket they sent me might have been for their Taco, tonneau, or a different style. I have the tri-fold cover and by the pics you posted, I don’t think it’ll work on mine. Their URTC has other brackets that might fit...but you handled it already and it looks great. All the best!


BrichJeepUtopia

Well-Known Member
Joined
Apr 3, 2019
Messages
68
Reaction score
132
Location
Frisco, TX
Vehicle(s)
2020 Gladiator Sport S
I was able to get it installed yesterday. The side rail needs adjusted upward so that the rear rack brace can fit correctly. Not going to lie the instructions were not all that great but I'm pretty happy with the build quality of the rack. This is the 10" rack with the mopar tonneau brackets. The cover will not roll back beyond the initial flip open as it hits the legs. A solid solution to work with the cover.

I was interested in this rack, it seems to be the only one marketed to work with the mopar tonneau. So there is no way to roll up the tonneau at all? not even by angling it sideways or something to get passed the legs?


ron168

Well-Known Member
First Name
Ron
Joined
Nov 23, 2019
Messages
79
Reaction score
101
Location
Massachusetts
Vehicle(s)
'18 JLU Rubi, '20 JT Rubi LE, '17 GLS63
I was interested in this rack, it seems to be the only one marketed to work with the mopar tonneau. So there is no way to roll up the tonneau at all? not even by angling it sideways or something to get passed the legs?
This rack will allow for the tonneau cover to open. I posted a picture about this a while back.


BrichJeepUtopia

Well-Known Member
Joined
Apr 3, 2019
Messages
68
Reaction score
132
Location
Frisco, TX
Vehicle(s)
2020 Gladiator Sport S

GoVR46

Well-Known Member
First Name
David
Joined
Jun 5, 2020
Messages
117
Reaction score
153
Location
Arnold CA
Vehicle(s)
2020 Gator Rubicon, 2014 Highlander, 2007 BMW 335i (725 whp)
I was interested in this rack, it seems to be the only one marketed to work with the mopar tonneau. So there is no way to roll up the tonneau at all? not even by angling it sideways or something to get passed the legs?
I was interested in this rack, it seems to be the only one marketed to work with the mopar tonneau. So there is no way to roll up the tonneau at all? not even by angling it sideways or something to get passed the legs?

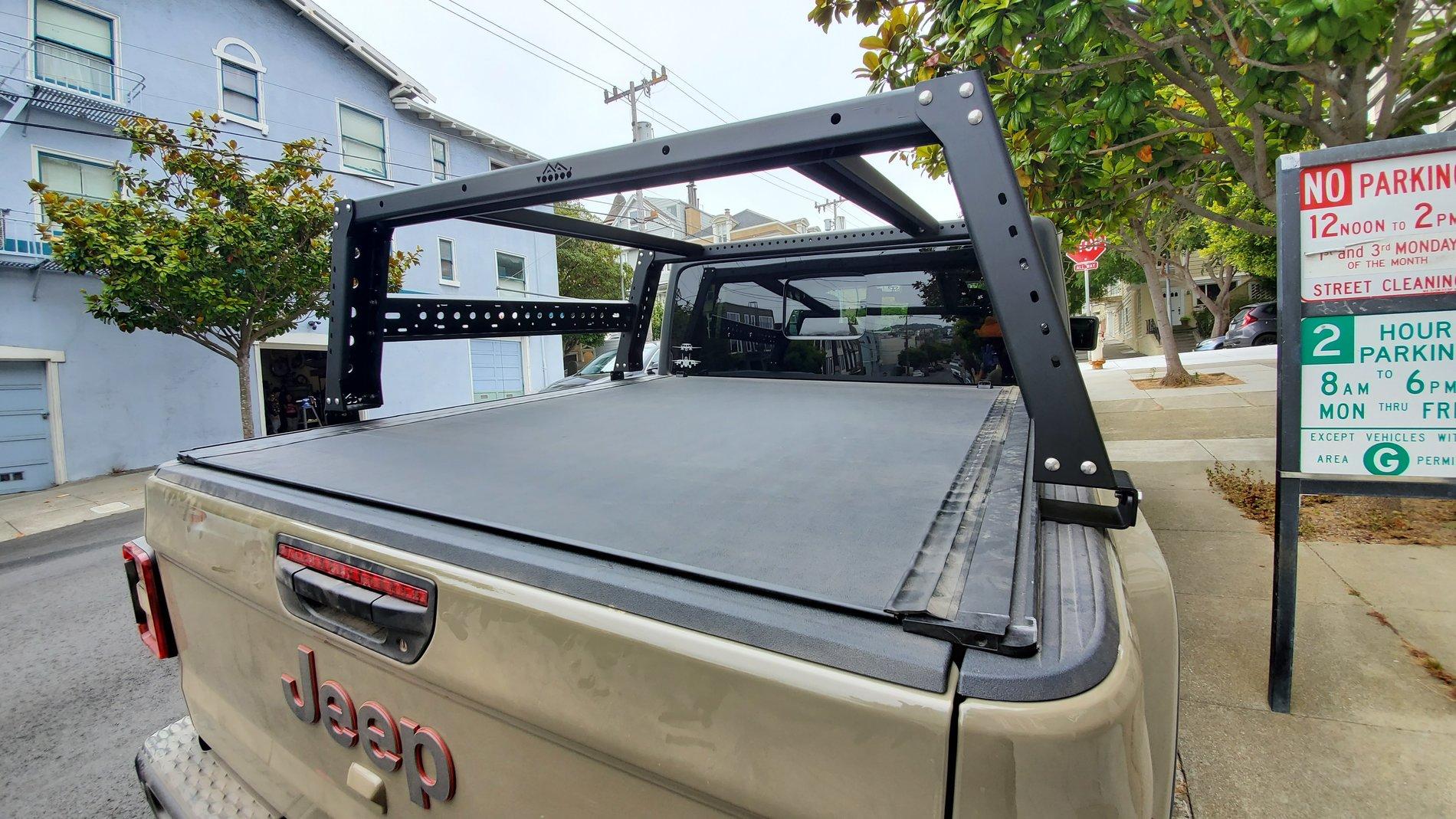

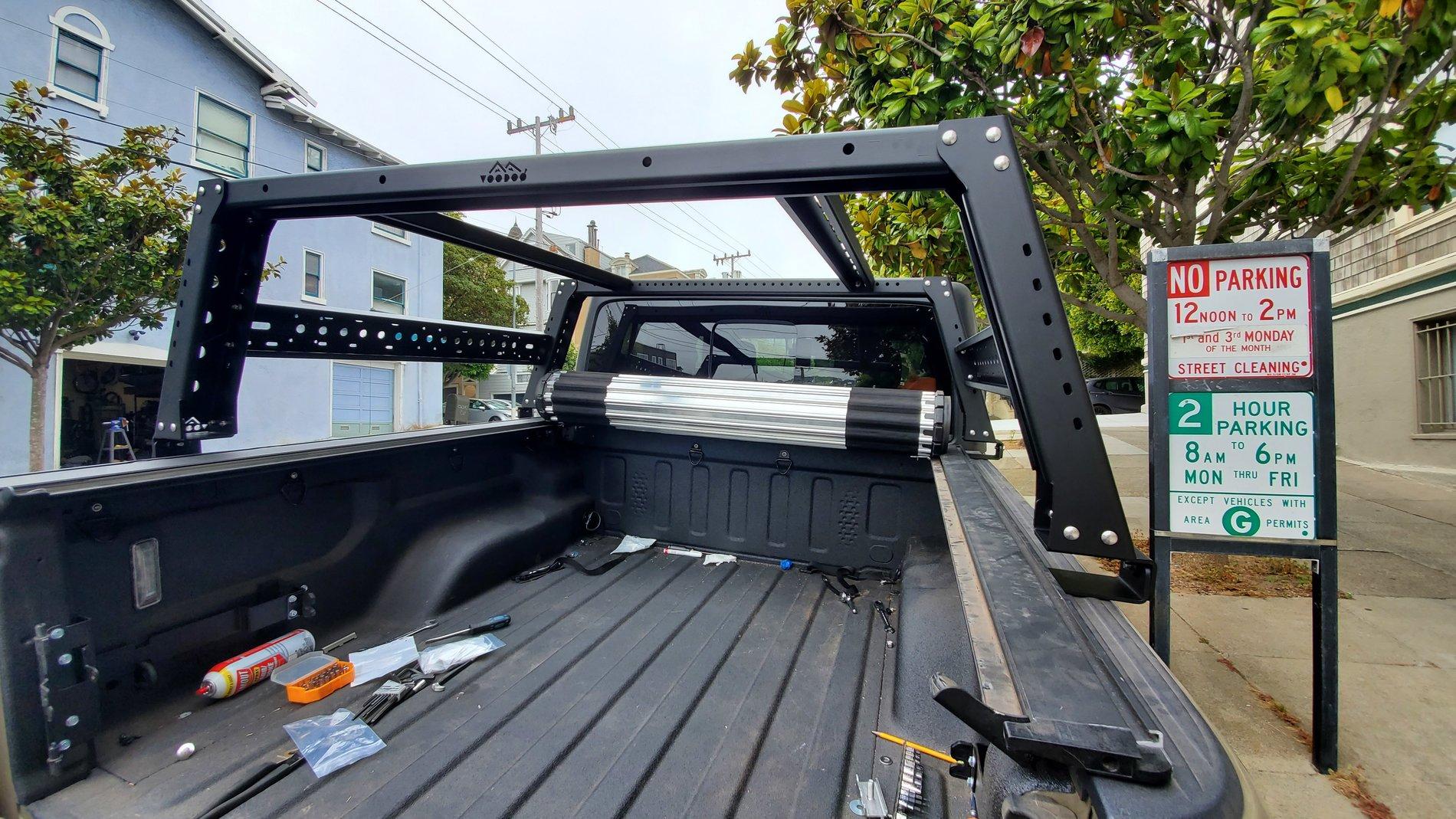

I have the 18in rack with a Bak Revolver X4, it rolls up all the way to the cab. Never touches the legs at all.







Blucid

Member
First Name
Denis
Joined
Sep 15, 2020
Messages
18
Reaction score
2
Location
Vancouver // Canada
Website
teamgf.org
Vehicle(s)
2020 "Bright White" Jeep Rubicon Gladiator
Found this thread, this is what I actually did. I purchased the Max Modular Rack 10" as well.

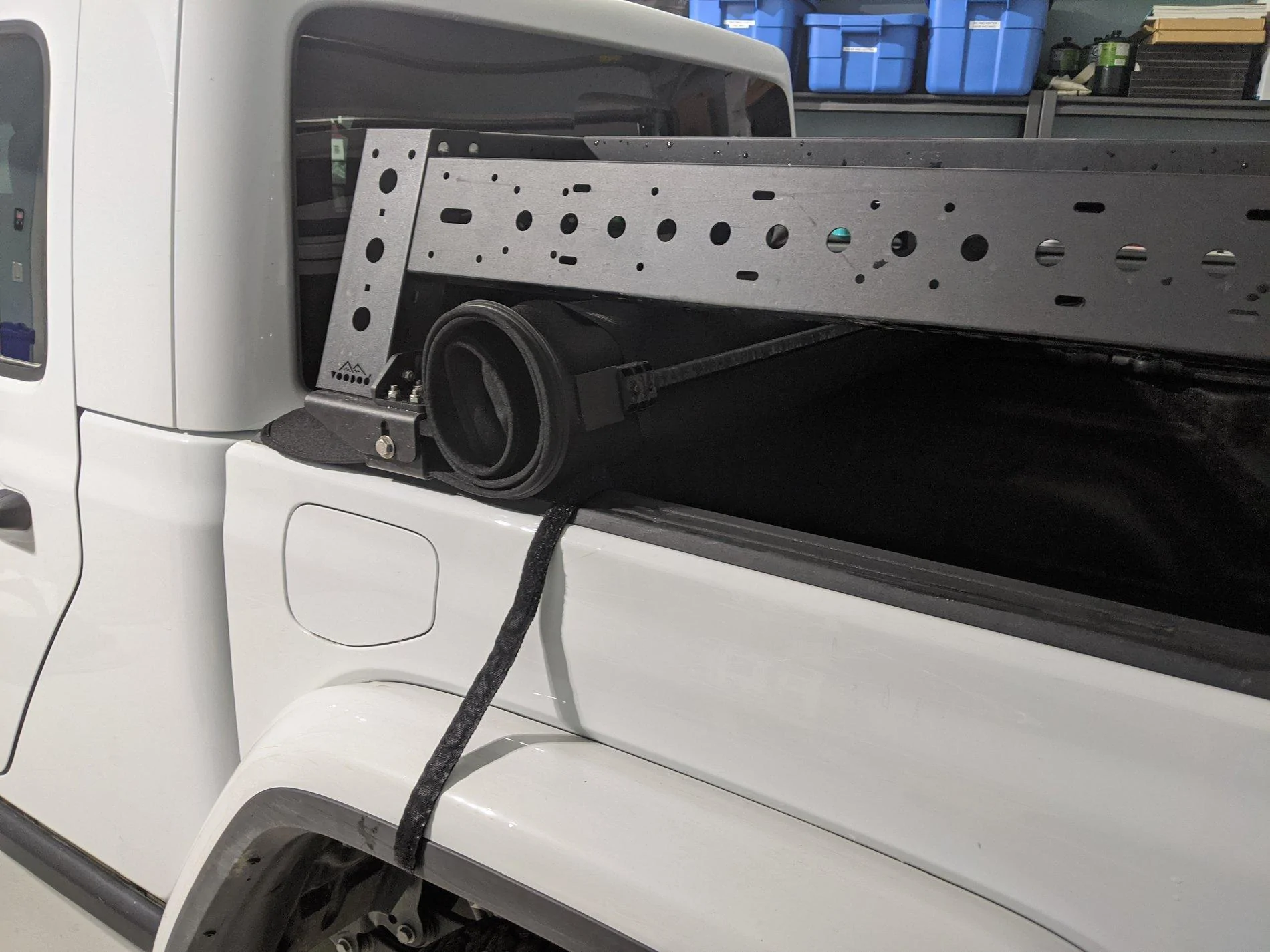

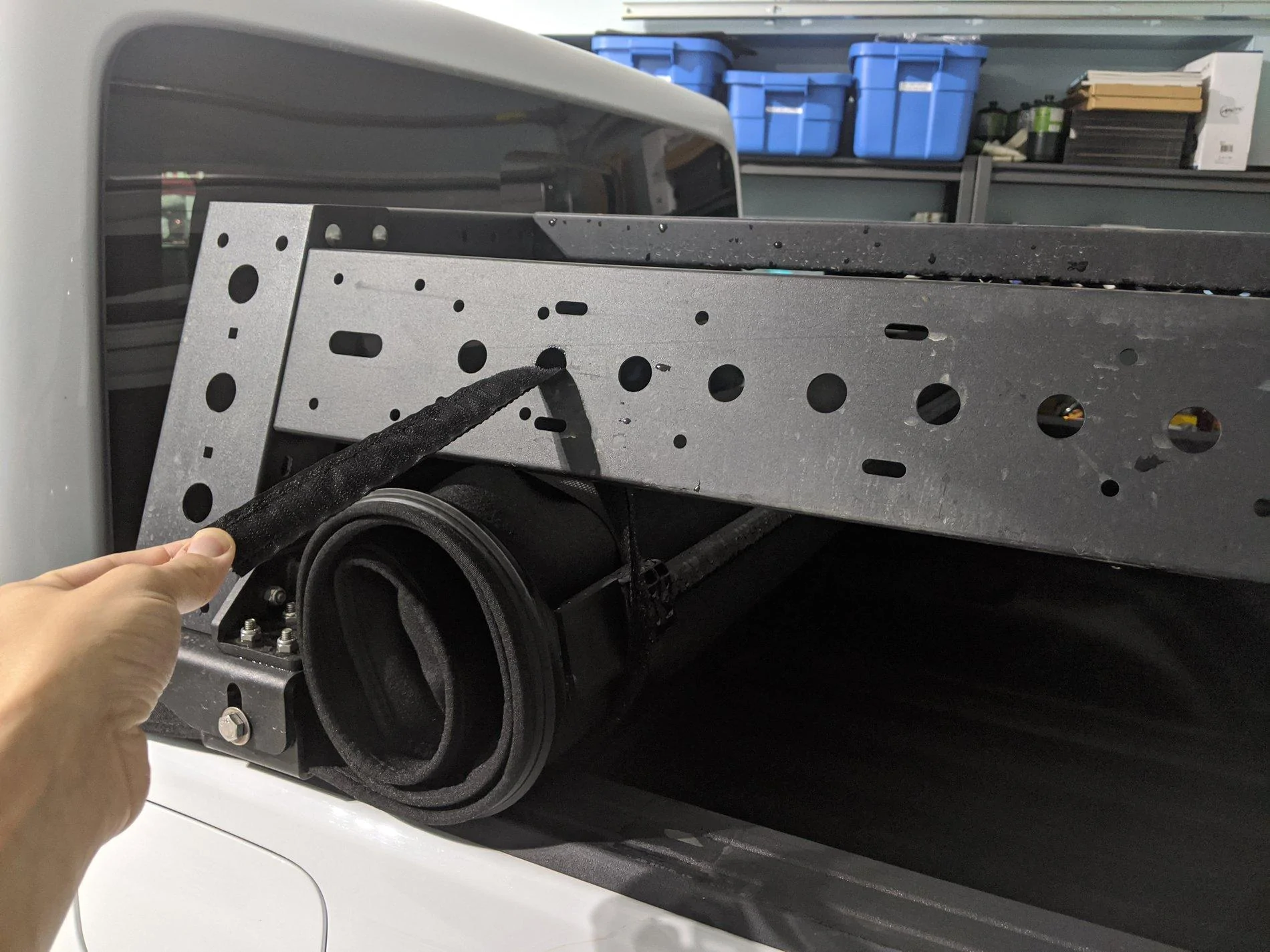

I turned it around, it does look a bit odd. But then you can unlock it and push it through the mounting plate and then roll it up. I am planning to get some extended Velcro so I can reuse the old straps but it works quite well.

But I do agree the, instructions are very vague but the over all build quality is really nice. I have a RTT on the way so well see when that arrives.


OP
nortski3

nortski3

Member
First Name
Andrew
Joined
Apr 25, 2019
Messages
22
Reaction score
35
Location
Iowa
Vehicle(s)
Jeep Gladiator Rubicon & BMW F800GS
  • Thread starter
  • Thread Starter
  • #9
Found this thread, this is what I actually did. I purchased the Max Modular Rack 10" as well.

I turned it around, it does look a bit odd. But then you can unlock it and push it through the mounting plate and then roll it up. I am planning to get some extended Velcro so I can reuse the old straps but it works quite well.

But I do agree the, instructions are very vague but the over all build quality is really nice. I have a RTT on the way so well see when that arrives.

Do you have the trail rail system on your gladiator? Curious if you do, could you post an up close pic of how the tonneau compatibility brackets and how they mount to the trail rail. I recently swapped my Gladiator (no trail rail) for another Gladiator (with trail rail) and need to reinstall my rack for a camping trip here in the next two weeks but wasn't clear the install instructions for one with the trail rail system.


Blucid

Member
First Name
Denis
Joined
Sep 15, 2020
Messages
18
Reaction score
2
Location
Vancouver // Canada
Website
teamgf.org
Vehicle(s)
2020 "Bright White" Jeep Rubicon Gladiator
Do you have the trail rail system on your gladiator? Curious if you do, could you post an up close pic of how the tonneau compatibility brackets and how they mount to the trail rail. I recently swapped my Gladiator (no trail rail) for another Gladiator (with trail rail) and need to reinstall my rack for a camping trip here in the next two weeks but wasn't clear the install instructions for one with the trail rail system.

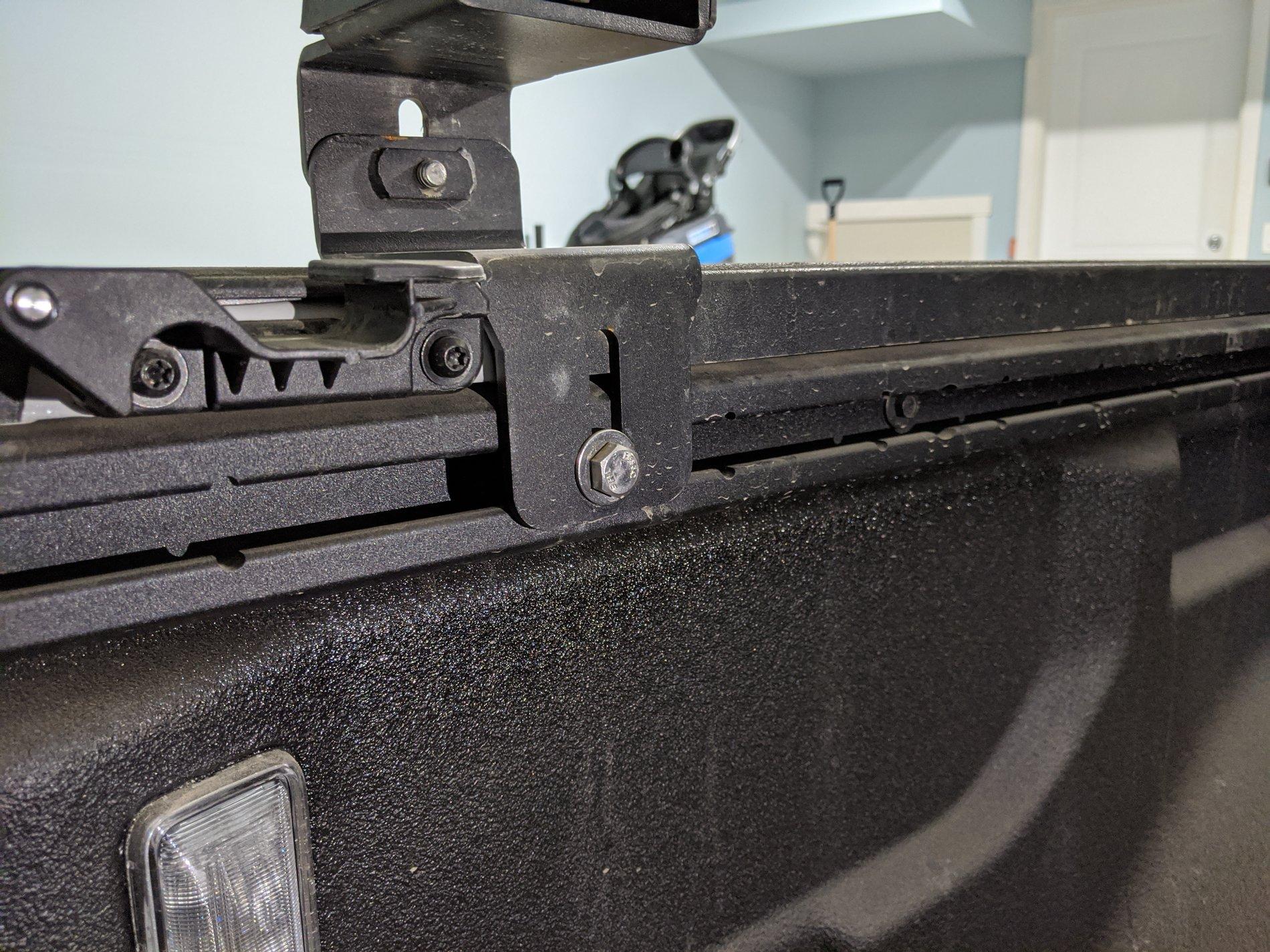

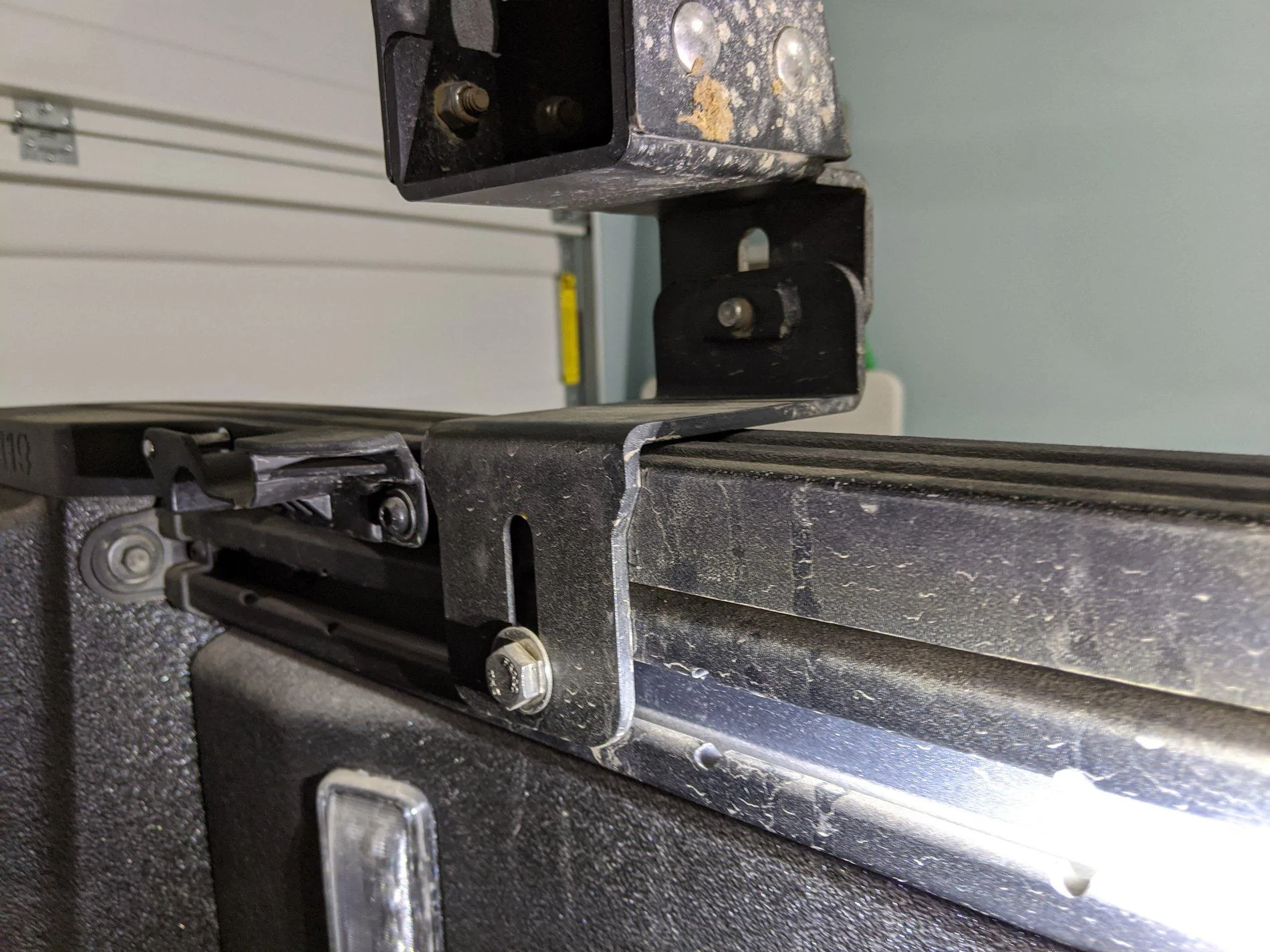

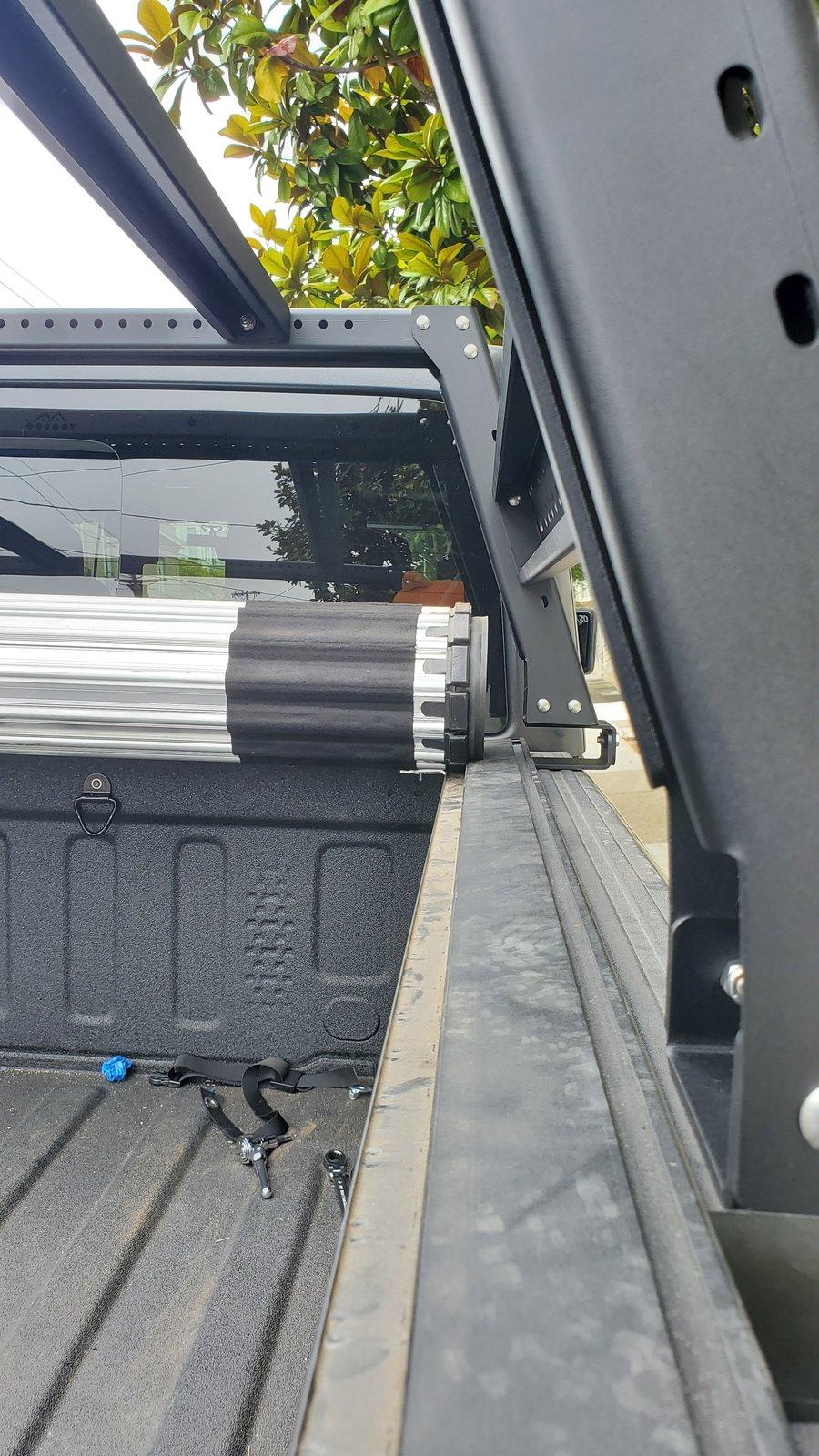

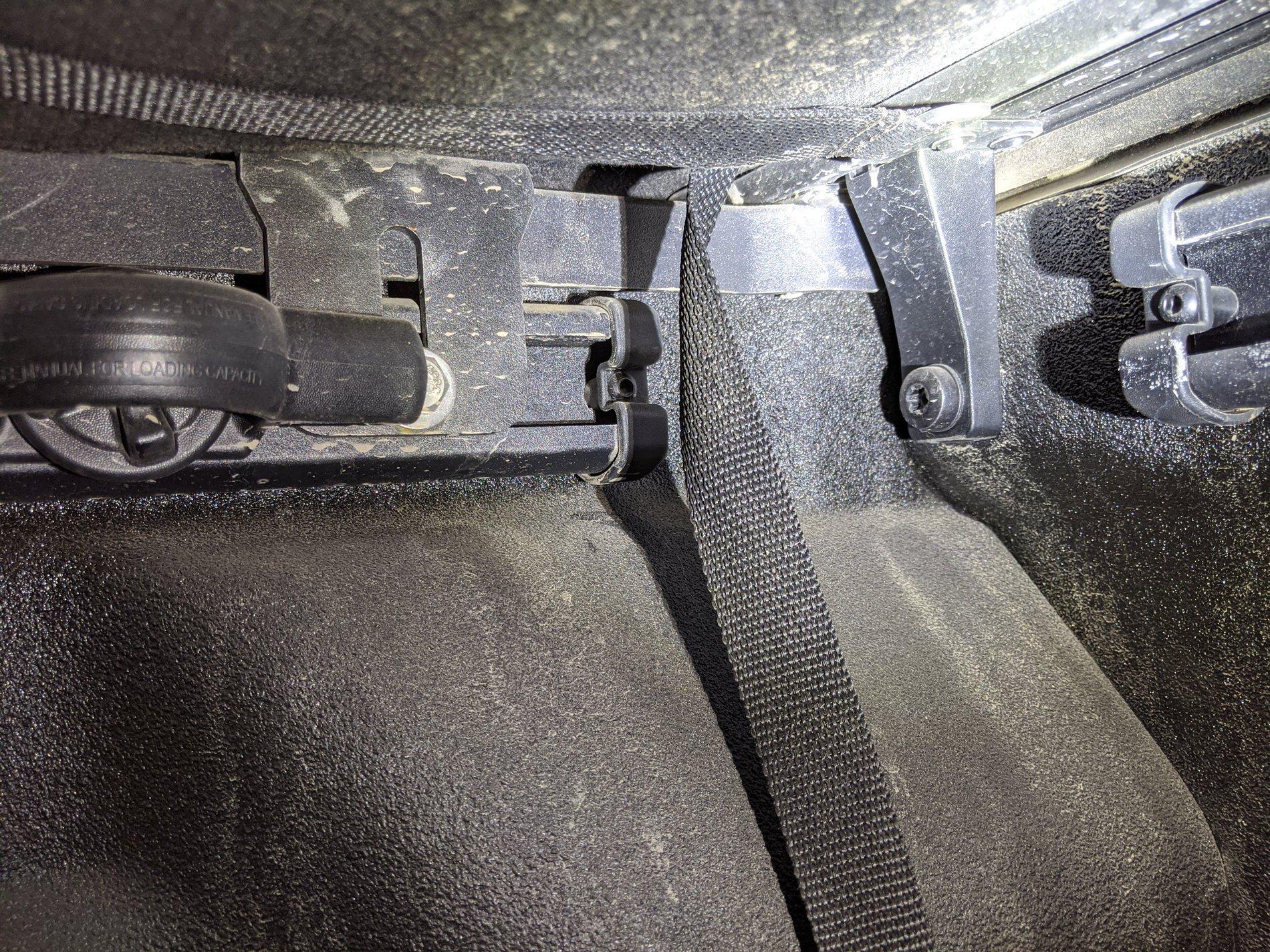

I do have the Gladiator with the trail rail system. It like JUST fits, the brackets close to the cabin are like at the edge of the trail brackets where the opening widens up. Also the other side just rests up again the tonneau cover bracket.



A bit dirty just came back from a trip and have not wiped anything down yet.


Blucid

Member
First Name
Denis
Joined
Sep 15, 2020
Messages
18
Reaction score
2
Location
Vancouver // Canada
Website
teamgf.org
Vehicle(s)
2020 "Bright White" Jeep Rubicon Gladiator
When you are ordering the Max Modular, it does ask you if you have a trail system, because you get metal plates that slide into the track system and they bolt up.


atxatxatx

Well-Known Member
Joined
Aug 13, 2020
Messages
49
Reaction score
48
Location
Austin
Vehicle(s)
JK Wrangler Winter edition (sold), WK2 Grand Cherokee, Gladiator Mojave
I have the 18in rack with a Bak Revolver X4, it rolls up all the way to the cab. Never touches the legs at all.





I really like your setup

OP
nortski3

nortski3

Member
First Name
Andrew
Joined
Apr 25, 2019
Messages
22
Reaction score
35
Location
Iowa
Vehicle(s)
Jeep Gladiator Rubicon & BMW F800GS
  • Thread starter
  • Thread Starter
  • #13
When you are ordering the Max Modular, it does ask you if you have a trail system, because you get metal plates that slide into the track system and they bolt up.
It does ask you, my first gladiator I didn’t have the rail system so I selected no. Now in this new gladiator I have the rail and don’t have the correct hardware. I’m missing the t-nuts that slide into the rail to bolt against.

apparently in other threads I found people use Tundra t-nuts for its rail system in the Mopar trail rail.


Blucid

Member
First Name
Denis
Joined
Sep 15, 2020
Messages
18
Reaction score
2
Location
Vancouver // Canada
Website
teamgf.org
Vehicle(s)
2020 "Bright White" Jeep Rubicon Gladiator
It does ask you, my first gladiator I didn’t have the rail system so I selected no. Now in this new gladiator I have the rail and don’t have the correct hardware. I’m missing the t-nuts that slide into the rail to bolt against.

apparently in other threads I found people use Tundra t-nuts for its rail system in the Mopar trail rail.

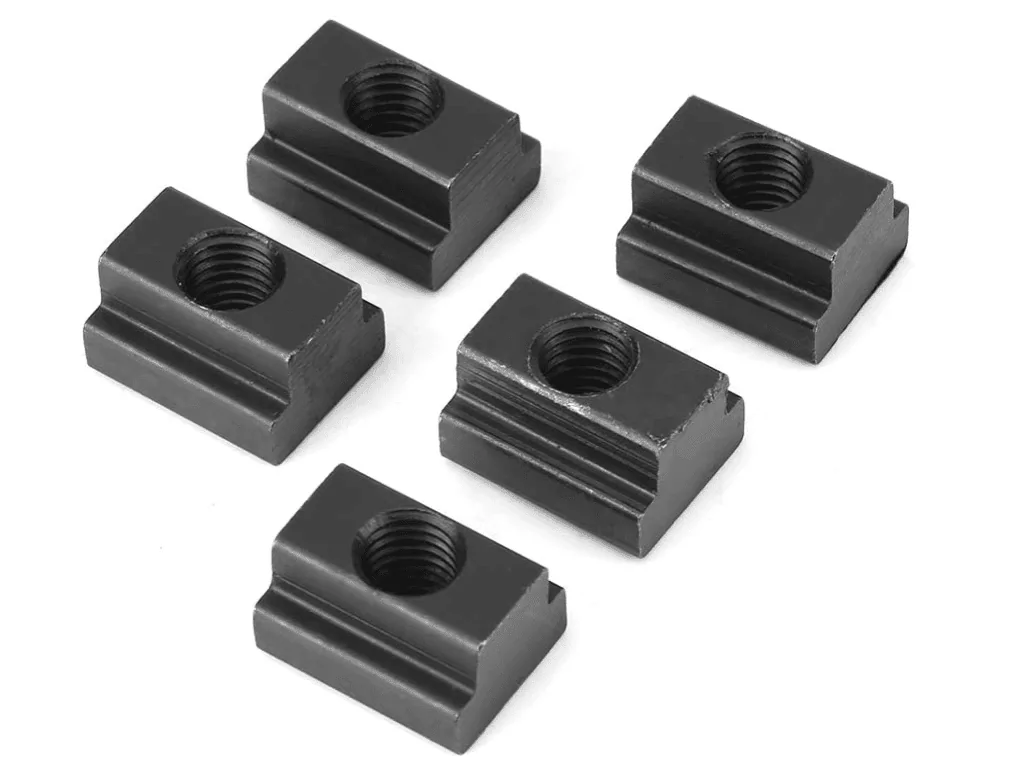

Yeah, I understand I mean you could give them a shout and see if they would send you some? I found these on amazon, and thats exactly how they look like not sure about the thread.
