OFFMAPoverland's Gladiator Rubicon Build & Trip Journal

OP
Oscar Indy

Oscar Indy

Staff member
Moderator
First Name
Oscar
Joined
Aug 21, 2019
Messages
1,131
Reaction score
1,072
Location
Utah
Website
offmapoverland.com
Vehicle(s)
JTR
  • Thread starter
  • Thread Starter
  • #31
Any more pics specifically showing the shell on? From back?
Not currently. I'll be doing a walk around video once it is complete. Lots of little things I'm working on to get it set up for our first big trip coming up fast. There will be a video from today posted to our youtube at some point shortly that will have more angles of the top.



Advertisement




smlobx

Well-Known Member
First Name
Eddie
Joined
Jun 28, 2018
Messages
1,234
Reaction score
1,608
Location
Smith Mt. Lake, VA and OBX
Vehicle(s)
WK2 Ecodiesel, F-350 Diesel, Gladiator Rubicon, GT3 RS, 986S
Occupation
Semi retired consultant


Broke in the 4wd drive today.
Impromptu day trip found some amazing views just a short drive from home.
I love Utah! You are a very lucky person my friend!
Is that the Alu-Cab canopy? Is this from a Colorado?
Thanks>

OP
Oscar Indy

Oscar Indy

Staff member
Moderator
First Name
Oscar
Joined
Aug 21, 2019
Messages
1,131
Reaction score
1,072
Location
Utah
Website
offmapoverland.com
Vehicle(s)
JTR
  • Thread starter
  • Thread Starter
  • #33
I love Utah! You are a very lucky person my friend!
Is that the Alu-Cab canopy? Is this from a Colorado?
Thanks>
I actually got it off a Brute so no idea what else it fits. It's a really low serial number.


smlobx

Well-Known Member
First Name
Eddie
Joined
Jun 28, 2018
Messages
1,234
Reaction score
1,608
Location
Smith Mt. Lake, VA and OBX
Vehicle(s)
WK2 Ecodiesel, F-350 Diesel, Gladiator Rubicon, GT3 RS, 986S
Occupation
Semi retired consultant
I actually got it off a Brute so no idea what else it fits. It's a really low serial number.
Cool!
A week or so ago I ordered a black one for the Gladiator. It should come in in January or February. I got a couple of the extras with it so I’m stocked to see how it comes out!


nylgt56

Member
Joined
Sep 4, 2019
Messages
6
Reaction score
7
Location
Colorado
Vehicle(s)
03 Jeep TJ, 20 Jeep JT
That alucab fits older Toyota pickups. 88-92 if I recall.

Looks good though! Glad it worked out.

OP
Oscar Indy

Oscar Indy

Staff member
Moderator
First Name
Oscar
Joined
Aug 21, 2019
Messages
1,131
Reaction score
1,072
Location
Utah
Website
offmapoverland.com
Vehicle(s)
JTR
  • Thread starter
  • Thread Starter
  • #36

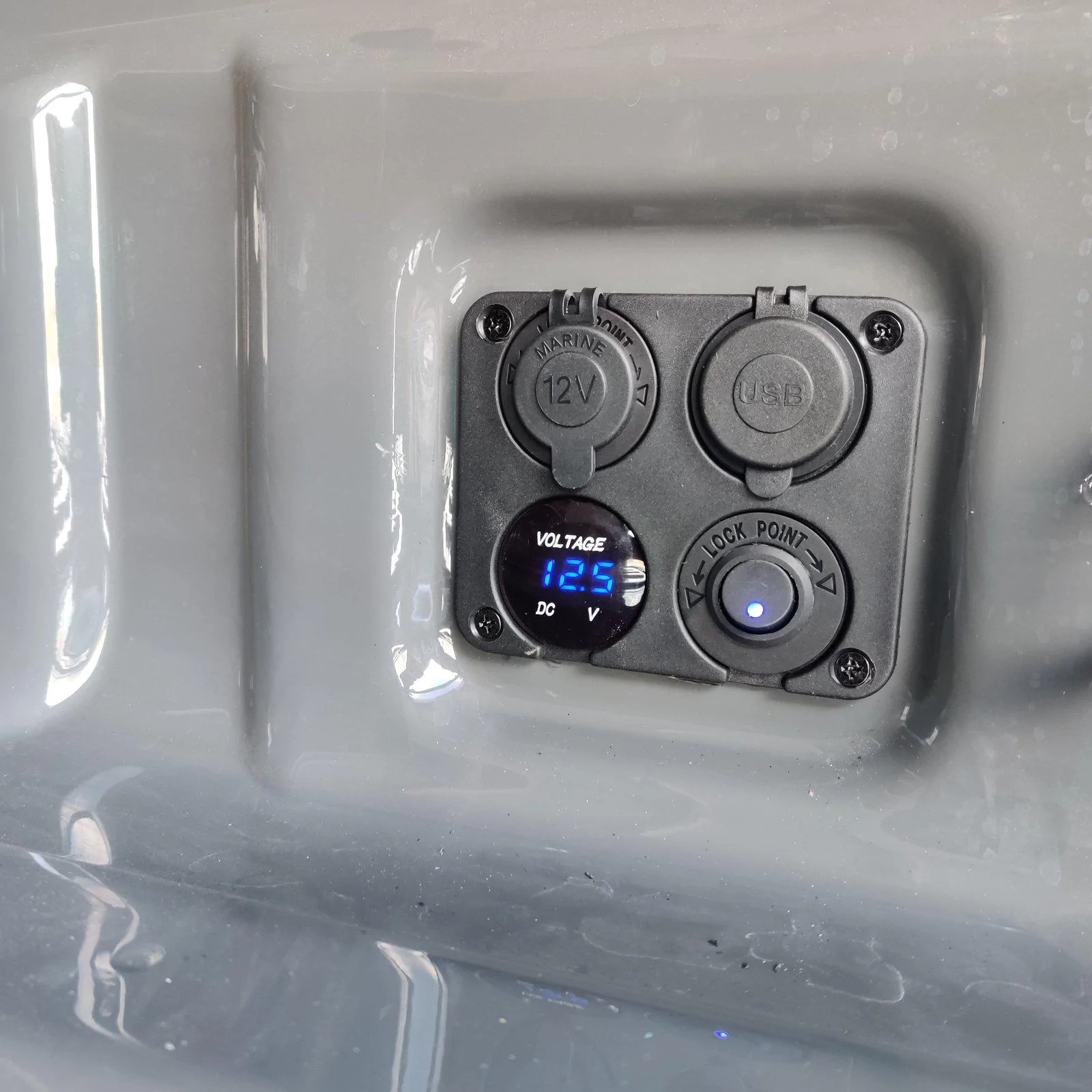

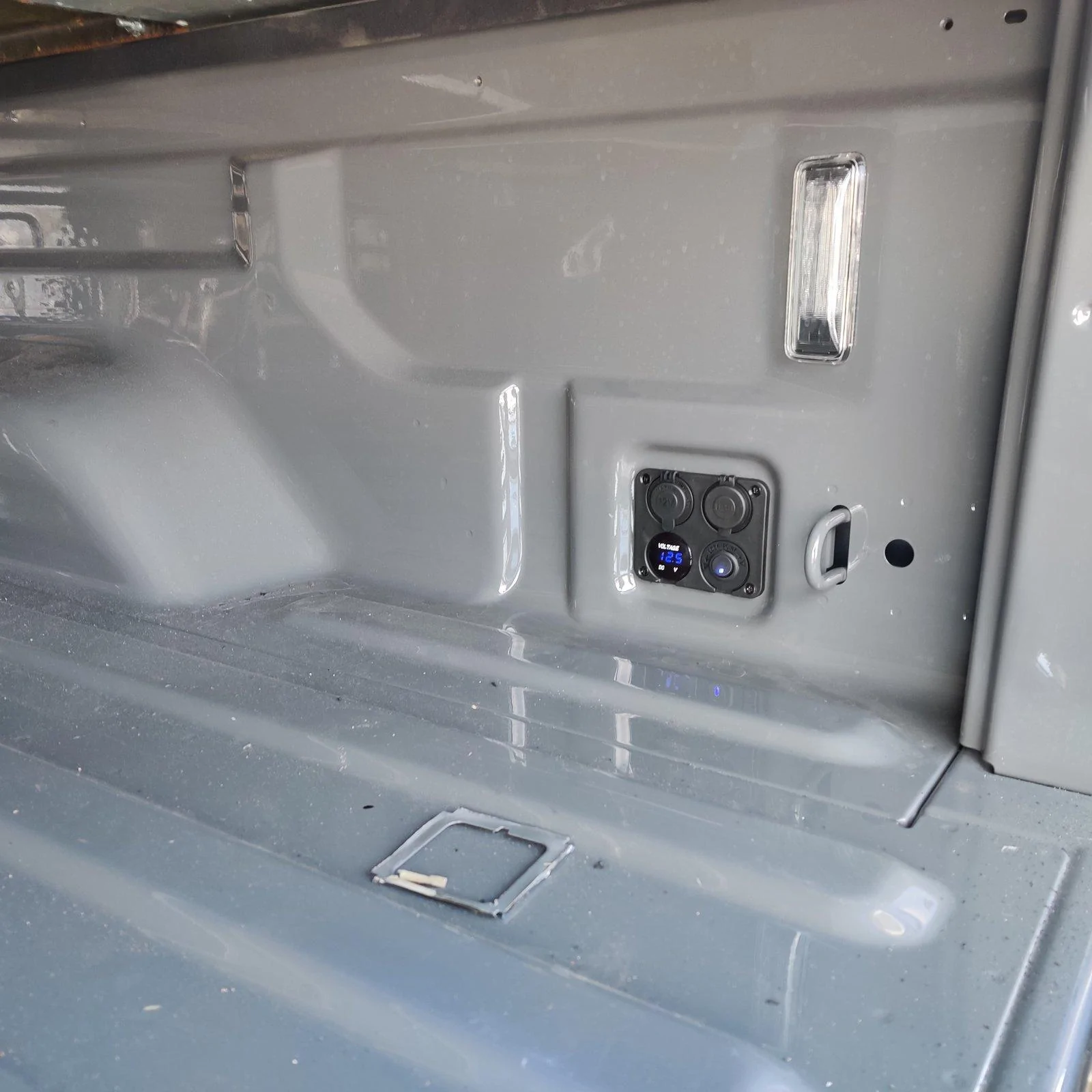

Fridge power!!!!


smlobx

Well-Known Member
First Name
Eddie
Joined
Jun 28, 2018
Messages
1,234
Reaction score
1,608
Location
Smith Mt. Lake, VA and OBX
Vehicle(s)
WK2 Ecodiesel, F-350 Diesel, Gladiator Rubicon, GT3 RS, 986S
Occupation
Semi retired consultant
Any chance you could do a write up on how you ran the wires? What gauge etc?

OP
Oscar Indy

Oscar Indy

Staff member
Moderator
First Name
Oscar
Joined
Aug 21, 2019
Messages
1,131
Reaction score
1,072
Location
Utah
Website
offmapoverland.com
Vehicle(s)
JTR
  • Thread starter
  • Thread Starter
  • #38
Any chance you could do a write up on how you ran the wires? What gauge etc?

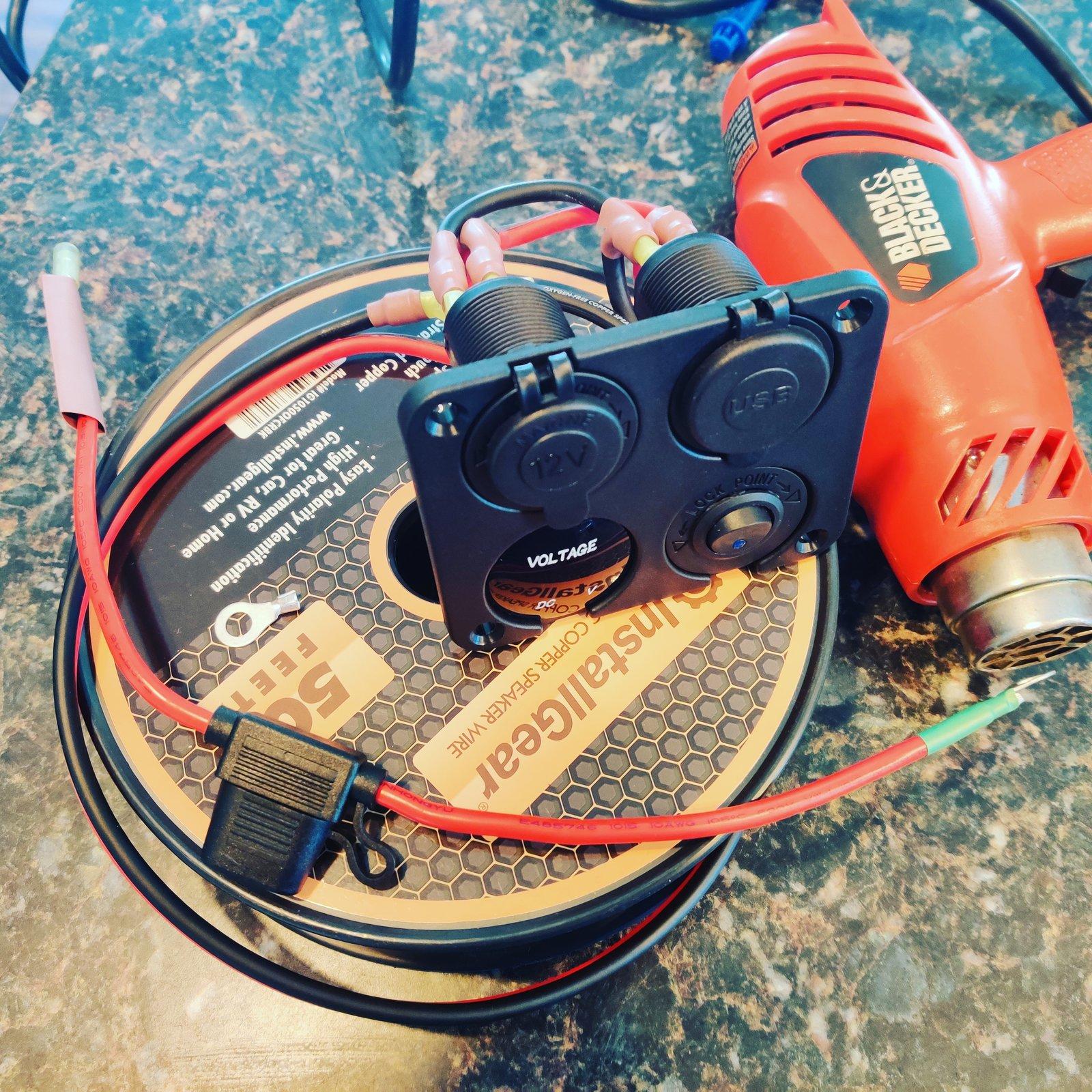

For the distance you want 10ga.
When you pop the cover off there are four square holes that the factory inverter plug screws into. You need to cut out the hole to outside of the holes to fit the plug. Some trimming of the thumb screws that hold the plugs in is required to fit this new enlarged hole. That piece cut out is in the picture above.

After that it's just a matter of ziptying to the factory harness that runs toward the front of the truck and following it to the battery. Here I used ring terminals to hit the main battery and one of the grounding studs near the fender. Used a 40amp fuse near the battery to boot.

OP
Oscar Indy

Oscar Indy

Staff member
Moderator
First Name
Oscar
Joined
Aug 21, 2019
Messages
1,131
Reaction score
1,072
Location
Utah
Website
offmapoverland.com
Vehicle(s)
JTR
  • Thread starter
  • Thread Starter
  • #39

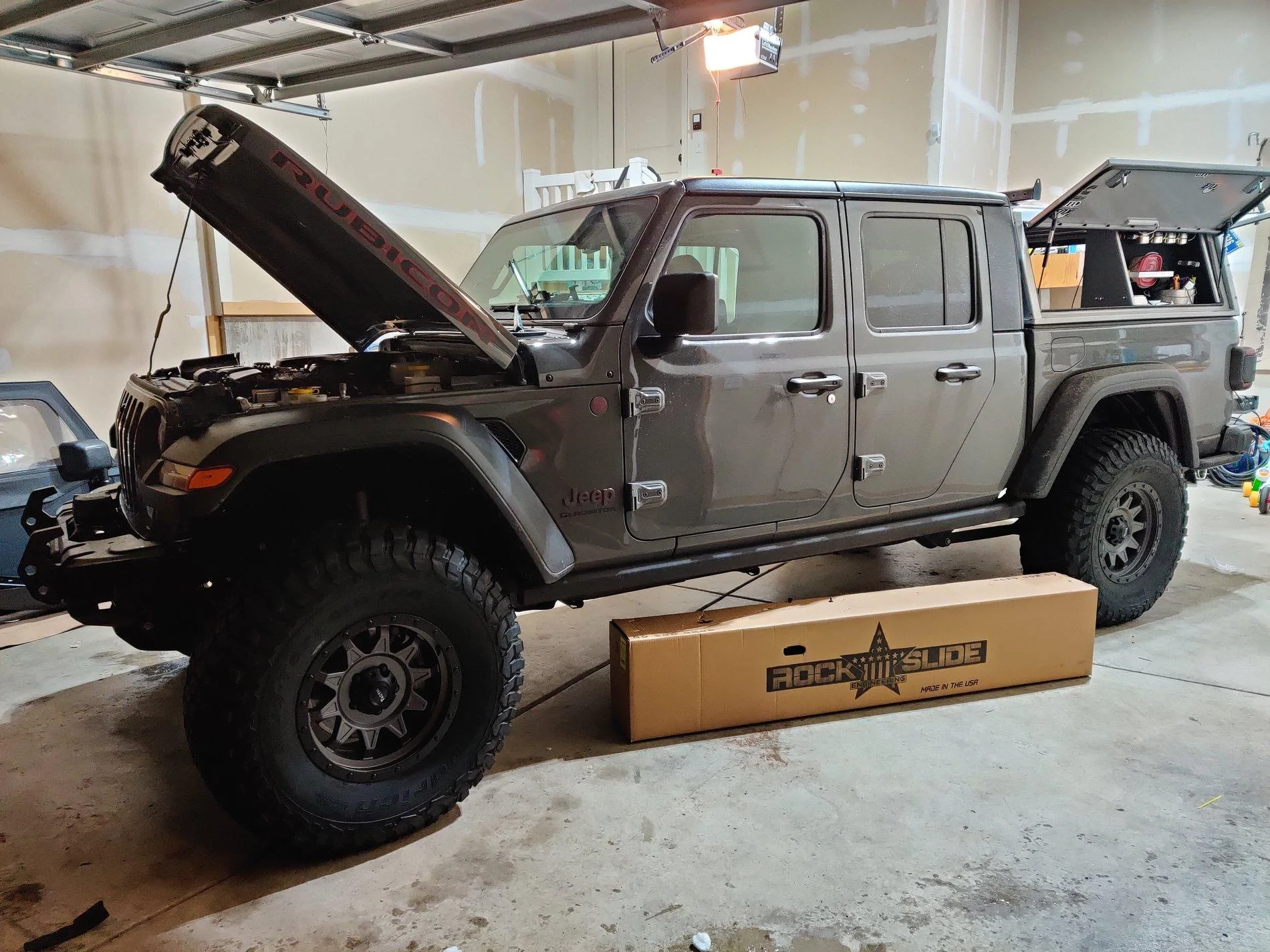

RSE slider steps going on shortly.


OP
Oscar Indy

Oscar Indy

Staff member
Moderator
First Name
Oscar
Joined
Aug 21, 2019
Messages
1,131
Reaction score
1,072
Location
Utah
Website
offmapoverland.com
Vehicle(s)
JTR
  • Thread starter
  • Thread Starter
  • #40

OP
Oscar Indy

Oscar Indy

Staff member
Moderator
First Name
Oscar
Joined
Aug 21, 2019
Messages
1,131
Reaction score
1,072
Location
Utah
Website
offmapoverland.com
Vehicle(s)
JTR
  • Thread starter
  • Thread Starter
  • #41

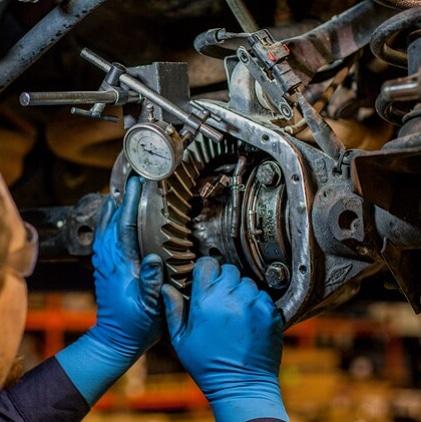

4.88 gears going in at Axis Driveline near Salt Lake. Get her back in the morning.


Moriarty

Well-Known Member
First Name
Ken
Joined
Apr 27, 2019
Messages
45
Reaction score
51
Location
Stagecoach, NV
Vehicle(s)
2015 Jeep JKUR

4.88 gears going in at Axis Driveline near Salt Lake. Get her back in the morning.
Look forward to your driving experience with the 4.88s & 37s.

We had Derek install 37 Nitto muds on AEV Borah wheels.

Like your build!

OP
Oscar Indy

Oscar Indy

Staff member
Moderator
First Name
Oscar
Joined
Aug 21, 2019
Messages
1,131
Reaction score
1,072
Location
Utah
Website
offmapoverland.com
Vehicle(s)
JTR
  • Thread starter
  • Thread Starter
  • #43
Look forward to your driving experience with the 4.88s & 37s.

We had Derek install 37 Nitto muds on AEV Borah wheels.

Like your build!

Well I posted a video about how well it worked to our YouTube channel just a few minutes ago. Added some metal cloak diff covers too. Check it out let me know what ta think about my opinion of the regear.

EDIT:
Here is the link.

Last edited:

Moriarty

Well-Known Member
First Name
Ken
Joined
Apr 27, 2019
Messages
45
Reaction score
51
Location
Stagecoach, NV
Vehicle(s)
2015 Jeep JKUR
Good video! Answered the questions I would of had. I was looking at 4.88s for ours down the road, your video confirmed it.

If you get a chance to make a video of your phone/tablet mounts, that would be interesting.

Safe travels

OP
Oscar Indy

Oscar Indy

Staff member
Moderator
First Name
Oscar
Joined
Aug 21, 2019
Messages
1,131
Reaction score
1,072
Location
Utah
Website
offmapoverland.com
Vehicle(s)
JTR
  • Thread starter
  • Thread Starter
  • #45
Good video! Answered the questions I would of had. I was looking at 4.88s for ours down the road, your video confirmed it.

If you get a chance to make a video of your phone/tablet mounts, that would be interesting.

Safe travels
I will when I get them dialed in. Doing a full walk around video in the future.
