Touchscreen, Radio, & HVAC Lag Fix

[g2020]

This fix applies to:

- Uconnect touchscreen display / infotainment system
- Controls below touchscreen

Result: Rapid boot of touchscreen and related controls, including radio and air conditioning

This fix has completely resolved the occasional delay and/or flutter of the touchscreen and related components. At first, this problem was not annoying enough to bother fixing. Over the course of six years, the delay gradually increased from a few seconds to a minute or two. This problem did not affect starting the vehicle, but it did affect radio volume and air conditioning. The steering wheel volume button worked (and still works) fine, so I knew that this had to be an "ICS" problem. I didn't find "ICS" until I read the fuse & relay list carefully. There is only one fuse with "ICS" listed (no relays).

Fuse:
F105 ICS/HVAC 10A

ICS: Integrated Center Stack (including controls below touchscreen)
Fuse size: Micro2 / Micro II
Fuse amps (current): 10A

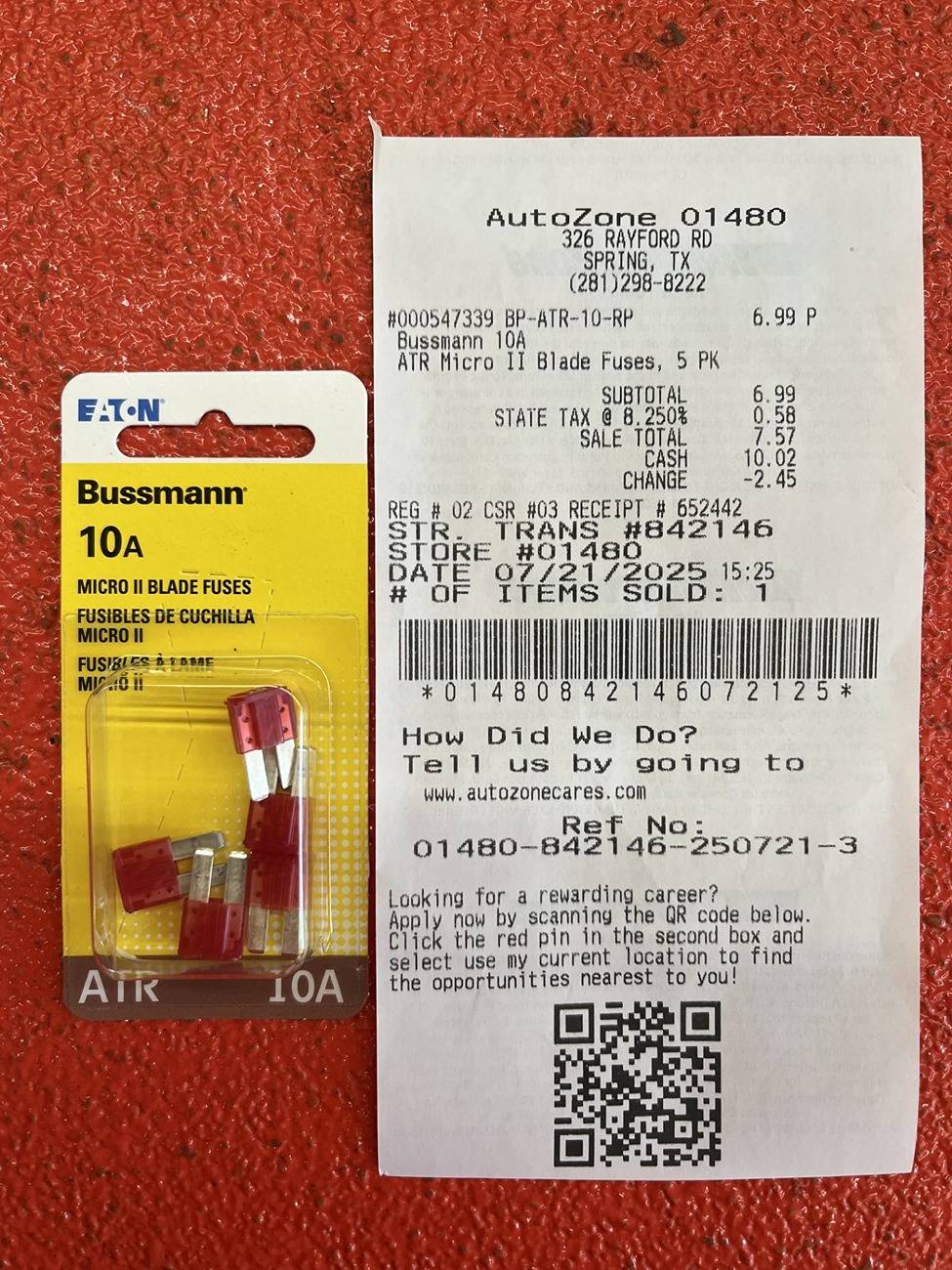

See attached photo of the box of 10A fuses that I purchased

- Also see Related fuse below

Any 10A Micro2 fuse should work. I stopped looking for a spare 10A fuse, in the PDC / fuse box, after checking about eight 10A fuses.

Of course, the correct fuse slot on your vehicle might be different.

The fuses shown in the attachment are 32V (standard).

CAUTION: Disconnect negative and positive cables from battery terminals before removing and replacing fuse or relay

I used needle-nose pliers to (carefully) remove the fuse. Tweezers might also do the trick. Meanwhile, I discovered that there is a yellow plastic fuse puller fastened to the power distribution center (PDC), or fuse box.

Two options for fix:
1. Replace with new fuse (inexpensive)
2. Wipe off brown residue on end of each prong (free)

When the vehicle is running, current is constantly running through fuse F105. I figure that the useful life of this 10A fuse is about five or six years. Then it needs to be replaced or wiped off. I replaced this fuse because I wanted to have a small stash of extra 10A fuses in my vehicle. However, the wipe-off method also works.

I was tempted to wipe off every fuse and relay, but this is probably overkill. In the case of a fuse or a relay, if it ain't broke, don't fix it.

I thought that the high humidity in the Houston area might be a factor, but this issue also occurred with Maximus Gladius in Calgary. After experiencing the same issue with his vehicle, he wiped off the fuse and got the same successful result.

Related fuse:
F97 RADIO/TBM 20A

- This is the fuse for the Uconnect touchscreen display and telematics (box) module
- Cleaning this fuse also helps the touchscreen and radio turn on more quickly
- Pulling/removing this fuse disables radio, touchscreen, and TBM (telematics)
- Disabling telematics also disables 1) ability to turn PASSENGER AIRBAG on or off, 2) ASSIST button, and 3) SOS button; these three buttons are located above the rearview mirror
- Telematics can benefit both the vehicle owner and Stellantis, but sharing data on vehicle condition & usage is also a privacy concern

- Telematics data path: Vehicle >>> AT&T network >>> SiriusXM >>> Stellantis/Jeep​

- Finding the TBM can be challenging
- MOPAR part 68379838AB Telematics Module is correct for my 2020 Gladiator Sport, but the part number (and location of TBM in vehicle) can be different for other Gladiator models

Related Posts

2021 JT 3.6 Fuses - Diagram, Location, Description, Count & Spares
OP: @RubiDukkie
The go-to post for locations of fuses and relays

In-dash advertisement opt-out
OP: @Sweetums
- Opt Out of In-Vehicle Message (IVM) technology
- Permanently end pop-up advertisements on Uconnect touchscreen display / infotainment system

Other Posts by g2020

Oils, Fluids & Filters -- Lists & Guides For Jeep Gladiator
This post is a collection of links to my articles on fluids & filters for a Jeep Gladiator

Attachment

File name: Eaton Bussmann 10A Micro II Fuses ATR BPATR-10-RP (UPC 0 51712 49940 8) AutoZone 2025-07-21.jpg

Sponsored



[PuddleJumper]

so was the old fuse only dirty or did it look damaged?



[g2020]

so was the old fuse only dirty or did it look damaged?

Good question. The old fuse was only dirty. I had never replaced this type of fuse before, so I opted to buy a 5-pack of new fuses ($7.57 with tax) and replace the old fuse.



[PuddleJumper]

Good question. The old fuse was only dirty. I had never replaced this type of fuse before, so I opted to buy a 5-pack of new fuses ($7.57 with tax) and replace the old fuse.

Ahh gotcha. Thx for clarifying



[Maximus Gladius]

this issue also occurred with Maximus Gladius in Calgary. After experiencing the same issue with his vehicle, he wiped off the fuse and got the same successful result.

Yup! True story. Had a 30 -40 second glitch delay going on two years in the radio, AC and all those other buttons in that button cluster so when @g2020 told me he was having issues and fixed it with replacing that 10a fuse, I figured I’d go in there and pull out the fuse and look at it.

It had a light tan residue on the prongs so I wiped it off, stucker back in and no delays now! My wife is no longer pissed getting in the truck, starting it up only to have to listen to my blaring music for 40 seconds before she can put on her music.
