Sorry, I do not have photos of the underside of the floor. I took it out last weekend to install risers on the front passenger seat and could have taken some then...but had no reason to do so at that time. Basically, I cut a 50.5" x 27.5" piece of plywood, laid it in the back and carefully marked the locations for the 3 bolts that hold it in place and for clearance around the console and bolt box..

I unbolted the larger seat and tried to remove it. That's when I discovered the 2 bolts holding the seats together. It's much easier to remove each seat separately.

Thanks for the additional info.

Can you tell us:
* How you bolted it in place? ("the 3 bolts that hold it in place")
* Is this correct: You unbolted the entire back seat (both pieces) from the floor and then you found the 2 bolts holding the seats together and you removed them to separate the seats?

Thanks again!

Sponsored



[WhatExit?]

Many thanks to Rokon for his help and info on removing the Rear Seats. FYI: I've posted a thread showing the process here: https://www.jeepgladiatorforum.com/forum/threads/rear-seats-removal.22980/

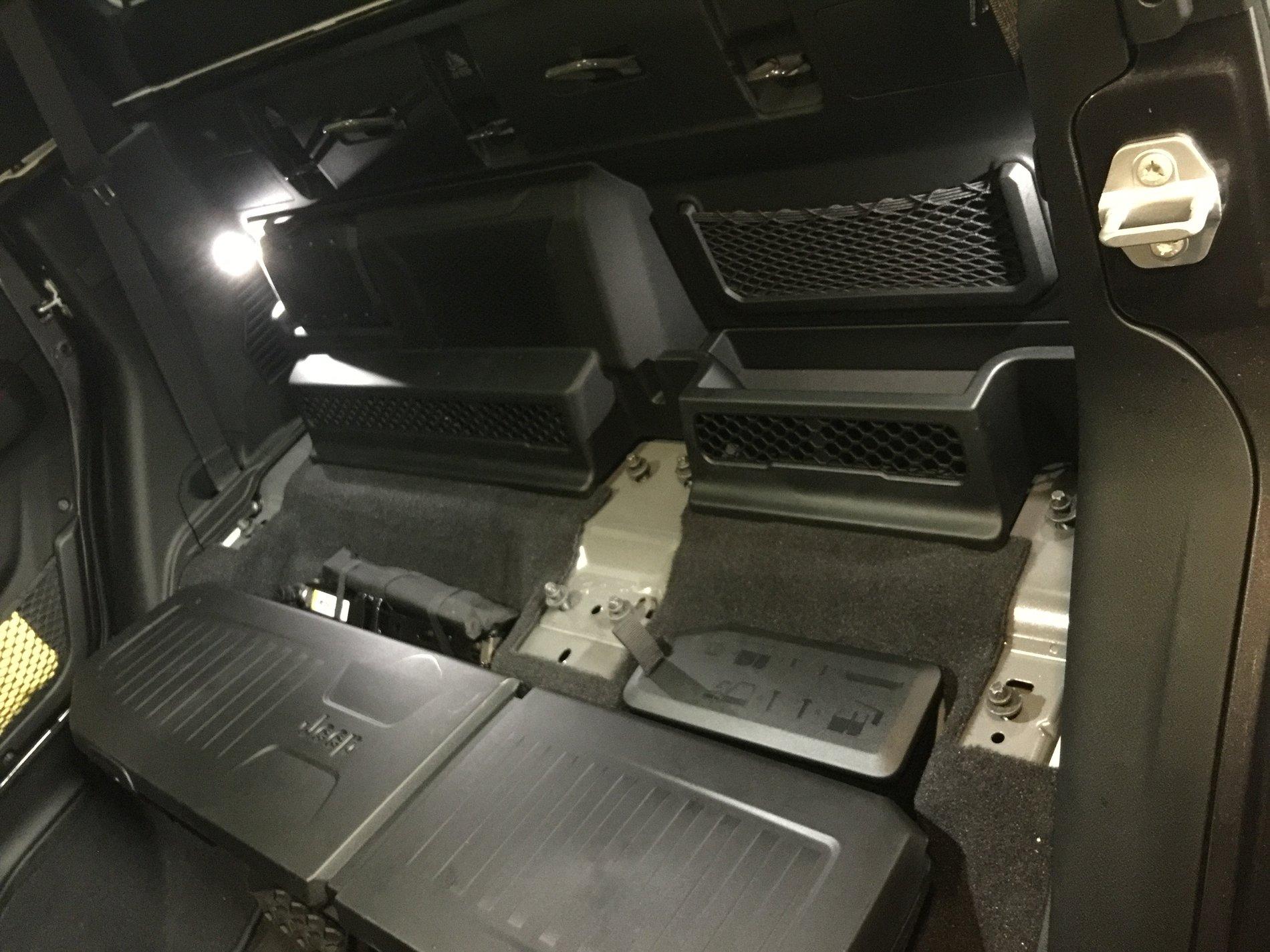

Here's what my Gladiator Rubicon Launch Edition looks like without the Rear Seats



[smlobx]

Thanks for the additional info.

Can you tell us:
* How you bolted it in place? ("the 3 bolts that hold it in place")
* Is this correct: You unbolted the entire back seat (both pieces) from the floor and then you found the 2 bolts holding the seats together and you removed them to separate the seats?

Thanks again!

Interested in more details as well...



[WhatExit?]

Interested in more details as well...

I asked those questions before I removed the Rear Seats. The answers are all in my thread on Rear Seat Removal process:
https://www.jeepgladiatorforum.com/forum/threads/rear-seats-removal.22980/



[Etoimos]

Great thread and info everyone.
