Fox ATS Stablizer Mounting

[dayusmc]

I know the clamp is not universal. I Guess I have to figure out what tie rod I am going to use before I can buy an ATS and mount. I was considering a Synergy tie rid, but I don't see one that is for the wider Mojave axle. Other companies list 2 different tie rods for the 2 different width rears.

Sponsored



[bailer]

I’ve got the Mopar lift on my ‘22 Rubicon. I purchased the Steersmarts Yeti XD trackbar and tierod, along with the Fox ATS with high mount bracket, all from Northridge 4x4. It installed easily and I’m happy with the performance. I’m still running the factory draglink, mainly because I like how easy it is to adjust.



[dayusmc]

That is a nice setup. I am considering the same setup or the RPM 2" aluminum tie rod.



[CrazyCooter]

The Synergy tie rod is adjustable to fit both axle widths.

IF you were going to keep the stock tie rod and want to run the stablizrr in the flipped location, the ATS part #983-02-146 is what you need. If you are changing the tie rod, then you have to figure that one out first.



[dayusmc]

I guess I could get the ATS 983-02-146 and Yeti XD JL Stabilizer Relocation Bracket and run it on the OEM tie rod and if I decide to change the tie rod later buy the Yeti tie rod.



[CrazyCooter]

I guess I could get the ATS 983-02-146 and Yeti XD JL Stabilizer Relocation Bracket and run it on the OEM tie rod and if I decide to change the tie rod later buy the Yeti tie rod.

If you use that part number, you should have everything you need in the box? Not sure why you would need that Yeti bracket? Only thing you might need later is a new clamp depending on the diameter of the new tie rod you choose.



[dayusmc]

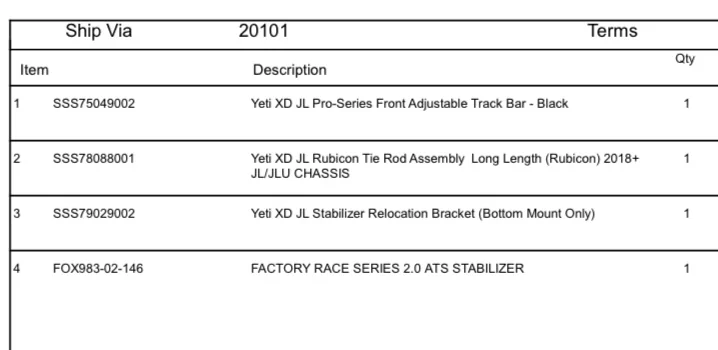

I just ordered the ATS 983-02-146 and the Yeti XD Relocation bracket from Northridge. I will give that a try and see if it works with the stock Tie Rod. I will probably do the Yeti Tie Rod and drag link in the near future. I have to see if I am going to lift it or not...



[dayusmc]

My new Mojave in front of the crashed gladiator...



[Dickster]

I guess I could get the ATS 983-02-146 and Yeti XD JL Stabilizer Relocation Bracket and run it on the OEM tie rod and if I decide to change the tie rod later buy the Yeti tie rod.

I would mount it in oem location for now. The ATS will be the same price and the stuff to relocate it will be the same price.



[dayusmc]

Already ordered it and it is on the way



[dayusmc]

So I went ahead and just ordered all the Steer Smart front end components. Tie Rod, Track Bar, Drag Link, Sector Shaft Brace... I figured might as well just do it now...



[CrazyCooter]

So I went ahead and just ordered all the Steer Smart front end components. Tie Rod, Track Bar, Drag Link, Sector Shaft Brace... I figured might as well just do it now...

So now you need the correct sized clamp to fit the tie rod before you can install.



[dayusmc]

The Fox ATS I ordered has the 1-5/8 clamp on it already. So I should be good...
