Go Rhino Xtreme Overland Rack

Jeep10jim

New Member
First Name
JIm
Joined
May 23, 2021
Threads
0
Messages
2
Reaction score
1
Location
Ventura County, CA
Vehicle(s)
1980 Jeep J10
Hey guys, I dont have a JT Gladiator, but I do have a 1980 Jeep J10 pickup :)

Anyway, can one of you guys measure the width of your bed where the rack attaches? I think the JT bed is about the same width as mine. Mine is 57 inches wide at the opening.

Also what is the overall length of the rack? I dont want a full 7ft rack as I have a bed box I want to access.

Thank you. This rack looks to be a great addition to my truck if it fits.
Sponsored



DeezJT

Well-Known Member
First Name
Nate
Joined
Jun 21, 2020
Threads
43
Messages
691
Reaction score
565
Location
San Antonio TX but SoCal raised
Vehicle(s)
Pending
Occupation
Process Engineer

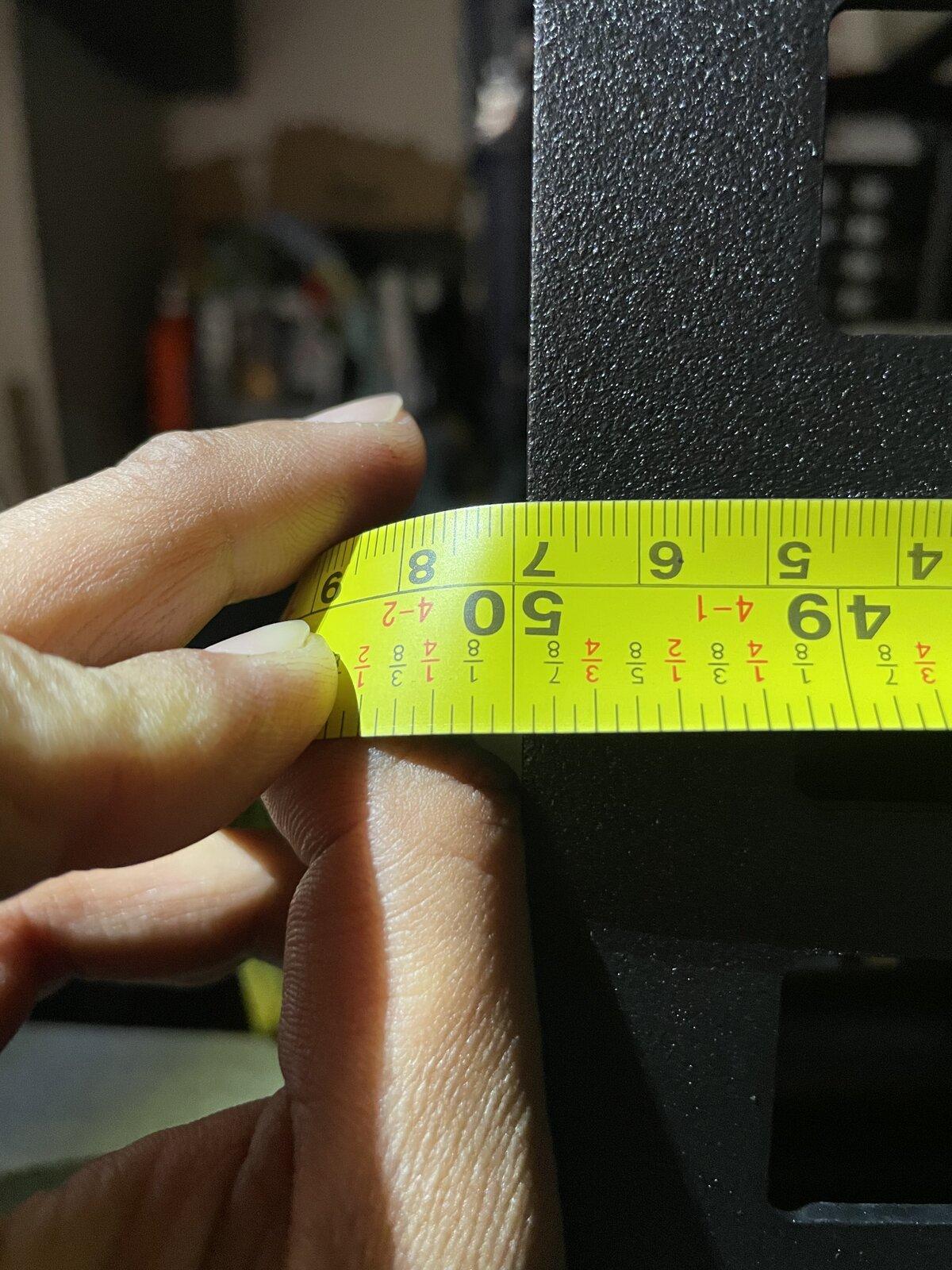

Bar pillar to bar piller is 60”
Bar bracket / to bar bracket WIDTH 61 3/16”
Bar bracket length to bar bracket LENGTH is 58 3/8” (close guesstimate)





Jeep10jim

New Member
First Name
JIm
Joined
May 23, 2021
Threads
0
Messages
2
Reaction score
1
Location
Ventura County, CA
Vehicle(s)
1980 Jeep J10
Bar pillar to bar piller is 60”
Bar bracket / to bar bracket WIDTH 61 3/16”
Bar bracket length to bar bracket LENGTH is 58 3/8” (close guesstimate)

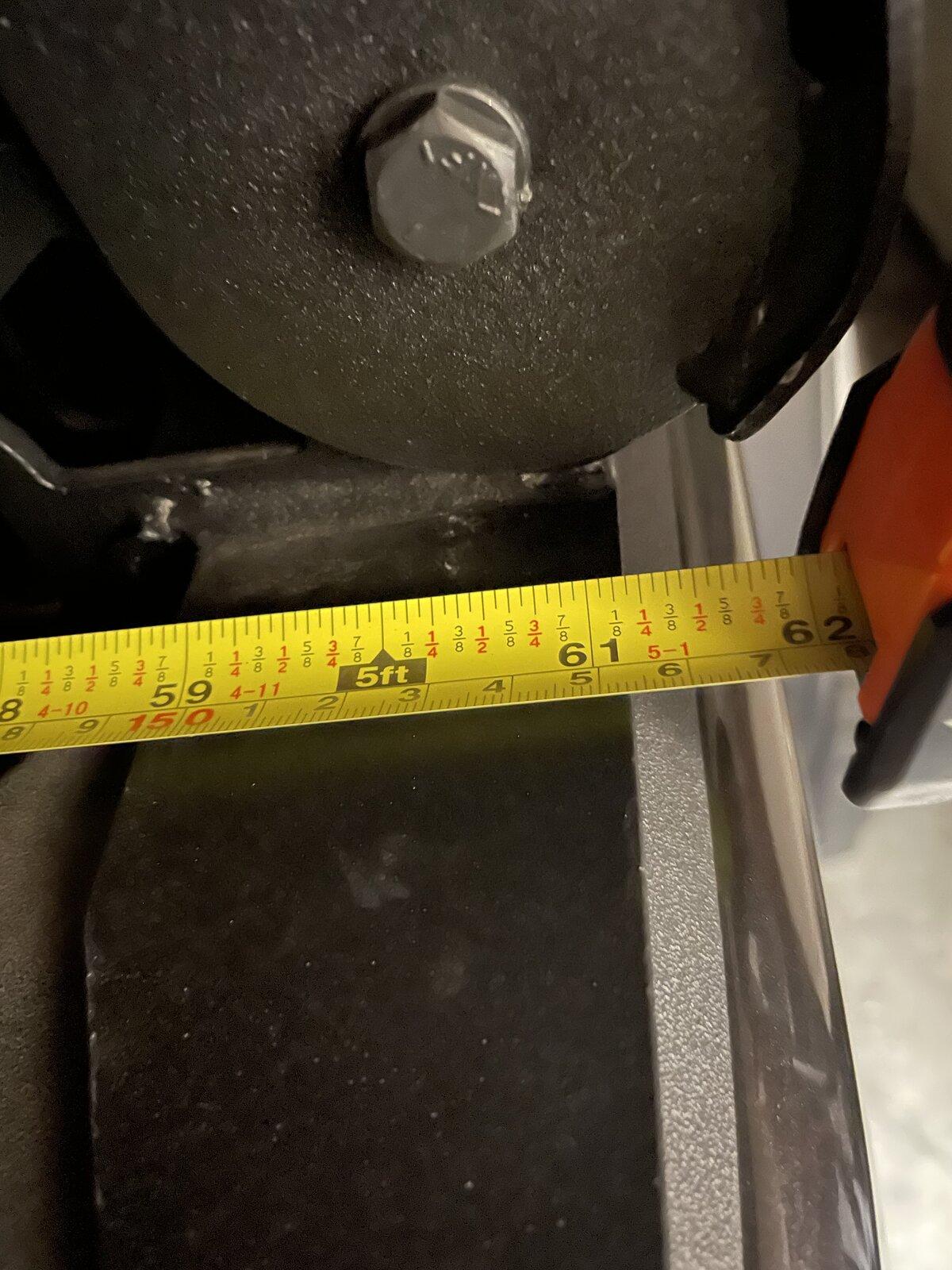

Jeep Gladiator Go Rhino Xtreme Overland Rack 186CD603-1521-4E32-8203-F6D079B3EBBD


Jeep Gladiator Go Rhino Xtreme Overland Rack 186CD603-1521-4E32-8203-F6D079B3EBBD
Thank you for that. One more question please :)
Width of the bed inside edge to inside edge. I read something that it was 56.8 inches wide. Just want to confirm that. And thank you again for getting me that info. Have a great day!


DeezJT

Well-Known Member
First Name
Nate
Joined
Jun 21, 2020
Threads
43
Messages
691
Reaction score
565
Location
San Antonio TX but SoCal raised
Vehicle(s)
Pending
Occupation
Process Engineer
I bought 8 bolts 3/8-16 x 2 1/2” for the table. I will be installing tomorrow. I looked at the instruction manual and it’s a hot mess.

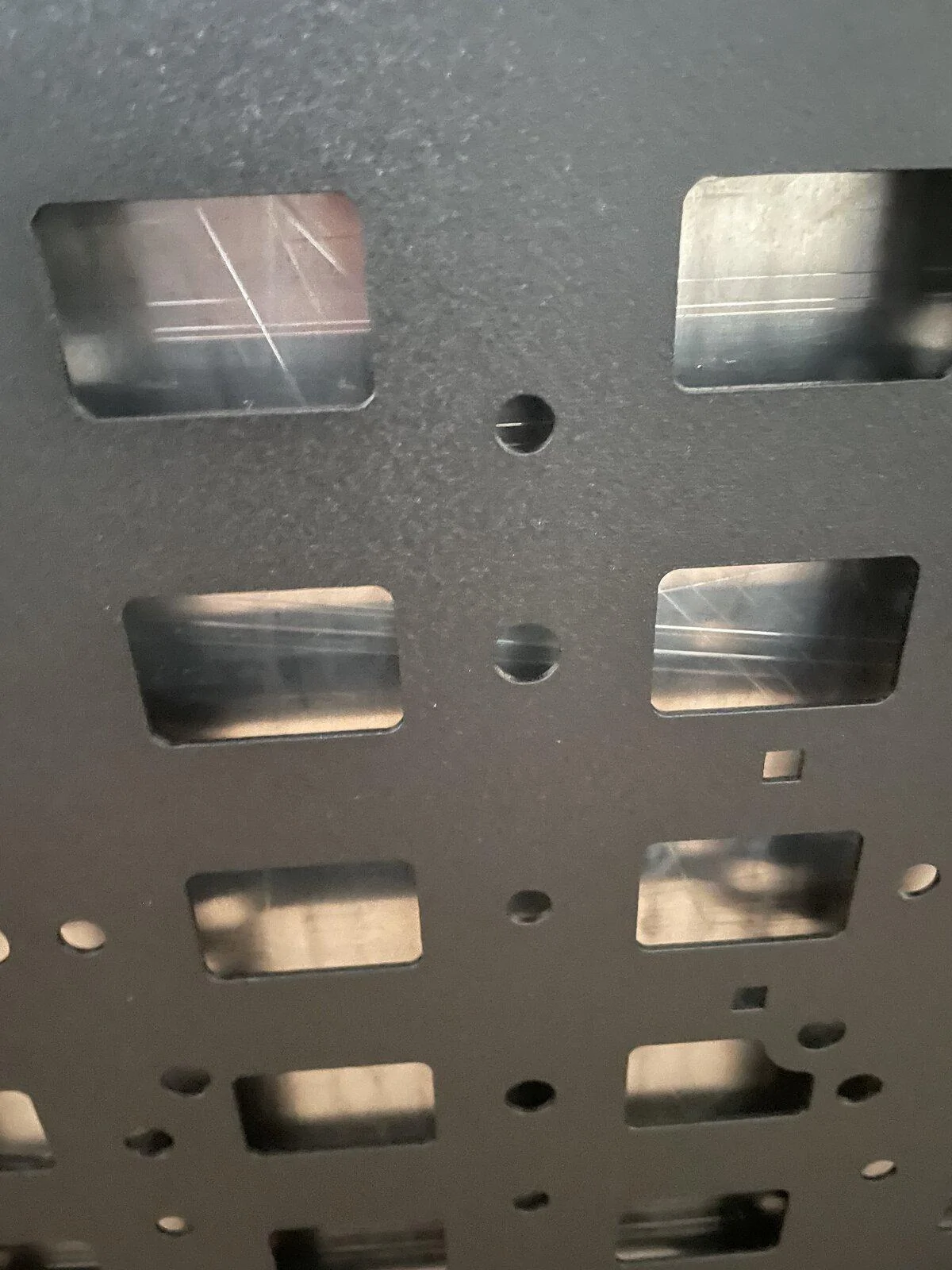

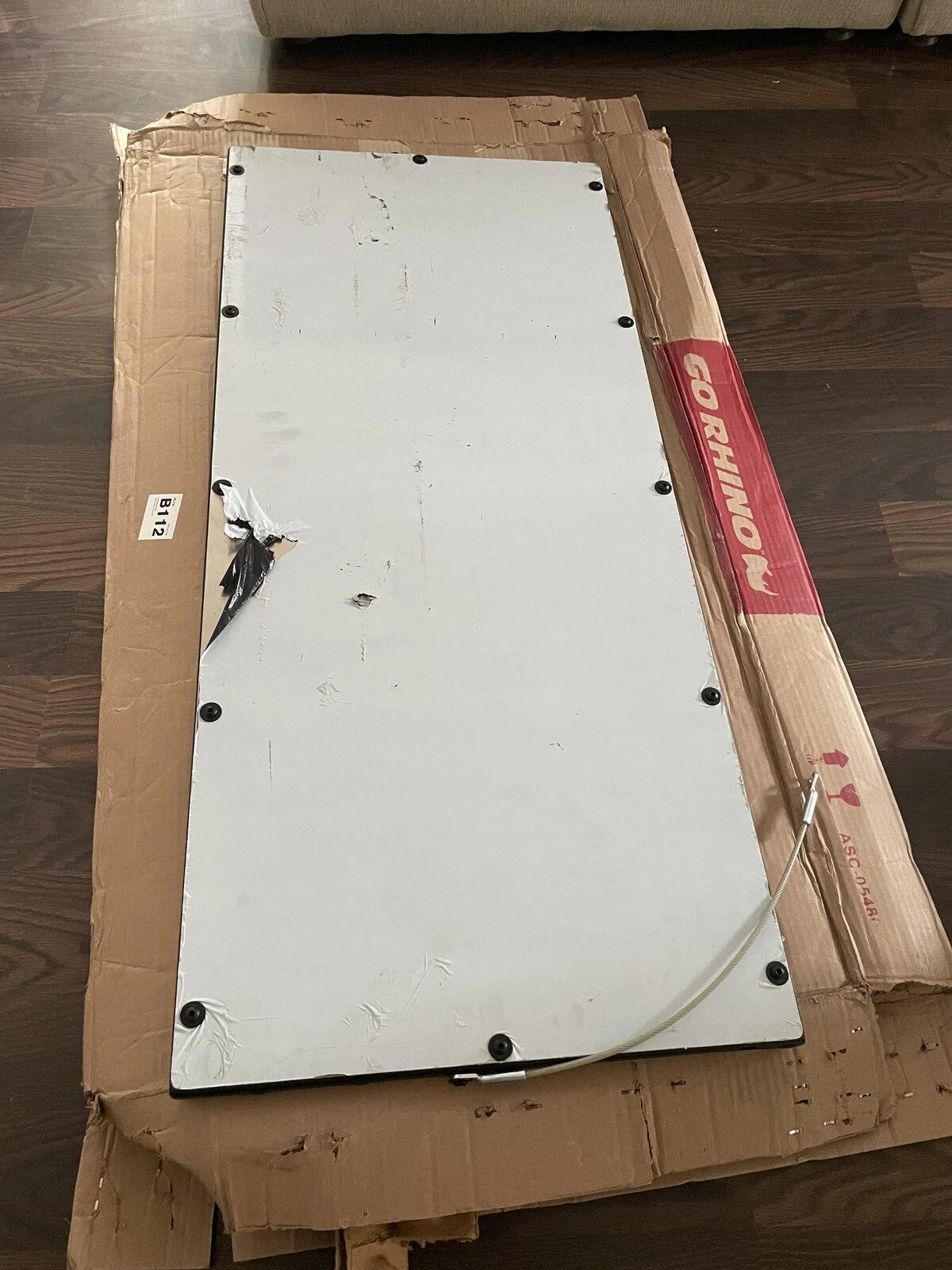

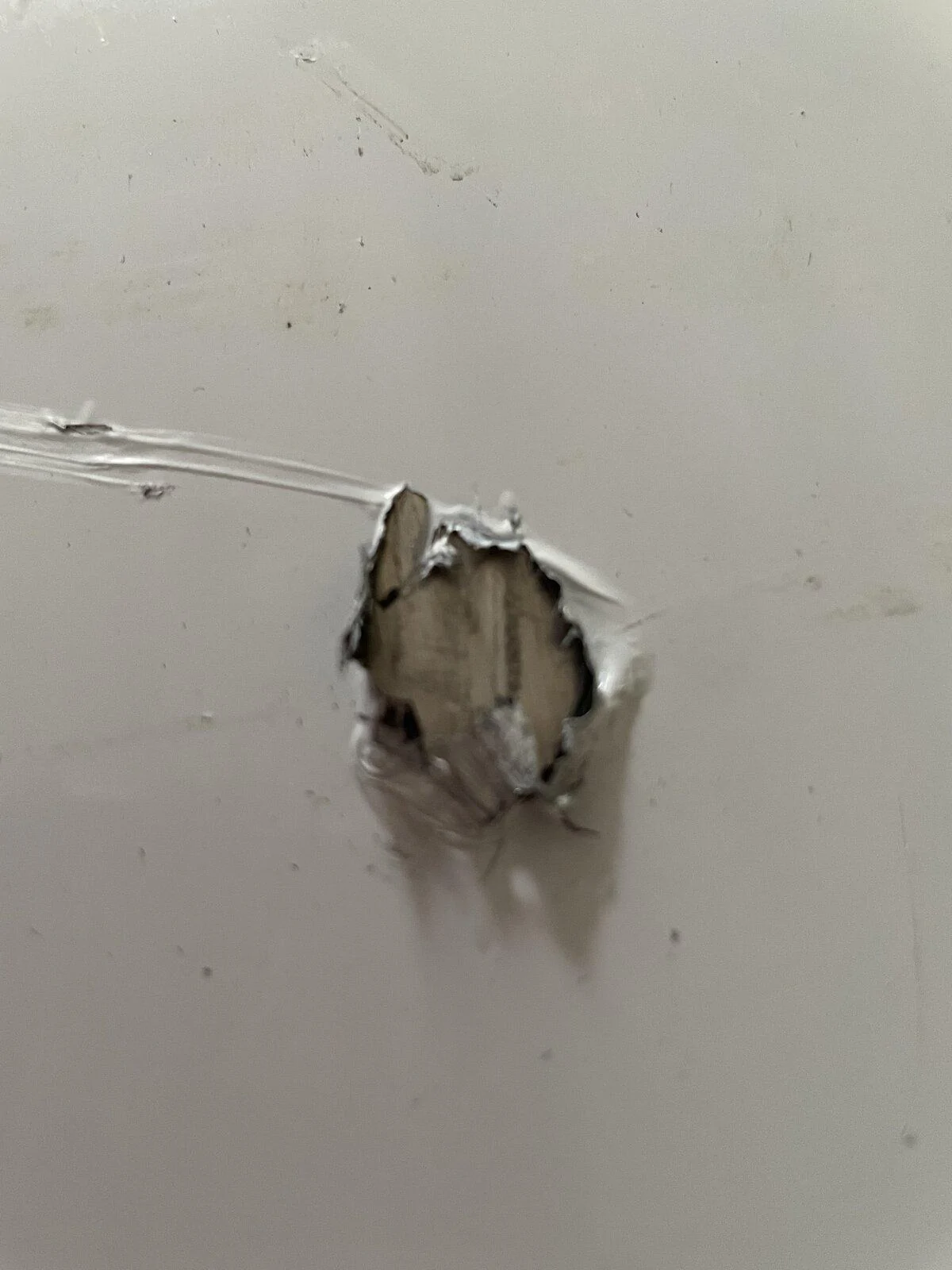

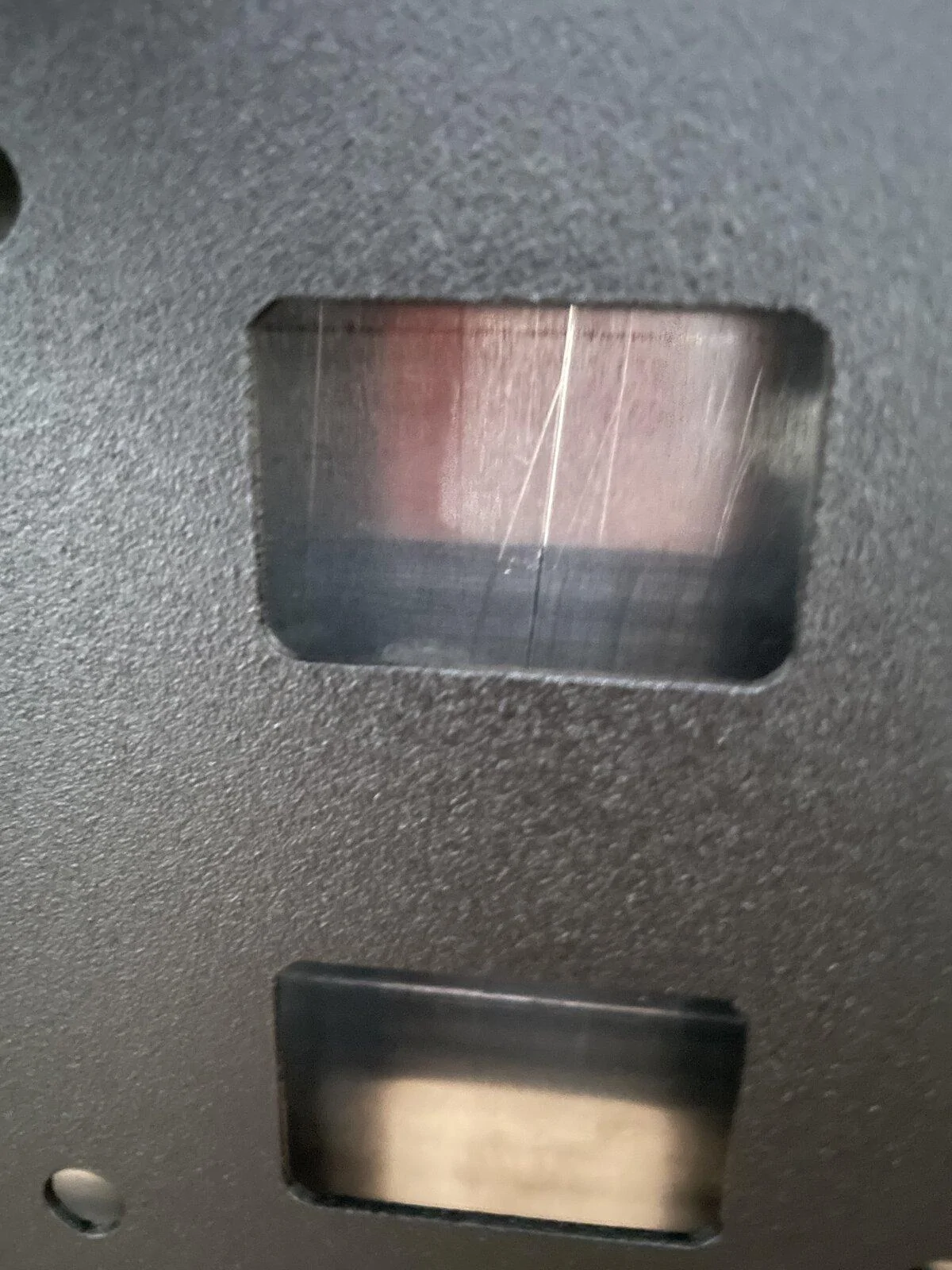

My table came preassembled but the aluminum is all scratched up and not from shipping since it was packaged nicely even though fedex mishandled.









Sponsored

thekorky

Active Member
Joined
May 17, 2021
Threads
0
Messages
31
Reaction score
33
Location
Colorado
Vehicle(s)
2021 Jeep Gladiator Rubicon

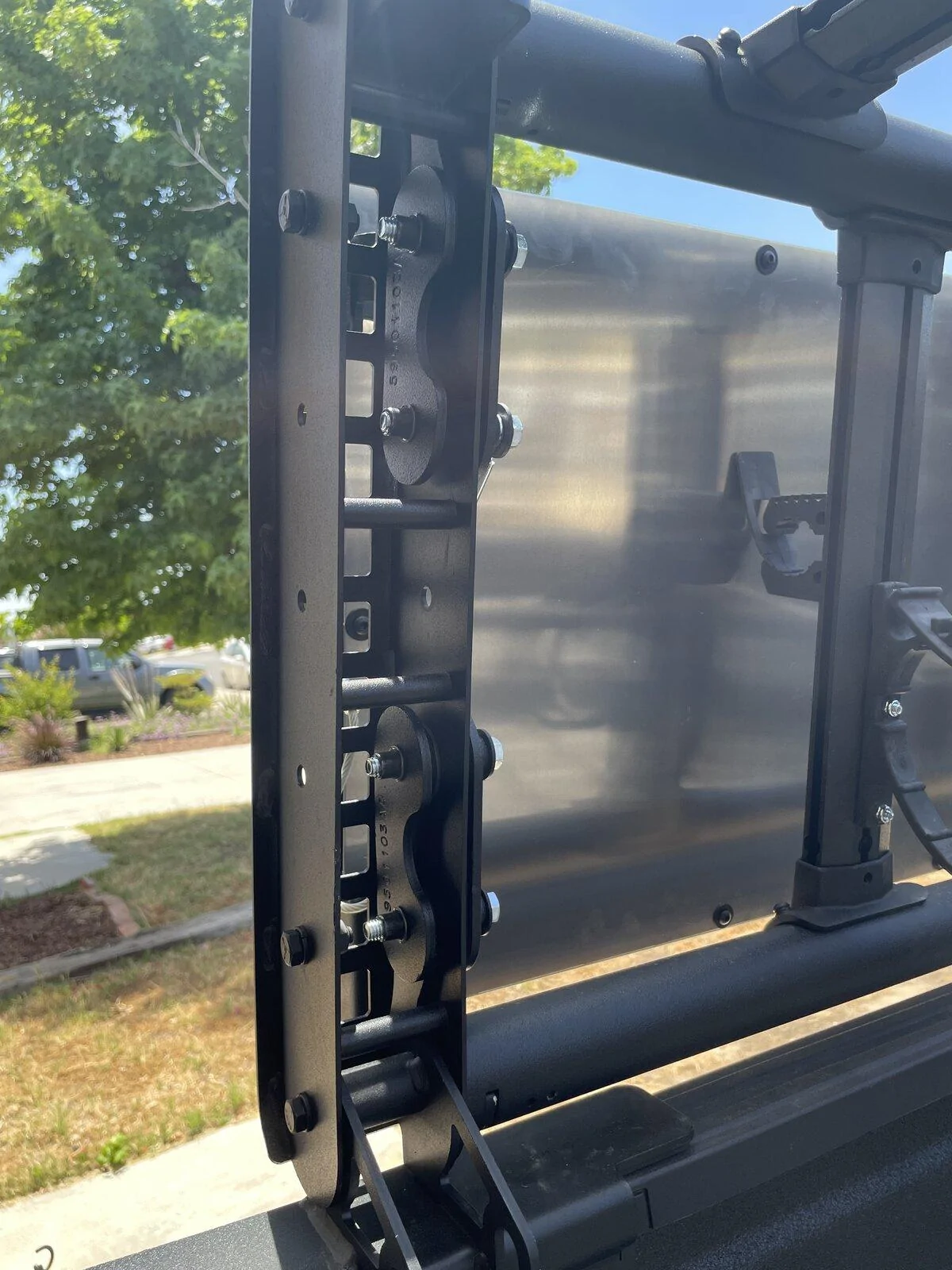

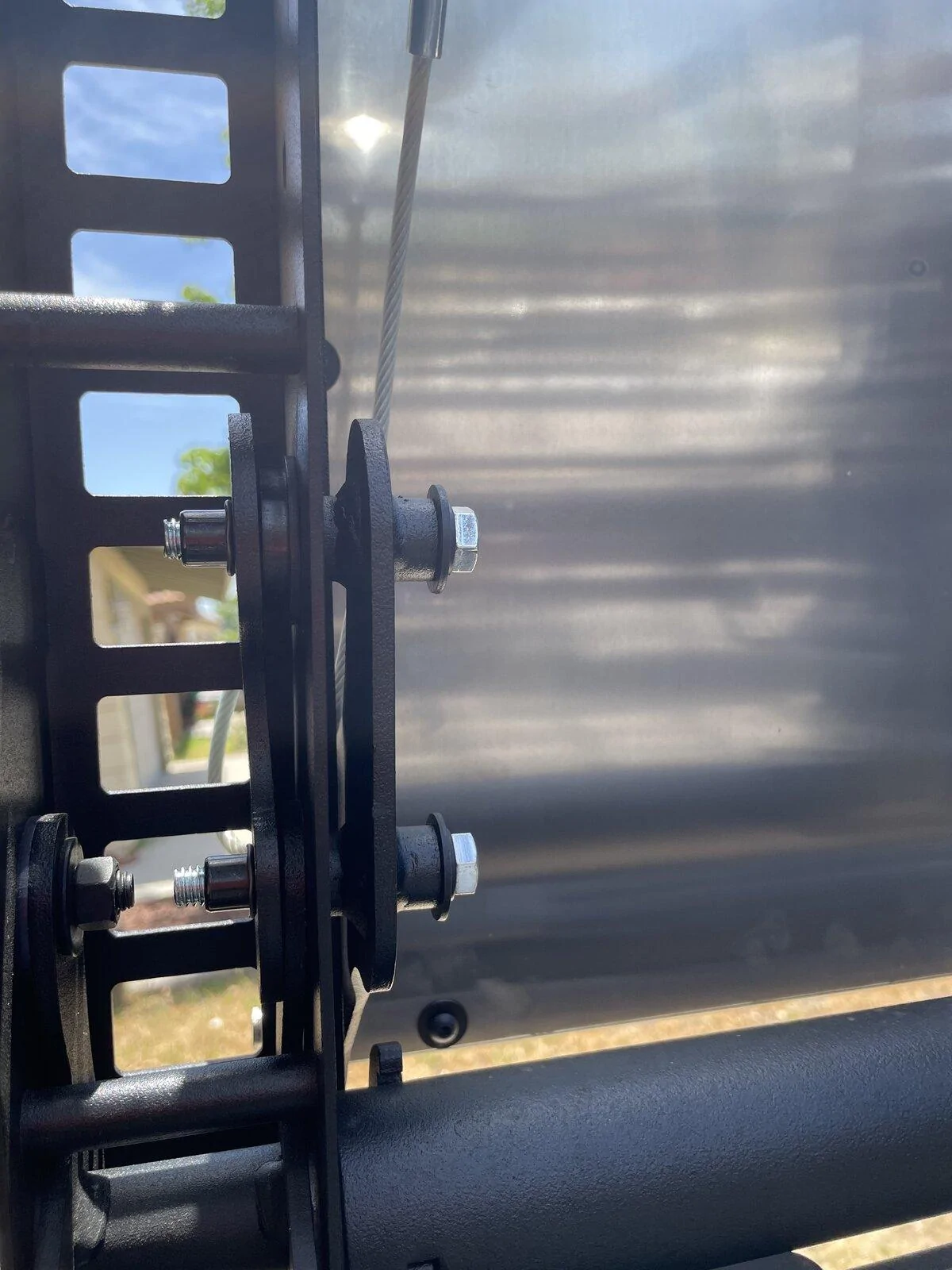

Installed. Instructions suck!! Have a friend before u install to hold the table while installing the bolts.

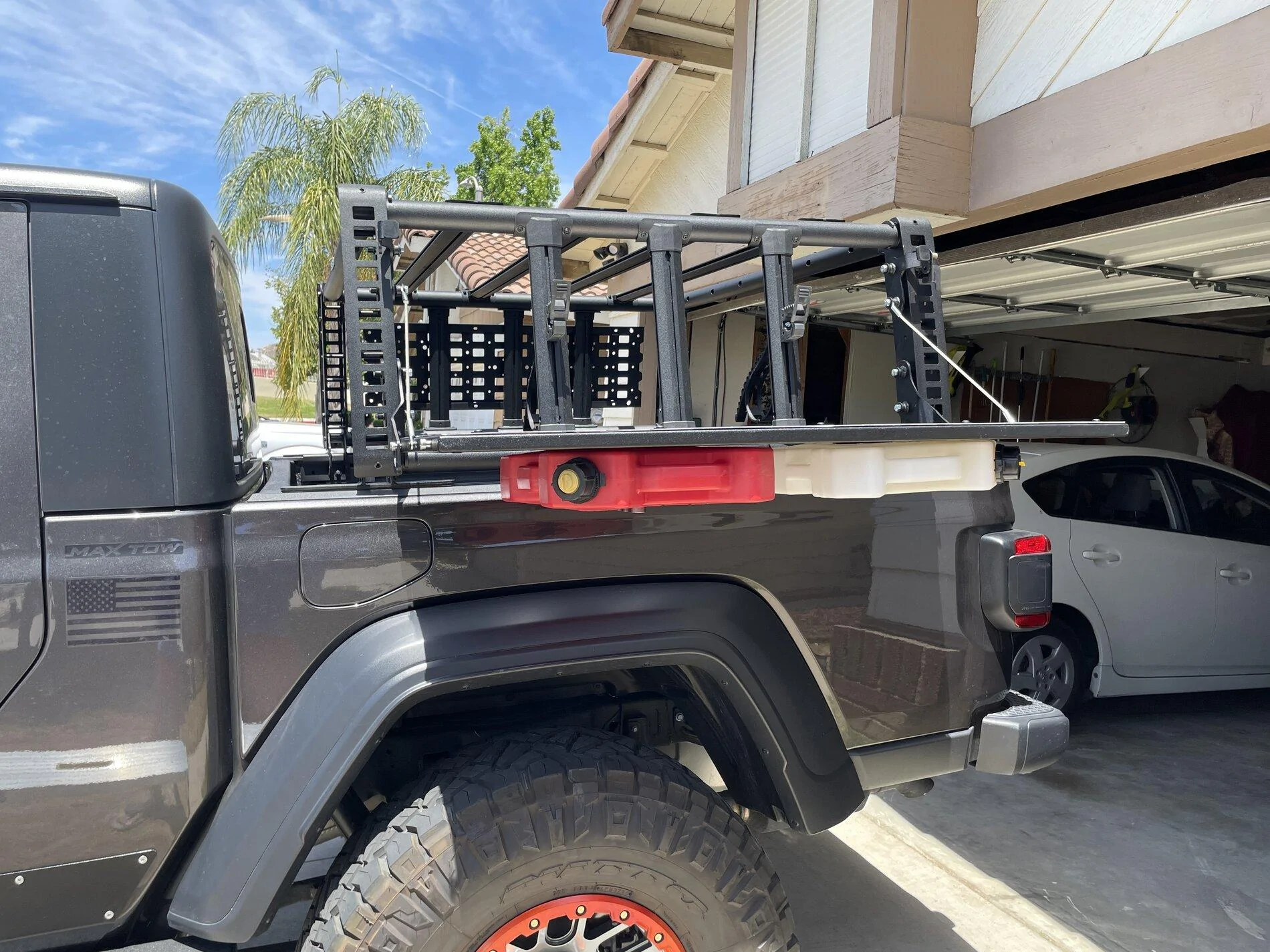

Jeep Gladiator Go Rhino Xtreme Overland Rack 90D0B872-FA82-4F88-A14D-BD41CA4CEE70


Jeep Gladiator Go Rhino Xtreme Overland Rack 90D0B872-FA82-4F88-A14D-BD41CA4CEE70


Jeep Gladiator Go Rhino Xtreme Overland Rack 90D0B872-FA82-4F88-A14D-BD41CA4CEE70


Jeep Gladiator Go Rhino Xtreme Overland Rack 90D0B872-FA82-4F88-A14D-BD41CA4CEE70
Despite the heartburn it does look good! I'm also glad the longer bolts worked out for you. BTW, someone else on this thread mentioned some touch up paint if you want to paint the bolts black. I used "Mopar 68060405AB Jeep Wrangler Black Hard Top Touch Up Paint" and it matched pretty well.

OP
OP
Steak.Sauce

Steak.Sauce

Well-Known Member
Joined
Mar 17, 2020
Threads
4
Messages
73
Reaction score
107
Location
Portland, OR
Vehicle(s)
2020 Jeep Gladiator
@Steak.Sauce are you able to use both lock latches on the table? I took one off because it had about an inch of separation and would not be able to lock.
Yeah I can use both of mine, I have to pull them in about a 1/4 to 1/2 inch to get it to latch, but then it stays tensioned.

Went to go install an awning this weekend, things did NOT go well. I will have a full write up once I talk to Go Rhino tomorrow.


DeezJT

Well-Known Member
First Name
Nate
Joined
Jun 21, 2020
Threads
43
Messages
691
Reaction score
565
Location
San Antonio TX but SoCal raised
Vehicle(s)
Pending
Occupation
Process Engineer
Let us know what happens with GoRhino @Steak.Sauce. I did get both of mine to latch this am. I had to loosen the bolts from the bracket but left side is tight. I added red loctite to the left side mounting bracket bolt just in case.


Sponsored

ttn333

Well-Known Member
First Name
Tuan
Joined
Sep 16, 2019
Threads
16
Messages
845
Reaction score
1,028
Location
Orange County, CA
Vehicle(s)
none

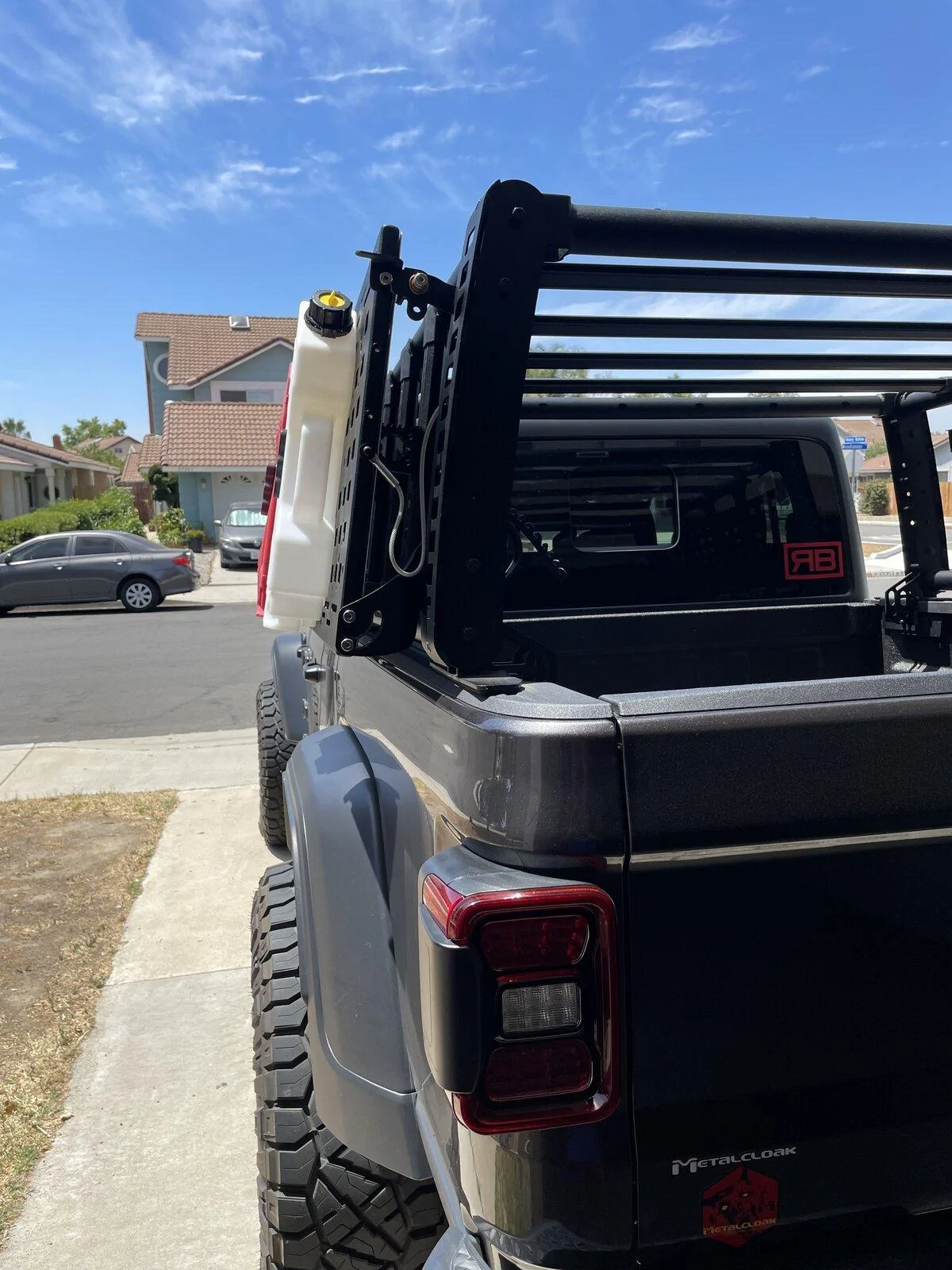

I’m very happy that I chose this rack. The others have only 2 bars on top which can be easily accessed… with my setup, nothing will fly away.

happy Camper… literally









That looks great! My wife overpacks like crazy. This rack will let make it to camp with all of our gears. But their qc is a big concern. What's their static and dynamic load again?
It's between this and the super topper 2 softtopper. But I'm getting tired of waiting for that one.


DeezJT

Well-Known Member
First Name
Nate
Joined
Jun 21, 2020
Threads
43
Messages
691
Reaction score
565
Location
San Antonio TX but SoCal raised
Vehicle(s)
Pending
Occupation
Process Engineer
@ttn333 mine was packed due to the wife too lol. GoRhino doesn’t state anything on their website about load. Also it takes about 1 - 2 months to be shipped so plan accordingly.

OP
OP
Steak.Sauce

Steak.Sauce

Well-Known Member
Joined
Mar 17, 2020
Threads
4
Messages
73
Reaction score
107
Location
Portland, OR
Vehicle(s)
2020 Jeep Gladiator
That looks great! My wife overpacks like crazy. This rack will let make it to camp with all of our gears. But their qc is a big concern. What's their static and dynamic load again?
It's between this and the super topper 2 softtopper. But I'm getting tired of waiting for that one.
Quadratec lists "300 lb. dynamic and 600 lb. static" but Like DeezJT said, no idea where that number came from as it is not listed on their website or on the instructions.


ttn333

Well-Known Member
First Name
Tuan
Joined
Sep 16, 2019
Threads
16
Messages
845
Reaction score
1,028
Location
Orange County, CA
Vehicle(s)
none
Quadratec lists "300 lb. dynamic and 600 lb. static" but Like DeezJT said, no idea where that number came from as it is not listed on their website or on the instructions.
That would be about the minimum for a rrt and a couple other items mounted on the sides.

How are you guys feeling about the rack overall?


DeezJT

Well-Known Member
First Name
Nate
Joined
Jun 21, 2020
Threads
43
Messages
691
Reaction score
565
Location
San Antonio TX but SoCal raised
Vehicle(s)
Pending
Occupation
Process Engineer
How are you guys feeling about the rack overall?
-I have the pre-revised version on the front/rear top connecting tubes has the holes to mount lights. I did notice though that male/female deutsch connectors won’t fit in the hole. So if you want to mount lights and tuck them in, you gotta splice the wires together and throw away the deutsch connectors.

-the mounts (non rail mount)uses 8 bolts but I can only manage 6 as there is no room for fitment. Overall it’s holding and I have no issues.

-the upright brackets have nutsert holes where you can mount accessories too such as lights so no biggie if you don’t have my version.

-install instructions sucks but when you get one bar in, it’s pretty self explanatory from there. They need a technical writer to do a better write up.

-some Items came scratched or missed powder coat, but I expected that. Mopar hard top paint can help as it’s a very close match.

-fold down table… again, they need a technical writer as it doesn’t state to remove already installed bolts. The supplied hardware is unusable so purchase some replacements (8 2” bolts need to be 2.5”). The cable needed to be drilled for some users… mine came out good.The locking mechanism is off a bit, but I managed to make it work (loosen bracket bolts).

overall, despite the shortcomings, quality control issues, and delay in delivery (expect 1-2 months), I’m satisfied. it looks great and is the only rack that has a lot of dedicated accessories available. It’s made in Mexico. Would I purchase again knowing what I know now?… perhaps not, but if I only have 799 to spend, then absolutely.
