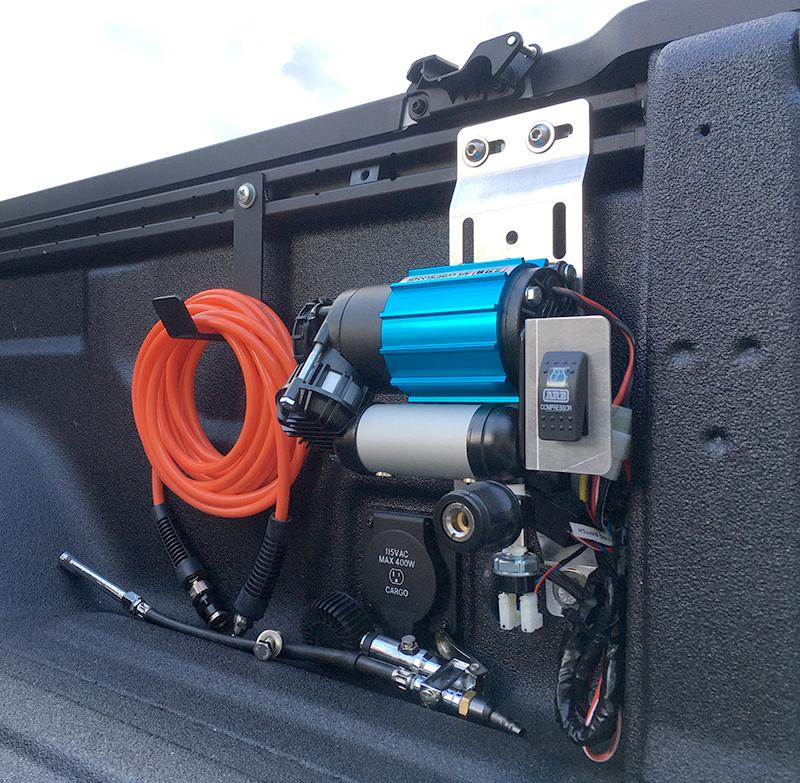

For the bed mounted version, do you have a schematic or wiring harness recommendation?Take a look at the different options we offer. A few options for the bed as well as a mount that fits behind the rear driver's side seat and will work with the twin or single compressor. www.813fabrication.com
Hey, sorry for the late reply. I do not have any type of wiring diagram. ARB makes an extended wiring harness and there is a Toyota site out there that makes a long extension also. I personally ran heavy gauge wire from the battery back to the bed.
What gauge? I have some 8 AWG handy.
I think I used 8 for my ARB Single, it's been a year since I installed. I have not installed my ARB Twin, it moves around so much for prototyping that it has never been hooked up.
