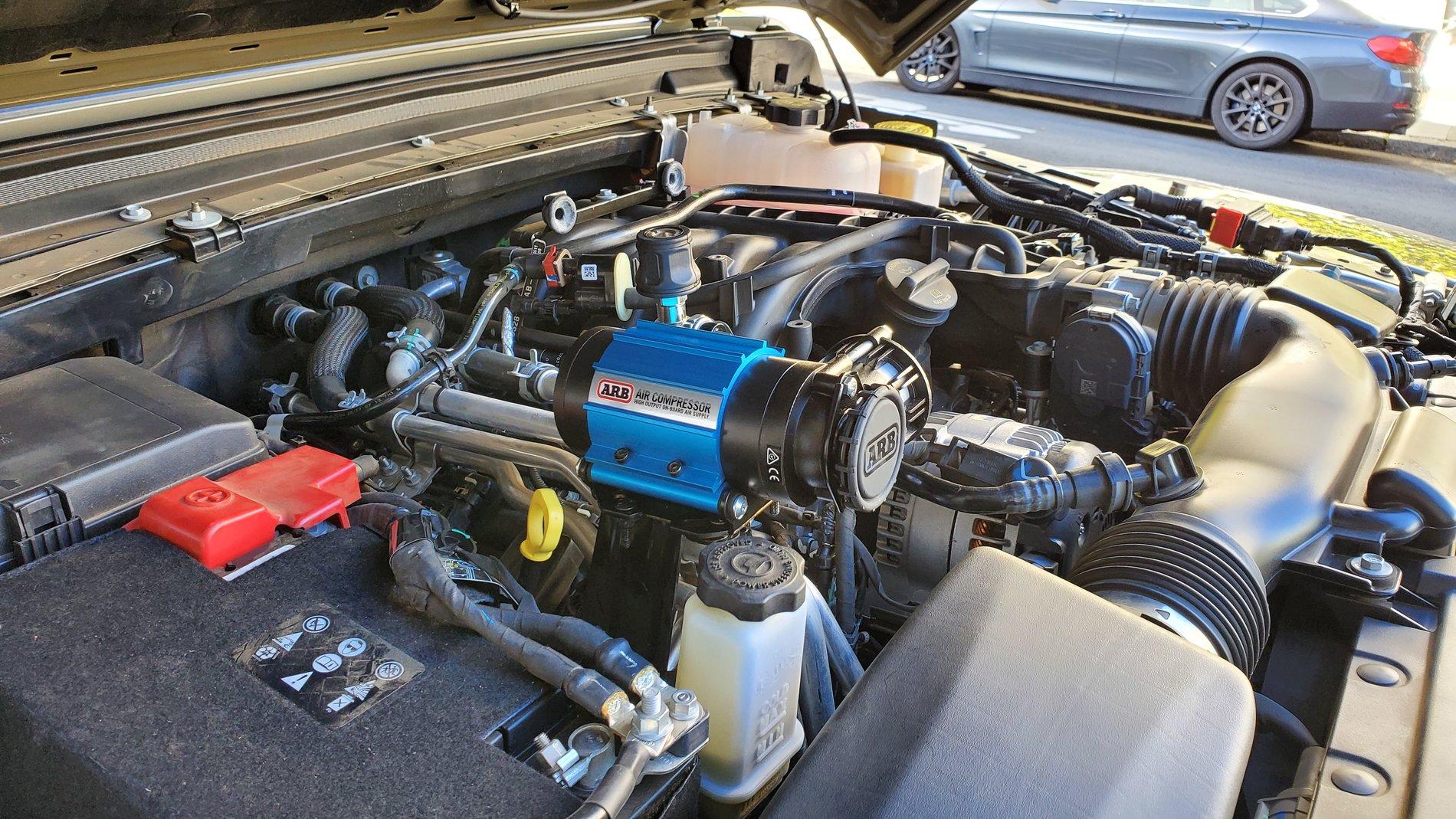

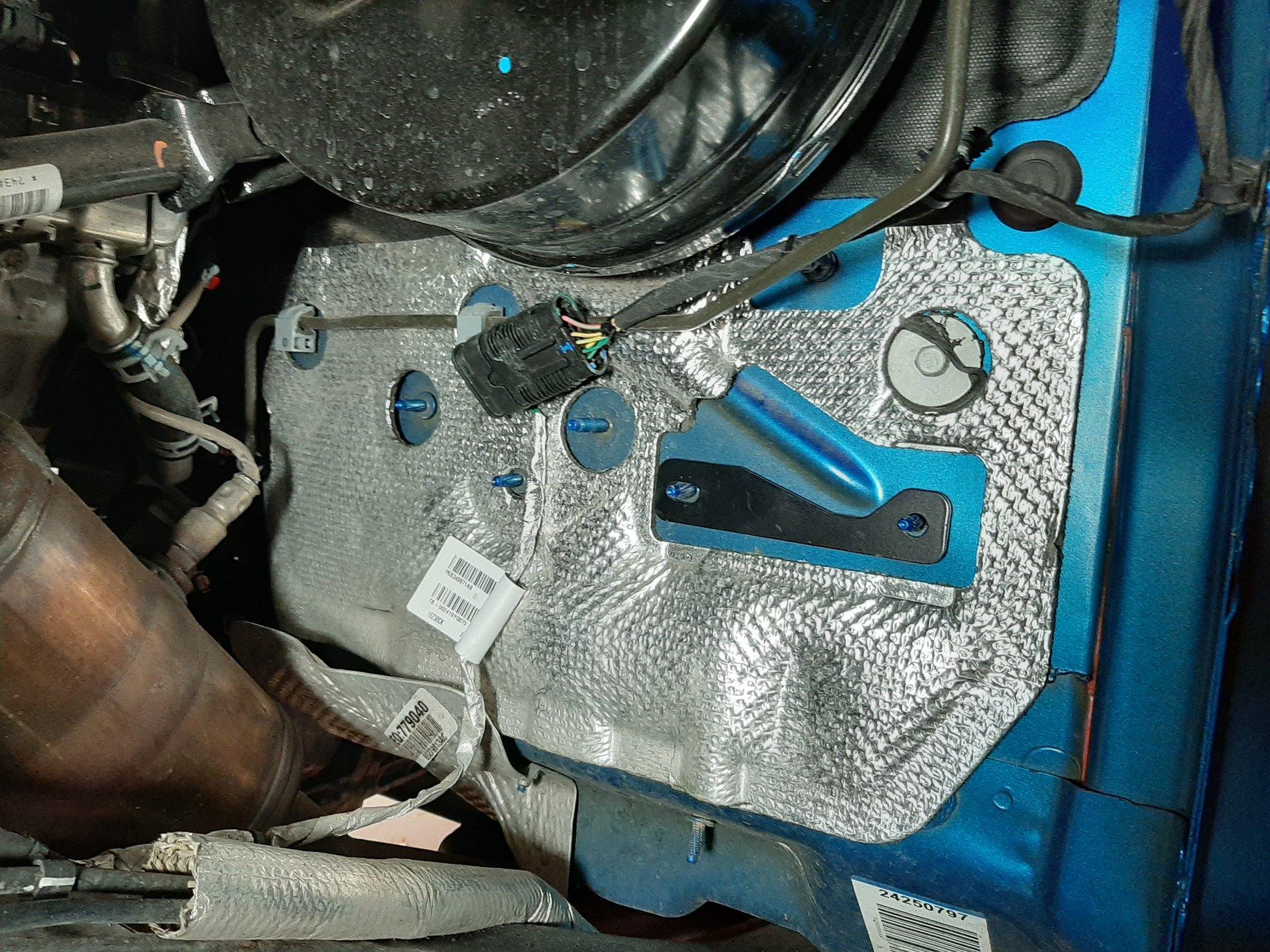

The installation under the hood using the engine cover bracket is the easiest and cleanest install.

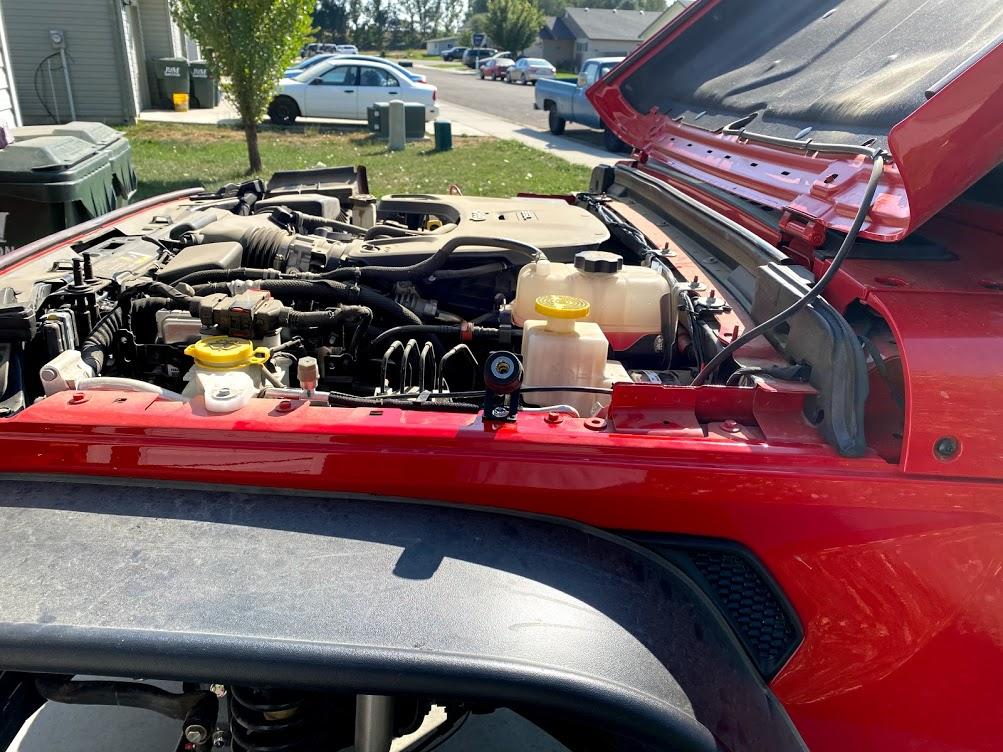

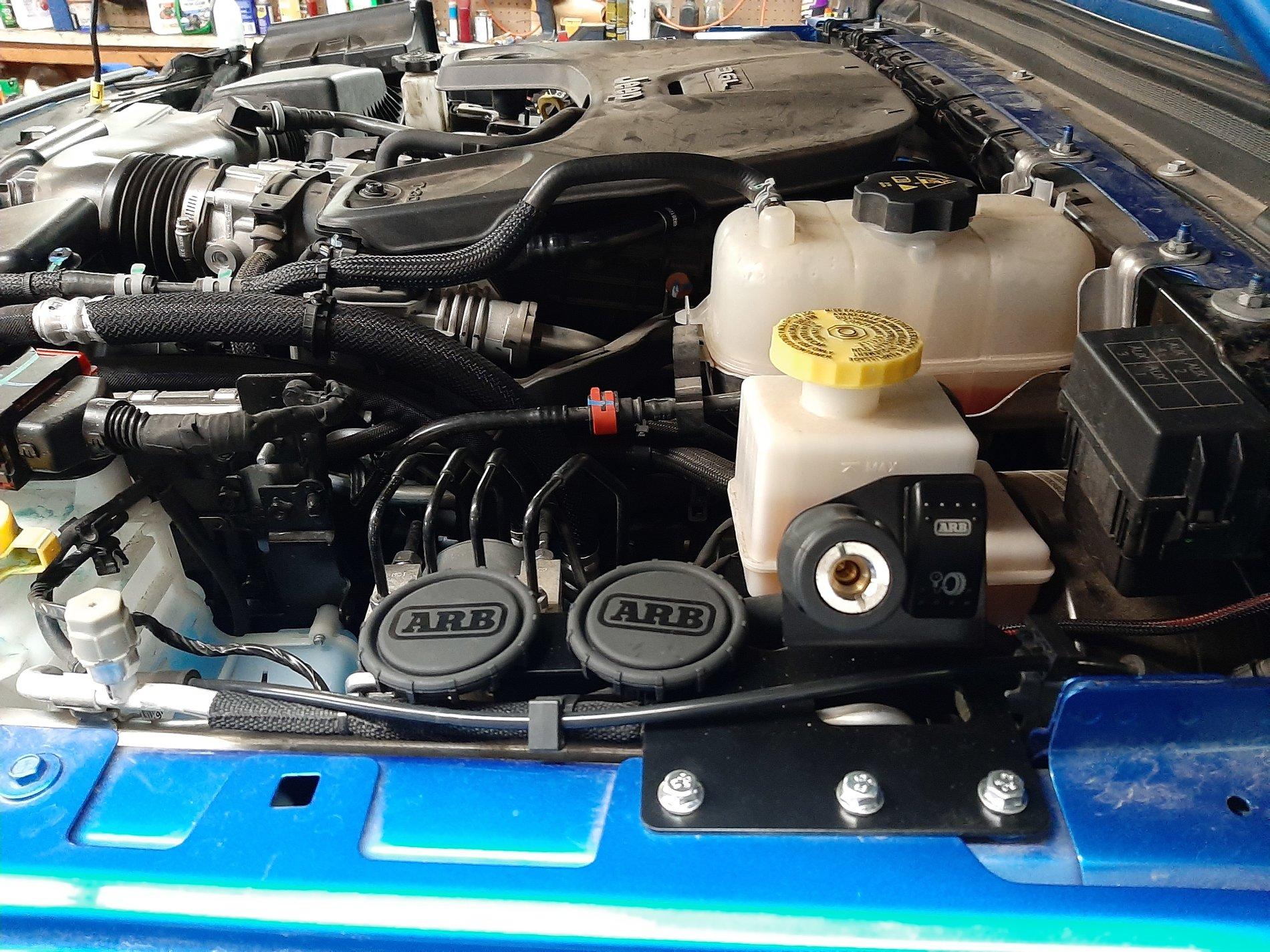

under hood ARB install

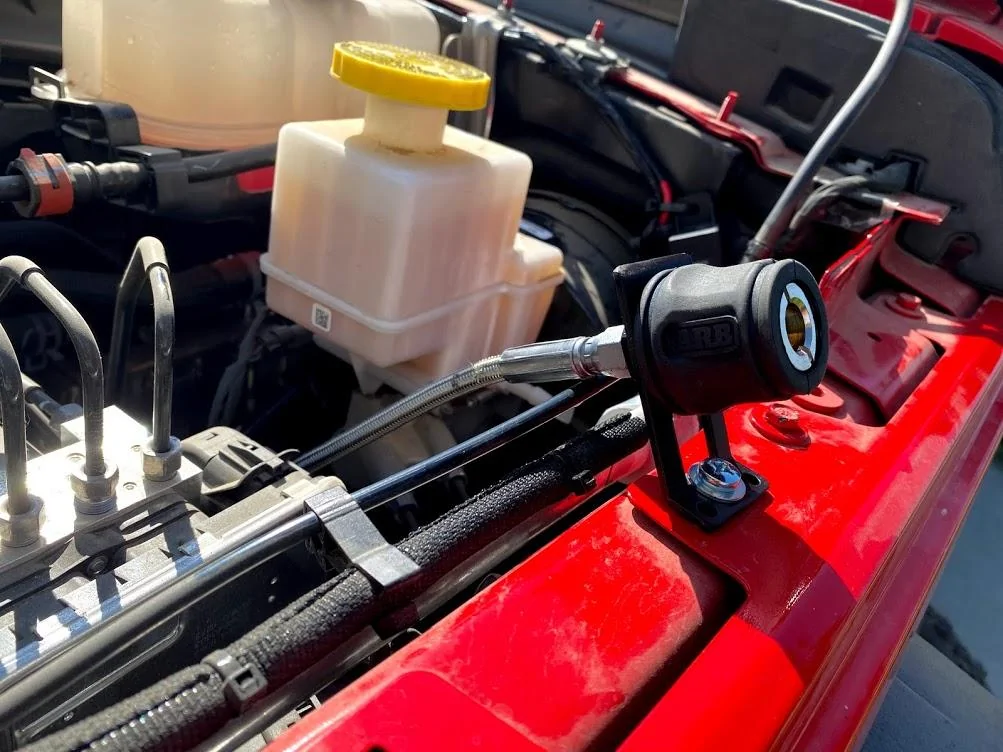

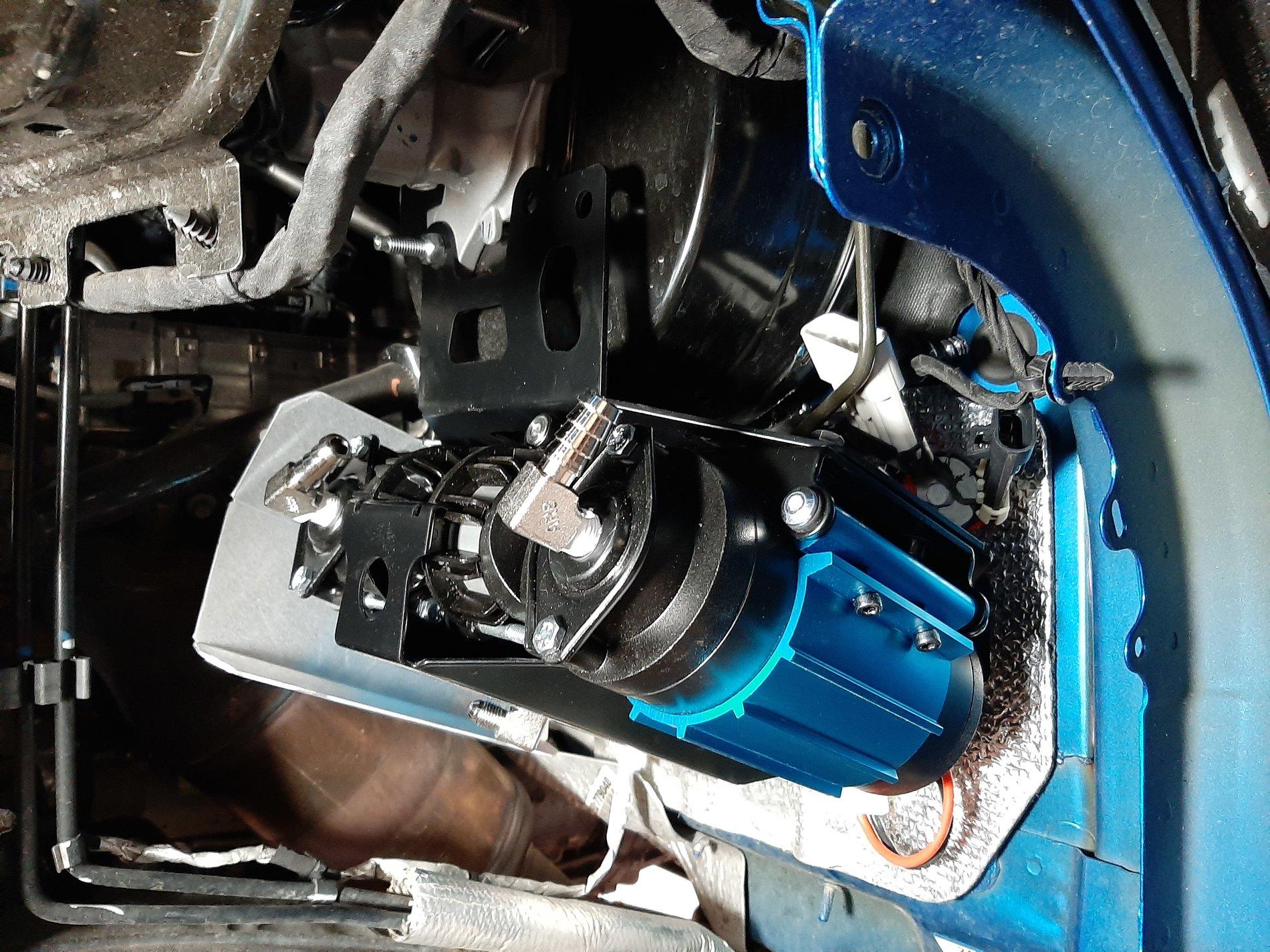

It took me less than 2 hours to complete the installation including the wiring and plumbing. And it's above the engine so no issues with water or dirt. And no removing the inner fender for access.




Advertisement





Brfertig

Well-Known Member
First Name
Brandon
Joined
Mar 6, 2020
Messages
341
Reaction score
558
Location
Guam
Vehicle(s)
2020 Gladiator
The installation under the hood using the engine cover bracket is the easiest and cleanest install.

under hood ARB install

It took me less than 2 hours to complete the installation including the wiring and plumbing. And it's above the engine so no issues with water or dirt. And no removing the inner fender for access.

Thx for the love. Why buy a bracket when its free and this good? Wish the market would pool their resources and get ahead of the JT market. I got some other really cool stuff coming, especially if you like lockers and big shafts.

https://www.youtube.com/user/c130aviator


TallGuy

Member
First Name
Greg
Joined
Oct 5, 2019
Messages
8
Reaction score
19
Location
Arvada CO
Vehicle(s)
now: 2020 Gladiator then: 2003 TJ, 1994 Grand Cherokee, 1975 J10

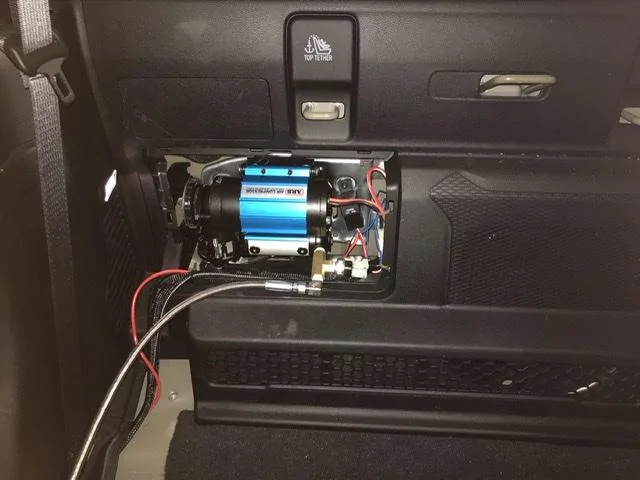

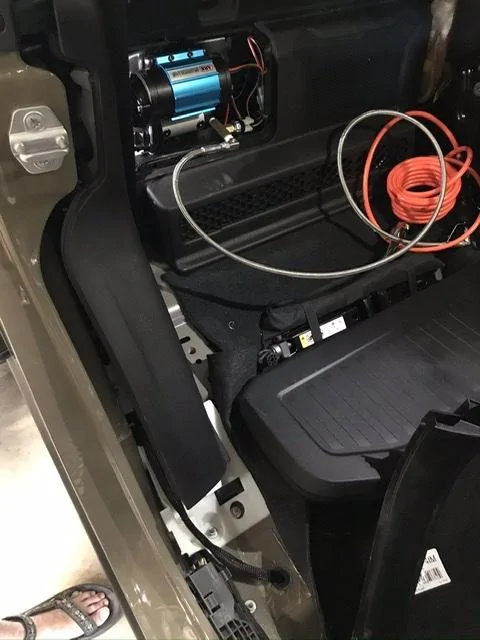

ARB single mounted behind the rear seat, passenger side, where the removable speaker would go. Air hose coupling next to the rear passenger seat. If you go this route do yourself a favor and remove the rear seat first for easier access.

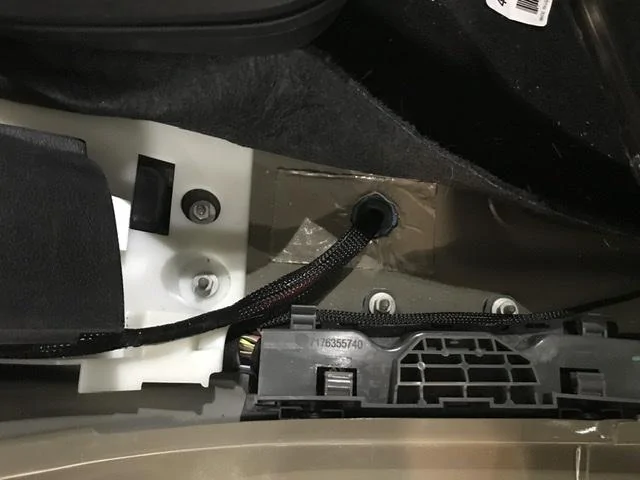

Remove the speaker cubby (2 screws and some trim clips) and there is a stout metal bracket that just needed a small piece of steel plate to mount the compressor. Took positive and negative wires to the battery through a plug in the floor just inside the rear passenger door. Replaced the plug with a rubber grommet, sealed with liquid tape, and ran the wiring on top of the frame rail. There is a gap between the battery and the fender, away from the engine, to bring the wire up and connect to the battery. It’s a little longer run to the battery than the supplied ARB wiring so had to graft on a length of 8 ga wire. Very happy to not have to mess with the dreaded firewall penetration.

To power the relay I used the interior lead for the Aux3 switch The relay ground wire went to a ground bolt on the body to the rear of the rear passenger door behind the plastic trim.

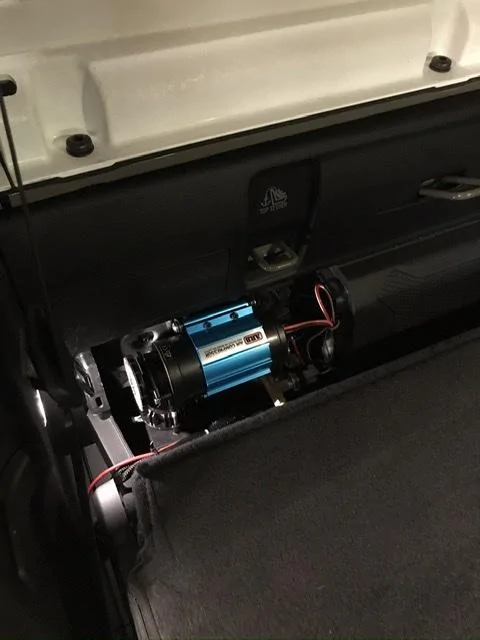

And here it is with the seat installed.

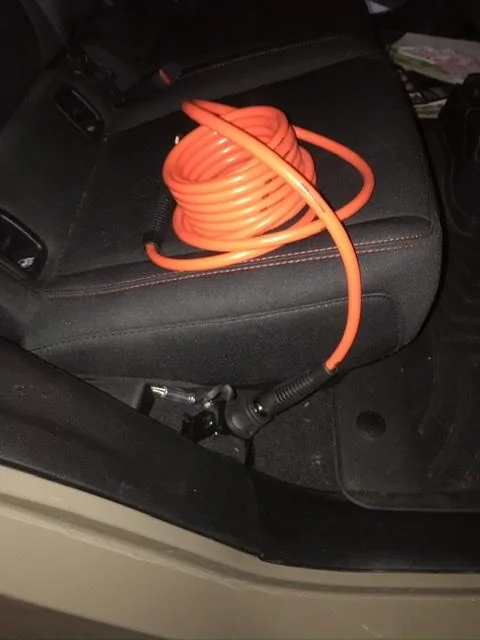

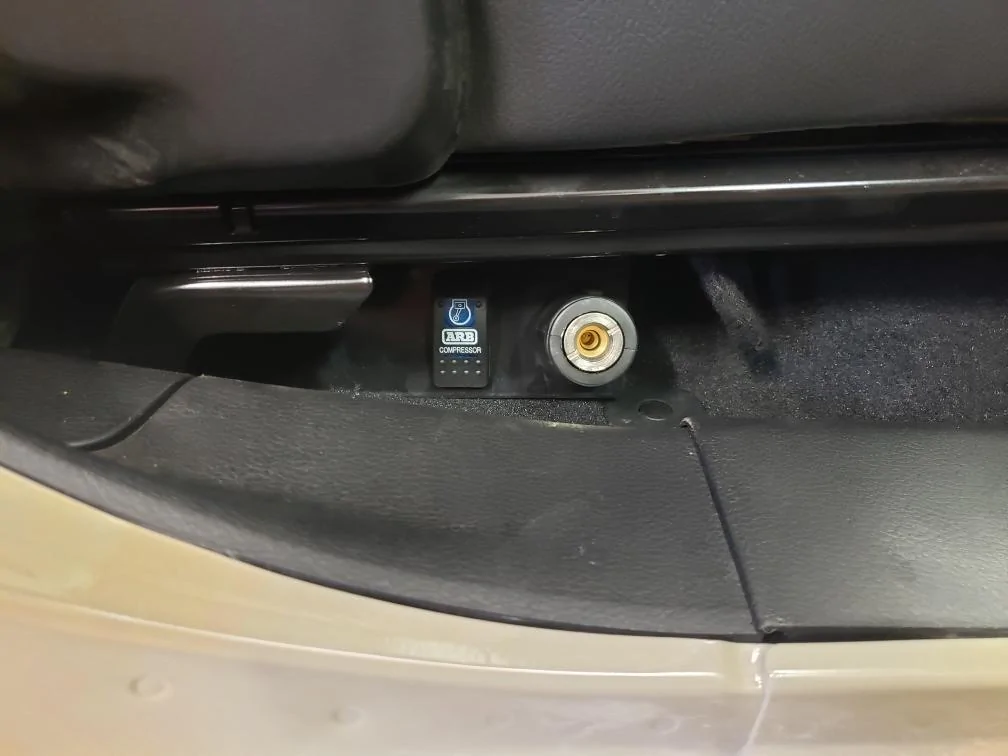

Hose coupling by the rear passenger seat is all you see when it’s buttoned up.



Slapping_Rabbits

Well-Known Member
First Name
Nirzwan
Joined
Apr 27, 2019
Messages
909
Reaction score
704
Location
Havre de grace md
Vehicle(s)
Jeep gladiator Rubicon, triumph rocket iii roadster

MoparToYou

Well-Known Member
Joined
Aug 11, 2020
Messages
51
Reaction score
94
Location
Utah
Vehicle(s)
2020 Jeep Gladiator Mojave
I'm sure they do, although if you can't find one I bet you could have one made at a place that specializes in hoses (air, hydraulic, etc). Or just buy two of the regular hoses and hook them together.


eight13design

Rock Sponsor (Level 1)
First Name
Jeremy
Joined
Dec 21, 2019
Messages
32
Reaction score
35
Location
Louisville, KY
Vehicle(s)
2020 Jeep Gladiator Rubicon Launch Edition
Take a look at the different options we offer. A few options for the bed as well as a mount that fits behind the rear driver's side seat and will work with the twin or single compressor. www.813fabrication.com







LaterGator

Well-Known Member
Joined
Nov 12, 2019
Messages
56
Reaction score
48
Location
77058
Vehicle(s)
Gator Gladiator
Take a look at the different options we offer. A few options for the bed as well as a mount that fits behind the rear driver's side seat and will work with the twin or single compressor. www.813fabrication.com






Have you considered making a twin ARB mount bracket for under the hood in the same location that we have been mounting the single ARB.


eight13design

Rock Sponsor (Level 1)
First Name
Jeremy
Joined
Dec 21, 2019
Messages
32
Reaction score
35
Location
Louisville, KY
Vehicle(s)
2020 Jeep Gladiator Rubicon Launch Edition
Have you considered making a twin ARB mount bracket for under the hood in the same location that we have been mounting the single ARB.
Looking at some options, it's so tight in there its hard to do without relocating some items.


eight13design

Rock Sponsor (Level 1)
First Name
Jeremy
Joined
Dec 21, 2019
Messages
32
Reaction score
35
Location
Louisville, KY
Vehicle(s)
2020 Jeep Gladiator Rubicon Launch Edition
The installation under the hood using the engine cover bracket is the easiest and cleanest install.

under hood ARB install

It took me less than 2 hours to complete the installation including the wiring and plumbing. And it's above the engine so no issues with water or dirt. And no removing the inner fender for access.

How is it doing with the heat so far?


bastage

Well-Known Member
Joined
Apr 8, 2020
Messages
982
Reaction score
767
Location
Idaho
Vehicle(s)
2020 Gladiator Sport S w/ Max Tow
Vehicle Showcase
1

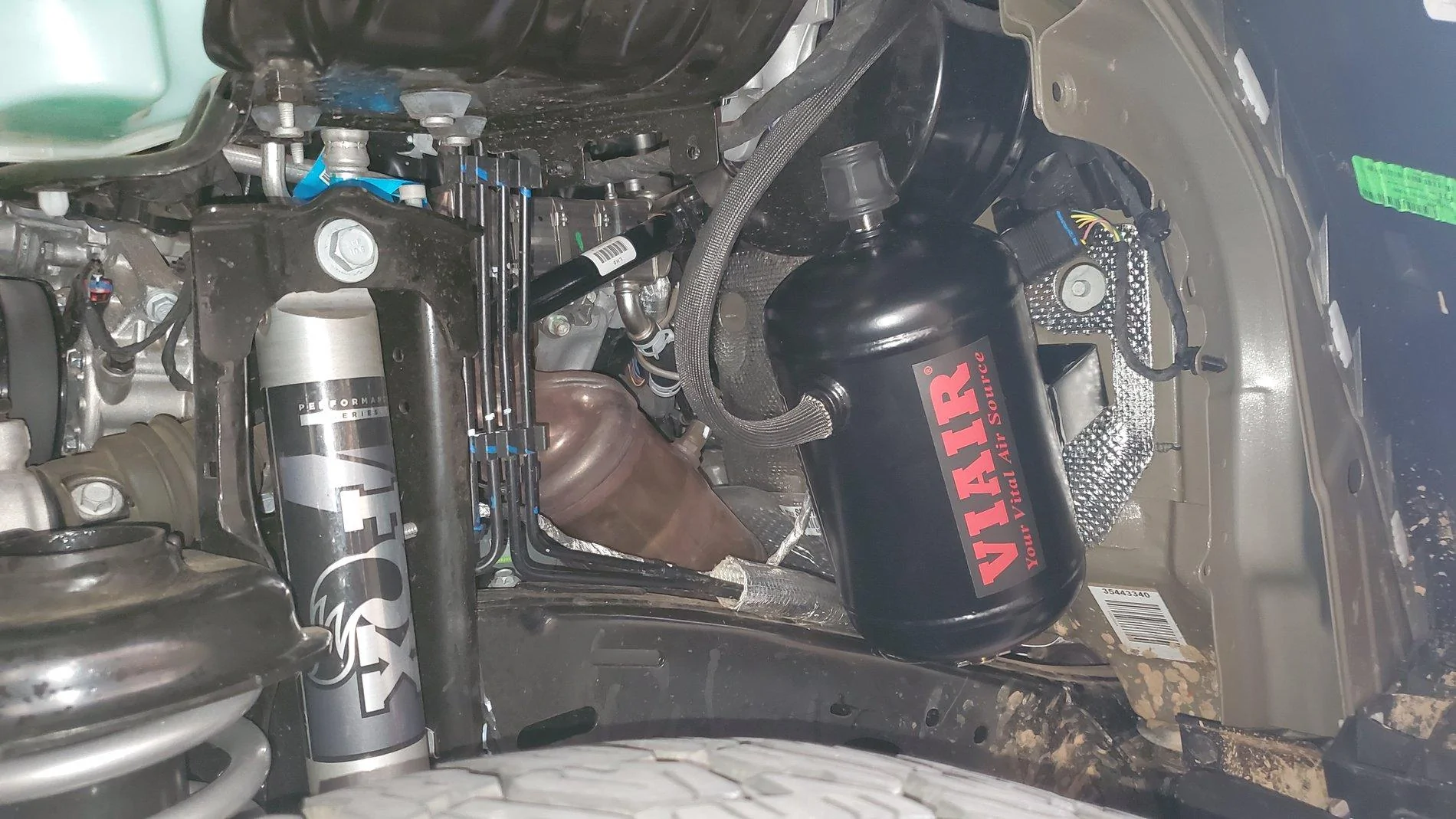

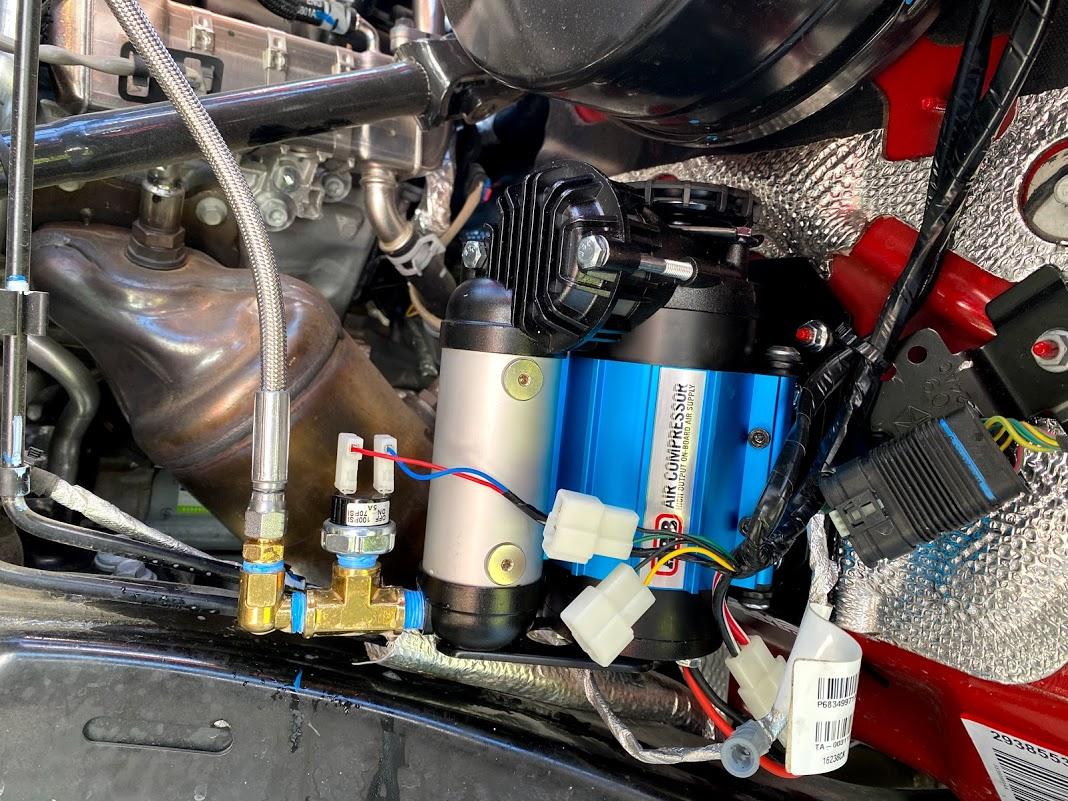

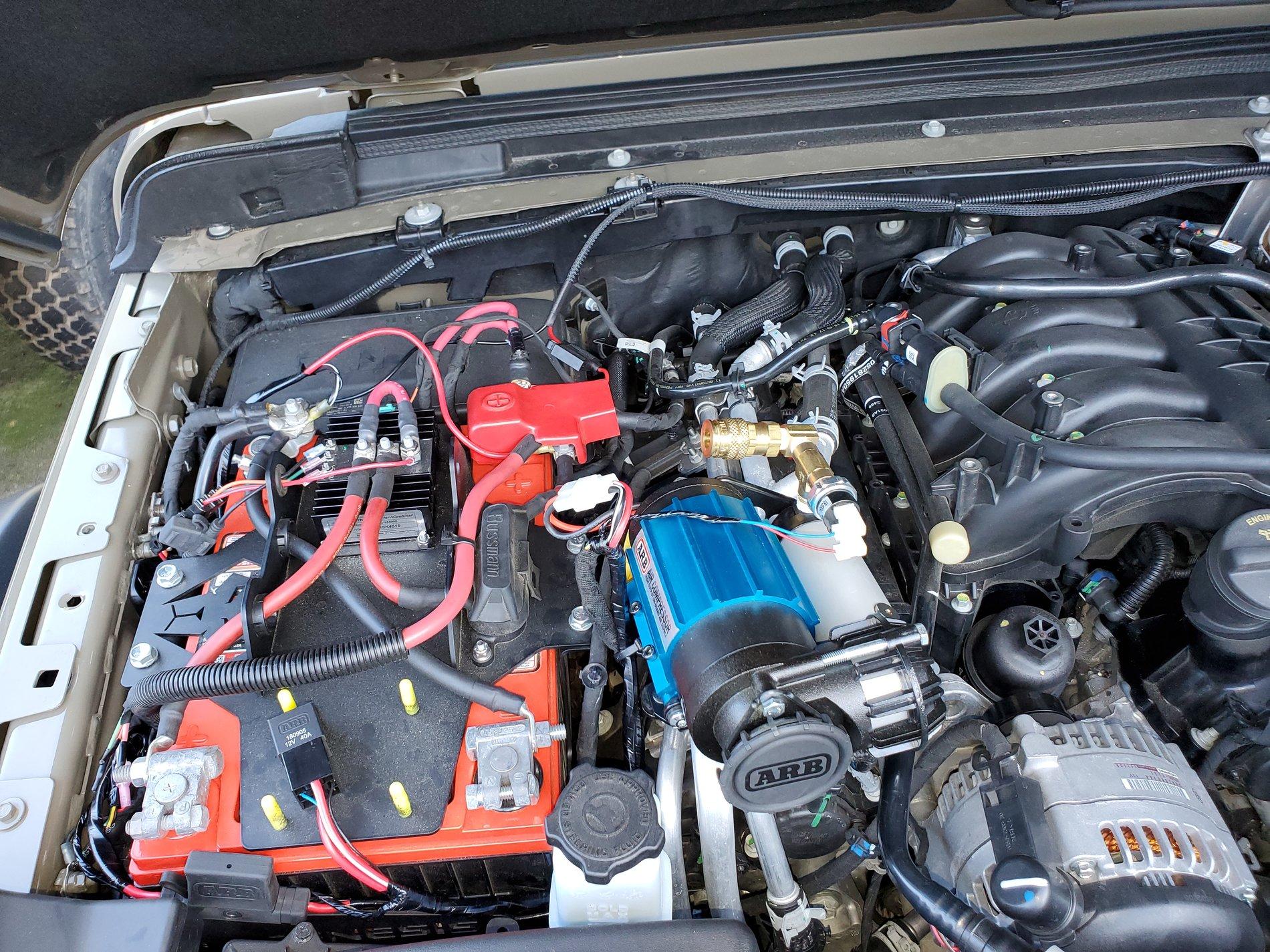

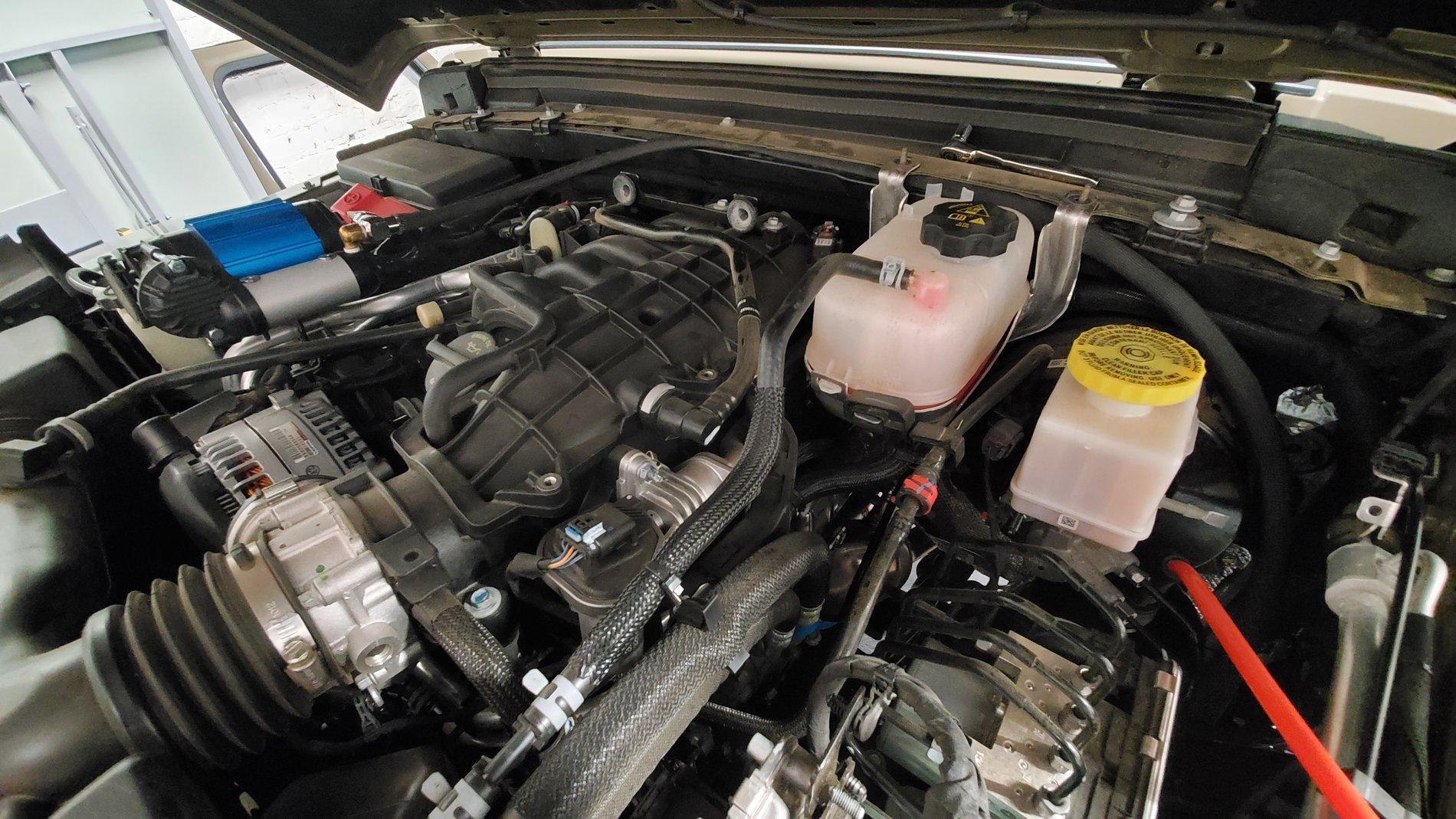

I went with the ACM mount for the HO Single. Cab was a non starter for me as everyplace to mount it I use for storage. The Engine cover mount I considered, but as I am using this for Lockers I figured this would be the better location for running the air lines to the diff's. I then ran a remote air outlet almost straight up using a half meter hose & the ARB bracket, just cut down to better suit the location. With it I will have to have the hood open to air the tires, but that was by design as it will also mean the heat has a good place to escape. It even tucked nicely behind the not at all space efficient ACE inner fender.
