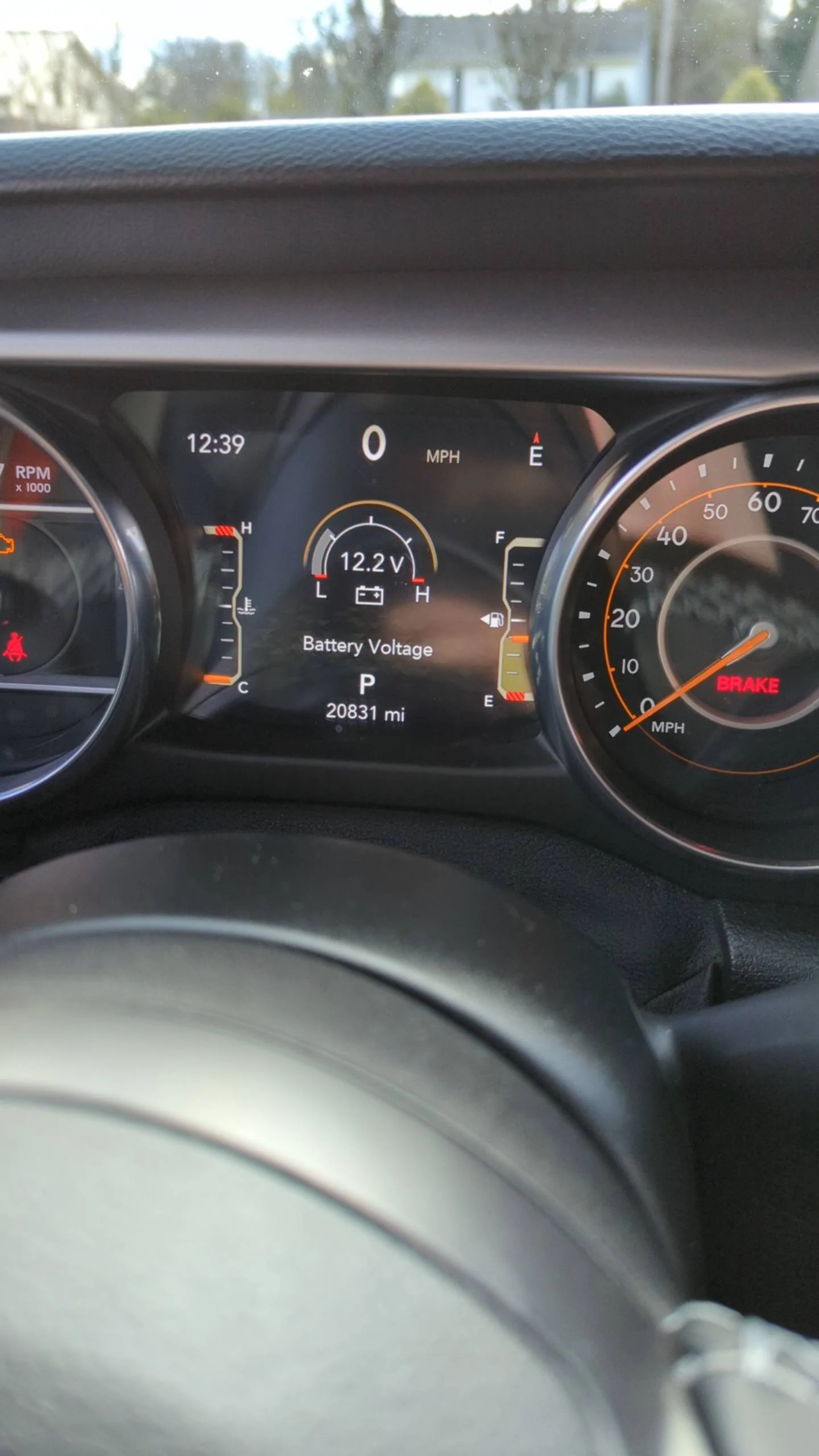

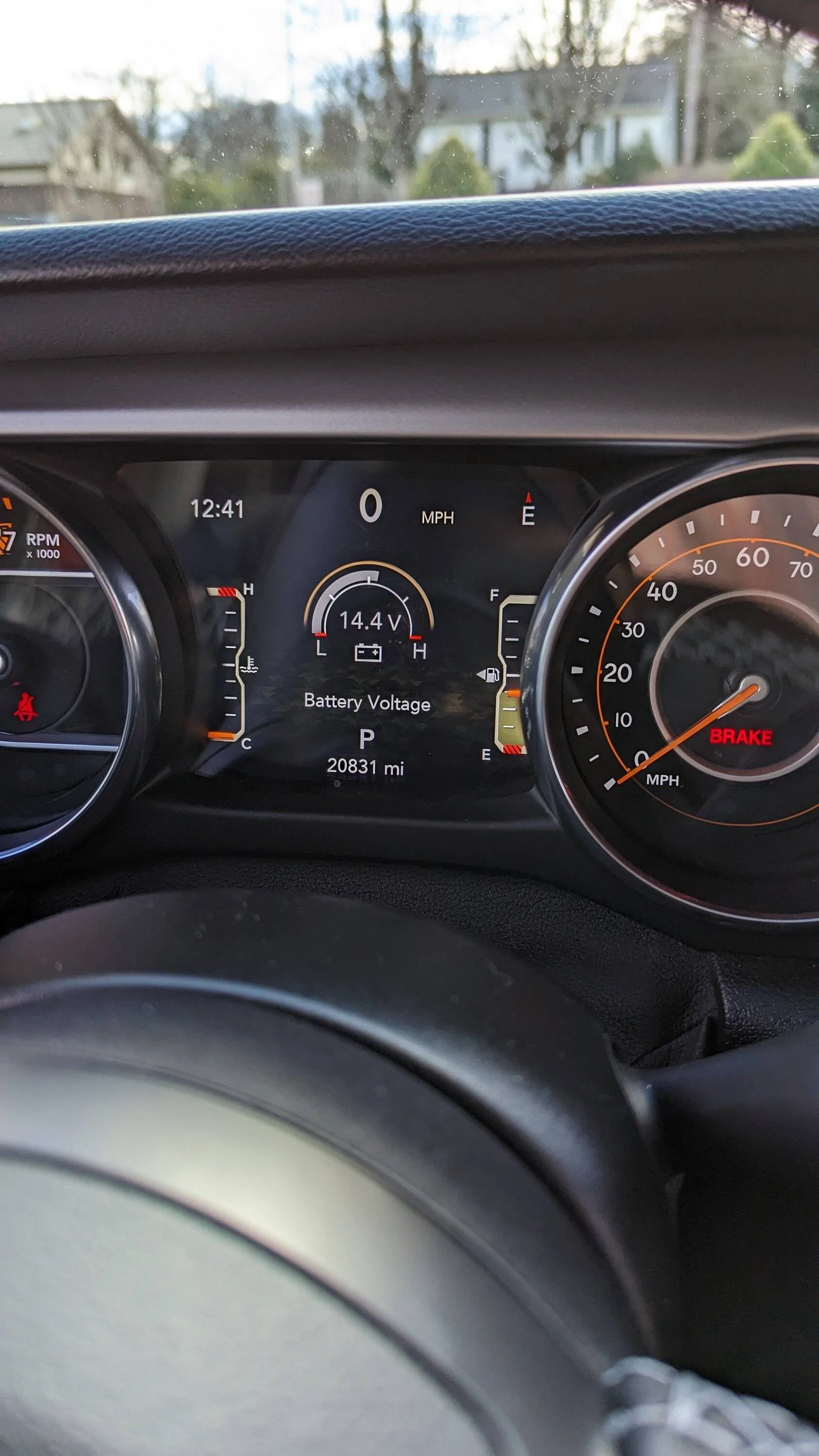

You've gotten some good responses so far from several others and it sounds like you've covered those things now..........It's about 14 when driving. 12.3ish sitting. I may have to end up taking it to the dealer if I can't figure out
For me, seeing those numbers of 14 while driving (not bad, but could be higher for a battery that's not fully charged)
12.3 is low enough that the auto stop/start isn't going to work. On the trucks I've measured, it appears to be 12.4 before it's satisfied that the batteries are high enough to trigger ESS.
If you can, if you have a charger that will charge AGM batteries properly (the batteries in modern Jeeps are AGM battery types) then put a charger on for a few hours and see if they come up.
I have a feeling with the numbers you gave here that you may be looking at needing the batteries fully charged then load tested. You can't do a proper load test with a voltage of 12.3. If I recall correctly from the documentation the dealers go by for testing, it's got to be at least 12.4 or higher before they can properly test the batteries.
Batteries can start a truck but still be of diminished capacity. That means they are fine as long as things are working and the truck starts - but they can't maintain that type of load. They can sprint but can't handle a marathon. The IBS (Intelligent Battery Sensor) on the negative terminal of the main battery tracks such things as best it can. Over time, depending on how this truck was used in the past, the batteries may have lost capacity due to sitting, lack of use, lack of being kept fully charged, a lot of "cycles", etc.
