Battery test and charge with TB6000

[J Sierra]

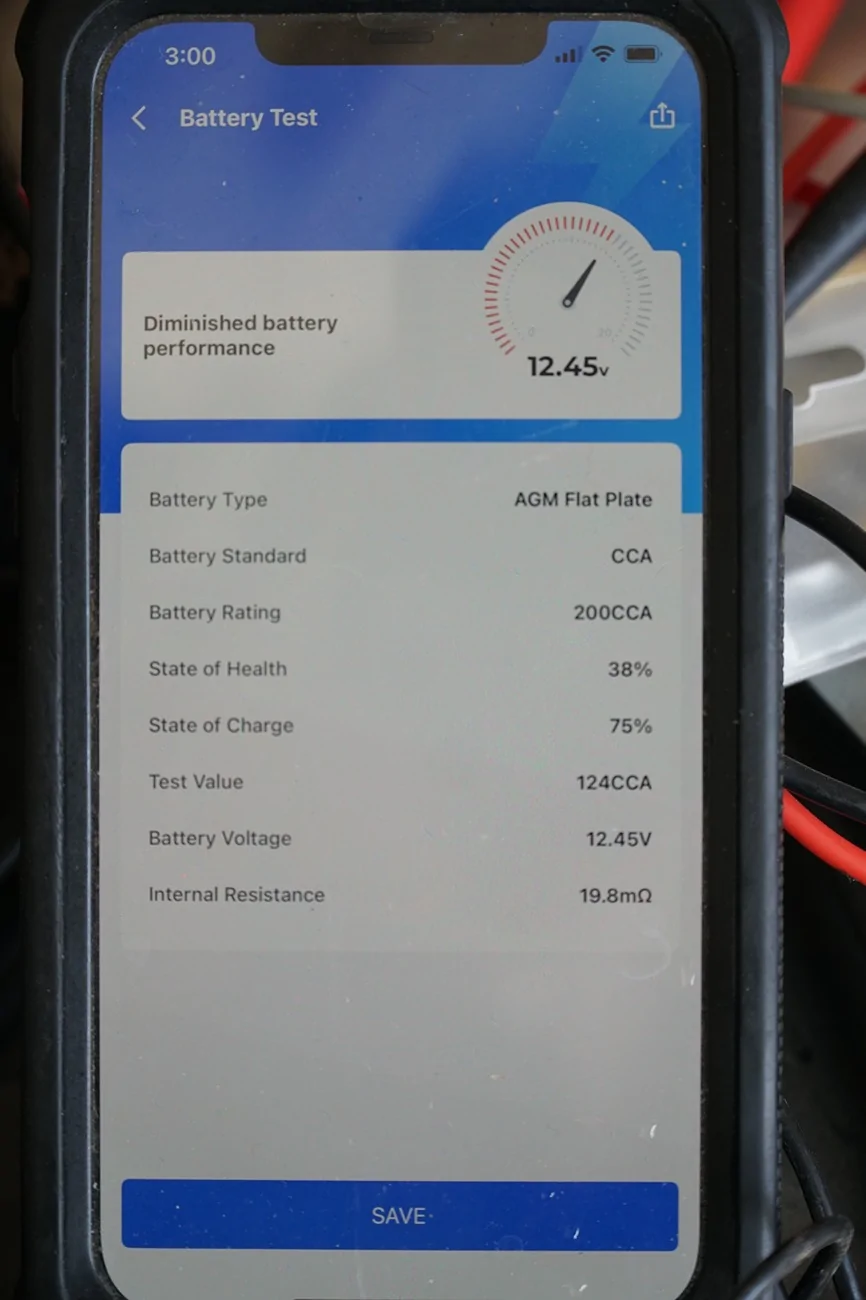

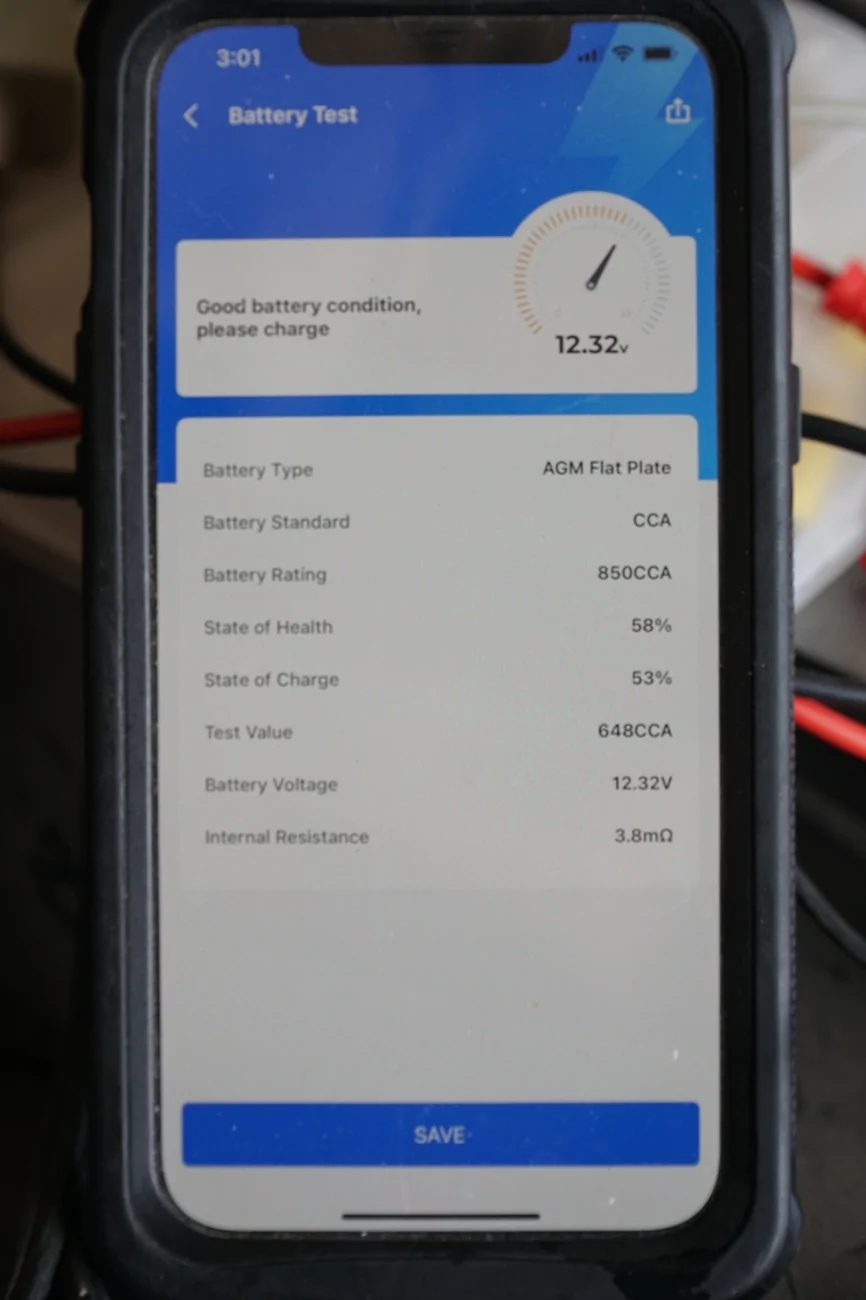

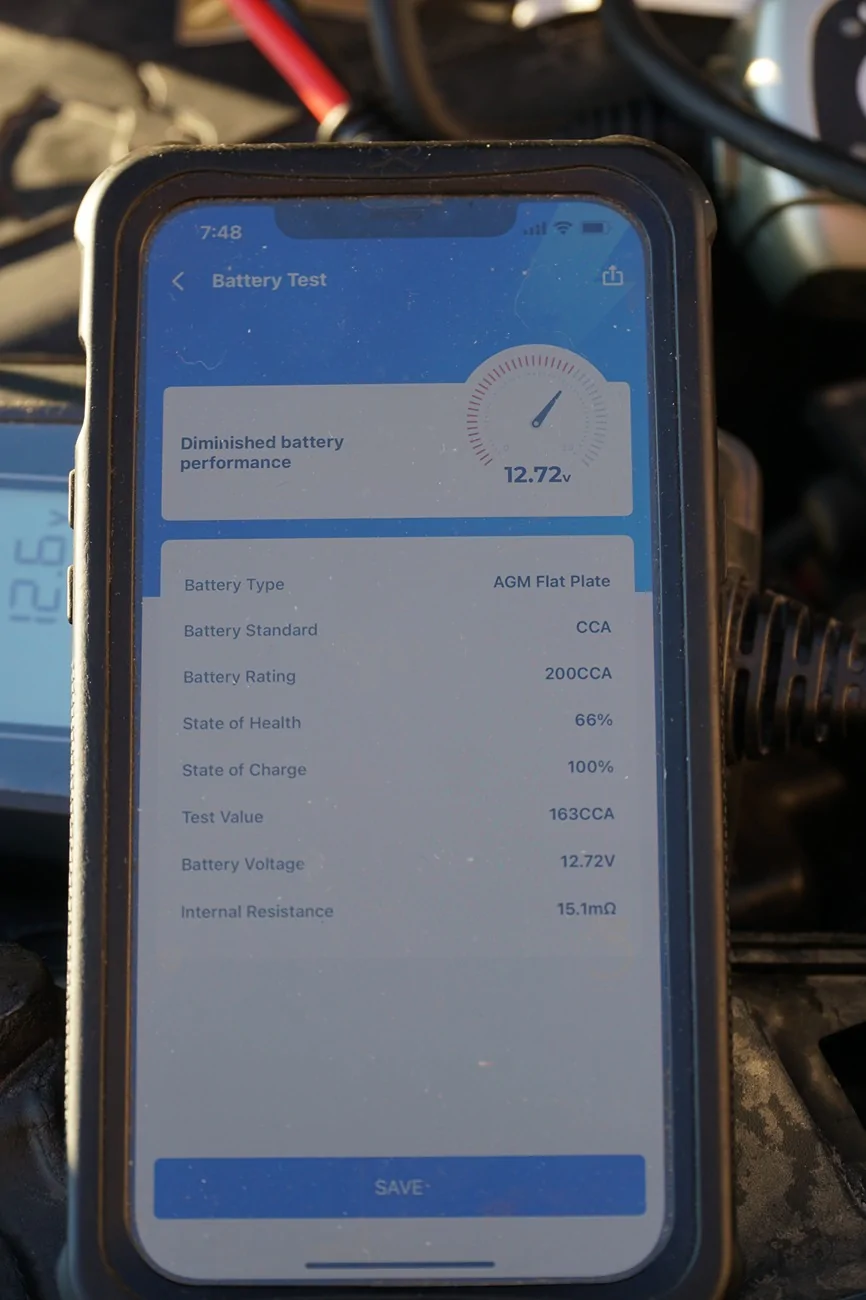

Jeep sitting for a week, 3-year-old batteries. Top is main, next is aux. I will charge both and rerun the test.

Sponsored



[Flanders]

What is this?



[J Sierra]

The TB6000 is a battery tester and charger. I purchased it three years ago when I replaced my batteries. At that time, both batteries had a health status and state of charge in the high 90 percent range.



[J Sierra]

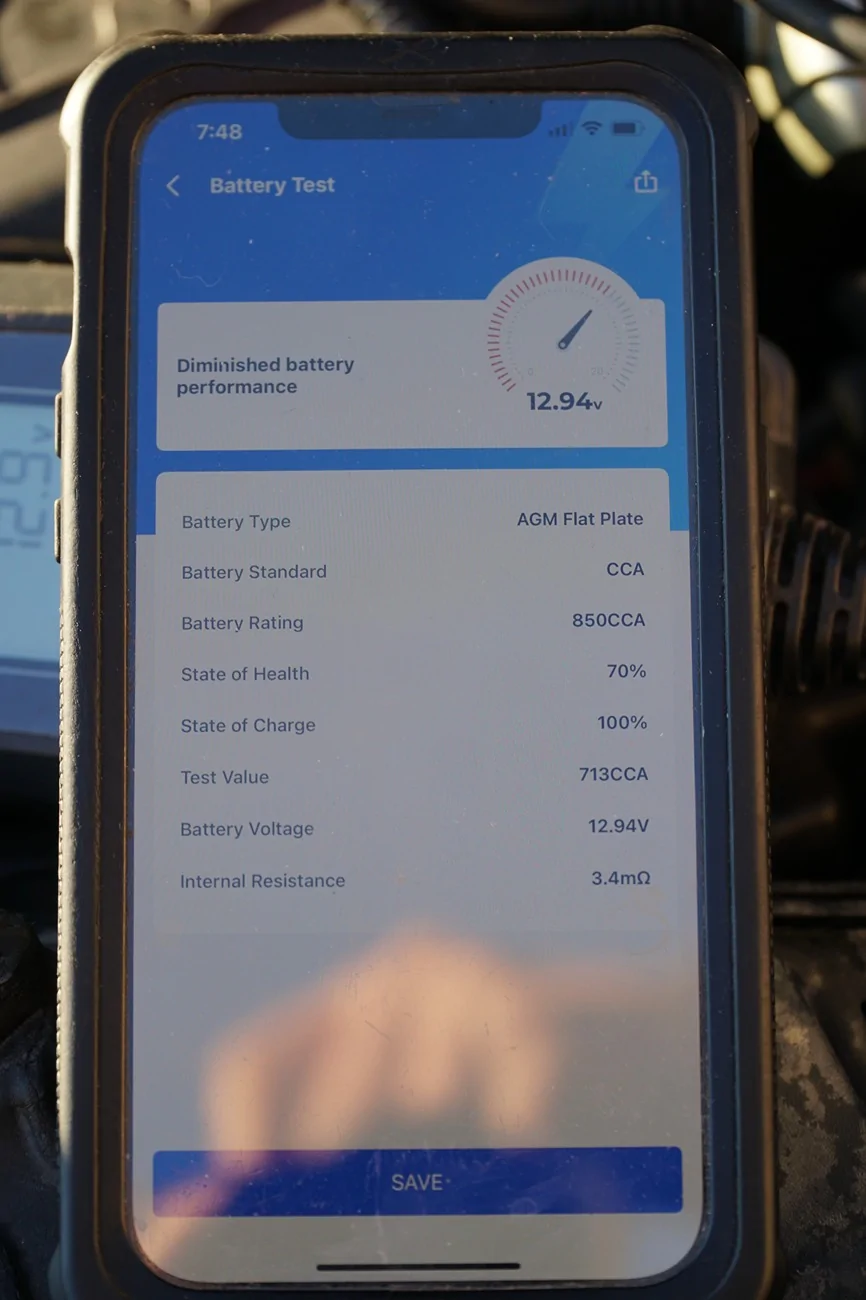

After charging batteries together.



[sharpsicle]

Is there a question here I might be missing?



[J Sierra]

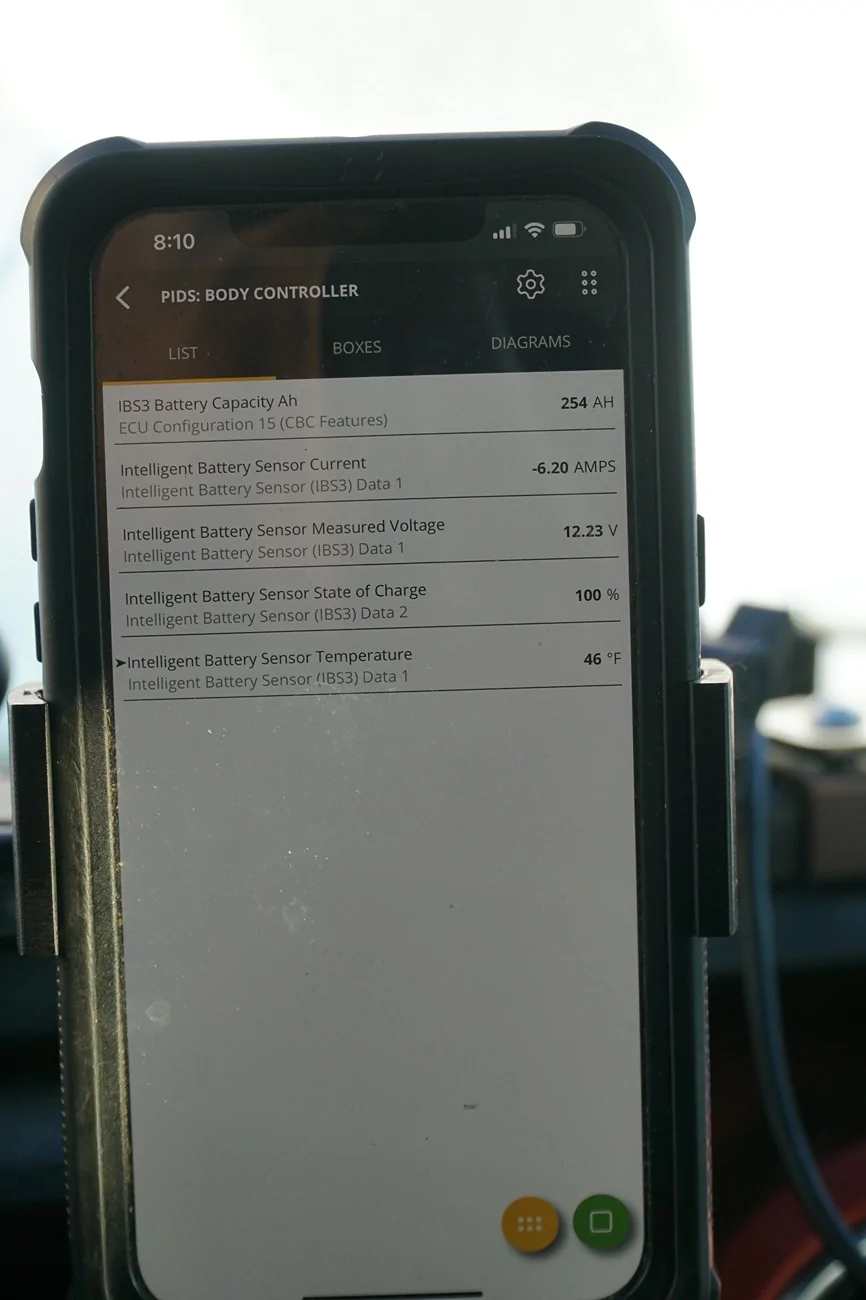

No question, looking at the correlation of IBS data and external battery test.



[J Sierra]

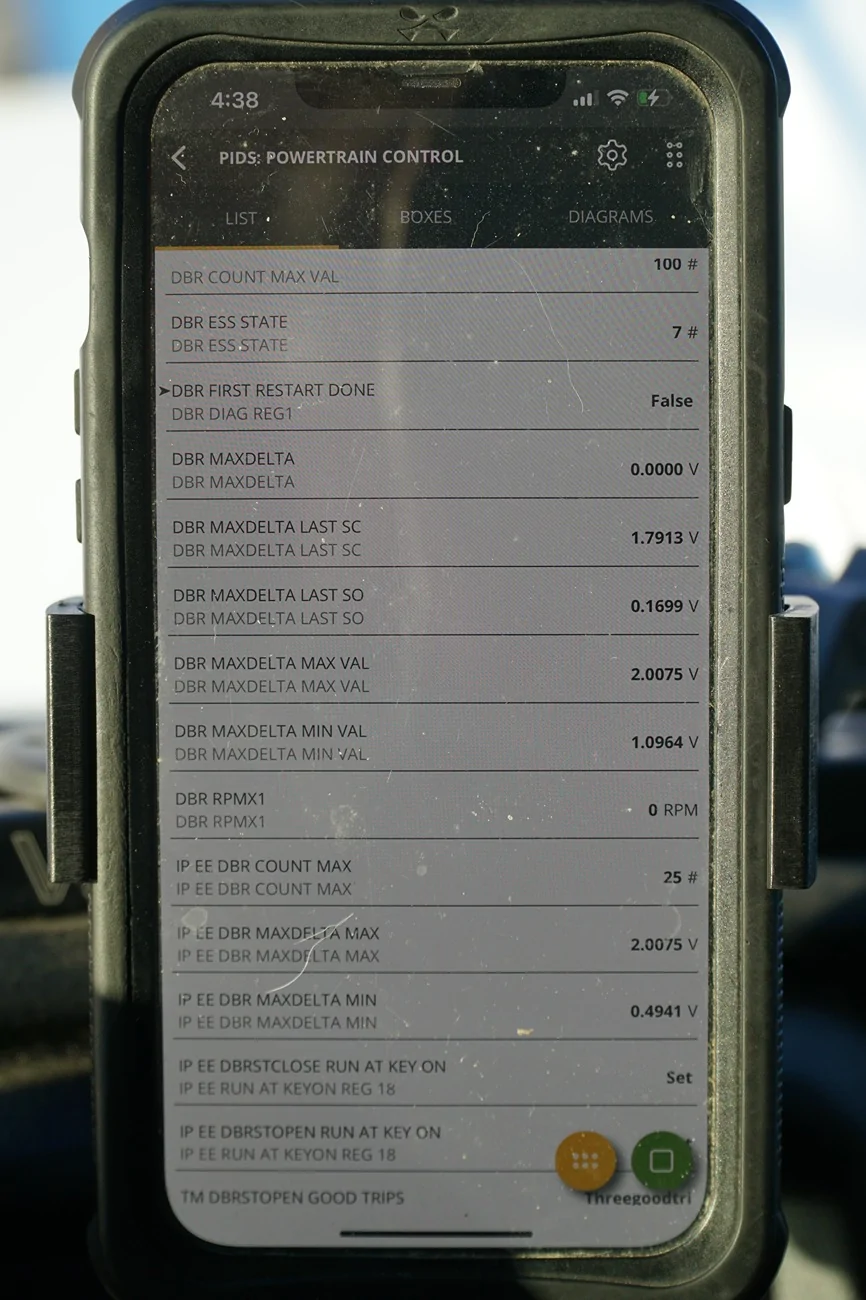

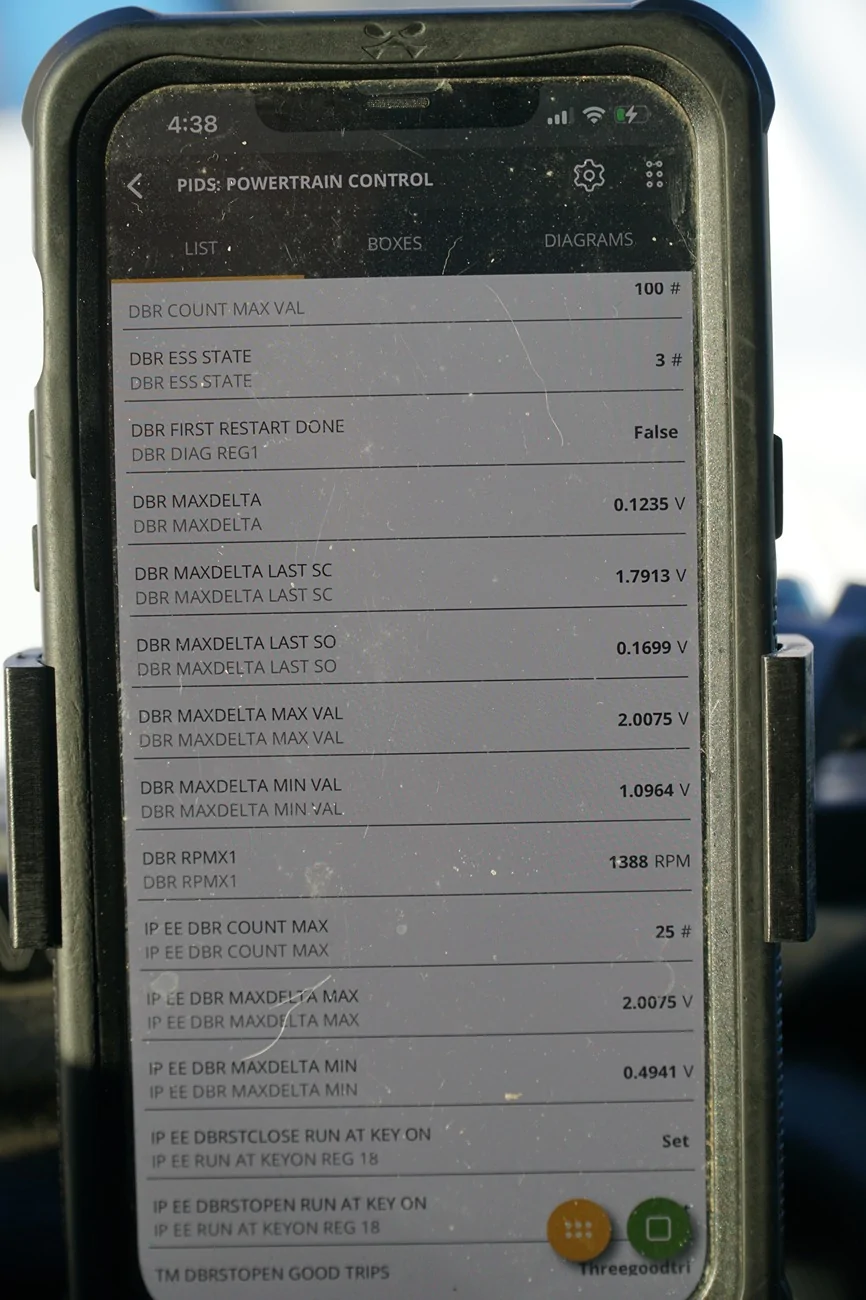

I think the min/max numbers are from the Jeep doing the battery test. Top is key in run, next is running. DBR-dual battery relay. This is JSCAN



[Lunentucker]

That's impressive for Arizona.



[ShadowsPapa]

Time to reset IBS and let it relearn. They do lose accuracy with time.................. there's drift involved with their wide tolerance range.



[J Sierra]

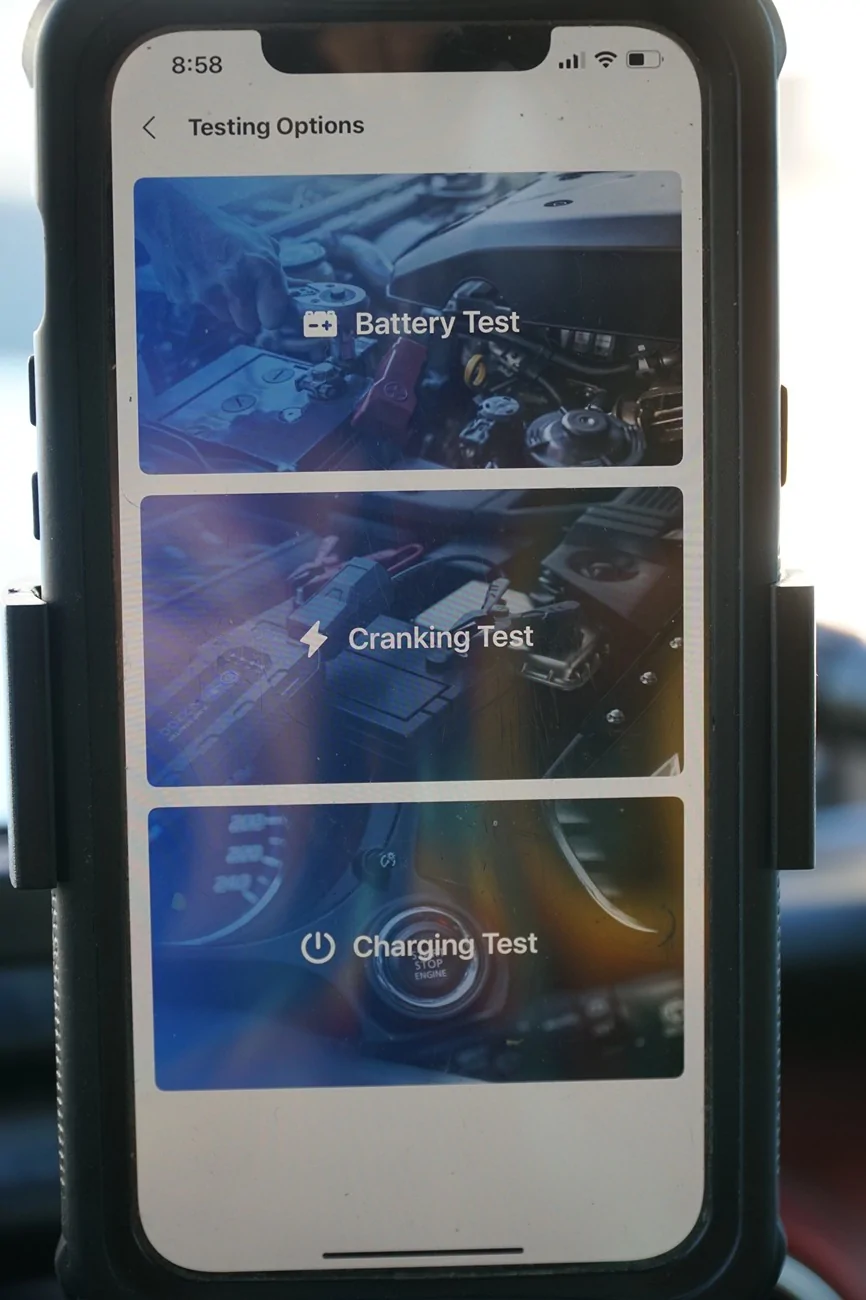

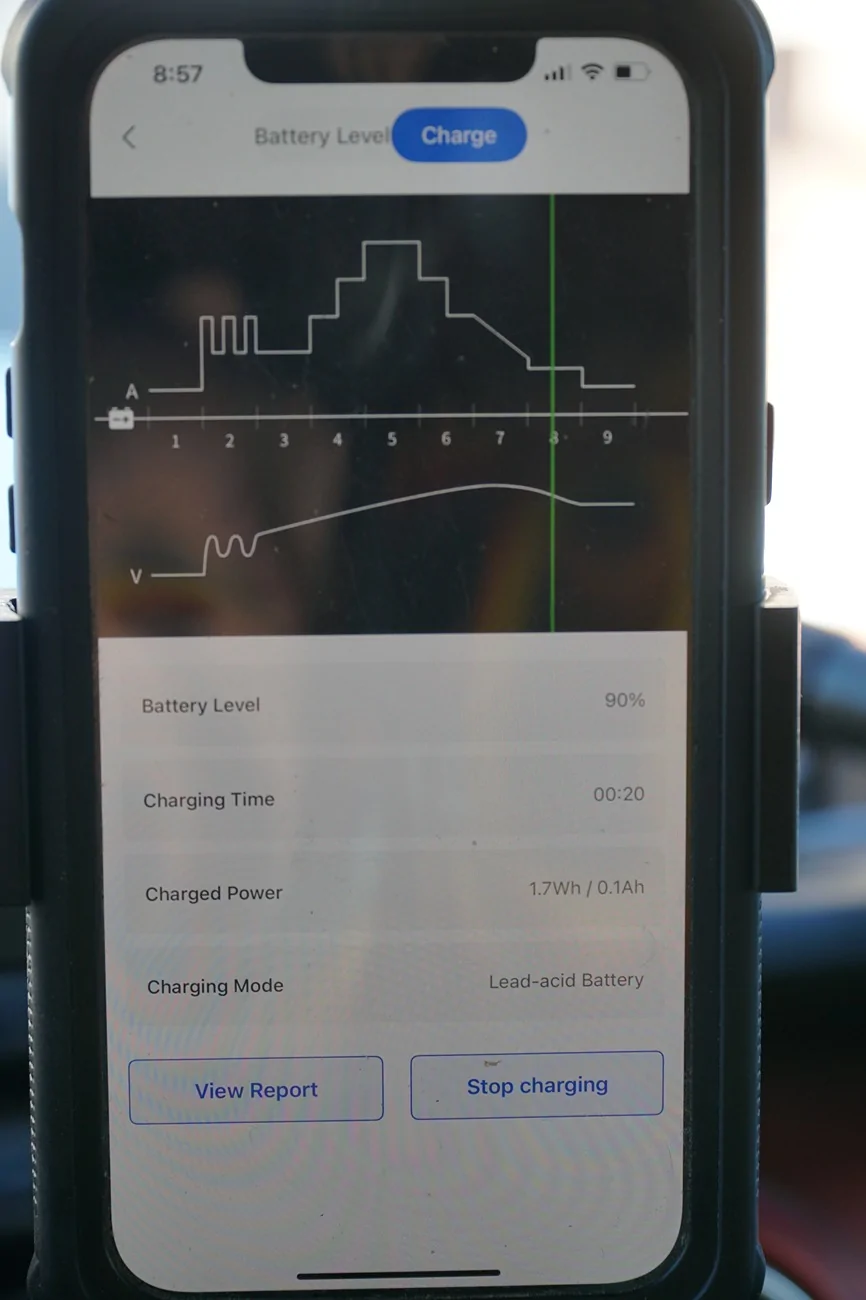

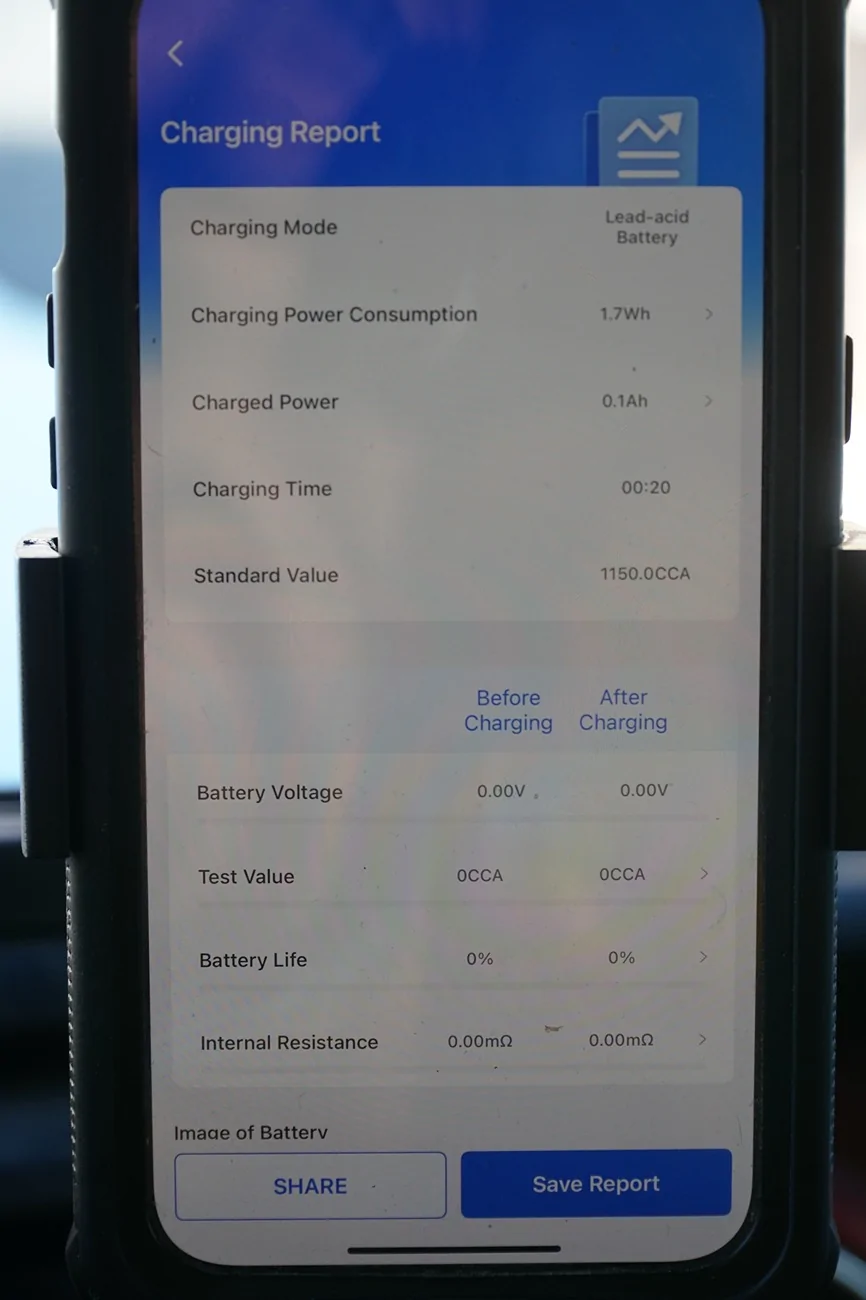

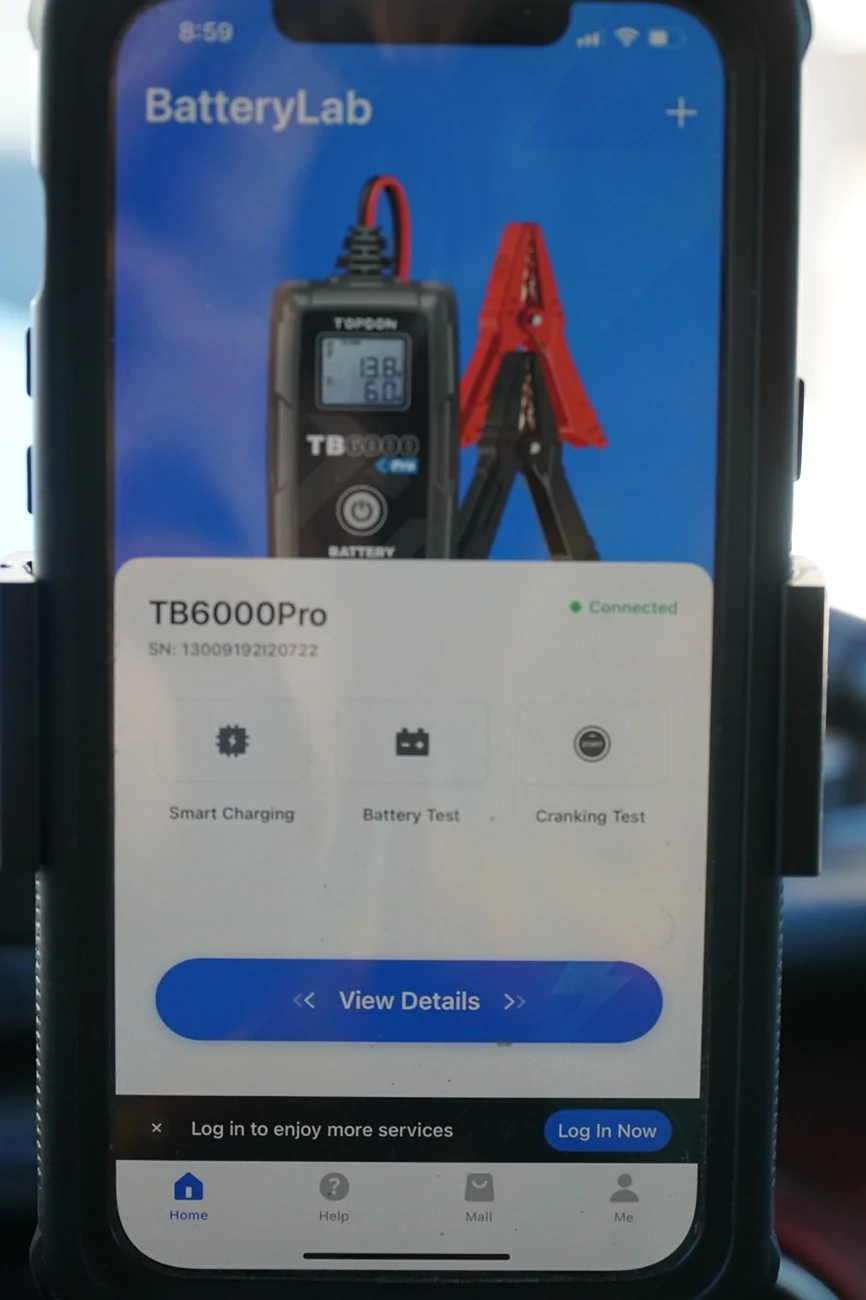

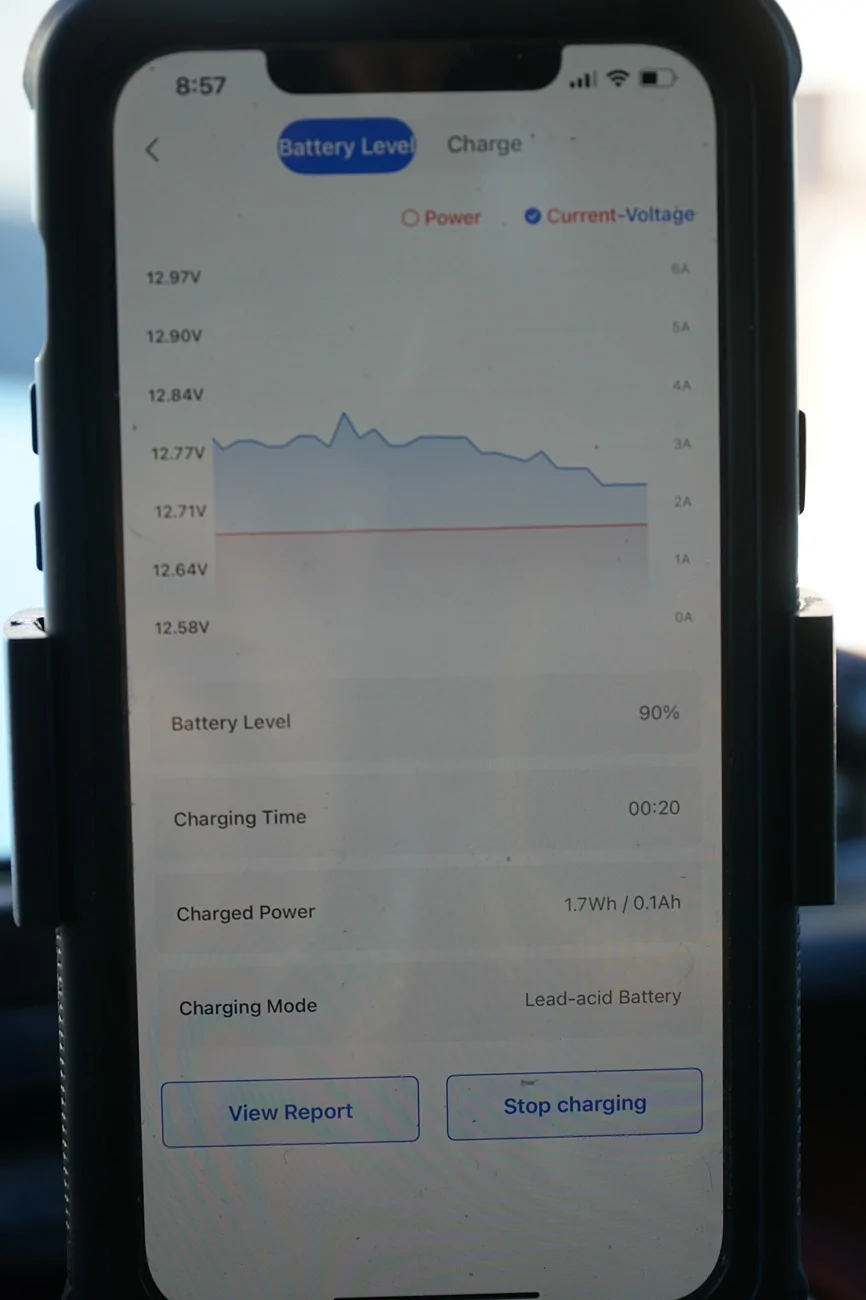

Battery lab for TB6000, test and charge batteries. Has log of charging history and test data. The log and data are on the phone by date and time. Shows charging progress and voltage current graph.



[jebiruph]

After seeing your posts on these, I found that the local Fleet Farm store has them on clearance for $60. Now I have one.



[J Sierra]

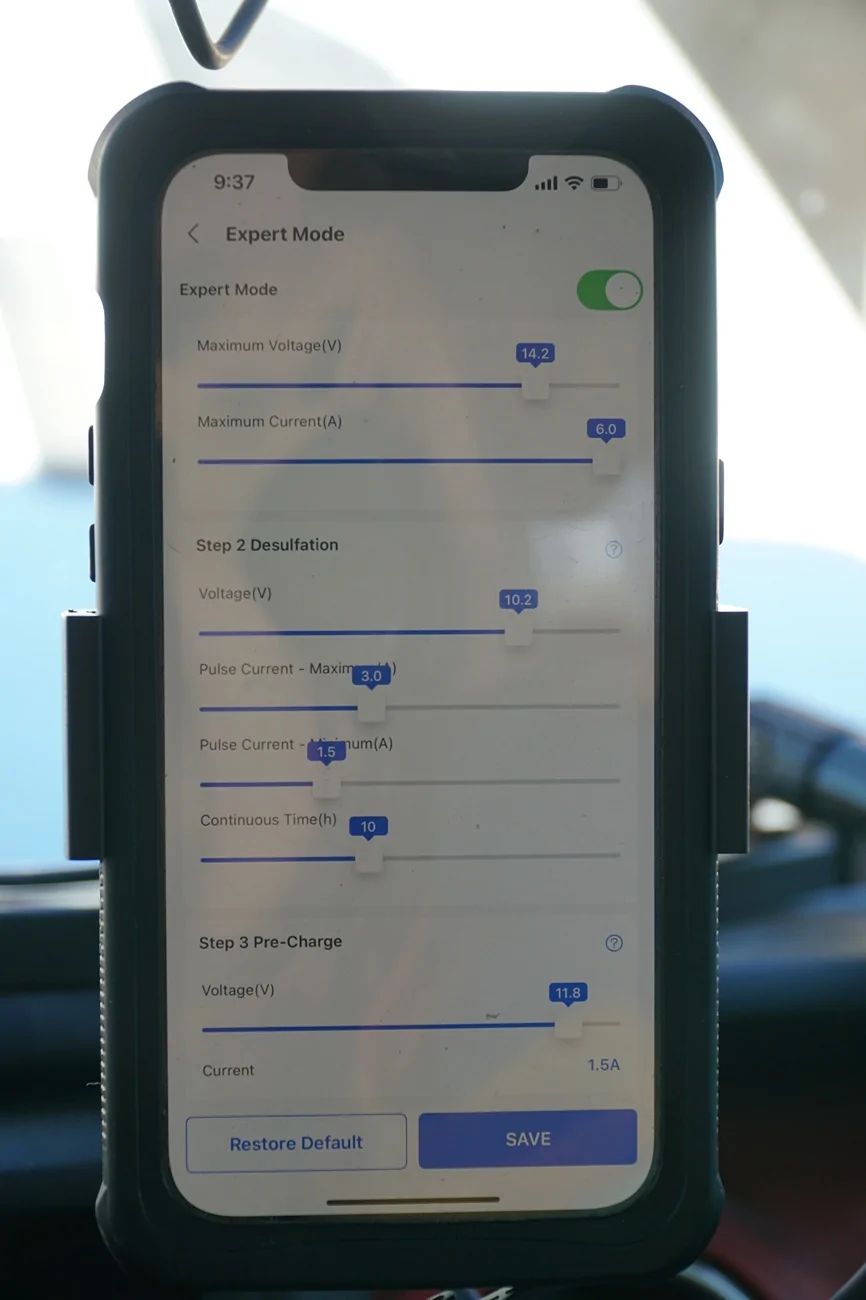

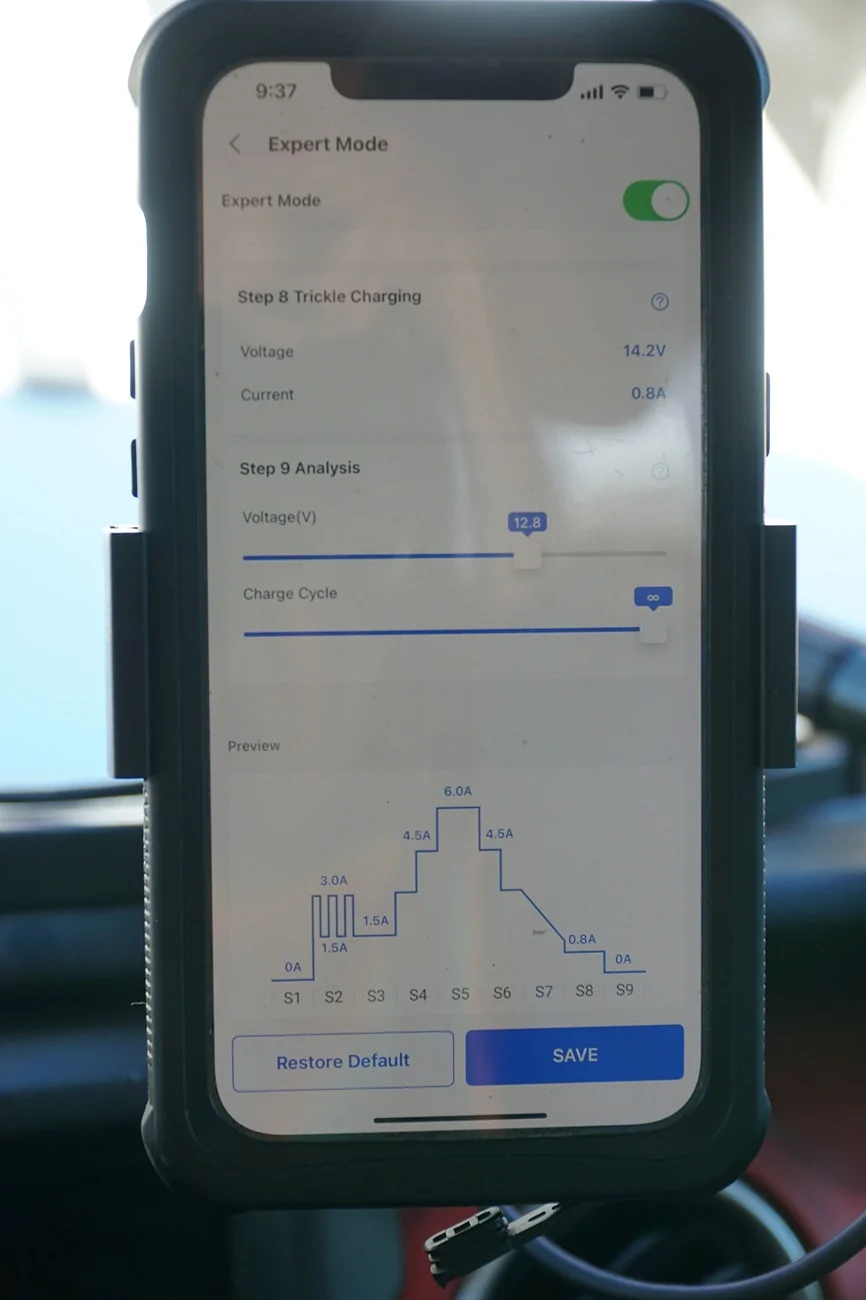

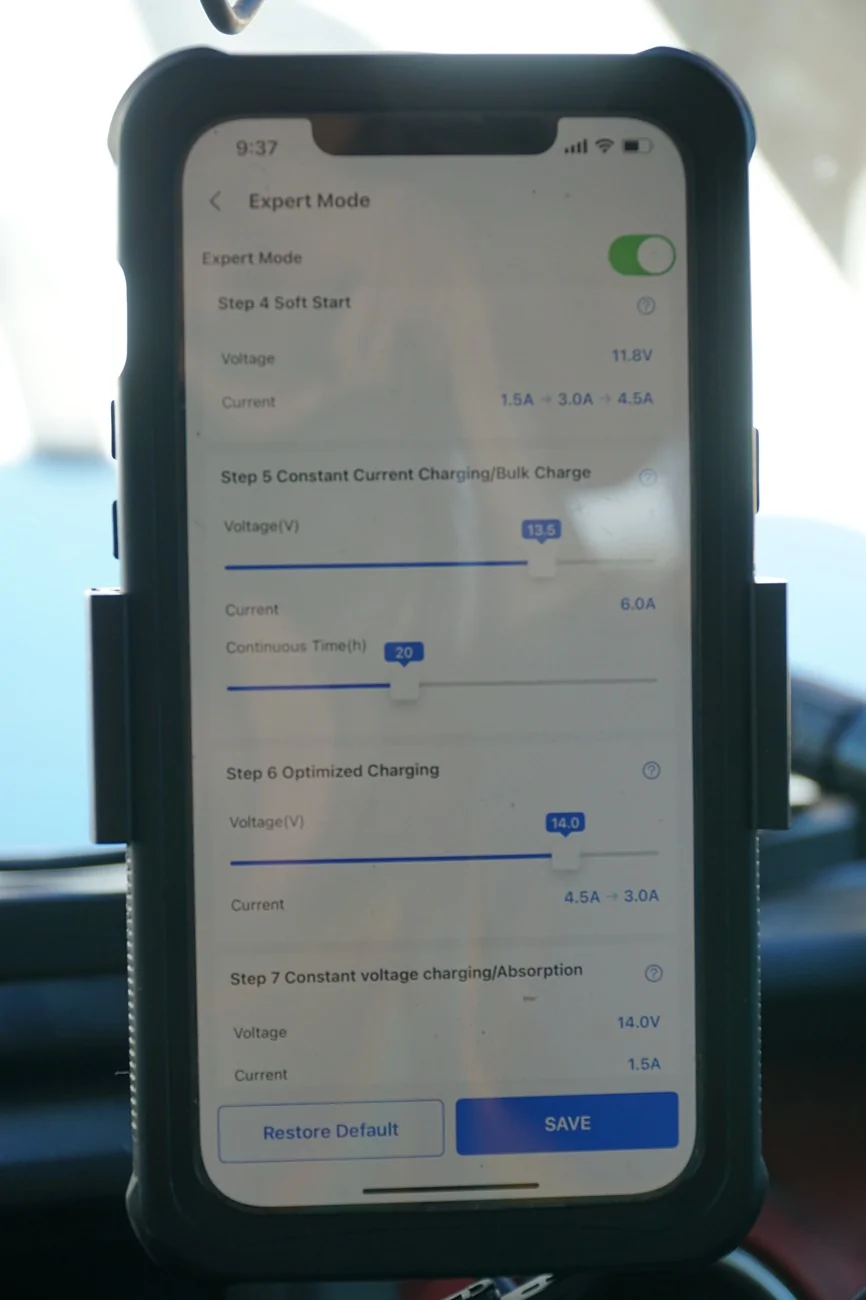

Has lots of fun for $60. Manual control of battery charging.
