Blade1668
Well-Known Member
I didn't notice anymore leg room but I couldn't really set in my JT with it installed. My head would bang just trying to get in even.
Sponsored
Sponsored
Big Boy Factory Seat Adaption
- Thread starter Mattkuhn1986
- Start date
- Watchers 14
2tall
Well-Known Member
- First Name
- Carmino
- Joined
- Mar 9, 2021
- Threads
- 3
- Messages
- 54
- Reaction score
- 62
- Location
- Brooklyn, NY
- Vehicle(s)
- JTRM
- Occupation
- Engineer
Hi @Mattkuhn1986 thanks for posting! I plan to tackle this mod in the near future. I haven’t analyzed my seat yet but why are the two 1/2” drilled holes required?
.:eMETAL:.
Well-Known Member
this is the question I walk away with too. Are they new seat positions that get created?
I may go do this today.
.:eMETAL:.
Well-Known Member
FREEDOM!! Holy crap this is awesome!!
I’m 6’8 proportionate with a 36” inseam. This feels like an entirely new vehicle after doing this modification. My knee use to rest pretty hard against the center console and now is approximately 3.5”away as OP states. My head is just about at the sound bar but not hitting it unless I really try.

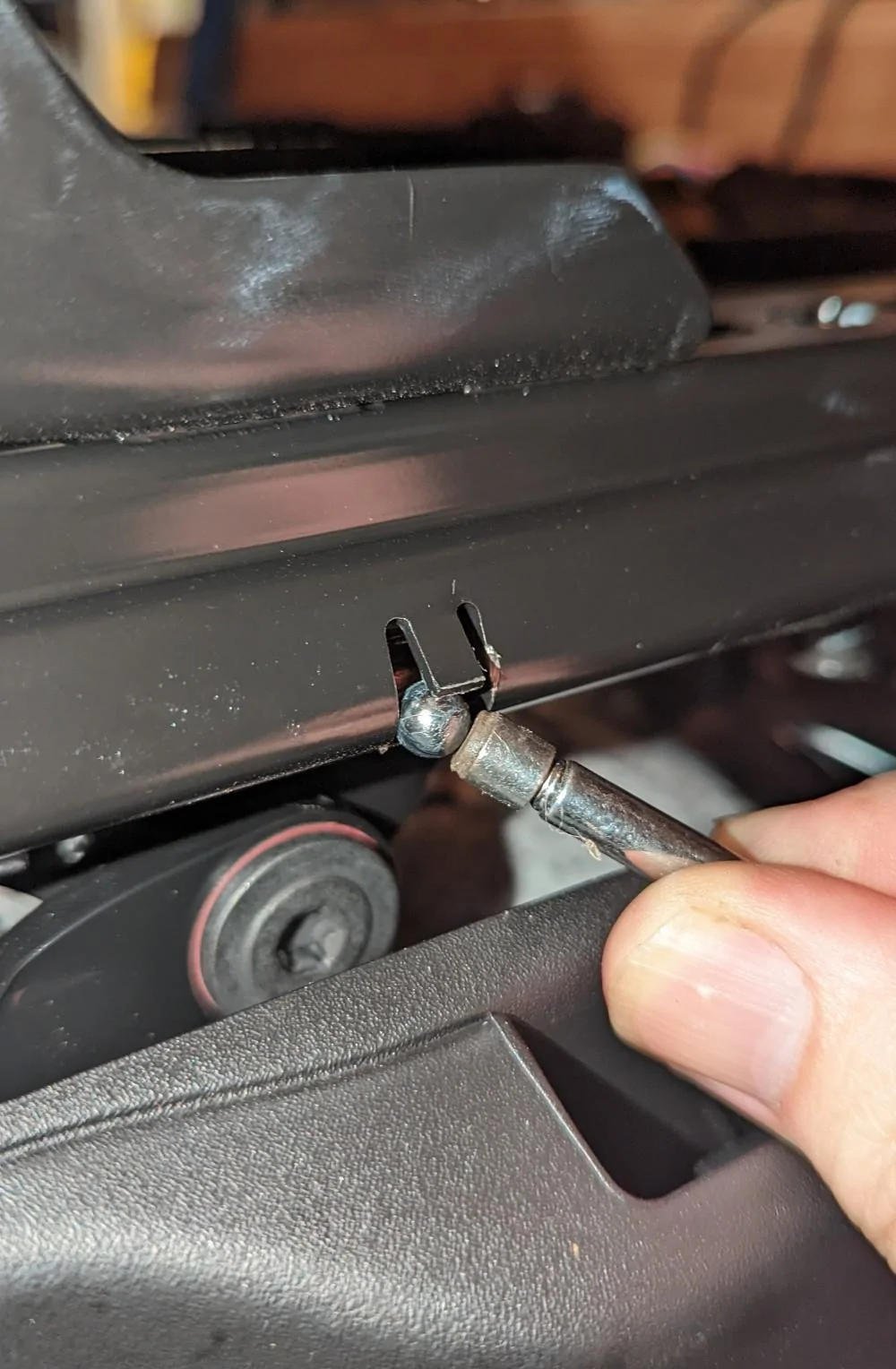

This took me an hour from start to finish going easy and paying attention to directions while double and triple checking at times. I used a rubber mallet to jockey the rails forward when removing the ball bearings and spacers which allowed me a little control from them flying across the garage. Learned this after the first one and the mallet worked like a charm for the remaining.
Thank you!
I’m 6’8 proportionate with a 36” inseam. This feels like an entirely new vehicle after doing this modification. My knee use to rest pretty hard against the center console and now is approximately 3.5”away as OP states. My head is just about at the sound bar but not hitting it unless I really try.
This took me an hour from start to finish going easy and paying attention to directions while double and triple checking at times. I used a rubber mallet to jockey the rails forward when removing the ball bearings and spacers which allowed me a little control from them flying across the garage. Learned this after the first one and the mallet worked like a charm for the remaining.
Thank you!
Sponsored
.:eMETAL:.
Well-Known Member
the 1/2” holes are drilled for the seat glider to have the new extended seat position. They allow the glider lock supports new locations to click into.
Cmac610
Member
- First Name
- Craig
- Joined
- Feb 18, 2022
- Threads
- 0
- Messages
- 16
- Reaction score
- 47
- Location
- Amesbury, MA
- Vehicle(s)
- 2014 Wrangler, 2022 Gladiator Mojave
- Occupation
- Retired
- Vehicle Showcase
- 1
Thanks for this thread @Mattkuhn1986! 6’10” and didn’t fit horribly, but could have used another inch of legroom. Tried the Seat Jackers, and although my knee room was better, the extra inch or two lift put me almost eye level with the headliner. So tried this today, and although I got stuck for a sec with a couple of the steps, once I figured them out, it was perfect!
Cnksviland
New Member
Has anyone done this mod after installing the seat slammers?
gramurai
New Member
- First Name
- Graham
- Joined
- Feb 5, 2024
- Threads
- 0
- Messages
- 1
- Reaction score
- 0
- Location
- Oregon coast
- Vehicle(s)
- 2023 Gladiator ecodiesel Rubicon
- Occupation
- Just retired
Like Scmoken, I only bent the one tab per rail (two rails per seat).
-Also, I only removed one ball and one spacer per rail which let the seat go back an easy two inches more per side.
-Last tip: 3/8 inch drill bit was plenty for new holes (for the seat locating pins to drop into as you move the seat farther back.
Great mod! I'm six foot but long legs and this makes a huge difference.
-Also, I only removed one ball and one spacer per rail which let the seat go back an easy two inches more per side.
-Last tip: 3/8 inch drill bit was plenty for new holes (for the seat locating pins to drop into as you move the seat farther back.
Great mod! I'm six foot but long legs and this makes a huge difference.
