bigger tires on unlifted Sport S

JLM007

Member
Joined
Sep 13, 2020
Threads
1
Messages
21
Reaction score
21
Location
NY
Vehicle(s)
2020 Sport S, 1989 YJ (RIP), 1977 J10 (Sold)
I’ll be joining this group soon. Picked up some used but good condition 315/70/17 KO2 tonight to put on my stock Sport S max tow. I plan to go rubi suspension mods at some point soon.
Nice. Do you (or anyone else on this thread) think adding the Rubicon suspension when going with bigger tires will make a noticeable difference in the handling/steering? Contemplating doing this or just upgrading the steering stabilizer.
Sponsored



DaddyG

Well-Known Member
First Name
Scott
Joined
May 29, 2020
Threads
21
Messages
214
Reaction score
178
Location
Somewhere in the swamps of Jersey
Vehicle(s)
2020 Gladiator Sport S Max Tow
Occupation
Site superintendent
Vehicle Showcase
1
Has anybody seen any sport S without lift and 33 or 35" tires? Wondering if a rubicon take off will fit the stock fenders and lift, wondering more optimistically if a 35" would have a snowballs chance in hell to fit stock lift and stock fenders.

From everything I've read on here......a Sport S with Max Tow will fit 35's without rubbing unless you get into some really serious articulation.
You're obviously gonna need to remove the Euro air dams in the front though (the plastic pieces between the fenders and the front bumper)
Remember, the Max Tow not only has different springs (dual rate) in the rear.....it also has the Rubicon axles which are wider than the stock Sport and Sport S models


cebuen

New Member
First Name
Chris
Joined
Aug 11, 2020
Threads
0
Messages
1
Reaction score
3
Location
Clayton CA
Vehicle(s)
Jeep Gladiator Sport
Occupation
Registered Nurse

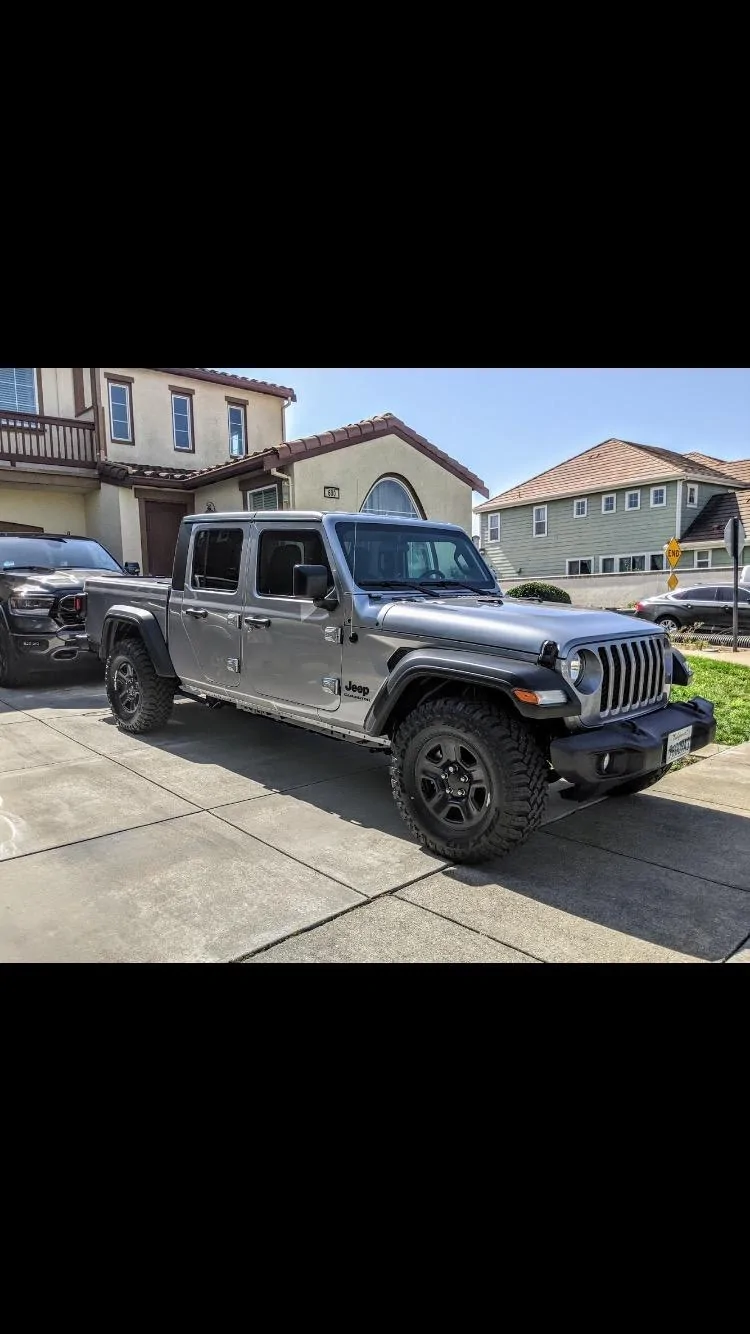

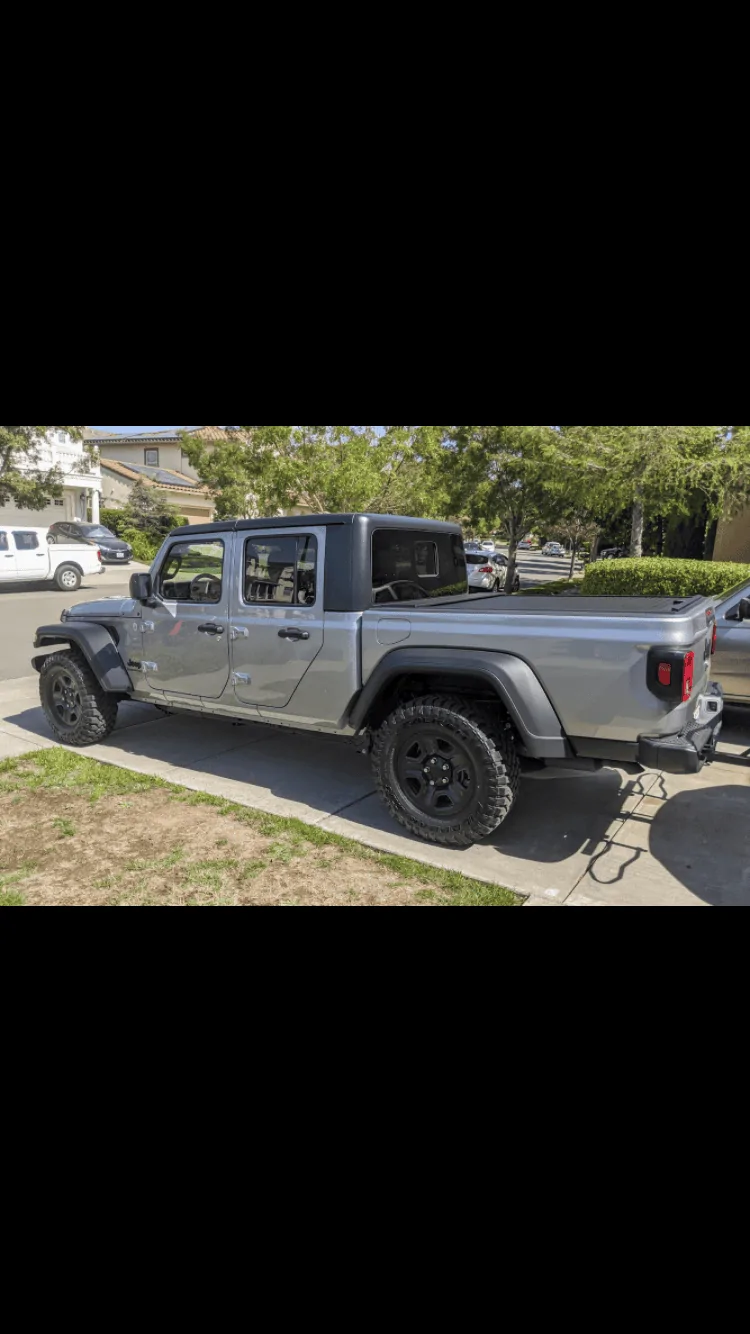

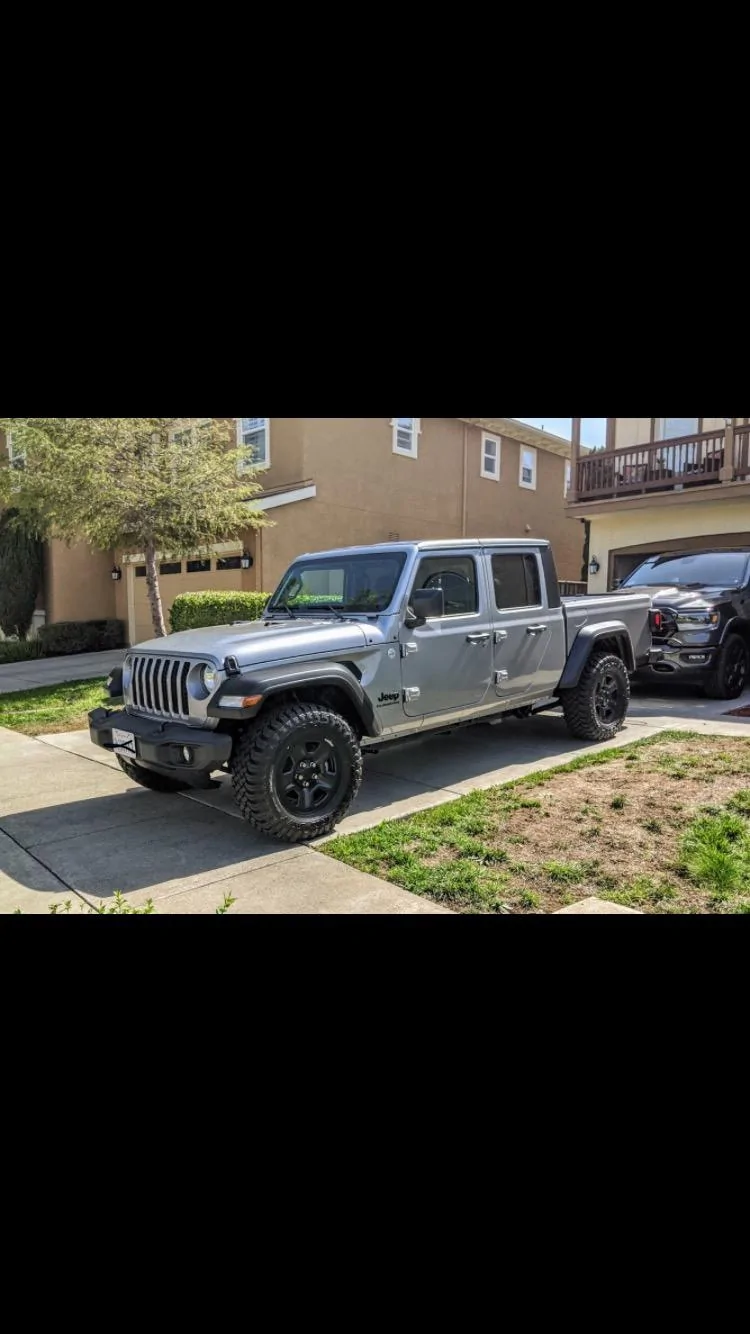

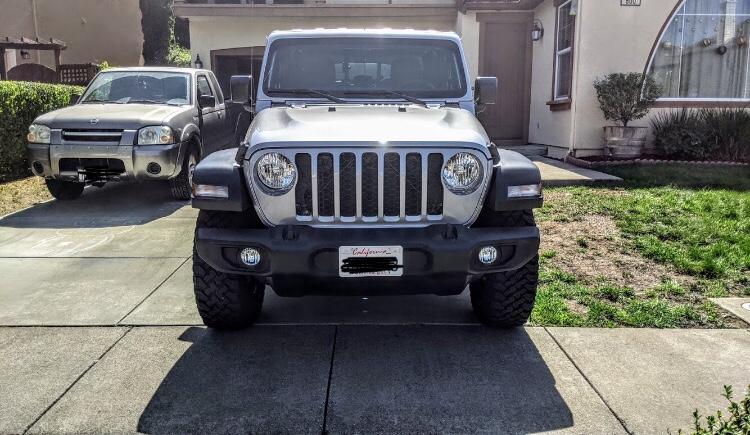

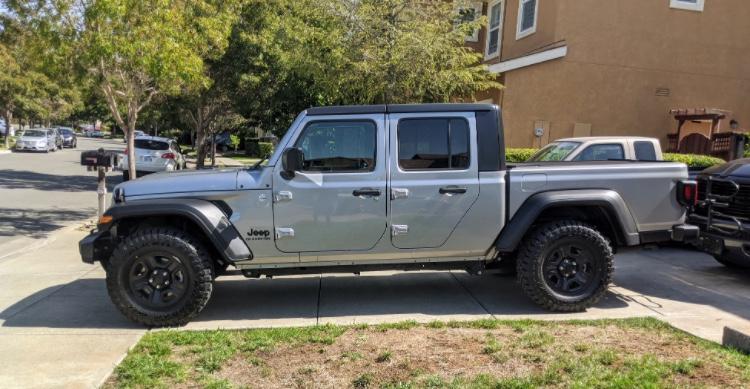

Jeep Gladiator Sport. No Max Tow. No Lift. No Spacer. Stock Black Steel Jeep Rims 17 x 7.5. Swapped tires with 285/70 Falken Wildpeak MT Q121. The Q 121 is bigger and beefier then original Falken Wildpeak MT Q116. Looks very aggressive and rides smooth! No rub! Fills in space! Took out air dams for more aggressive look!











Space Invader

Well-Known Member
First Name
John
Joined
Sep 4, 2019
Threads
8
Messages
66
Reaction score
65
Location
League City, TX
Vehicle(s)
Gladiator Sport
Vehicle Showcase
1
Jeep Gladiator Sport. No Max Tow. No Lift. No Spacer. Stock Black Steel Jeep Rims 17 x 7.5. Swapped tires with 285/70 Falken Wildpeak MT Q121. The Q 121 is bigger and beefier then original Falken Wildpeak MT Q116. Looks very aggressive and rides smooth! No rub! Fills in space! Took out air dams for more aggressive look!

Jeep Gladiator bigger tires on unlifted Sport S 75E0C78D-3CD0-4B63-98AA-5B9D2A5CED68


Jeep Gladiator bigger tires on unlifted Sport S 75E0C78D-3CD0-4B63-98AA-5B9D2A5CED68


Jeep Gladiator bigger tires on unlifted Sport S 75E0C78D-3CD0-4B63-98AA-5B9D2A5CED68


Jeep Gladiator bigger tires on unlifted Sport S 75E0C78D-3CD0-4B63-98AA-5B9D2A5CED68


Jeep Gladiator bigger tires on unlifted Sport S 75E0C78D-3CD0-4B63-98AA-5B9D2A5CED68
does it rub when you disconnect the sway bar and fully flex the suspension with the wheels turned?


Sponsored

Space Invader

Well-Known Member
First Name
John
Joined
Sep 4, 2019
Threads
8
Messages
66
Reaction score
65
Location
League City, TX
Vehicle(s)
Gladiator Sport
Vehicle Showcase
1
This is my Sport S with 33" wheels/tires from Rubicon. No lift or spacers, no issues. Thinking of doing the 2.5" leveling kit on the front and 3/4" rear spacers then maybe 35's.
Jeep Gladiator bigger tires on unlifted Sport S 75E0C78D-3CD0-4B63-98AA-5B9D2A5CED68
have you ever flexed with the sway bar disconnected? did it rub?


Space Invader

Well-Known Member
First Name
John
Joined
Sep 4, 2019
Threads
8
Messages
66
Reaction score
65
Location
League City, TX
Vehicle(s)
Gladiator Sport
Vehicle Showcase
1
Sport S on 285/70 R17 Falken Wildpeak tires (Standard Load LT tire). All 5 from discount tire for $866 total with stockers traded in

Jeep Gladiator bigger tires on unlifted Sport S 75E0C78D-3CD0-4B63-98AA-5B9D2A5CED68
after one year, have they ever rubbed? Do you off-road? with the sway bar disconnected?


Space Invader

Well-Known Member
First Name
John
Joined
Sep 4, 2019
Threads
8
Messages
66
Reaction score
65
Location
League City, TX
Vehicle(s)
Gladiator Sport
Vehicle Showcase
1
Based on this thread and other feedback previously I did the LT285/70R17s on our Max Tow Sport.

I've run multiple sets of BFG ATs, Cooper AT3s, and Bridgestone AT Revos on past Jeeps and decided to try something new in a "hybrid" with the Dick Cepek Trail Country EXP (purchased and installed through 4 Wheel Parts). Really loving the size on the unlifted Sport S...fills the wheelwells up nicely and keeps things reasonable for intended towing usage.

Jeep Gladiator bigger tires on unlifted Sport S 75E0C78D-3CD0-4B63-98AA-5B9D2A5CED68


Jeep Gladiator bigger tires on unlifted Sport S 75E0C78D-3CD0-4B63-98AA-5B9D2A5CED68
do you ever do serious offroading? I'm wondering if they might rub when the sway bar is disconnected.


Sponsored

sl009

Active Member
Joined
Jun 9, 2020
Threads
3
Messages
39
Reaction score
16
Location
PA
Vehicle(s)
Gladiator
Anybody have any thoughts on 285/70/17 vs 285/75/17? I have a Sport S (not max tow).


-miko-

Well-Known Member
First Name
Mike
Joined
May 27, 2019
Threads
13
Messages
376
Reaction score
606
Location
North Carolina
Vehicle(s)
Volvo Wagon, Tundra, Nissan NV, '21 Gladiator
Build Thread
Link
Occupation
Product Designer

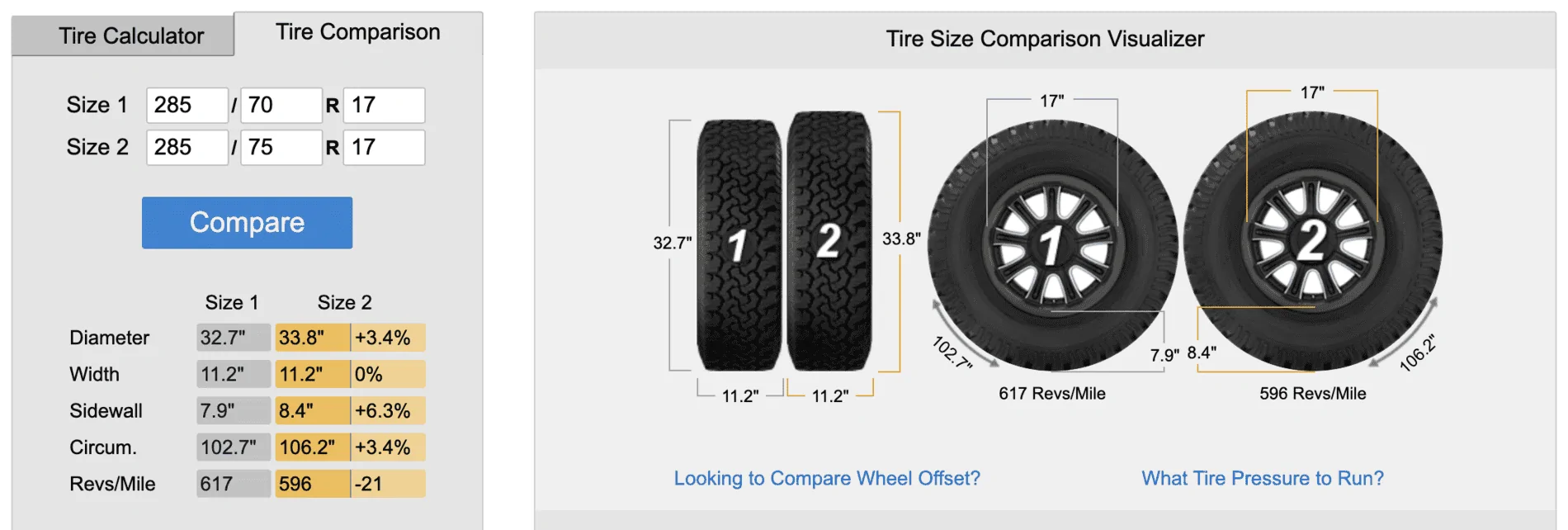

Anybody have any thoughts on 285/70/17 vs 285/75/17? I have a Sport S (not max tow).
Jeep Gladiator bigger tires on unlifted Sport S 1602529440557


I was debating between 33s and 35s for Trail Grapplers. 285/75/17 splits the difference at 33.8 or so and isn't quite as wide which I like. Just placed an order today with my dealer using Mopar's buy 3 get the 4th for $1 sale.

EDIT - And that's on a stock Base with a manual.


sl009

Active Member
Joined
Jun 9, 2020
Threads
3
Messages
39
Reaction score
16
Location
PA
Vehicle(s)
Gladiator


I was debating between 33s and 35s for Trail Grapplers. 285/75/17 splits the difference at 33.8 or so and isn't quite as wide which I like. Just placed an order today with my dealer using Mopar's buy 3 get the 4th for $1 sale.

EDIT - And that's on a stock Base with a manual.
Please let me know how you like them. After reading thread after thread it seems like 35s aren't worth it with 3.73 gears so I'm hoping one of the above mentioned sizes doesn't turn the truck into a dog. I'm leaning towards 285/70, but I saw some pictures of 285/75 on a sport without a lift and without the air dams being removed, but I don't know if it rubbed or what.

Last edited:

-miko-

Well-Known Member
First Name
Mike
Joined
May 27, 2019
Threads
13
Messages
376
Reaction score
606
Location
North Carolina
Vehicle(s)
Volvo Wagon, Tundra, Nissan NV, '21 Gladiator
Build Thread
Link
Occupation
Product Designer
Please let me know how you like them. After reading thread after thread it seems like 35s aren't worth it with 3.73 gears so I'm hoping one of the above mentioned sizes doesn't turn the truck into a dog. I'm leaning towards 285/70, but I saw some pictures of 285/75 on a sport without a lift and without the air dams being removed, but I don't know if it rubbed or what.
I finally had some time to drive a good bit with the new tires. Overall it's not bad - not as sluggish I thought it would be. It definitely lost a good bit of the pep but it's livable. I actually kind of like the feel of more 'weight' in the drive line. It does make shifts a bit smoother.

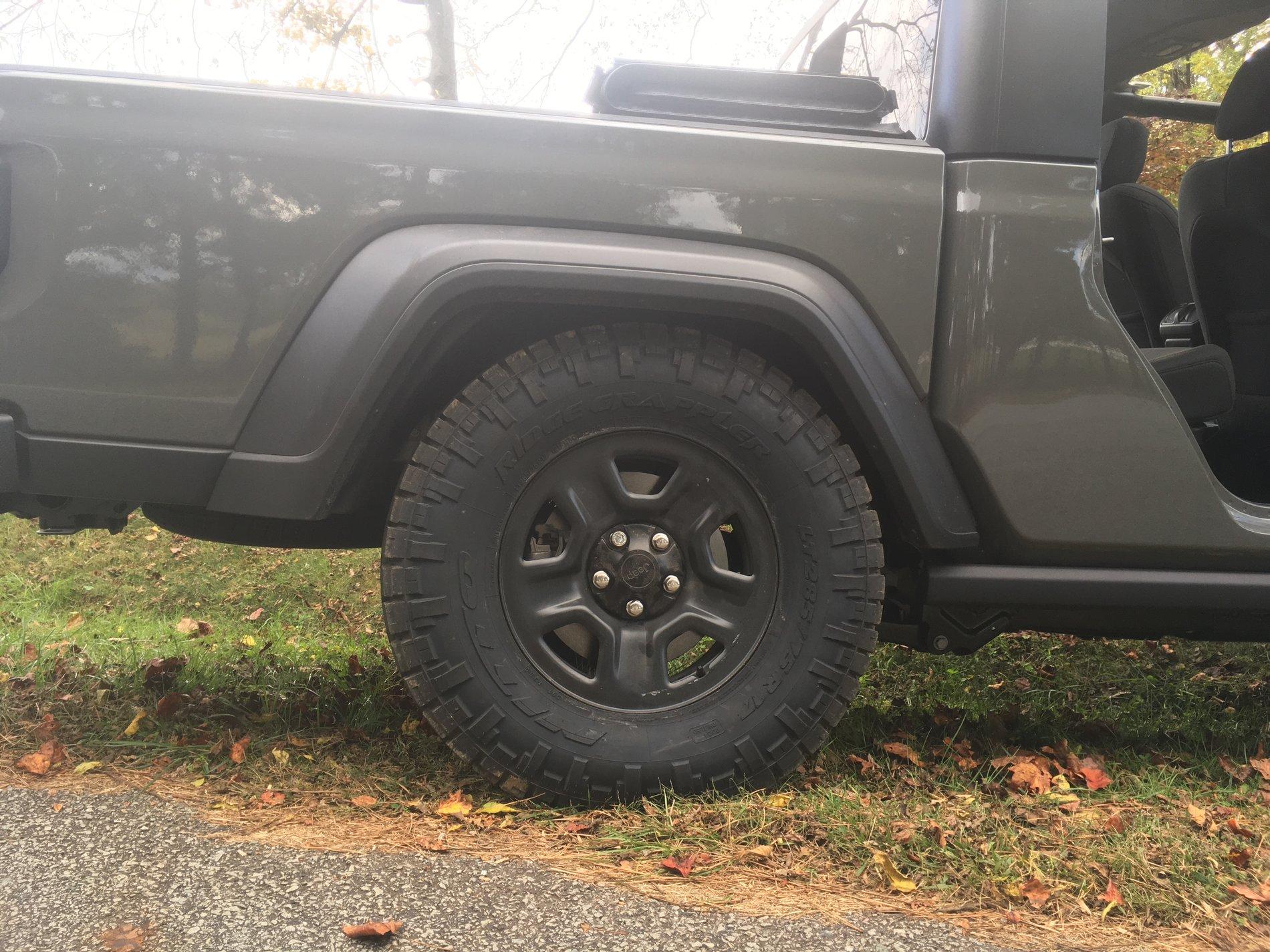

As for rubbing I'm not getting any. Rears have about 1.5" to the inner fender when on the bump stops...

Jeep Gladiator bigger tires on unlifted Sport S IMG_6034.JPG

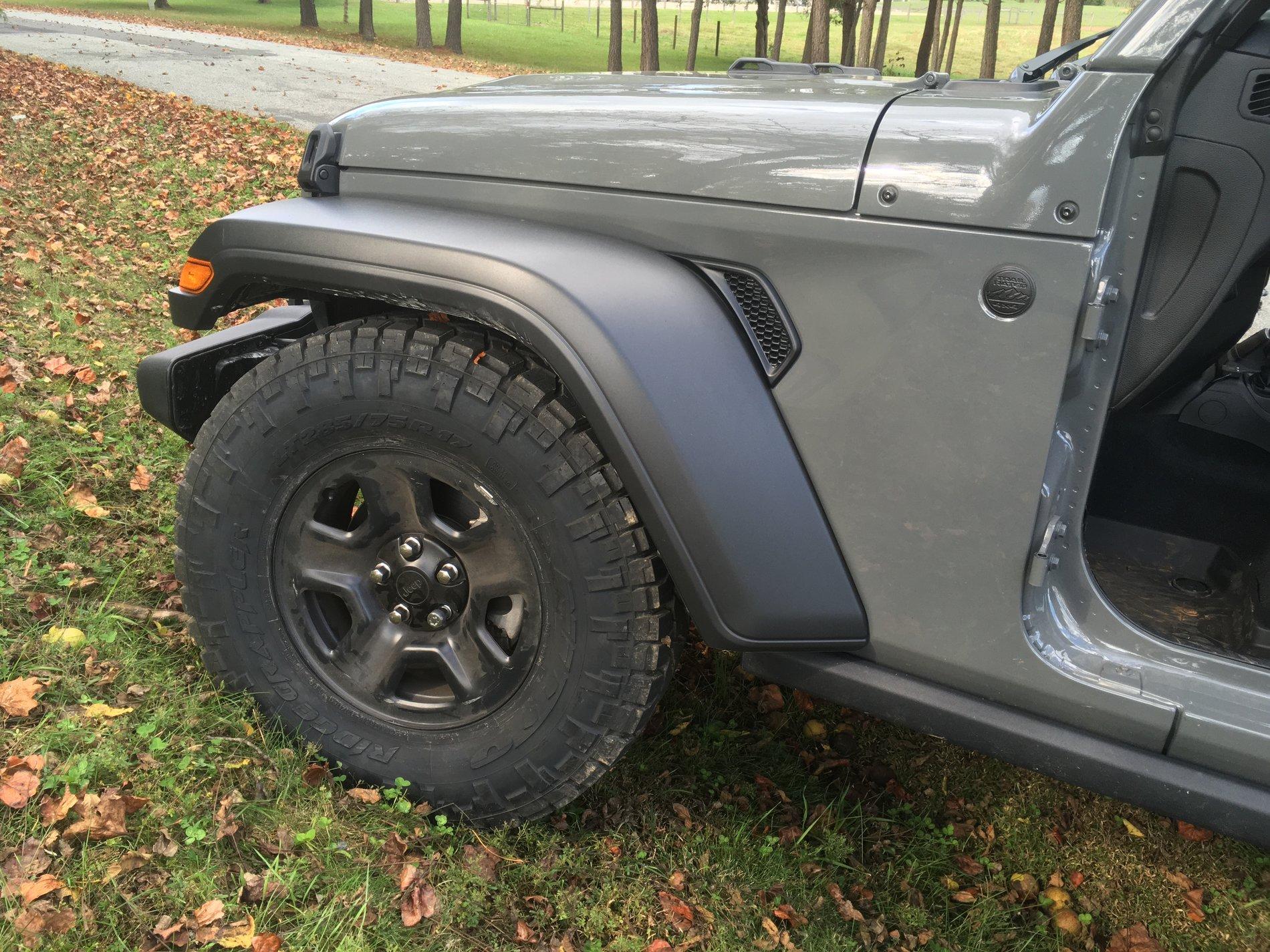

Front was hard to get to the bump stops with the sway bar connected but it's about 1" from the bump stop and still has roughly 2.5" to the inner fender...

Jeep Gladiator bigger tires on unlifted Sport S IMG_6032.JPG

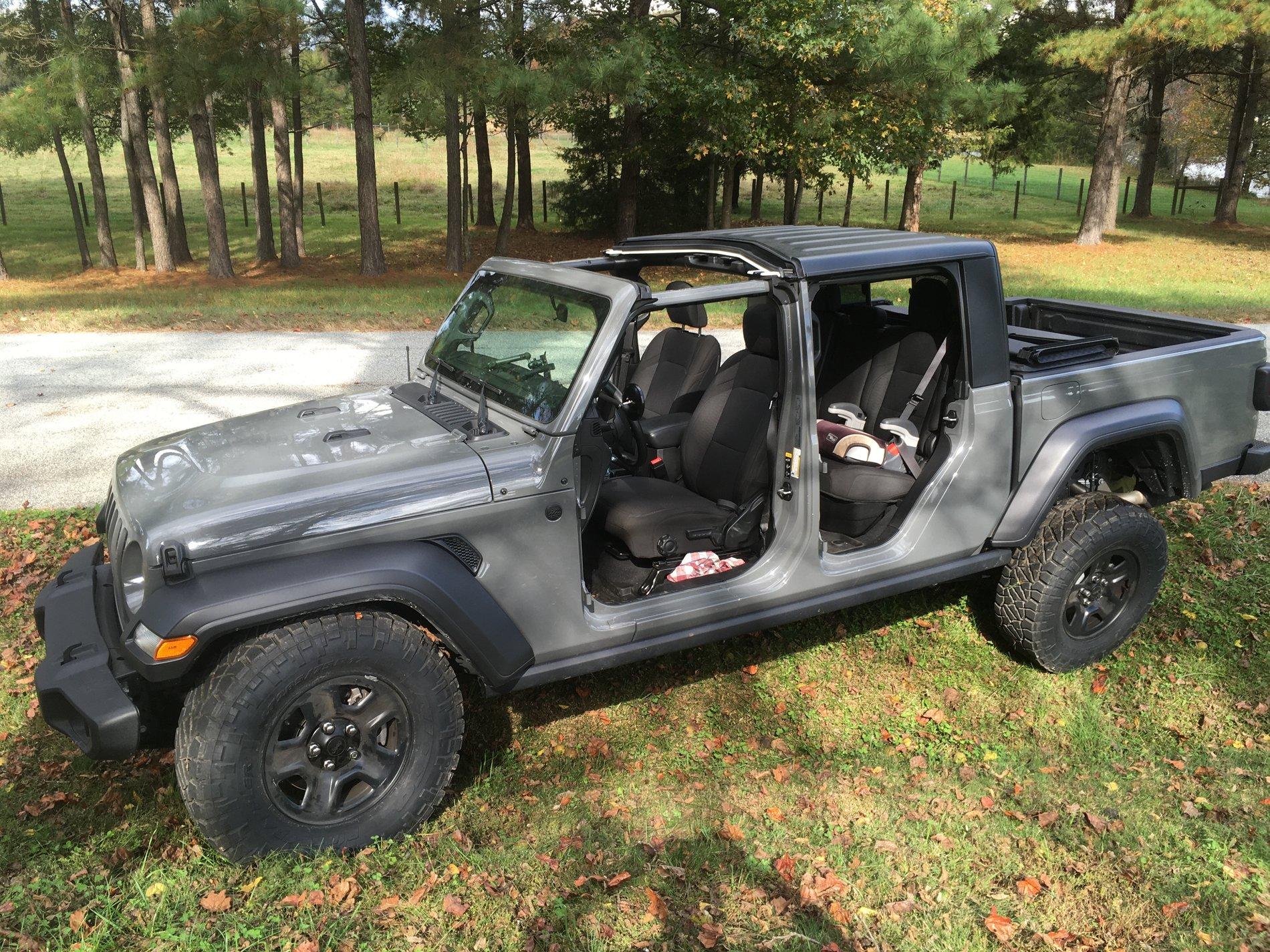

We'll see if I can flex it more than this on an upcoming trip but don't think it'll be a problem...

Jeep Gladiator bigger tires on unlifted Sport S IMG_6029.JPG


sl009

Active Member
Joined
Jun 9, 2020
Threads
3
Messages
39
Reaction score
16
Location
PA
Vehicle(s)
Gladiator
I finally had some time to drive a good bit with the new tires. Overall it's not bad - not as sluggish I thought it would be. It definitely lost a good bit of the pep but it's livable. I actually kind of like the feel of more 'weight' in the drive line. It does make shifts a bit smoother.

As for rubbing I'm not getting any. Rears have about 1.5" to the inner fender when on the bump stops...

Jeep Gladiator bigger tires on unlifted Sport S IMG_6029.JPG


Front was hard to get to the bump stops with the sway bar connected but it's about 1" from the bump stop and still has roughly 2.5" to the inner fender...

Jeep Gladiator bigger tires on unlifted Sport S IMG_6029.JPG


We'll see if I can flex it more than this on an upcoming trip but don't think it'll be a problem...

Jeep Gladiator bigger tires on unlifted Sport S IMG_6029.JPG
Looks good!
