Evo 2.5" Lift (True Height)

HTJeep

New Member
First Name
Howard
Joined
Mar 30, 2021
Threads
0
Messages
3
Reaction score
3
Location
Louisiana
Vehicle(s)
2020 Jeep Gladiator Rubicon
Occupation
Energy

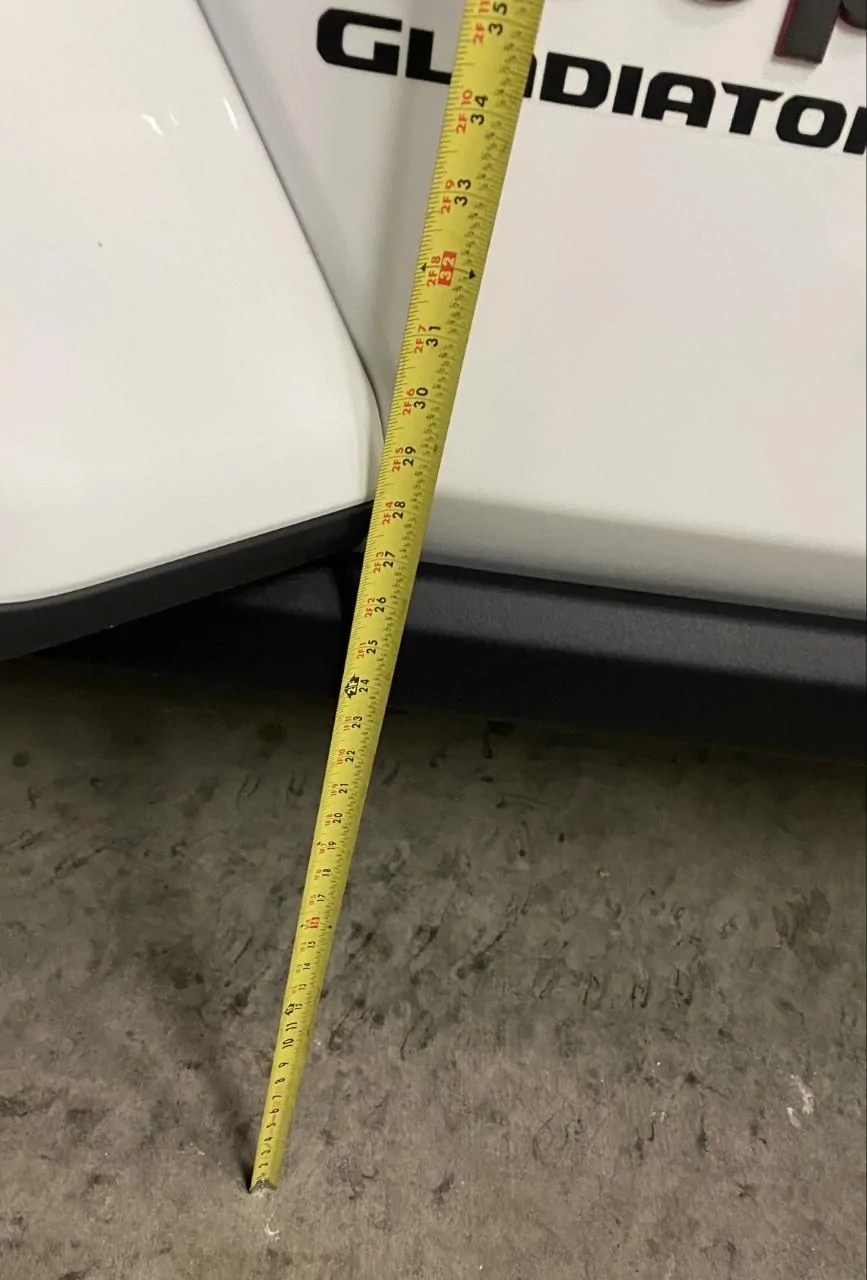

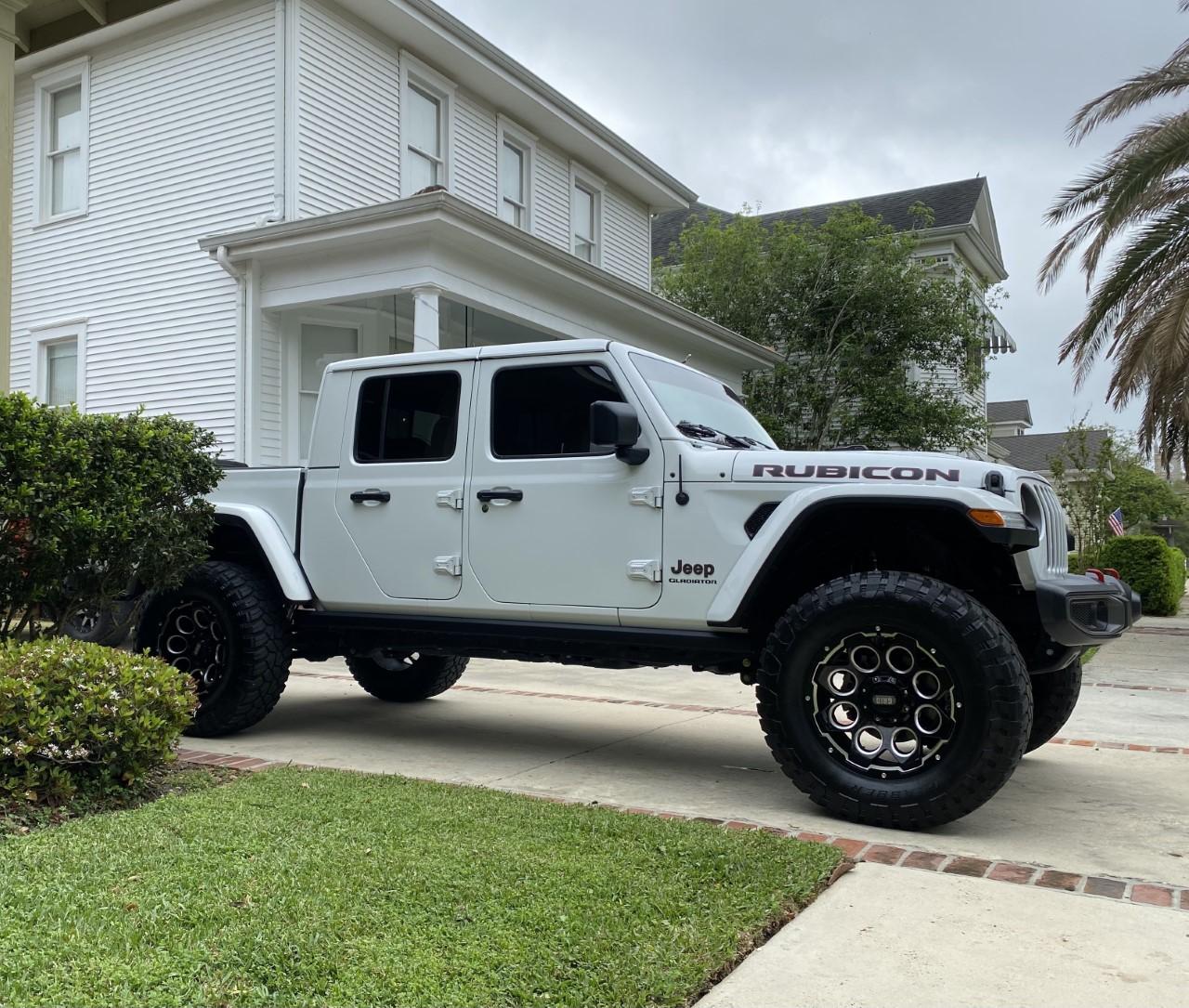

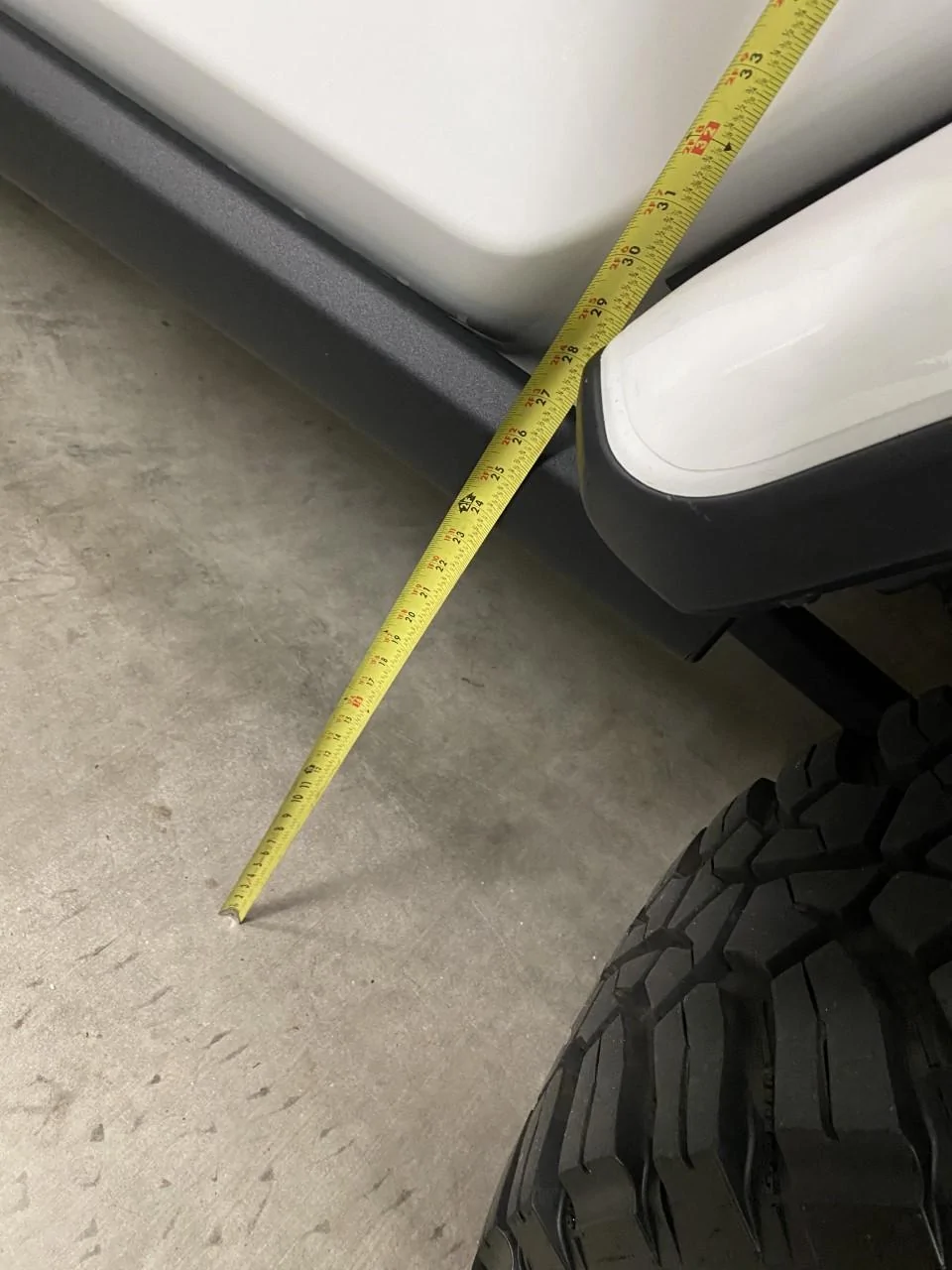

I'm running the Evo 2.5" Enforcer Overland Stage 2 Plus kit and added Daystar 3/4" coil spring spacers to the front coils to level it out. It now sits perfectly level (1/4" higher in the rear) but that will vary from jeep to jeep depending on aftermarket accessories added (bumpers, bed racks, covers, etc...).

For shocks, I went with Fox 2.0 Performance Series 3.5"-4" Lift shocks on the front and rear since the coils themselves added over 3.5 inches of lift over factory height. There's a ton of great shock options on the market and it's hard to go wrong with Fox, Falcon, or King; but I don't think there is anything that can touch the Fox 2.0's at that price point. I couldn't be happier with the ride quality which is literally luxury sedan smooth on the highway. The suspension absorbs everything and I don't feel anything in the cab.

The real game changer for ride quality was the the EVO Geometry Correction brackets which is essentially just a lower front control arm drop. I know most are reluctant to install these brackets since it cuts into ground clearance, but I am able steer the truck with one finger going down the road at 70mph and it completely cut out the tendency to "wander" when driving over dips and bumps at higher speeds.

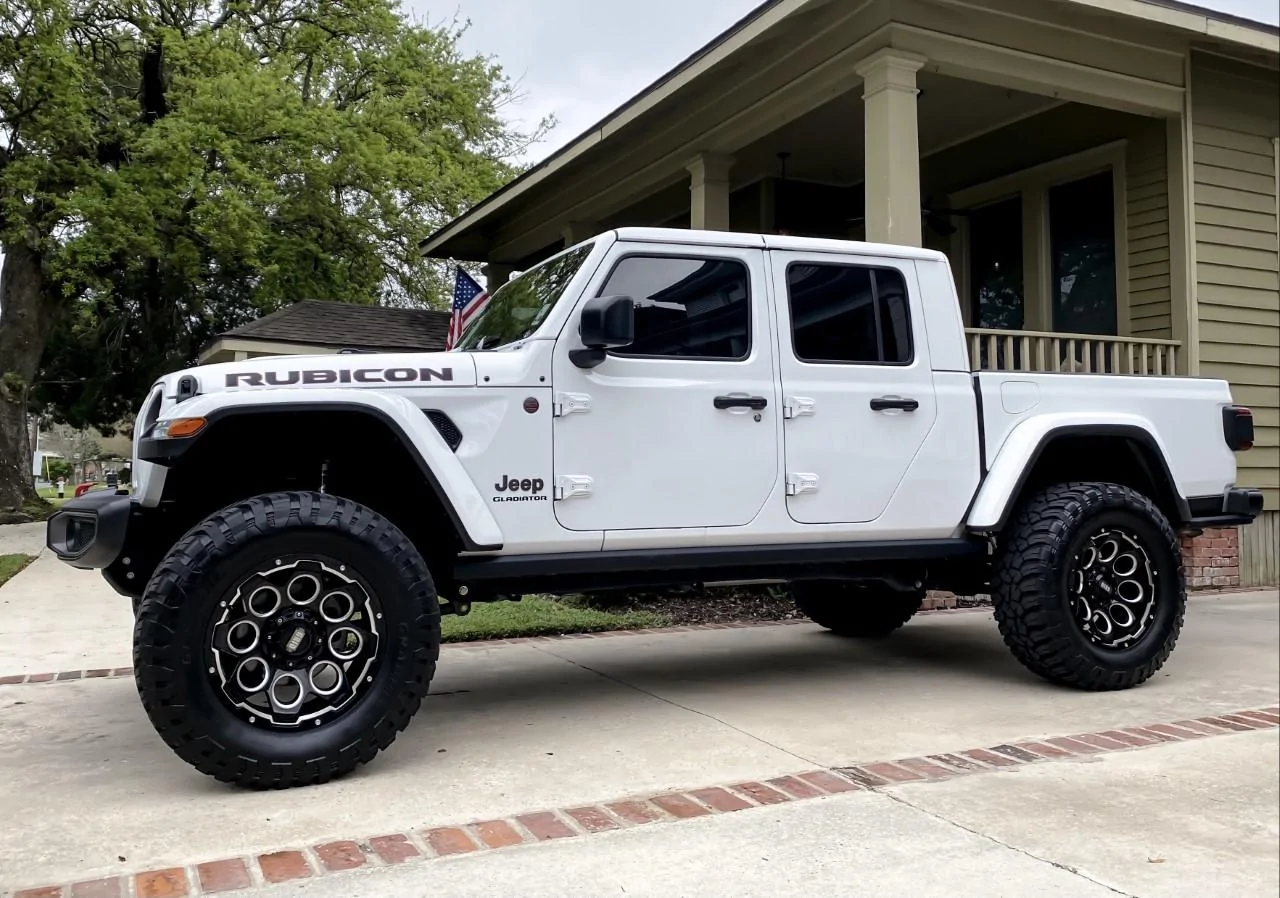

thumbnail_IMG_4236 (1).jpg
Sponsored



Abnmarine

Well-Known Member
First Name
David
Joined
Feb 2, 2021
Threads
6
Messages
139
Reaction score
203
Location
Florida
Vehicle(s)
2021 Overland
Occupation
Retired
Has anyone installed this kit with the ecodiesel? I just ordered the 2.5 HD kit for my Overland. I will be running some 37ā€ Toyo RTā€™s on a set of Warn Moonsault wheels. I already have a front and rear adjustable trackbar, Fox shocks for the 3 1/2-4ā€ lift, along with drop brackets for the front lowers.

Last edited:

Druidirvin

Well-Known Member
First Name
Irvin
Joined
Jun 6, 2021
Threads
7
Messages
85
Reaction score
37
Location
Texas
Vehicle(s)
Jeep gladiator rubicon ecodiesel
Occupation
RRT
Iā€™ve ordered my 2.5 Evo diĆ©sel lift. Iā€™ll put pictures once I install it. I plan to go with the fox shocks 3.0, Iā€™m glad I saw this forum that way I know that I should get the 3-4 inch shocks.


Jems007

Well-Known Member
First Name
Jim
Joined
Jun 2, 2020
Threads
22
Messages
162
Reaction score
254
Location
SLC
Vehicle(s)
2018 JLU Rubicon

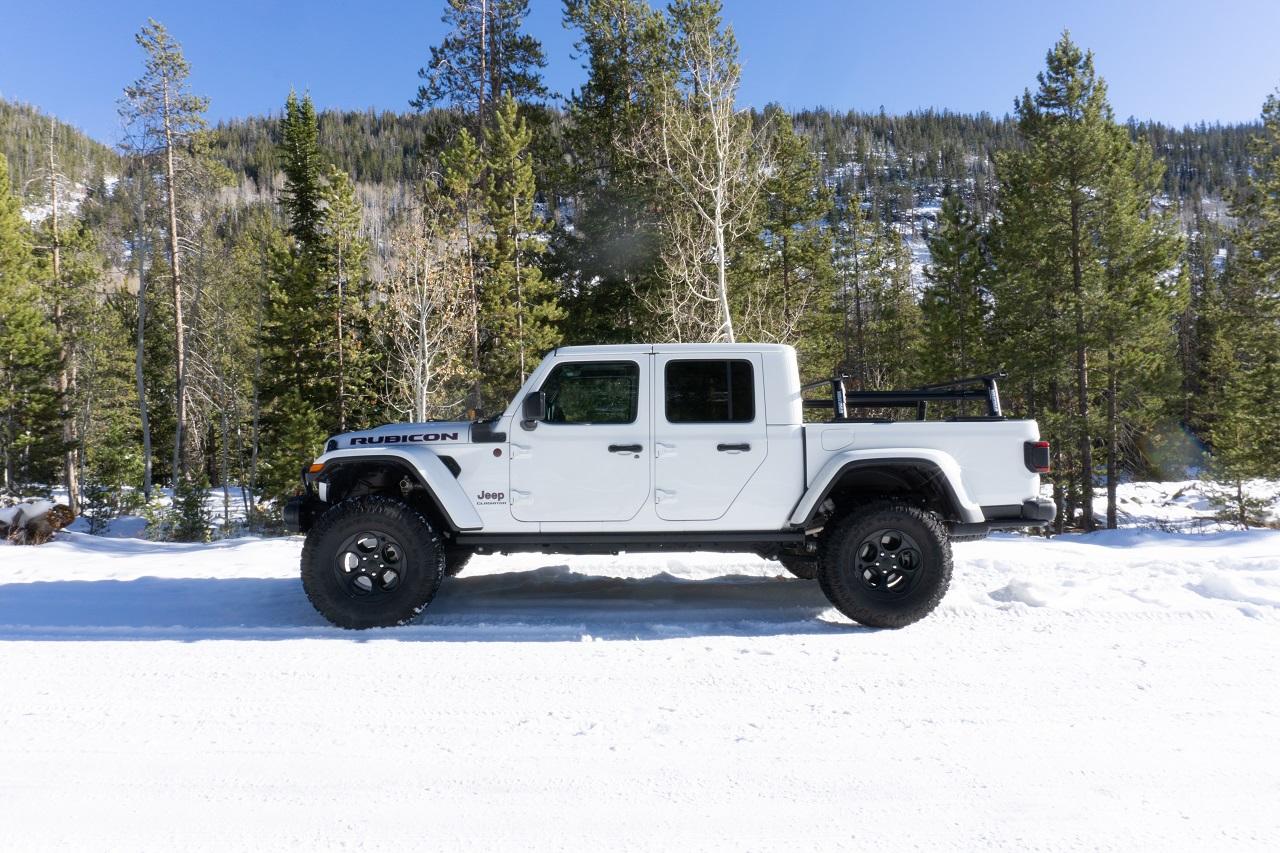

This is 2.5" EVO Enforcer on 37 Milestars.
Jeep Gladiator Evo 2.5" Lift (True Height) Jeep-3


Sponsored

ssteve

Well-Known Member
First Name
Steve
Joined
Nov 4, 2020
Threads
23
Messages
164
Reaction score
137
Location
Comifornia
Vehicle(s)
camaro, audi Q, cj2a, ram
Iā€™ve ordered my 2.5 Evo diĆ©sel lift. Iā€™ll put pictures once I install it. I plan to go with the fox shocks 3.0, Iā€™m glad I saw this forum that way I know that I should get the 3-4 inch shocks.
Did you get it installed yet?


Druidirvin

Well-Known Member
First Name
Irvin
Joined
Jun 6, 2021
Threads
7
Messages
85
Reaction score
37
Location
Texas
Vehicle(s)
Jeep gladiator rubicon ecodiesel
Occupation
RRT
It
This is 2.5" EVO Enforcer on 37 Milestars.
Jeep Gladiator Evo 2.5" Lift (True Height) Jeep-3
It looks amazing!.
I decided to stay with 35s so I didnā€™t install the Evo lift I went with the mopar 2 inch springs.
Now I regret it lol. I got the core 4x4 arms so Iā€™ll go for the Evo 2.5 in a year or 2 and of course 37s.





Jems007

Well-Known Member
First Name
Jim
Joined
Jun 2, 2020
Threads
22
Messages
162
Reaction score
254
Location
SLC
Vehicle(s)
2018 JLU Rubicon
It

It looks amazing!.
I decided to stay with 35s so I didnā€™t install the Evo lift I went with the mopar 2 inch springs.
Now I regret it lol. I got the core 4x4 arms so Iā€™ll go for the Evo 2.5 in a year or 2 and of course 37s.

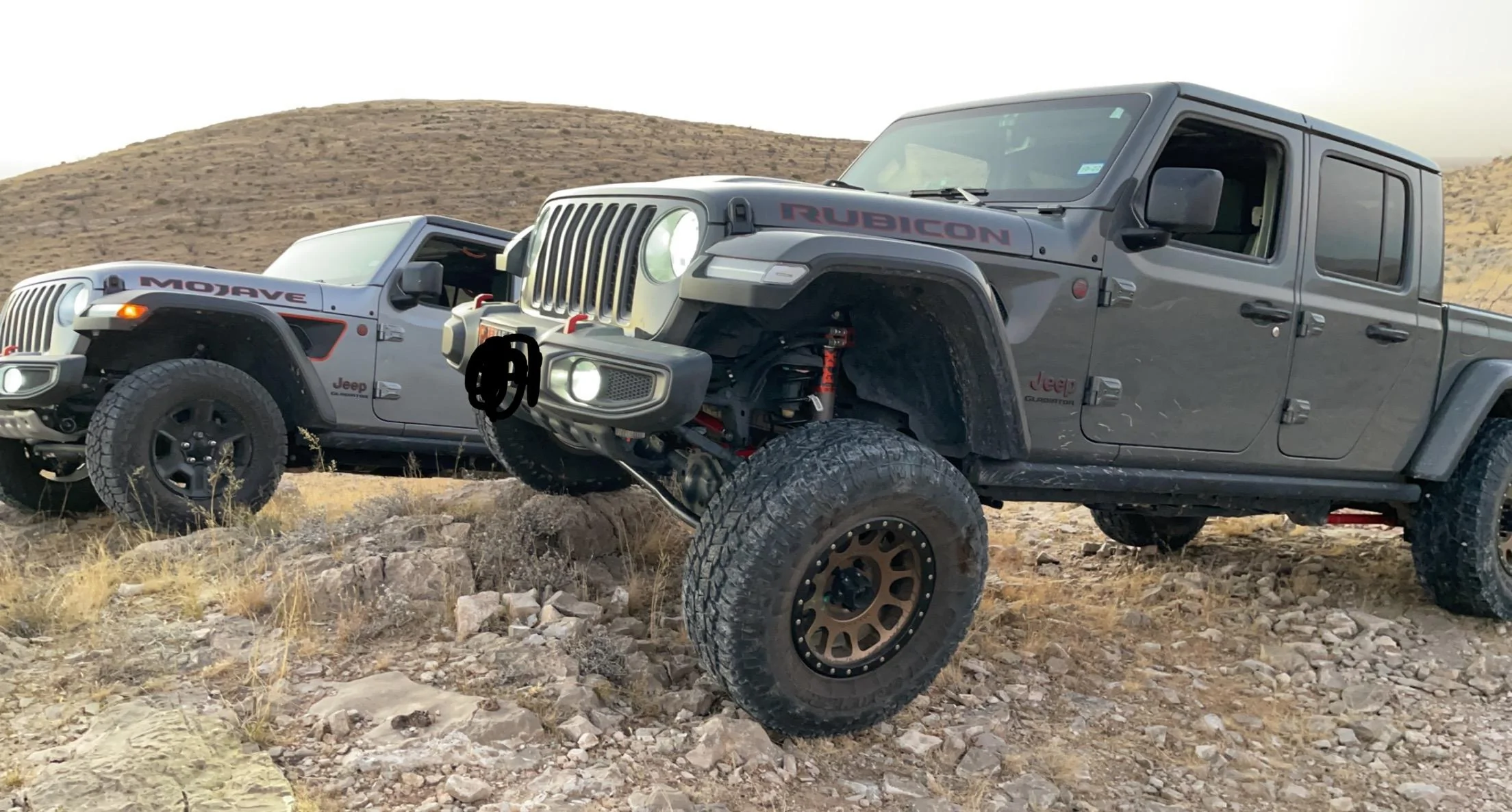

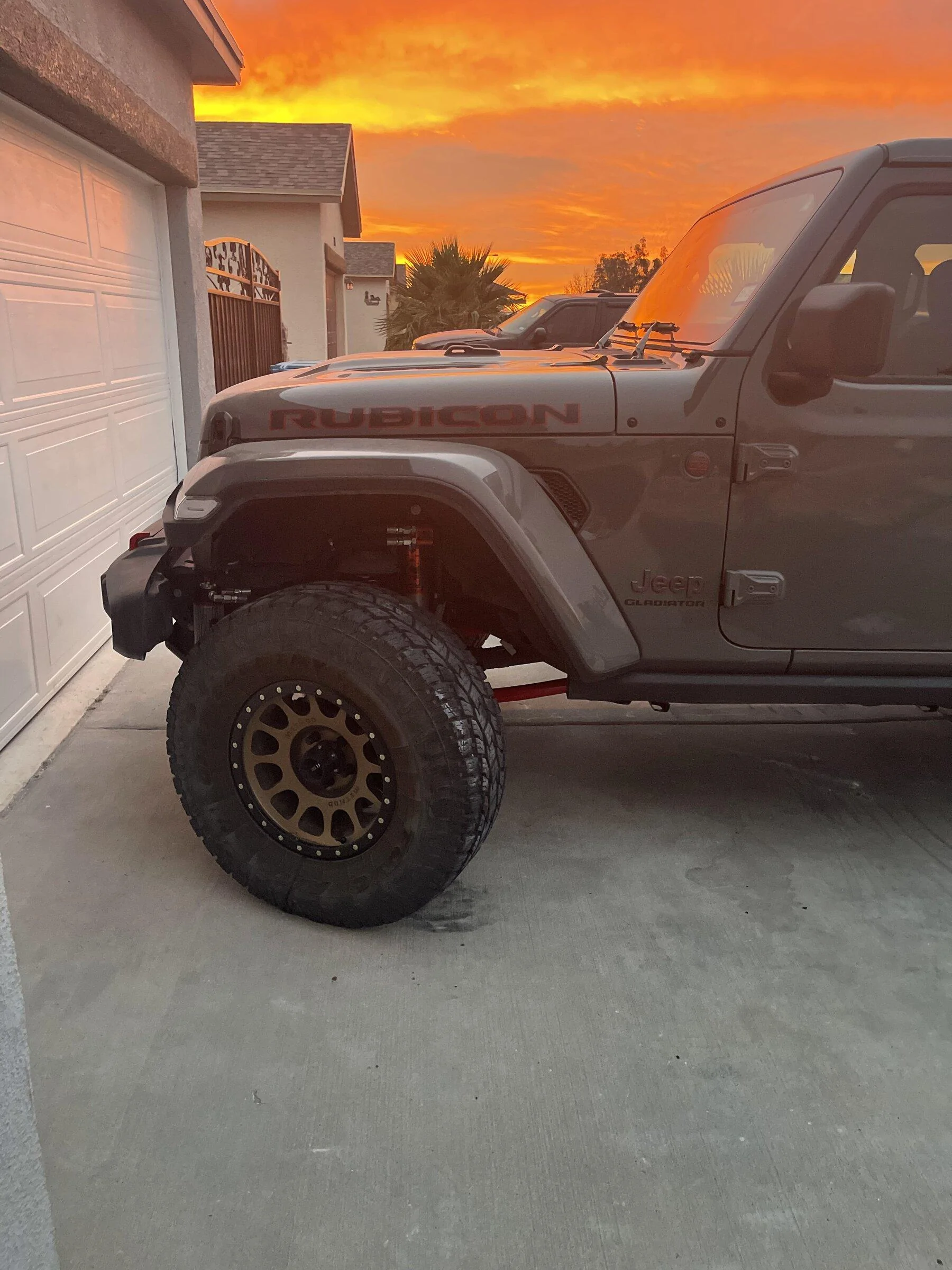

Jeep Gladiator Evo 2.5" Lift (True Height) 61542F99-D42A-4B1D-A483-A1B1C15C0D0B


Jeep Gladiator Evo 2.5" Lift (True Height) 61542F99-D42A-4B1D-A483-A1B1C15C0D0B
Looks great! I love the wheel color with the Jeep!


Sunnysideup

Well-Known Member
First Name
John
Joined
Aug 2, 2019
Threads
32
Messages
284
Reaction score
511
Location
Montana
Website
www.youtube.com
Vehicle(s)
2020 Pumpkin Gladiator/ 2007 Steel Blue JKU
Occupation
Pastor

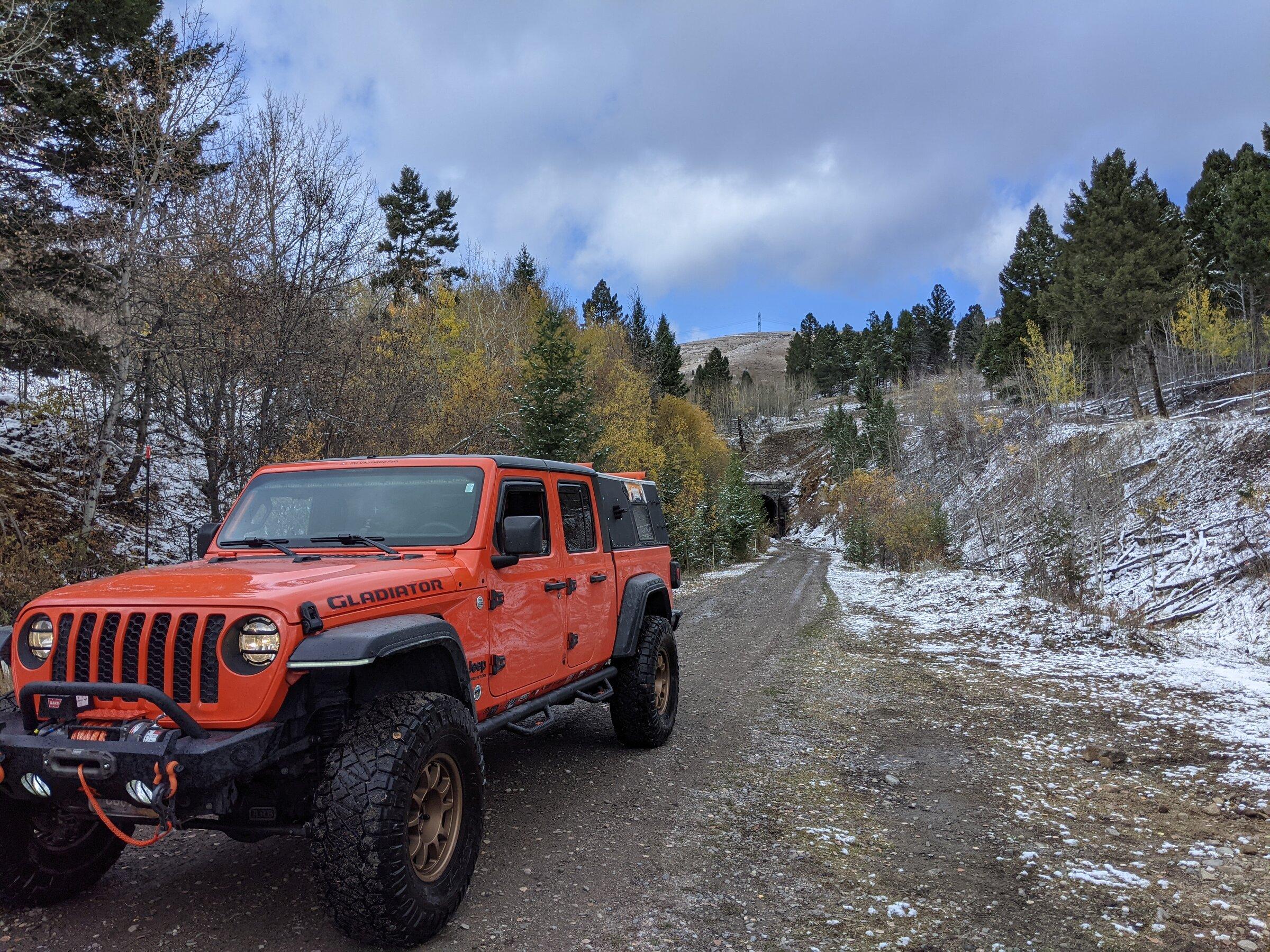

Jeep Gladiator Evo 2.5" Lift (True Height) PXL_20211014_190719012

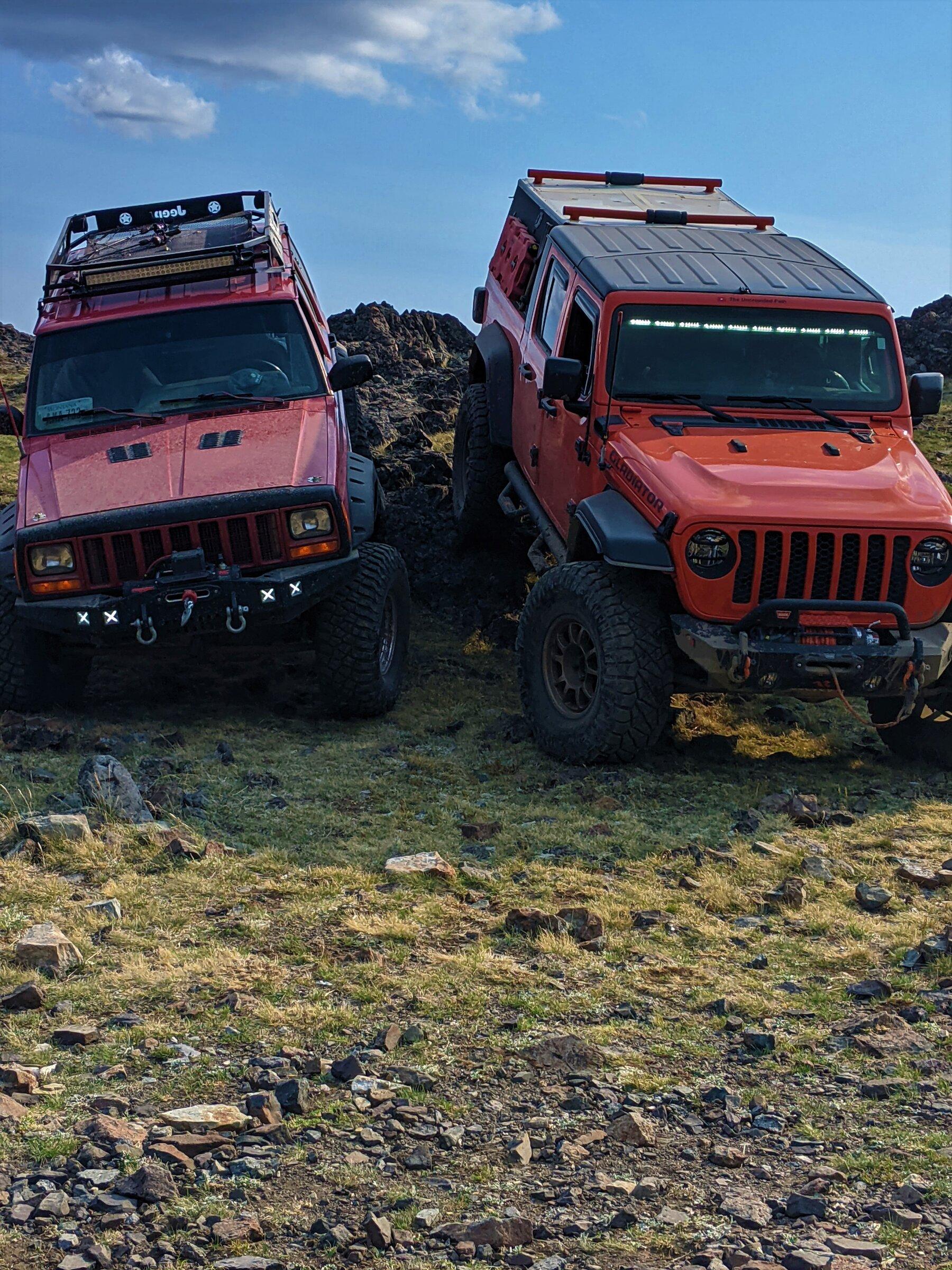

Jeep Gladiator Evo 2.5" Lift (True Height) PXL_20210902_223546242

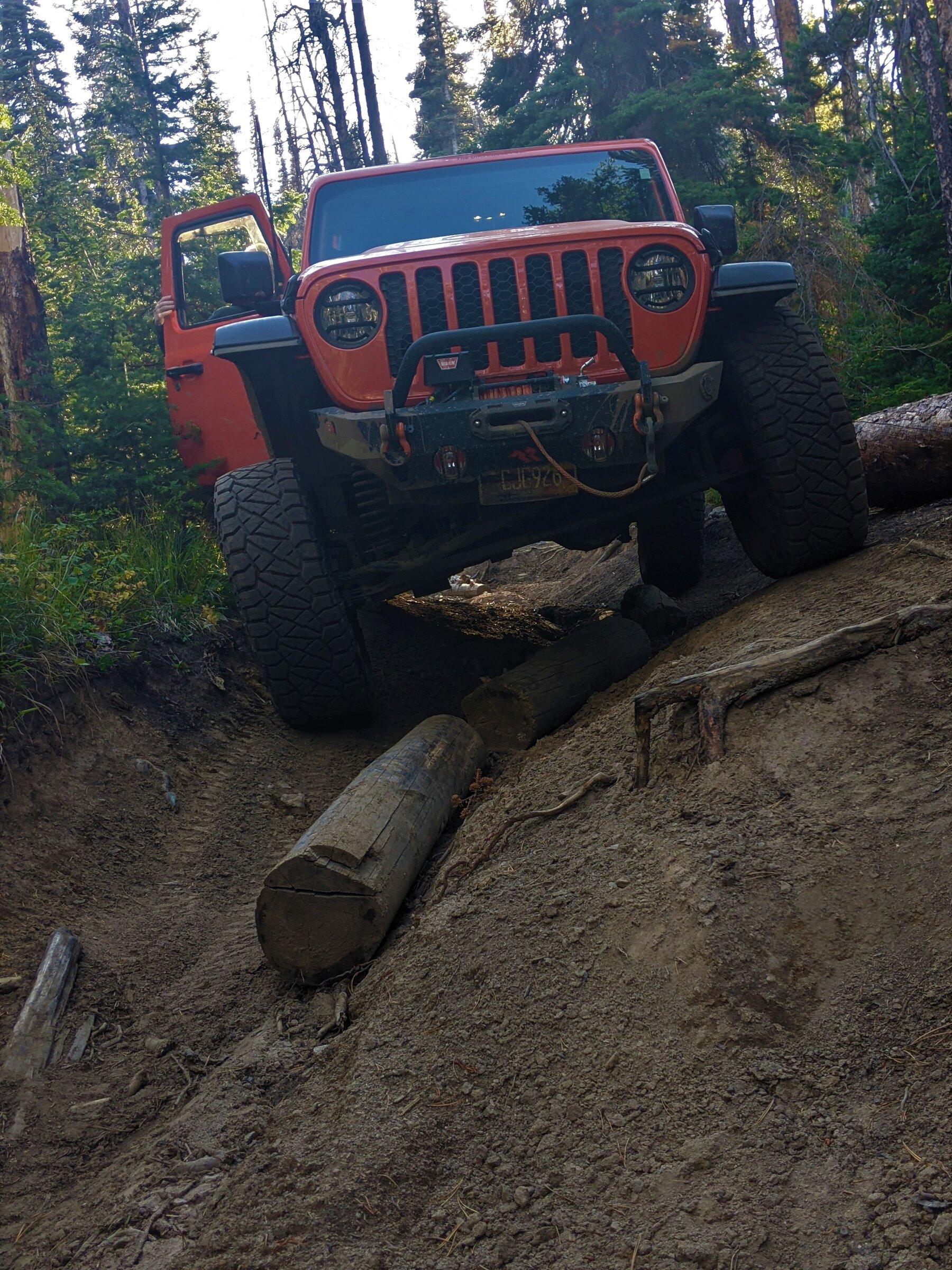

Jeep Gladiator Evo 2.5" Lift (True Height) PXL_20210903_234443106

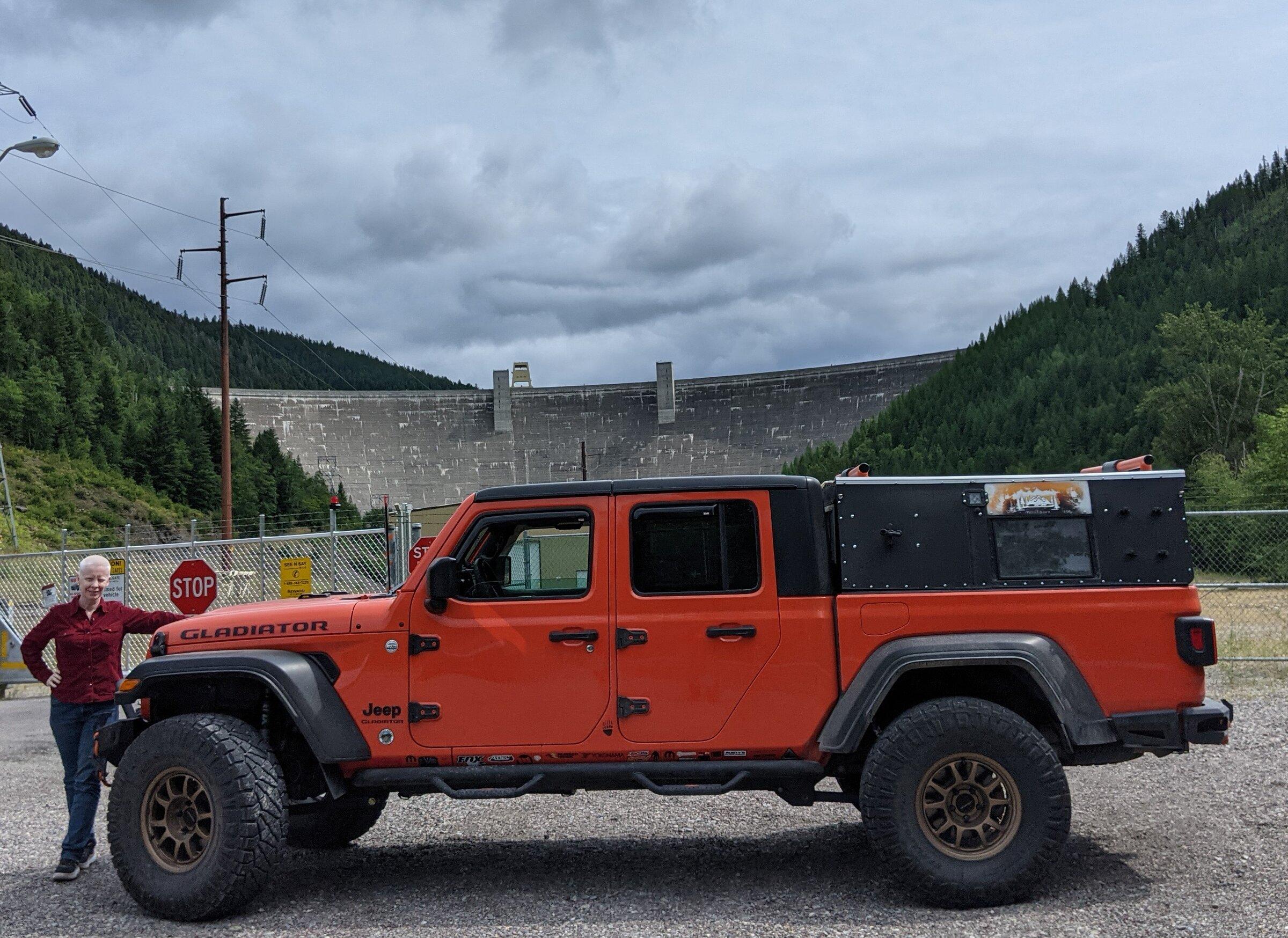

Jeep Gladiator Evo 2.5" Lift (True Height) PXL_20210818_193146934~2


This is my EVO overlander lift.... I went with a .5 inch spacer in front and a 3/4 inch spacer in the rear... mostly to make up for the weight difference and possible sag over time. 9000 miles on it now... and it does 37's fine. Sport Max tow fenders chopped for american adventure labs leds.


Sponsored

Free2roam

Well-Known Member
First Name
Robert
Joined
Mar 1, 2021
Threads
28
Messages
3,537
Reaction score
6,332
Location
89521
Vehicle(s)
Gladiator
Occupation
Fabricator by trade/ Maintenance Mechanic
Jeep Gladiator Evo 2.5" Lift (True Height) PXL_20210818_193146934~2


Jeep Gladiator Evo 2.5" Lift (True Height) PXL_20210818_193146934~2


Jeep Gladiator Evo 2.5" Lift (True Height) PXL_20210818_193146934~2


Jeep Gladiator Evo 2.5" Lift (True Height) PXL_20210818_193146934~2


This is my EVO overlander lift.... I went with a .5 inch spacer in front and a 3/4 inch spacer in the rear... mostly to make up for the weight difference and possible sag over time. 9000 miles on it now... and it does 37's fine. Sport Max tow fenders chopped for american adventure labs leds.
Not a diesel by any chance?


Free2roam

Well-Known Member
First Name
Robert
Joined
Mar 1, 2021
Threads
28
Messages
3,537
Reaction score
6,332
Location
89521
Vehicle(s)
Gladiator
Occupation
Fabricator by trade/ Maintenance Mechanic
Has anyone done this lift with a diesel Sport S? Also want to leave it on 33's. Don't intend on going to bigger tires. Not a rock crawler. Just like to get out and explore.


Druidirvin

Well-Known Member
First Name
Irvin
Joined
Jun 6, 2021
Threads
7
Messages
85
Reaction score
37
Location
Texas
Vehicle(s)
Jeep gladiator rubicon ecodiesel
Occupation
RRT
Has anyone done this lift with a diesel Sport S? Also want to leave it on 33's. Don't intend on going to bigger tires. Not a rock crawler. Just like to get out and explore.
I would get the 2.5 shocks. To protect the jeep as much possible from getting noises inside the cab. You will enjoy the ride alot better too!
