Flat bed Gladiator build

PlayLoud

Member
First Name
Al
Joined
Oct 31, 2021
Threads
2
Messages
8
Reaction score
21
Location
Ontario, Canada
Vehicle(s)
21 Gladiator Rubicon Diesel
Occupation
Landscape Design / Build
That's sweet, looking forward to seeing the final setup
Sponsored



biodiesel

Well-Known Member
Joined
Dec 8, 2018
Threads
9
Messages
716
Reaction score
631
Location
New Mexico
Vehicle(s)
2015 Ram 1500 Ecodiesel
I'm looking forward to the final product. So far, this might be the best looking flatbed I've seen on a Gladiator.


Flmthwr65

Active Member
First Name
Norm
Joined
Oct 12, 2019
Threads
0
Messages
40
Reaction score
35
Location
Victorville ca
Vehicle(s)
Gladiator rubicon

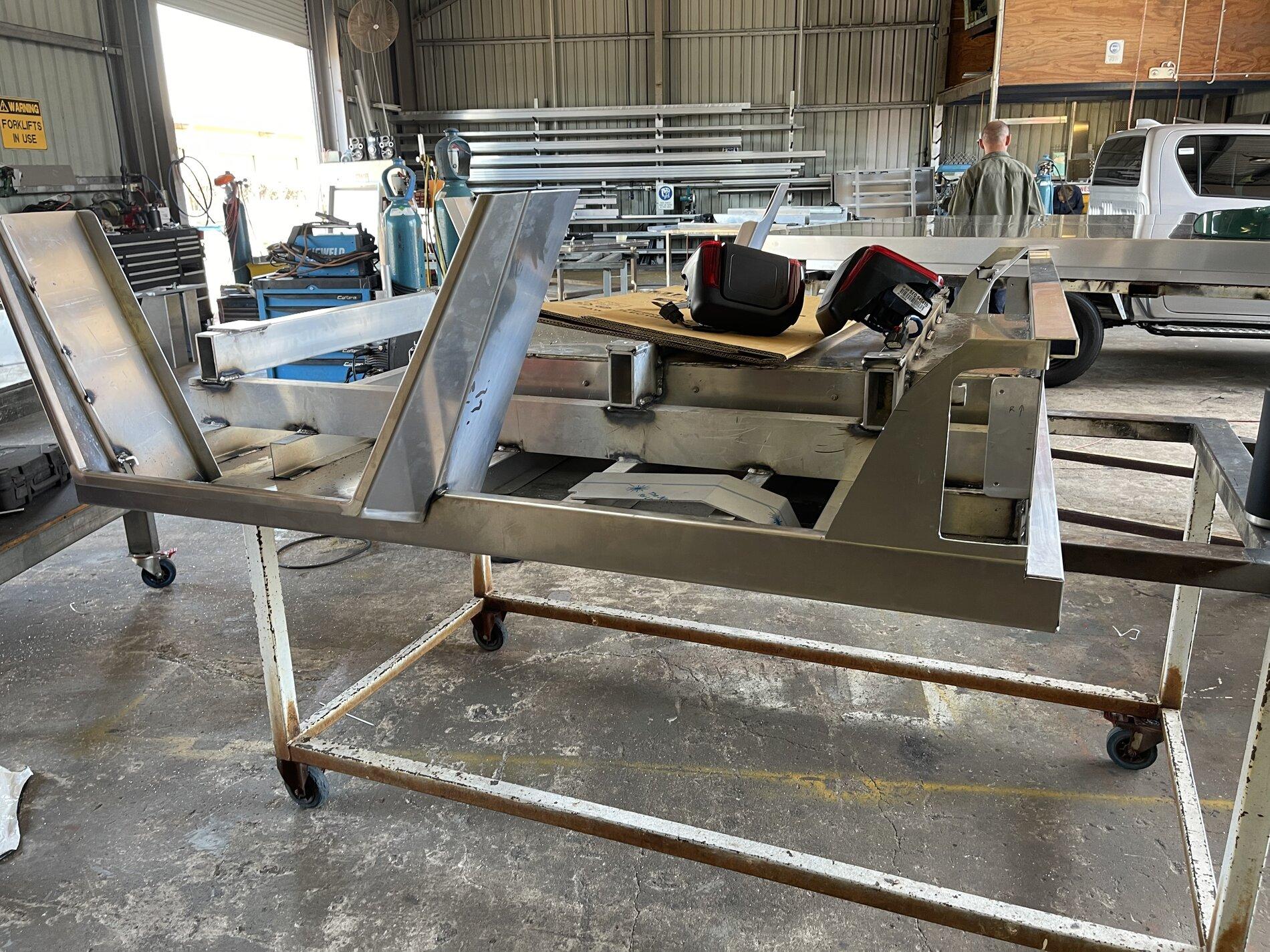

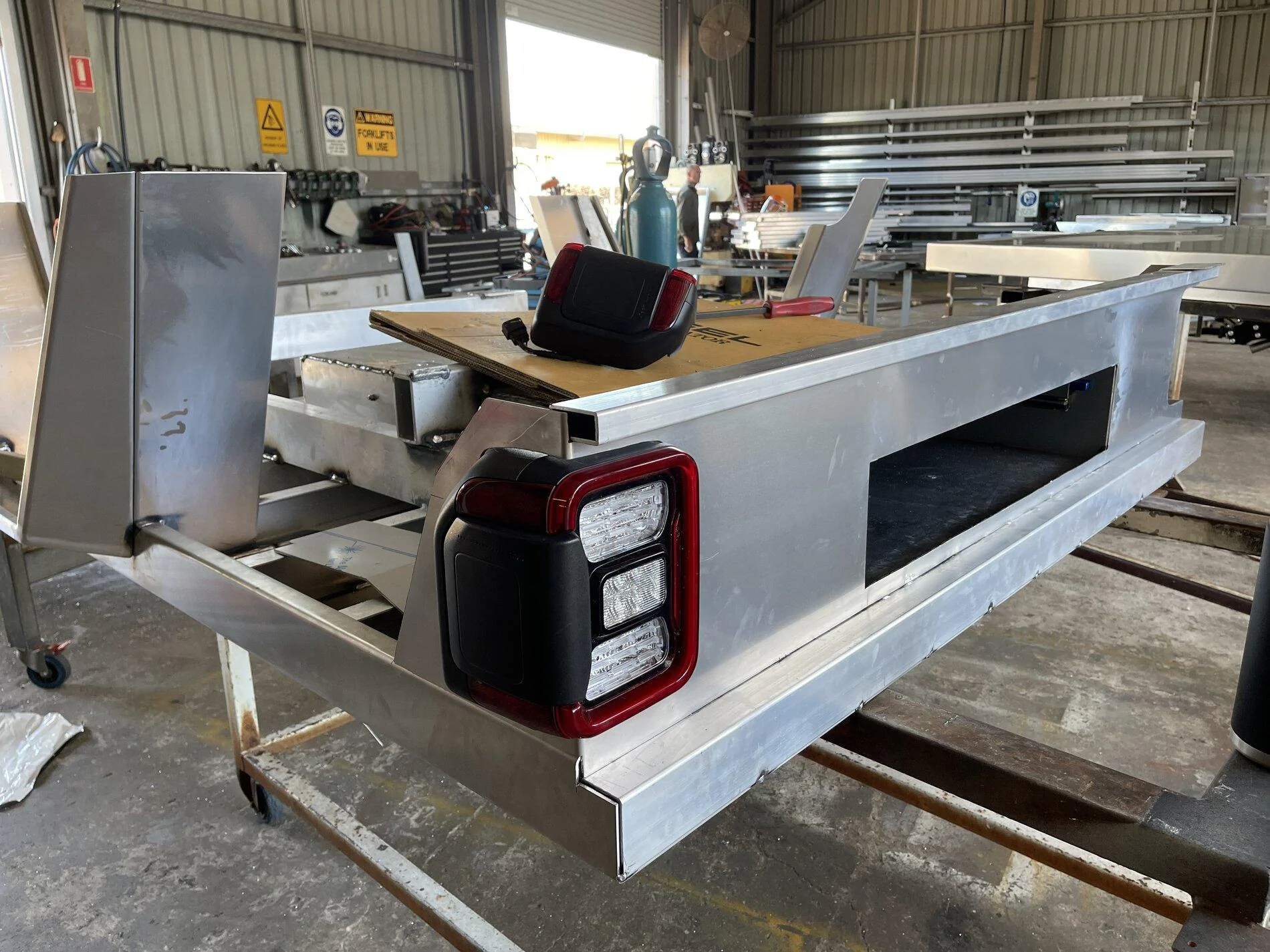

One of the reasons I chose this guy to build the tray was because he agreed to some specific requests that I had for the build. One of the most important things was to keep the iconic tail lights. One, because they are part of what makes a Jeep a Jeep and 2, in order to keep the blind spot sensors.

although he had no idea how he was going to do it exactly, this was the result:





Flmthwr65

Active Member
First Name
Norm
Joined
Oct 12, 2019
Threads
0
Messages
40
Reaction score
35
Location
Victorville ca
Vehicle(s)
Gladiator rubicon
love the build concept definately want to see it in stages. showing that their are different strokes for different folks, the first thing that had to go on my jt was those taillights but they look good on the flat bed I would have to say.....wany to do my overland next looking forward to see the products you use.....WAVE.


#HuckleberryJeep

Well-Known Member
First Name
Ryan
Joined
Nov 26, 2018
Threads
4
Messages
207
Reaction score
278
Location
Edmond, OK
Website
www.flowcode.com
Vehicle(s)
2020 JT 5.7 Hemi, '21 JLUR 392, '84 CJ7, '69 CJ5
Build Thread
Link
Occupation
Realtor
Man, I can't wait to see this one finalized. I've seriously considered a tray system. Looking good!


Sponsored

Fast Eddie

Member
First Name
Eddie
Joined
Feb 1, 2021
Threads
0
Messages
9
Reaction score
17
Location
Williamsburg, VA
Vehicle(s)
Jeep Gladiator 2021/Toyota 4 Runner 2013
Occupation
Small Business Owner
My goodness, that looks amazing. Great idea, plan and so far execution. Best of luck and pls keep us posted. Cheers, fm Williamsburg, VA.


ChiefAdkins

New Member
First Name
John
Joined
Jul 7, 2021
Threads
0
Messages
2
Reaction score
1
Location
Monticello KY
Vehicle(s)
2021 Gladiator
Occupation
Retired
Vehicle Showcase
1
This definitely is a work of art... Great job... Can't wait to see the final product!!!


Steven_B

Well-Known Member
First Name
Steven
Joined
Dec 20, 2020
Threads
8
Messages
414
Reaction score
652
Location
Federal Way, WA
Website
aroundthenw.com
Vehicle(s)
2018 WK2, 2001 XJ, 1993 YJ, 2021 JT EcoDiesel
Occupation
Digital Marketing Manager

WXman

Banned
Banned
Joined
Mar 1, 2017
Threads
69
Messages
3,102
Reaction score
4,067
Location
Bluegrass region of Kentucky
Vehicle(s)
2021 Jeep Gladiator Overland EcoDiesel
Occupation
Meteorology and Transportation
I like it!

OP
OP
AusGladiator

AusGladiator

Active Member
First Name
Gavin
Joined
Mar 18, 2021
Threads
2
Messages
35
Reaction score
245
Location
Darwin, Northern Territory, Australia
Vehicle(s)
2021 Gladiator Rubicon
G’day all,

Very excited, pick up the completed vehicle tomorrow!

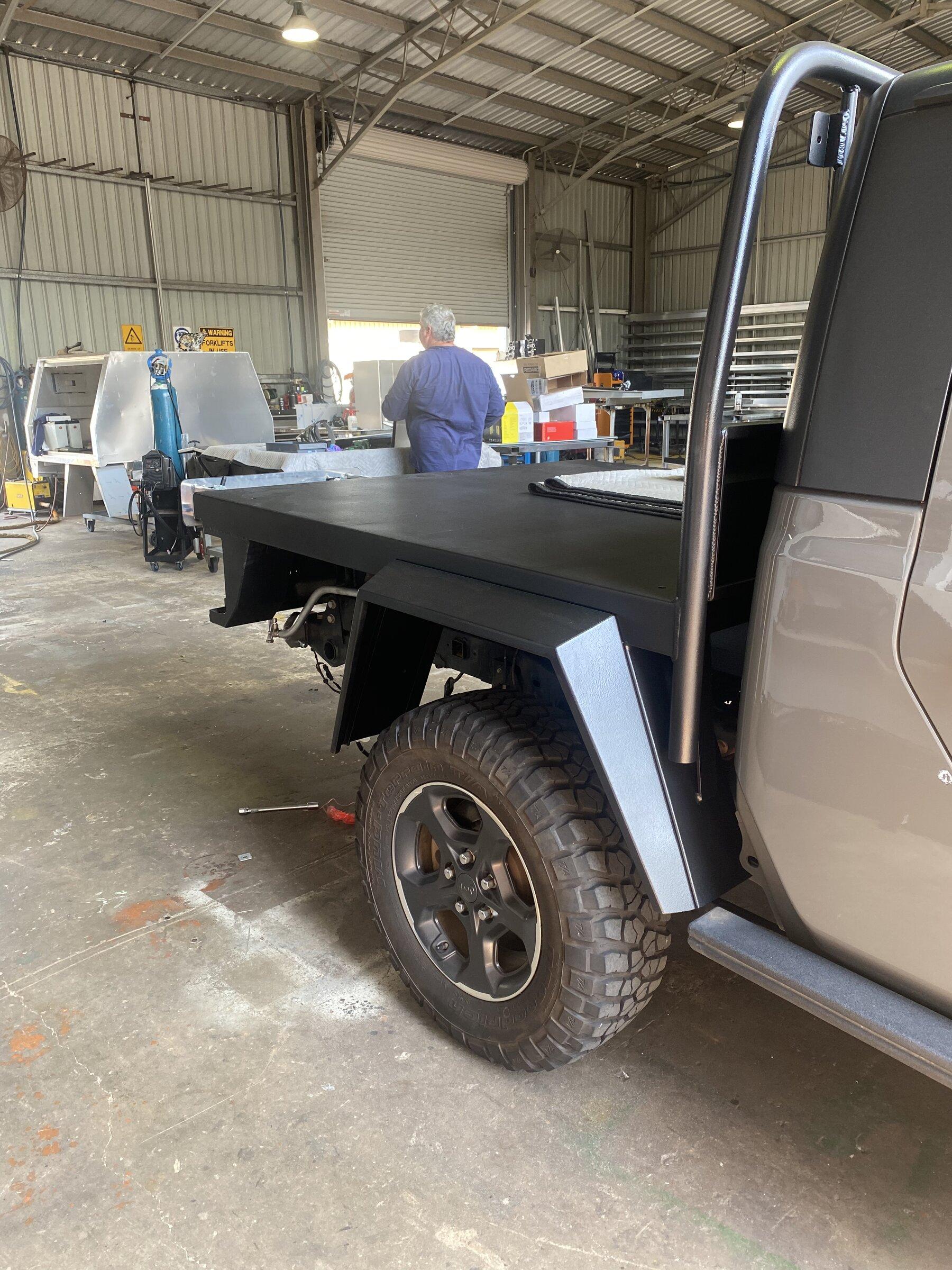

Builder sent me a pic after the tray was painted with raptor liner. Some assembly still required, but assures me will be complete and ready for pick up tomorrow.

Will include full pic set then.



Sponsored

OP
OP
AusGladiator

AusGladiator

Active Member
First Name
Gavin
Joined
Mar 18, 2021
Threads
2
Messages
35
Reaction score
245
Location
Darwin, Northern Territory, Australia
Vehicle(s)
2021 Gladiator Rubicon
So here it is complete with the canopy. (6 bolts to take it off)

Very happy with the job, though it will need to go back for a few tweaks when I get back from my trip.

Parking sensors and reversing camera have been incorporated so everything works as it should.

will include detail pics and photos of internal fit out next week.







Redruby

Well-Known Member
First Name
Larry
Joined
Aug 28, 2021
Threads
12
Messages
262
Reaction score
251
Location
Sedona,Arizona’s
Vehicle(s)
2021 jeep gladiator Rubicon
Occupation
Retired
Pretty slick. Dig the right hand drive.
Looks great how much does it weigh? Looking forward to seeing the interior finish, I just finishing installing the AluCab canopy camper gained 600 lbs and want to start on the interior build, I want to see what others have done.

OP
OP
AusGladiator

AusGladiator

Active Member
First Name
Gavin
Joined
Mar 18, 2021
Threads
2
Messages
35
Reaction score
245
Location
Darwin, Northern Territory, Australia
Vehicle(s)
2021 Gladiator Rubicon
Looks great how much does it weigh? Looking forward to seeing the interior finish, I just finishing installing the AluCab canopy camper gained 600 lbs and want to start on the interior build, I want to see what others have done.
Need to put it over the scales to see what it gained. Forgot to do it before the change over, so weight change from stock will include the bull bar and winch.

Will put pics up of the internal fitout this weekend. Left it fairly simple, but some nice inclusions.

Have to start the job of wiring it all up now.


NC_Overland

Well-Known Member
First Name
John
Joined
Feb 21, 2020
Threads
17
Messages
1,680
Reaction score
1,910
Location
Raleigh, NC
Vehicle(s)
2020 JT Overland
That’s an awesome job all around. I’m also curious about the weight because I’ve only seen mine sag in the rear like that with almost 1k lbs in the bed or pulling a 5k lb trailer.

With all that extra departure angle, I’d look into relocating your exhaust.
