Flat Tow

Thed

Well-Known Member
Joined
Aug 6, 2019
Messages
49
Reaction score
55
Location
NC
Vehicle(s)
'16 MX-5 Miata, '01 Rodeo, '96 Ranger, '17 Ducati Supersport
Hummmm, I know my Miata... I have to flat bed tow it, I've heard that if you tow a RWD car it will destroy the transmission. I guess because it spins the drive shaft but no coolant nor transmission oil is flowing. I'm interested in the answer to this... I wonder how the owners manual says to tow it.

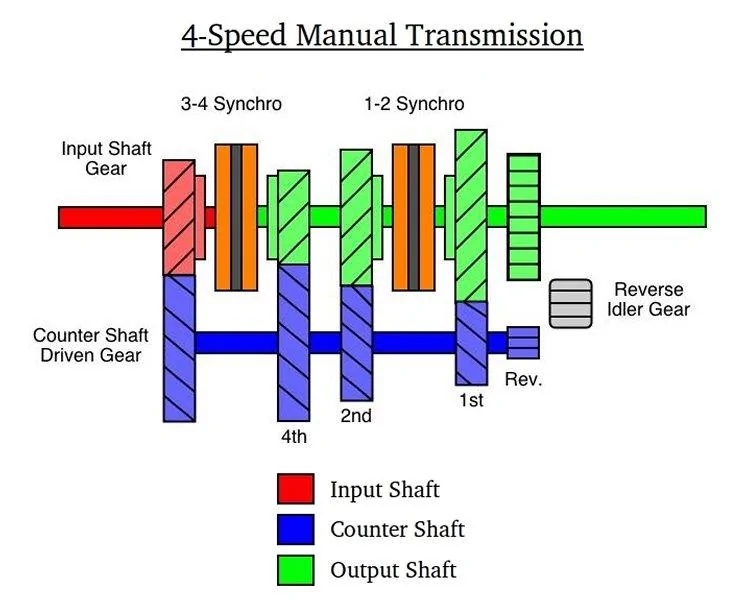

It's because when the engine is stationary, neither the input shaft (red) nor the countershaft (blue) are moving. Only the output shaft (green) would be moving. The reason this is a problem is because the transmission is either splash lubricated via a submerged countershaft or lubricated by a lubricant pump that is usually driven off of the countershaft. If you go too long with the vehicle coasting out of gear with the engine off (as are all towing situations regarding wheels on the ground) the output shaft will be spinning and spinning without receiving any lubrication from a spinning countershaft.

That's also the reason why the manual tells you to put it in gear. When you keep the trans in neutral the output shaft will start to rotate freely just from the friction within the transfer case. Then you'll be wondering why you can't drive your Jeep with four flat-spotted tires.






Advertisement



RickyR

Well-Known Member
Joined
Jul 1, 2019
Messages
141
Reaction score
116
Location
Charleston, SC
Vehicle(s)
2020 JTR Black , 2004 LJ D60's 39.5 IRoKs AMC 401 V-8
that is an awesome setup, but I still dont understand the double pole 4 way switch....I am some what mechanically challenged
Thanks.
There's a company who sells this ( I don't want to mention them) that sells a kit for $159 that basically has a switch instead of diodes. So when you tow the jeep you flip the switch, then when you are driving the jeep the switch gets flipped the other way, basically determining where the tail light signal comes top. Up from the towing vehicle, down the jeep's system.
I have a better way brewing in my noggin, just not sure I want to market it or not.
The only down side to this setup, is if you forget to flip the switch.


JurassicKP

Member
First Name
KP
Joined
Jul 1, 2019
Messages
16
Reaction score
26
Location
TENNESSEE
Vehicle(s)
2020 Gladiator on Order, 2017 WK2 TrailHawk, XJ, MJ, Jurassic YJ & Jurassic Explorer
Occupation
Retired Military
All Wranglers and now the Gladiator flat tow easier than all other mass produced vehicles. It is by far the most commonly towed of all.

Transfer case in neutral, vehicle transmission in any gear (MT) or Drive (AT). Key off, if steering wheel has no lock. I know since at least 2012 there has been no steering wheel lock.

Ready Brake is my favorite for towed braking systems, I use a Blue Max Adventurer for a towbar, but will upgrade to higher quality one next RV season. For lighting, there's a plug n play kit for JK's and earlier. Still waiting on one for JL/JT but you can splice into your lighting using diodes (nope, I'll wait) or use magnetic slap ons if you have a metal rear bumper.
Automatic transmission must be in Park, not "Drive"


Donkey Fluffer

Well-Known Member
First Name
Jim
Joined
Sep 8, 2019
Messages
204
Reaction score
375
Location
Virginia
Vehicle(s)
2018 Jeep Wrangler Sahara JLU and 2020 Jeep Gladiator Rubicon
Automatic transmission must be in Park, not "Drive"
I corrected this, but I guess it didn't take. I know I do it right or I would have lost my transfer case thousands of miles ago


Gatorized

Well-Known Member
Joined
Sep 13, 2019
Messages
1,212
Reaction score
995
Location
ME/NH
Vehicle(s)
‘06 CRV, ‘14 Mazda3, ‘20 JTR (Gator)
I corrected this, but I guess it didn't take. I know I do it right or I would have lost my transfer case thousands of miles ago
Just curious - if the transfer case is in neutral for both the MT and the AT, what is the impact to the AT transmission if it is in any gear or in neutral (MT or AT)?


Donkey Fluffer

Well-Known Member
First Name
Jim
Joined
Sep 8, 2019
Messages
204
Reaction score
375
Location
Virginia
Vehicle(s)
2018 Jeep Wrangler Sahara JLU and 2020 Jeep Gladiator Rubicon
I can only guess. To make sure the transmission fluid circulates correctly.


JurassicKP

Member
First Name
KP
Joined
Jul 1, 2019
Messages
16
Reaction score
26
Location
TENNESSEE
Vehicle(s)
2020 Gladiator on Order, 2017 WK2 TrailHawk, XJ, MJ, Jurassic YJ & Jurassic Explorer
Occupation
Retired Military
Just curious - if the transfer case is in neutral for both the MT and the AT, what is the impact to the AT transmission if it is in any gear or in neutral (MT or AT)?
The automatic transmission receives its lubrication through a pump located at the front of the transmission, so if the engine is not turning(running), regardless of any gear, the transmission will not lubricate and it will literally burn up the internal parts.

The manual transmission does not have an oil pump and rather is "splash" lubricated, so high gear is fine for flat towing.

The transfer case on this particular vehicle receives its lubrication from a rear mounted oil pump, so its lubricated every time the wheels are turning, hence why its ok to flat tow with the transfer case in neutral, but not ok for the automatic transmission in any gear but park.

Last edited:

Thed

Well-Known Member
Joined
Aug 6, 2019
Messages
49
Reaction score
55
Location
NC
Vehicle(s)
'16 MX-5 Miata, '01 Rodeo, '96 Ranger, '17 Ducati Supersport
The automatic transmission receives its lubrication through a pump located at the front of the transmission, so if the engine is not turning(running), regardless of any gear, the transmission will not lubricate and it will literally burn up the internal parts.

The manual transmission does not have an oil pump and rather is "splash" lubricated, so neutral or high gear is fine for flat towing.

The transfer case on this particular vehicle receives its lubrication from a rear mounted oil pump, so its lubricated every time the wheels are turning, hence why its ok to flat tow with the transfer case in neutral, but not ok for the automatic transmission in any gear but park.
See my post above. It is NOT OK to flat tow with the manual transmission in neutral. Keep it in gear, it does not matter what gear it is.


WhippetTaxi

Well-Known Member
First Name
Scott
Joined
Jun 30, 2020
Messages
160
Reaction score
194
Location
Central Texas
Vehicle(s)
2020 Gladiator Rubicon, 2017 Lotus Evora 410, 2011 BMW 1M, 2001 F250
Occupation
Retired
Very helpful thread. I am planning to set up the Gladiator via Blue Ox tow plates to link up with my Ready Brute tow arms that I used with my previous Wrangler Rubicon. I was curious if the tow plates would fit properly under the steel front bumper and it looks they will. Now, if I can just get the RV out of the shop some day.


Koja

Well-Known Member
First Name
Jeff
Joined
Sep 28, 2019
Messages
204
Reaction score
202
Location
USA
Vehicle(s)
2020 Hydra Blue Gladiator (LEMON), 2021 Hydra blueJT 04 Rubicon, 04 Ultra classic
Occupation
Retired Sailor, what ever i can scrape together
