Coilover all the way!!!!! (I’m assuming he meant for his leg)
Actually, real coilovers, as I explore what I may want to do next to the suspension.
Sponsored


OP
OP
Flyin6

Flyin6

Well-Known Member
First Name
Don
Joined
Jan 2, 2023
Threads
17
Messages
1,329
Reaction score
1,801
Location
Kintuckee
Vehicle(s)
22AEV JT370, 24 Ram 3500, 22 Caddy XT6
Build Thread
Link
Occupation
Aviator, rotary and fixed wing, Writer
If possible, to keep this thread from getting super long and full of fluff, I'd like to ask folks to keep comments focused on topics pertinent to this thread.
I have kept all of this JT's mods posted in order so that it reads logically from purchase to the present. I used to own a discussion forum, and all too often, you'd have a great read and the next thing you know, people are chatting it up, and the poster loses all interest and takes a hike.

So, although I appreciate guy talk as much as the next person, could we keep the discussion focused

I know, I know, two pages from now everyone will have forgotten, and someone will be discussing their favorite chocolate chip cookie recipe...


Stan H

Well-Known Member
First Name
Stanley
Joined
Oct 26, 2022
Threads
10
Messages
5,487
Reaction score
5,470
Location
WV
Vehicle(s)
Gladiator Rubicon 2021
Occupation
Safety Consultant
Coilovers wear out to then your left with bounce bounce bounce when the shock wears out .been a minute since i had a set so maybe kings or top brand like that would be good for the suspension.


NC_Overland

Well-Known Member
First Name
John
Joined
Feb 21, 2020
Threads
18
Messages
3,373
Reaction score
4,139
Location
Raleigh, NC
Vehicle(s)
2020 JT Overland
Coilovers wear out to then your left with bounce bounce bounce when the shock wears out .been a minute since i had a set so maybe kings or top brand like that would be good for the suspension.
There are plenty of quality coilovers that don’t do that. A coilover is basically a strut with more adjustability and even OEM quality struts are good for 100k miles or more.


agoldxj

Well-Known Member
First Name
James
Joined
Nov 30, 2024
Threads
13
Messages
280
Reaction score
523
Location
Muncy, Pa
Vehicle(s)
2021 Gecko Mojave Gladiator 2022 High Velocity High Tide JLU
Occupation
Parts Manager

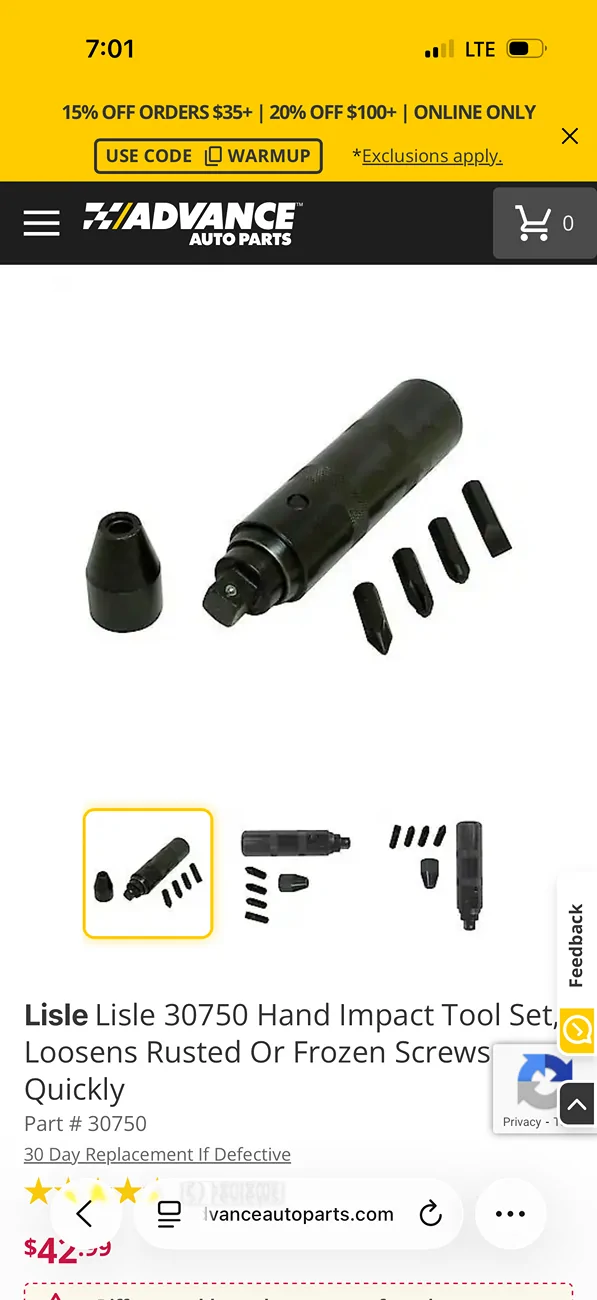

The door bolts are a pain, they’re installed then painted over, need a manual impact driver. Worked when I replaced all my hinges for new paint.

Jeep Gladiator 2022 AEV Gladiator Rubicon build IMG_6559


Sponsored

OP
OP
Flyin6

Flyin6

Well-Known Member
First Name
Don
Joined
Jan 2, 2023
Threads
17
Messages
1,329
Reaction score
1,801
Location
Kintuckee
Vehicle(s)
22AEV JT370, 24 Ram 3500, 22 Caddy XT6
Build Thread
Link
Occupation
Aviator, rotary and fixed wing, Writer
The door bolts are a pain, they’re installed then painted over, need a manual impact driver. Worked when I replaced all my hinges for new paint.

Good idea, never thought of that.
#50 Torx bits, but got home too late to give them a try
I'll take a few minutes tomorrow to see if I can budge those bolts

But

More importantly, the replacement SC just showed up!


Jteakus

Well-Known Member
First Name
Teakus
Joined
Feb 19, 2022
Threads
19
Messages
1,805
Reaction score
3,250
Location
Oil City, LA
Vehicle(s)
2020 JLURD, 2022 JTRD, 2017 JKU, 1998 TJ, 1983 CJ-7
Build Thread
Link
Vehicle Showcase
1
Drop the keyboard, grab the tools!


Zachanadandy

Well-Known Member
First Name
Zach
Joined
Oct 17, 2023
Threads
4
Messages
3,000
Reaction score
4,750
Location
Patterson, ca
Vehicle(s)
2023 gladiator Mojave
Occupation
Electrical foreman
There are plenty of quality coilovers that don’t do that. A coilover is basically a strut with more adjustability and even OEM quality struts are good for 100k miles or more.
Every shock used hard off road should be rebuilt/replaced every 20-40k miles. Doesn't matter if it's a coilover or stock or sealed aftermarket or rebuildable quality aftermarket. Just because people run them well past the point of needing rebuilt doesn't mean they last that long. I've pulled some shocks off that were doing as much damping as if you just removed them entirely. And yet the owner thought it rode fine.

OP
OP
Flyin6

Flyin6

Well-Known Member
First Name
Don
Joined
Jan 2, 2023
Threads
17
Messages
1,329
Reaction score
1,801
Location
Kintuckee
Vehicle(s)
22AEV JT370, 24 Ram 3500, 22 Caddy XT6
Build Thread
Link
Occupation
Aviator, rotary and fixed wing, Writer
The new supercharger is installed, and the engine is running. This one sounds a little better, but it still has that loose-lash gear-kickback sound.
I found the source of the whistle, the blow-off valve.
I was surprised by how much pressure I felt at the up-pipe from the intercooler. There is a hole for the manifold temp sensor, which I had removed for the test run. Air was blowing out of that hole at an idle!
I still have to bolt the bumper and winch back on to be roadworthy, but at the moment I am deciding if I am happy with all that noise this supercharger makes.

OP
OP
Flyin6

Flyin6

Well-Known Member
First Name
Don
Joined
Jan 2, 2023
Threads
17
Messages
1,329
Reaction score
1,801
Location
Kintuckee
Vehicle(s)
22AEV JT370, 24 Ram 3500, 22 Caddy XT6
Build Thread
Link
Occupation
Aviator, rotary and fixed wing, Writer

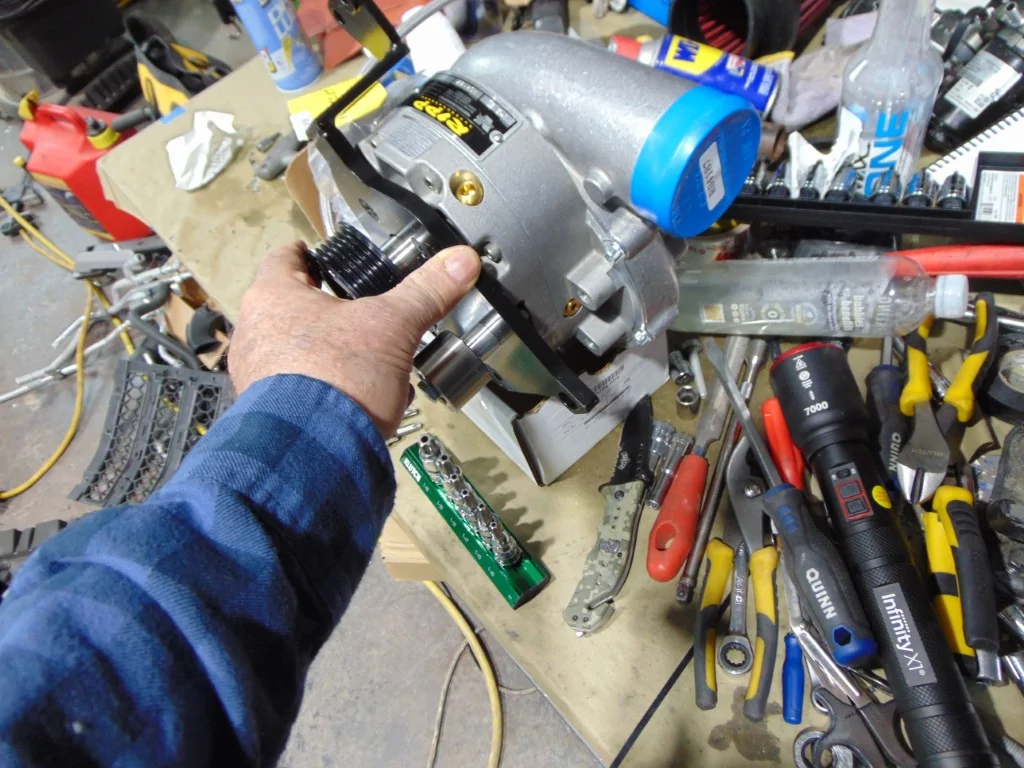

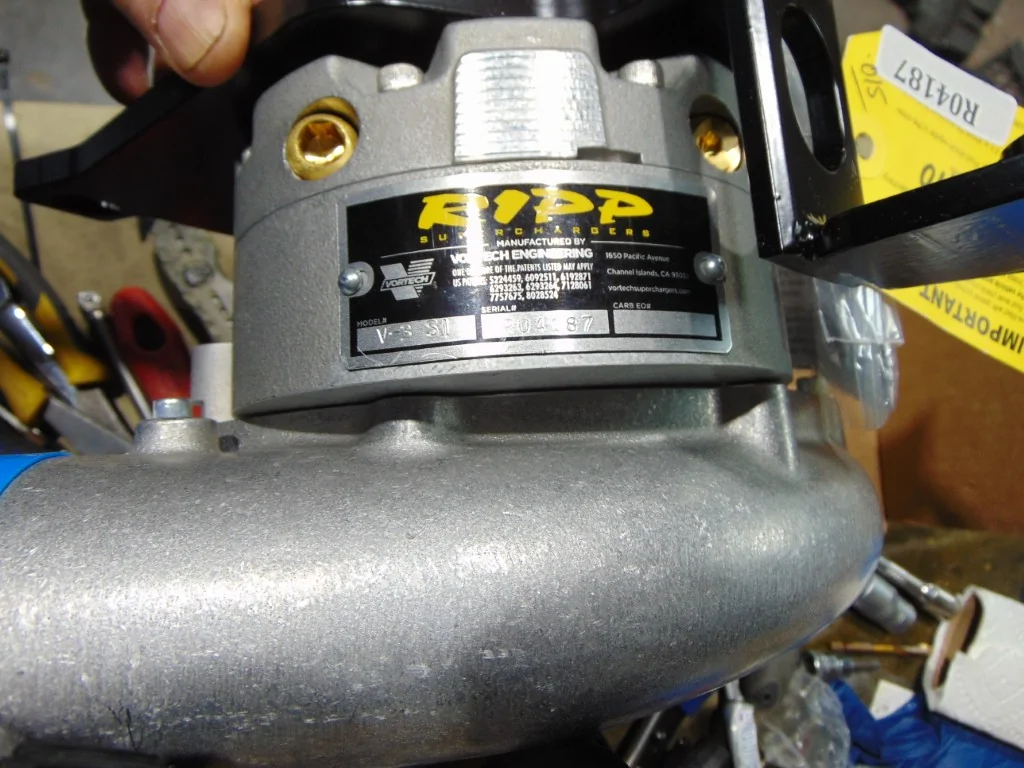

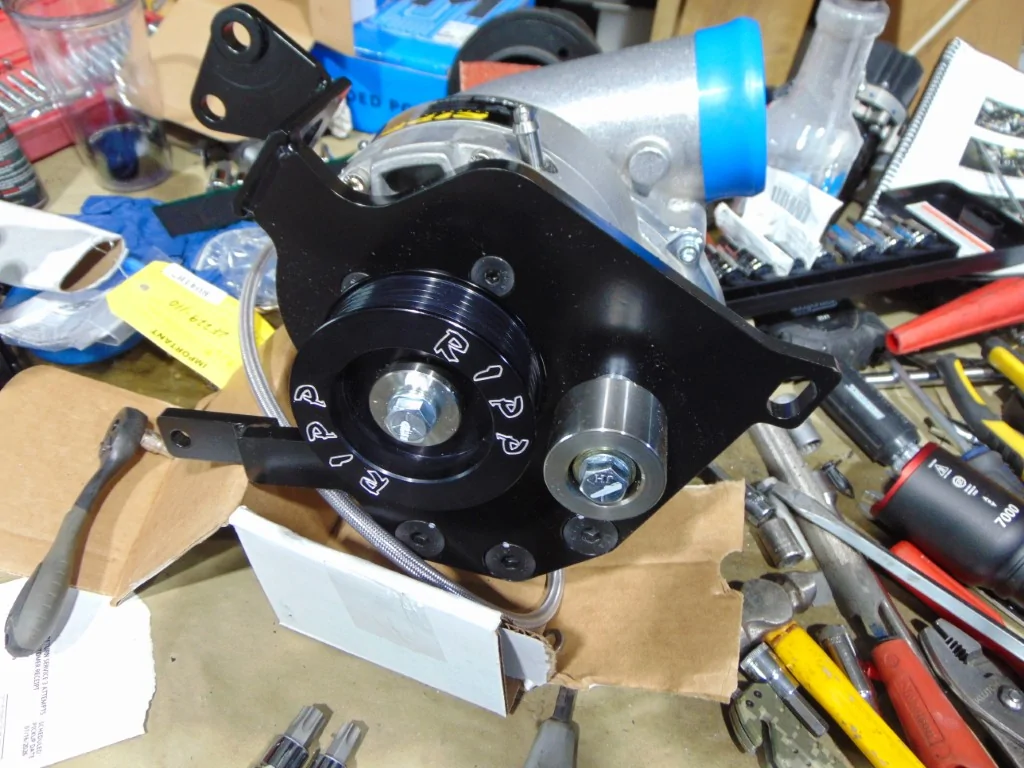

So, here is the new one, same as the old one...

Someone from this forum contacted me and suggested I prefill the blower and spin the pulley a bunch before installing it, so I did.

Jeep Gladiator 2022 AEV Gladiator Rubicon build DSC03318 (Medium)


Jeep Gladiator 2022 AEV Gladiator Rubicon build DSC03319 (Medium)


Jeep Gladiator 2022 AEV Gladiator Rubicon build DSC03320 (Medium)


Sponsored

OP
OP
Flyin6

Flyin6

Well-Known Member
First Name
Don
Joined
Jan 2, 2023
Threads
17
Messages
1,329
Reaction score
1,801
Location
Kintuckee
Vehicle(s)
22AEV JT370, 24 Ram 3500, 22 Caddy XT6
Build Thread
Link
Occupation
Aviator, rotary and fixed wing, Writer

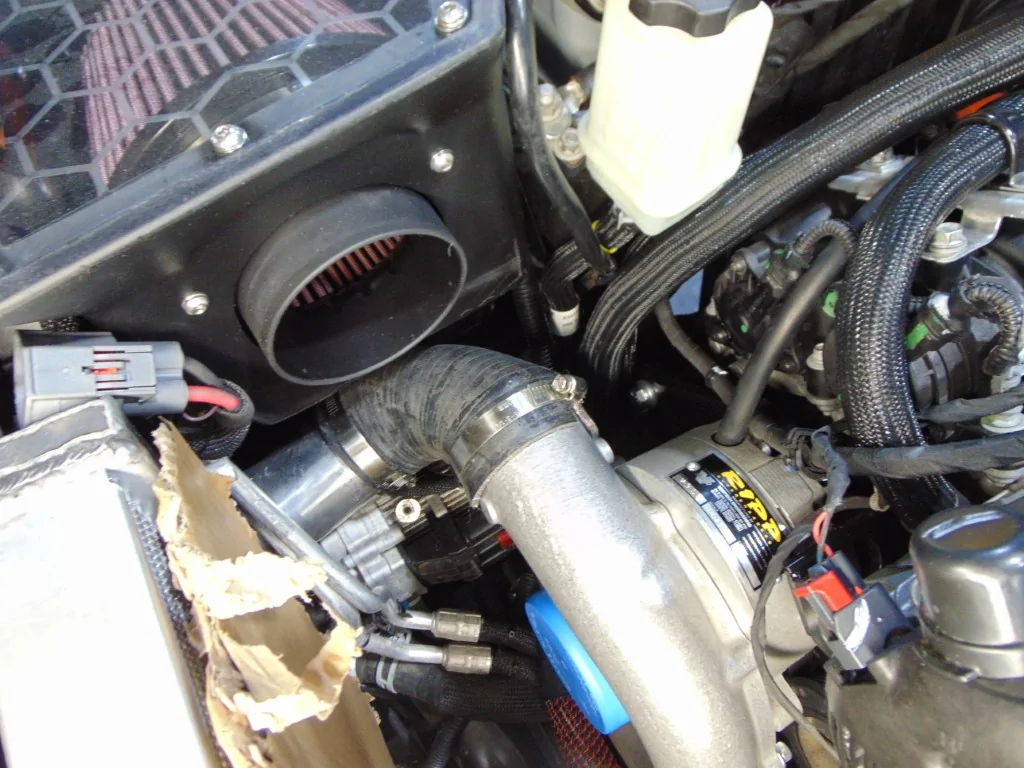

And here it is installed on the motor:

You may note that I changed up the routing of the heater hoses. After having them crowd me at the front of the engine, I moved them behind the blower. I think I like this better.

Jeep Gladiator 2022 AEV Gladiator Rubicon build DSC03323 (Medium)

OP
OP
Flyin6

Flyin6

Well-Known Member
First Name
Don
Joined
Jan 2, 2023
Threads
17
Messages
1,329
Reaction score
1,801
Location
Kintuckee
Vehicle(s)
22AEV JT370, 24 Ram 3500, 22 Caddy XT6
Build Thread
Link
Occupation
Aviator, rotary and fixed wing, Writer

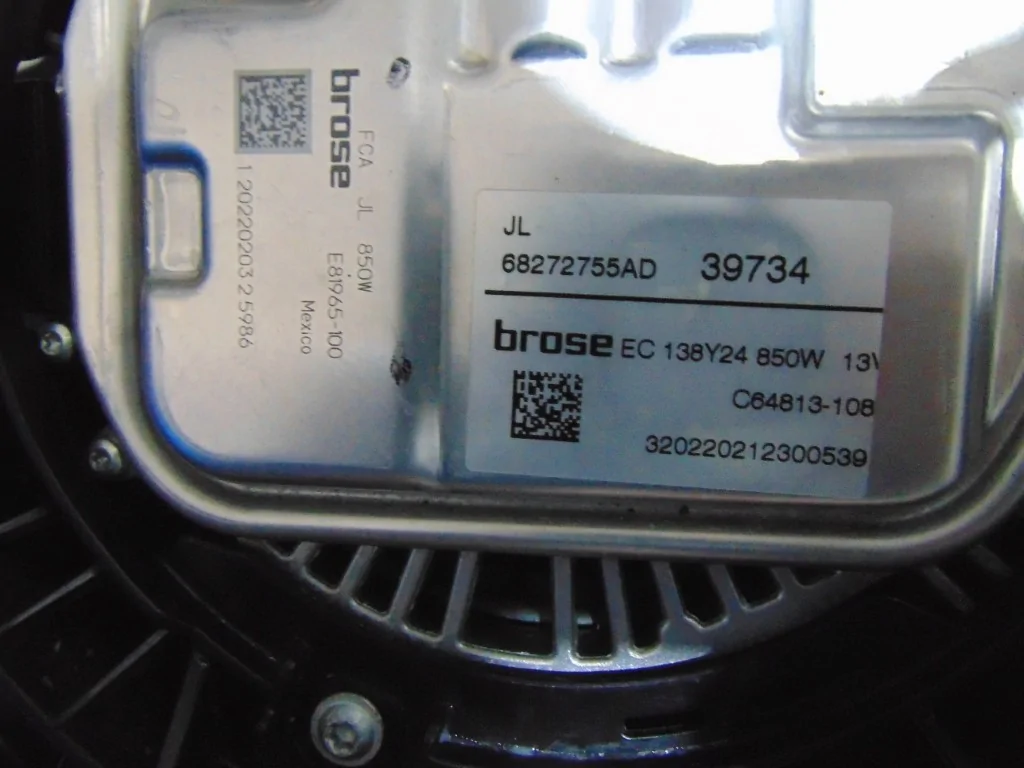

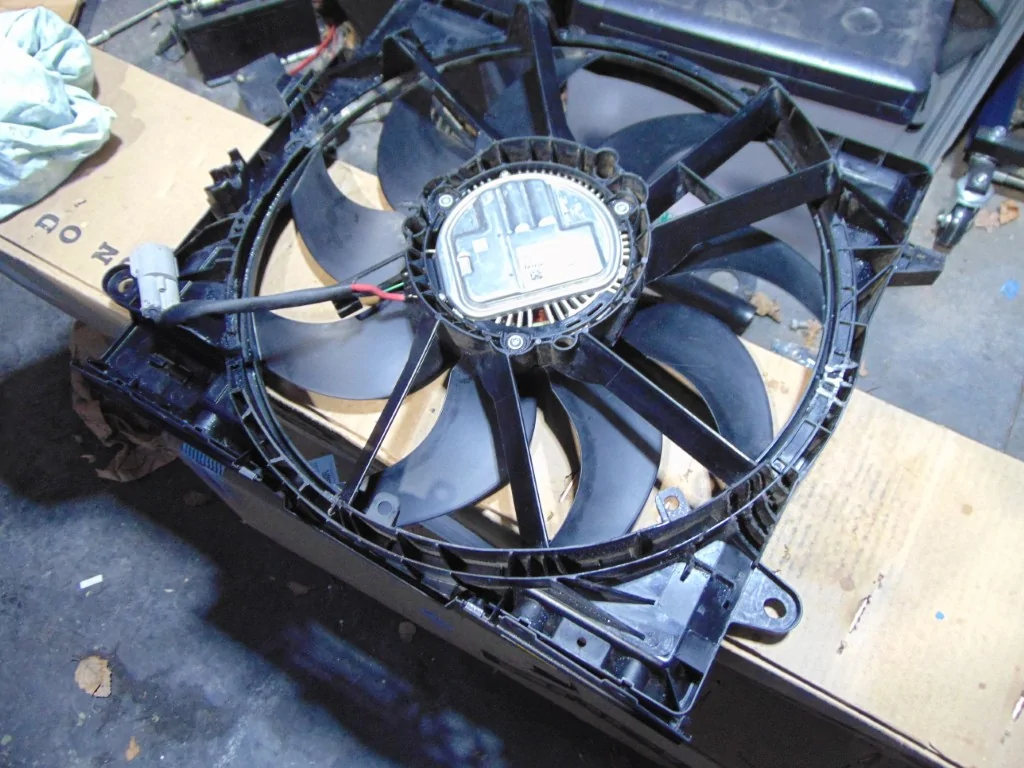

I wanted to create a record of the cooling fan, which, as you can see, is the 850-watt unit.

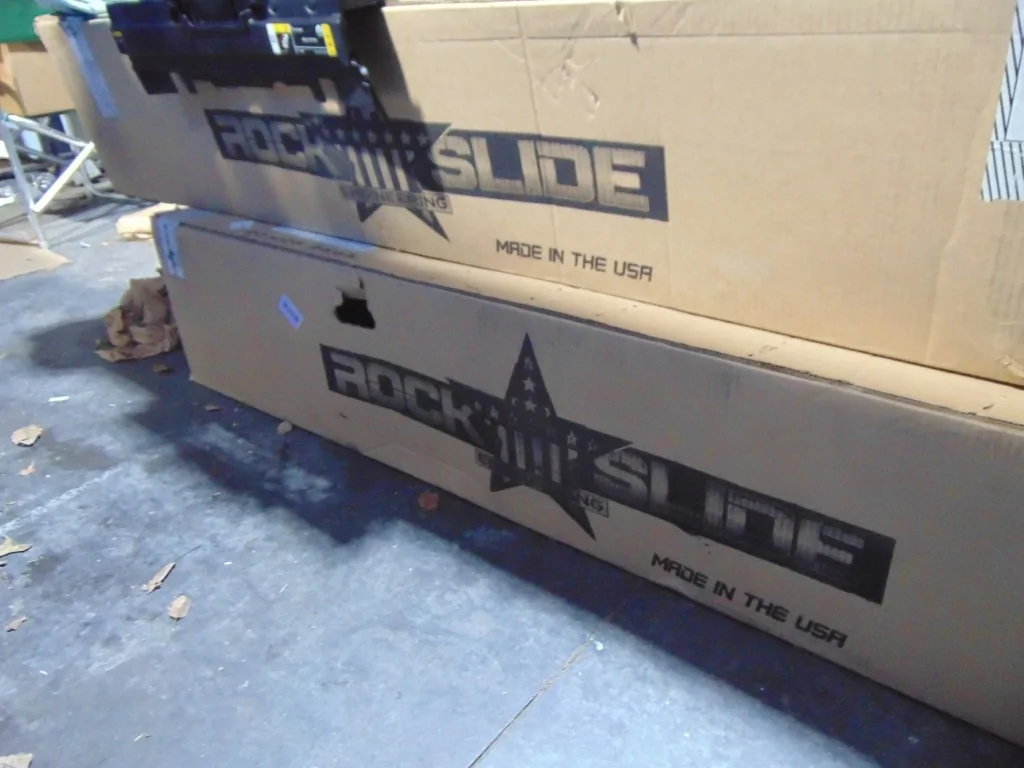

The fan is sitting on my next project, which I will tackle as soon as my new knee heals properly

Jeep Gladiator 2022 AEV Gladiator Rubicon build DSC03324 (Medium)


Jeep Gladiator 2022 AEV Gladiator Rubicon build DSC03325 (Medium)


Jeep Gladiator 2022 AEV Gladiator Rubicon build DSC03326 (Medium)

OP
OP
Flyin6

Flyin6

Well-Known Member
First Name
Don
Joined
Jan 2, 2023
Threads
17
Messages
1,329
Reaction score
1,801
Location
Kintuckee
Vehicle(s)
22AEV JT370, 24 Ram 3500, 22 Caddy XT6
Build Thread
Link
Occupation
Aviator, rotary and fixed wing, Writer
Here it is running just fine. The head unit definitely lets you know it is there. I never thought the thing would be this noisy, but it is. At idle it is making boost, you can feel it flowing out of the up pipe when I pull the temp sensor out. I guess this is what it is going to be. I am hoping it will wear in and quiet down some.



agoldxj

Well-Known Member
First Name
James
Joined
Nov 30, 2024
Threads
13
Messages
280
Reaction score
523
Location
Muncy, Pa
Vehicle(s)
2021 Gecko Mojave Gladiator 2022 High Velocity High Tide JLU
Occupation
Parts Manager
Are you going to send Ripp the video? It still sounds bad, I would expect more of a whine than that sound.

OP
OP
Flyin6

Flyin6

Well-Known Member
First Name
Don
Joined
Jan 2, 2023
Threads
17
Messages
1,329
Reaction score
1,801
Location
Kintuckee
Vehicle(s)
22AEV JT370, 24 Ram 3500, 22 Caddy XT6
Build Thread
Link
Occupation
Aviator, rotary and fixed wing, Writer
Are you going to send Ripp the video? It still sounds bad, I would expect more of a whine than that sound.
I am going to share the vid, however, that's two in a row with nearly identical sounds. They made the call on switching the last one out, not me.
Dunno, maybe this is normal for this unit. The moment you load it, the sound disappears. I think it comes down to learning to live with the sound or doing something else. If the unit solves for the lack of power issue, and it proves to be reliable, well, I guess I got what I wanted. (Although I did not bargain for the added clatter).

And the whine?? That is a byproduct of a Roots-style blower like the Magnuson, not the axial compressor style I have.
