$600 for a lift which one?

Sallaman

Well-Known Member
First Name
Scott
Joined
Aug 12, 2019
Threads
12
Messages
180
Reaction score
156
Location
Kansas
Vehicle(s)
2020 gladiator
Instead of a lift have you considered finding a set of take off rubi or mojave flares? The high clearance flares will give you plenty of clearance for 35s. Then throw on a small leveling kit and a set of sway bar disconnects
Sponsored



WILDHOBO

Well-Known Member
First Name
Dan
Joined
Sep 24, 2021
Threads
73
Messages
11,643
Reaction score
17,709
Location
Colorado
Vehicle(s)
2021 Gladiator Rubicon
Occupation
Network Engineer
Vehicle Showcase
1
So I like the completeness of the AEV 2" spacer, however it reuses the junky stock shocks and non quick disconnecting sway bar links. I'm wondering if for the relative same price of the AEV kit, is there a similar complete kit of equal quality which uses better shocks or springs?

I'm on a '22 Sport with 34.5x10.5R17 doing 95% street usage and occasionally I want to be able to decently off road. I guess do I even need to lift it with those tires? How are the stock springs? What would you do in that budget? I don't want to compromise ride quality either. Ty!
There isn’t any lift within a mile of that price range, that won’t be lacking. Everyone’s right that had recommended waiting until the budget can be increased.


WILDHOBO

Well-Known Member
First Name
Dan
Joined
Sep 24, 2021
Threads
73
Messages
11,643
Reaction score
17,709
Location
Colorado
Vehicle(s)
2021 Gladiator Rubicon
Occupation
Network Engineer
Vehicle Showcase
1
There isn’t any lift within a mile of that price range, that won’t be lacking. Everyone’s right that had recommended waiting until the budget can be increased.
Others that have mentioned cost effective ways to fit larger tires aren’t wrong, but when you go larger, steering really needs to be addressed to make sure it’s still safe on the road. Stock steering just doesn’t handle larger tires very well.

OP
OP

crmarczak

Well-Known Member
First Name
Corey
Joined
Dec 16, 2023
Threads
11
Messages
56
Reaction score
42
Location
VA
Vehicle(s)
2022 Sport
Occupation
Military
Instead of a lift have you considered finding a set of take off rubi or mojave flares? The high clearance flares will give you plenty of clearance for 35s. Then throw on a small leveling kit and a set of sway bar disconnects
I haven't heard of this option, I honestly don't care for suspension per se, more to make sure my tires can articulate.


Bjeepz

Well-Known Member
First Name
B
Joined
Nov 21, 2019
Threads
10
Messages
1,009
Reaction score
1,061
Location
Canada
Vehicle(s)
2025 Willy's
I have done plenty of 'cheap' lift setups on vehicles in the past, none of them were great and always required a 2nd or 3rd upgrade.. Do it as close to right as possible the 1st time! Don't waste money or Rubi take offs, if you want factory take offs the Mojave shocks are worth it, but will again require extensions with a lift, but ride amazing...


Sponsored

Zachanadandy

Well-Known Member
First Name
Zach
Joined
Oct 17, 2023
Threads
4
Messages
2,984
Reaction score
4,726
Location
Patterson, ca
Vehicle(s)
2023 gladiator Mojave
Occupation
Electrical foreman
There isn’t any lift within a mile of that price range, that won’t be lacking. Everyone’s right that had recommended waiting until the budget can be increased.
I agree to a point. The stock sport and rubicon shocks aren't worth retaining which leaves the aev spacer kit lacking. But, for us mojave owners, we already have the best shocks jeep has ever offered from the factory. If you're only lifting 2" you don't need anything else. The axles end up ~1/4" off center at ride height, no need for adjustable track bars. The caster is still 4.8⁰, not optimal but more than sufficient. Even on 37s the stock steering has been fine so far for 16k+ miles and is been run hard in the desert. Will the tie rod ends and ball joints wear out quicker than they would on stock tires? Of course, but even the $$$$ lift kits don't come with steering or ball joints so it's irrelevant. The mojave shocks could use some more travel, especially if you're building a rock crawler. The problem is in order to get shocks that dampen any where near as well at speed in the desert you'll be $3k+ into shocks alone.

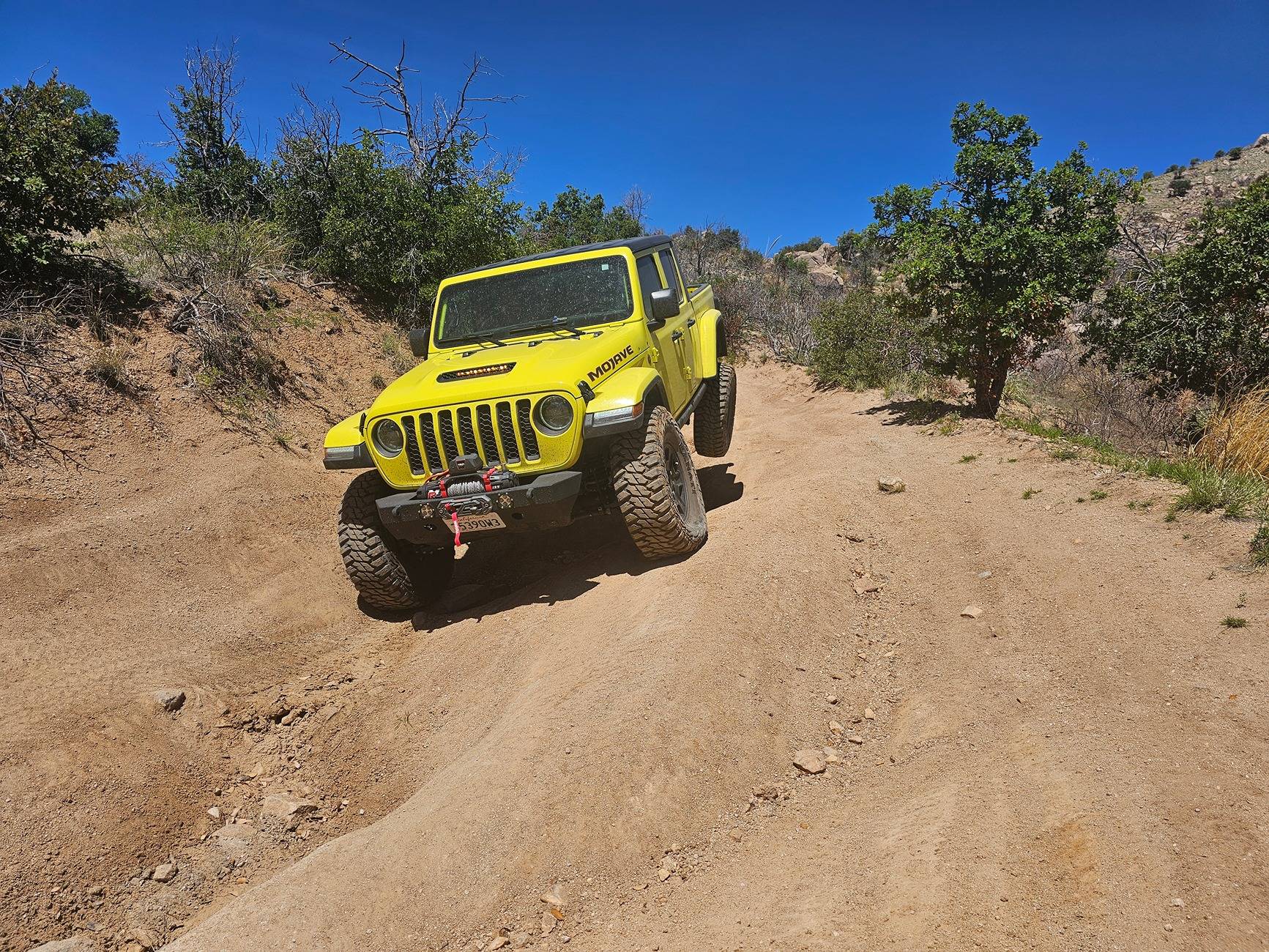

Jeep Gladiator $600 for a lift which one? 20240505_104507

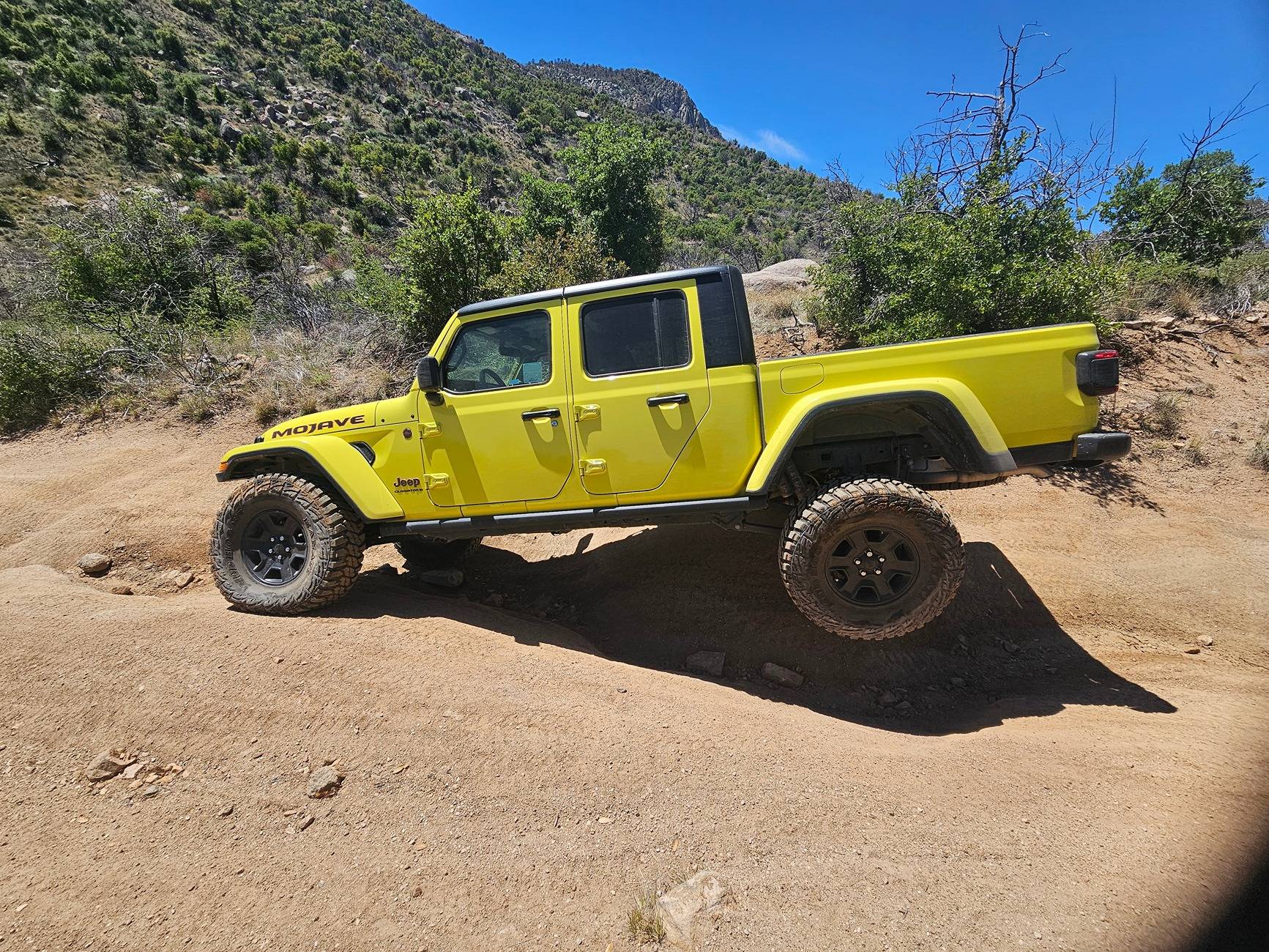

Jeep Gladiator $600 for a lift which one? 20240505_104400

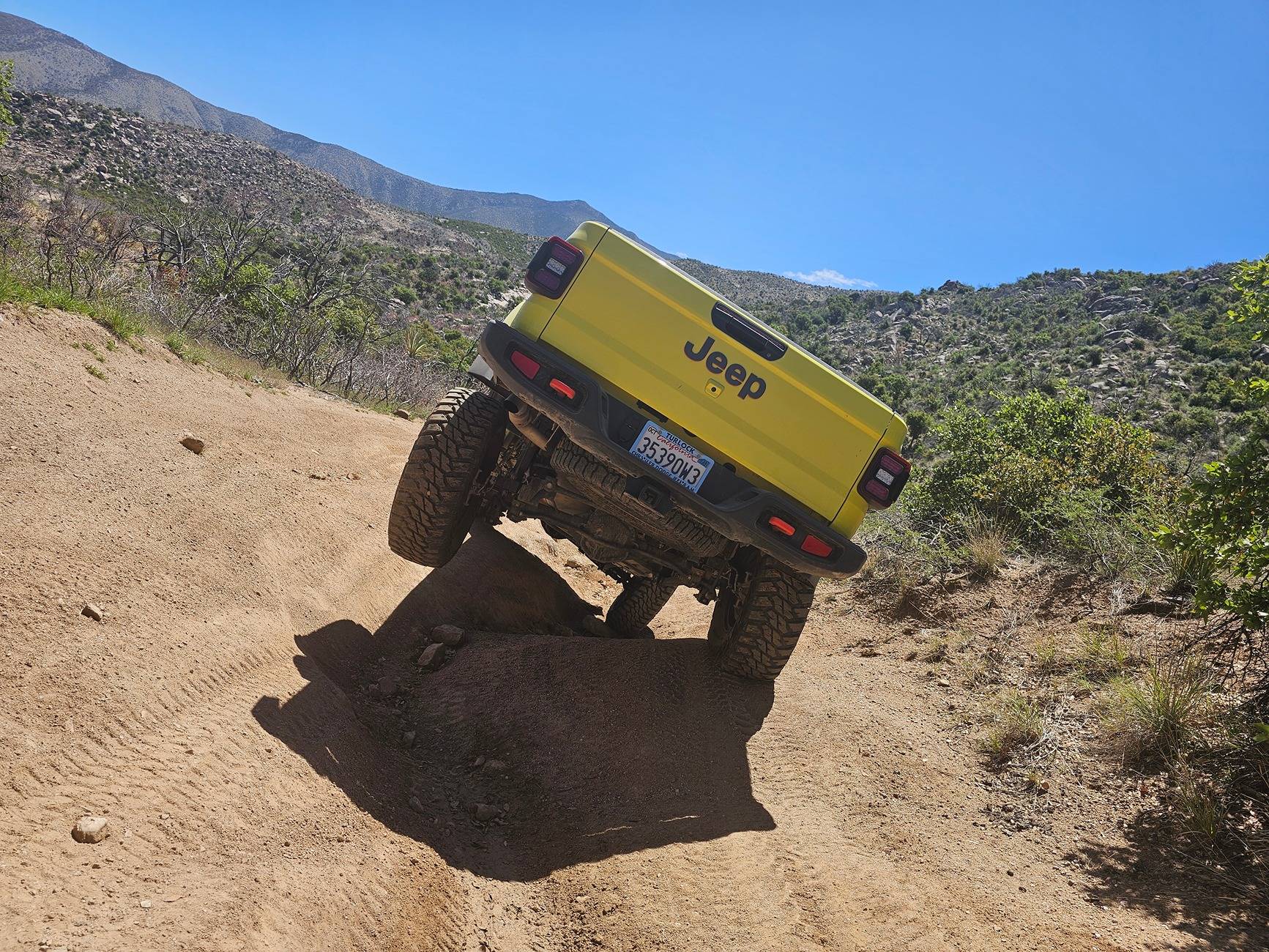

Jeep Gladiator $600 for a lift which one? 20240505_104418


Zachanadandy

Well-Known Member
First Name
Zach
Joined
Oct 17, 2023
Threads
4
Messages
2,984
Reaction score
4,726
Location
Patterson, ca
Vehicle(s)
2023 gladiator Mojave
Occupation
Electrical foreman
Others that have mentioned cost effective ways to fit larger tires aren’t wrong, but when you go larger, steering really needs to be addressed to make sure it’s still safe on the road. Stock steering just doesn’t handle larger tires very well.
I think this is the biggest myth on the Jeep forums. Our 2019 JLUR had 63k miles on it when it was stolen. Riding on 37s or 38s for most of that. Multiple trips to Moab, the Rubicon trail, the dusy, and 27 BOH trails all over the country. The steering stabilizer was flipped on top of the tie rod for clearance not function. The drag link was replaced and flipped on top of the knuckle at 41k miles, not because it was worn out but to allow more droop. The factory ball joints lasted 35k miles. And the best part.... the tie rod was still stock. We replaced that Jeep with our 2022 JLUR with the xr package. It comes from the factory with the same steering components as a base rubicon...and 35s. Under warranty for 36k miles but the internet says stock steering won't handle 35s well? It's been doing it in tens of thousands of Jeeps for likely millions of miles. For the last 15k miles that Jeep has been on 39s. Again flipped drag link and steering stabilizer, and a stock tire rod. My mojave sees freeway plus speeds in the desert regularly, on 37s and 100% stock steering. I haven't even relocated the stabilizer as it's not our rock rig.


outdoor.adventures

Well-Known Member
First Name
Tyler
Joined
Apr 4, 2022
Threads
2
Messages
127
Reaction score
235
Location
Salt Lake City Metropolitan Area, Utah
Website
www.instagram.com
Vehicle(s)
2021 Gladiator Mojave
Build Thread
Link
Occupation
Software Engineer
I think this is the biggest myth on the Jeep forums. Our 2019 JLUR had 63k miles on it when it was stolen. Riding on 37s or 38s for most of that. Multiple trips to Moab, the Rubicon trail, the dusy, and 27 BOH trails all over the country. The steering stabilizer was flipped on top of the tie rod for clearance not function. The drag link was replaced and flipped on top of the knuckle at 41k miles, not because it was worn out but to allow more droop. The factory ball joints lasted 35k miles. And the best part.... the tie rod was still stock. We replaced that Jeep with our 2022 JLUR with the xr package. It comes from the factory with the same steering components as a base rubicon...and 35s. Under warranty for 36k miles but the internet says stock steering won't handle 35s well? It's been doing it in tens of thousands of Jeeps for likely millions of miles. For the last 15k miles that Jeep has been on 39s. Again flipped drag link and steering stabilizer, and a stock tire rod. My mojave sees freeway plus speeds in the desert regularly, on 37s and 100% stock steering. I haven't even relocated the stabilizer as it's not our rock rig.
I can second this being a myth. Similar experiences with mine doing the harder trails. With other vehicles running larger tires (Toyotas) it’s definitely a thing, so maybe some of that from those forums is carrying over to here.


WILDHOBO

Well-Known Member
First Name
Dan
Joined
Sep 24, 2021
Threads
73
Messages
11,643
Reaction score
17,709
Location
Colorado
Vehicle(s)
2021 Gladiator Rubicon
Occupation
Network Engineer
Vehicle Showcase
1
I agree to a point. The stock sport and rubicon shocks aren't worth retaining which leaves the aev spacer kit lacking. But, for us mojave owners, we already have the best shocks jeep has ever offered from the factory. If you're only lifting 2" you don't need anything else. The axles end up ~1/4" off center at ride height, no need for adjustable track bars. The caster is still 4.8⁰, not optimal but more than sufficient. Even on 37s the stock steering has been fine so far for 16k+ miles and is been run hard in the desert. Will the tie rod ends and ball joints wear out quicker than they would on stock tires? Of course, but even the $$$$ lift kits don't come with steering or ball joints so it's irrelevant. The mojave shocks could use some more travel, especially if you're building a rock crawler. The problem is in order to get shocks that dampen any where near as well at speed in the desert you'll be $3k+ into shocks alone.
Valid points for sure.


Bbannongmu

Well-Known Member
First Name
JTR.Spartacus
Joined
Jan 18, 2020
Threads
34
Messages
2,146
Reaction score
2,531
Location
Earth
Website
m.facebook.com
Vehicle(s)
2020 Jeep Gladiator Rubicon
Build Thread
Link
Occupation
Certified Emergency Manager
Vehicle Showcase
1
I can second this being a myth. Similar experiences with mine doing the harder trails. With other vehicles running larger tires (Toyotas) it’s definitely a thing, so maybe some of that from those forums is carrying over to here.
Maybe it’s luck. Or maybe it’s weather - salt, etc in the rust belt in PA and/or maybe heavy, larger tires and other weight?? I’m on 37s on my 2020 JTR, on a Rustys 2” advanced lift plus 1.5” Teraflex leveling kit. My Jeep weighs a portly 5815lbs with me in it (I’m 220).
My steering was shot at 4 years and 40k miles. Mostly highway, daily driver, Northeast trails/camping/hunting - pretty tame overall. Both tie rod ends, the knuckle side joint of the draglink were shot. The stock stabilizer was fine. The only good joint was the draglink at the steering box end. Ironically,it just pulled, it didn’t really wobble and I didn’t get any death wobble until I fixed the steering with a Rusty’s Aluminum HD kit. The DW went away with new tires. Like everything with Jeeps
YMMV and Just Empty Every Pocket.


Sponsored

Zachanadandy

Well-Known Member
First Name
Zach
Joined
Oct 17, 2023
Threads
4
Messages
2,984
Reaction score
4,726
Location
Patterson, ca
Vehicle(s)
2023 gladiator Mojave
Occupation
Electrical foreman
I can second this being a myth. Similar experiences with mine doing the harder trails. With other vehicles running larger tires (Toyotas) it’s definitely a thing, so maybe some of that from those forums is carrying over to here.
And confirmation bias, nobody wants to admit they spent $700-1,000 upgrading steering links that were perfectly functional. Don't get me wrong, if you bash the stock tire rod into rocks you'll kill it, where alt of these aftermarket upgrades can be bounced off rocks no problem. Of course if you pick better lines you aren't bashing the tie rod into rocks....


Zachanadandy

Well-Known Member
First Name
Zach
Joined
Oct 17, 2023
Threads
4
Messages
2,984
Reaction score
4,726
Location
Patterson, ca
Vehicle(s)
2023 gladiator Mojave
Occupation
Electrical foreman
Maybe it’s luck. Or maybe it’s weather - salt, etc in the rust belt in PA and/or maybe heavy, larger tires and other weight?? I’m on 37s on my 2020 JTR, on a Rustys 2” advanced lift plus 1.5” Teraflex leveling kit. My Jeep weighs a portly 5815lbs with me in it (I’m 220).
My steering was shot at 4 years and 40k miles. Mostly highway, daily driver, Northeast trails/camping/hunting - pretty tame overall. Both tie rod ends, the knuckle side joint of the draglink were shot. The stock stabilizer was fine. The only good joint was the draglink at the steering box end. Ironically,it just pulled, it didn’t really wobble and I didn’t get any death wobble until I fixed the steering with a Rusty’s Aluminum HD kit. The DW went away with new tires. Like everything with Jeeps
YMMV and Just Empty Every Pocket.
I wouldn't call worn tire rods at 40k miles a necessary upgrade when lifting a new Jeep though? Sure they will wear faster with larger tires, but so do the aftermarket ends in my experience. Odds are your rusty's steering will need new ends in ~40k too.


Sallaman

Well-Known Member
First Name
Scott
Joined
Aug 12, 2019
Threads
12
Messages
180
Reaction score
156
Location
Kansas
Vehicle(s)
2020 gladiator
I haven't heard of this option, I honestly don't care for suspension per se, more to make sure my tires can articulate.
If all you care about is tire clearance then thats the way to go in my opinion. My wifes jl sport has the standard flares with a 2 in lift and my gladiator sport has the high clearance flares with no lift and i have more space for bigger tires than she does plus as a side benefit they are a hair wider to so less rocks hitting the side of your jeep


Bbannongmu

Well-Known Member
First Name
JTR.Spartacus
Joined
Jan 18, 2020
Threads
34
Messages
2,146
Reaction score
2,531
Location
Earth
Website
m.facebook.com
Vehicle(s)
2020 Jeep Gladiator Rubicon
Build Thread
Link
Occupation
Certified Emergency Manager
Vehicle Showcase
1
So I like the completeness of the AEV 2" spacer, however it reuses the junky stock shocks and non quick disconnecting sway bar links. I'm wondering if for the relative same price of the AEV kit, is there a similar complete kit of equal quality which uses better shocks or springs?

I'm on a '22 Sport with 34.5x10.5R17 doing 95% street usage and occasionally I want to be able to decently off road. I guess do I even need to lift it with those tires? How are the stock springs? What would you do in that budget? I don't want to compromise ride quality either. Ty!
I went with the Teraflex 1.5” leveling kit and kept it when I went to my full lift. That’s $125. I added 3/4” Daystar spacers on the back and kept them with my lift - that was $45. I cleared 37s on a stock Rubi. I just went to Bilstein 5100s for about $450 on sale. That gets you a little more room with good components.


Bbannongmu

Well-Known Member
First Name
JTR.Spartacus
Joined
Jan 18, 2020
Threads
34
Messages
2,146
Reaction score
2,531
Location
Earth
Website
m.facebook.com
Vehicle(s)
2020 Jeep Gladiator Rubicon
Build Thread
Link
Occupation
Certified Emergency Manager
Vehicle Showcase
1
I wouldn't call worn tire rods at 40k miles a necessary upgrade when lifting a new Jeep though? Sure they will wear faster with larger tires, but so do the aftermarket ends in my experience. Odds are your rusty's steering will need new ends in ~40k too.
Agreed. My plan was to drive them until they failed. I thought I’d get 75k miles - not sure why. I hope I get a bit more than 40k out of Rustys for the price and the beefiness.
