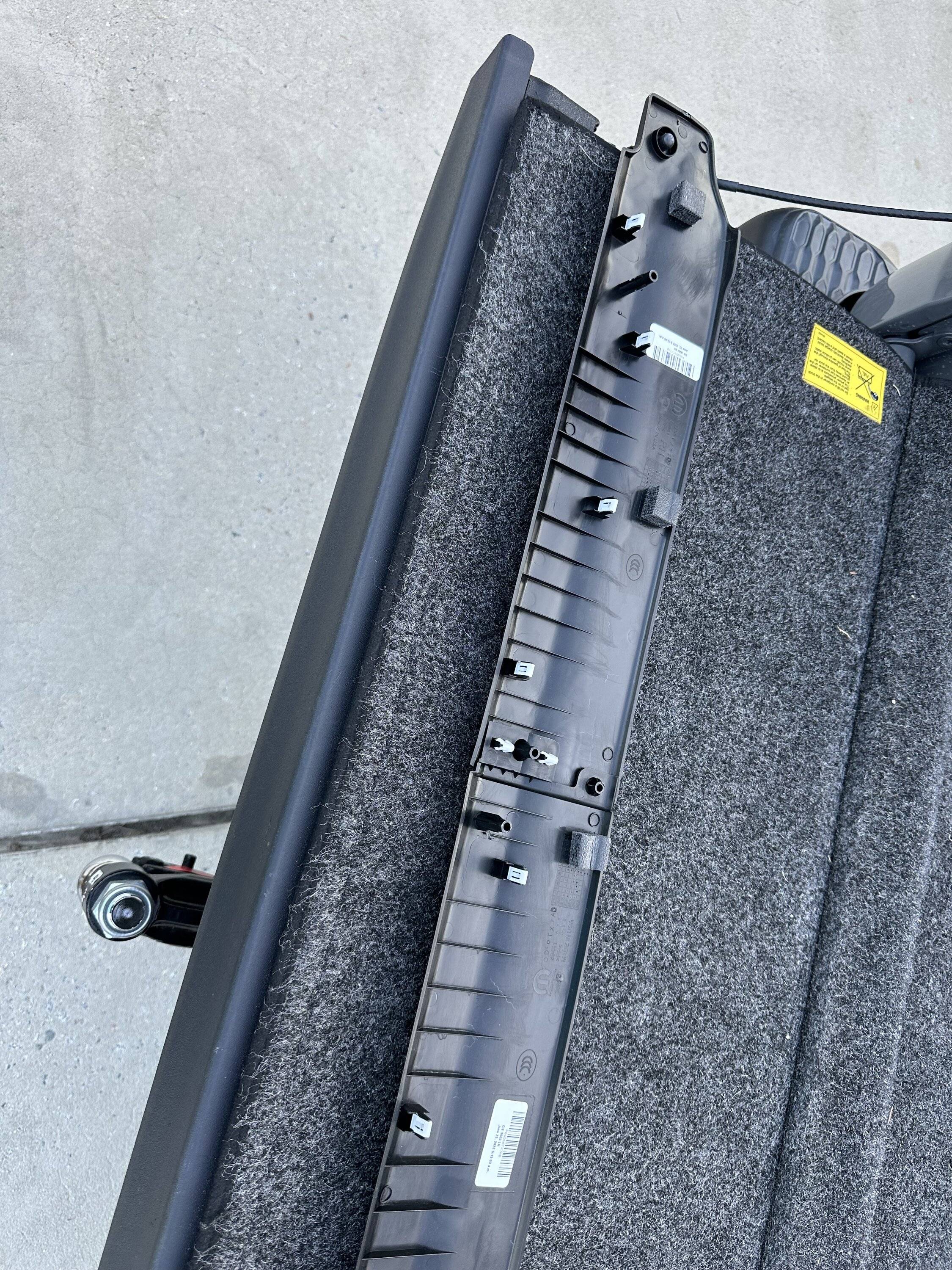

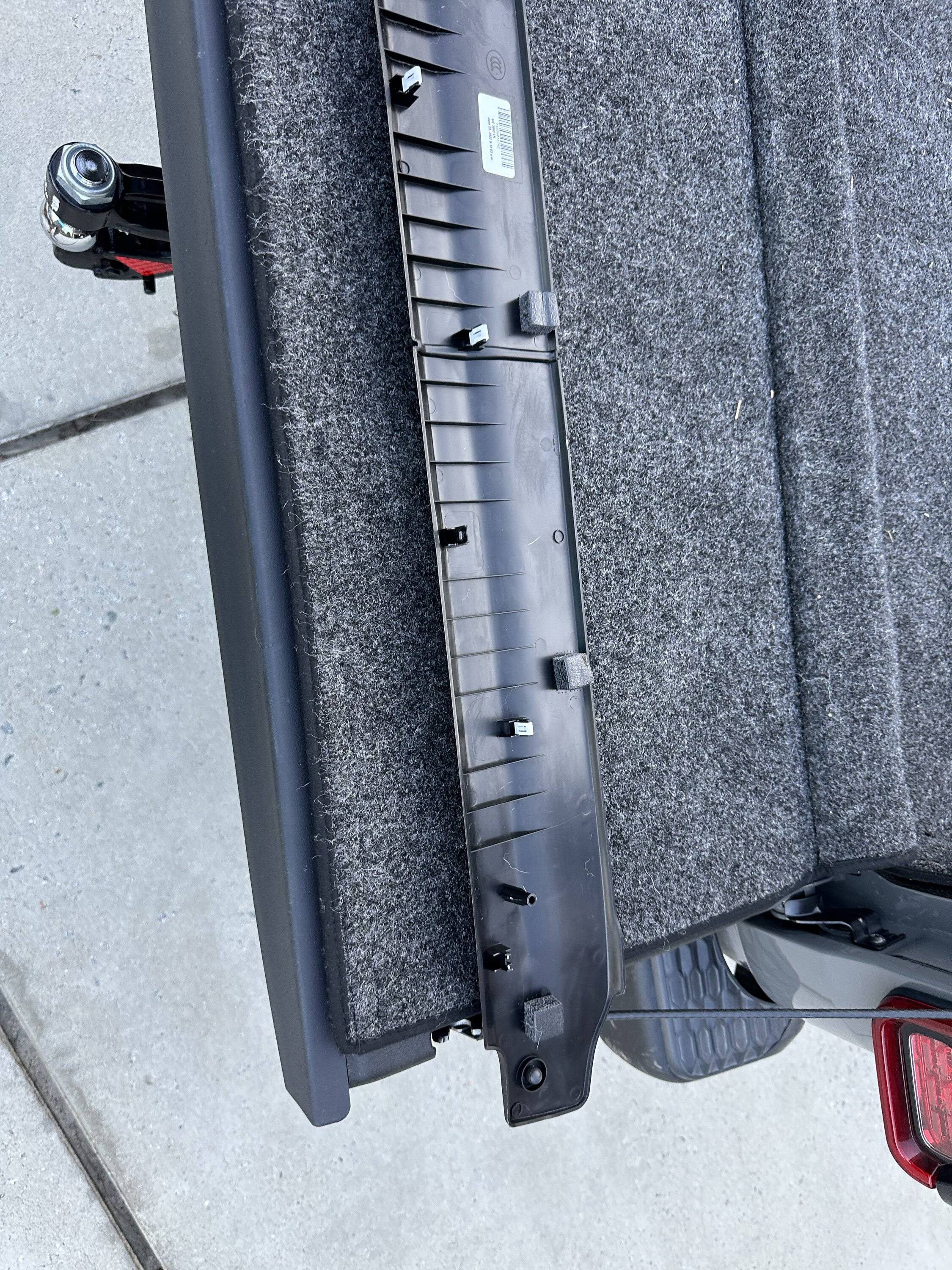

Here is the back side of the trim.
Jeep Gladiator Coverking Topliner - Review & Install IMG_8082

Jeep Gladiator Coverking Topliner - Review & Install IMG_8081

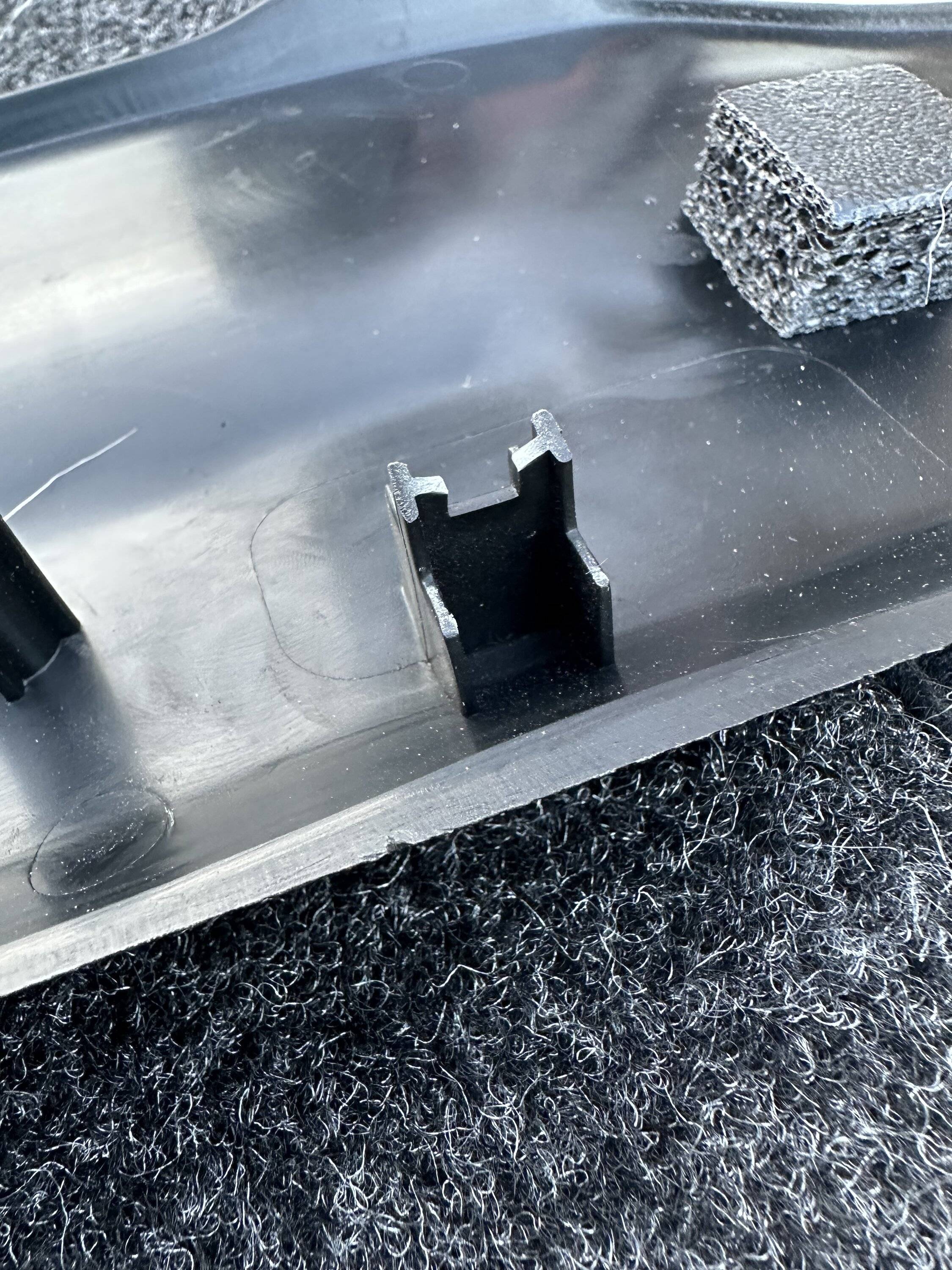

And the one that broke.
Jeep Gladiator Coverking Topliner - Review & Install IMG_8083
Sponsored



lotecredneck

Well-Known Member
First Name
Tony
Joined
Aug 11, 2023
Threads
7
Messages
78
Reaction score
87
Location
Texarkana, TX
Vehicle(s)
2023 Jeep Gladiator
Occupation
Retired
Those that have had a tough time getting the rubber bumpers back into the rear roof panel, here is the method I used. I used a "T" handle allen wrench that was a 6mm I believe. You want one that will fit into the hole in the bumper loosely, but fill the majority of the hole. The put some silicon or soap on the nipple and then push it into place. It will take some effort, but the hole is for pushing the center of the bumper and stretching it so it will pop into the hole. It was way easier to install than the edge molding!!

~Tony



MJRSC

Well-Known Member
First Name
Mark
Joined
Apr 21, 2022
Threads
50
Messages
317
Reaction score
248
Location
Fort Mill, SC
Vehicle(s)
2022 JT Mojave
Occupation
Lawyer
Anyone find any killer Black Friday deals on these? Been on the list for a while.


Scott0700

Active Member
First Name
Scott
Joined
Aug 6, 2023
Threads
1
Messages
42
Reaction score
58
Location
Rexford NY
Vehicle(s)
2018 JKU
Occupation
Self Employed
For the life of me I can’t get the brown paper off of the adhesive panels supplied. Plastic comes off no problem. Glue wants to come up with the paper and makes a complete mess of things. Already ruined two of the “glue” panels. Any advice before I go any further?


JRobes

Well-Known Member
Joined
Oct 27, 2019
Threads
10
Messages
934
Reaction score
1,468
Location
South Dakota
Vehicle(s)
2020 JT Sport S Max Tow, 2004 WJ Overland
Occupation
Enginerd
For the life of me I can’t get the brown paper off of the adhesive panels supplied. Plastic comes off no problem. Glue wants to come up with the paper and makes a complete mess of things. Already ruined two of the “glue” panels. Any advice before I go any further?
Instead of peeling the brown paper at the edge, take a sharp knife (new utility blade) and cut the brown strip a few inches in from the end avoiding cutting through the tape itself as much as possible, then peel up from there. I've found this to work well since the tape has a harder time peeling up away from the edge. You can use the blade tip to help start the peel up process.

Last edited:

Sponsored

BigBry

Well-Known Member
Joined
May 4, 2023
Threads
8
Messages
262
Reaction score
534
Location
Cali
Vehicle(s)
2023 JT Mojave
I used them a few years ago and they were legit.


Scott0700

Active Member
First Name
Scott
Joined
Aug 6, 2023
Threads
1
Messages
42
Reaction score
58
Location
Rexford NY
Vehicle(s)
2018 JKU
Occupation
Self Employed
Instead of peeling the brown paper at the edge, take a sharp knife (new utility blade) and cut the brown strip a few inches in from the end avoiding cutting through the tape itself as much as possible, then peel up from there. I've found this to work well since the tape has a harder time peeling up away from the edge. You can use the blade top to help start the peel up process.
Thanks. That worked great. Much appreciated.


MJRSC

Well-Known Member
First Name
Mark
Joined
Apr 21, 2022
Threads
50
Messages
317
Reaction score
248
Location
Fort Mill, SC
Vehicle(s)
2022 JT Mojave
Occupation
Lawyer
About to pull the trigger and order an set, any final warnings or advice?


Sponsored

JRobes

Well-Known Member
Joined
Oct 27, 2019
Threads
10
Messages
934
Reaction score
1,468
Location
South Dakota
Vehicle(s)
2020 JT Sport S Max Tow, 2004 WJ Overland
Occupation
Enginerd
About to pull the trigger and order an set, any final warnings or advice?
Don't do it with the hardtop on. Otherwise, I've loved everything about mine since install with the sound deadener.


MJRSC

Well-Known Member
First Name
Mark
Joined
Apr 21, 2022
Threads
50
Messages
317
Reaction score
248
Location
Fort Mill, SC
Vehicle(s)
2022 JT Mojave
Occupation
Lawyer
Don't do it with the hardtop on. Otherwise, I've loved everything about mine since install with the sound deadener.
Awesome, yea was planning to pull it off.

Good point, I was going to order off Amazon. Any recs for what you used and how much? Planned on doing the recesses/voids and not like every square inch.


JRobes

Well-Known Member
Joined
Oct 27, 2019
Threads
10
Messages
934
Reaction score
1,468
Location
South Dakota
Vehicle(s)
2020 JT Sport S Max Tow, 2004 WJ Overland
Occupation
Enginerd

MJRSC

Well-Known Member
First Name
Mark
Joined
Apr 21, 2022
Threads
50
Messages
317
Reaction score
248
Location
Fort Mill, SC
Vehicle(s)
2022 JT Mojave
Occupation
Lawyer

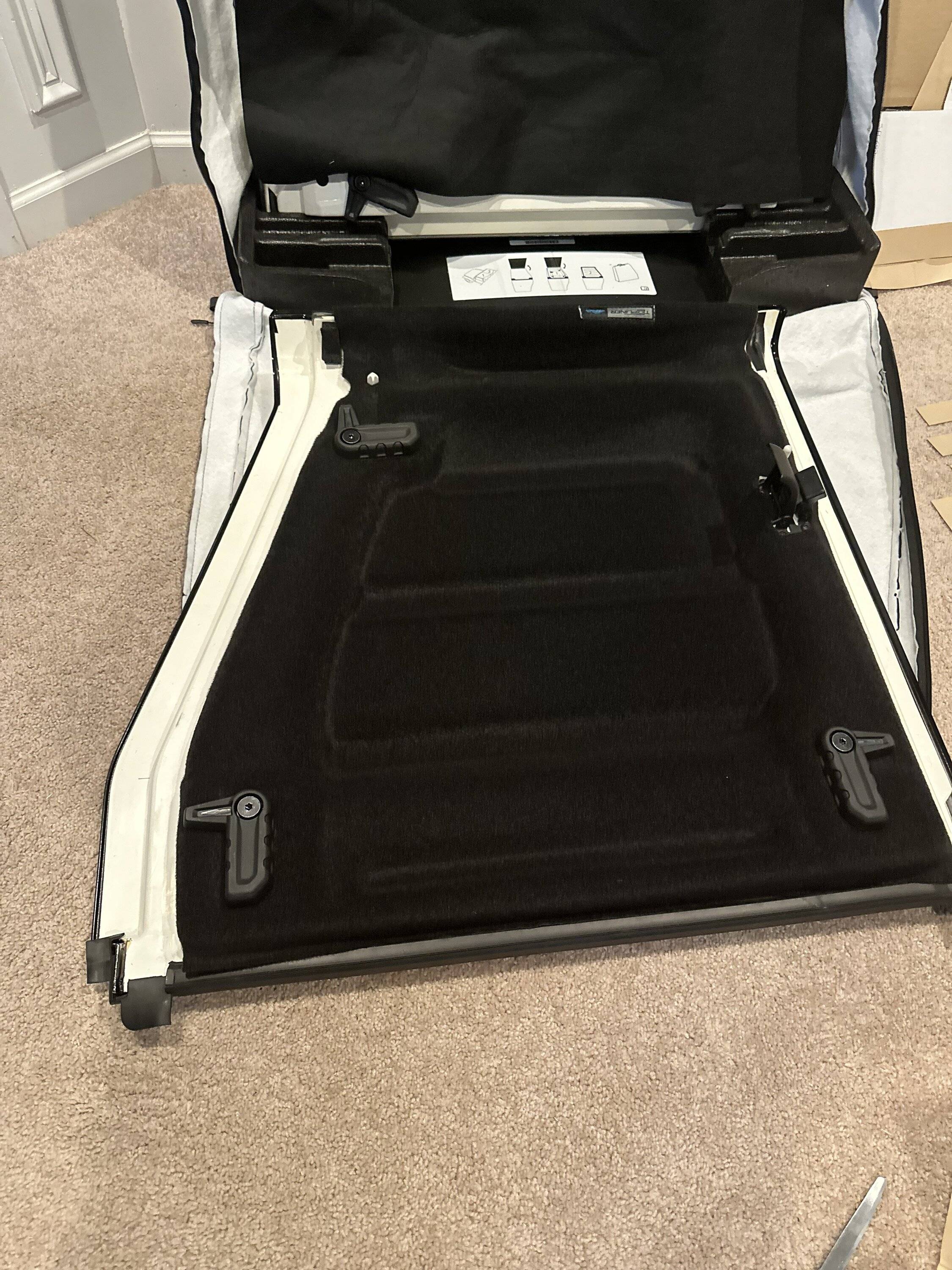

Adding my install. Front was easy and took no time. Yes the tape isn’t labeled well. You get the idea and I added just a little 3M VHB in a few places.

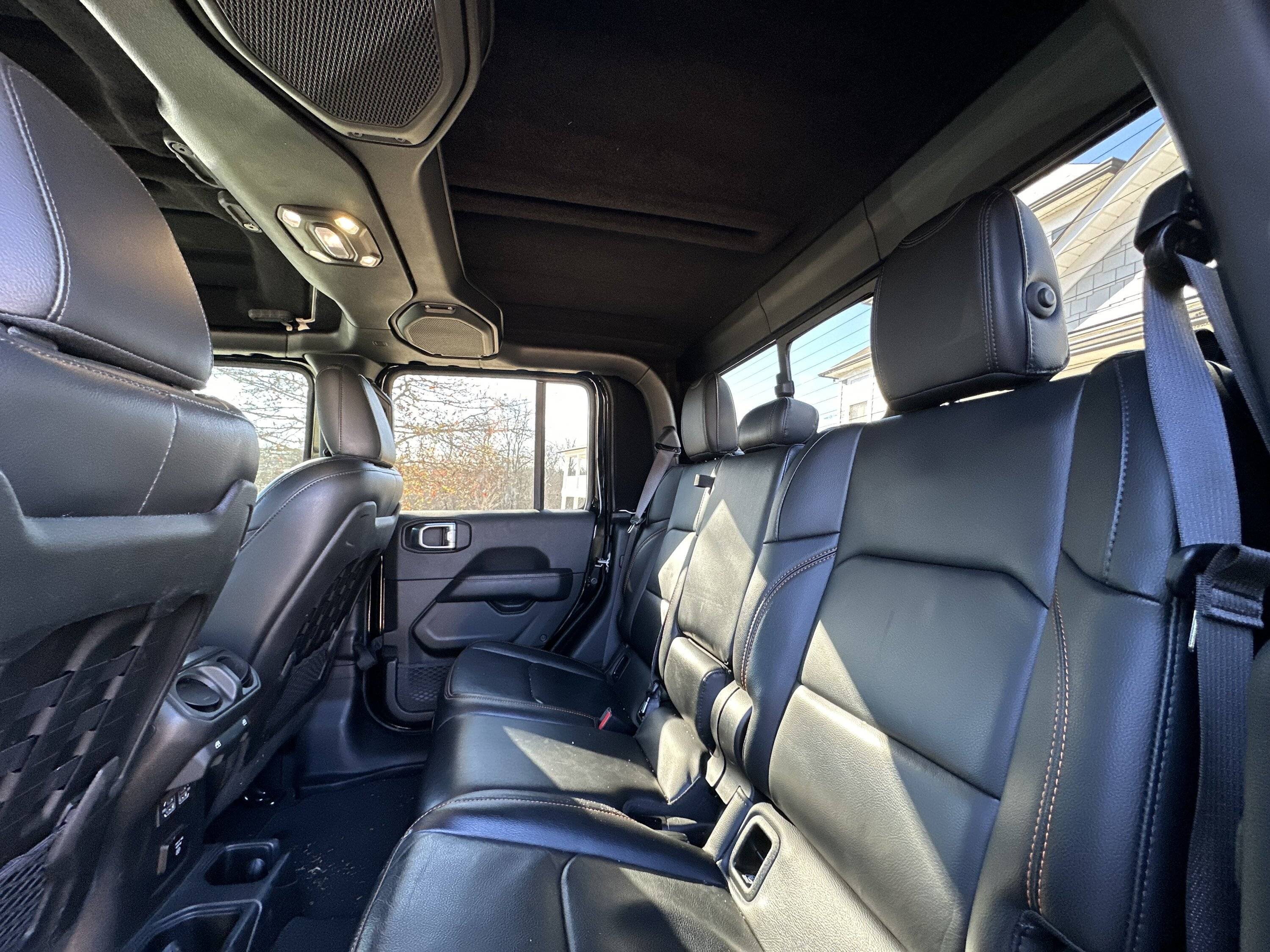

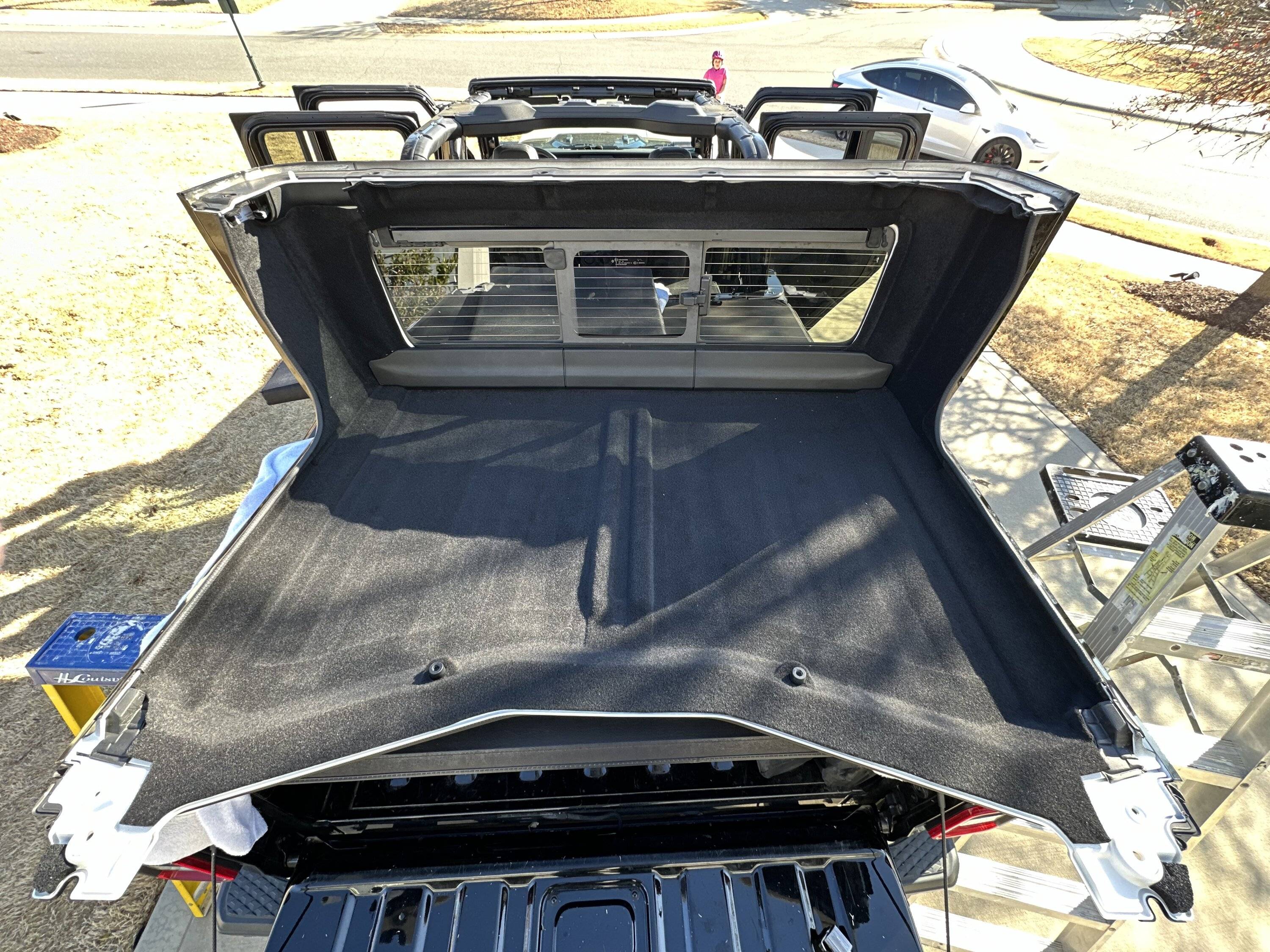

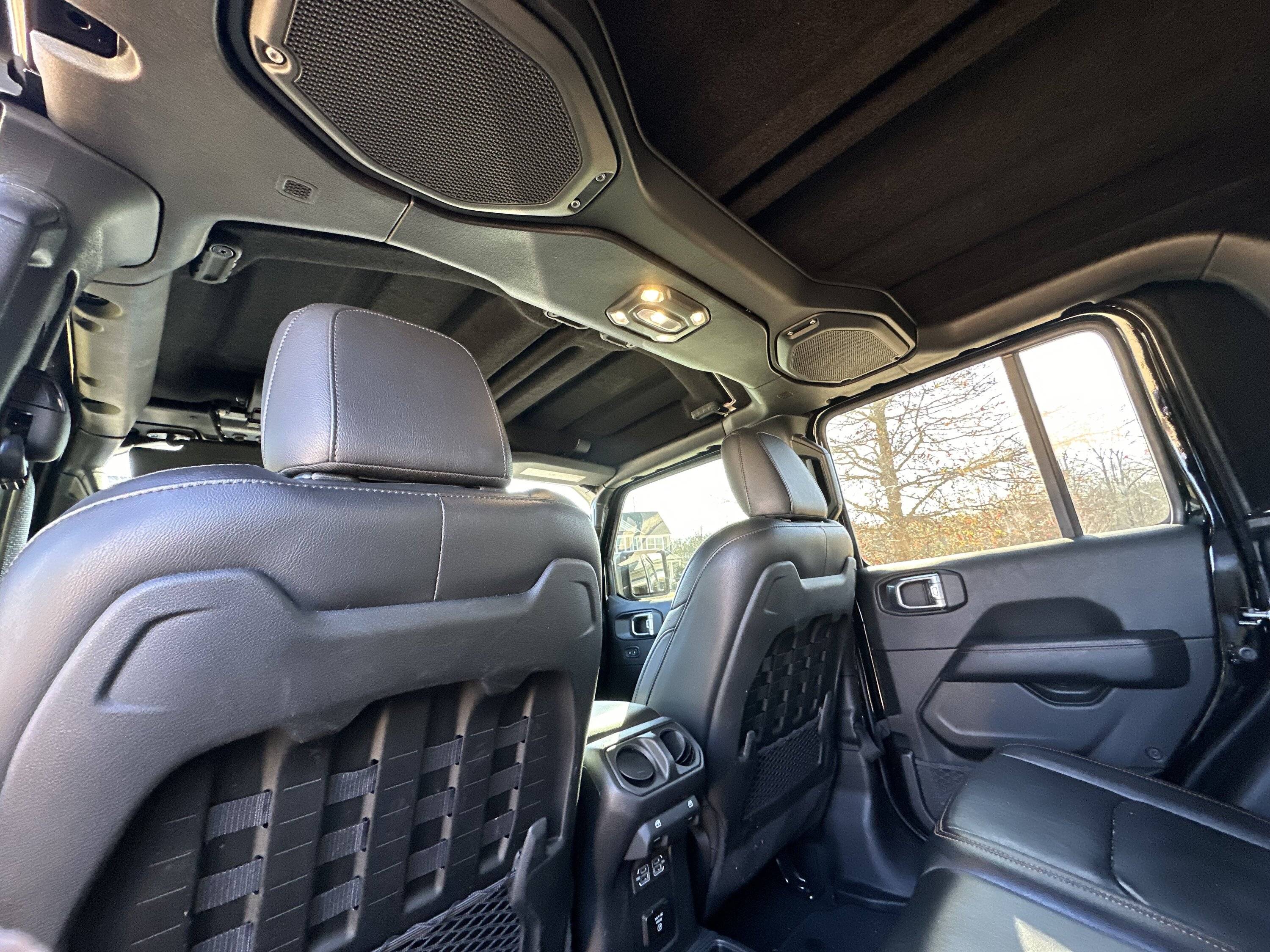

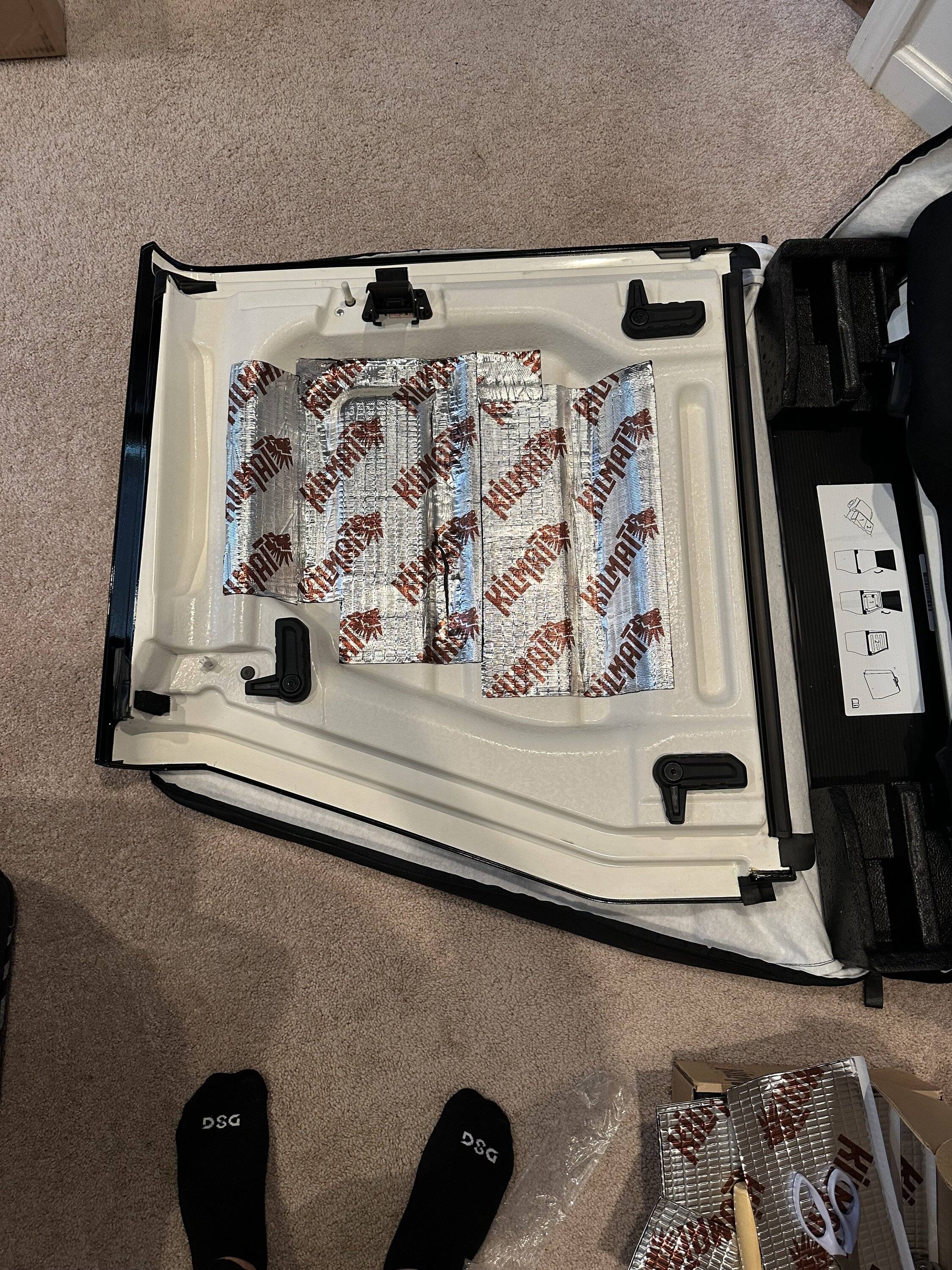

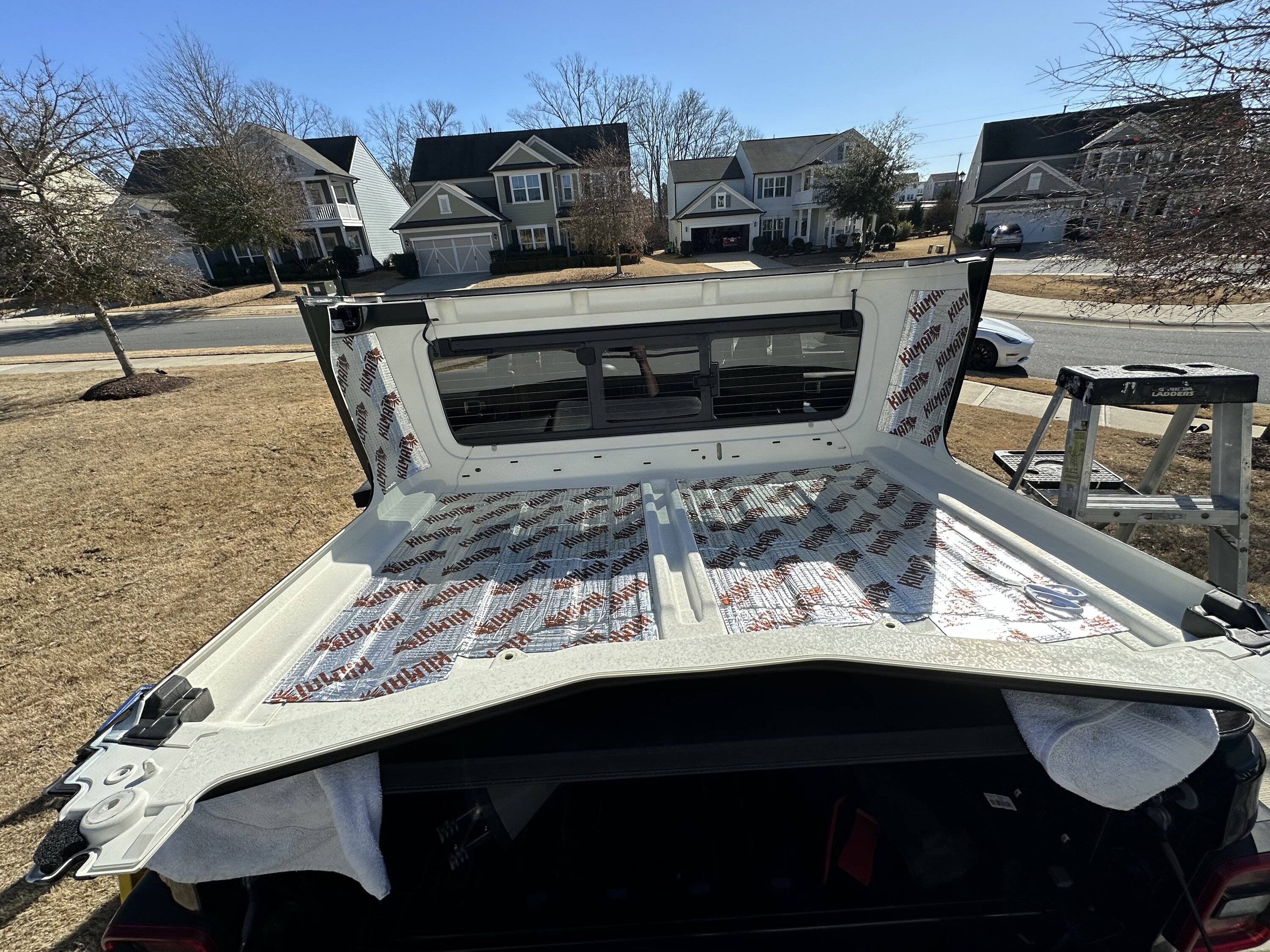

Rear just awkward due to size. Minor trimming and one spot hidden in the back I was probably off a bit but 95% perfect. Did 80mil under it and the sound difference is noticeable. Will test on highway tomorrow.


Blown32

Member
First Name
Allen
Joined
Dec 29, 2023
Threads
2
Messages
10
Reaction score
12
Location
Colorado
Vehicle(s)
2023 Gladiator, 1981 Scrambler
Occupation
USAF
Installed this weekend. Used many of the tips in this thread to include using extra 3M double sided tape and 80mil sound mat. Had to do some trimming here and there but it was a pretty straight forward install.

Very happy with the results, wife drove it in today, temps in the negatives all day. Said it was a noticeable improvement. If she ever lets me drive it I'll find out for myself :like:

Thanks to everyone for the tips and photos!
