My awning arrived today, now just need to figure out how to mount it on my Smartcap. Anyone mounted theirs without load bars or rack on their cap?

My awning is sitting in the garage until my new load bars show up. I bought 51" 8020 extruded aluminum. The awning mount will go on the ends, bars will be perpendicular to the smartcap rails. You could do it cheap with the extruded aluminum from Amazon, but you might regret going cheap.

Sponsored



[Cheese4thewhine]

My awning is sitting in the garage until my new load bars show up. I bought 51" 8020 extruded aluminum. The awning mount will go on the ends, bars will be perpendicular to the smartcap rails. You could do it cheap with the extruded aluminum from Amazon, but you might regret going cheap.

I was looking at 8020’s website today, what are you going to use to mount the extrude to the cap rails? I’m thinking just drill through the extrude and bolt it into the nut plates within the rails.



[arosen1997]

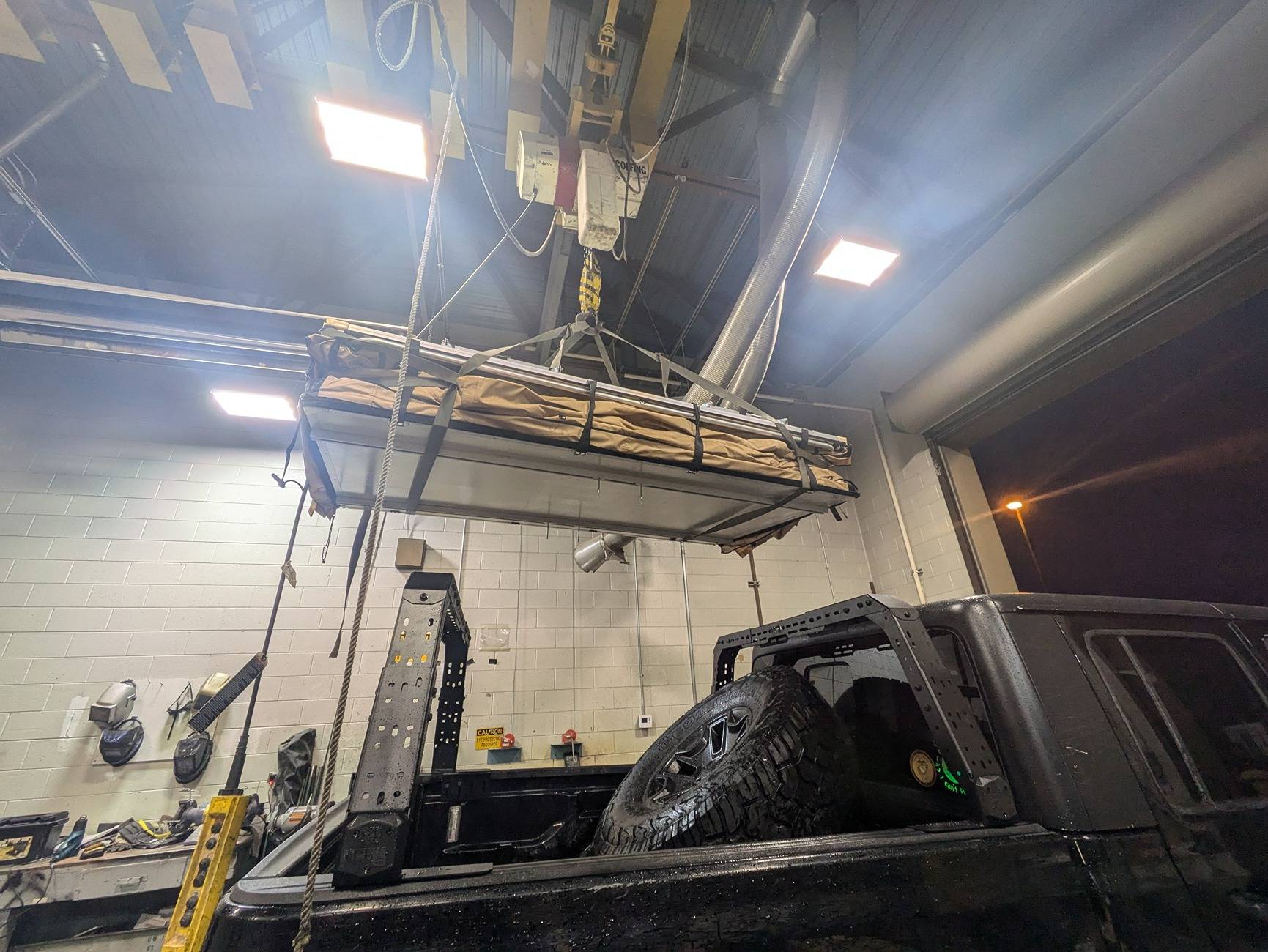

Oh man thank God I have a shop crane. My heart goes out to anyone else trying to mount the XL alone



[animusrien]

I was looking at 8020’s website today, what are you going to use to mount the extrude to the cap rails? I’m thinking just drill through the extrude and bolt it into the nut plates within the rails.

You can do that but the easiest thing to do is get the corner gusseted brackets. https://8020.net/4132-black.html



[ALT2870]

Oh man thank God I have a shop crane. My heart goes out to anyone else trying to mount the XL alone

Pfff, I took it on and off two times by myself. (Not that it was fun...)



[Hutzell]

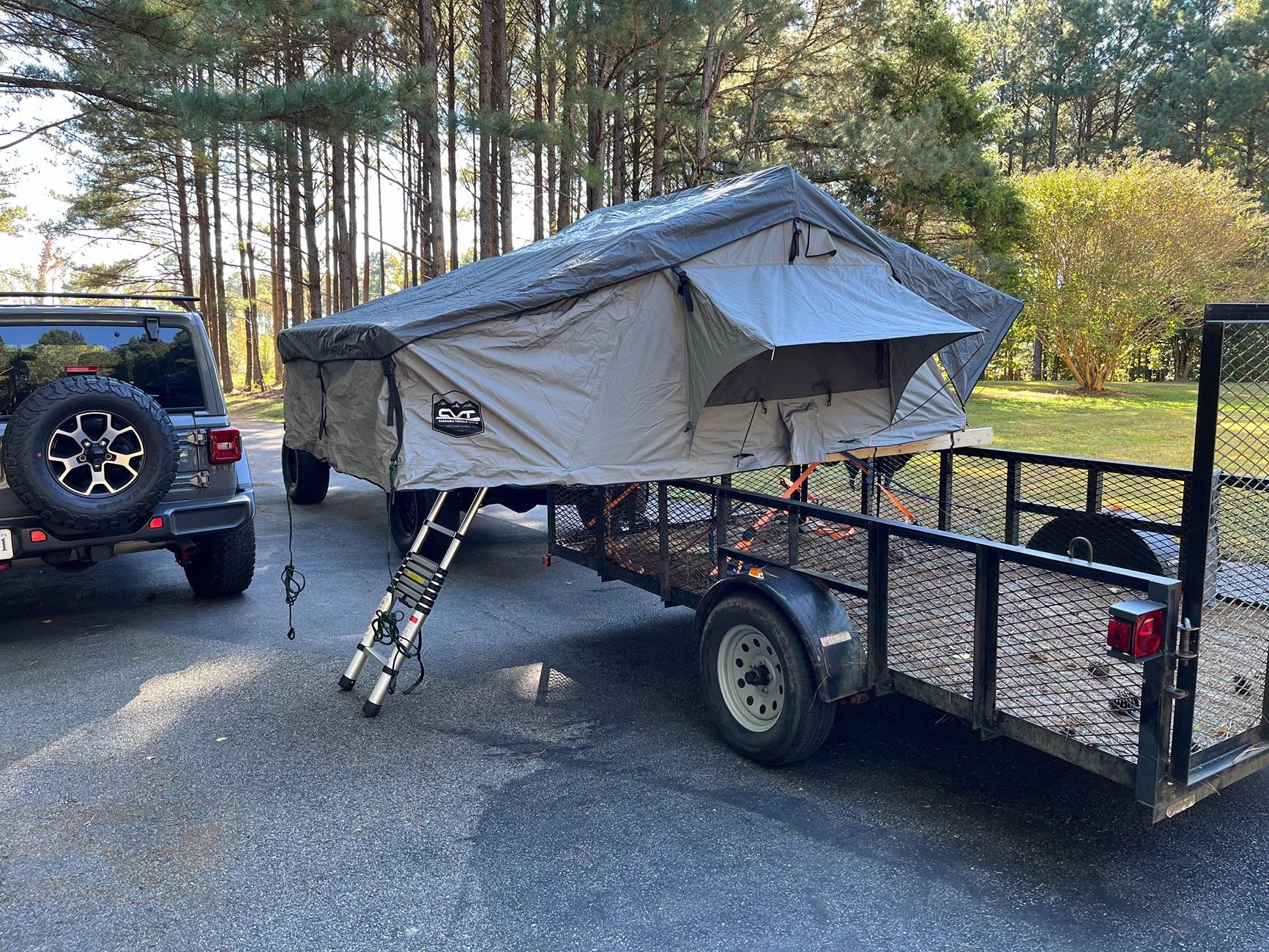

Got the tent all put together on the trailer and figured out my storage…. Still can’t decide on a rack for this thing!



[DailyMoparGuy]

Oh man thank God I have a shop crane. My heart goes out to anyone else trying to mount the XL alone

That’s a fuckin house on your Jeep brother



[arosen1997]

I

That’s a fuckin house on your Jeep brother

If that's what it takes to convince the wife to go camping know what I'm saying?



[DailyMoparGuy]

I
If that's what it takes to convince the wife to go camping know what I'm saying?

Right there with you on that lol.



[Stitchedupseats]

Oh man thank God I have a shop crane. My heart goes out to anyone else trying to mount the XL alone

Which length is that and can you show how much overhang you ended up with on cab?



[Stitchedupseats]

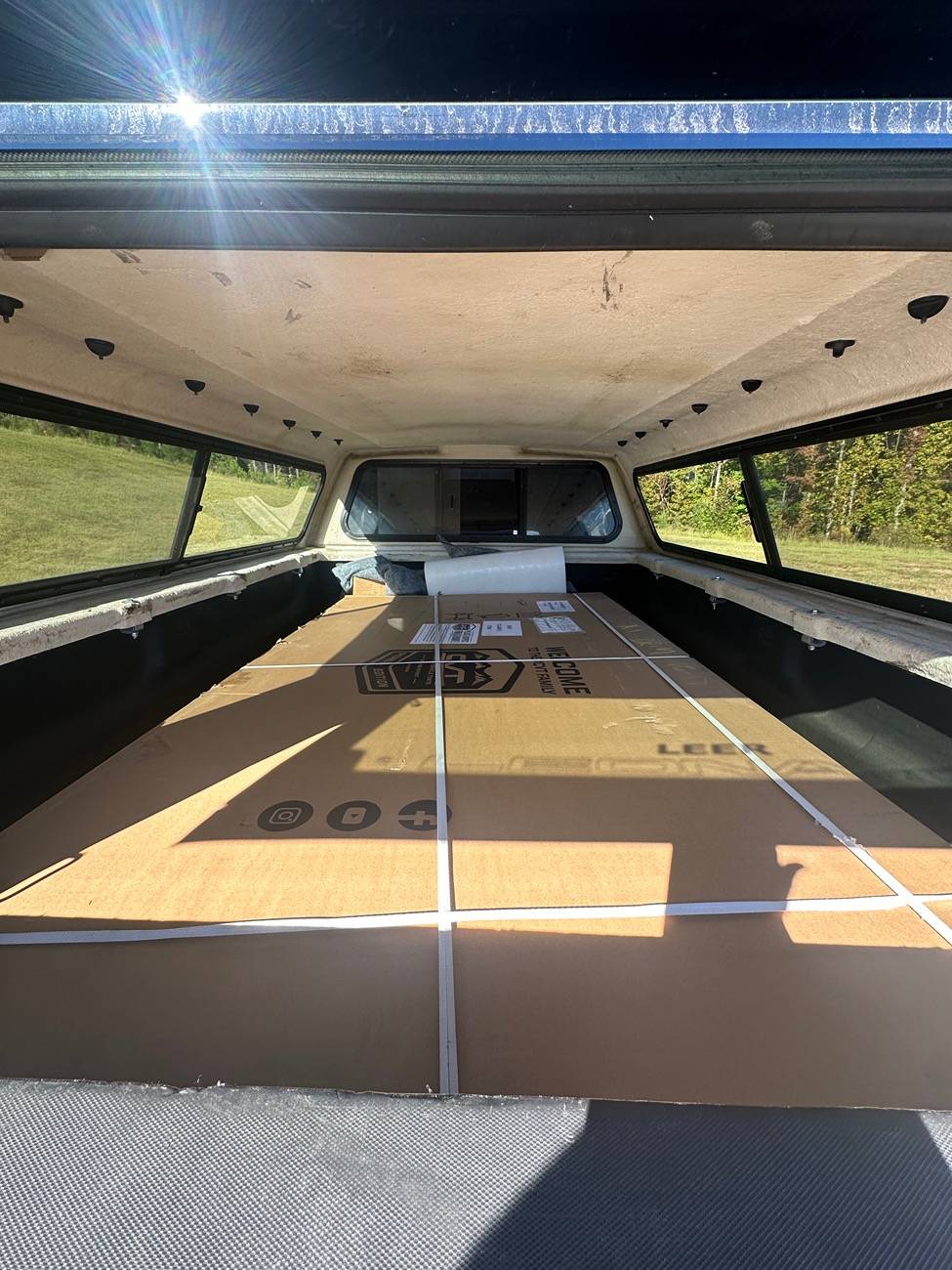

That’s in the bed of my 3500 dually 8’. So I’m a little worried lol



[ALT2870]

Which length is that and can you show how much overhang you ended up with on cab?

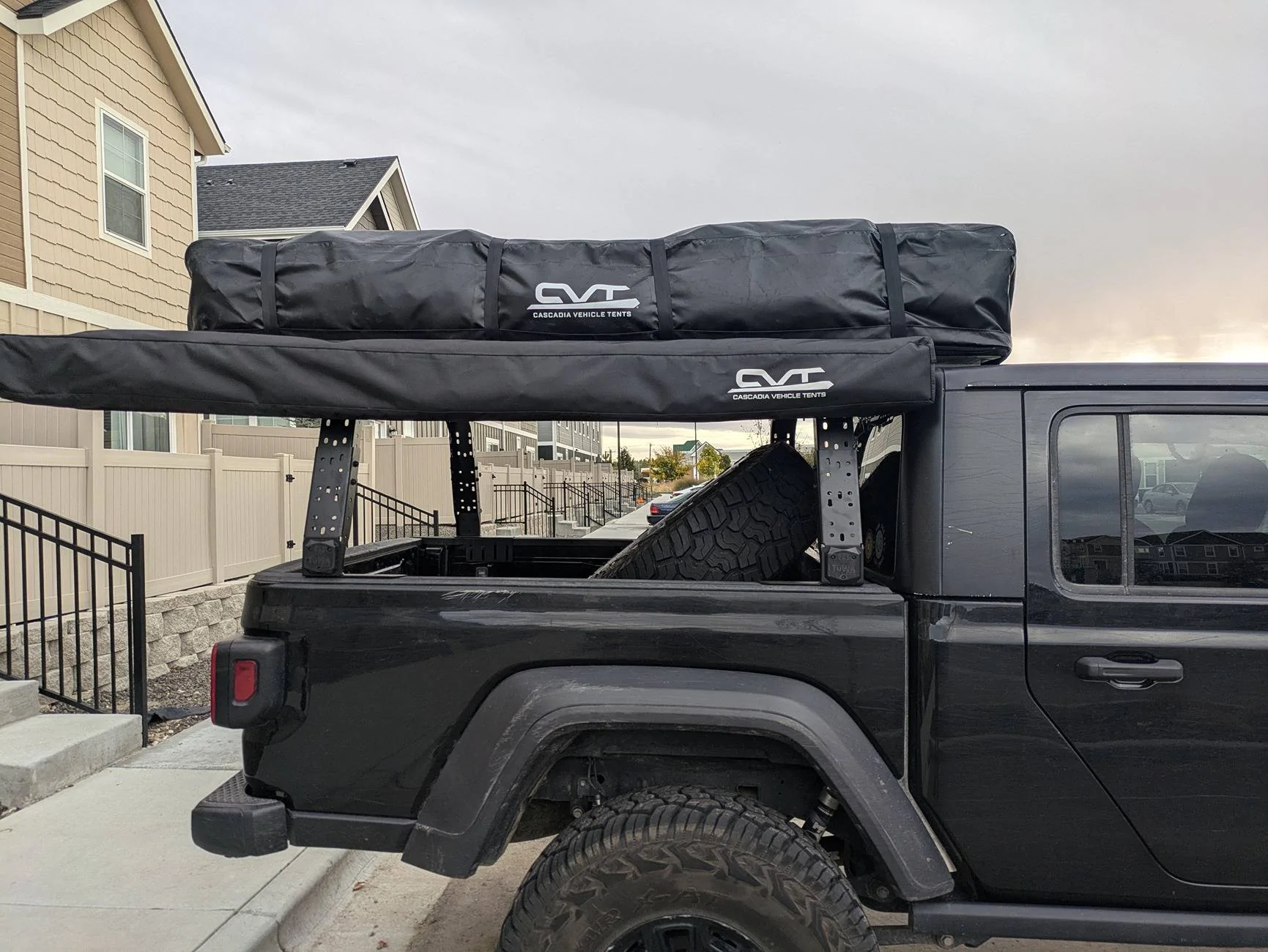

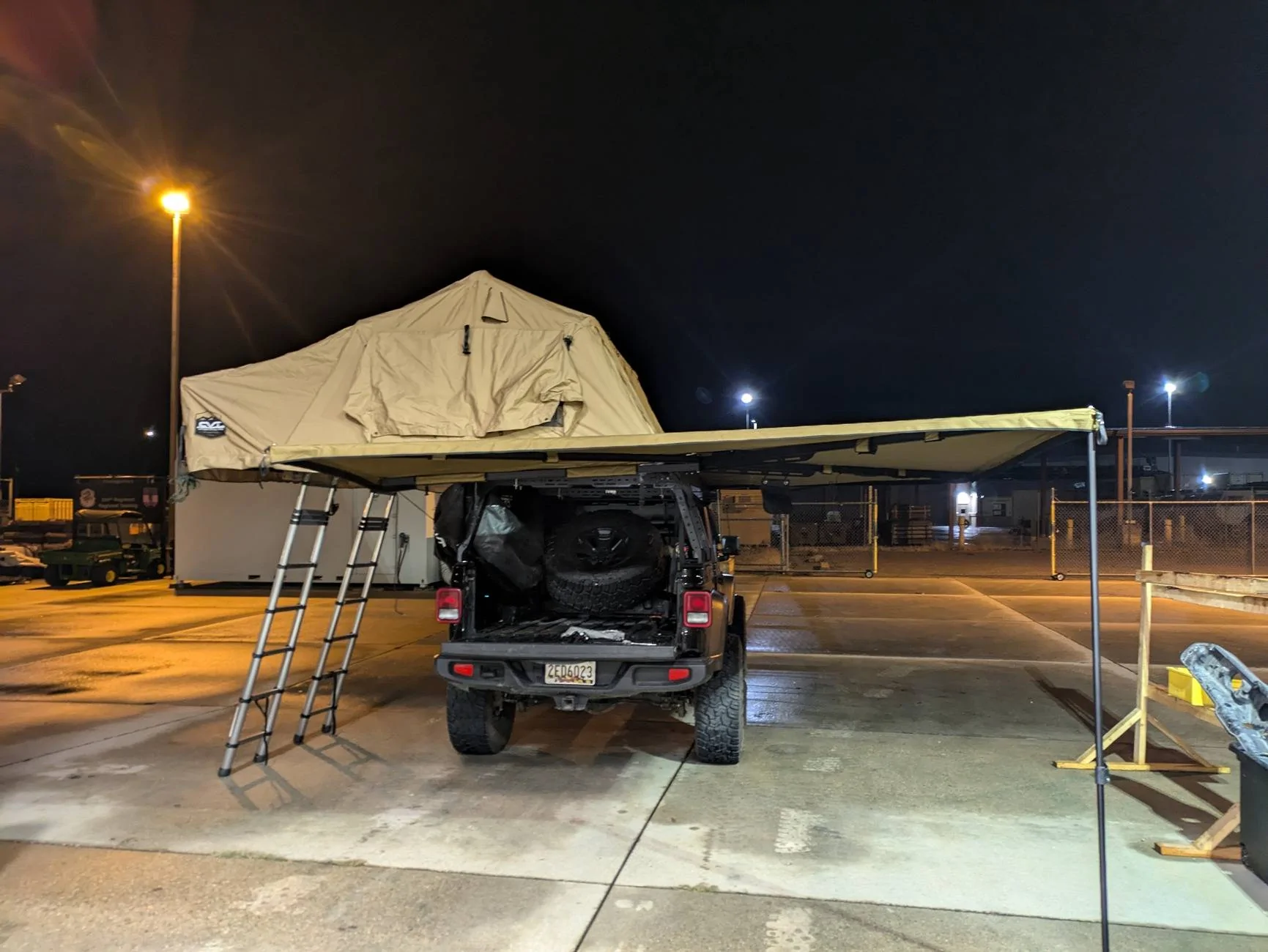

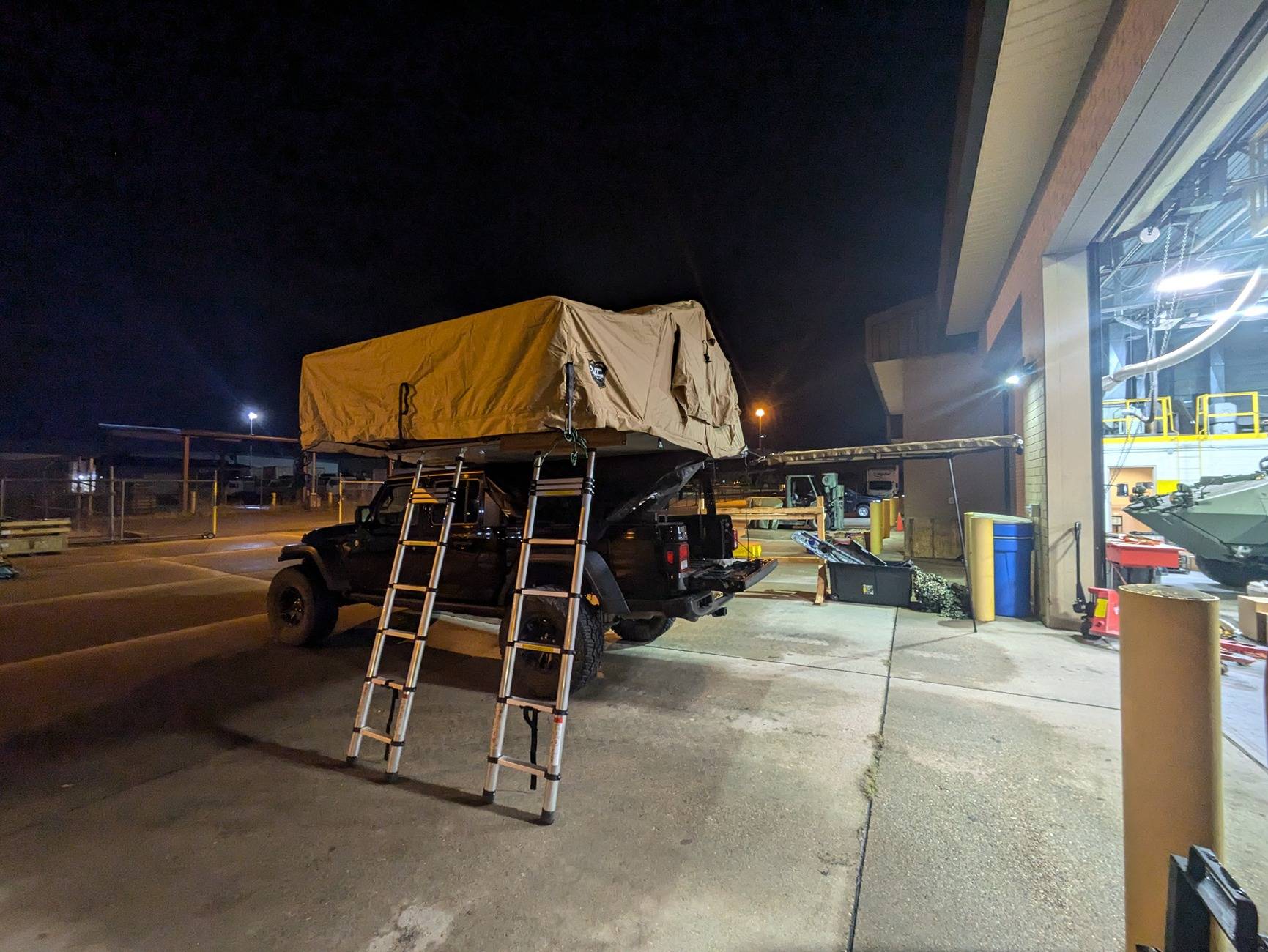

That's the XL, two ladders on top. Here's what it looked like on mine with a cover. I have other pictures on that page if you want to take a further look.



[arosen1997]

Which length is that and can you show how much overhang you ended up with on cab?

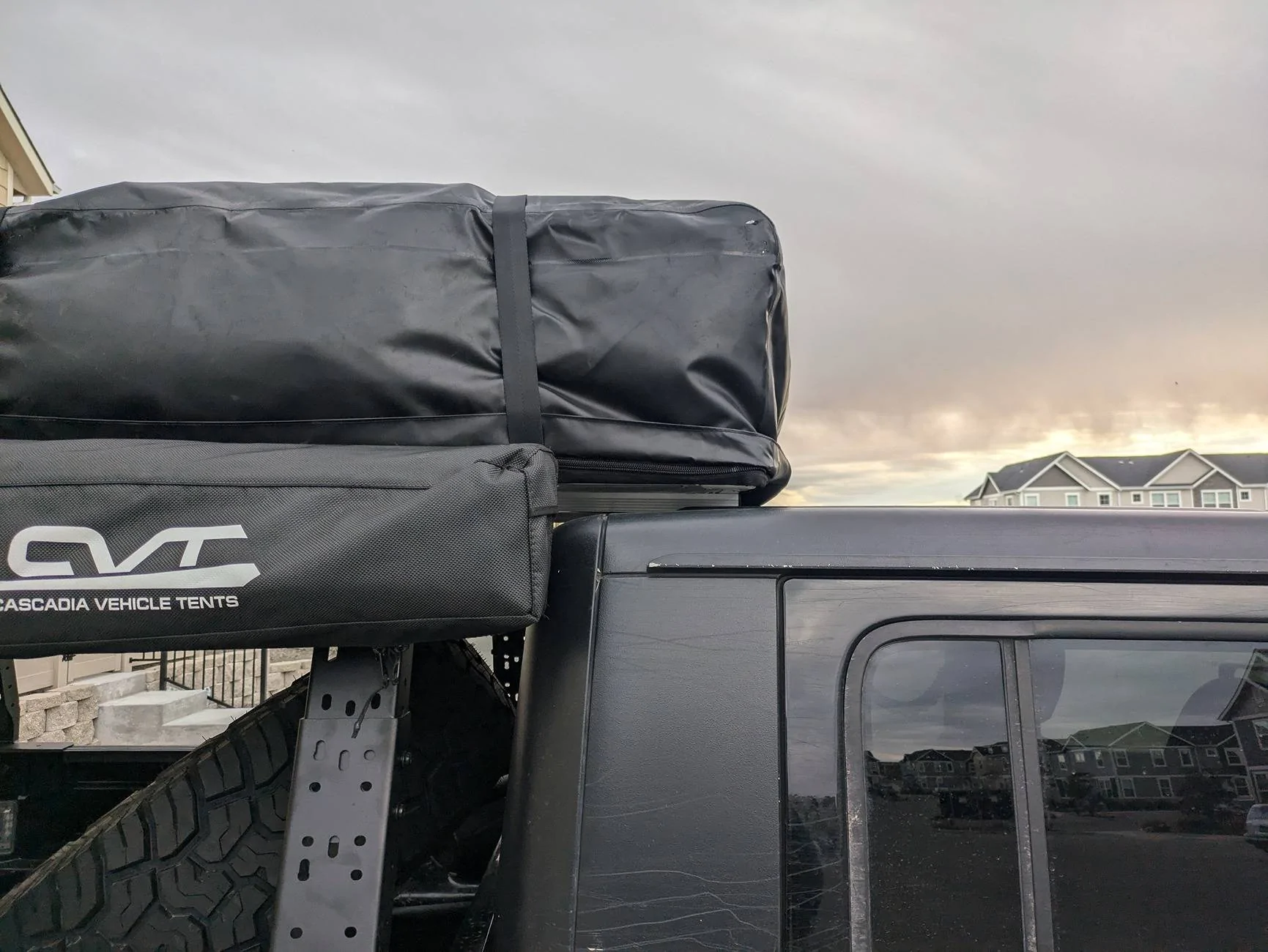

I have about a foot over the cab, I think I'm going to slide it back towards the bed overhang anyaays just be cause the awning hangs off the back anyway. Figure I may as well just line it up.



[Jaxmax]

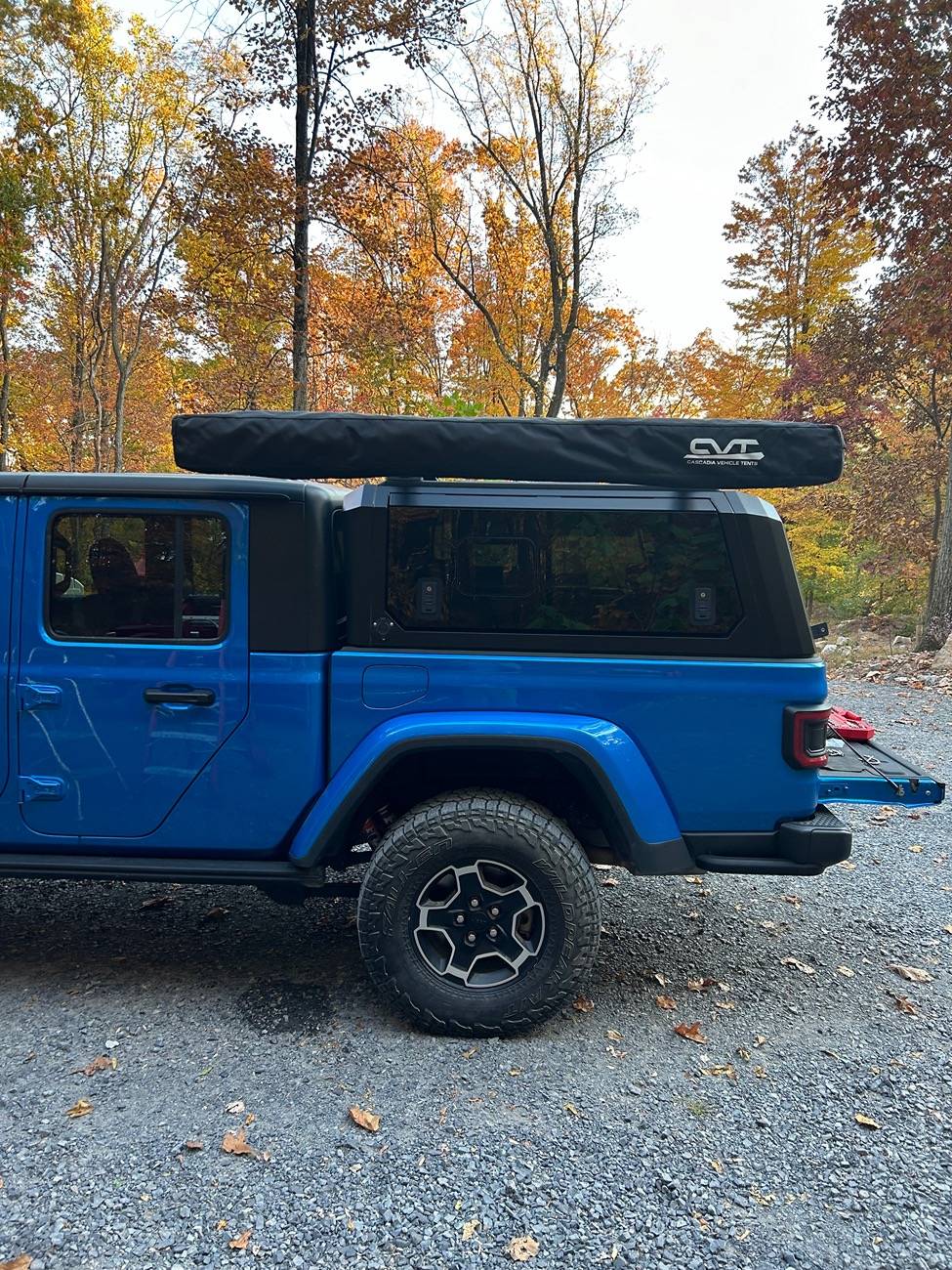

Did first test fit, have to cut my bars down to slide it in on top of cap and slide awning front about five inches, but it opened so easy and is pretty big for small sized one…..Jack



[Jaxmax]

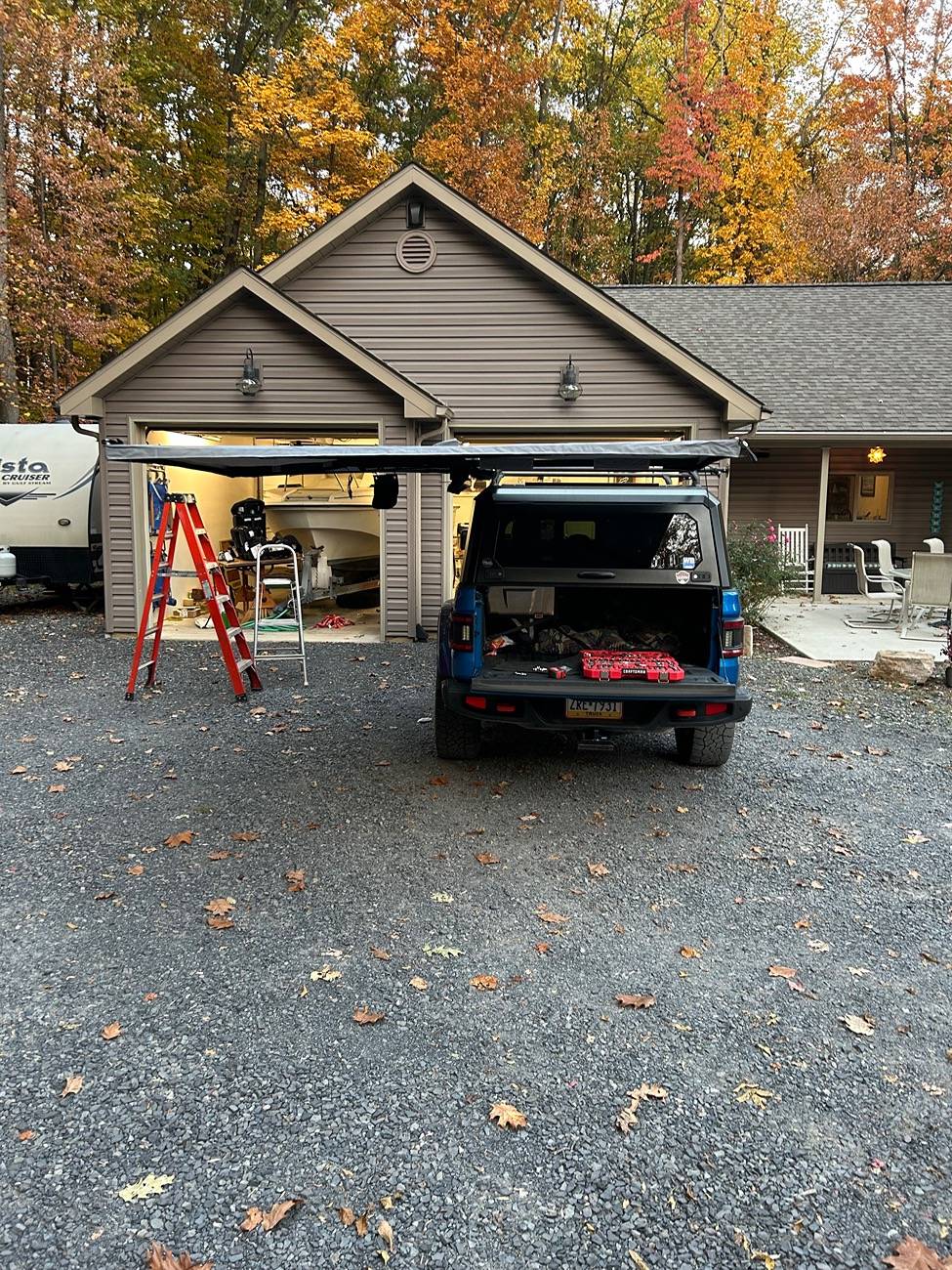

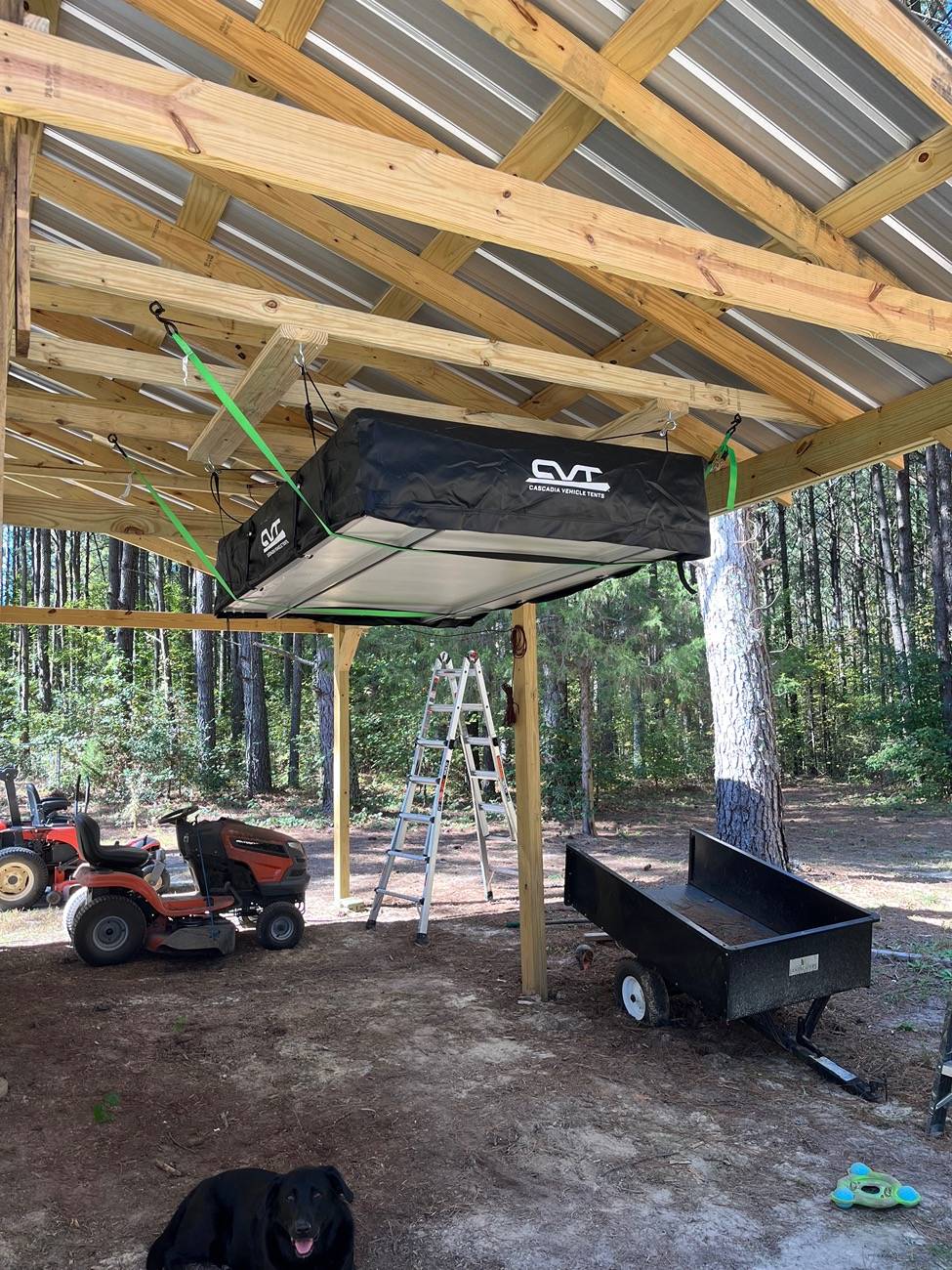

Ready for surf fishing tomorrow, slid awning in on side six inches, had to cut my bars also slid front so it looks to be that if it is raining with lift gate under should be dry, doesn’t look bad and rack is lockable on and easily removable with no tools going to figure something in garage under the doors to hang it on, with cables perhaps it is not too heavy including the rack maybe 55lbs.
Oh yes even though they give you enough bolts to but six on each bracket the middle slots were off about 1/4”, had to take it of again just use four!…….Jack
