DIY revolution gear install, mesh look good?

[FoodZoerhof]

I did my first setup on my first set of gears. Changed all bearing and got lucky had to only change pinion depth used original stock shim sizes for carrier.

Sponsored



[Vtur]

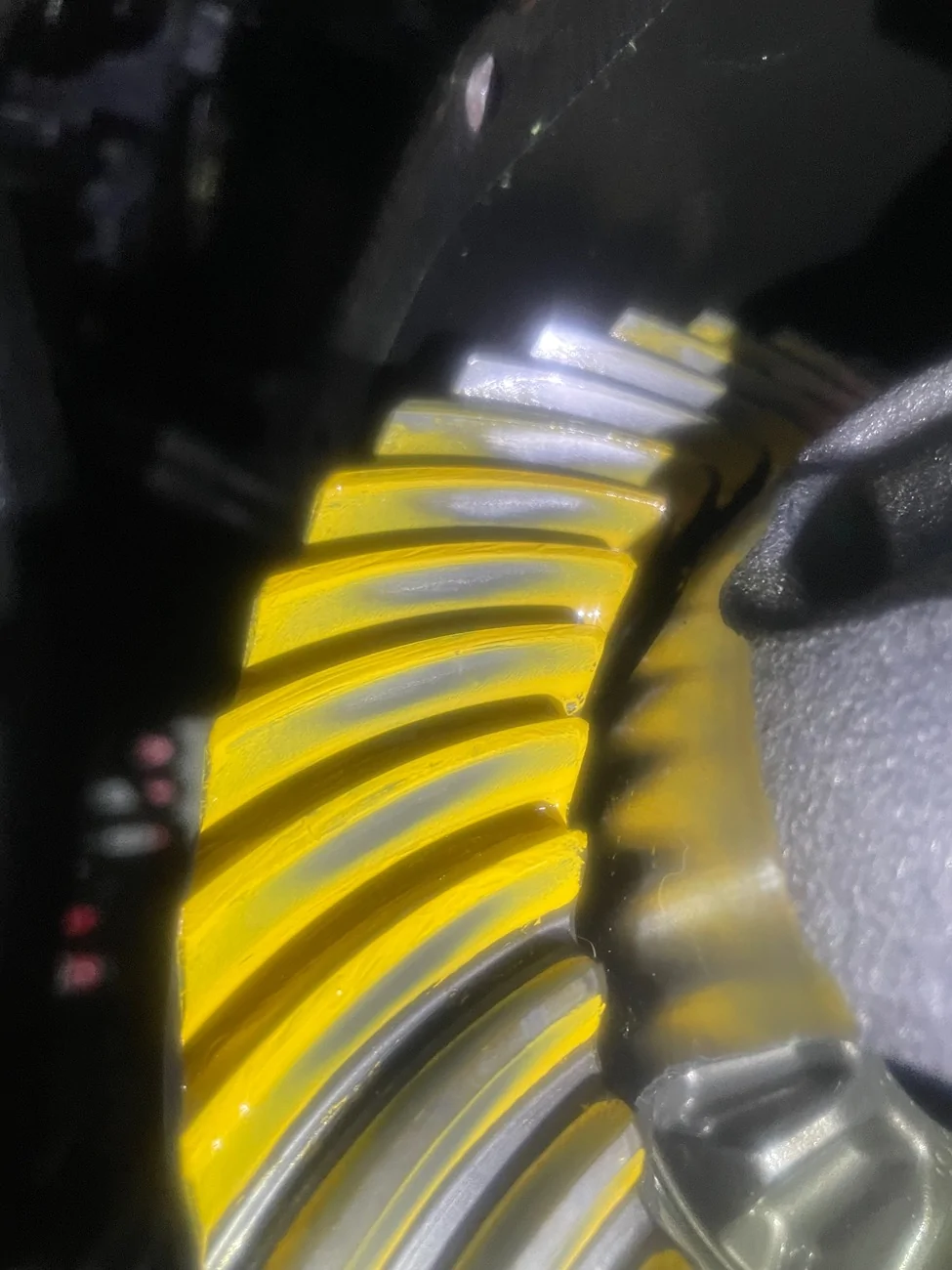

Coast side look good. Can't really see the other side.



[FoodZoerhof]

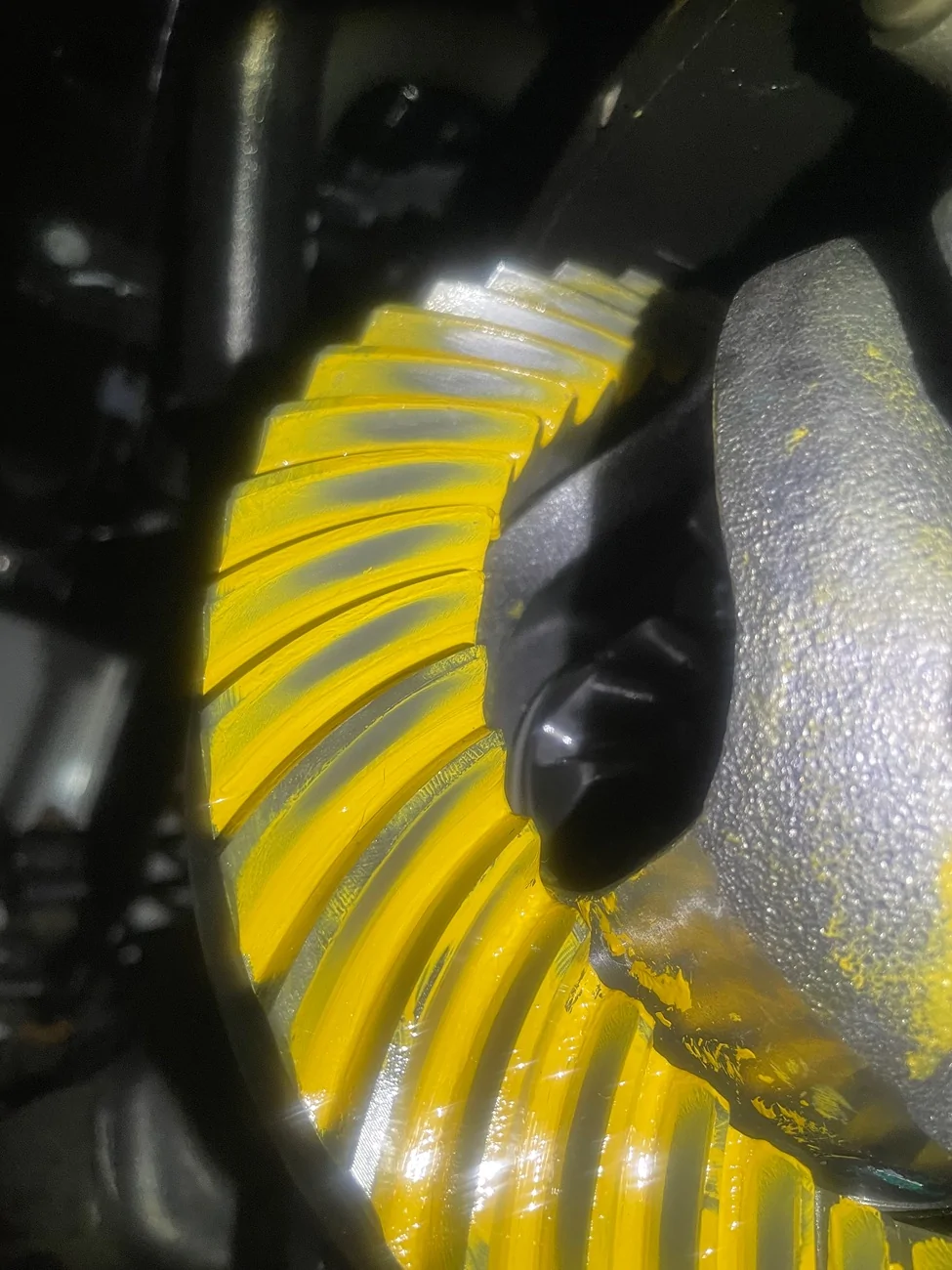

Thanks the drive side is center but little closer to the toe as far as I can see. I tried to put my hand for drag. I should have thinned out the marking compound more. Thanks for the confirmation!!!



[CrazyCooter]

Coast looks a tiny bit shallow but thats only part of the picture. What's the pinion look like?



[FoodZoerhof]

Didn’t take a photo of pinion probably could have gone another .003 deeper on depth. Bring that shallow in center.



[FoodZoerhof]

My backlash is .004-.007 for revolution gears and mine is at .004 to .005 hard to get accuracy.
