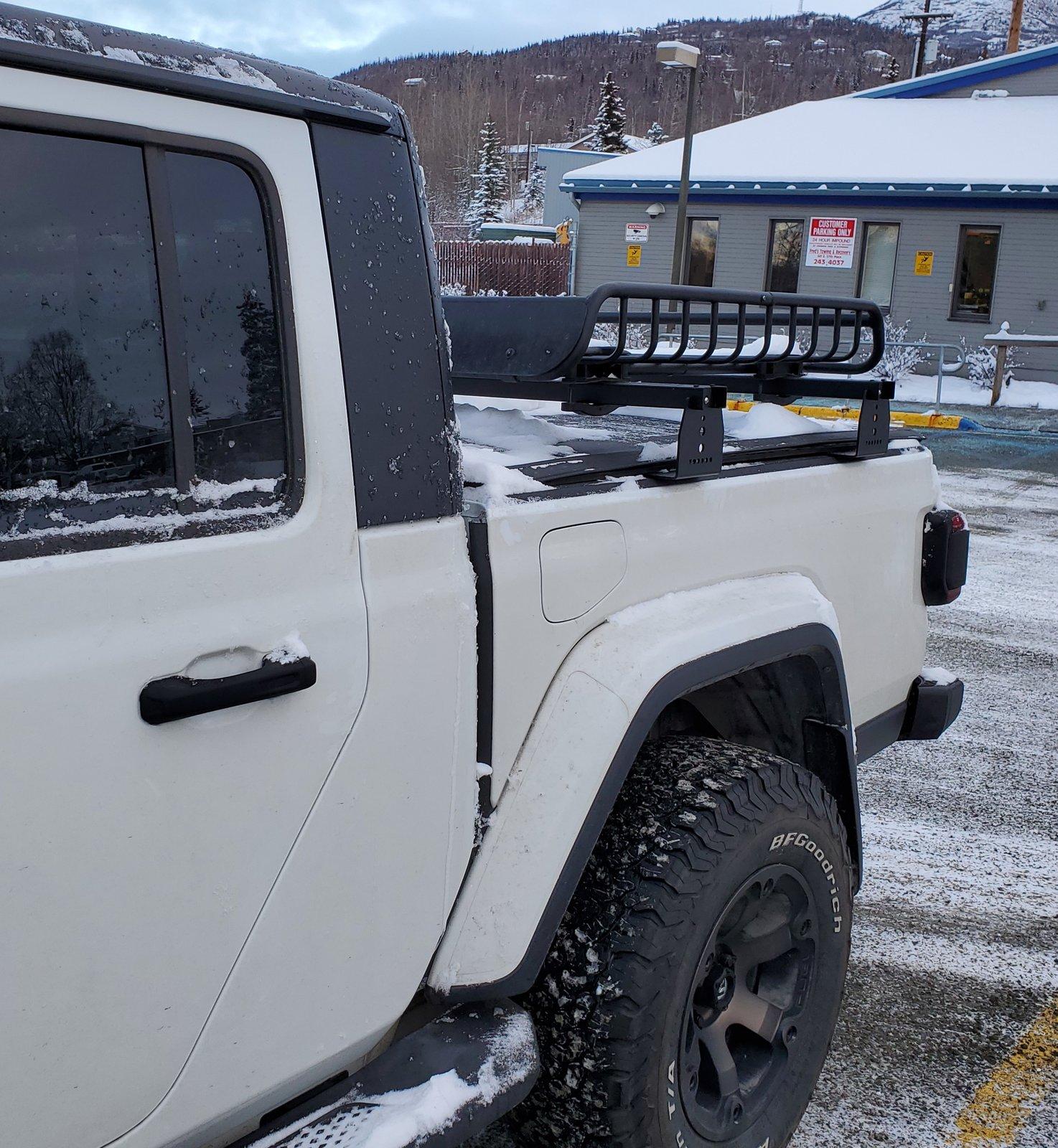

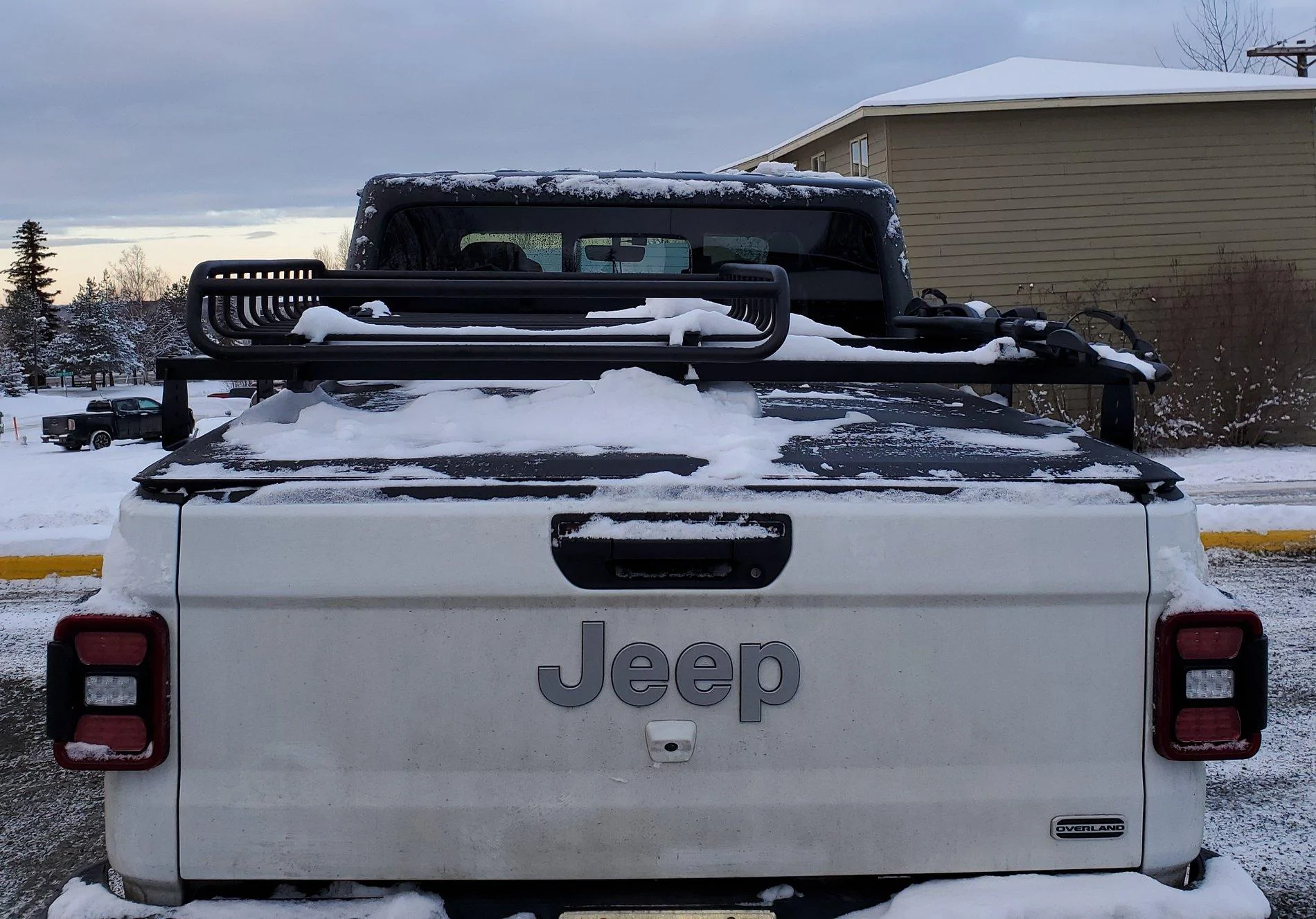

Ok... here are the final shots after getting my Yakima cargo basket installed. I didn't have to modify the attachment hardware using the brackets that came with it. I did have to slide the rear crossbar further back to accommodate the rear basket brackets. It did extend further down making it a little more difficult to roll up the cover, but still doable. I kinda had to rush it though the install since it started dumping snow, but i think I like it close to the left side to make it accessible as well as allows me to step up to the front when in the bed for loading/unloading.



Sponsored



Bacstar

Well-Known Member
First Name
Ben
Joined
Sep 9, 2019
Threads
2
Messages
217
Reaction score
607
Location
Anchorage, AK
Vehicle(s)
2020 Jeep Gladiator Overland
Occupation
Data Analyst
Looks great!
Yeah Thanks. I'm glad I was able to find a system to let me use my old hardware. What's nice about this set up in my gladiator vs my old g.cherokee is I don't need a ladder anymore to be able to load and unload my bikes and other camping gear.


GladMark

New Member
First Name
Mark
Joined
Jun 25, 2019
Threads
0
Messages
3
Reaction score
7
Location
Westlake Village, California
Vehicle(s)
2005 TJ Rocky Mountain Edition, 2020 JT Rubicon
i was just gonna ask the same looks great .... anyone have an idea of what bike rack would attach those these rails ?

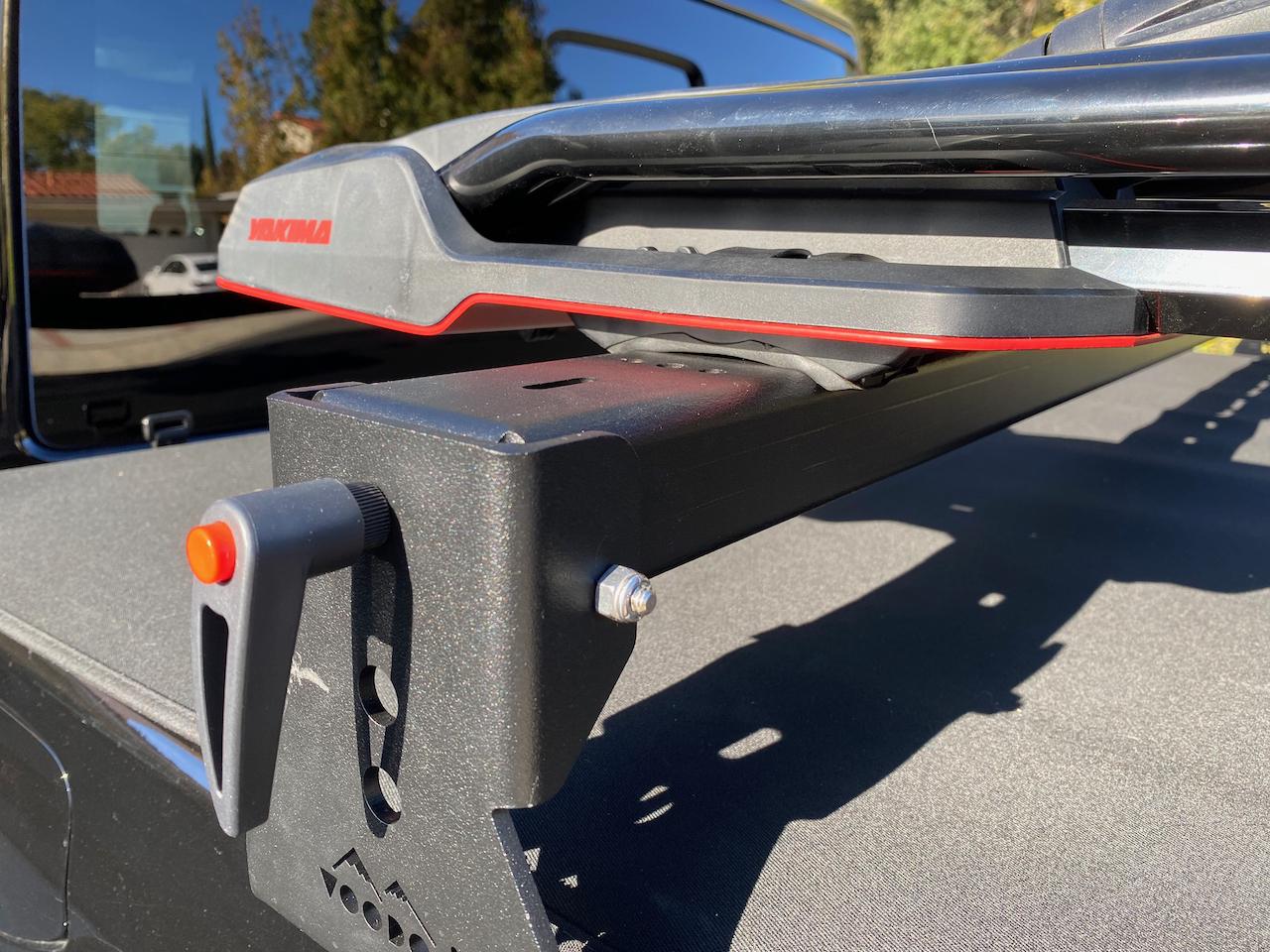

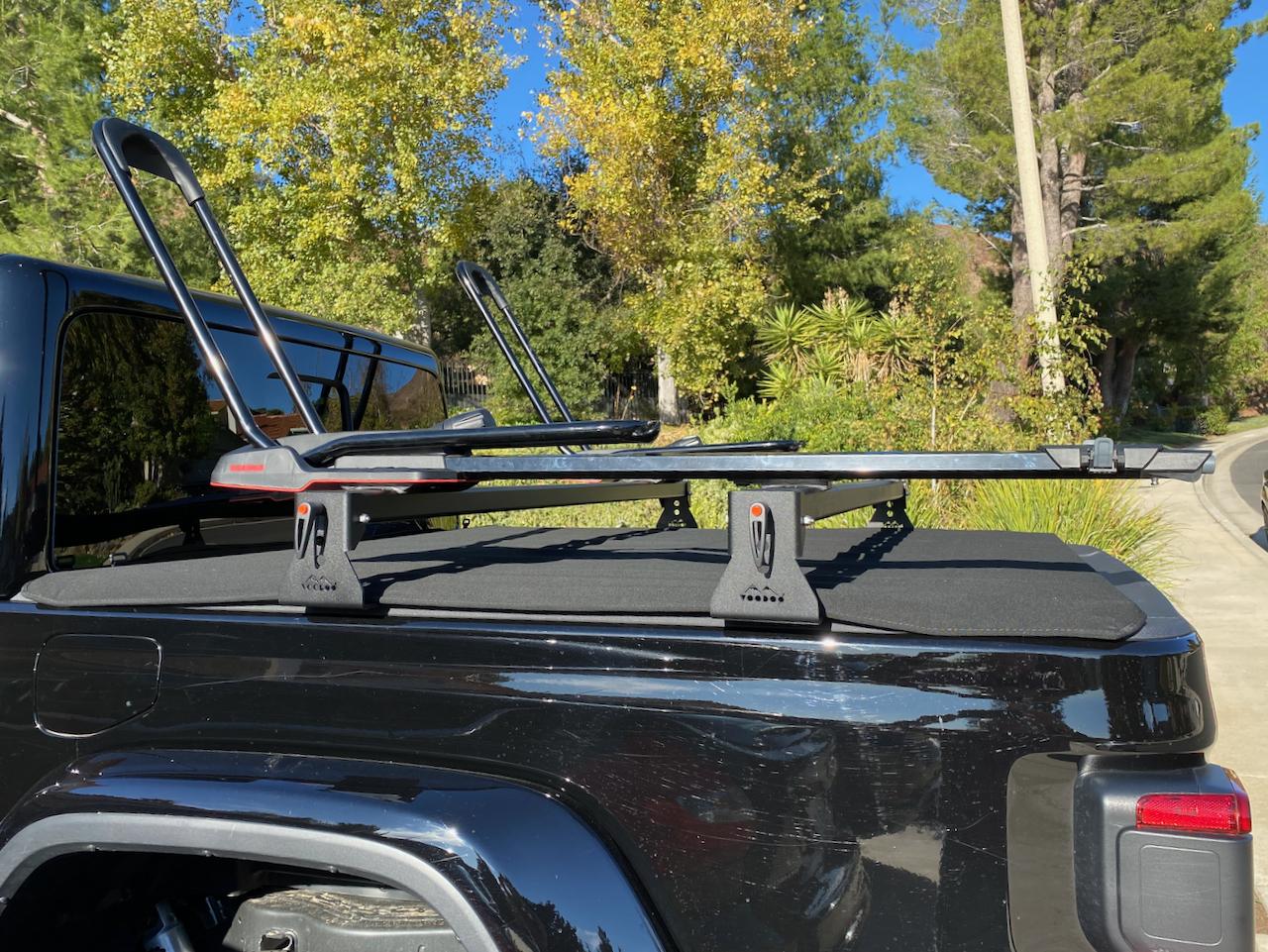

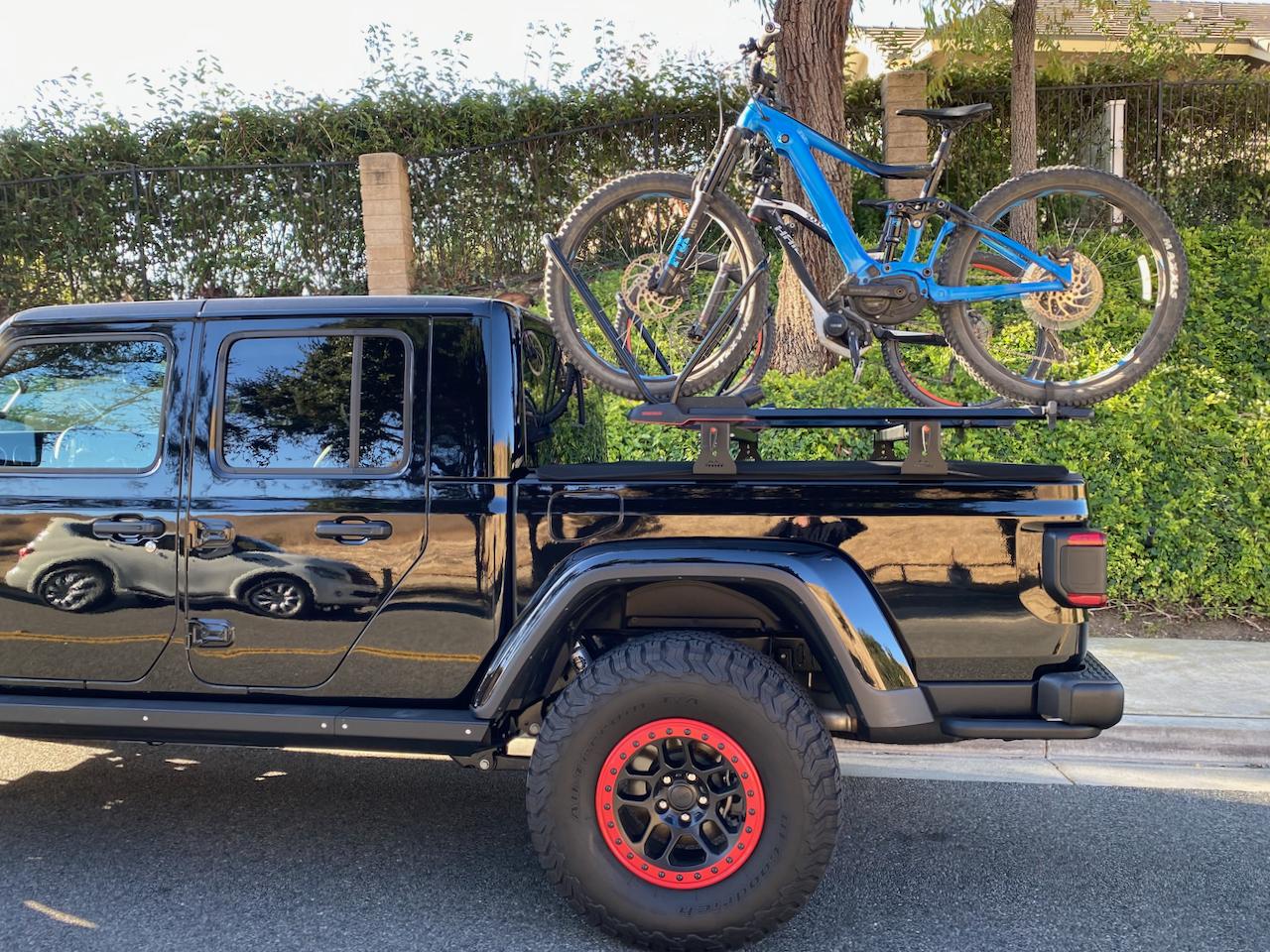

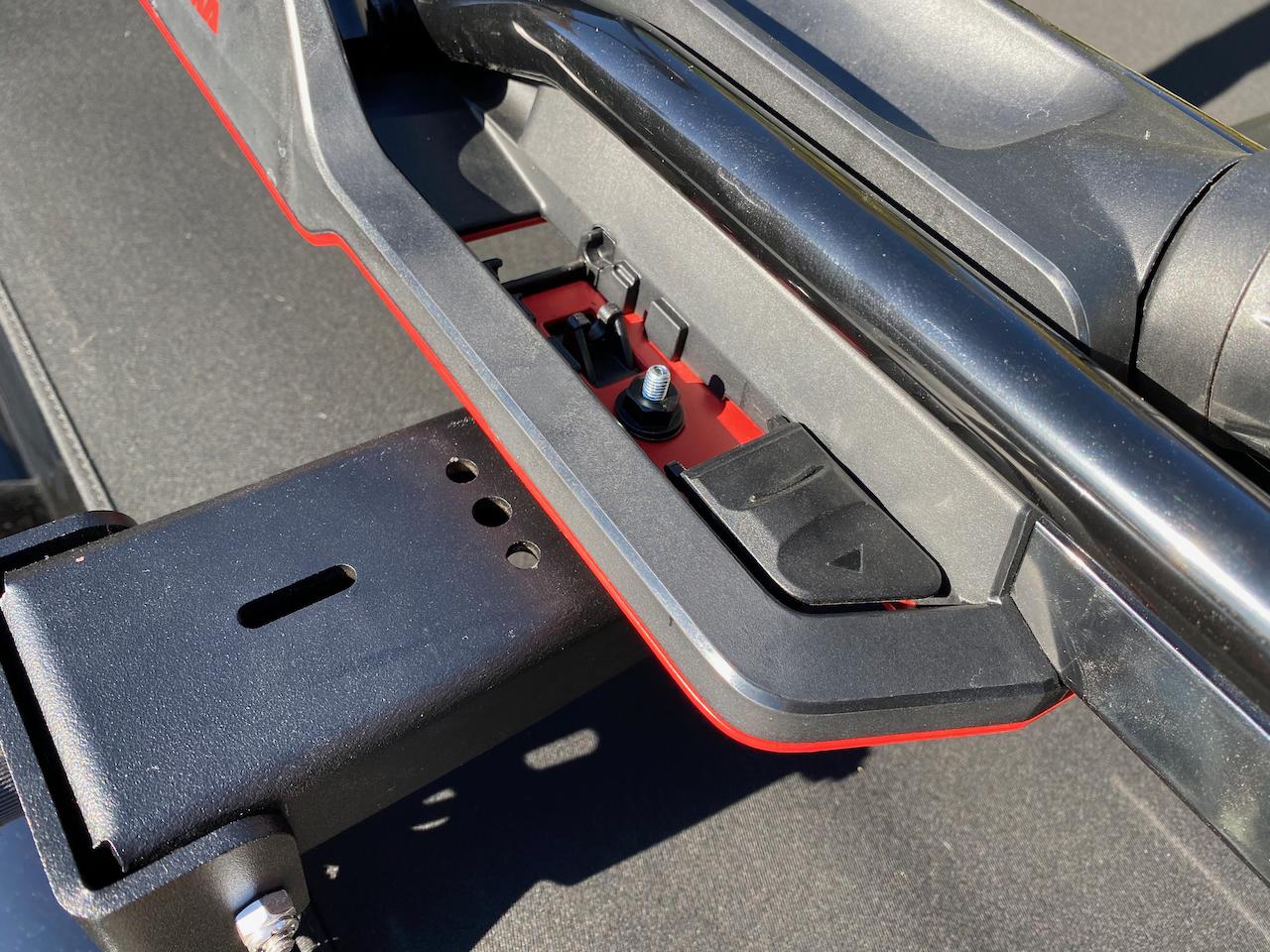

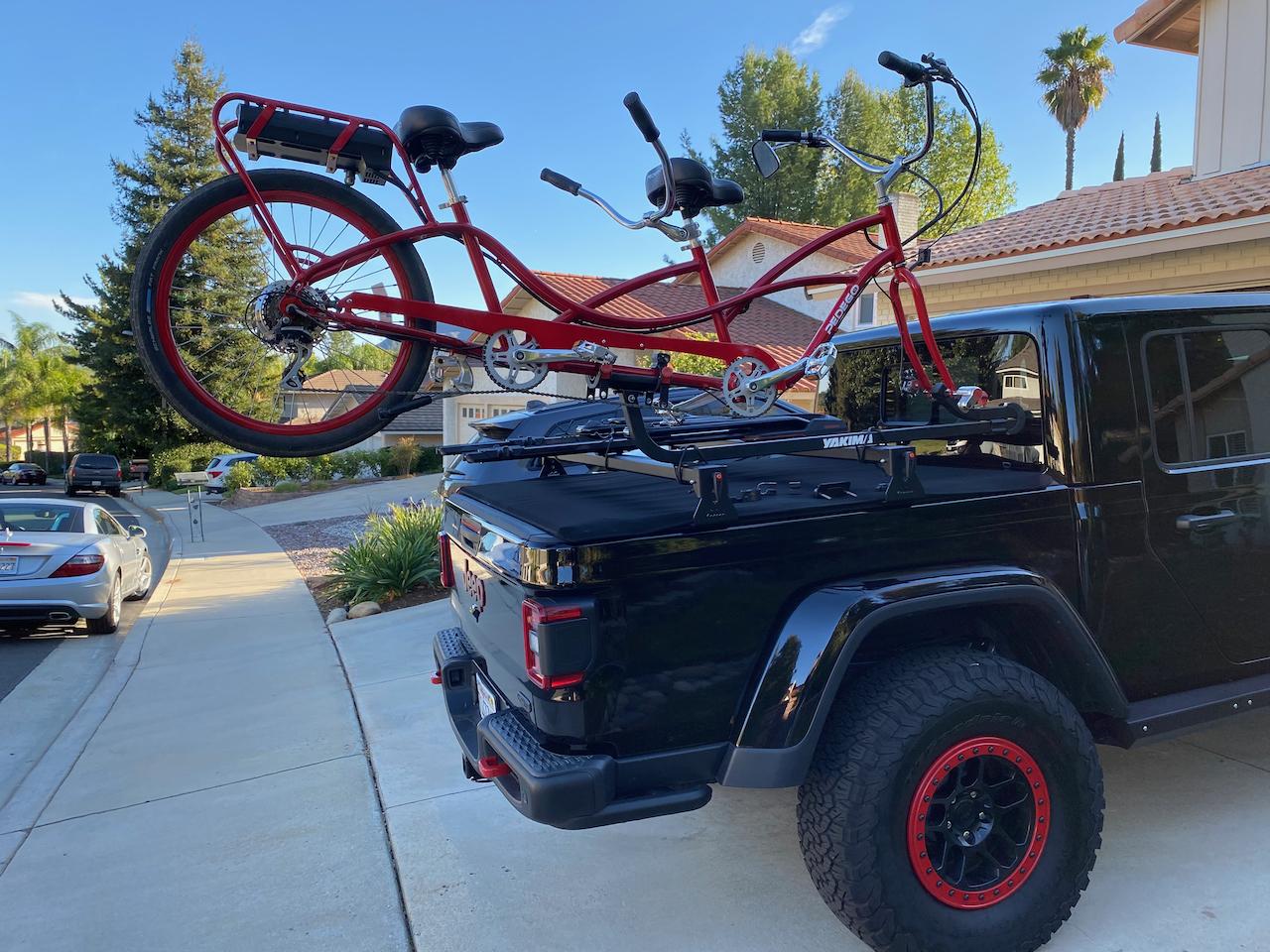

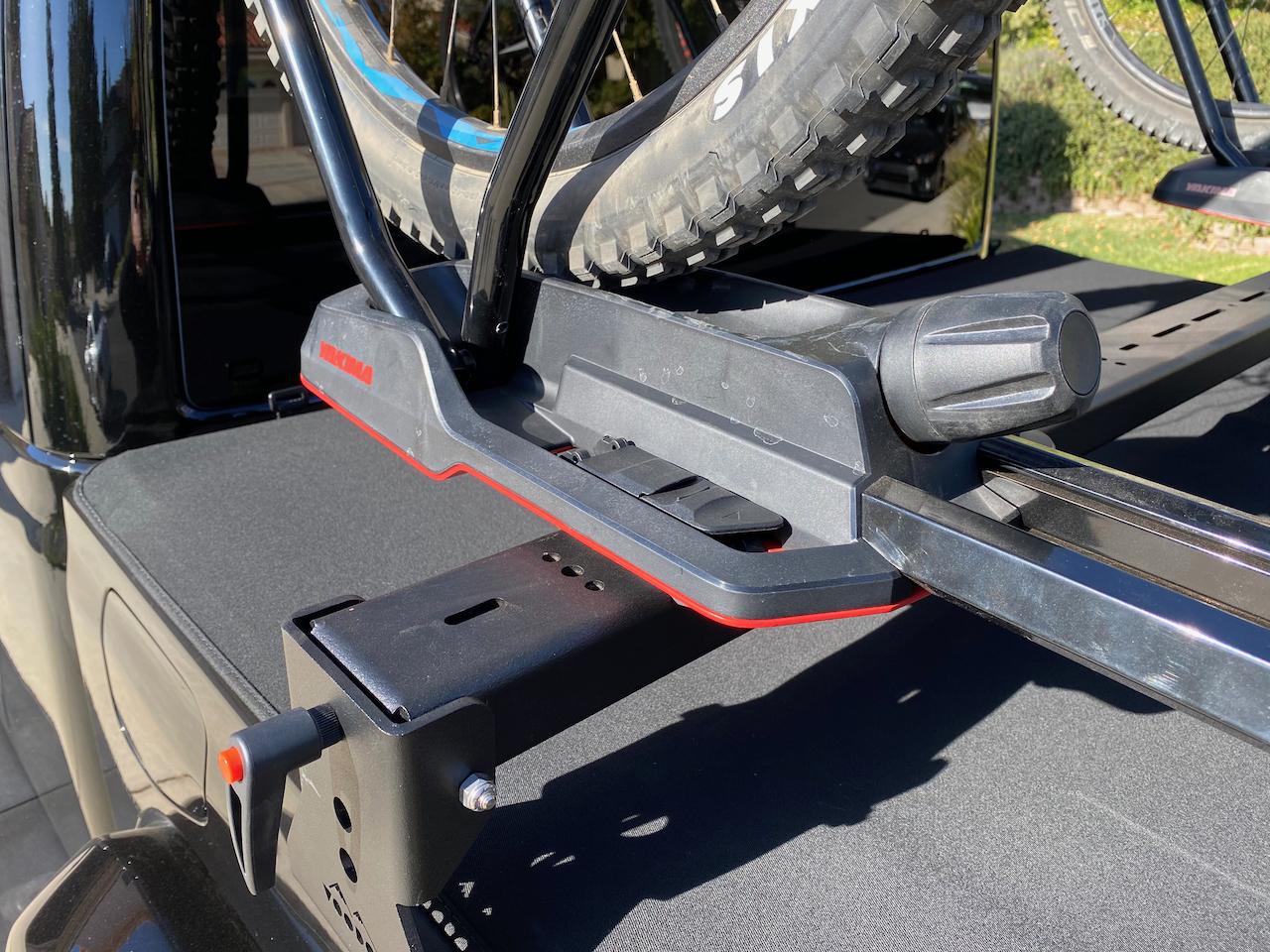

This is the Yakima HighRoad Bike Mount. The straps aren't long enough to use with the Voodoo crossbars, so I ordered the Yakima SmarT-Slot Kit 1. I replaced the t-bolts with regular bolts and inserted into the crossbar slots from the bottom and attached with the supplied nuts. The kit includes a handy install tool that makes it easy to tighten/loosen the nuts. The Yakima SideWinder Tandem Fork Mount also works, but I need to drill two holes in the crossbar to line up the second hole for the Yakima u-bolt and a second back bolt.













nilly

New Member
Joined
Jul 25, 2019
Threads
1
Messages
2
Reaction score
0
Location
North Carolina
Vehicle(s)
Jeep Gladiator
The new tonneau brackets are in production right now! These will allow you to use our racks with your Mopar factory installed tonneau covers.

The brackets should be available to ship in the next 2 weeks. I’ll keep everyone posted once they are ready to go.
Any updates on if this bracket is available? I am debating between crossbars vs the max modular truck bed.

Thanks!


Sponsored

OP
OP
KB Voodoo

KB Voodoo

Rock Sponsor (Level 1)
First Name
Chad
Joined
Oct 24, 2019
Threads
14
Messages
207
Reaction score
241
Location
Western New York
Website
www.kbvoodoo.com
Vehicle(s)
2020 Rubicon JT
Any updates on if this bracket is available? I am debating between crossbars vs the max modular truck bed.

Thanks!
They went to the powder coat shop yesterday!! We're pretty stoked.

We will be able to pick them up early next week and start shipping right away.

OP
OP
KB Voodoo

KB Voodoo

Rock Sponsor (Level 1)
First Name
Chad
Joined
Oct 24, 2019
Threads
14
Messages
207
Reaction score
241
Location
Western New York
Website
www.kbvoodoo.com
Vehicle(s)
2020 Rubicon JT

4esop

Active Member
First Name
Andy
Joined
Sep 25, 2019
Threads
0
Messages
35
Reaction score
11
Location
Florida
Vehicle(s)
2020 Jeep Gladiator Overland
Occupation
Software Engineer

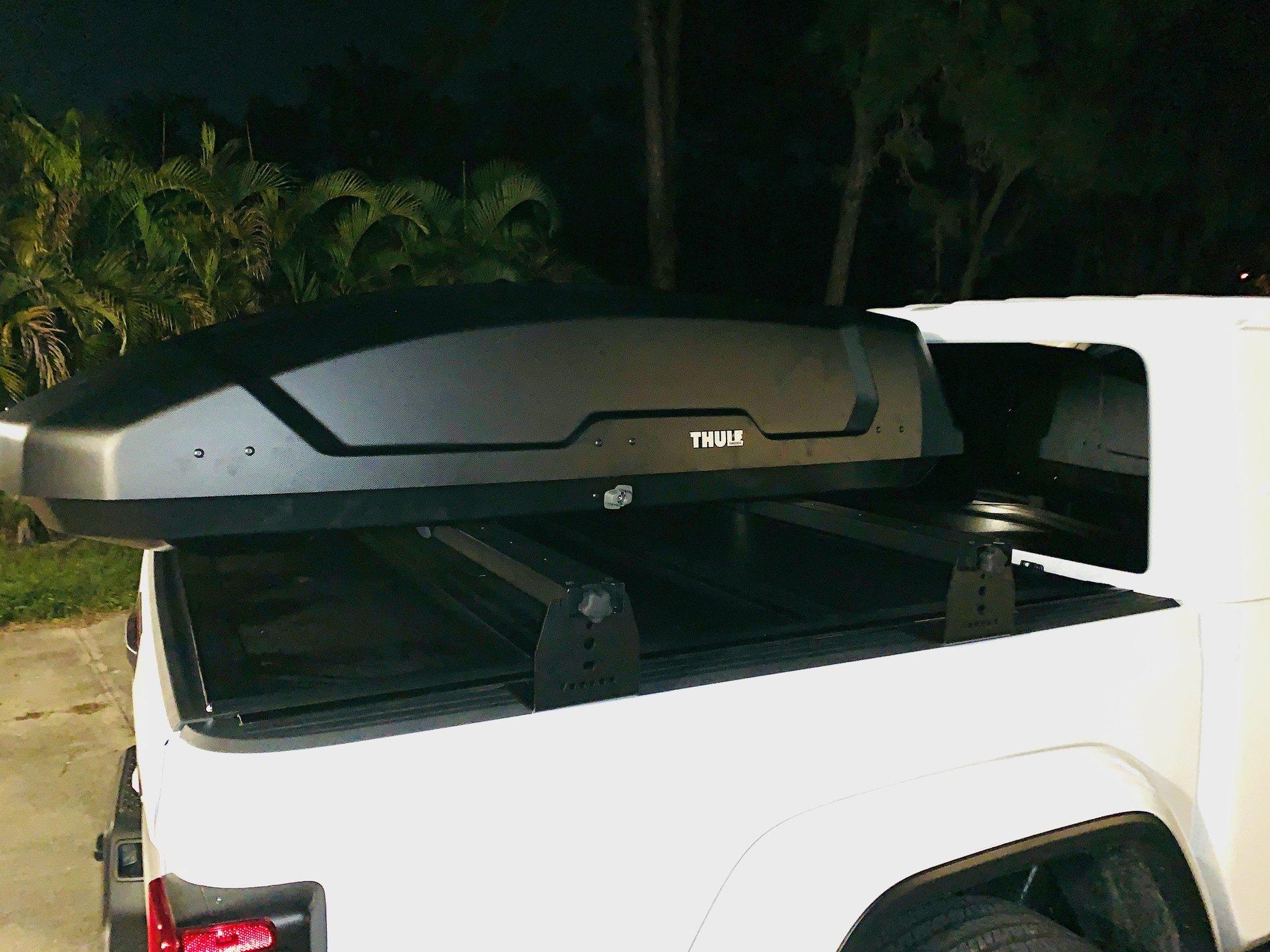

Took a 2000 mile trip with a Thule Force XT (large) mounted on the cross bars. Everything worked perfectly. The bed stayed dry despite near constant rain on the second half of the trip.


OP
OP
KB Voodoo

KB Voodoo

Rock Sponsor (Level 1)
First Name
Chad
Joined
Oct 24, 2019
Threads
14
Messages
207
Reaction score
241
Location
Western New York
Website
www.kbvoodoo.com
Vehicle(s)
2020 Rubicon JT

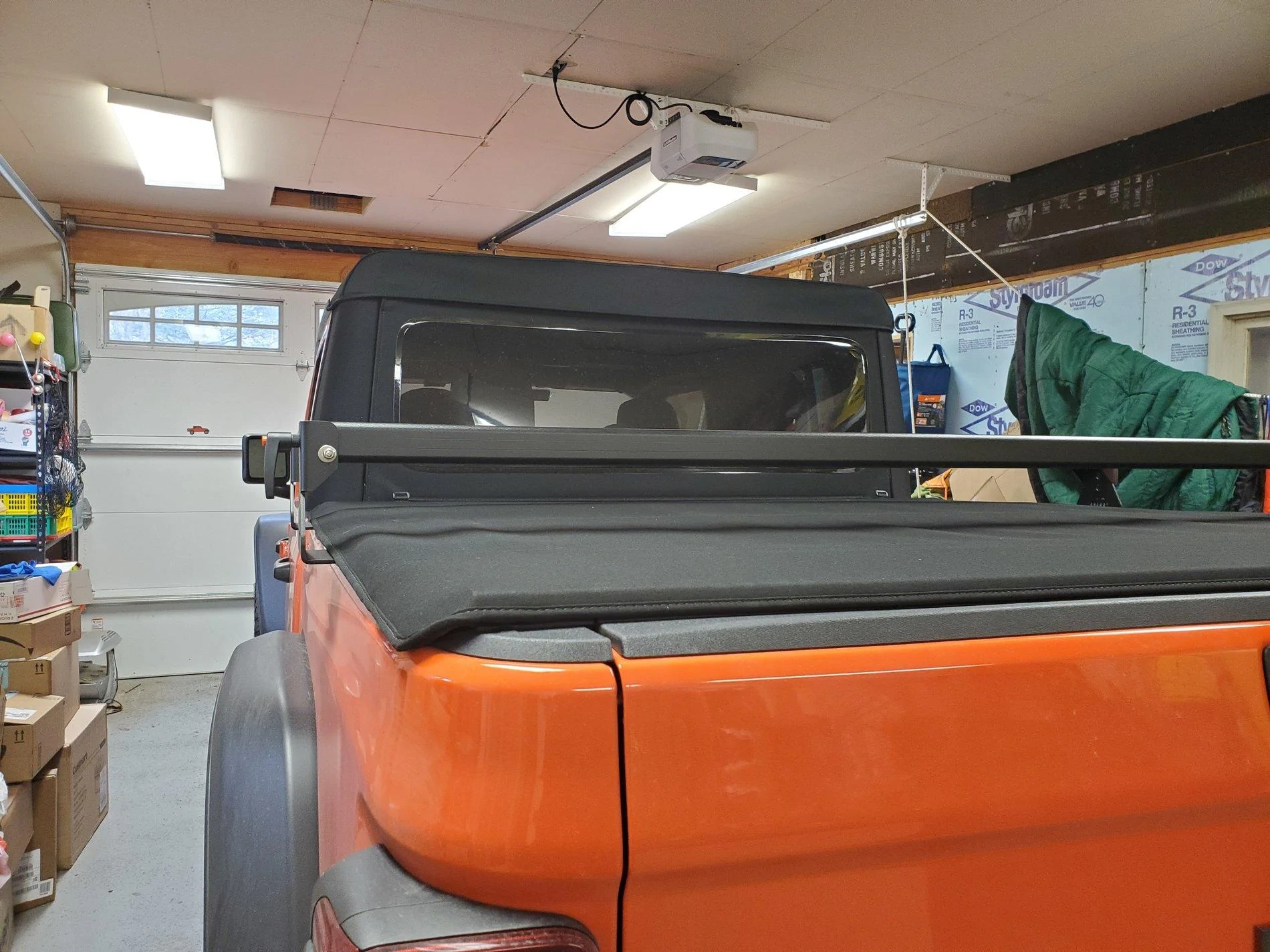

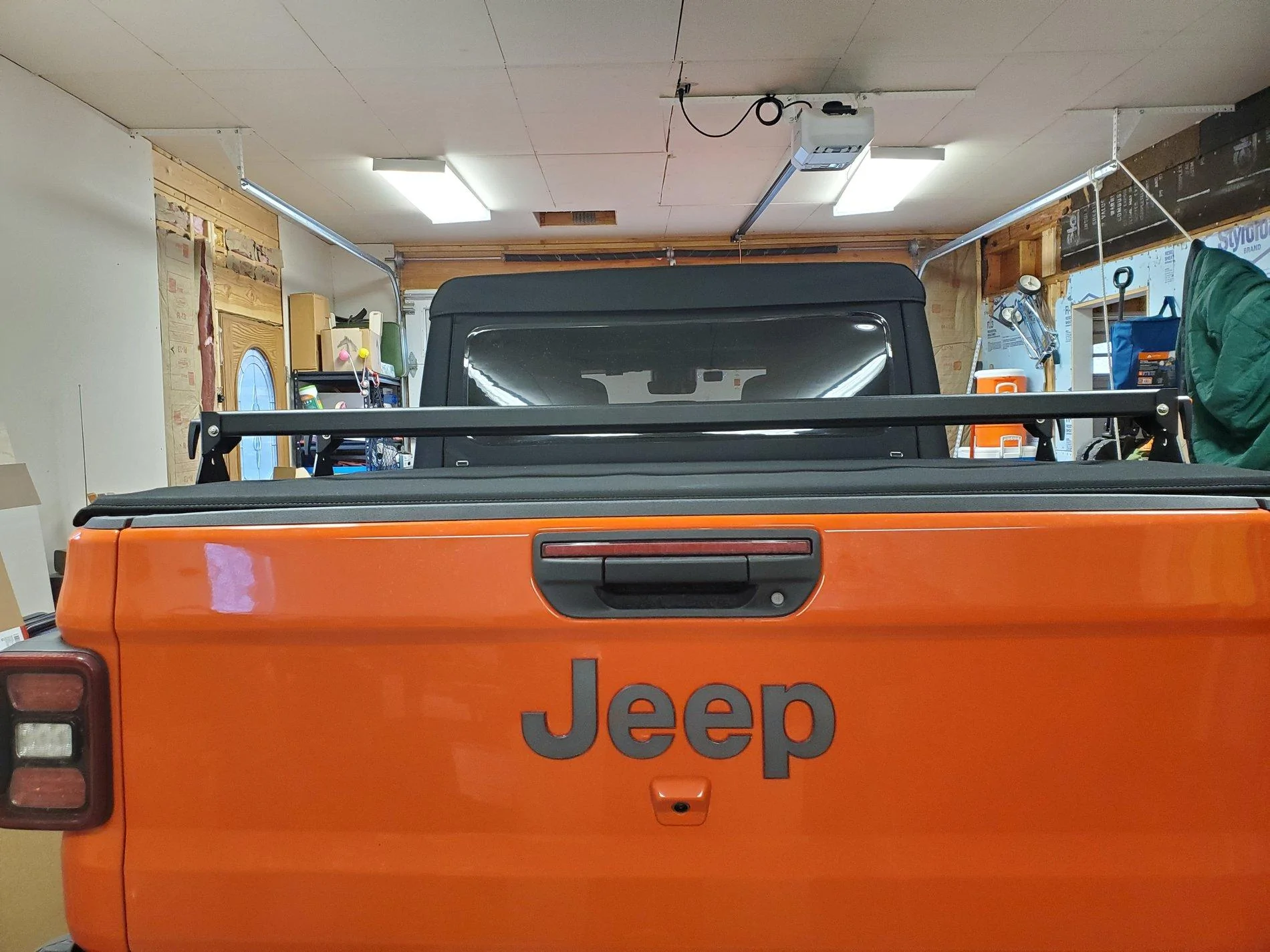

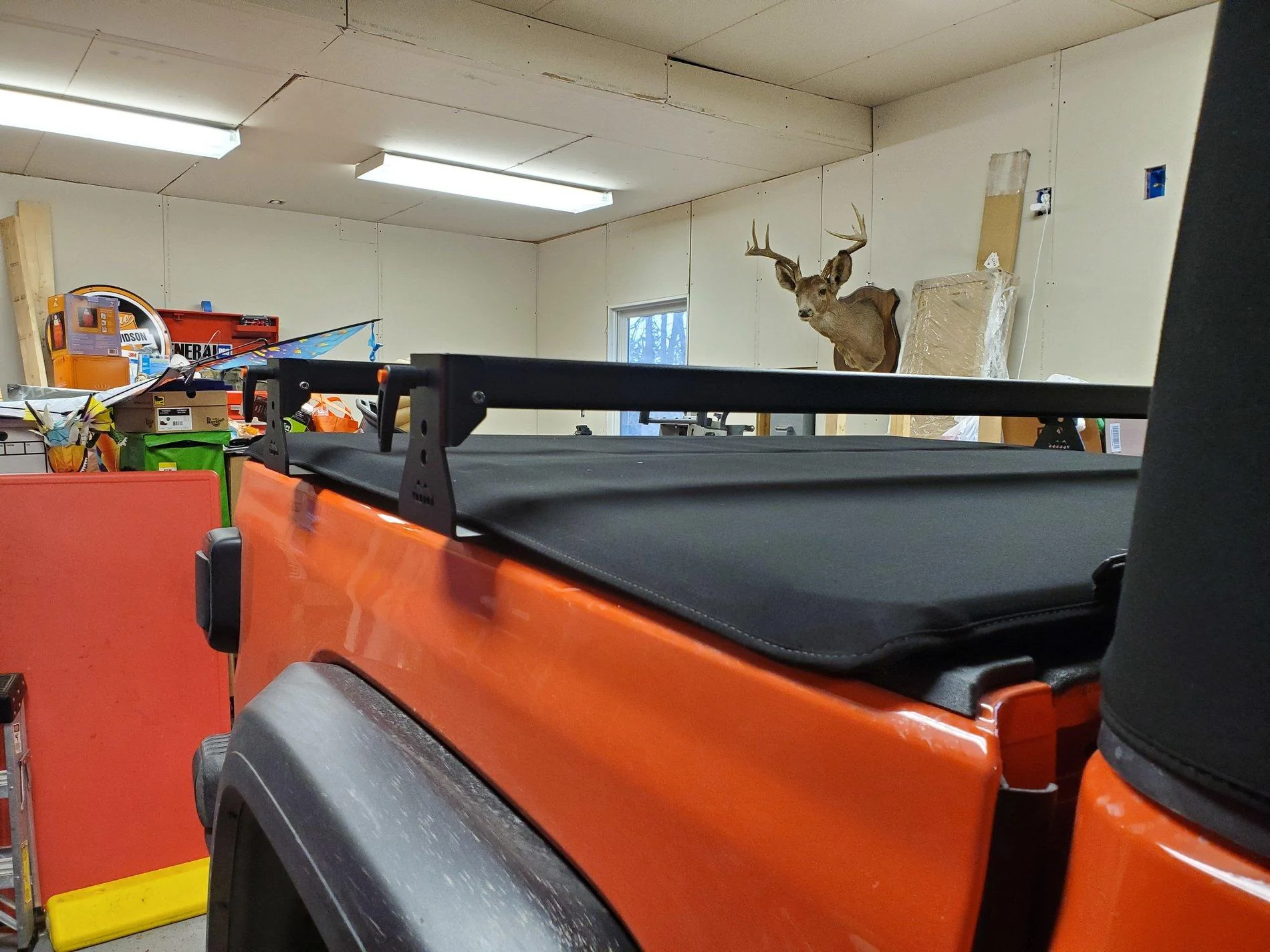

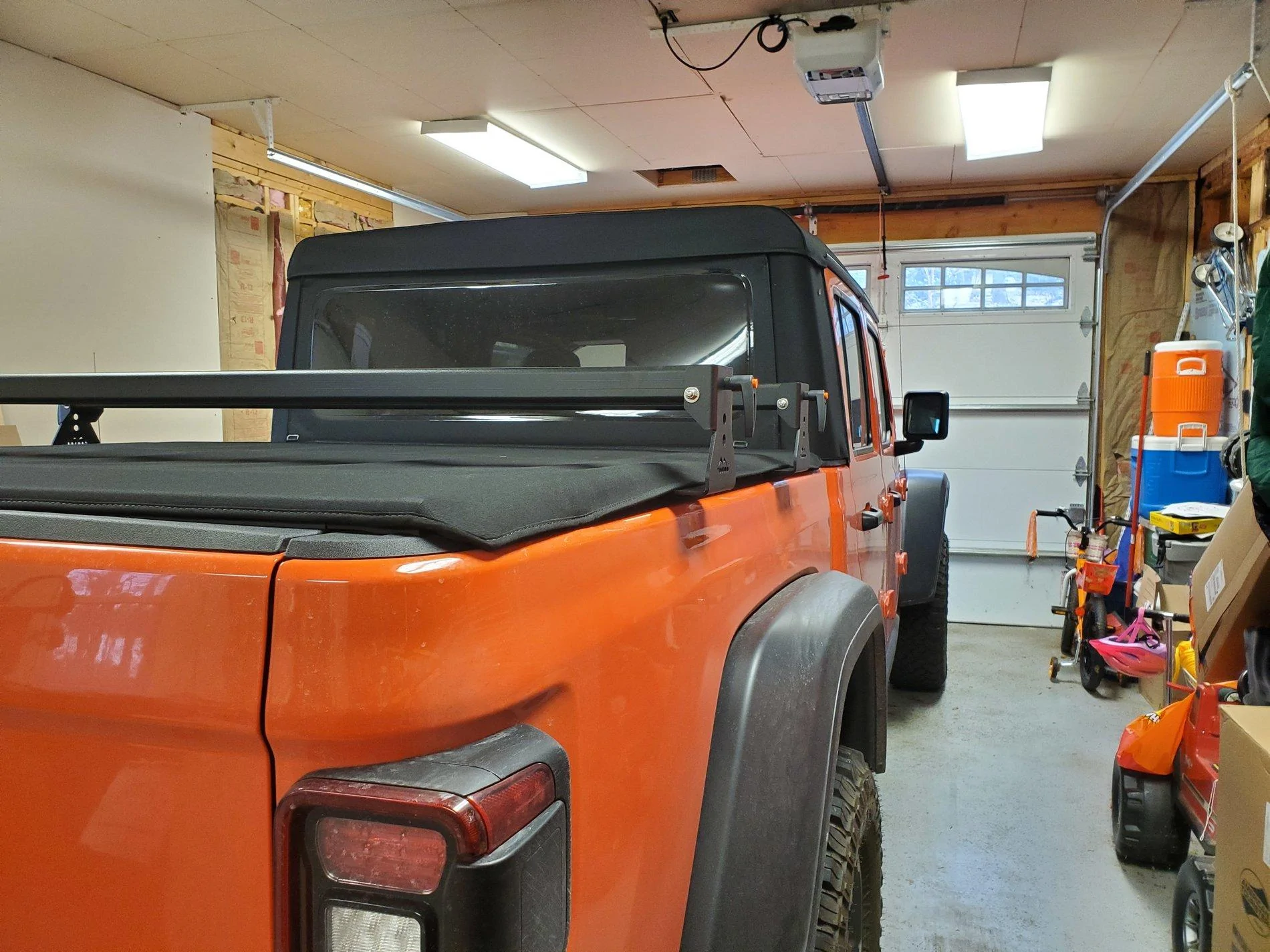

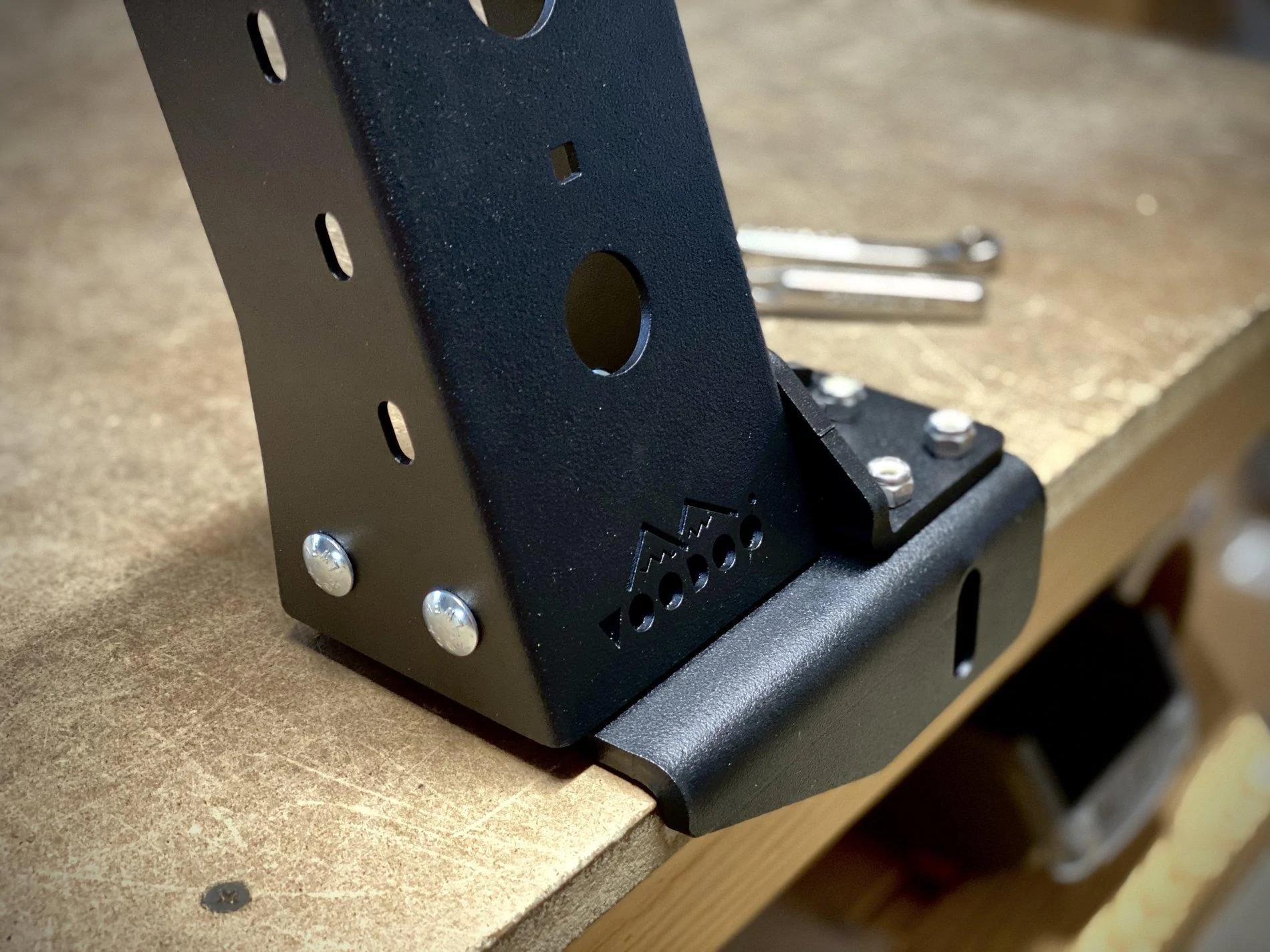

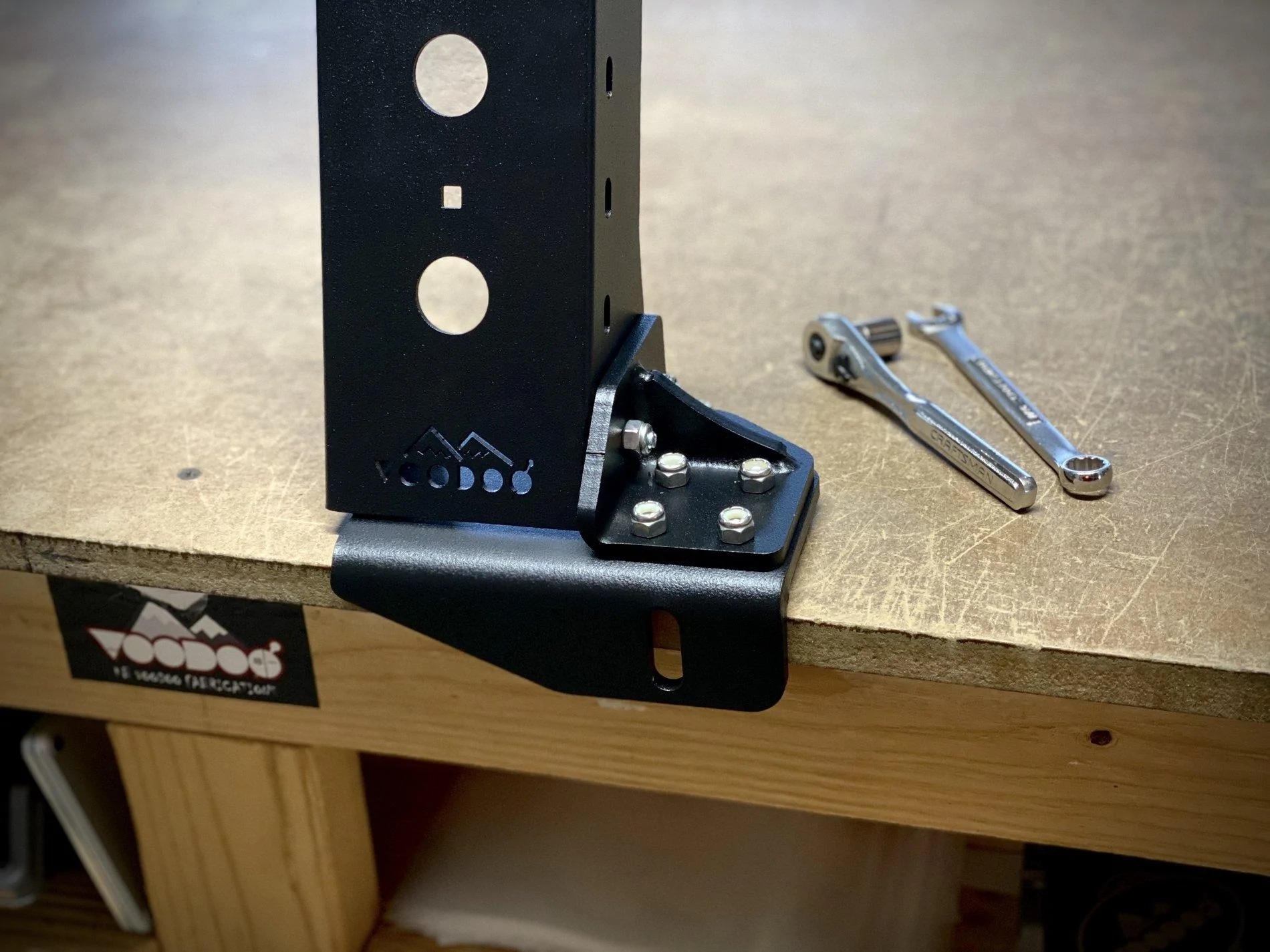

We fit up the brackets for the factory tonneau covers (with temporary hardware, not the nice stainless stuff that we ship with them).

These things are BEEF!!

Ready to order now: https://www.max-modular.com/shop-max-modular





CO GC Glad

Member
Joined
Oct 26, 2019
Threads
2
Messages
8
Reaction score
2
Location
Colorado
Vehicle(s)
2020 Gladiator Rubi
We fit up the brackets for the factory tonneau covers (with temporary hardware, not the nice stainless stuff that we ship with them).

These things are BEEF!!

Ready to order now: https://www.max-modular.com/shop-max-modular



Product looks great! Close to pulling the trigger. Could you possible post a pic of how it looks mounted to the Gladiator with the new "factory tonneau" brackets? I'm having trouble visualizing how the rack will sit. Thanks!

  • Like
Reactions: jrf

Sponsored

LANGeek

Well-Known Member
Joined
Sep 24, 2019
Threads
14
Messages
122
Reaction score
160
Location
MD
Vehicle(s)
2020 Jeep Galdiator Rubicon

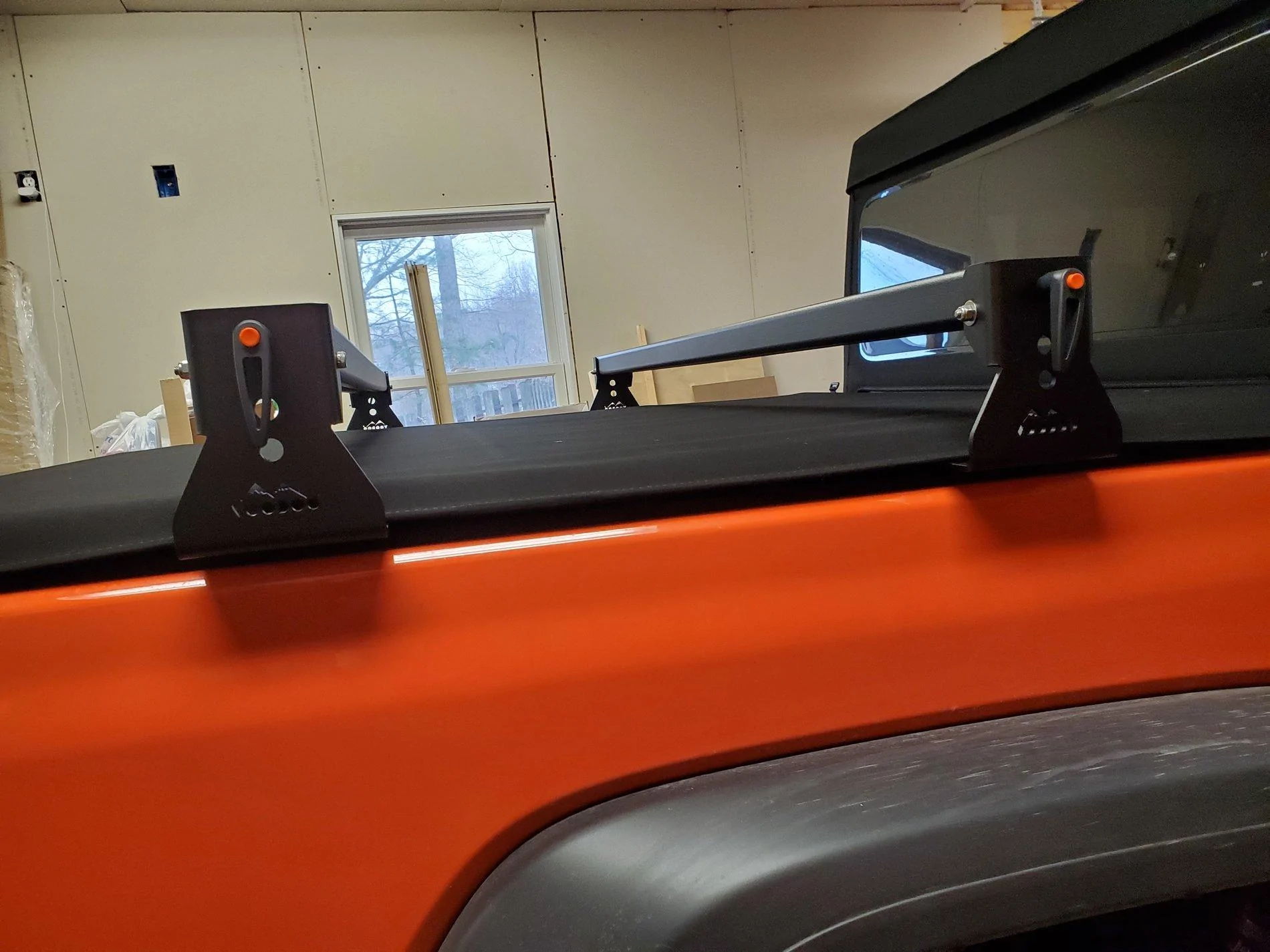

I installed a set of the cross bars this weekend. There were no instructions. If you are use to putting things together and how bolts, washers, and nuts should work then it is still easy to do. If you need step-by-step instructions there were none.

The raisers or brackets are hefty and well built. They fit well and all the mounting hardware fits and works well. I got the aluminum crossbars with the quick release handles. The are also sturdy and well made and fit well. Over all, I am very pleased.

We have a cargo box that we used on my wife's SUV. It fit on the JT with these. I also have a basket on order.

Suggestions from what I have seen so far.
1) Add a tool less handle or knob to the bracket hardware so you can loosen and adjust the position or remove them easily.
2) if the brackets were just a bit taller, an inch or 2 at most, the rolling tonneau cover will roll up or unroll under it.

It is a nice product and I think it will work well.











John Montana

Active Member
First Name
John
Joined
Nov 16, 2019
Threads
0
Messages
34
Reaction score
48
Location
Wilsonville, OR
Vehicle(s)
2020 Gladiator Rubicon Gator; 2017 Shelby gt350; 2018 Ducati Scrambler
Do they have these same bars in taller (roof height)?

OP
OP
KB Voodoo

KB Voodoo

Rock Sponsor (Level 1)
First Name
Chad
Joined
Oct 24, 2019
Threads
14
Messages
207
Reaction score
241
Location
Western New York
Website
www.kbvoodoo.com
Vehicle(s)
2020 Rubicon JT
There is a difference. The bars run lengthwise vs the rails which go cross-wise. I'm not sure if I would have been able to mount the basket and bike mount with this configuration.
All of our Max Modular racks have pre-drilled holes for form mounts and our Rear Tire Trays, which makes it super easy to haul bikes with them.
