Metalcloak lift

OP
OP
jeepncrowd

jeepncrowd

Well-Known Member
First Name
Nathan
Joined
Apr 29, 2018
Threads
13
Messages
500
Reaction score
729
Location
Texas
Vehicle(s)
2020 JT Rubicon (WILD MED)
Occupation
Physician Assistant
I've been thinking the MC lift looks short for a 3.5 lift.
Whats the specs on the other two JTs in the bottom pic? The black one looks taller.
The black one had a Mopar 2"
Sponsored



bcunning82

Well-Known Member
First Name
Blake
Joined
Jul 19, 2019
Threads
8
Messages
73
Reaction score
107
Location
Nor Cal
Vehicle(s)
2020 Rubicon Bright White
3.5 JT Game Changer installed. Looks like I picked up just over 3.5” at the front bumper but only .25” at the rear hitch. Front should settle a bit in time. Happy so far, may need a small puck added to the rear.

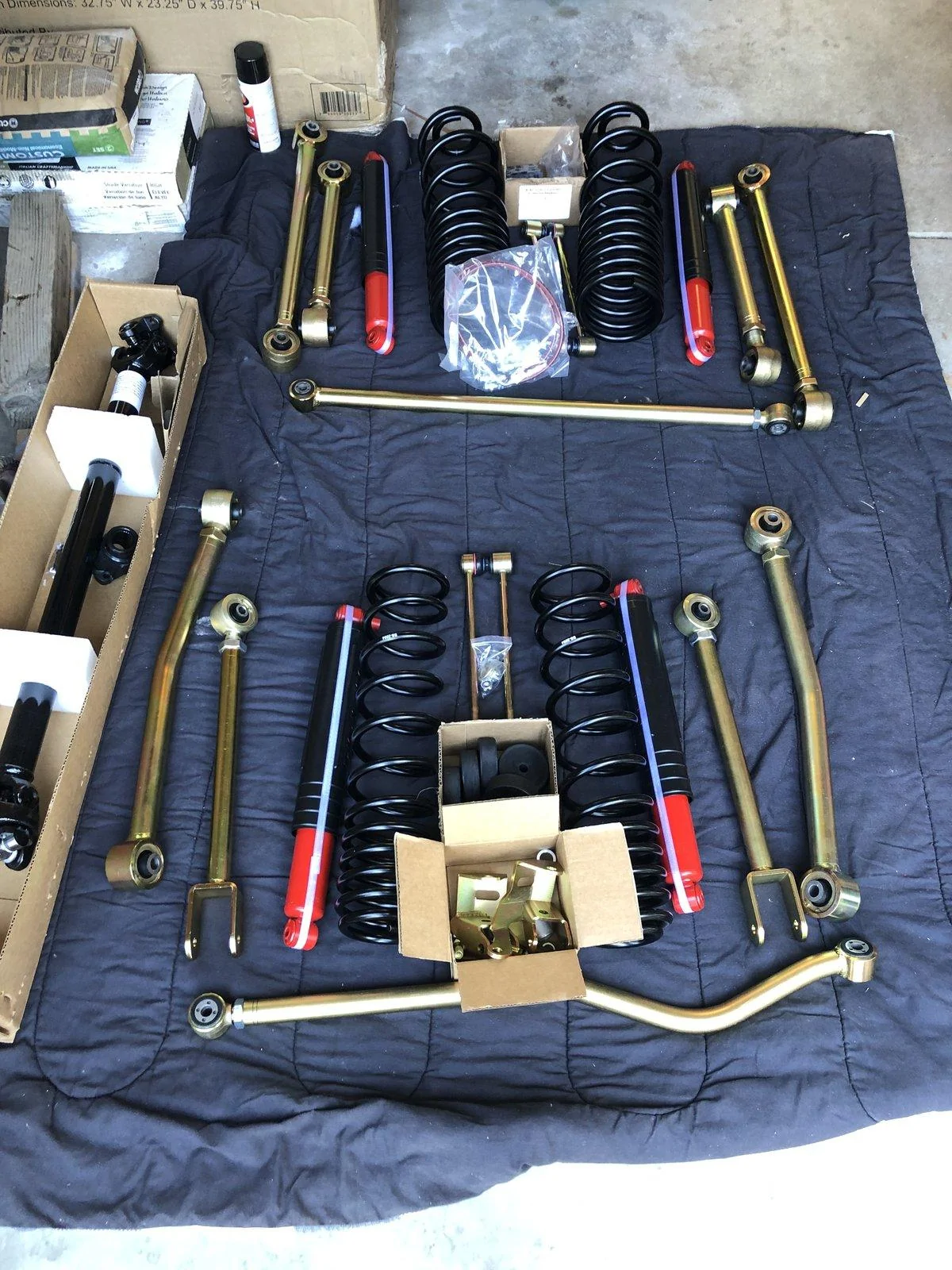

Before pile of parts:
Jeep Gladiator Metalcloak lift 77669F13-F4B8-4D81-8797-0B9B3EFB688F

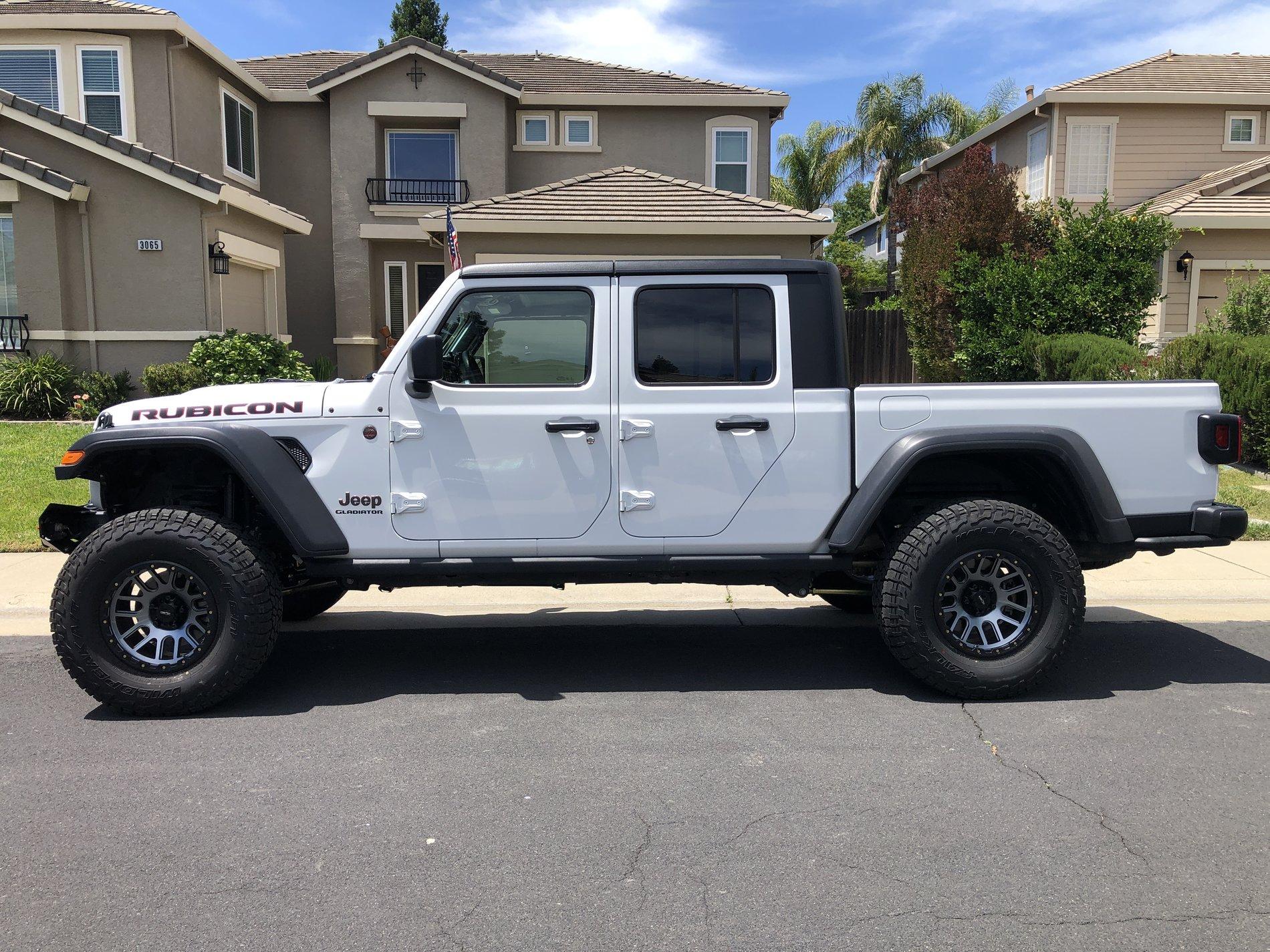

Before Stance:
Jeep Gladiator Metalcloak lift 6A1C4032-6E1F-4CBA-A47A-71C866ADA441

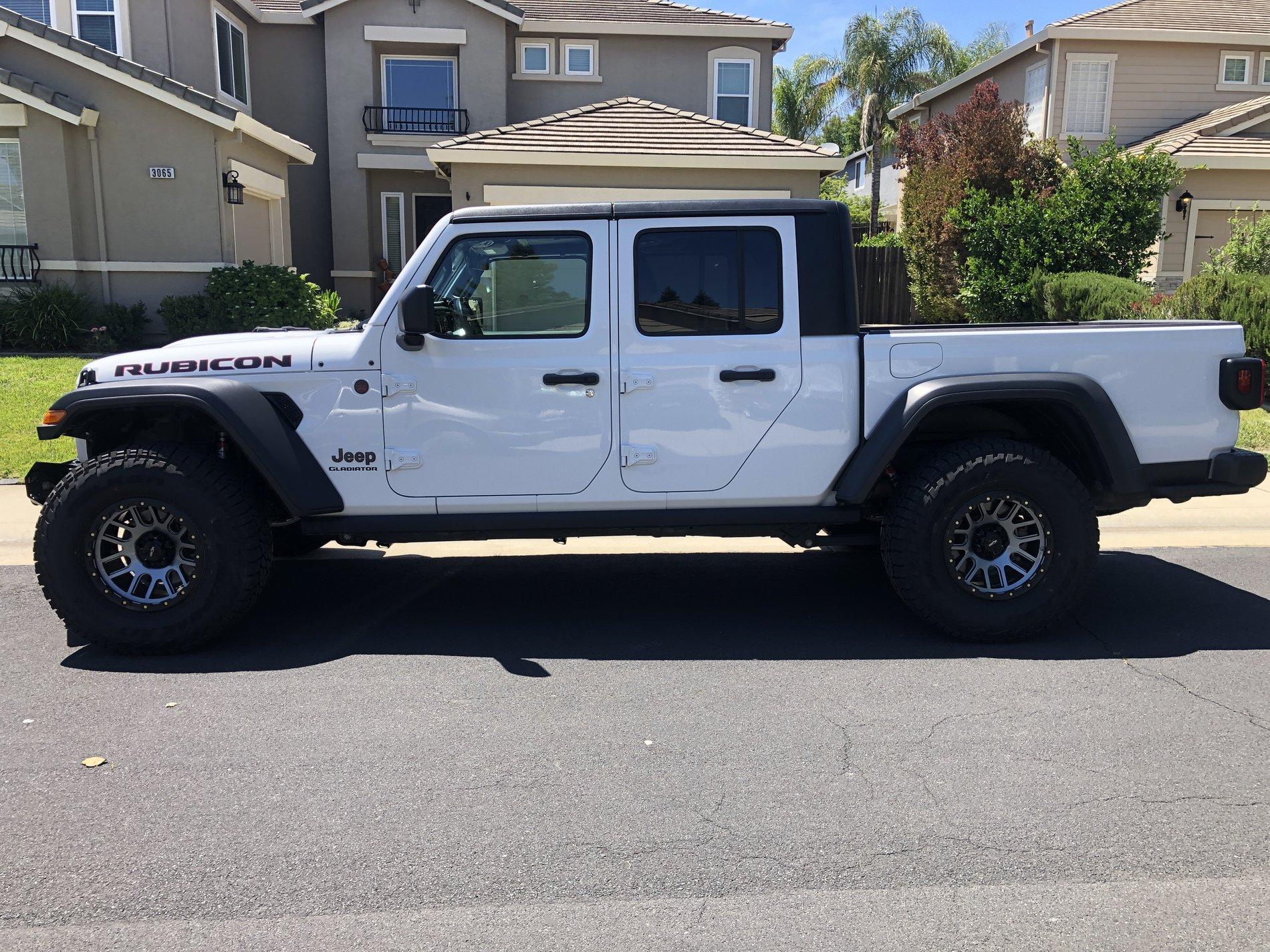

After Stance:
Jeep Gladiator Metalcloak lift 828FEBCE-B144-48F3-A6BD-C3D81FB35C98

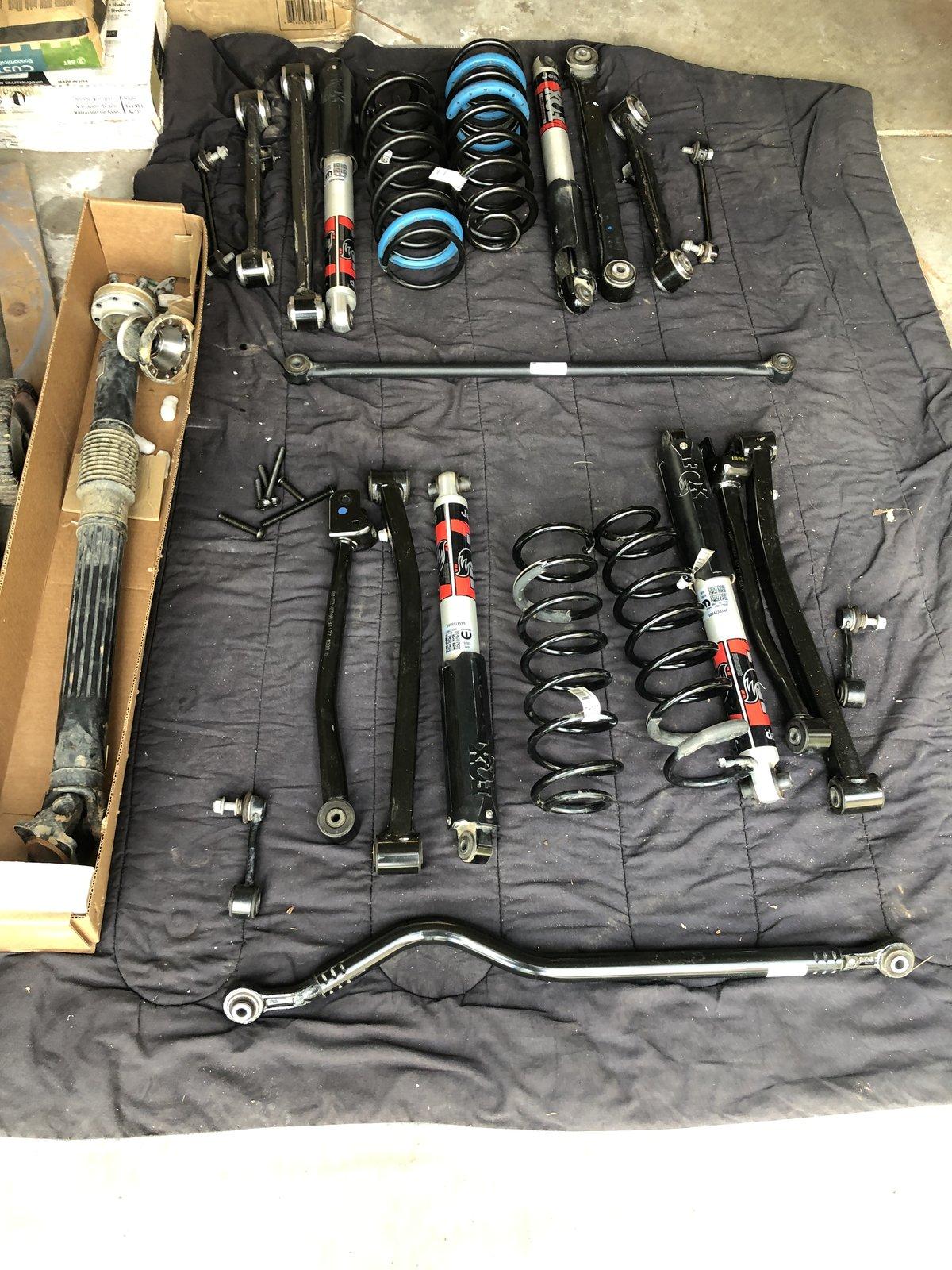

After Pile of parts:
Jeep Gladiator Metalcloak lift 11A97224-9357-41BD-BAA3-A7CA320557E2

If anyone in the sacramento area is looking for Rubicon take-off suspension, wheels and tires, let me know!



techteacher

Well-Known Member
Joined
Apr 30, 2019
Threads
36
Messages
218
Reaction score
194
Location
Virginia
Vehicle(s)
JT '20 White Rubicon
Build Thread
Link
I have the MC front track bar on the way. Instructions are showing the need to possibly grind out the housing a bit to fit the head of the trackbar. Anyone put one in a Gladiator...did you need to grind?


bcunning82

Well-Known Member
First Name
Blake
Joined
Jul 19, 2019
Threads
8
Messages
73
Reaction score
107
Location
Nor Cal
Vehicle(s)
2020 Rubicon Bright White
I have the MC front track bar on the way. Instructions are showing the need to possibly grind out the housing a bit to fit the head of the trackbar. Anyone put one in a Gladiator...did you need to grind?
Yes, you need to grind. Deburring bit in a drill and took a good 45 min to open the window enough. It was a pain.


techteacher

Well-Known Member
Joined
Apr 30, 2019
Threads
36
Messages
218
Reaction score
194
Location
Virginia
Vehicle(s)
JT '20 White Rubicon
Build Thread
Link
10-4 I have a Dremel with a tungsten carbide grinding bit - hoping that will do the trick.


Sponsored

gladi8or_jt

Well-Known Member
First Name
Jazzy
Joined
Jan 3, 2020
Threads
4
Messages
50
Reaction score
41
Location
Ontario Canada
Vehicle(s)
2020 Jeep Gladiator

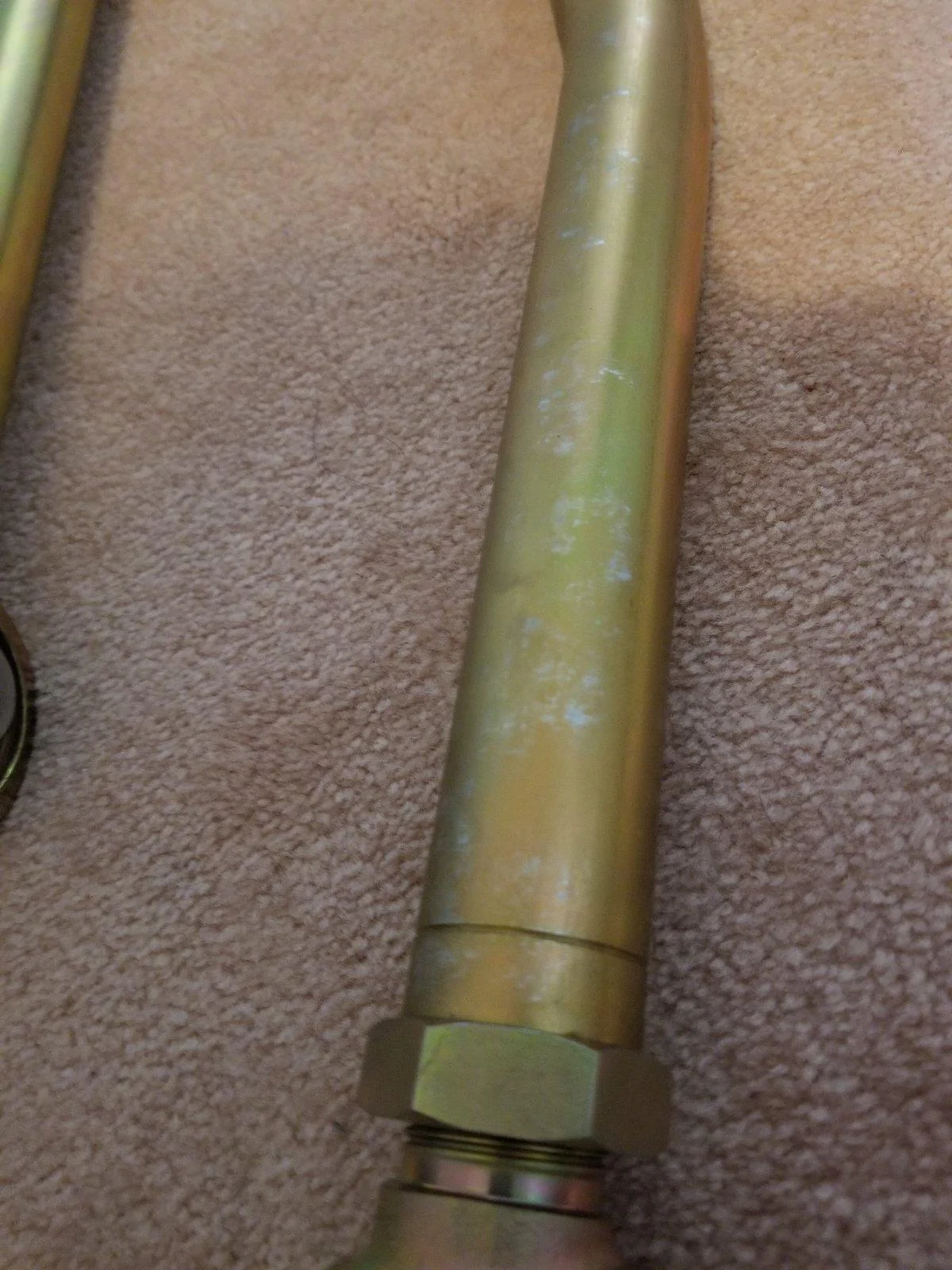

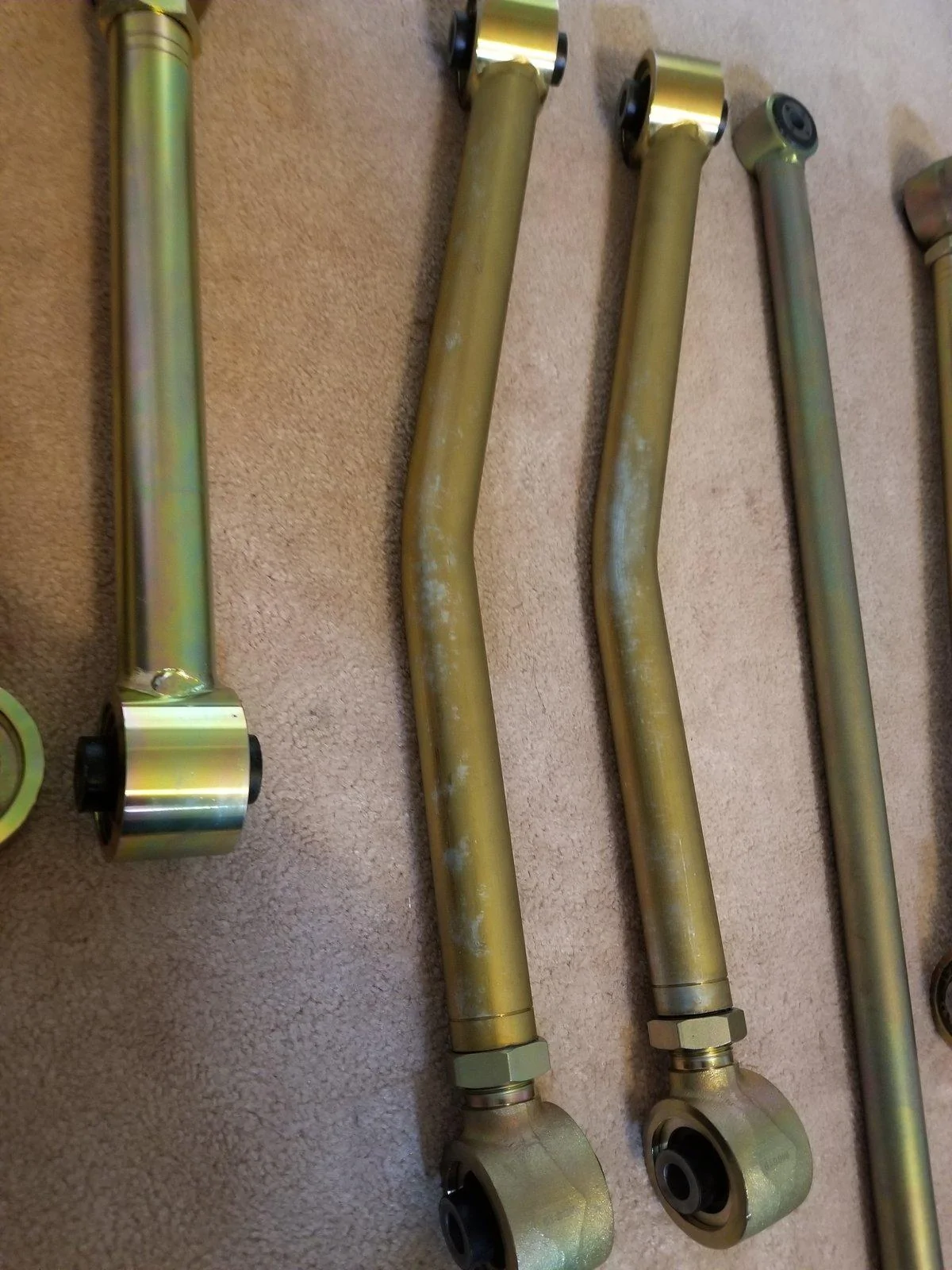

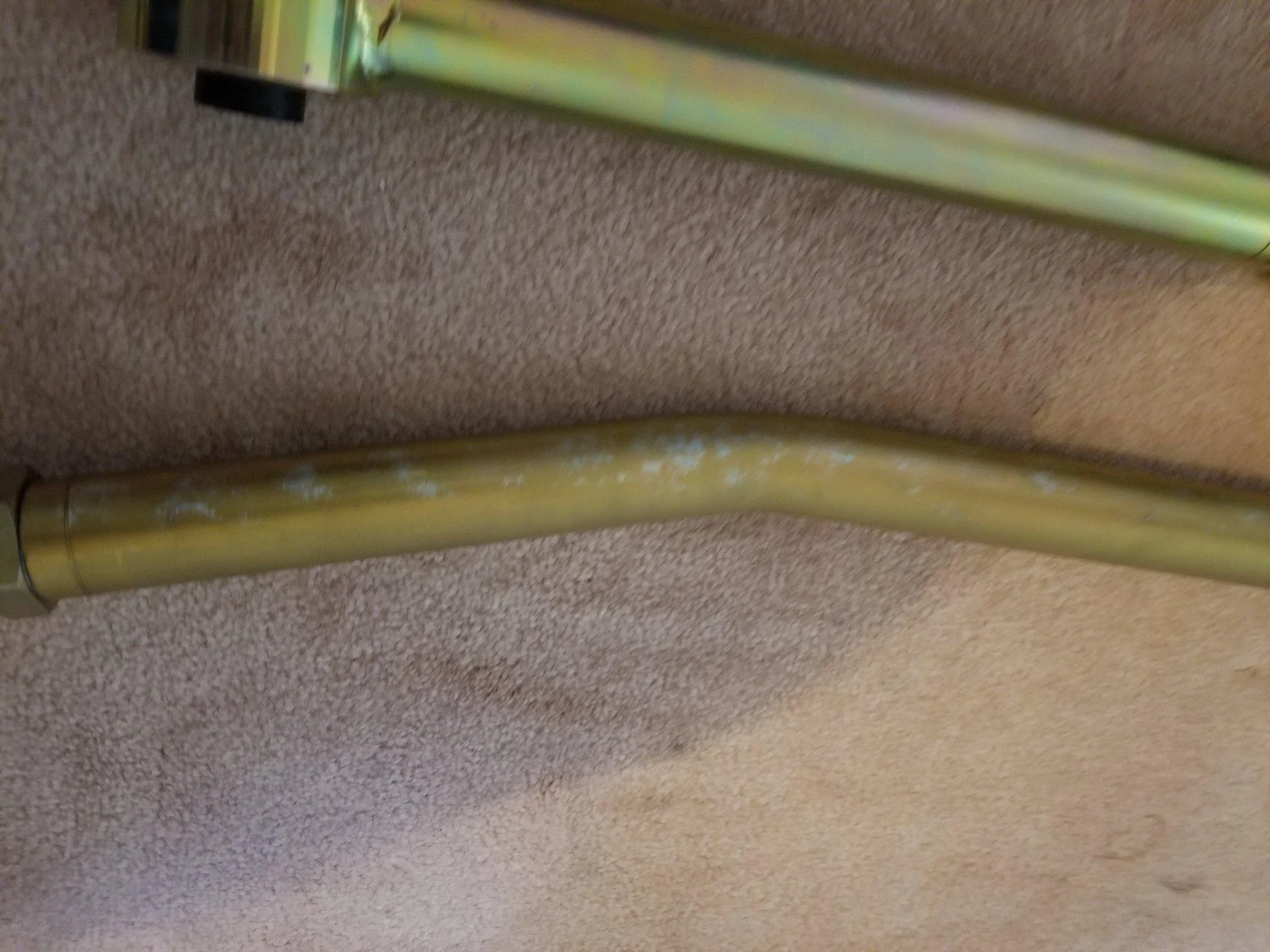

Got my MC control arms and track bar today was curious if anyone else had the gold zinc coating coming off like this?







techteacher

Well-Known Member
Joined
Apr 30, 2019
Threads
36
Messages
218
Reaction score
194
Location
Virginia
Vehicle(s)
JT '20 White Rubicon
Build Thread
Link
I put one in a JL using a Dremel. Between the metal cutting wheel and the heavy sanding drum, it wasn’t too bad.
The deed is done. Grinded it out with the Dremel and got it in place.

I grinded just enough to where everything lined up easily to get the bolt through.

Wondering if it should be opened up more to fully clear the head or if the bolt goes through, check it off and finish the install?



Renegade

Well-Known Member
First Name
Zac
Joined
Sep 11, 2017
Threads
38
Messages
3,562
Reaction score
4,693
Location
Signal Mountain, TN
Vehicle(s)
2020 JT
Build Thread
Link

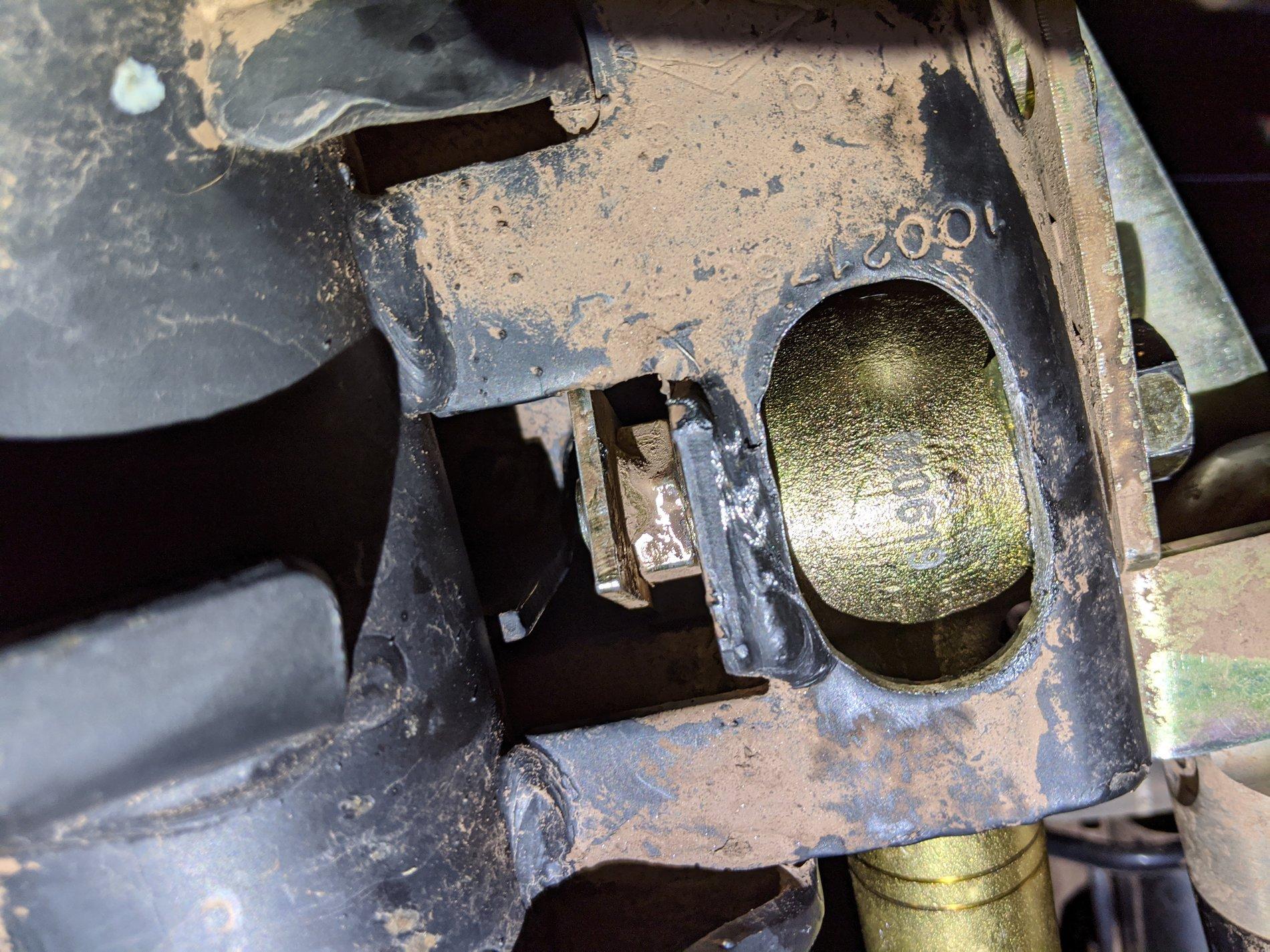

The deed is done. Grinded it out with the Dremel and got it in place.

I grinded just enough to where everything lined up easily to get the bolt through.

Wondering if it should be opened up more to fully clear the head or if the bolt goes through, check it off and finish the install?

Jeep Gladiator Metalcloak lift IMG_20200527_200351
Does it rotate freely when the suspension flexes?


Captn_Obvious

Well-Known Member
First Name
Mark
Joined
May 31, 2019
Threads
3
Messages
176
Reaction score
137
Location
Atlanta GA
Vehicle(s)
2020 JT Gladiator Rubicon (Sting Grey)
3.5 JT Game Changer installed. Looks like I picked up just over 3.5” at the front bumper but only .25” at the rear hitch. Front should settle a bit in time. Happy so far, may need a small puck added to the rear.
Before pile of parts:

Before Stance:

After Stance:

After Pile of parts:

If anyone in the sacramento area is looking for Rubicon take-off suspension, wheels and tires, let me know!

@bcunning82 & @techteacher
Congrats on the MC installs - getting ready to do mine but would like to ask a favor if possible, since you both just stepped thru the process. Would you guys mind shooting me a pic of the final opening you ground out of the window pocket and the rough measurements / dimensions? This is the only part of the MC lift that has me a bit apprehensive, and I'd really (really) like to have something of a rough template to go by. I'd be forever in your debt. Thanks guys, if you get the time.

*also let me know if you guys ended up using all the front/rear pucks provided in the kit - I seem to recall Eric at MC recommending to throw them all in to start, for 37 in tires.


Sponsored

techteacher

Well-Known Member
Joined
Apr 30, 2019
Threads
36
Messages
218
Reaction score
194
Location
Virginia
Vehicle(s)
JT '20 White Rubicon
Build Thread
Link

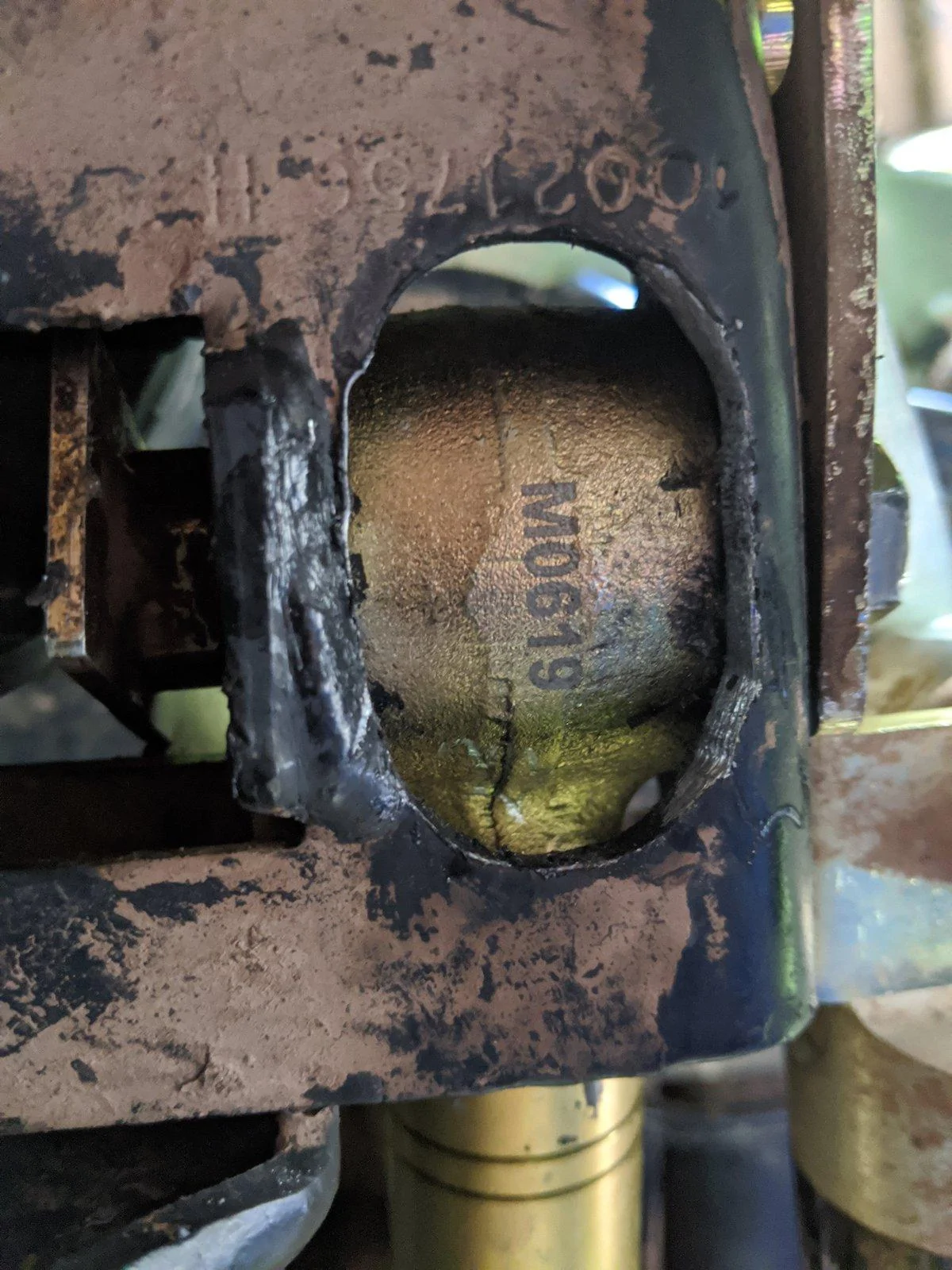

Edit: Had some more time to take to it a little bit more. The head of the trackbar is 1.5". My opening is 1 3/16 - 1 1/4 Taking it to be wider than 1.5" would call for eating into that weld a little bit on rear side and almost coming flush with the rounded edge on the front side. Looking at the pictures closely on their install instructions it doesn't appear that they took out that much. @Captn_Obvious


The hole is clean and easy to line up the trackbar and get the bolt through.

Have some grease on hand to lube it up. It's a tight squeeze to get both ends in the brackets.

Jeep Gladiator Metalcloak lift IMG_20200530_141917

Last edited:

sass JT

Banned
Banned
First Name
Bryan
Joined
Jun 12, 2019
Threads
31
Messages
1,688
Reaction score
2,879
Location
Colorado
Website
youtube.com
Vehicle(s)
2020 Jeep Gladiator Rubicon
Build Thread
Link
Occupation
MWD
@bcunning82 & @techteacher
*also let me know if you guys ended up using all the front/rear pucks provided in the kit - I seem to recall Eric at MC recommending to throw them all in to start, for 37 in tires.
On 3.5 GC lift with the falcon 3.3’s and a flipped drag link, I am at 3 bumpstops all the way around.


Captn_Obvious

Well-Known Member
First Name
Mark
Joined
May 31, 2019
Threads
3
Messages
176
Reaction score
137
Location
Atlanta GA
Vehicle(s)
2020 JT Gladiator Rubicon (Sting Grey)
Edit: Had some more time to take to it a little bit more. The head of the trackbar is 1.5". My opening is 1 3/16 - 1 1/4 Taking it to be wider than 1.5" would call for eating into that weld a little bit on rear side and almost coming flush with the rounded edge on the front side. Looking at the pictures closely on their install instructions it doesn't appear that they took out that much. @Captn_Obvious


The hole is clean and easy to line up the trackbar and get the bolt through.

Have some grease on hand to lube it up. It's a tight squeeze to get both ends in the brackets.

Jeep Gladiator Metalcloak lift IMG_20200530_141917
@tech teacher thank you very much, I was wondering about the width of the opening in terms of that weld and front edge area - this is a huge help sire.. thank you again.


Captn_Obvious

Well-Known Member
First Name
Mark
Joined
May 31, 2019
Threads
3
Messages
176
Reaction score
137
Location
Atlanta GA
Vehicle(s)
2020 JT Gladiator Rubicon (Sting Grey)
Got my MC control arms and track bar today was curious if anyone else had the gold zinc coating coming off like this?

Jeep Gladiator Metalcloak lift IMG_20200530_141917


Jeep Gladiator Metalcloak lift IMG_20200530_141917


Jeep Gladiator Metalcloak lift IMG_20200530_141917
A couple of my arms had some similar marring in few spots.. forget who I was speaking with out there at MC (before I ordered), we were talking about their zinc coating treatment process, and whoever it was said something about how it was possible for this to happen during one of their tooling processes, but not to worry, so when I saw a few places like that in the finish I already had a heads up - they assured me even in areas like that that they basically would NOT rust. Hopefully that's the case.
