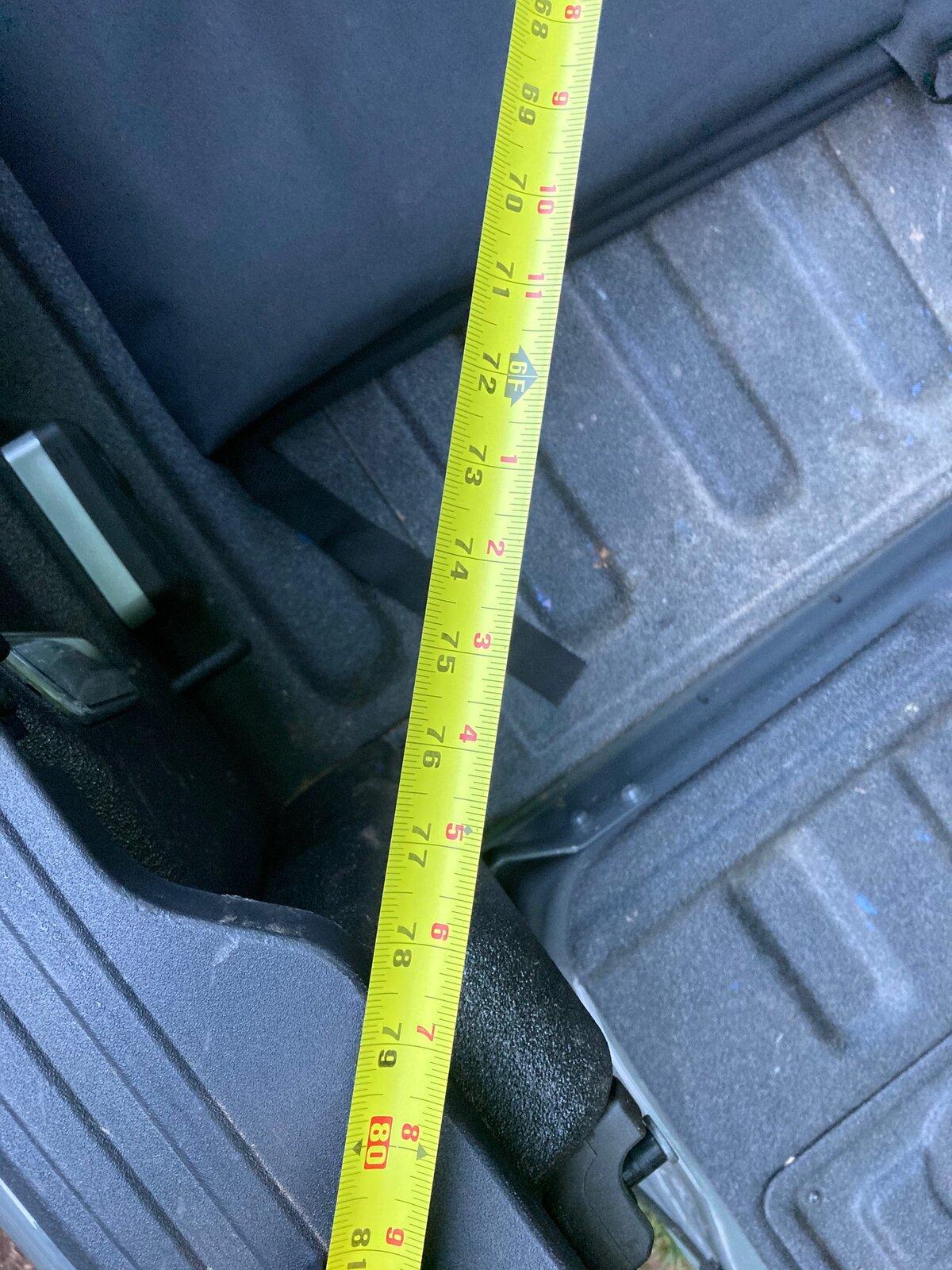

Here's the measurements from driver front corner to passenger rear corner (slightly smaller due to the fuel filler neck)...

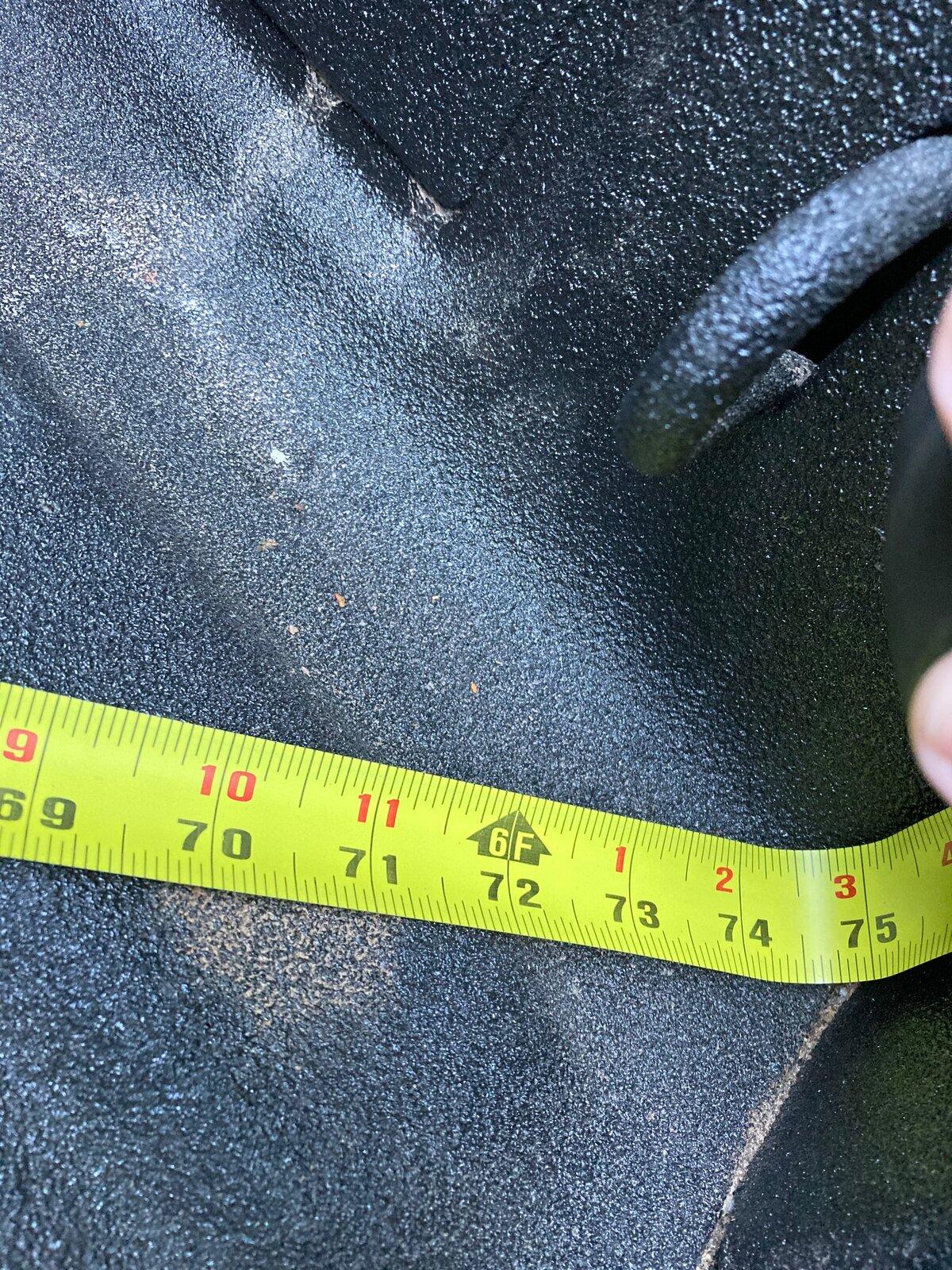

And from passenger front corner to driver back corner...
Thanks a bunch. My bag is 68" so I'll have plenty of space to fit it!



Ghost

New Member
First Name
Chris
Joined
Apr 25, 2020
Threads
0
Messages
1
Reaction score
1
Location
Texas
Vehicle(s)
2020 Sting Gray Rubicon Gladiator 2011 Wrangler Unlimited Sport
Occupation
Field Safety Rep
I know this is probably a long shot but has anybody measured the trail rail system bolt spacing inside the bed. I am trying to do a DIY rail system and for some odd reason when it comes to transferring my tape mesurements ( both painters tape and mechanical tape measure) onto the unistrut I bought it is way off. So if anybody has a trail rail system and/or has removed it for a project i would really appreciate the information.

OP
OP
steffen707

steffen707

Well-Known Member
Joined
Jan 28, 2018
Threads
202
Messages
8,588
Reaction score
8,789
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
I know this is probably a long shot but has anybody measured the trail rail system bolt spacing inside the bed. I am trying to do a DIY rail system and for some odd reason when it comes to transferring my tape mesurements ( both painters tape and mechanical tape measure) onto the unistrut I bought it is way off. So if anybody has a trail rail system and/or has removed it for a project i would really appreciate the information.
Why don't you make the holes in your rails slightly bigger? I was able to make rails out of wood and got the holes lined up pretty well. I wonder why you're having such trouble.


Chestnut

Well-Known Member
First Name
Andrew
Joined
Jul 15, 2021
Threads
0
Messages
110
Reaction score
116
Location
Minneapolis
Vehicle(s)
2013 WRX, 2017 Forester XT, 2021 JTO
Occupation
Civil Engineer
Does any one have the distance from inside the hard top roof to the middle of the rear window?

I"m trying to make a top lift and was going to go inside the window and put a brace on the top.


AmishMike

Well-Known Member
First Name
Michael
Joined
Jul 29, 2020
Threads
34
Messages
542
Reaction score
1,117
Location
Central Pa
Vehicle(s)
2020 Rubicon, 56 Coronet, 65 Dune Buggy, 71 Super Beetle......
Occupation
School Bus Contractor
Can I get measurements of the space between the axle and frame? Front and rear? I would appreciate this for multiple models too. (I think my JTR is sagging)
(I see the measurements from wheel center to bottom of fender but not sure what is considered the bottom, outer edge? liner? the lip that is an inch in?)
Thanks!!


joeym7

Well-Known Member
First Name
Joe
Joined
Sep 12, 2021
Threads
18
Messages
355
Reaction score
240
Location
east coast
Vehicle(s)
2022 Mojave, 2003 Cadalac STS
Occupation
Retired
According to the Jeep Brouchure, the Mojave width is about 74 inches....Does anyone know how exactly that is measured?

Does it include the mirrors (unfolded)?

Are the two front fenders the widest part of the truck or are the mirrors the widest part of the truck?

Thanks in advance.


DrPlastic

Well-Known Member
First Name
Scott
Joined
Dec 2, 2021
Threads
21
Messages
111
Reaction score
141
Location
Newport News, VA
Vehicle(s)
'16 H-D Breakout, '21 Willys Gladiator
Occupation
Aircraft Electrician/Mechanic
If you have a stock Willys Gladiator and you installed nerf/side step or step bars, I am looking for the height of the side steps from the ground. I am short legged. shopping for side steps.

TIA


am1978

Well-Known Member
First Name
Adam
Joined
Jun 26, 2018
Threads
23
Messages
1,093
Reaction score
854
Location
MD
Vehicle(s)
2021 JTRD, 2018 JLU Sahara
Occupation
Homebrewer
If you have a stock Willys Gladiator and you installed nerf/side step or step bars, I am looking for the height of the side steps from the ground. I am short legged. shopping for side steps.

TIA
I don’t have a Willy’s but my Rubicon has Quadratec side steps on it and my 5’ wife has no problem getting in/out. I’m sure a step would suit you fine. It’s more about having a step that sticks out a few inches to get a foothold on than how high the step is.


DrPlastic

Well-Known Member
First Name
Scott
Joined
Dec 2, 2021
Threads
21
Messages
111
Reaction score
141
Location
Newport News, VA
Vehicle(s)
'16 H-D Breakout, '21 Willys Gladiator
Occupation
Aircraft Electrician/Mechanic
Stock Rubicons sit higher than a stock Willys. Thanks


Rusty PW

Well-Known Member
First Name
Russ
Joined
Jan 10, 2022
Threads
5
Messages
1,582
Reaction score
4,027
Location
Fayette Nam, Pennsyltucky
Website
www.youtube.com
Vehicle(s)
JTRD, 370Z Nismo, Honda VFR
Build Thread
Link
Occupation
Retired CRO
I need a measurement on the trail rails in the bed. What is the distance between the left and right side rails. I have the RAM rails in my Power Wagon. And have the rail mounted tool box that slides in the rails. I want to see if the box will fit.


kad's_Glad

Well-Known Member
First Name
Rufus
Joined
Jul 19, 2021
Threads
0
Messages
202
Reaction score
232
Location
Pacific Northwest
Vehicle(s)
'22 Mojave - Sting Gray
Occupation
Retired
I need a measurement on the trail rails in the bed. What is the distance between the left and right side rails. I have the RAM rails in my Power Wagon. And have the rail mounted tool box that slides in the rails. I want to see if the box will fit.
56 3/8" between left and right trail rails


BaliMawr

Well-Known Member
First Name
Josh
Joined
Jan 8, 2022
Threads
10
Messages
323
Reaction score
283
Location
Fredericksburg, Va
Vehicle(s)
2022 JTMT, 2004 R1150GS, 1979 R100
Build Thread
Link
Occupation
Art Teacher, Blacksmith

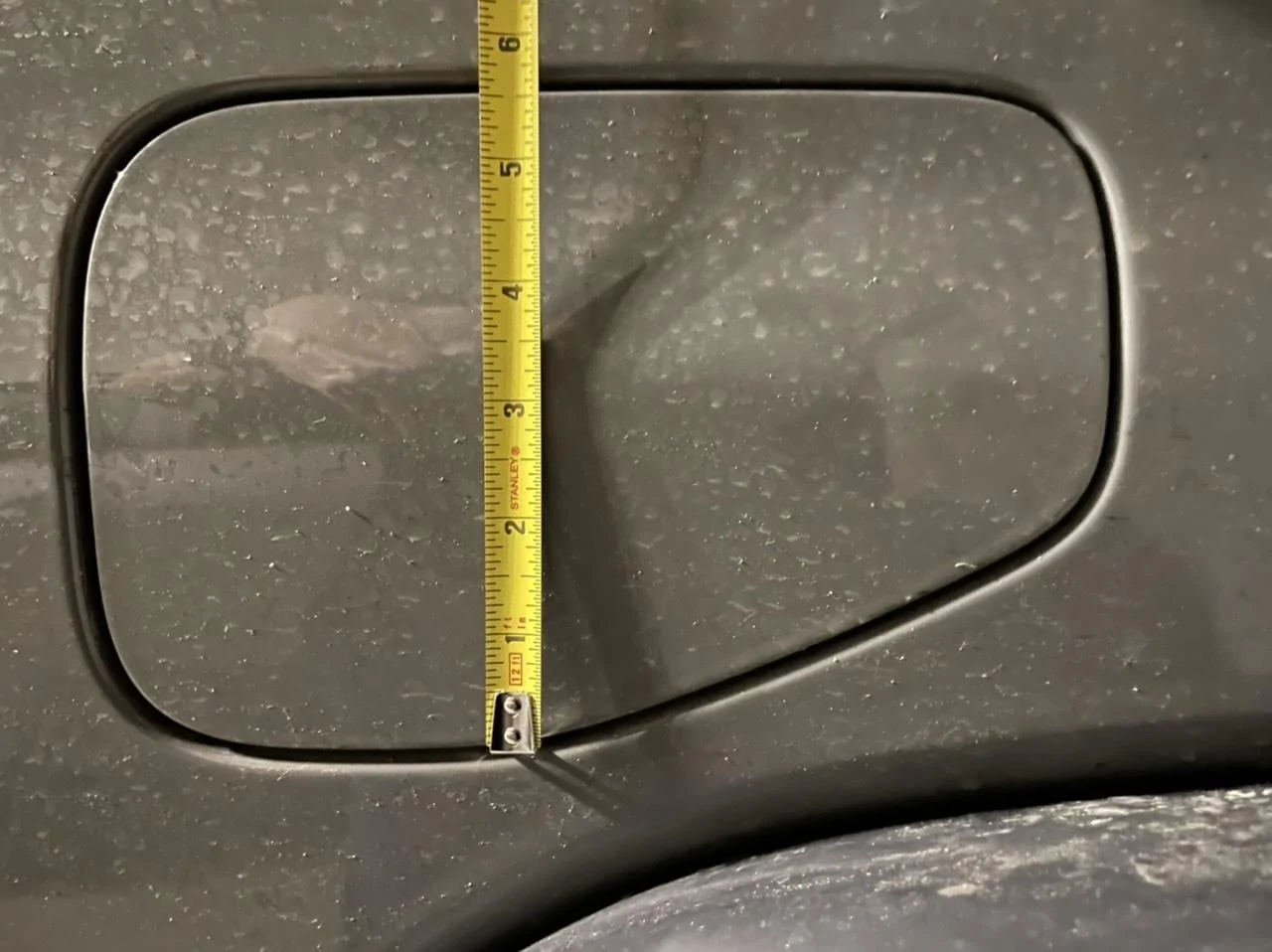

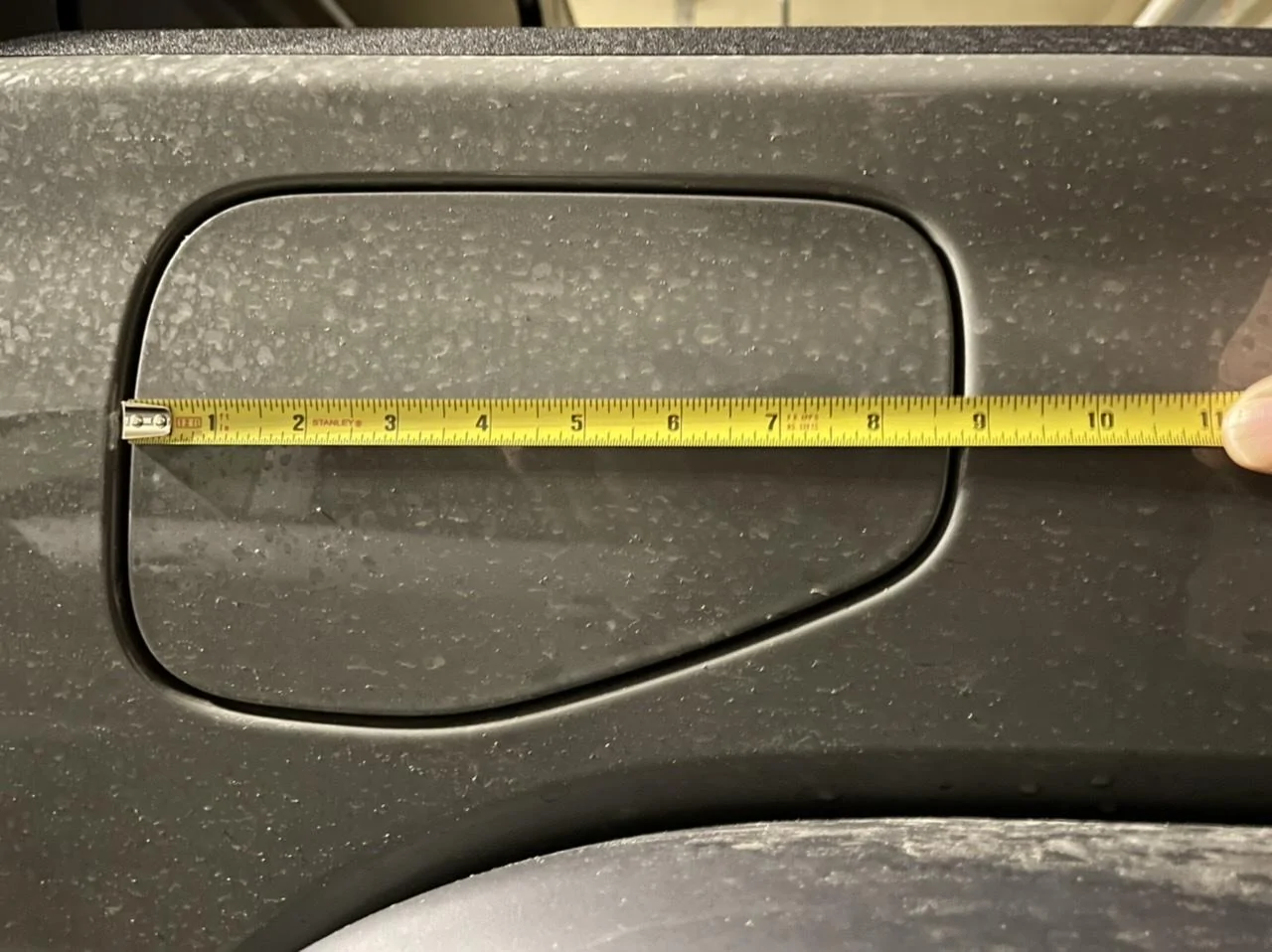

I posted this in the wrong place earlier- what's the height and width of the fuel door?
