Rigid LED Back up lighting - use of aux switches possible?

  1. Gatorized

    Gatorized Well-Known Member

    Vehicle(s):
    ‘06 CRV, ‘14 Mazda3, ‘20 JTR (Gator)
    Joined:
    Sep 13, 2019
    Location:
    ME/NH
    Posts:
    665
    Liked:
    459
    Could you save the aux switch for something else and accomplish the same thing but hook your extra backup lights to the bed light switch? I’m just thinking you wouldn’t have to run wiring from the front if you tapped into the bed lights.

  2. OP
    OP
    Doolin64

    Doolin64 Well-Known Member

    First Name:
    John
    Vehicle(s):
    2020 Jeep Gladiator, 2018 Audi A4
    Joined:
    Jan 25, 2019
    Location:
    Dudley, Ma
    Posts:
    148
    Liked:
    127
    I need the relay because I want to be able to switch the lights on via the Auxiliary switch if I'm in park and not using reverse. It's come in handy unloading my dirtbike or unhooking the trailer at night.

  3. HTXGladiator

    HTXGladiator Well-Known Member

    First Name:
    Jason
    Vehicle(s):
    2020 Gladiator Rubicon, 2014 HD XL1200X
    Joined:
    Aug 7, 2019
    Location:
    The Woodlands, TX
    Posts:
    343
    Liked:
    268
    Garage Profiles:
    1
    In all fairness, you could save a LOT of time by just using the reverse lights. Instead of using an aux switch, just out the truck in run (engine off, park brake set) then out it in reverse and boom! Lights.

  4. OP
    OP
    Doolin64

    Doolin64 Well-Known Member

    First Name:
    John
    Vehicle(s):
    2020 Jeep Gladiator, 2018 Audi A4
    Joined:
    Jan 25, 2019
    Location:
    Dudley, Ma
    Posts:
    148
    Liked:
    127
    #19 Jan 8, 2020
    Last edited: Jan 9, 2020
  5. sawman

    sawman Member

    First Name:
    Mike
    Vehicle(s):
    2001 Z71
    Joined:
    Sep 7, 2019
    Location:
    Louisiana
    Posts:
    13
    Liked:
    11
    #20 Jan 9, 2020
    Last edited: Jan 9, 2020

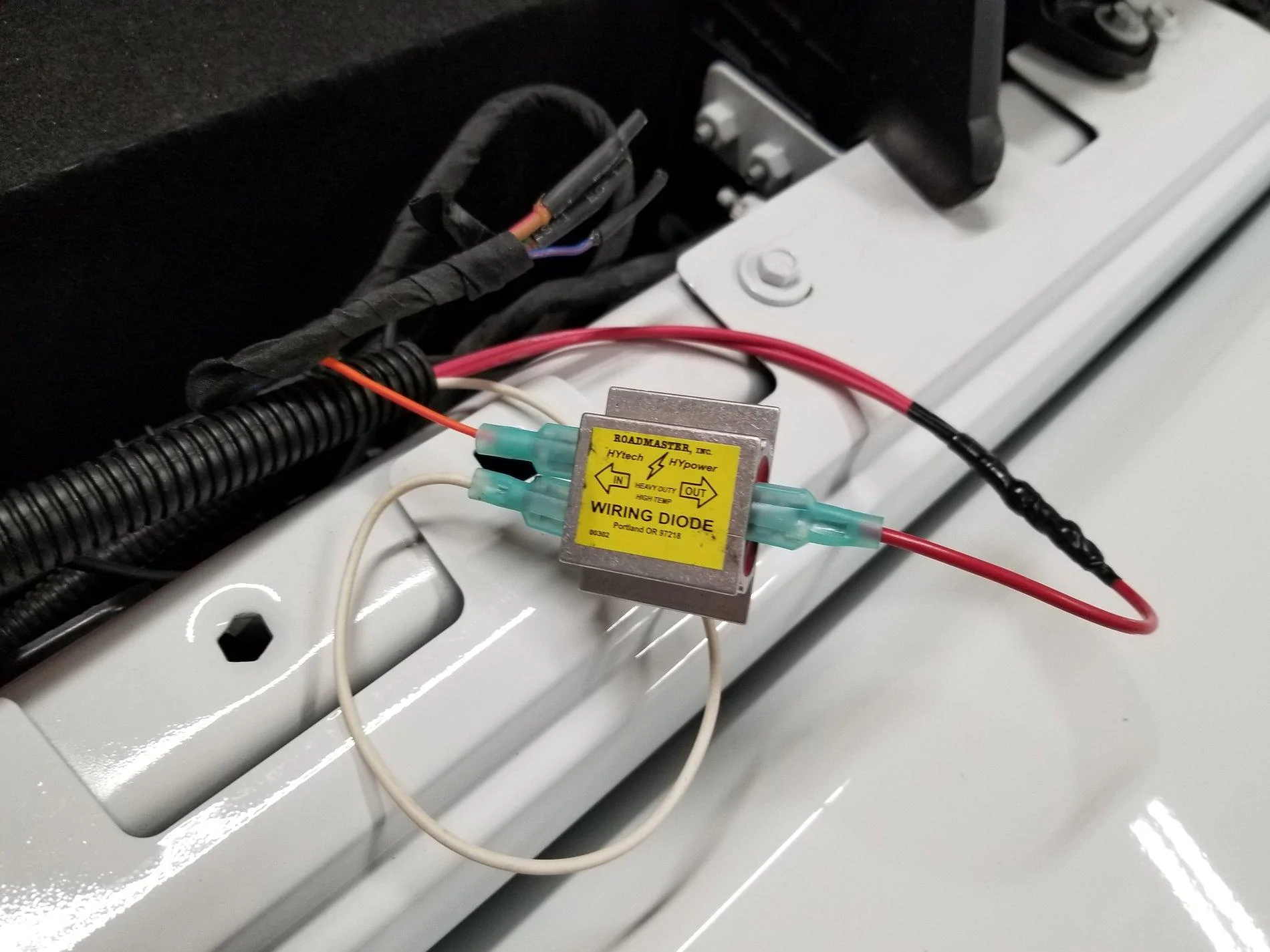

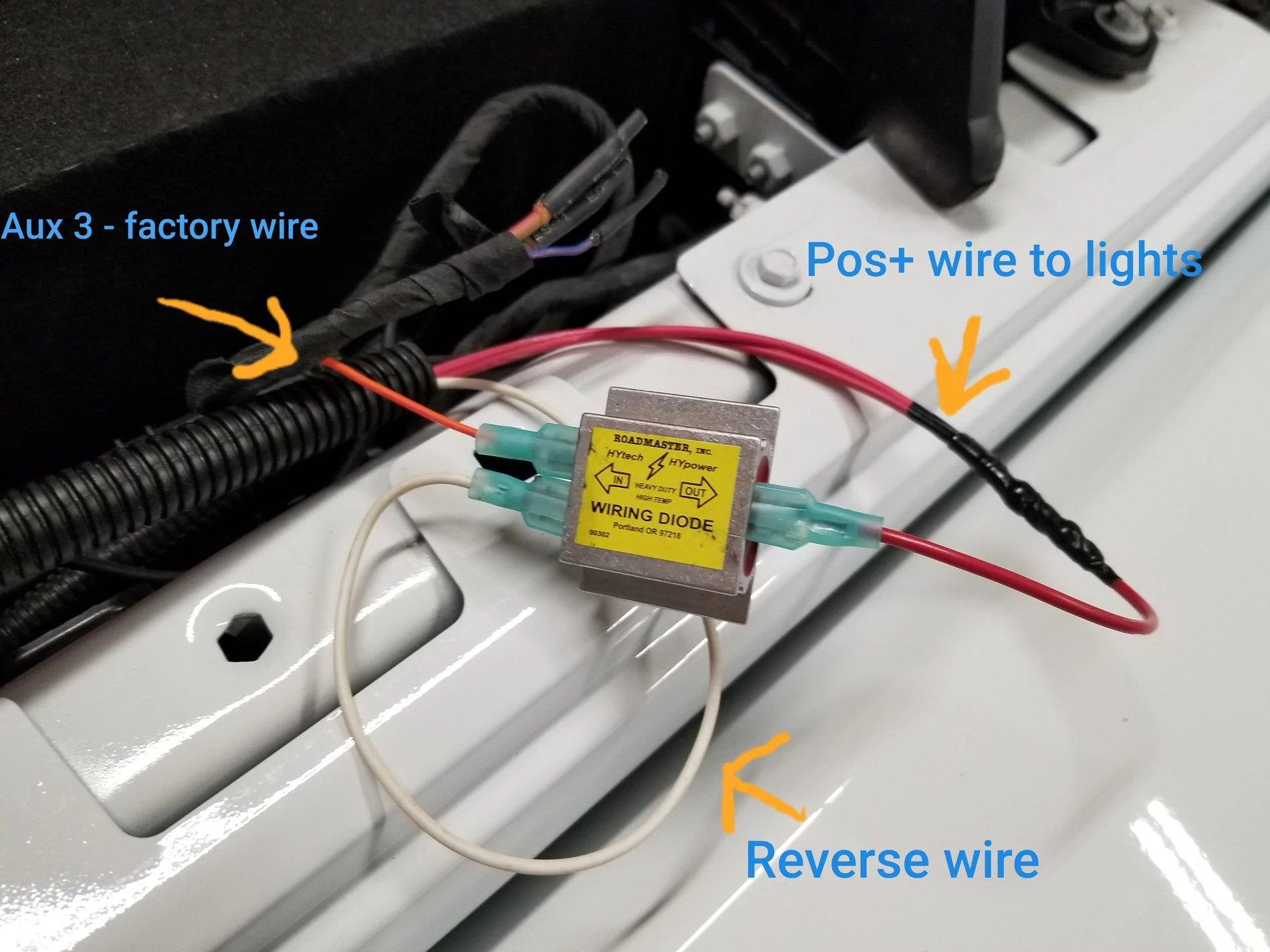

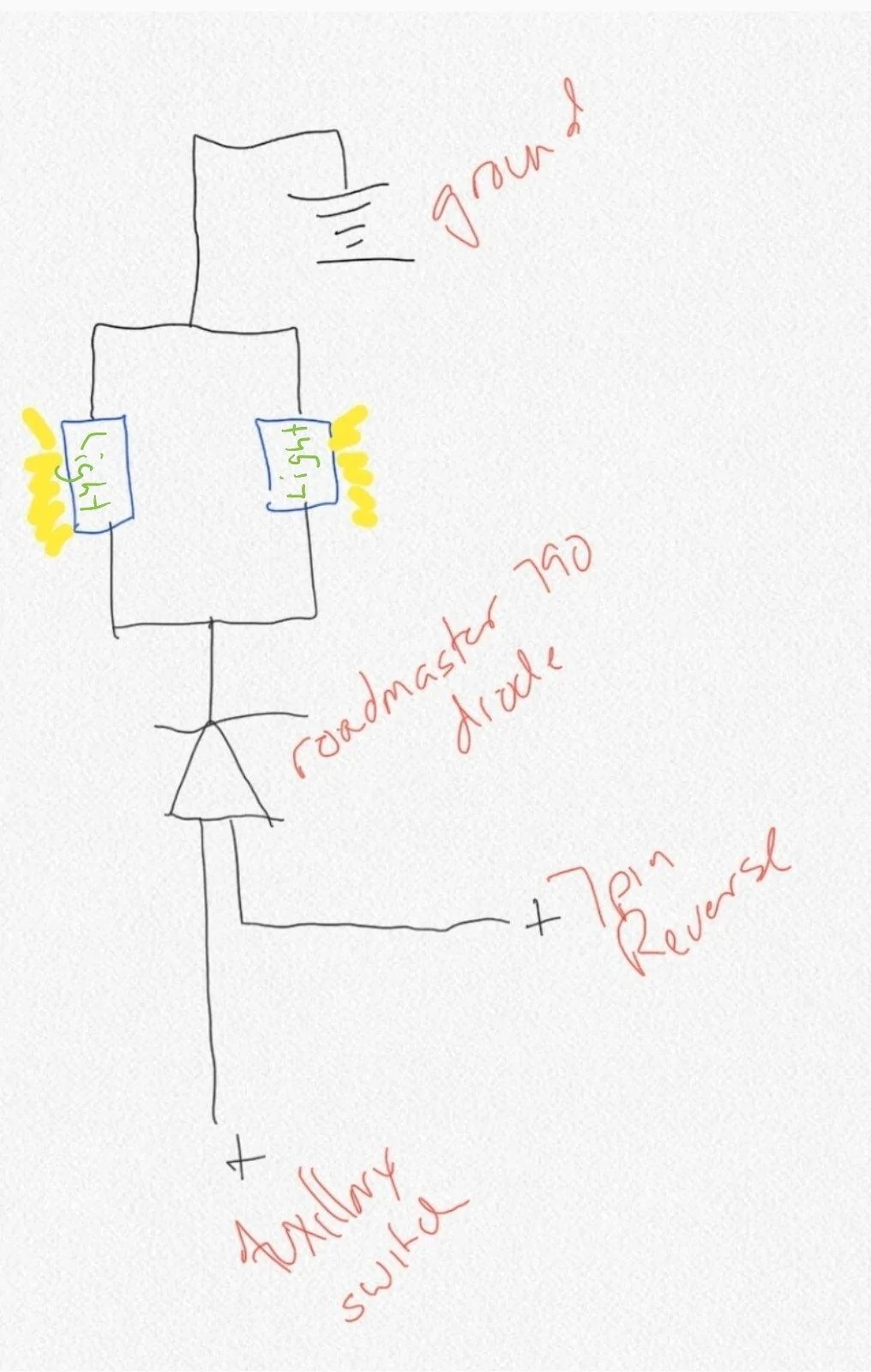

    A diode allows current flow in one direction only. Prevents backfeeding power where you don't want it.
    A relay redirects current flow just like a switch, but instead of actuating it with your finger, it's done electrically.

    Doolin64 and HTXGladiator like this.
