Tonneau Cover Photos and Fit, I need help making a choice.

1337bwr

Member
Joined
Apr 21, 2020
Messages
6
Reaction score
9
Location
Memphis, TN
Vehicle(s)
2020 Gladiator JT
Occupation
Information Security
did those Brackets come with it? I just bought a used Tonneau, and it has those exact latches... I can't get it to latch with my utility rails.
Yes it came with 6 and a hex key to tighten them on the rails



Advertisement




Br4hm4

Well-Known Member
First Name
Grant
Joined
Nov 5, 2019
Messages
302
Reaction score
259
Location
Peyton, CO
Vehicle(s)
2020 JT OE, 2016 Polaris Slingshot, 2012 Kia Sportage, 2018 Nissan LEAF
Occupation
Linux Engineer
did those Brackets come with it? I just bought a used Tonneau, and it has those exact latches... I can't get it to latch with my utility rails.
The one you got does not have that Bracket. It should latch under your trail rail. The hardest part is getting it adjusted to fit. I didn't have the trail rail and it latched under the bed lip. You may have to bring the latches on the cover towards the middle of the notches, so when you try and clamp it in place it sits up and down. If it sits on an angle it may not hold.


CCCVagabond

Active Member
First Name
Cory
Joined
Apr 26, 2020
Messages
25
Reaction score
21
Location
Golden, Colorado
Vehicle(s)
White JTR
The one you got does not have that Bracket. It should latch under your trail rail. The hardest part is getting it adjusted to fit. I didn't have the trail rail and it latched under the bed lip. You may have to bring the latches on the cover towards the middle of the notches, so when you try and clamp it in place it sits up and down. If it sits on an angle it may not hold.
yeah, I was able to get the 4 towards the front to latch, but the lever handle by the tailgate won't fit under the lip between the rail, and it is not long enough to get it in the rail itself. Tyger sells those brackets separately, so going to order 2 for the tailgate.

In the meantime I am creating a wire harness that attaches to the bed tie-down so the lever can latch... I think it will work. I'll post pictures later tonight after I have them made!

I may head to home depot and see if I can find a longer threaded post... that may work as well.


Br4hm4

Well-Known Member
First Name
Grant
Joined
Nov 5, 2019
Messages
302
Reaction score
259
Location
Peyton, CO
Vehicle(s)
2020 JT OE, 2016 Polaris Slingshot, 2012 Kia Sportage, 2018 Nissan LEAF
Occupation
Linux Engineer
yeah, I was able to get the 4 towards the front to latch, but the lever handle by the tailgate won't fit under the lip between the rail, and it is not long enough to get it in the rail itself. Tyger sells those brackets separately, so going to order 2 for the tailgate.

In the meantime I am creating a wire harness that attaches to the bed tie-down so the lever can latch... I think it will work. I'll post pictures later tonight after I have them made!

I may head to home depot and see if I can find a longer threaded post... that may work as well.
Dang sorry about that. I figured it would have fit just fine in to or under the trail rail system.


CCCVagabond

Active Member
First Name
Cory
Joined
Apr 26, 2020
Messages
25
Reaction score
21
Location
Golden, Colorado
Vehicle(s)
White JTR

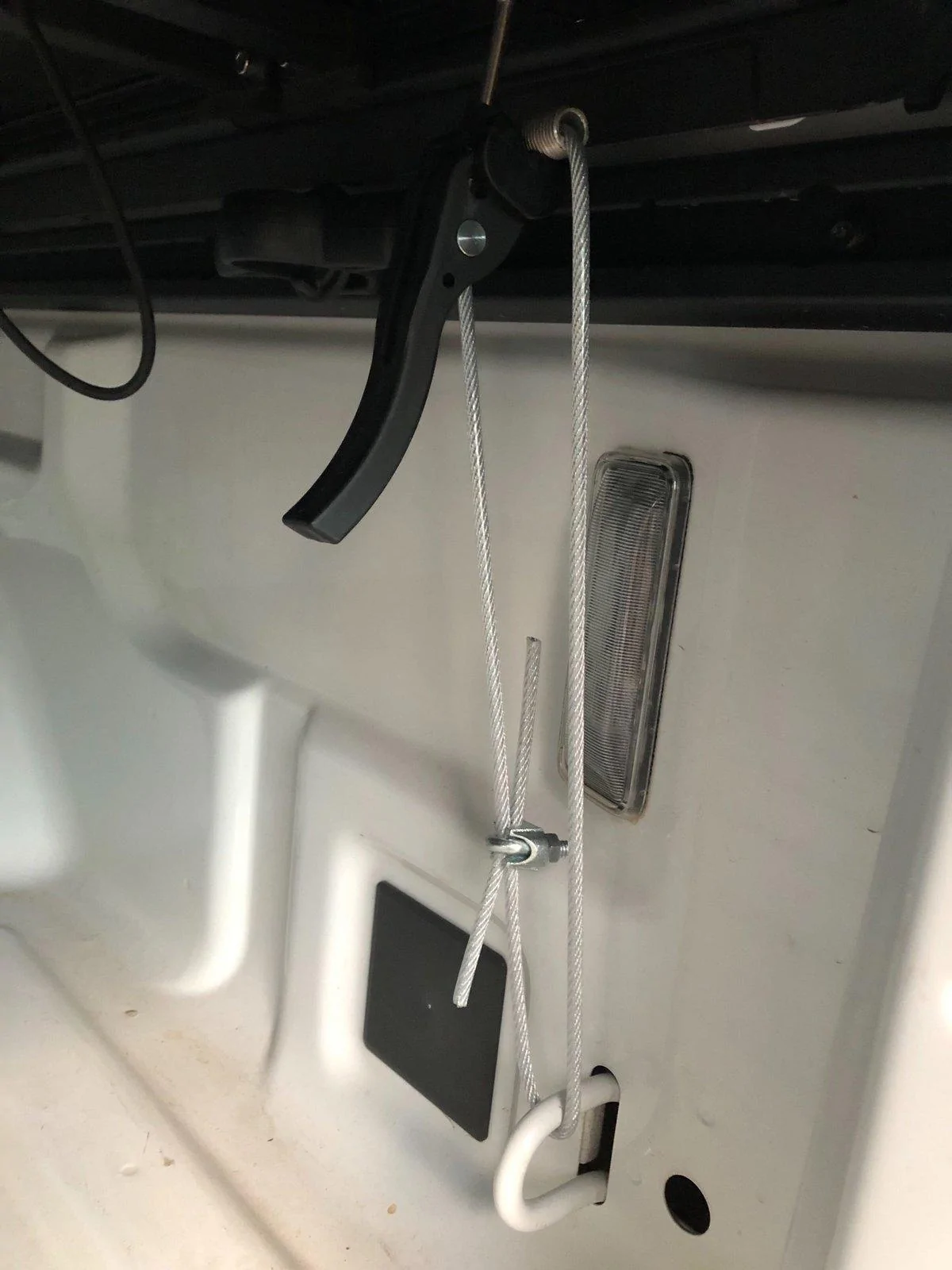

So I ordered a couple brackets, because it should work with my cover, though it is not a Tyger. In the meantime, I got something working... if it doesn't hold, I will just ratchet the back down until the brackets come in.



Br4hm4

Well-Known Member
First Name
Grant
Joined
Nov 5, 2019
Messages
302
Reaction score
259
Location
Peyton, CO
Vehicle(s)
2020 JT OE, 2016 Polaris Slingshot, 2012 Kia Sportage, 2018 Nissan LEAF
Occupation
Linux Engineer
So I ordered a couple brackets, because it should work with my cover, though it is not a Tyger. In the meantime, I got something working... if it doesn't hold, I will just ratchet the back down until the brackets come in.

Adapt and overcome...very nice.


j.o.y.ride

Well-Known Member
Joined
May 26, 2020
Messages
84
Reaction score
37
Location
Foster City
Vehicle(s)
20 Gladiator Overland
How do you like it? This is the one I’m leaning towards, mainly because it has the rail slots built in for a bike / ski rack.
For me it's the best solution. The roll up in bed ones will eat 20% of the bed space and cost $$. The 3 piece fold into the window which I hate. Leaves this style. I love the security feature of locking down the whole bed length. Good quality, would buy again.

I also plan to do something like the RCI bed rack which has a bike option off the side. Im gonna avoid straight bike racks on this.


Flexin

Well-Known Member
Joined
Apr 4, 2019
Messages
224
Reaction score
204
Location
Michigan
Vehicle(s)
Gladiator Rubicon

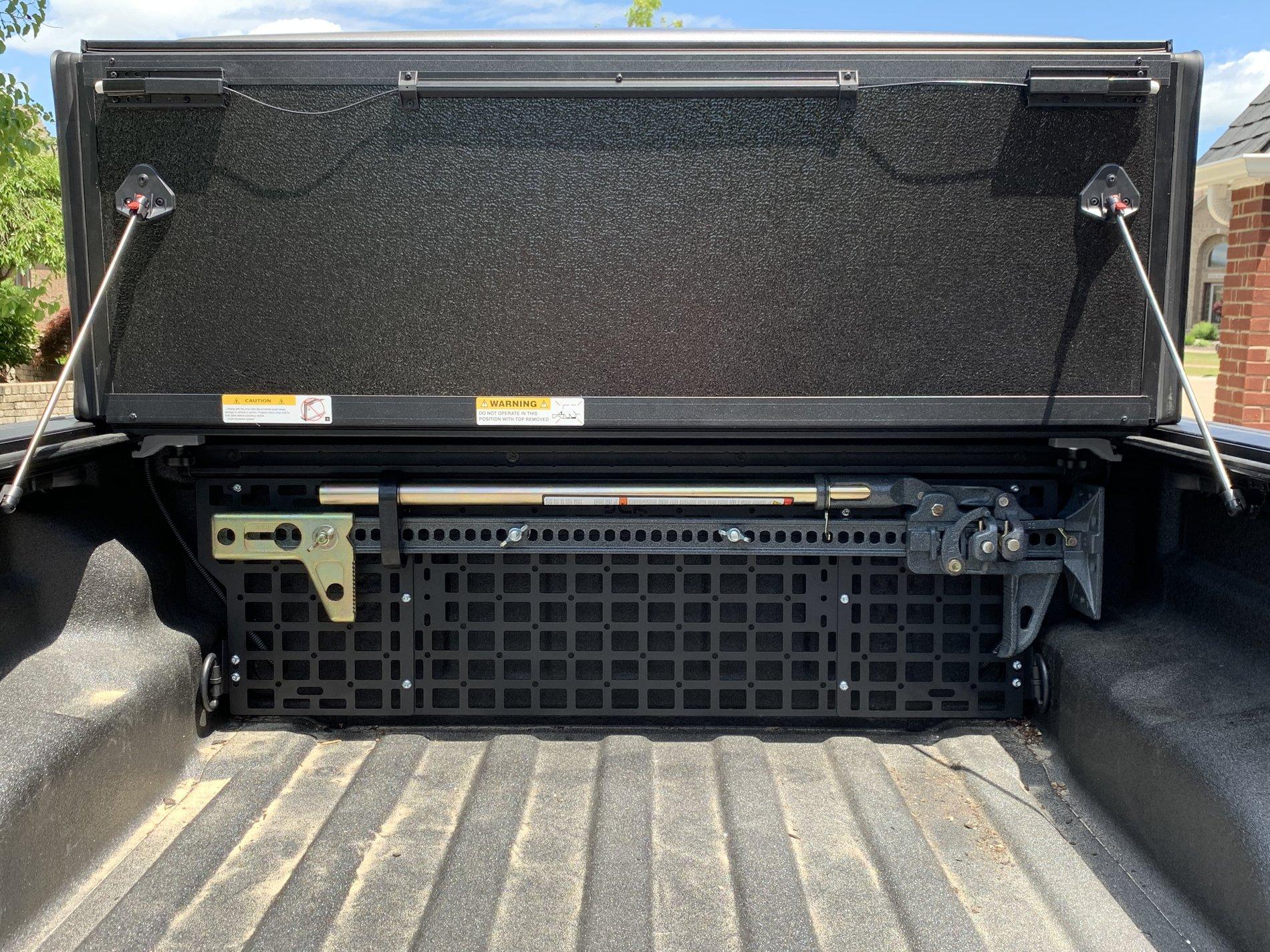

I really like the rigger ridge tri fold hard cover. It’s flush mount and when I need it up and out of the way, it props up. This is my second cover and I got this instead for these reasons.





firemedic2714

Well-Known Member
First Name
Scotty P
Joined
Oct 24, 2018
Messages
150
Reaction score
129
Location
St. Louis, Missouri
Vehicle(s)
2020 Heep Gladiator Rubicon, 2011 Acura TL SH-AWD, 2015 Honda Civic Si, 1992 Trans Am convertible
Occupation
Firefighter / Paramedic
Vehicle Showcase
1
I have the the Tyger T3. I went with a cheap one because I'm basically only using it for vacations to keep luggage dry so it will spend most of it's time being stored in my garage (which makes the bag it came with extremely useful). At $220, it was well worth it and came with brackets that slide right into the Trailrail and, if you have the Trailrail, the bed lights don't interfere with the tonneau cover handles. It's very well built and looks nice on the Jeep.
https://www.amazon.com/dp/B07XMDHWJT/ref=cm_sw_r_cp_apap_AKFNR6pP2bhnW
