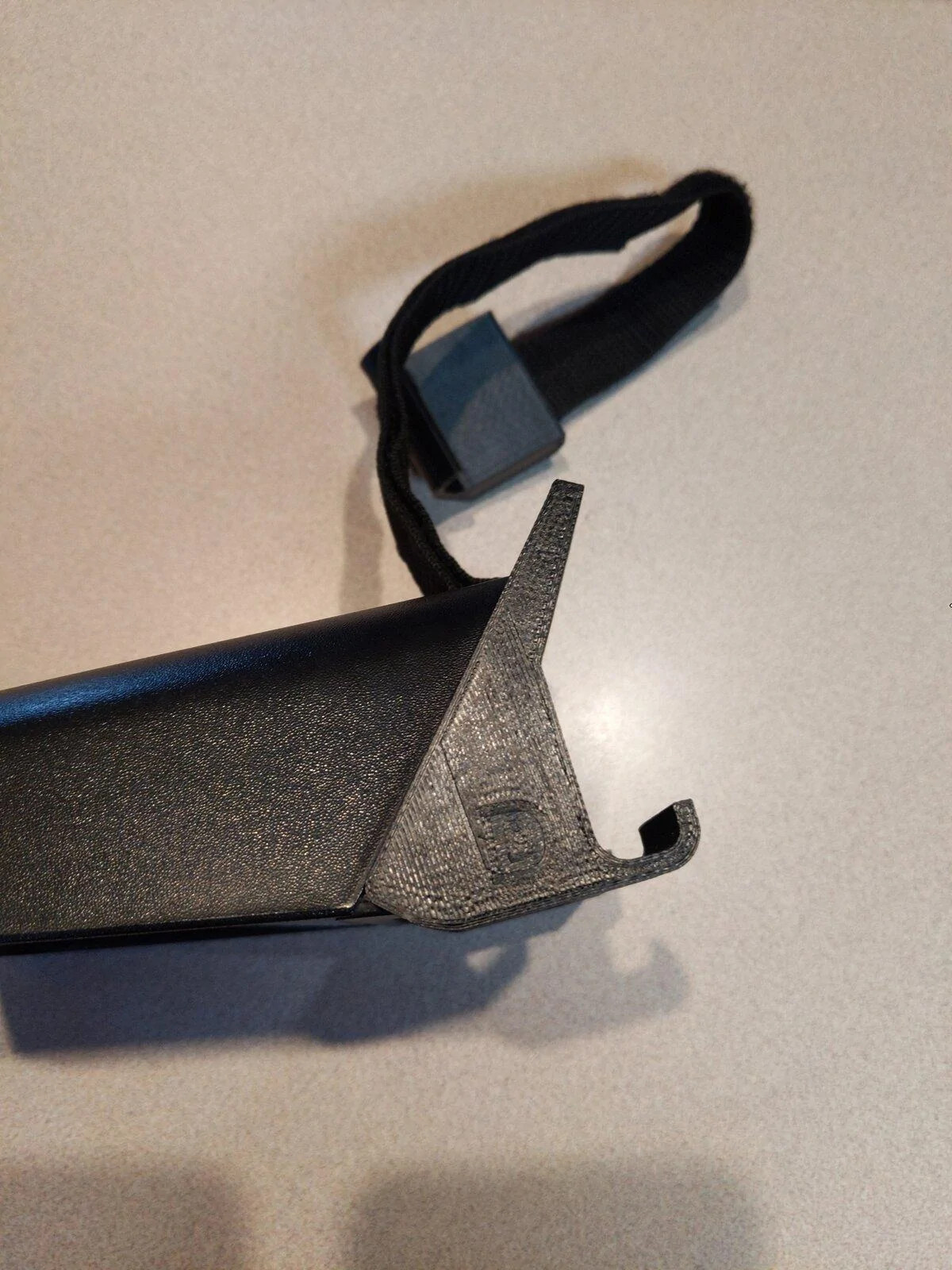

I'll be doing some testing in the next day to show what an additional 10 degrees of mirror angle gets. Here are the new adapters with the increased wedge/angle.

Please post comparison pics of the original adaptor and the new version, with mirrors set at the extreme in and out positions. I’d be interested to see the differences. Thx.

Sponsored



[Mkcagle]

SwampNut,

Absolutely! I will be offering replacement driver side adapters (two (2) wedges that attach to the mirrors). Once I get the new design tested and presented to the forum for feedback, I will be listing them for sale. There will be no need to purchase an entire new set.

Thanks again!

T. Andrew Horn
THORN-ENGINEERING

excellent, I could stand just a bit more angle out for drivers side mirror. Still think these are brilliant for these odd sized mirrors.



[avbuser]

Hey folks for anyone looking to pick up a pair of the rampage mirrors, themselves, Amazon has got a good deal for 25% off right now so comes out to just under $27.

https://www.amazon.com/dp/B00BZQZCN8/

Just got mine & got the adapter from ebay, solid quality thanks for creating!



[Thorn-Engineering]

Everyone,

As shown in the post a few above, the driver side adapter has been redesigned with an additional 10 degrees of outward angle. This has significantly increased the ability for the mirror to be adjusted outward to the point where a trailer is not even seen. This, in my mind, offers a much more usable adjustment range. Below are some pictures showing the difference between original and second revision. I held my phone/camera in the middle of the headrest as a common point (look at the trailer in the factory mirror and its pretty close to the same in each picture) and adjusted the Rampage mirror all the way inwards and outwards. The trailer in the pictures is a Triton 12' long, 101" wide, clamshell snowmobile trailer. This is as wide as a trailer can be (legally) and tow mirrors are an absolute must when pulling it. One (1) trip up north without them lead me to design the adapters (which I used for years pulling the same trailer with me JKUR).

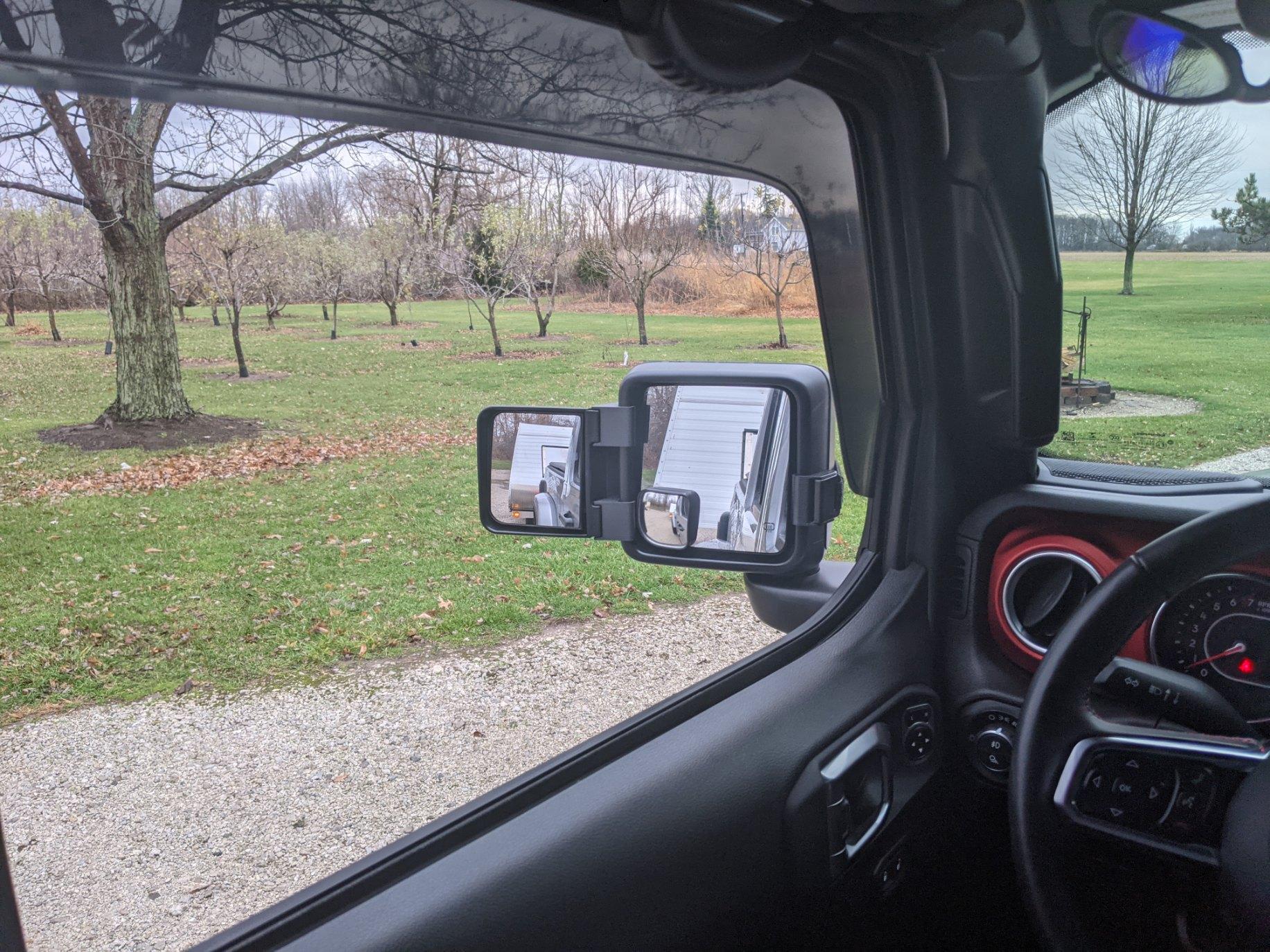

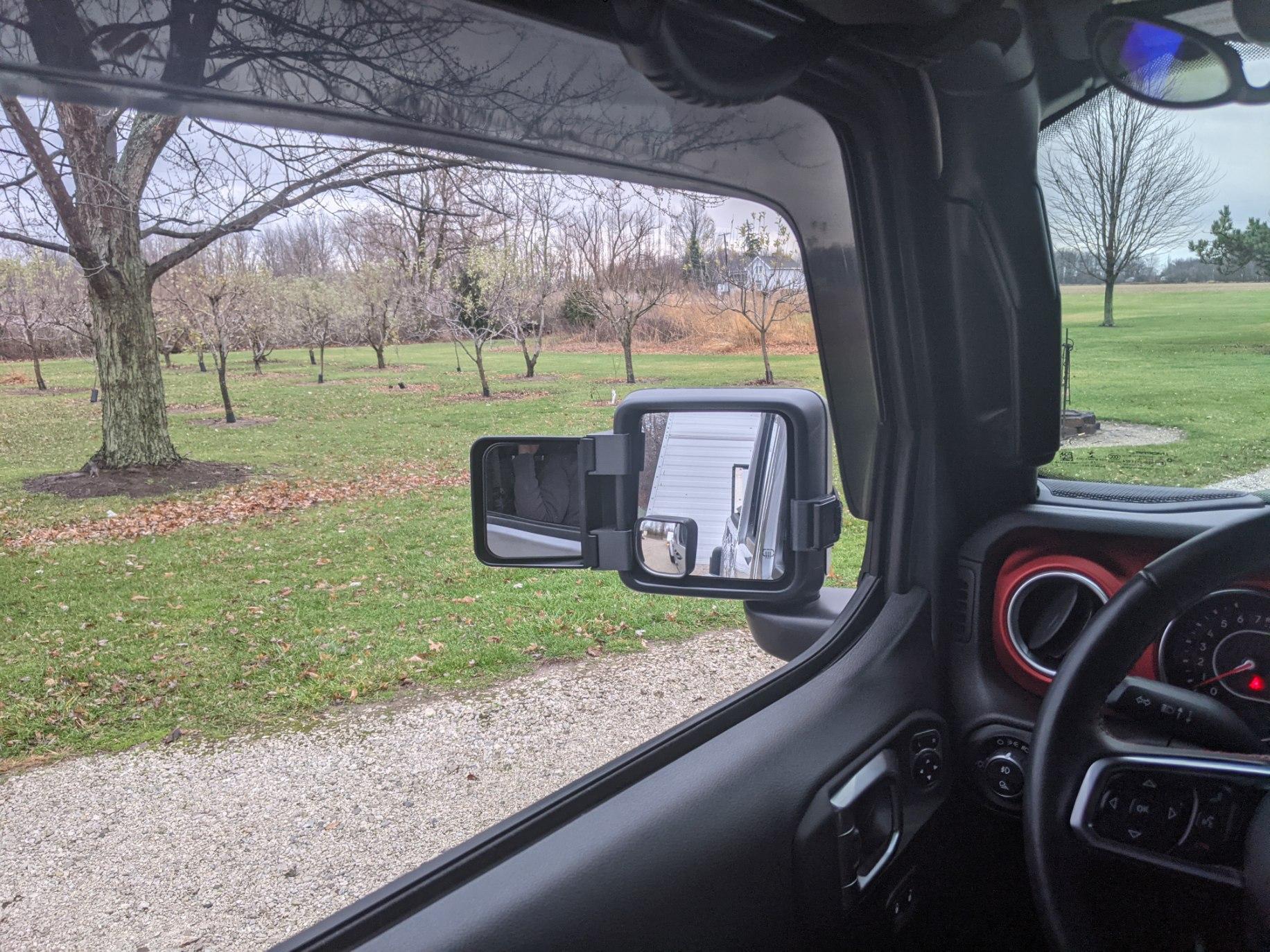

Original tow mirror adapters adjusted fully "in" and "out":

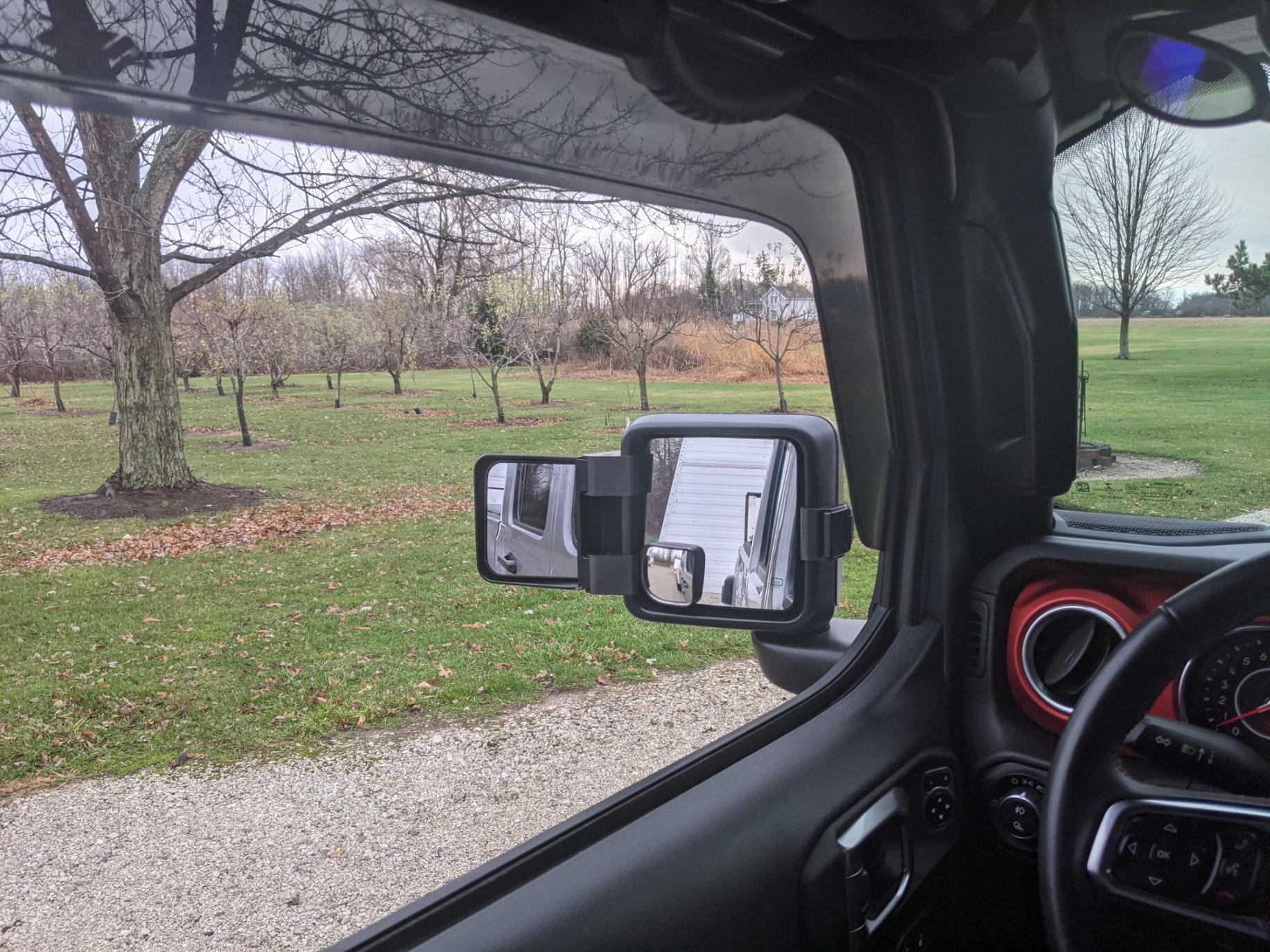

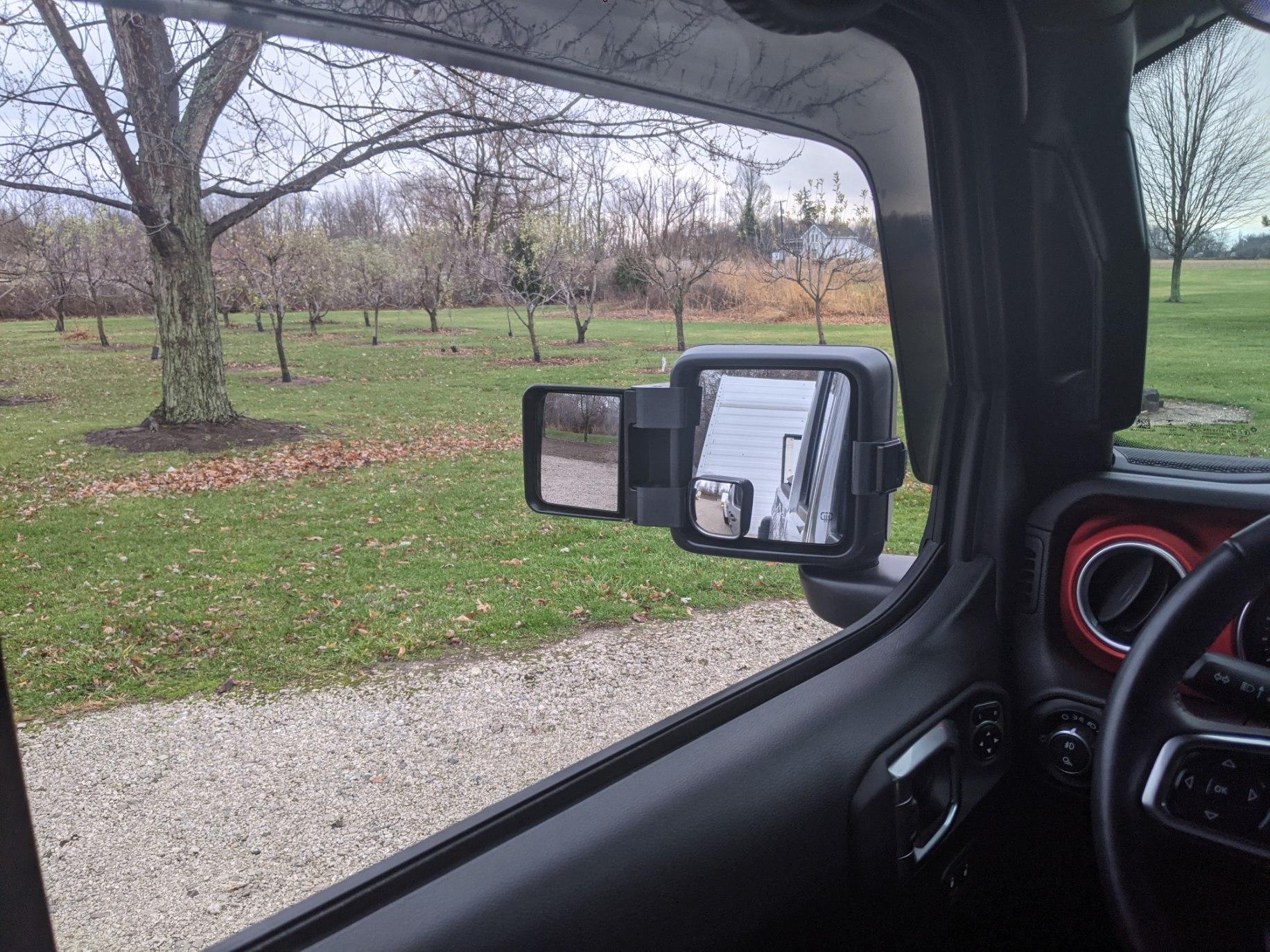

Revision 2 (+10 degrees) driver side tow mirror adapters adjusted fully "in" and "out":

I am looking for feedback from anyone on whether this is provides what some have been asking for. I will be updating the full set adapters to include the new design for the driver side. I'll also be offering a retrofit fit kit with two (2) new driver side adapters for around $15 for those of you would like to update.

As always, I love the input from the forum and look forward to continuing to improve the design where it makes sense. Please let me know if you have any questions.

Once I get some feedback, I will begin printing and offering the updated sets/retrofits. My goal would be to have this done by December 1st.

Thanks again!

T. Andrew Horn
THORN-ENGINEERING



[Jaxmax]

It provides what I have been waiting for, great job on listening and following through, I will be ordering a revised set when you have them avalible, Thanks!....Jack



[Thorn-Engineering]

Here is the link to the retro fit kit:

https://www.ebay.com/itm/333804012374



[Jaxmax]

Guess I should have said, I've been waiting to purchase the whole passenger and latest version driver side set when you have them up, unless they are up already....Jack



[Gatorized]

Here is the link to the retro fit kit:

https://www.ebay.com/itm/333804012374

Ordered - thanks!



[Jaxmax]

Checked they are up and I ordered!....Jack



[Thorn-Engineering]

Guess I should have said, I've been waiting to purchase the whole passenger and latest version driver side set when you have them up, unless they are up already....Jack

Jack,

Listing on eBay has been updated with the new revision on the full set.

http://rover.ebay.com/rover/1/711-5...29466&kwid=902099&mtid=824&kw=lg&toolid=11111

T. Andre Horn
THORN-ENGINEERING



[OMTBiker]

Everyone,

As shown in the post a few above, the driver side adapter has been redesigned with an additional 10 degrees of outward angle. This has significantly increased the ability for the mirror to be adjusted outward to the point where a trailer is not even seen. This, in my mind, offers a much more usable adjustment range. Below are some pictures showing the difference between original and second revision. I held my phone/camera in the middle of the headrest as a common point (look at the trailer in the factory mirror and its pretty close to the same in each picture) and adjusted the Rampage mirror all the way inwards and outwards. The trailer in the pictures is a Triton 12' long, 101" wide, clamshell snowmobile trailer. This is as wide as a trailer can be (legally) and tow mirrors are an absolute must when pulling it. One (1) trip up north without them lead me to design the adapters (which I used for years pulling the same trailer with me JKUR).

Original tow mirror adapters adjusted fully "in" and "out":

Revision 2 (+10 degrees) driver side tow mirror adapters adjusted fully "in" and "out":

I am looking for feedback from anyone on whether this is provides what some have been asking for. I will be updating the full set adapters to include the new design for the driver side. I'll also be offering a retrofit fit kit with two (2) new driver side adapters for around $15 for those of you would like to update.

As always, I love the input from the forum and look forward to continuing to improve the design where it makes sense. Please let me know if you have any questions.

Once I get some feedback, I will begin printing and offering the updated sets/retrofits. My goal would be to have this done by December 1st.

Thanks again!

T. Andrew Horn
THORN-ENGINEERING

Sent you a PM.



[Mkcagle]

Order for update made.



[SwampNut]

There's no better feedback possible than saying...ordered...



[Jaxmax]

My adaptors came today, went together easily, mount solid without pulling too hard on strap. You did an excellent job and your son counted the screws perfect. I put some 3M two sided tape on the small clamp then did a couple wraps with super 33 electrical tape just so I couldn’t loose them.
I really want to thank you for doing this you are literally a lifesaver, there isn’t really anything close to this for us....THANX!
Jack



[Thorn-Engineering]

My adaptors came today, went together easily, mount solid without pulling too hard on strap. You did an excellent job and your son counted the screws perfect. I put some 3M two sided tape on the small clamp then did a couple wraps with super 33 electrical tape just so I couldn’t loose them.
I really want to thank you for doing this you are literally a lifesaver, there isn’t really anything close to this for us....THANX!
Jack

Jack,

Thank you for the feedback! My son is all about making Jeep Truck Parts!

I've seen a couple tweaks for the small hook/clamp. Glad you got something that works.

Thanks again!

T. Andrew Horn
THORN-ENGINEERING
