Utilizing the fourth wire in the headlight connection on Gladiators that have it.

[billfraley]

I am not sure where to get just the pin connector, but you could buy these and de-pin and reuse with the harness included with the headlights:

https://www.ebay.com/itm/334008784442

Sponsored



[jav_eee]

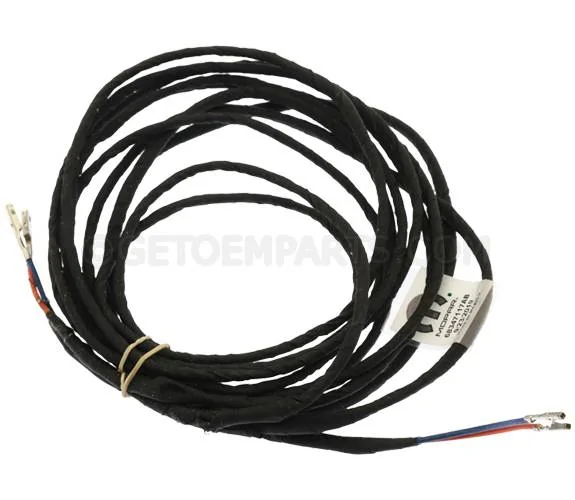

Fyi .. if anybody only has the three wires and is looking to add the fourth, the Mopar kit to do so is 68347117AB. Basically, its a short harness that you route through the firewall on the passenger side, push in pins 5 & 7 on BCM Connector C1 and then you have the two lengths of wire to reach the two headlight harnesses to add those two pins.

I have one of these that I didn’t need to use if anyone wants it (for a small price, of course)



[GRDIESEL]

I followed this and it worked great. If you buy the Molex MX150 two wire connectors for your Halo wire and your ground you end up with a nice clean setup.

https://www.jeepgladiatorforum.com/...adlight-halo-harness.50690/page-3#post-910011



[Rockabillyroy]

I am not sure where to get just the pin connector, but you could buy these and de-pin and reuse with the harness included with the headlights:

https://www.ebay.com/itm/334008784442

good idea. Looks like a cheaper option than trying to just by the pins.


here is a de-pinning vid to help any one else reading this thread.



[loganjeeps]

thanks for parts referrals @billfraley and @GRDIESEL
