ARB Twin Setups.. I need ideas!!

[813 Fabrication & Design]

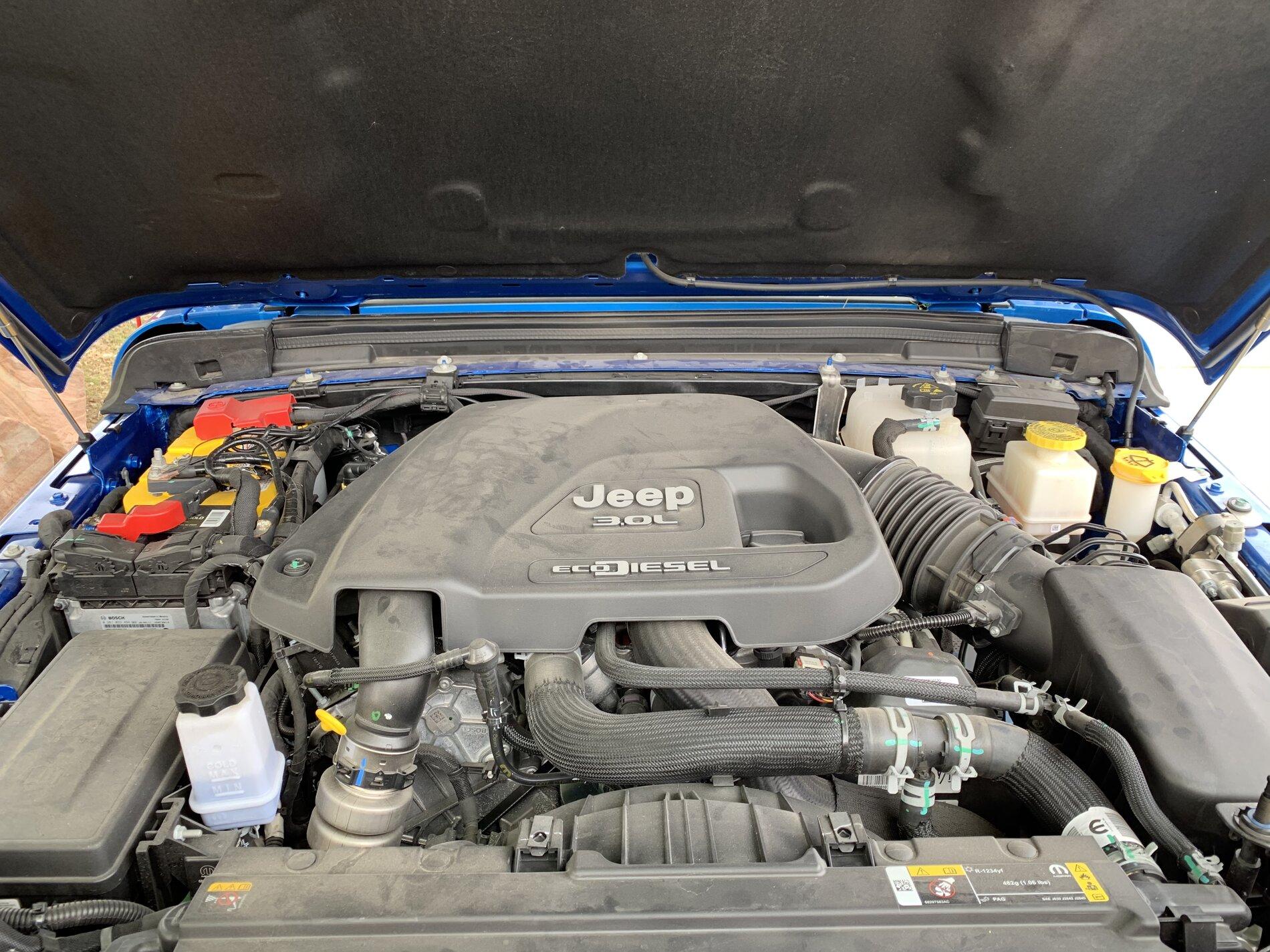

From what I seen... no but I have not seen under the hood without the engine deco cover.. still think now but I will try and post a pic later.. still feel shunned from the aftermarket retailers.. been 6 months and hardly nothing is available ..oh well..
edit to add photo

Sorry, the diesel is a completely different setup so it would not work. I'm not sure I could get one to work. By looking at the photo there is a lot going on in that area, I am not sure there would be enough clearance.

Sponsored



[813 Fabrication & Design]

I plan to get something from you guys for a dual arb compressor set up. I like the enclosure idea. Is there a military or forum discount code?

Sorry, at the moment we aren't running any specials or coupons in an effort to keep the retail price at a manageable level due to the current metal/production costs.



[XraytecH]

Can someone tell me what the container is he installed in the bed? He called it an ammo can( I think). What is it and where can you get it?

I like that idea or maybe use the bed bracket/box idea..since these won’t fit in the engine Bay Area (so far)..

Thanks

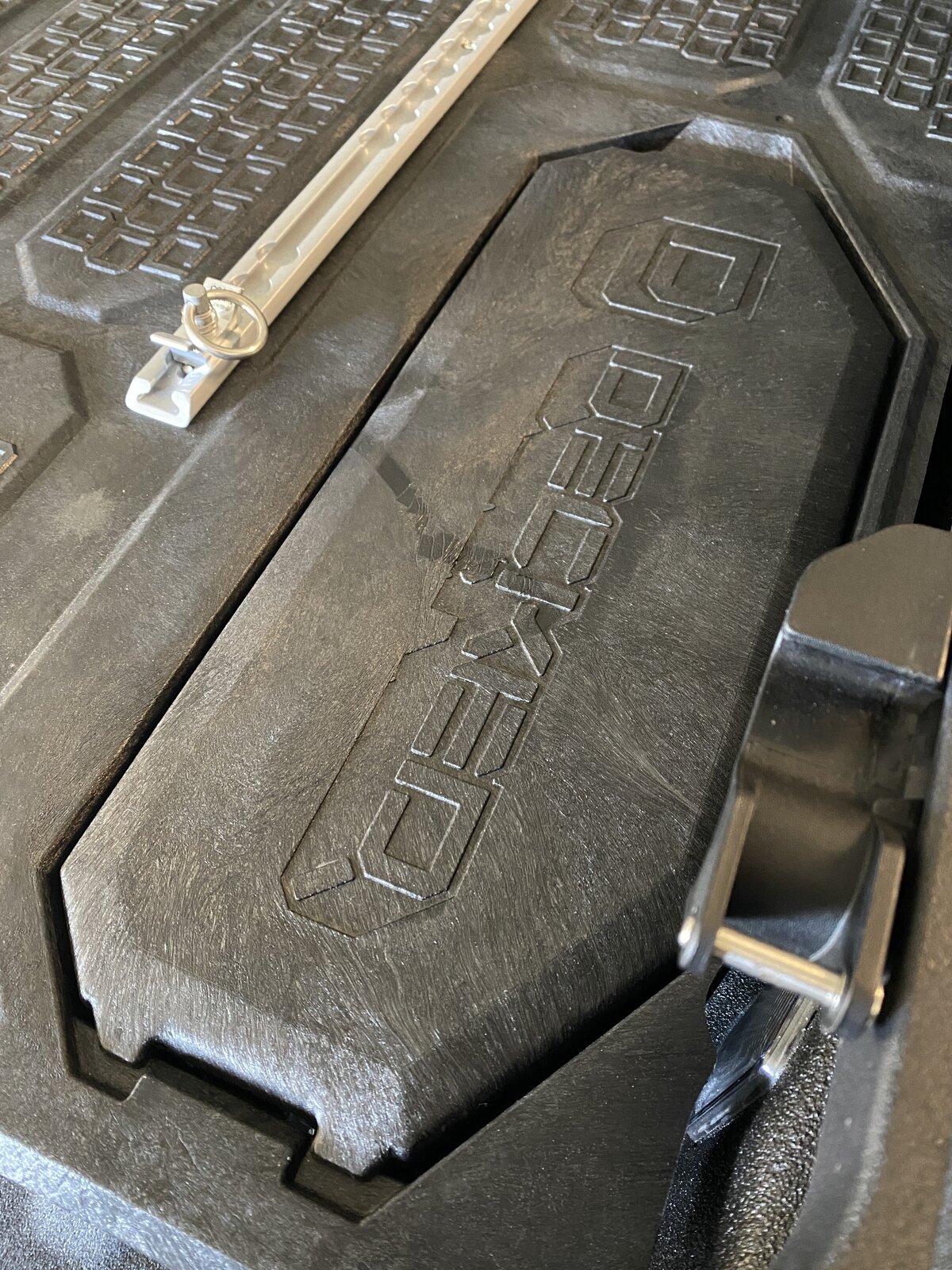

These are the Ammo Cans, well DECKED's version of an Ammo Can.

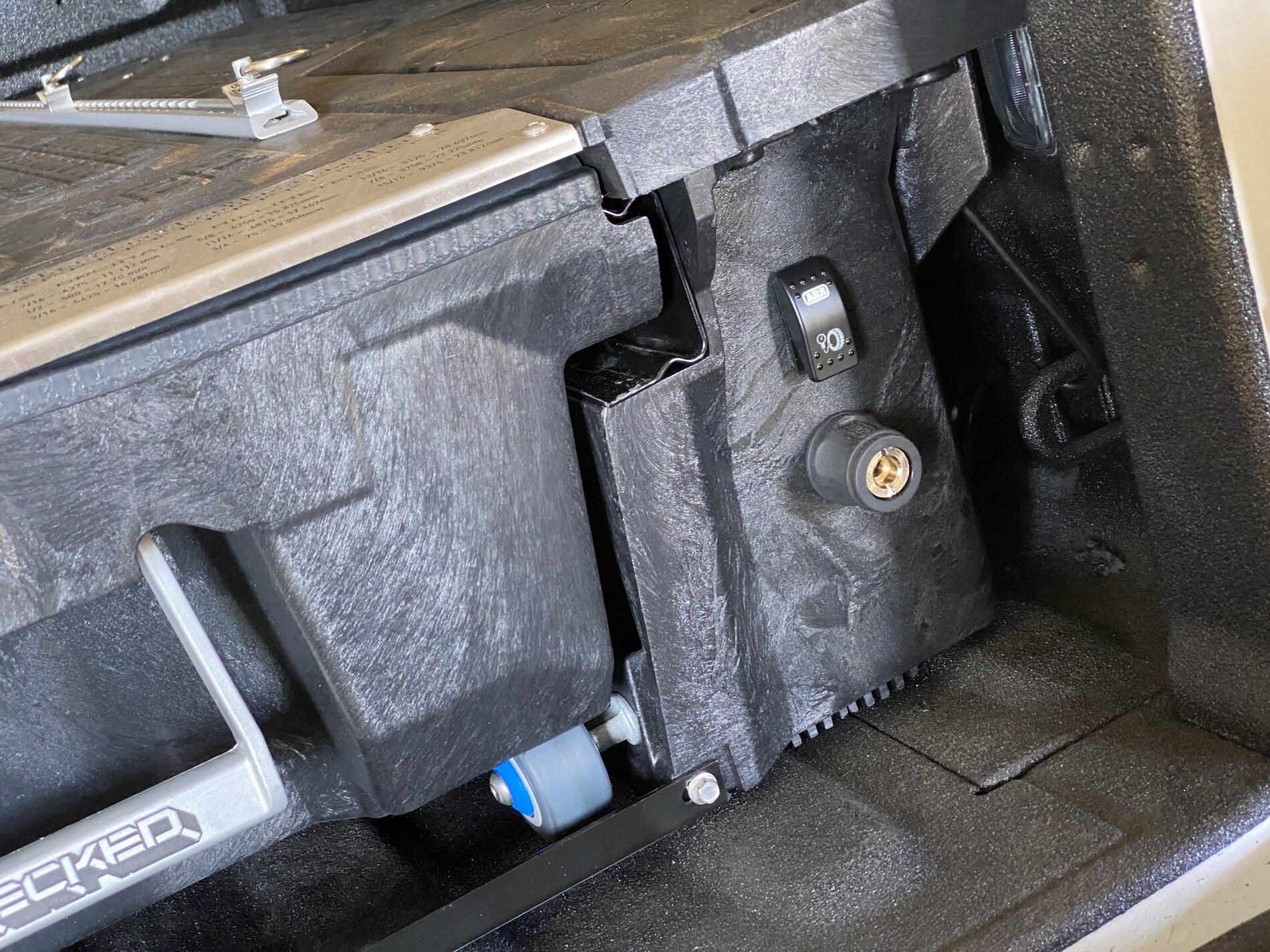

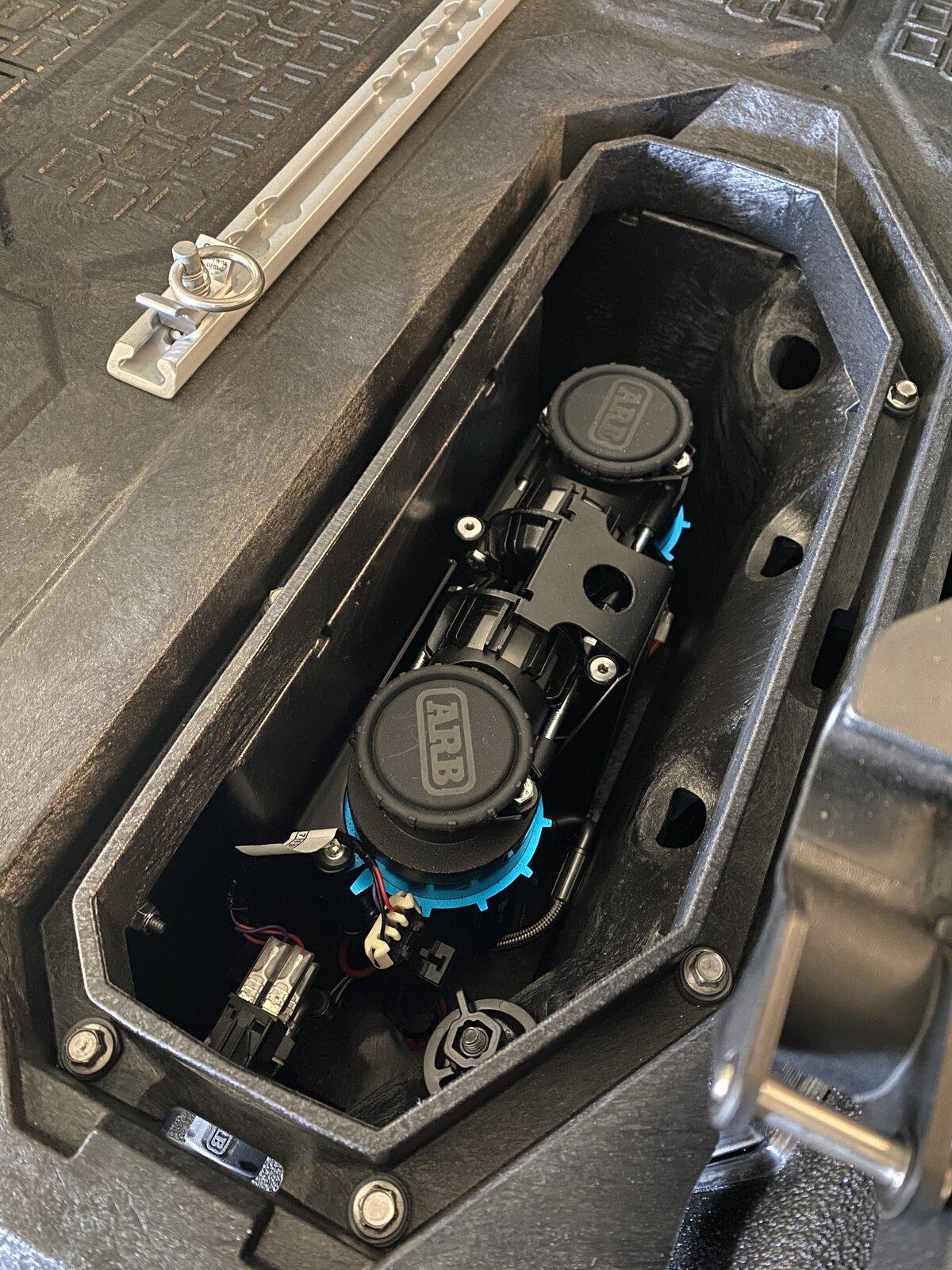

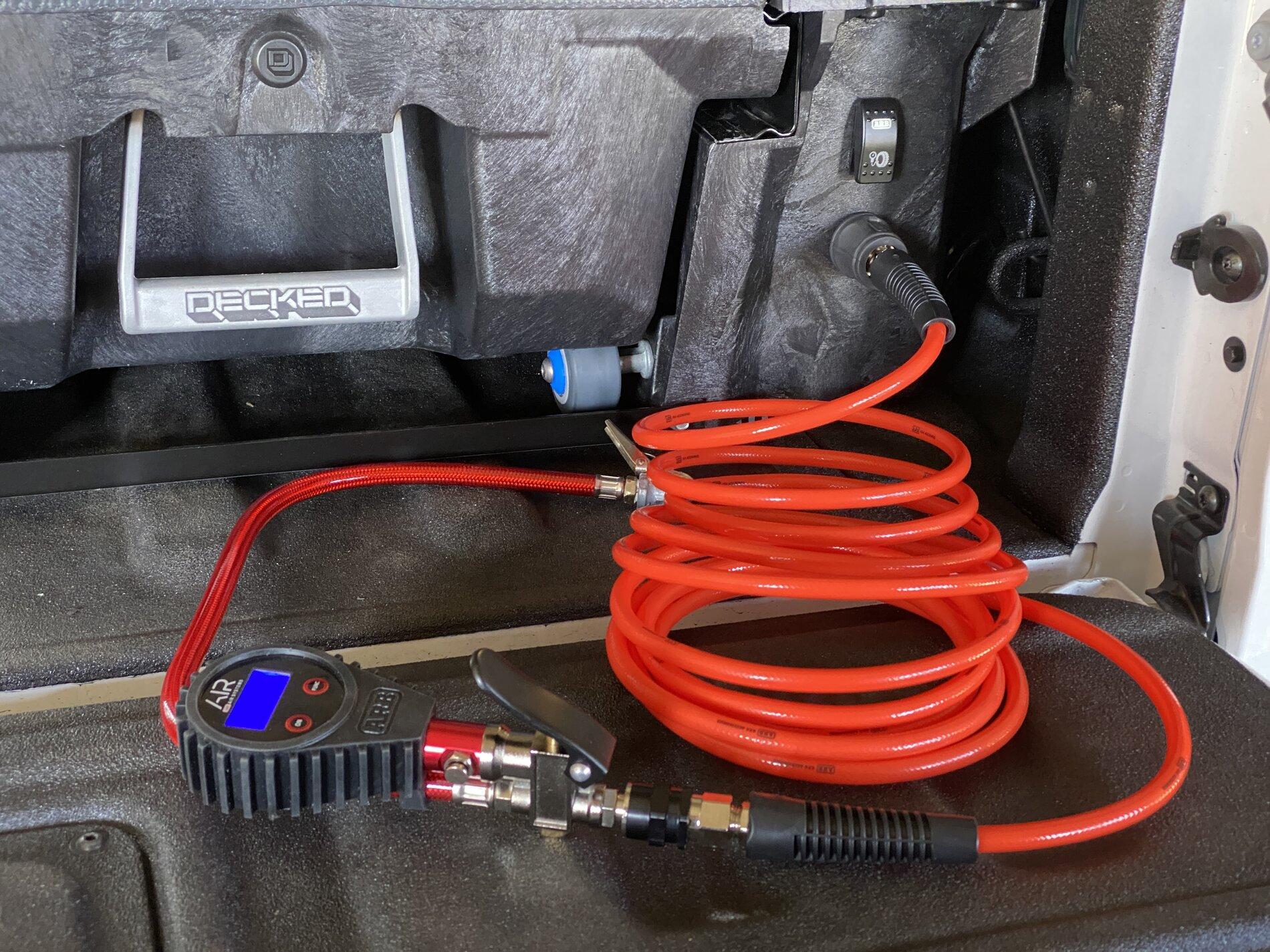

Finally finished the install this morning.



[XraytecH]

Can someone tell me what the container is he installed in the bed? He called it an ammo can( I think). What is it and where can you get it?

I like that idea or maybe use the bed bracket/box idea..since these won’t fit in the engine Bay Area (so far)..

Thanks

If you have a bed rail you can do this. Way less expensive than buying a complete DECKED system.

https://www.jeepgladiatorforum.com/forum/threads/ammo-box-bed-accessory.27972/



[blau iii]

Does anyone make a mount or have a suggestion on the best place to mount a 1-gal air tank? I'm pretty sure I'm gonna mount my compressor on the top of the motor but cant figure out a place to put the air tank. My plan was to run a line from the tank to the gas filler door and one line to air horns.



[813 Fabrication & Design]

Does anyone make a mount or have a suggestion on the best place to mount a 1-gal air tank? I'm pretty sure I'm gonna mount my compressor on the top of the motor but cant figure out a place to put the air tank. My plan was to run a line from the tank to the gas filler door and one line to air horns.

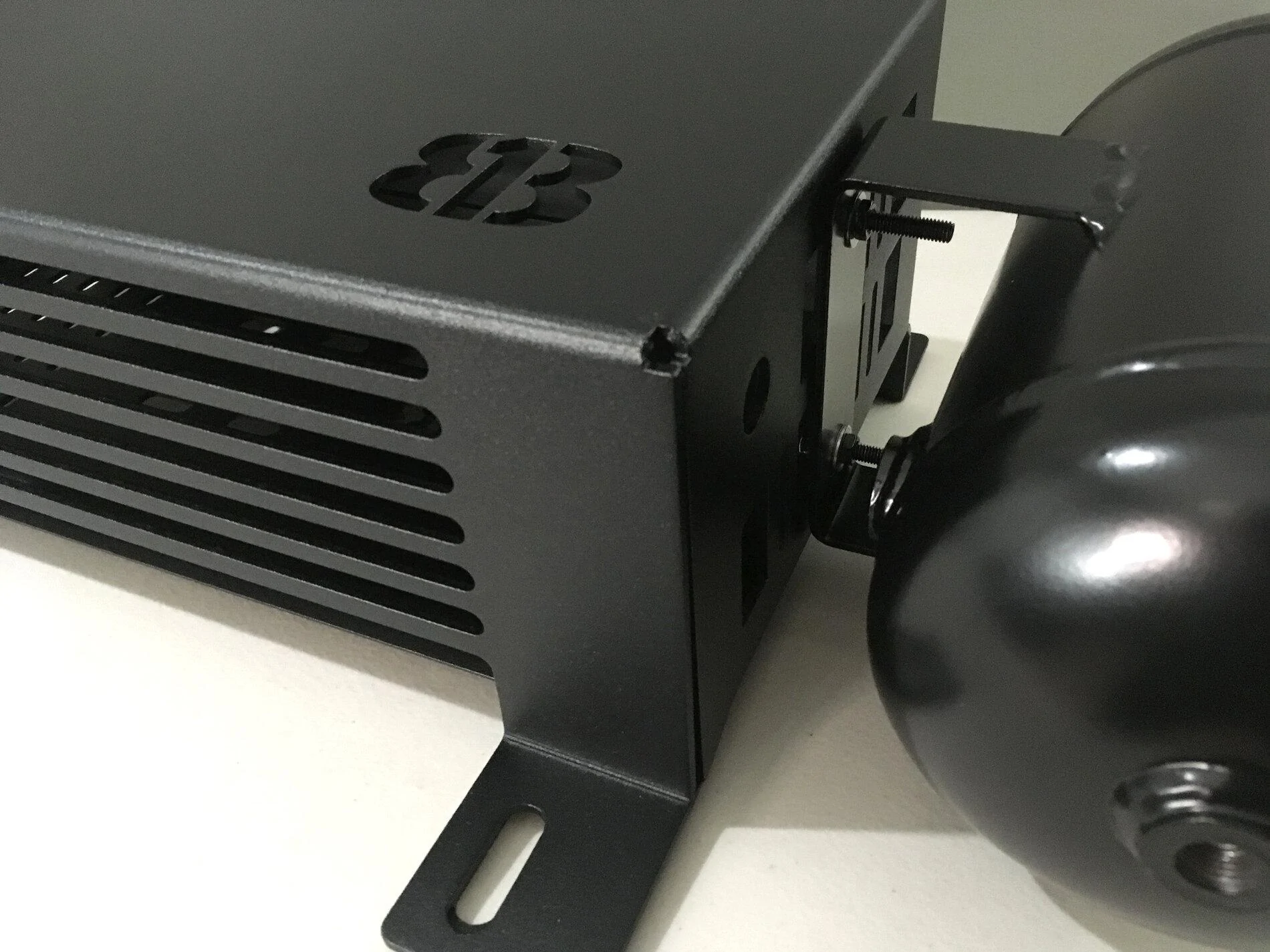

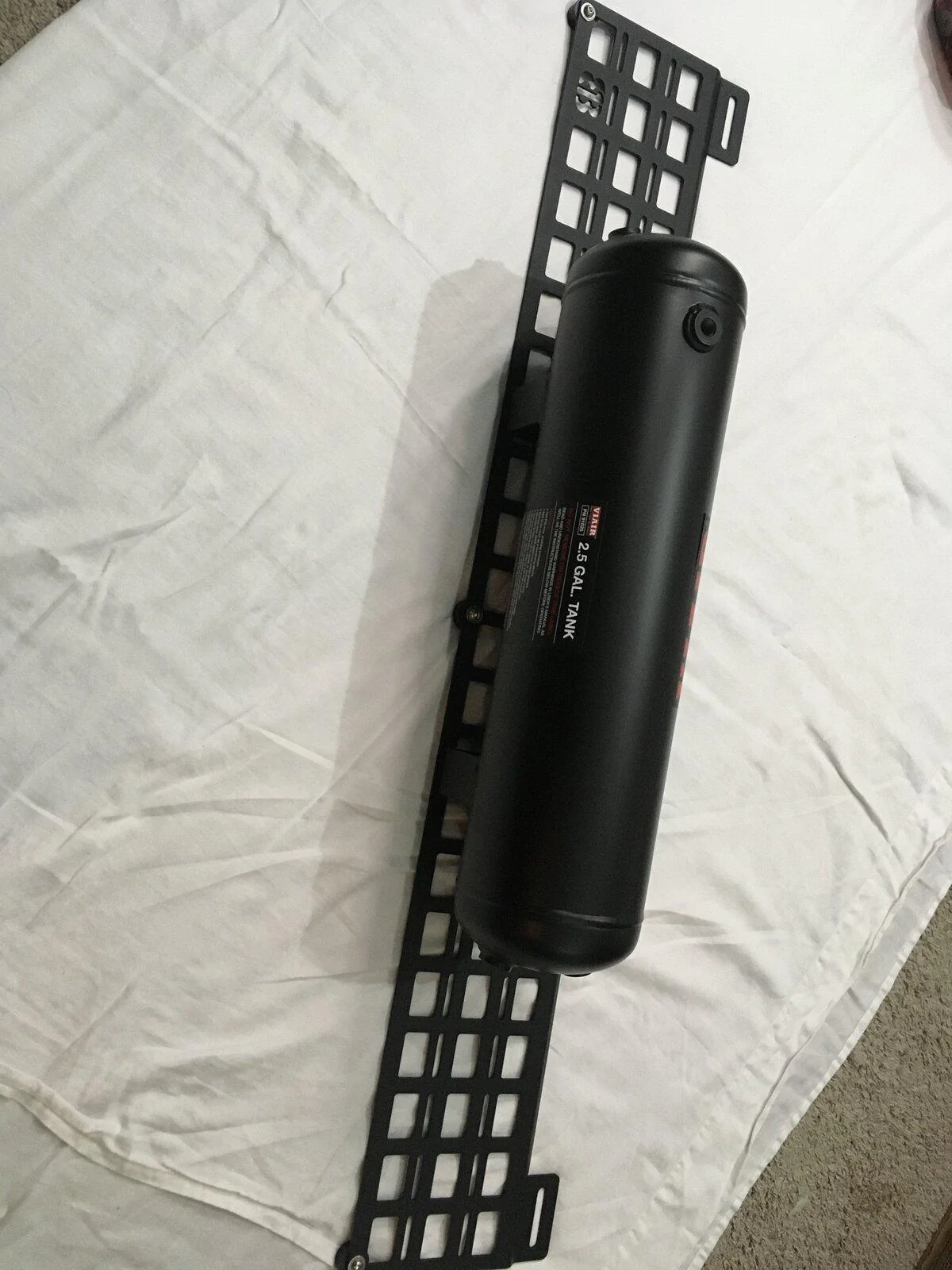

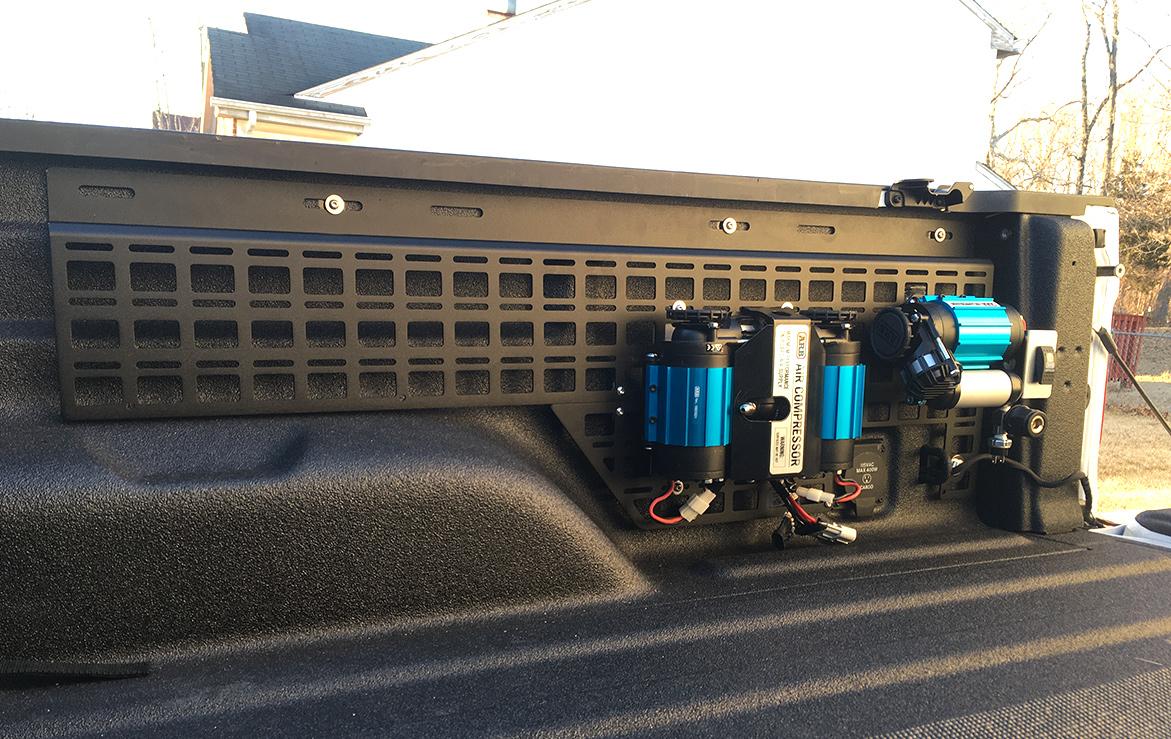

Not sure if the bed is a location you would want to go with but we have been testing different tanks mounted in the bed that work with our Bed Side Enclosure. The Enclosure fits the ARB Twin or Single compressor and has room and mounting location for the ARB locker manifold as well. I was testing with the ViAir tanks.



[blau iii]

Not sure if the bed is a location you would want to go with but we have been testing different tanks mounted in the bed that work with our Bed Side Enclosure. The Enclosure fits the ARB Twin or Single compressor and has room and mounting location for the ARB locker manifold as well. I was testing with the ViAir tanks.

Thanks for the reply! I'd like to have it hidden, ideally somewhere in the engine or under the truck. I'm planning on using your mount that goes over the top of the engine. I've seen an ARB 1 gal tank mount for the taco's that mount it in front of the airbox.



[813 Fabrication & Design]

Thanks for the reply! I'd like to have it hidden, ideally somewhere in the engine or under the truck. I'm planning on using your mount that goes over the top of the engine. I've seen an ARB 1 gal tank mount for the taco's that mount it in front of the airbox.

Gotcha! I have seen one of the small tanks also mounted under the brake booster. Eventually I will see what other ideas I can come up with for the tanks.



[blau iii]

Gotcha! I have seen one of the small tanks also mounted under the brake booster. Eventually I will see what other ideas I can come up with for the tanks.

Id buy from you today if you did!



[813 Fabrication & Design]

Id buy from you today if you did!

If it is not raining this evening, I will take a look under and see what ideas come to mind.



[XraytecH]

Does anyone make a mount or have a suggestion on the best place to mount a 1-gal air tank? I'm pretty sure I'm gonna mount my compressor on the top of the motor but cant figure out a place to put the air tank. My plan was to run a line from the tank to the gas filler door and one line to air horns.

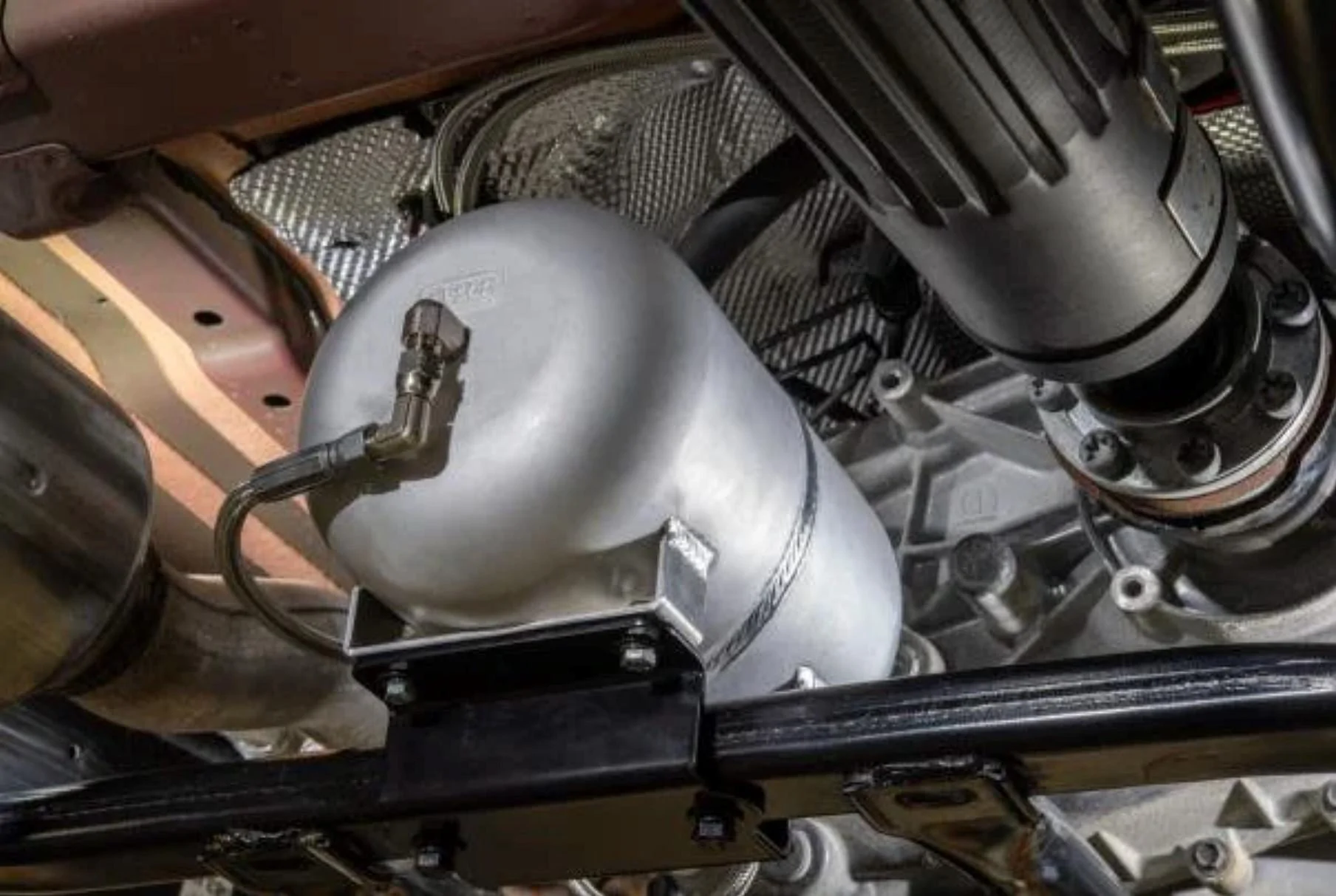

You can buy a bracket that mounts the tank underneath the cab. I actually considered this since my original plan was to mount it under my DECKED system, but the tank was too big.

There's is actually quite a lot of room under the cab.

https://www.quadratec.com/p/arb/twin-air-compressor-mounting-bracket-jeep-wrangler-jl-3550220



[SubiRubi]

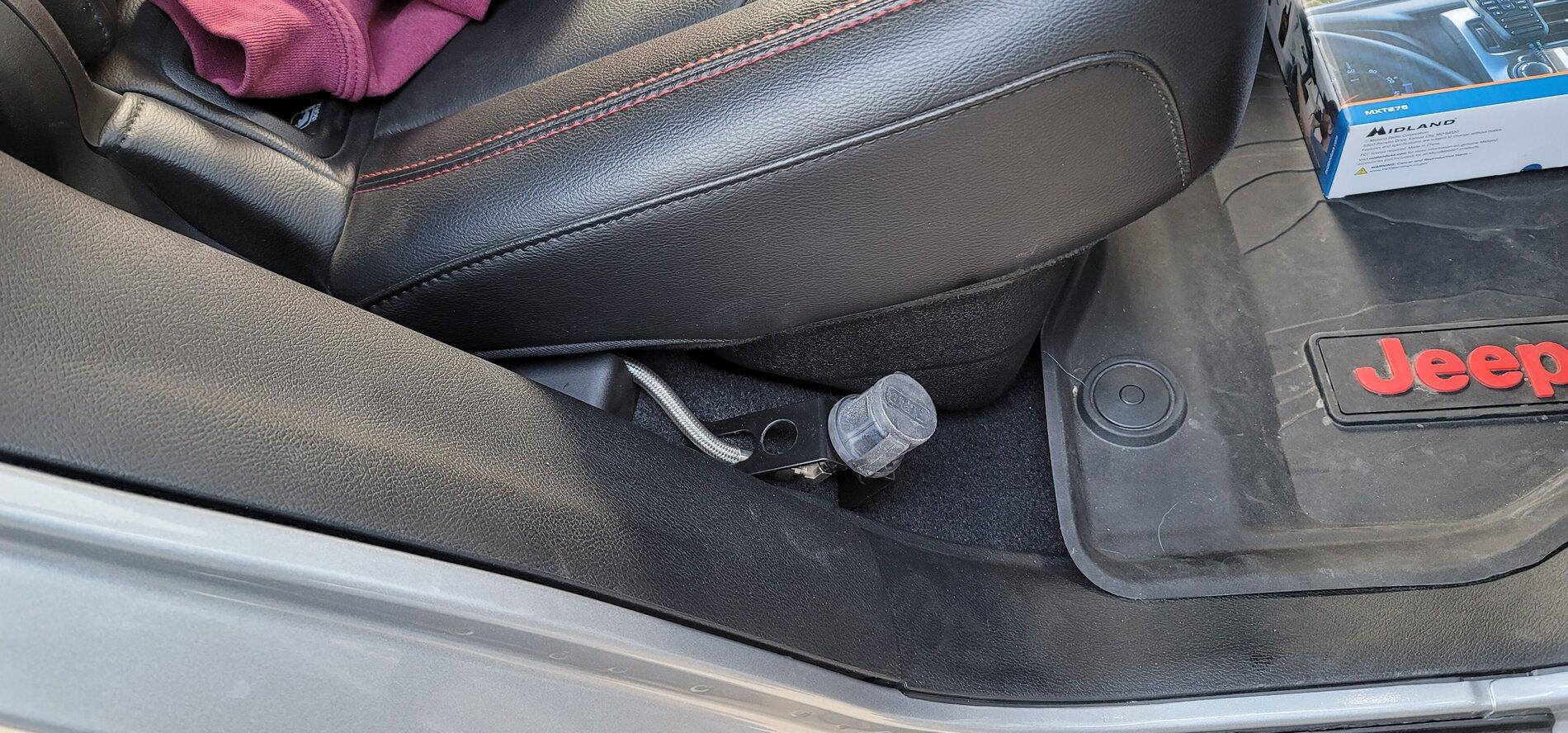

We have a few solutions that might help with a setup for the switch and air coupler. Have you seen those on the website? I was doing some testing with the ViAir small tank in our Under Seat Storage Bin to see if it would fit. I think it did but will need to check again to make sure. Not sure if that is something you would be interested in. The Full MOLLE Front model of the Bin has air coupler and rocker switch holes. But, I would think you could fit the air tank under the seat unless you have the Mopar locking box.

I found a nice little mount..



[Sno4Me]

Not sure if the bed is a location you would want to go with but we have been testing different tanks mounted in the bed that work with our Bed Side Enclosure. The Enclosure fits the ARB Twin or Single compressor and has room and mounting location for the ARB locker manifold as well. I was testing with the ViAir tanks.

I am running with 37s, is the ARB Twin Compressor a good compressor for those size tires?

Thinking of going with the Bed Side Enclosure with the ARB Twin Compressor.
I have With regards to the storage tank location, what size tank is in the pic?
Curious if you can put a larger tank there or if it would be needed?

For power, I would use one of my Light Bar Switches I have mounted below my air condition controls; the controller fits in that groove inlet. ( MLC-6 MULTIPLE LIGHT CONTROLLER JL & JT LOWER MOUNT)

With regards to a coupler location, this is thinking way outside the box, but I am going to ask:

I was thinking if there was a way to replace the plate on the front part of the hood (ie look at my thumbnail pic and/or pic I added. It would be cool if someone made/fabricated a piece that had a coupler and the PSI Gauges right there. Then if it's bad weather, Rain, Snow, Sleet, Muddy, etc., you are fine.... If that does exist, could someone post pics/links/etc.

If it doesn't, I would think running a hose to the front bumper area, depending on what type of bumper you have... On my setup, it would fit by my winch..

Thoughts?



[813 Fabrication & Design]

I am running with 37s, is the ARB Twin Compressor a good compressor for those size tires?

Thinking of going with the Bed Side Enclosure with the ARB Twin Compressor.
I have With regards to the storage tank location, what size tank is in the pic?
Curious if you can put a larger tank there or if it would be needed?

For power, I would use one of my Light Bar Switches I have mounted below my air condition controls; the controller fits in that groove inlet. ( MLC-6 MULTIPLE LIGHT CONTROLLER JL & JT LOWER MOUNT)

With regards to a coupler location, this is thinking way outside the box, but I am going to ask:

I was thinking if there was a way to replace the plate on the front part of the hood (ie look at my thumbnail pic and/or pic I added. It would be cool if someone made/fabricated a piece that had a coupler and the PSI Gauges right there. Then if it's bad weather, Rain, Snow, Sleet, Muddy, etc., you are fine.... If that does exist, could someone post pics/links/etc.

If it doesn't, I would think running a hose to the front bumper area, depending on what type of bumper you have... On my setup, it would fit by my winch..

Thoughts?

I am running with 37s, is the ARB Twin Compressor a good compressor for those size tires?
Yes, it will work well for the 37".

Thinking of going with the Bed Side Enclosure with the ARB Twin Compressor.
I have With regards to the storage tank location, what size tank is in the pic?
Curious if you can put a larger tank there or if it would be needed?

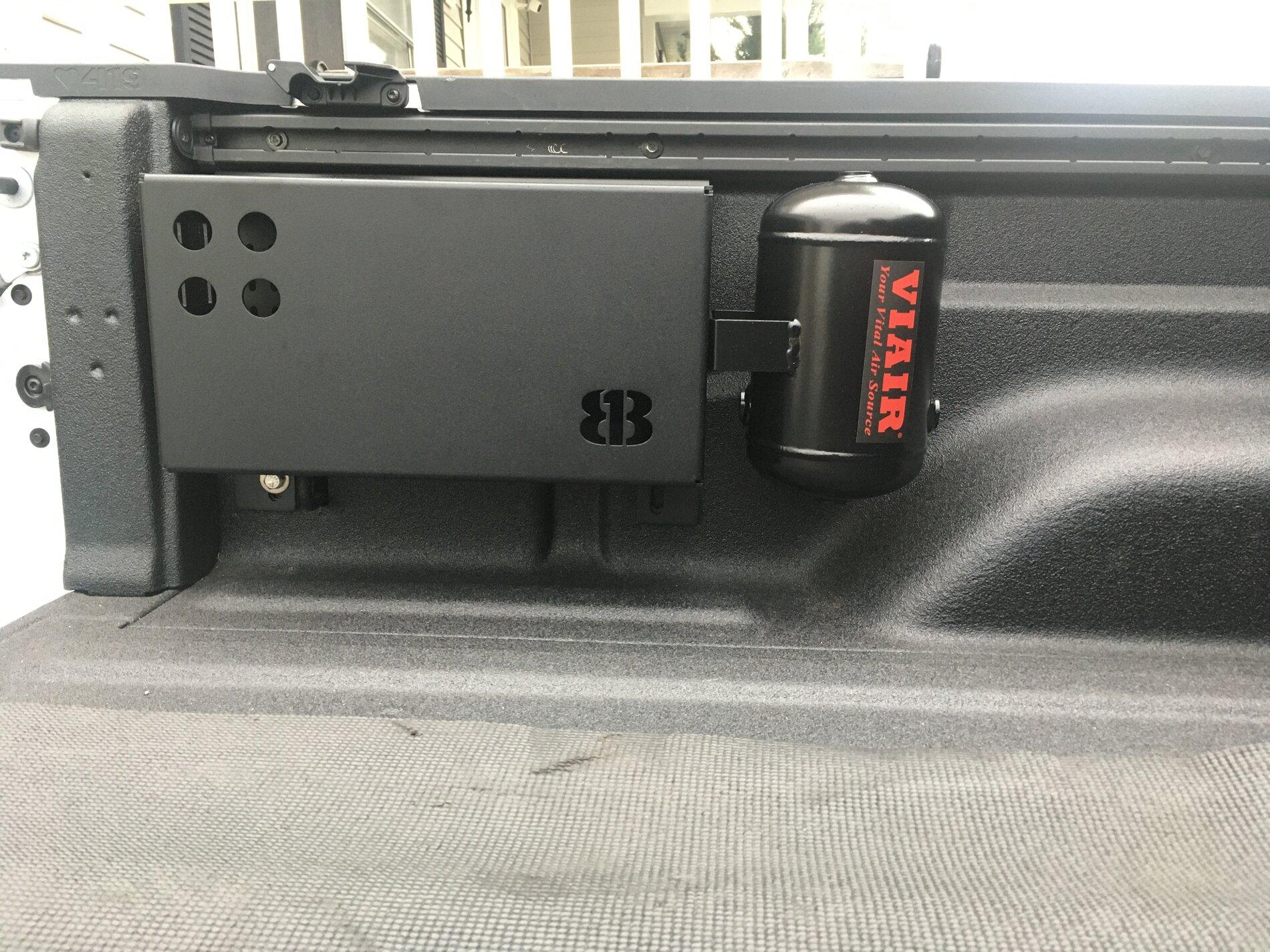

The small tank mounted on the enclosure is the 1 gallon ViAir tank. It is the same size as the ARB small tank but heavier. The ARB tank is aluminum and much lighter, but, the ARB has two legs vs 1 leg on the ViAir. I have not tried mounting the ARB tank.

For power, I would use one of my Light Bar Switches I have mounted below my air condition controls; the controller fits in that groove inlet. ( MLC-6 MULTIPLE LIGHT CONTROLLER JL & JT LOWER MOUNT)
Should work good

With regards to a coupler location, this is thinking way outside the box, but I am going to ask:

I was thinking if there was a way to replace the plate on the front part of the hood (ie look at my thumbnail pic and/or pic I added. It would be cool if someone made/fabricated a piece that had a coupler and the PSI Gauges right there. Then if it's bad weather, Rain, Snow, Sleet, Muddy, etc., you are fine.... If that does exist, could someone post pics/links/etc.
There is not one on the market that I am aware of but I am working on some ideas!

If it doesn't, I would think running a hose to the front bumper area, depending on what type of bumper you have... On my setup, it would fit by my winch..
I think running a line that far from the compressor, it would be a good idea to have the tank. But I think it work fine to do so.

Let me know if you have any more questions!



[Sno4Me]

With regards to a coupler location, this is thinking way outside the box, but I am going to ask:

I was thinking if there was a way to replace the plate on the front part of the hood (ie look at my thumbnail pic and/or pic I added. It would be cool if someone made/fabricated a piece that had a coupler and the PSI Gauges right there. Then if it's bad weather, Rain, Snow, Sleet, Muddy, etc., you are fine.... If that does exist, could someone post pics/links/etc.
There is not one on the market that I am aware of but I am working on some ideas!

I get my Jeeps worked at Tri City Customs in OKC, OK, so I may see if they can fabricate something https://tricitycustoms.com/

Thx for your feedback
