Desirayray
Member
it appears all this R&D was done on your soft top. I hope it works on hard tops as well!! Just thinking out loud!!
Sponsored
Sponsored
duvinclunk
Well-Known Member
I’d be interested in a rack and tonneau option as well.
AmishMike
Well-Known Member
- First Name
- Michael
- Joined
- Jul 29, 2020
- Threads
- 55
- Messages
- 1,432
- Reaction score
- 3,107
- Location
- Central Pa
- Vehicle(s)
- 2020 Rubicon, 56 Coronet, 65 Dune Buggy,
- Occupation
- Whipping boy
Okay, I recently heard from Ben at Dissent-bad news. They are a long way off of getting these in production. Maybe if enough of us committed to them they would push that up. PM me if you would commit to one (see pricing above). Also do you need the roof portion or just the bed rack.
If this goes nowhere, then we are all still in search of the holy grail-a true full height bed rack that works with a tonneau cover. I am willing to work with another fabrication shop if they can do it in aluminum.
If this goes nowhere, then we are all still in search of the holy grail-a true full height bed rack that works with a tonneau cover. I am willing to work with another fabrication shop if they can do it in aluminum.
Ghuddy
New Member

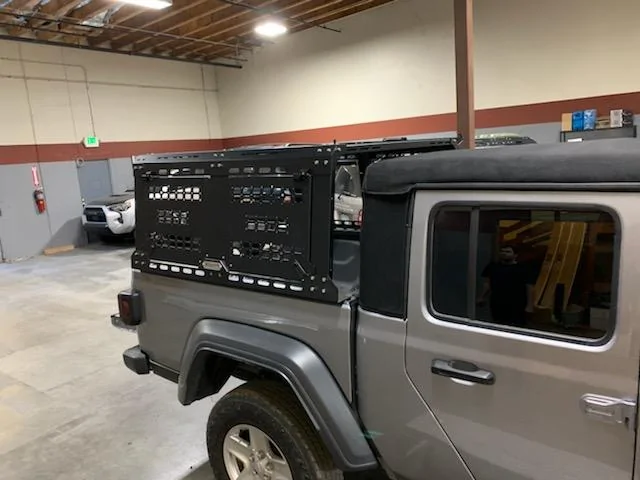

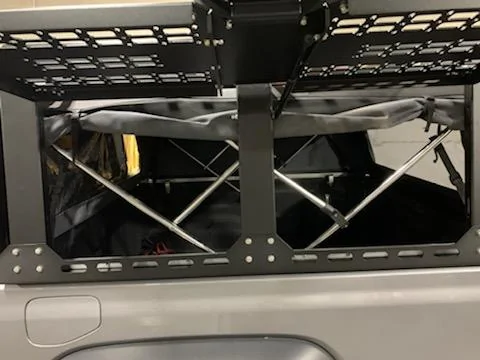

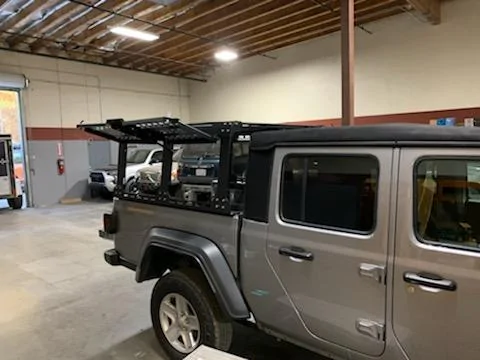

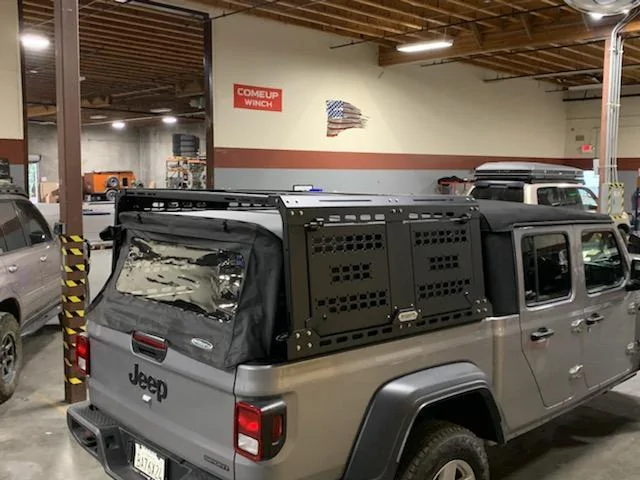

Which soft topper did you use? Does it open to the cab? Looks great!!Here are a couple updated pictures of the rear rack.
eternus
Well-Known Member
- First Name
- Jody
- Joined
- Mar 23, 2018
- Threads
- 60
- Messages
- 1,070
- Reaction score
- 1,032
- Location
- Longmont, CO
- Vehicle(s)
- 2021 Sting-Gray Sport S Max Tow
- Build Thread
- Link
- Occupation
- Product Manager
There was only 1 soft topper at the time... Softopper. Bestop has theirs available now, but thats only recent. The Softopper has a "solid" window by default, but they make a DIY kit to let you modify it for your sliding window.
*FYI Bestop owns Softopper, which allowed them to make their own legally sans patent infringements.
Sponsored
sandman83
Member
I spoke with a guy at Diamondback and he said they have a Yakima Overhoul HD coming in Oct/Sept that will work with their covers. I imagine it will bolt on to the cover instead of the rail.
I'm looking for a rack that will allow longer items, SUP, to be carried above the roof line.
I'm looking for a rack that will allow longer items, SUP, to be carried above the roof line.
AmishMike
Well-Known Member
- First Name
- Michael
- Joined
- Jul 29, 2020
- Threads
- 55
- Messages
- 1,432
- Reaction score
- 3,107
- Location
- Central Pa
- Vehicle(s)
- 2020 Rubicon, 56 Coronet, 65 Dune Buggy,
- Occupation
- Whipping boy

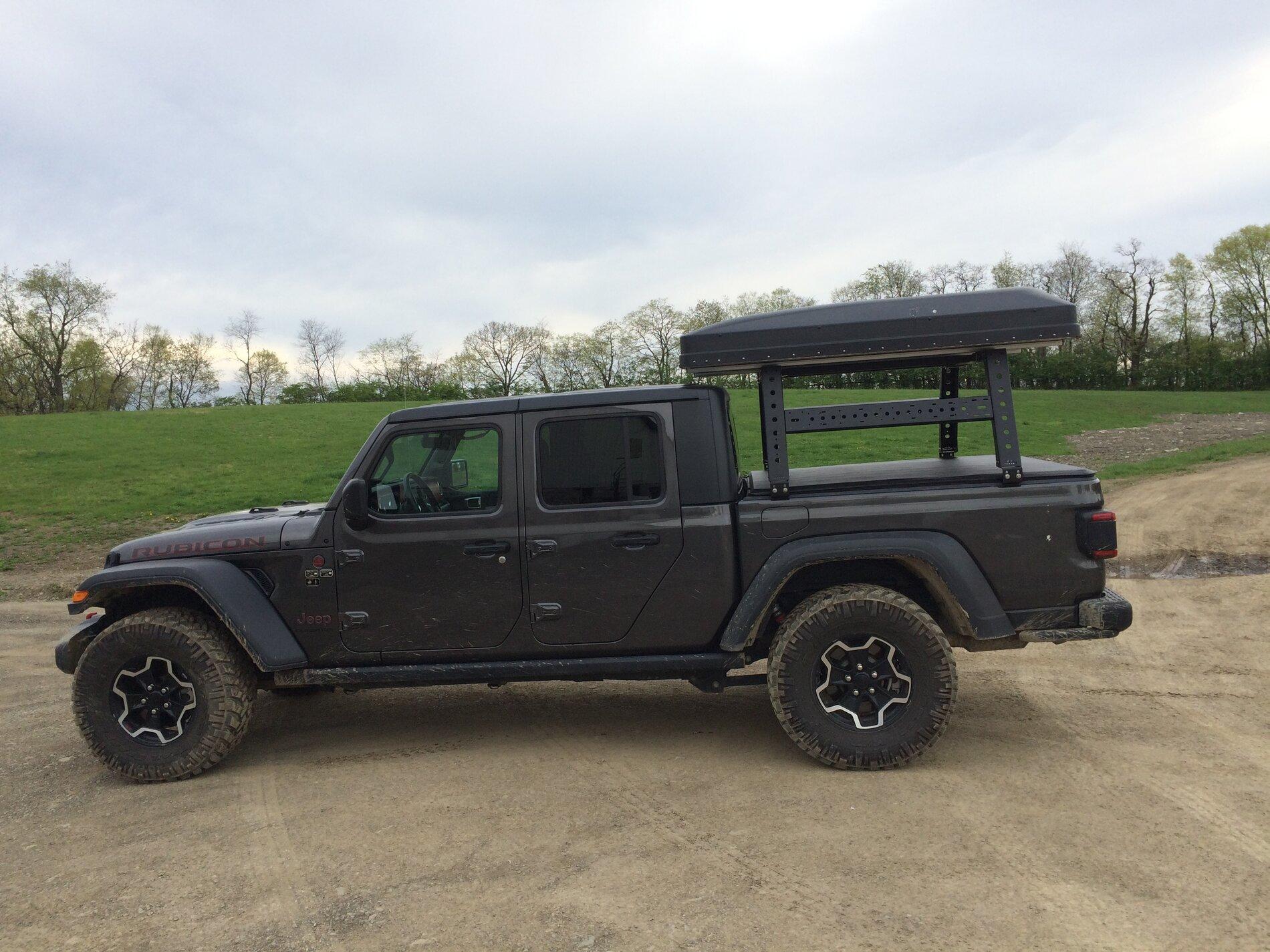

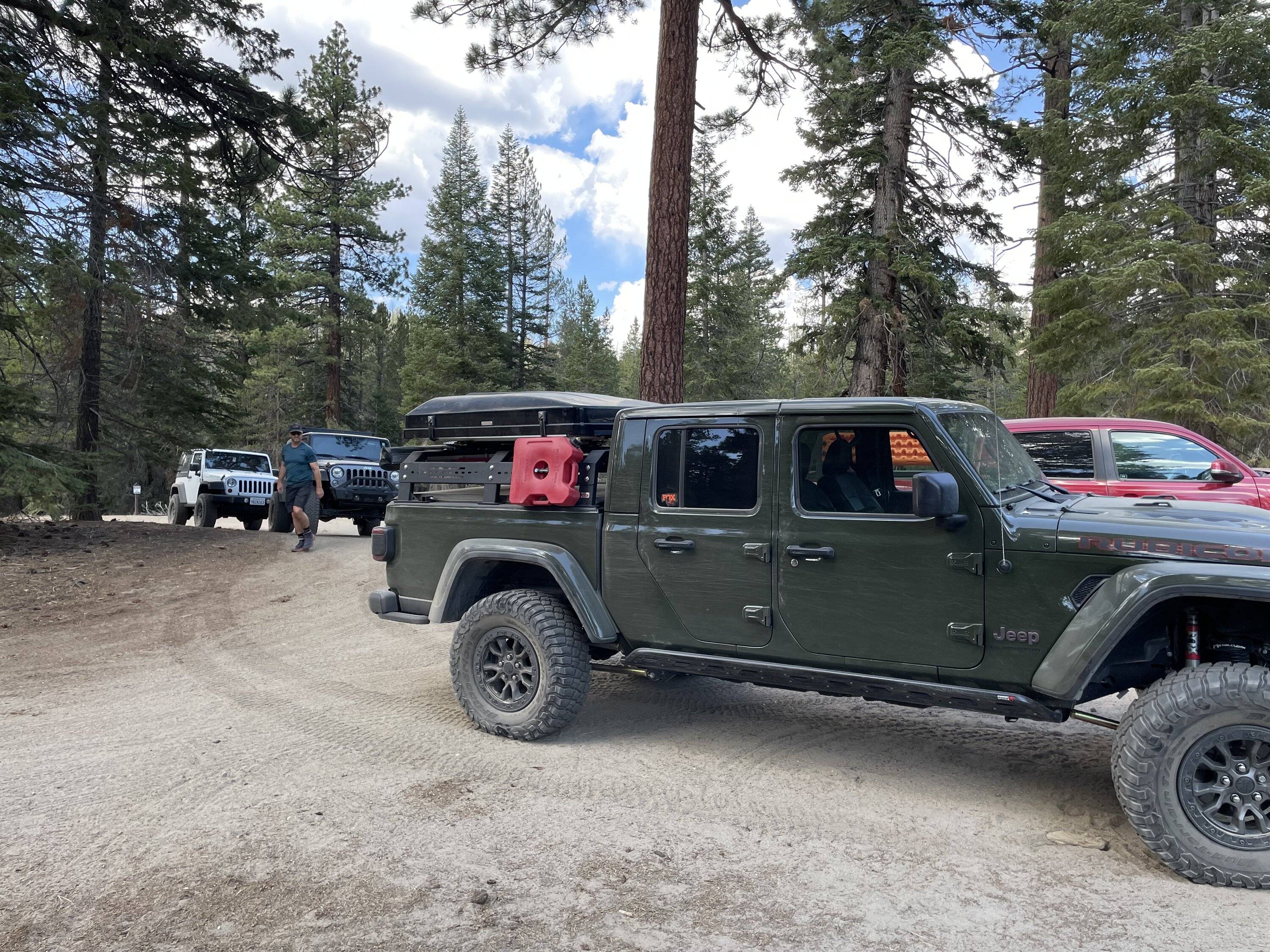

MaxModular Alumax from KBVoodoo Fabrications with tonneau brackets. 22" tall, 46" long.
LOVE IT! Has about 4,000 road miles and 30+ hours on trails with RTT.
Tstrausburg
Well-Known Member

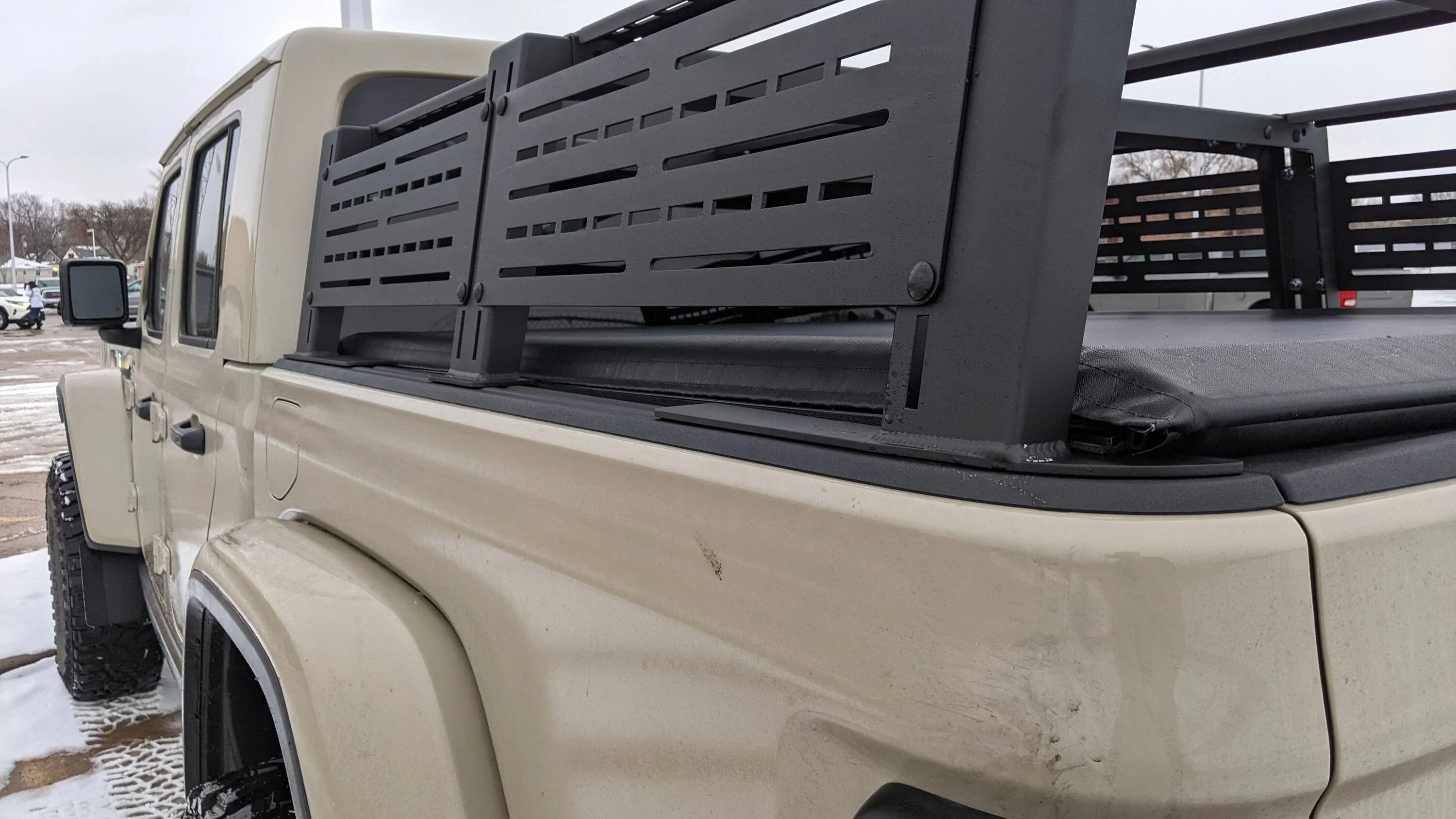

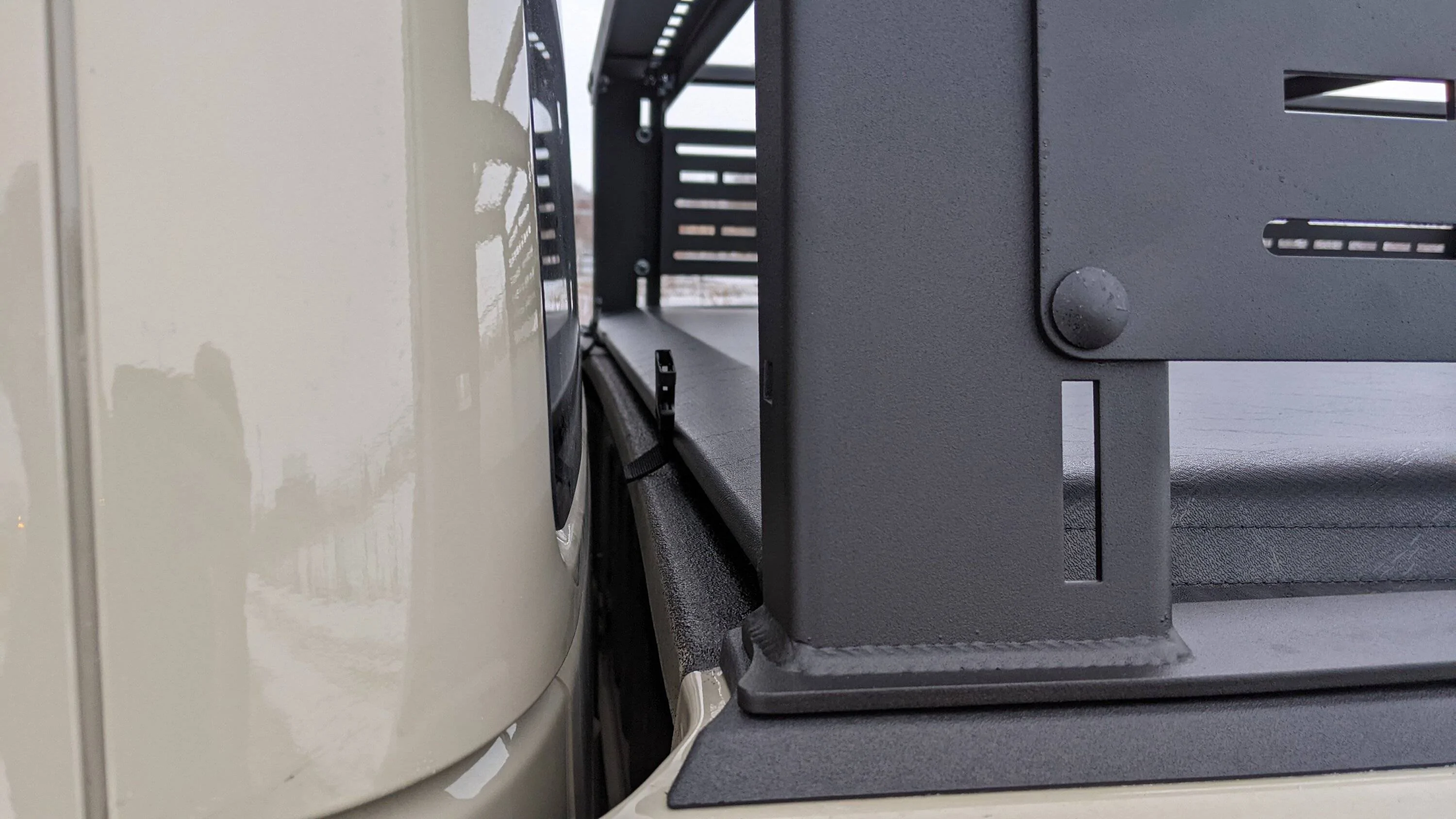

Just installed the new @Max Modular 18" Aluminum rack with the steeper sides that they made specifically for the JT. Very happy with the product support I recieved from them. They checked their computer model to see if my cover would have a chance of flipping open and it does! Quality was great and they send a paint pen out for any installation mishaps .

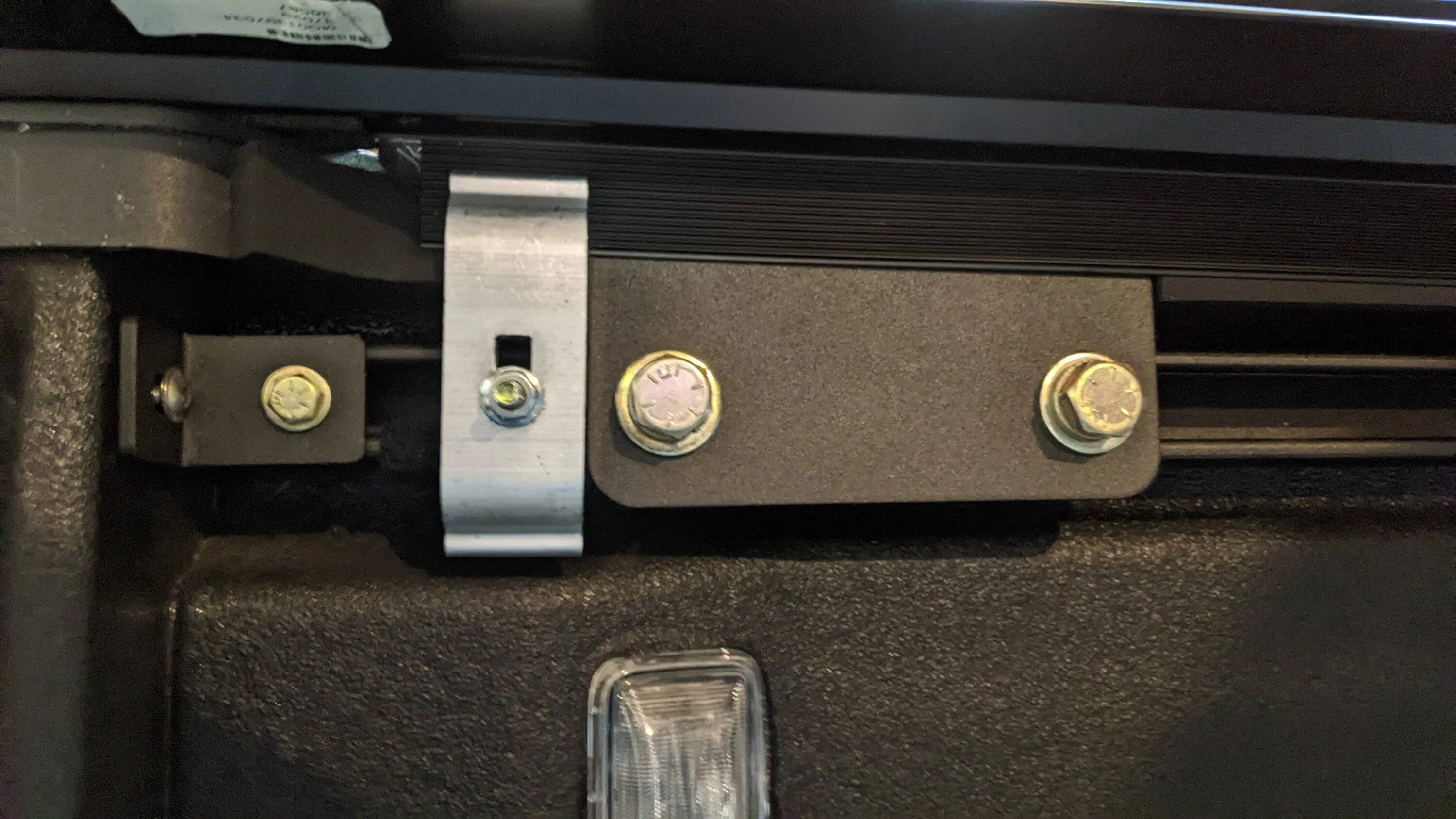

If you have a cover that mounts to the two bolts towards the rear of the inside rail, you'll want to get their their "Mopar Brackets" so you can shift the rack backwards to center it more on the bed. I have the Ultra Flex Tri Fold Cover and it opens with ease for the first two flips and allows the cover to be buckled to the cover's clips. You'll also want some 3M weather stripping to help seal the cover back down on the top bed rails. I used 1/4" and it has worked well. The rack does have a whistle at around 35mph to 45mph. Not too loud but if you don't have music on, you'll notice it. Oh, and don't order the awning mount they have currently unless you want to bend it yourself to get it to sit properly. That bracket is made for their racks with more angle on the sides.
If you have a cover that mounts to the two bolts towards the rear of the inside rail, you'll want to get their their "Mopar Brackets" so you can shift the rack backwards to center it more on the bed. I have the Ultra Flex Tri Fold Cover and it opens with ease for the first two flips and allows the cover to be buckled to the cover's clips. You'll also want some 3M weather stripping to help seal the cover back down on the top bed rails. I used 1/4" and it has worked well. The rack does have a whistle at around 35mph to 45mph. Not too loud but if you don't have music on, you'll notice it. Oh, and don't order the awning mount they have currently unless you want to bend it yourself to get it to sit properly. That bracket is made for their racks with more angle on the sides.
BlueScapegoat
Well-Known Member
Not usually my thing to knock anybody's mods or anything but those mounting brackets on the Max Modular racks just don't instill the confidence I would want from a rack that I want to be able to load with several hundred pounds then bounce around in the rocks. All C-channel and/or boxed, then a bent piece of flat stock to mount it all...
I'm sure it's more than most people ever need, just... I dunno. Seems like an achilles heel on what is an otherwise sturdy product.
I'm sure it's more than most people ever need, just... I dunno. Seems like an achilles heel on what is an otherwise sturdy product.
Last edited:
Sponsored
AmishMike
Well-Known Member
- First Name
- Michael
- Joined
- Jul 29, 2020
- Threads
- 55
- Messages
- 1,432
- Reaction score
- 3,107
- Location
- Central Pa
- Vehicle(s)
- 2020 Rubicon, 56 Coronet, 65 Dune Buggy,
- Occupation
- Whipping boy
I had my doubts, but rest assured, no problems. Have had several hundred pounds up there for a couple thousand miles with not an issue!
SightsOfIron
Well-Known Member

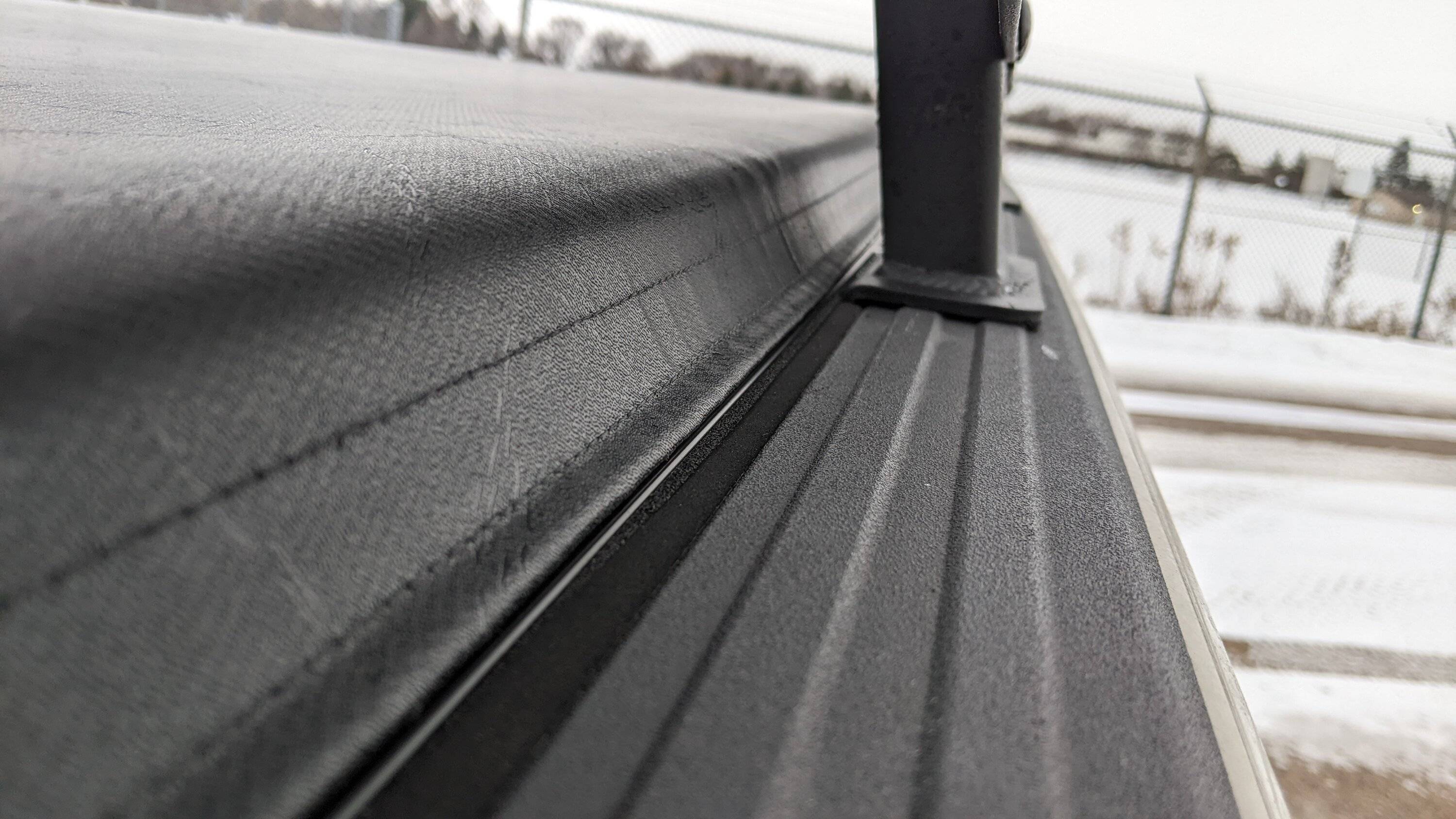

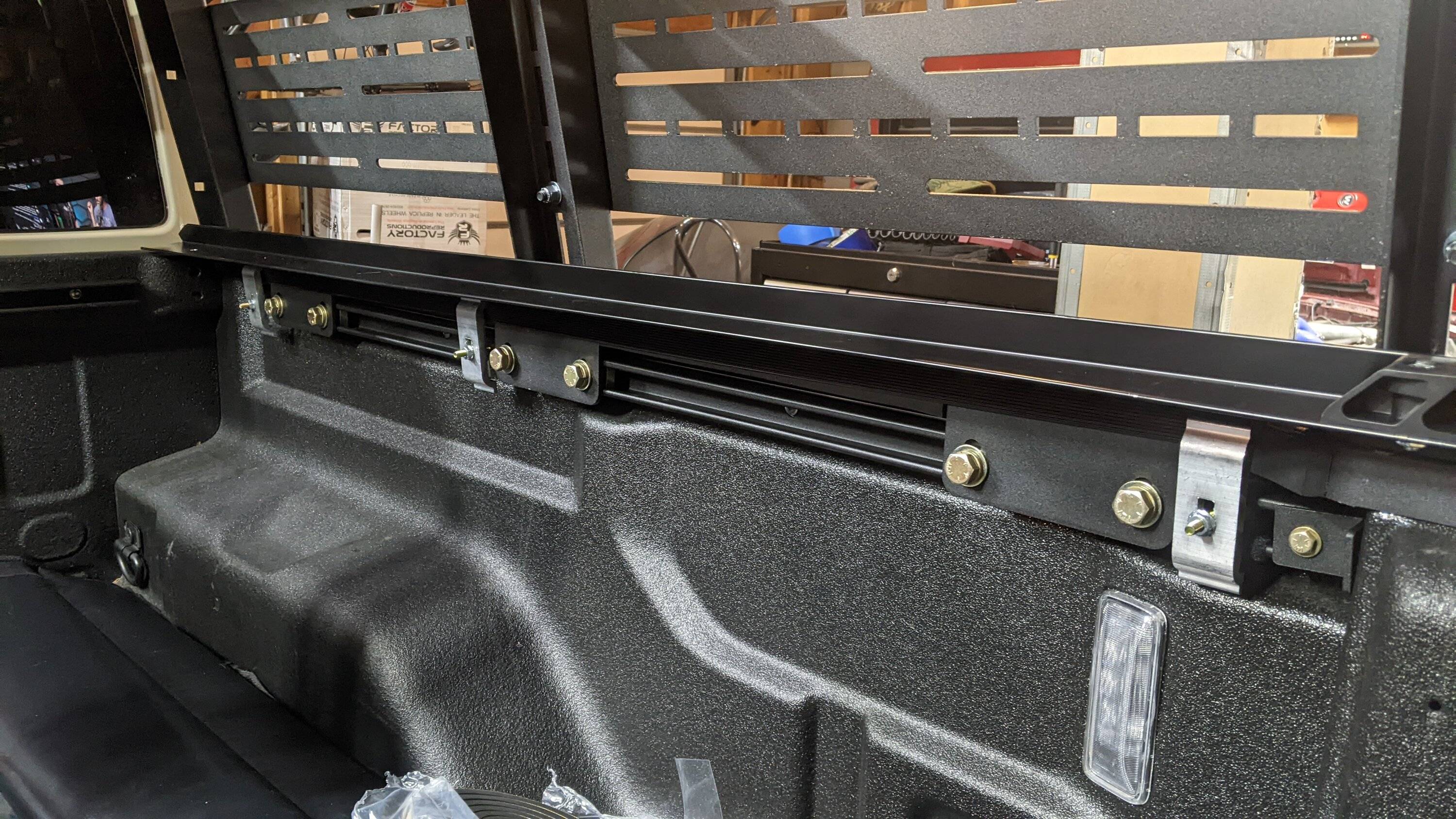

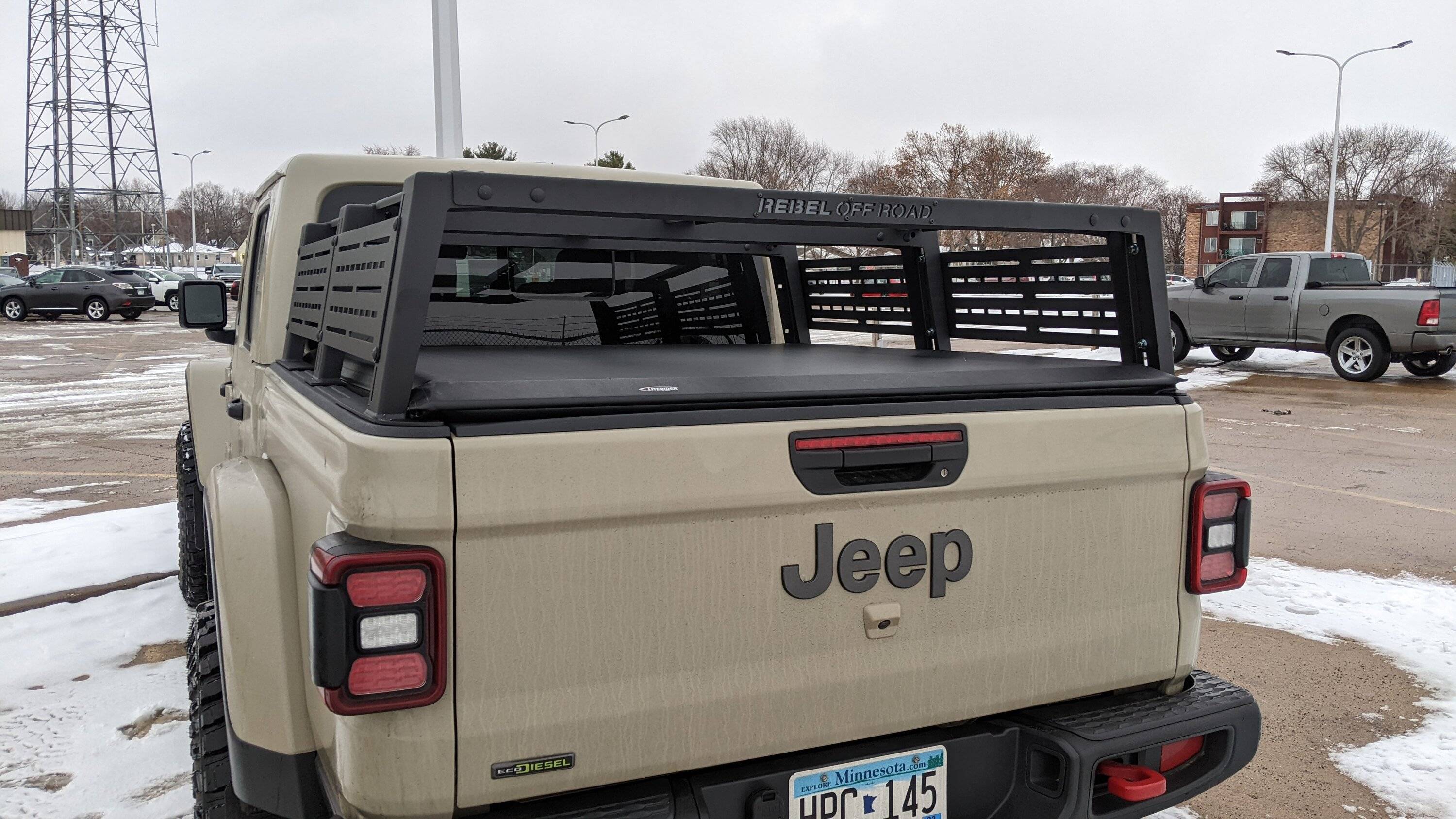

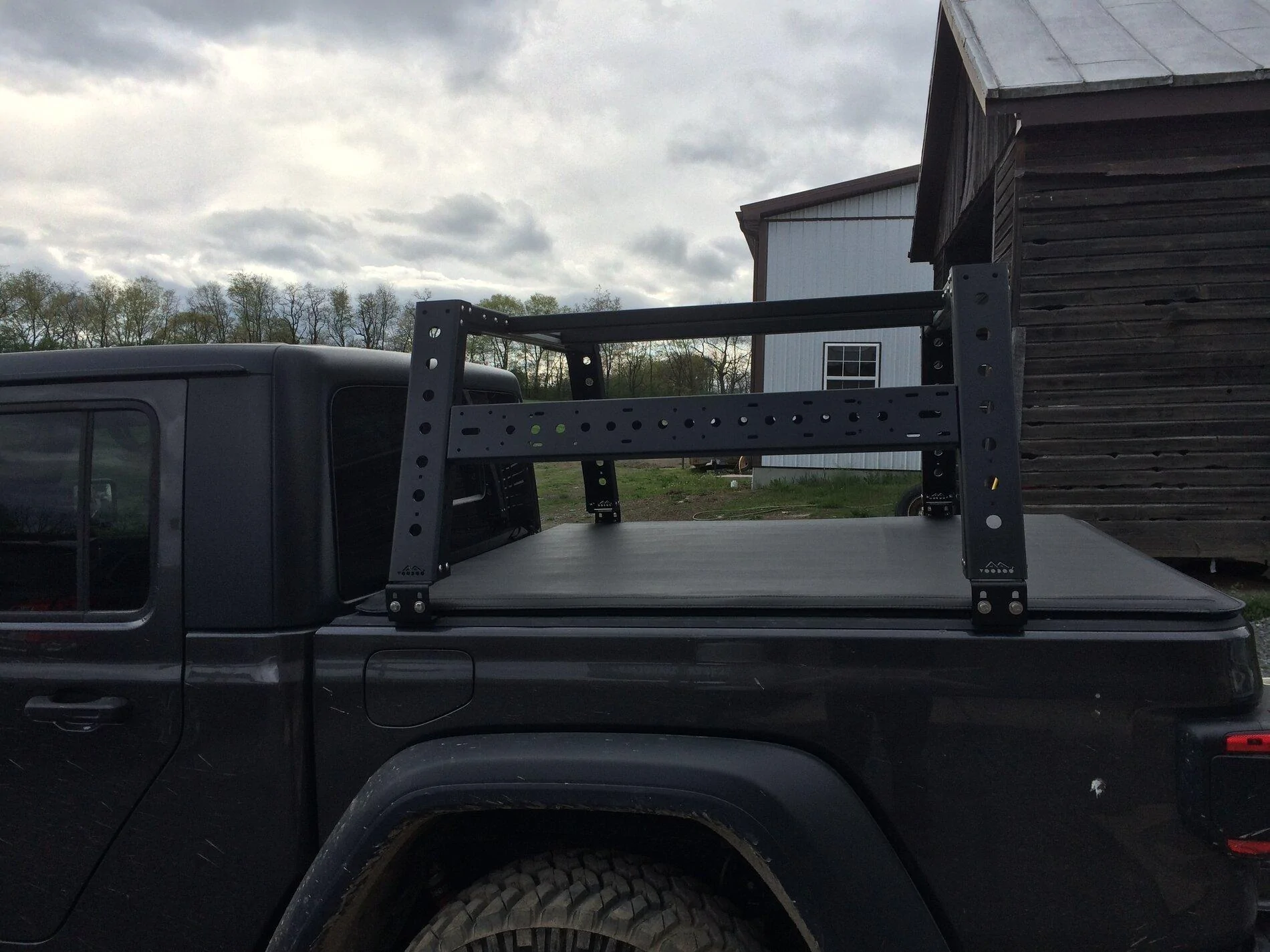

That is clean! What model cover is that? link by chance?Rebel rack and Access tonneau
Tstrausburg
Well-Known Member
I hear ya. They are rated to 350# dynamic and 700# static. For my needs, i won't have more than 150#-200# at most up there. I don't need it for a tent, just some gear boxes when I take the family camping and some recovery gear when I wheel.
Not crazy about the "look" of the brackets either so I'll likely get some HDPE Block and cut them to size to fill in the gaps. I needed to keep my tonneau for every day use and it allows me to throw a roof bag under the rack on top of the cover with cloths and sleeping bags (light stuff) and still have my bed leftover. Not a fan of roll up covers. I have had issues with the tethering in the past coming off after a few summers. Looked at retractable covers and the "can" took up too much space in the bed.
As for the brackets, they are pretty damn sturdy. They are 1/4" thick steel and the rack is all aluminum. I ran there Voodoo Bars for a few years prior and they never budged. To each their own though. Good luck with your build!
