Gladiator specific cross bars & bed racks now available!

Page 3 of 7
  1. OP
    OP
    Max Modular

    Max Modular Active Member
    Rock Sponsor (Level 1)

    First Name:
    Rich
    Vehicle(s):
    Truck
    Joined:
    Oct 24, 2019
    Location:
    Western New York
    Posts:
    38
    Liked:
    37
    #31 Oct 30, 2019
    The URTC doesn't come with side panels to restrict the length, so it can be positioned on the bed with no interference from the latch.




  2. Tlhicks

    Tlhicks Well-Known Member

    First Name:
    Troy
    Vehicle(s):
    2020 Jeep Gladiator Rubicon Launch edition
    Joined:
    Oct 2, 2019
    Location:
    Fayetteville NC
    Posts:
    57
    Liked:
    118
    Garage Profiles:
    1
    #32 Oct 30, 2019
    There are a lot of us with factory covers and 4190 Launch edition model owners that would have and interest. They all came with factory covers.

  3. OP
    OP
    Max Modular

    Max Modular Active Member
    Rock Sponsor (Level 1)

    First Name:
    Rich
    Vehicle(s):
    Truck
    Joined:
    Oct 24, 2019
    Location:
    Western New York
    Posts:
    38
    Liked:
    37
    #33 Oct 30, 2019
    That's a bummer for those with the factory cover. Our rack is 46" long and it really can't be made any shorter without losing features.

    If you look at our side panels, all those little holes provide certain mounting points for various accessories. If we made the rack any shorter, a bunch of those holes are going to be gone.

    For now the only option we have for the factory cover is our Hi Rise Crossbars: https://www.kbvoodoo.com/shop?category=Truck+Bed+Crossbars

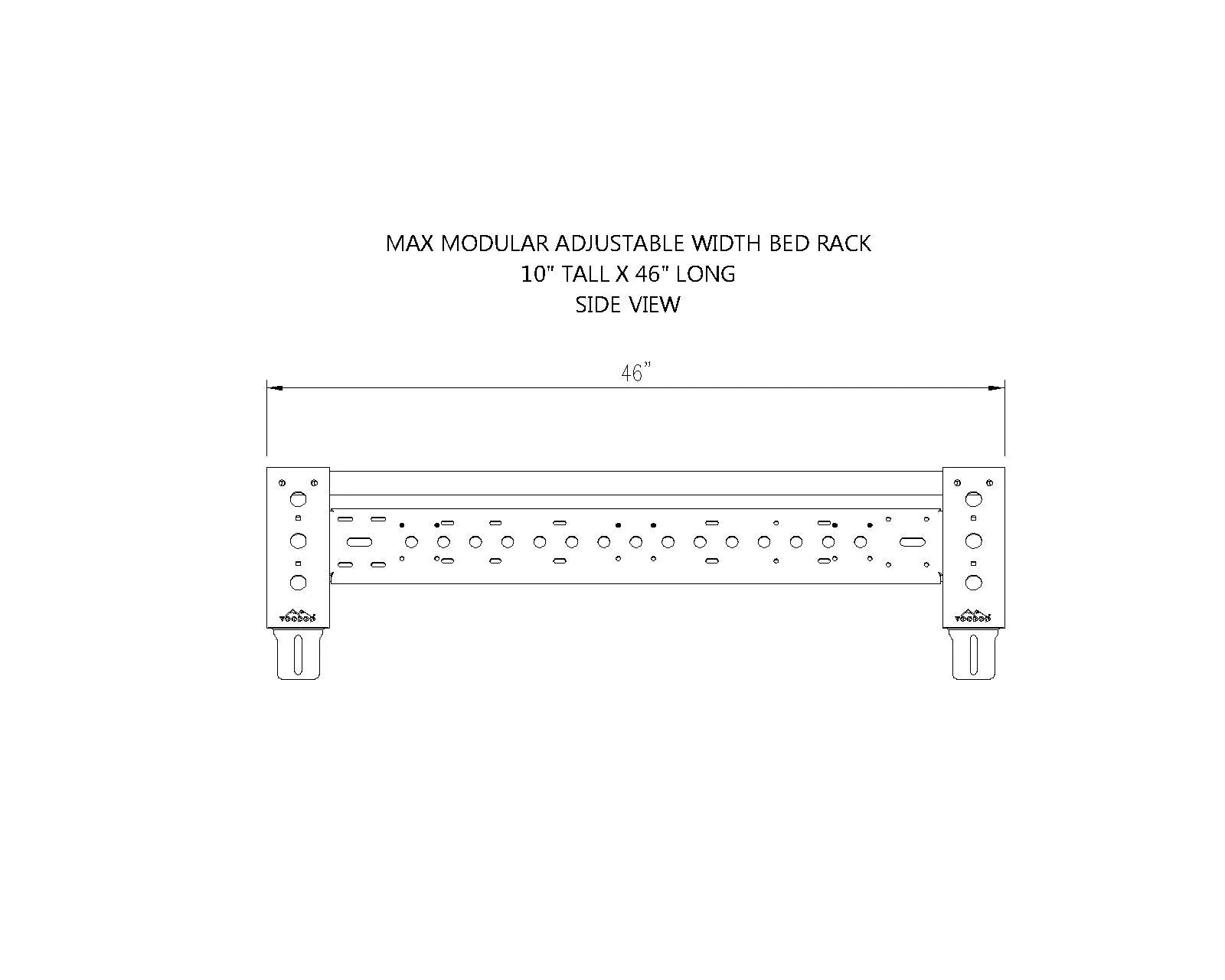

    MAX Bed Rack 10x46 Side View.jpg

    Spyder likes this.
  4. 011Crmn

    011Crmn Well-Known Member

    First Name:
    Rob
    Vehicle(s):
    2010 JKU Sahara. Ordered 9/25 2020 Gladiator Rubicon Gator
    Joined:
    Jan 11, 2018
    Location:
    Calgary, AB
    Posts:
    47
    Liked:
    32
    #34 Oct 30, 2019
    Will the 58" alumax rack. (22" height) fit the Gladiator bed?

  5. OP
    OP
    Max Modular

    Max Modular Active Member
    Rock Sponsor (Level 1)

    First Name:
    Rich
    Vehicle(s):
    Truck
    Joined:
    Oct 24, 2019
    Location:
    Western New York
    Posts:
    38
    Liked:
    37
    #35 Oct 30, 2019
    The bed is way to short for the 58" rack. You need to go with the 46" long version.

  6. 011Crmn

    011Crmn Well-Known Member

    First Name:
    Rob
    Vehicle(s):
    2010 JKU Sahara. Ordered 9/25 2020 Gladiator Rubicon Gator
    Joined:
    Jan 11, 2018
    Location:
    Calgary, AB
    Posts:
    47
    Liked:
    32
    #36 Oct 30, 2019
    Isn’t the bed 60” though ?

  7. OP
    OP
    Max Modular

    Max Modular Active Member
    Rock Sponsor (Level 1)

    First Name:
    Rich
    Vehicle(s):
    Truck
    Joined:
    Oct 24, 2019
    Location:
    Western New York
    Posts:
    38
    Liked:
    37
    #37 Oct 30, 2019
    It is, but they put some stuff back near the tailgate that prevents a rack from attaching in that area. The usable area for mounting a rack is much less than 60".

  8. Tlhicks

    Tlhicks Well-Known Member

    First Name:
    Troy
    Vehicle(s):
    2020 Jeep Gladiator Rubicon Launch edition
    Joined:
    Oct 2, 2019
    Location:
    Fayetteville NC
    Posts:
    57
    Liked:
    118
    Garage Profiles:
    1
    #38 Oct 30, 2019
    You would just need to make the rear brackets attach prior to the factory tonneau cover latch on the rail system and instead going straight up and making the partial square around the cover, have a flat peace go down the bed to where the original bracket would be then make the partial square around the cover

    Rear Bracket.jpg




  9. chrcal14

    chrcal14 Well-Known Member

    Vehicle(s):
    2020 JT Rubicon
    Joined:
    Nov 15, 2018
    Location:
    Western PA
    Posts:
    634
    Liked:
    815
    #39 Oct 30, 2019
    The Utility Rack version looks good other than it would be nice if it had a slant above interference with the factory roll up tonneau (or other fold up types I'm sure, not to sound too personally motivated).

    Can have a side panel added, which is cool and wouldn't want without. Looks like 49.34 to the extreme ends of the mounting provisions with the side panel installed. Best I can tell in the dark and rain here tonight, there's a curvy bit in the plastic side rail towards the cab, and then the latch at the back. From the curvy bit to the latch is about 45. Don't think it will go.

    Nice though, so close to what I was looking for. I'll keep waiting. I'm pretty attached to that tonneau now, I don't want to change it.

    MotoBrad likes this.
  10. OP
    OP
    Max Modular

    Max Modular Active Member
    Rock Sponsor (Level 1)

    First Name:
    Rich
    Vehicle(s):
    Truck
    Joined:
    Oct 24, 2019
    Location:
    Western New York
    Posts:
    38
    Liked:
    37
    #40 Oct 30, 2019
    Most people prefer the look of the slanted rack, but the URTC has sides that are straight up and down to allow a folding cover to flip open.

    You can't flip open a tri-fold cover with any rack that slants inward.

  11. RodRecket

    RodRecket Active Member

    Vehicle(s):
    2010 Powerwagon, 2004 Mini Cooper, 1991 Goldwing
    Joined:
    Sep 13, 2019
    Location:
    Minnesota
    Posts:
    40
    Liked:
    17
    #41 Oct 30, 2019
    Max Modular or anyone else know if the no name colorado tonneau works? Otherwise I'm thinking about the access because its made for the gladiator specifically.
    Really like the idea and diversity of the high rise crossbar

  12. OP
    OP
    Max Modular

    Max Modular Active Member
    Rock Sponsor (Level 1)

    First Name:
    Rich
    Vehicle(s):
    Truck
    Joined:
    Oct 24, 2019
    Location:
    Western New York
    Posts:
    38
    Liked:
    37
    #42 Oct 30, 2019
    That cover would work with our bars, but I don't know if it will work on the Gladiator.

  13. FunWagon

    FunWagon Well-Known Member

    Vehicle(s):
    JK
    Joined:
    Sep 1, 2017
    Location:
    New Jersey
    Posts:
    106
    Liked:
    121
    #43 Oct 30, 2019
    Last edited: Oct 30, 2019
    I love that there is a tall version (does the 18” go up to the roof line or better slightly above soft top roof line which is higher than hard top roofline) and that it supports some version of a soft tonneau cover and has brackets for bikes. How about brackets for kayaks?

    Pictures eventually would be awesome.

    Edit: Actually I wonder if two bikes would fit under (in bed) and two bikes over (on rack) for 18” rack.

  14. OP
    OP
    Max Modular

    Max Modular Active Member
    Rock Sponsor (Level 1)

    First Name:
    Rich
    Vehicle(s):
    Truck
    Joined:
    Oct 24, 2019
    Location:
    Western New York
    Posts:
    38
    Liked:
    37
    #44 Nov 2, 2019
    noside85 and Cbriggs9742 like this.
  15. WhatExit?

    WhatExit? Well-Known Member

    First Name:
    Dan
    Vehicle(s):
    2020 JT Rubicon Launch Edition - Granite Crystal Metallic | 2017 Ford Raptor SuperCrew - Metallic
    Joined:
    Sep 13, 2018
    Location:
    48th State
    Posts:
    377
    Liked:
    288
    #45 Nov 2, 2019
    i'm confused. Does your rack system work with the factory tonneau cover as long as the brackets aren't back where the tonneau cover latches?
