I compared the old harness to the new harness and they appear exactly the same to me. There is a single wire with a yellow strand which goes to the same connections on the fender and pump

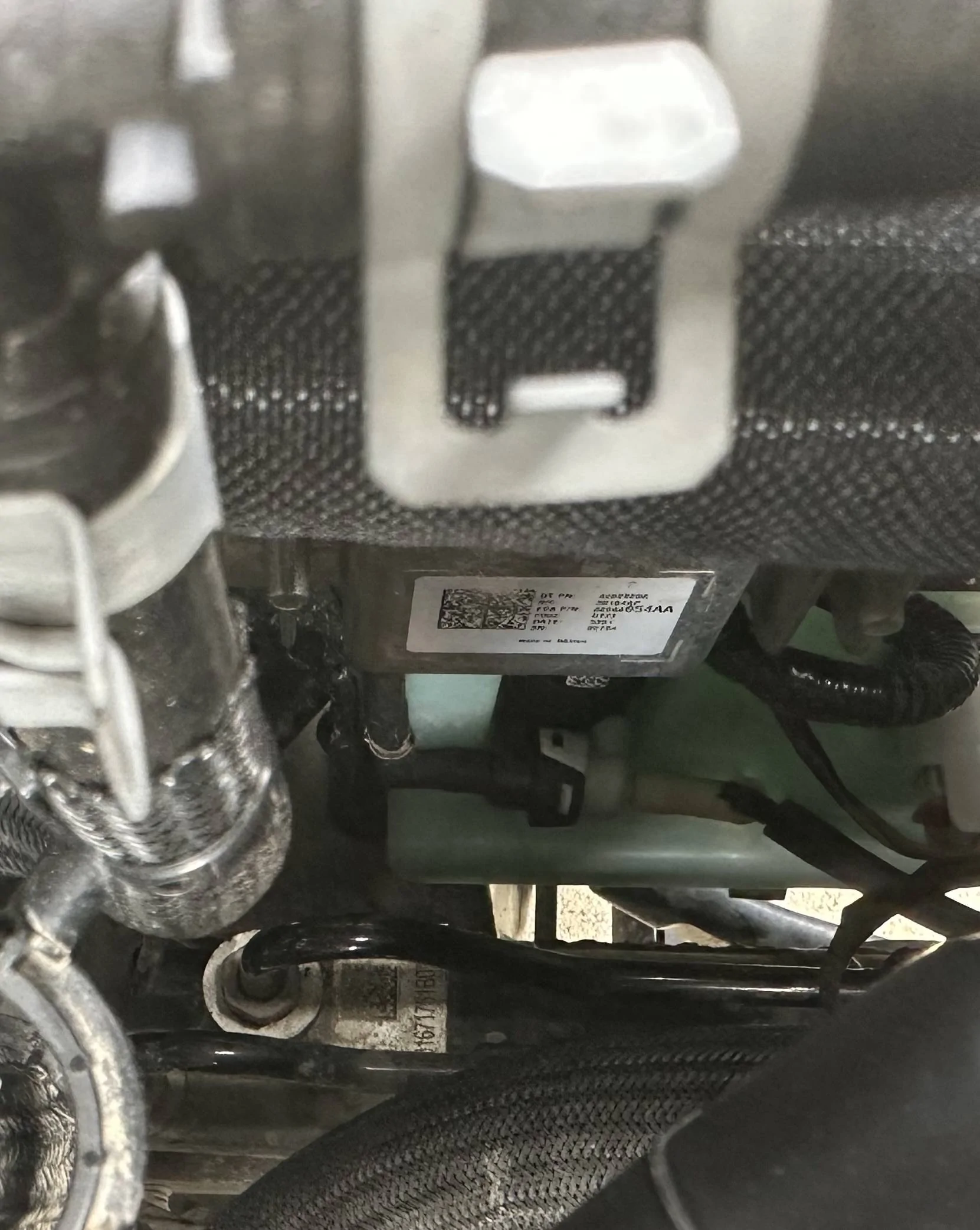

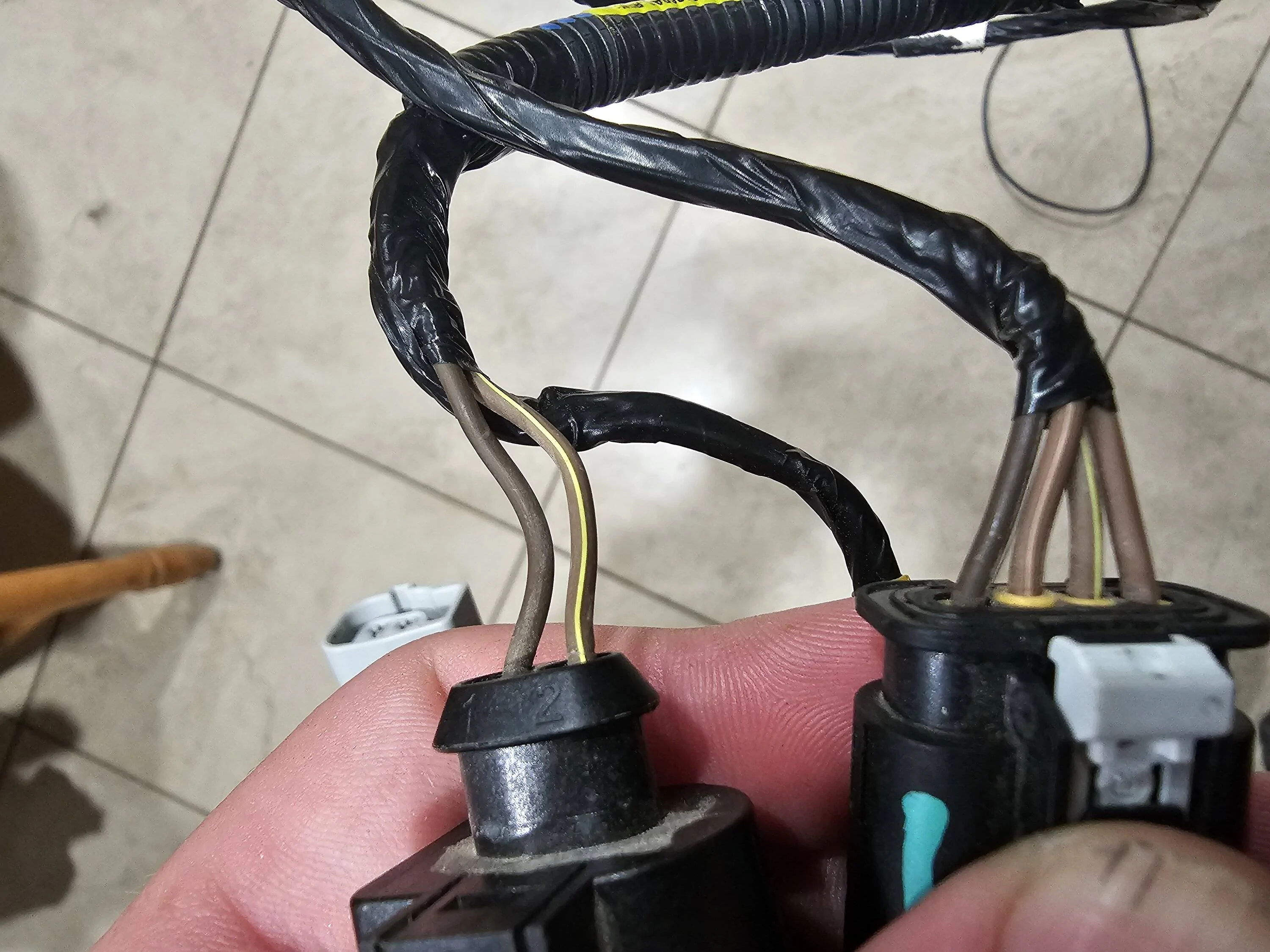

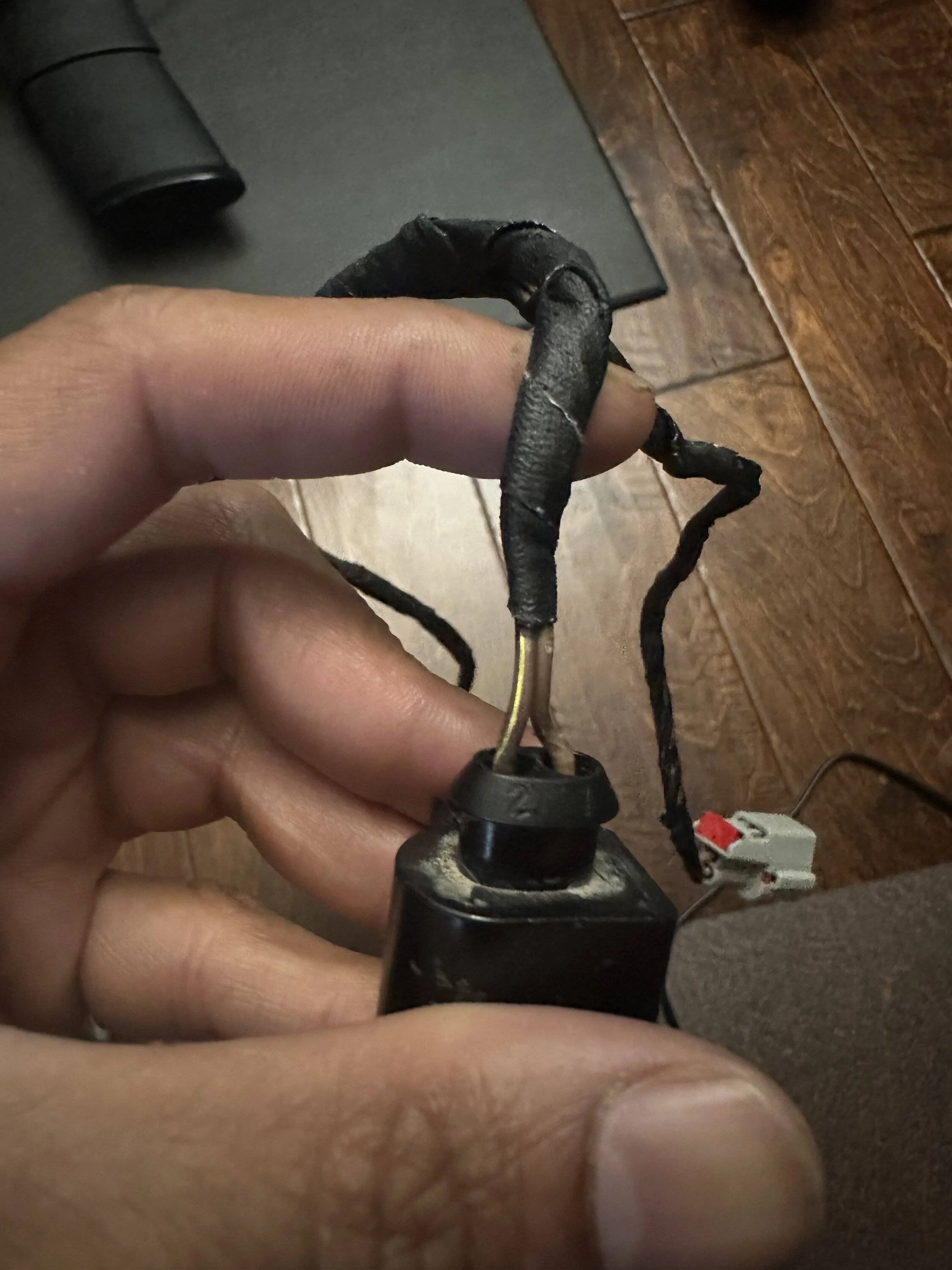

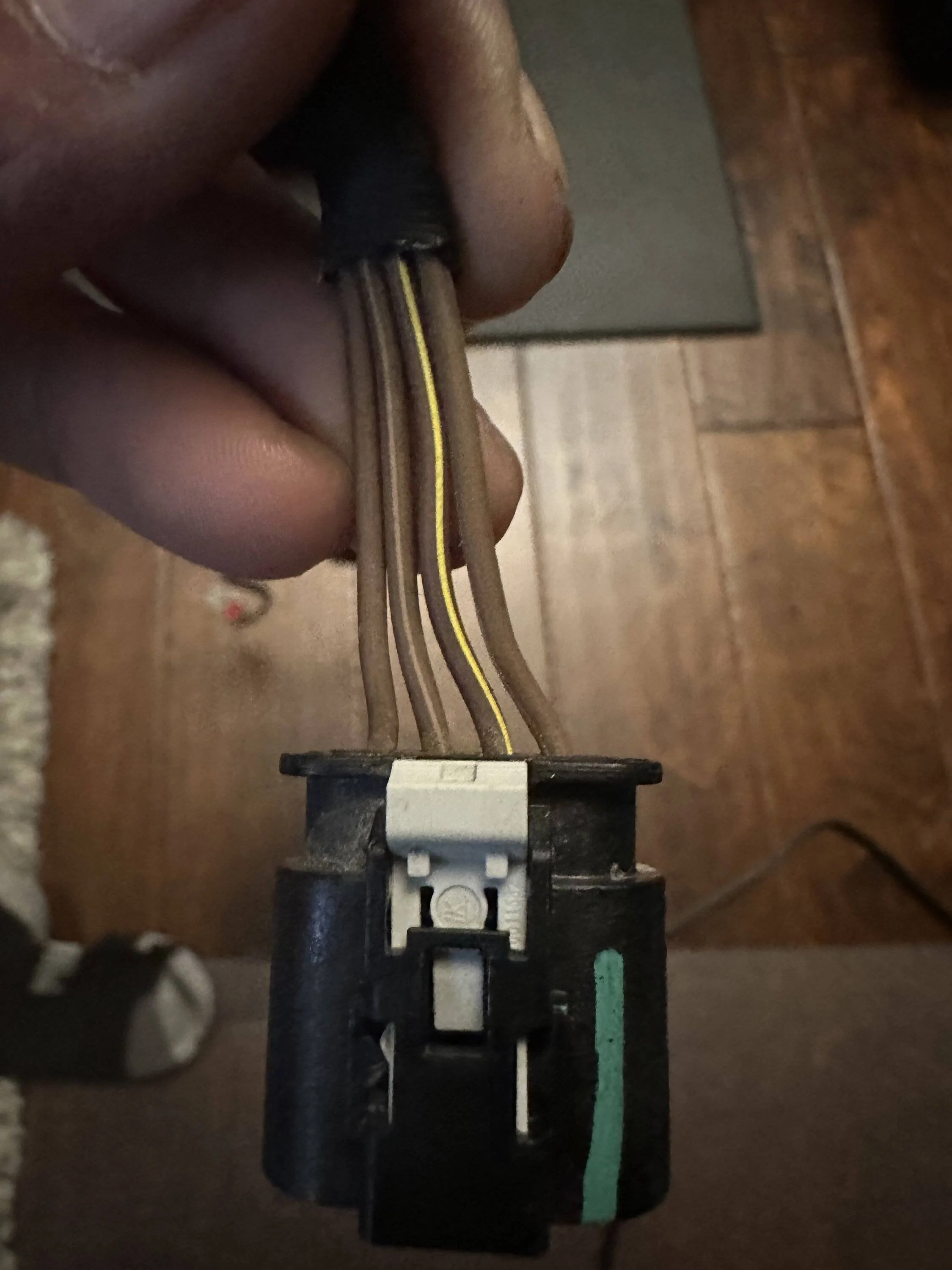

old harness pictures below





ecidiego

Well-Known Member
First Name
Chris
Joined
Nov 3, 2021
Threads
55
Messages
2,917
Reaction score
4,331
Location
San Diego
Vehicle(s)
2021 Gladiator Mojave
Occupation
IT
Fuck me....I see it. Damn.

Send me you address I'll order you one. It's cheap.

Or you can just reverse the wires. Sorry. Looks like I put the original part on the list not the freaking trailcam one.



Damnit.


nickd

Well-Known Member
First Name
Nick
Joined
Apr 26, 2022
Threads
4
Messages
121
Reaction score
115
Location
Alpharetta, GA
Vehicle(s)
2022 Rubicon Bright White
no worries buddy, i am just going to reverse the wires. Can you post a picture of your harness so I know which connection the yellow wire needs to be on?


ecidiego

Well-Known Member
First Name
Chris
Joined
Nov 3, 2021
Threads
55
Messages
2,917
Reaction score
4,331
Location
San Diego
Vehicle(s)
2021 Gladiator Mojave
Occupation
IT
I've got no issue sending you 2 one...let me know.

Already fixed my post. Sorry.


Sponsored

vishnu

Member
First Name
Vishnu
Joined
May 15, 2023
Threads
0
Messages
22
Reaction score
3
Vehicle(s)
2021 Jeep Gladiator Rubicon
Occupation
Infrastructure Engineer
I unplugged the CAH IHS connector completely and behaves exactly the same way. So this is likely correct. Thanks for your help. I'm gonna order the harness from Jimmy and now I get to take out the back panel again!!!!
@ecidiego Do you know if there's any sort of diagnostics in AlfaODB that would show if Nick's CVPM was showing online? I can check tomorrow, but I just disconnected my security bypass and those connectors suck to get to. I've been disconnecting it every time after programming under the assumption that you can't just leave the security bypass plugged in indefinitely. Please tell me if that's not right...


nickd

Well-Known Member
First Name
Nick
Joined
Apr 26, 2022
Threads
4
Messages
121
Reaction score
115
Location
Alpharetta, GA
Vehicle(s)
2022 Rubicon Bright White
i leave my security bypass connected all the time, its there to prevent someone from hacking your car. Its fine to leave connected for short terms.


ecidiego

Well-Known Member
First Name
Chris
Joined
Nov 3, 2021
Threads
55
Messages
2,917
Reaction score
4,331
Location
San Diego
Vehicle(s)
2021 Gladiator Mojave
Occupation
IT
@ecidiego Do you know if there's any sort of diagnostics in AlfaODB that would show if Nick's CVPM was showing online? I can check tomorrow, but I just disconnected my security bypass and those connectors suck to get to. I've been disconnecting it every time after programming under the assumption that you can't just leave the security bypass plugged in indefinitely. Please tell me if that's not right...
I wouldn't leave it bypassed...but install Z Auto extender cables....makes connecting it easy. I was hoping Jimmy would chime in on checking the cvpm. I can check mine.


vishnu

Member
First Name
Vishnu
Joined
May 15, 2023
Threads
0
Messages
22
Reaction score
3
Vehicle(s)
2021 Jeep Gladiator Rubicon
Occupation
Infrastructure Engineer
Fuck me....I see it. Damn.

Send me you address I'll order you one. It's cheap.

Or you can just reverse the wires. Sorry. Looks like I put the original part on the list not the freaking trailcam one.

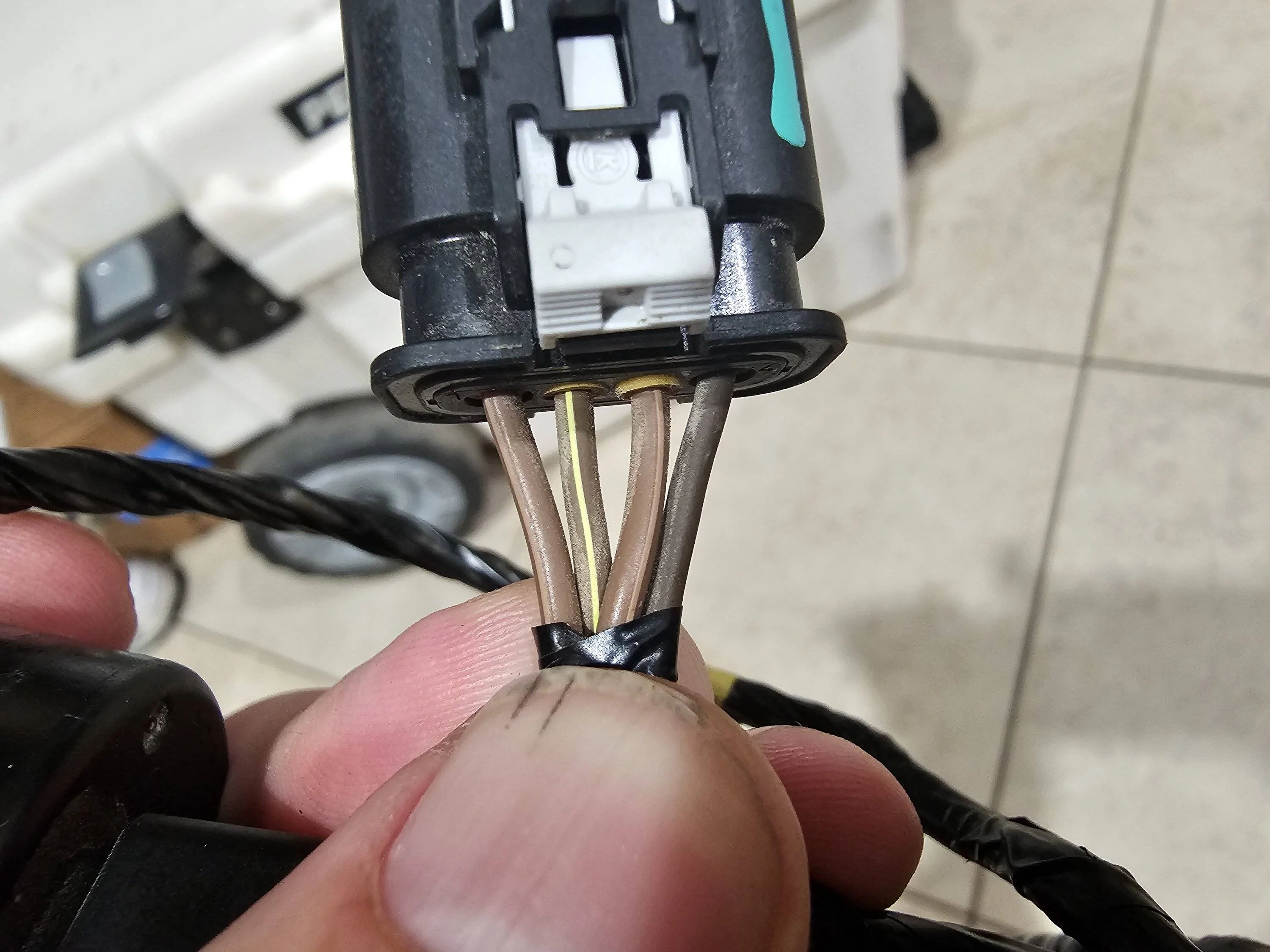

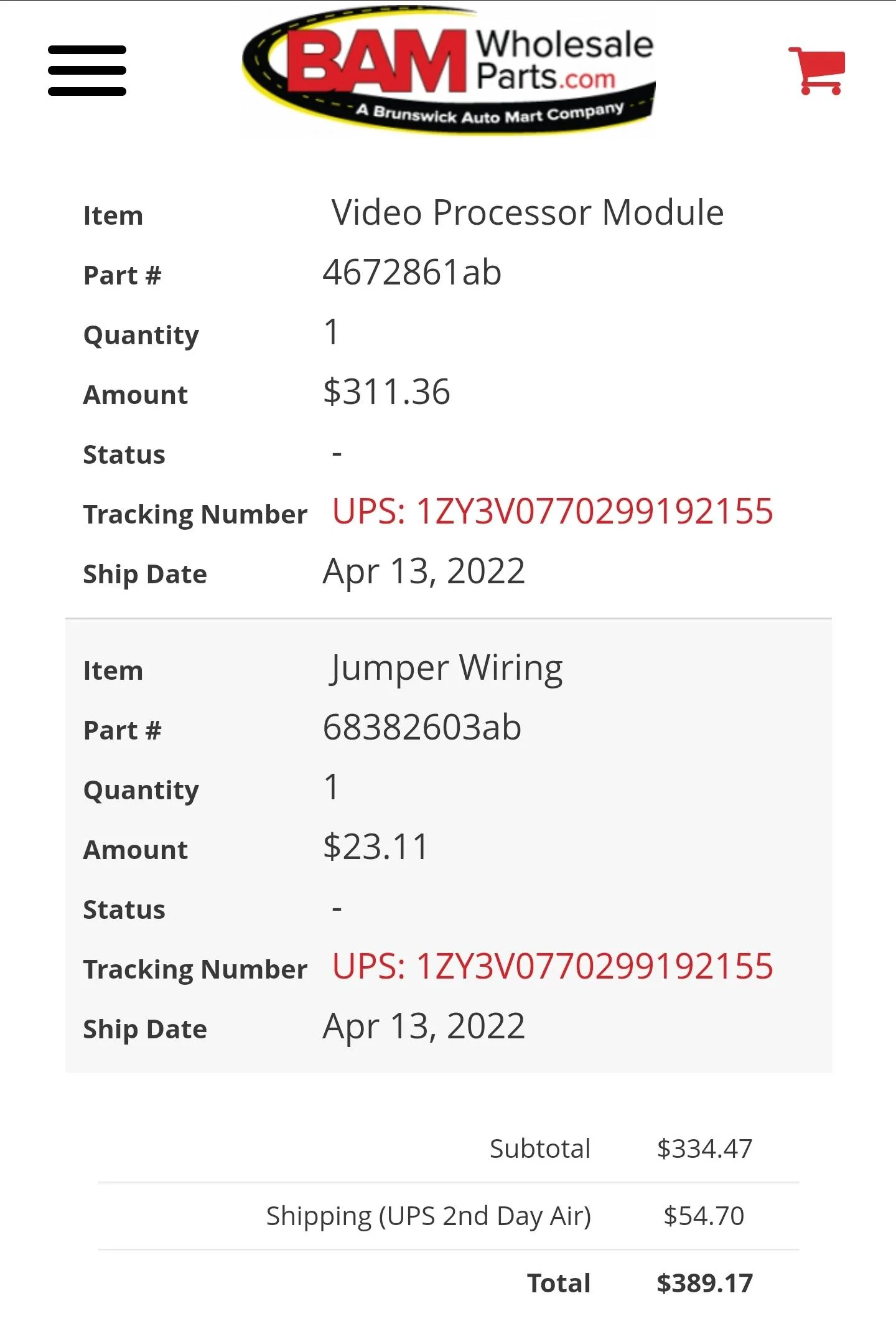

Jeep Gladiator HOW TO: Add Factory Front Trail Camera to Gladiator (DIY Writeup) Screenshot_20230613_195102_Brave
