1 on the left 4 on the right, swap 2 and 4.

@ecidiego Do you recall how you got the cap off or released the catch on that connector. Seems to be stubborn...

Sponsored



[ecidiego]

@ecidiego Do you recall how you got the cap off or released the catch on that connector. Seems to be stubborn...

I used the other harness. I'll mess with my original and figure it out.



[nickd]

@ecidiego Do you recall how you got the cap off or released the catch on that connector. Seems to be stubborn...

edit my first instructions were incorrect.

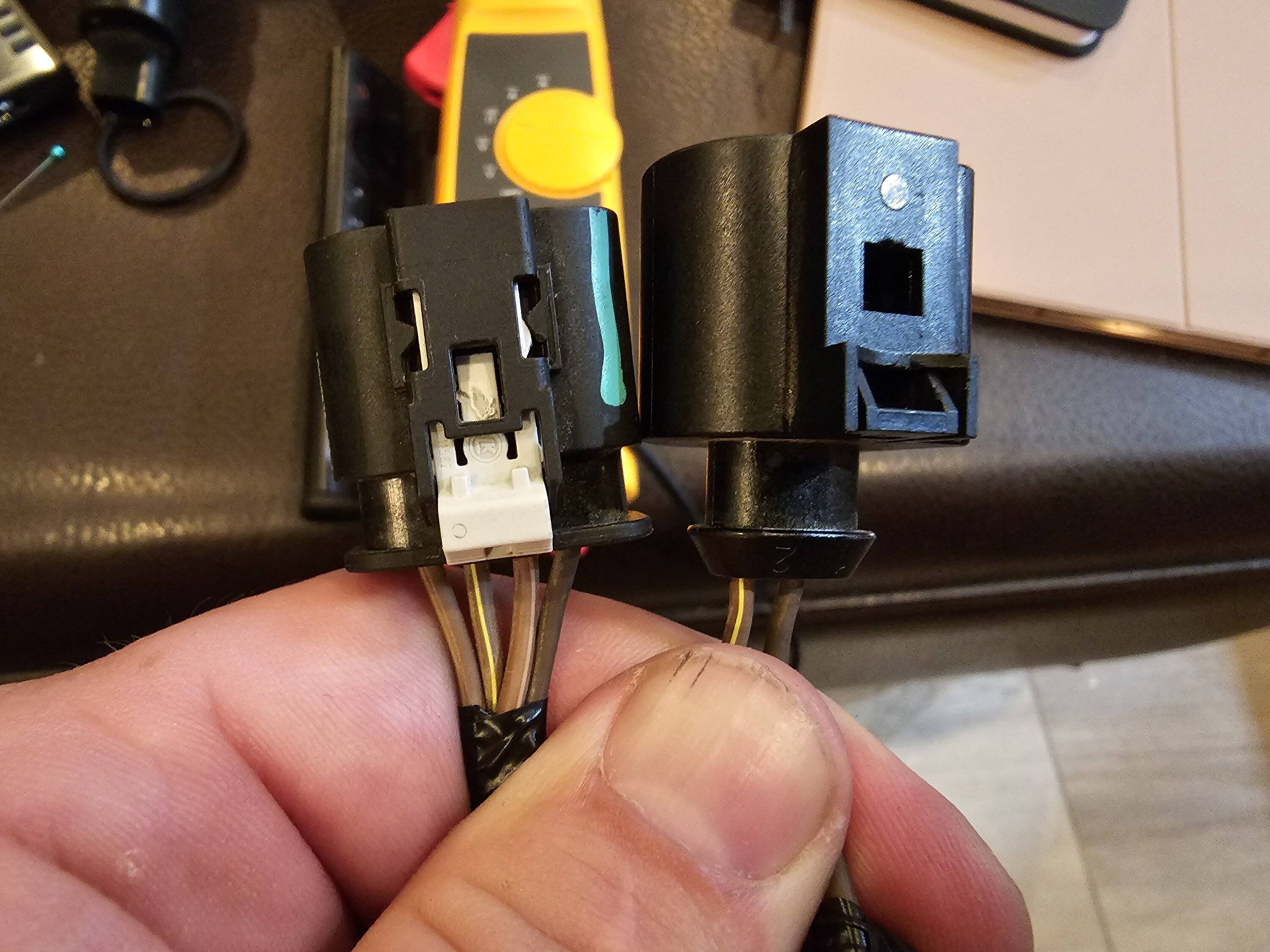

Use a small pick tool or screw driver to push down the small white square in the center of the connector. Then push the white slide forward, which unlocks the connector.



[nickd]

This is the exact connector on the washer pump. I was able to do this in 5 min with a small flat head screw driver and a paper clip



[ecidiego]

This is the exact connector on the washer pump. I was able to do this in 5 min with a small flat head screw driver and a paper clip

Can confirm 2 and 4 in this pic go to pump.



[nickd]

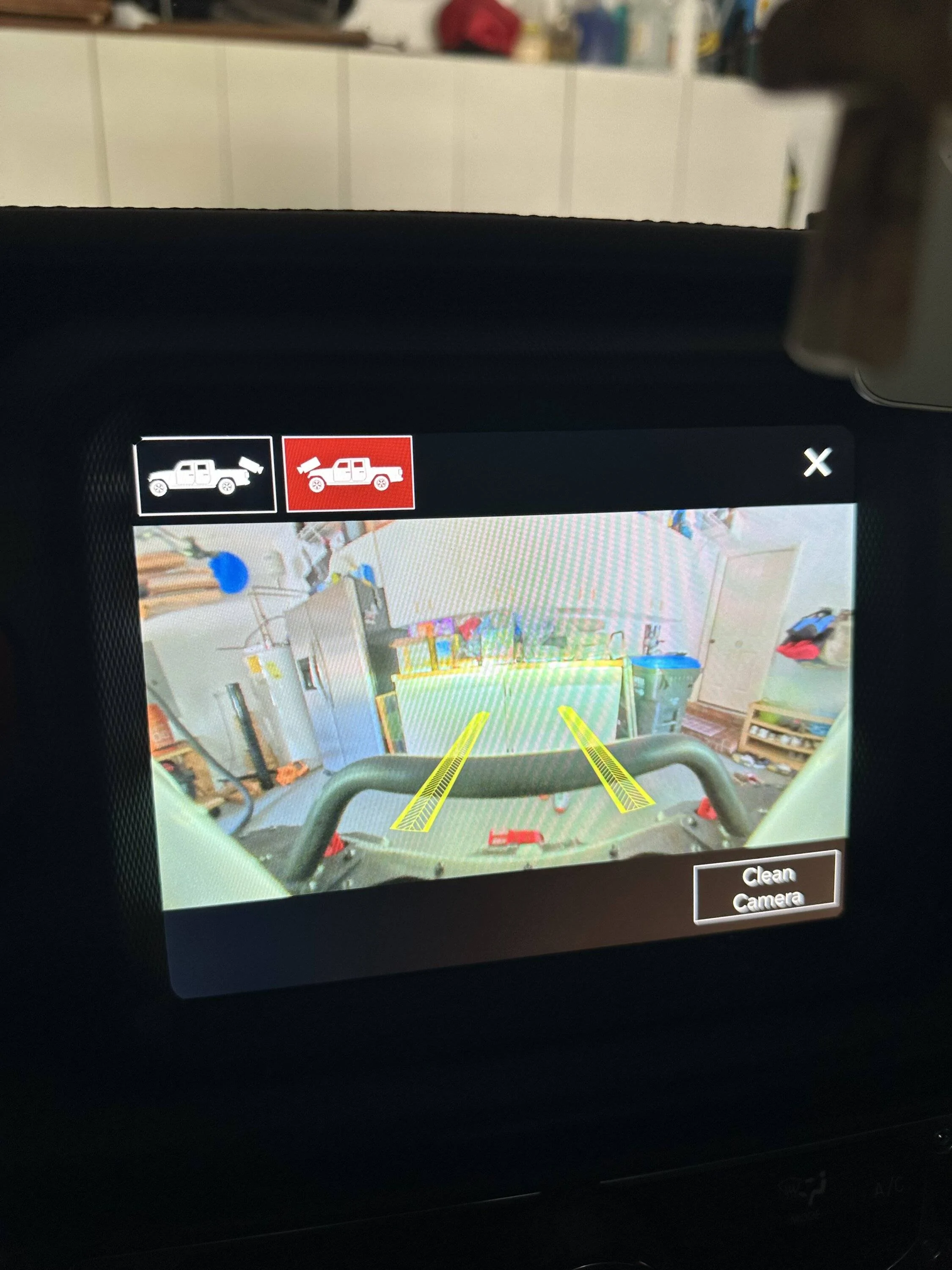

It works!!!!!! Jimmy's cable fixed everything. I also reversed the wires on the washer pump!



[ecidiego]

.



[Alc]

Not what I wanted to hear about the 2023 CVPM but explains a lot why the dealer hasn’t delivered on the parts yet and they are still on “ordered” status.



[nickd]

on a side note, if anyone wants a trail cam washer wiring harness I have an extra one.



[RustyC]

nice. apologies again about linking the non-trailcam harness. wires crossed, literally.

you're the first 2022 I have seen get it done. 2023 has several problems - CVPM is not orderable and who knows about AlfaOBD.

Can you confirm the alphaobd now works for 2022??
Thanks



[ecidiego]

Can you confirm the alphaobd now works for 2022??
Thanks

Seems to have worked fine for nick above.



[cschissler]

I added trail cam and all the sudden having these issues and dealer is saying it’s this



[cschissler]

Anyone have can bud issues



[DailyDrivenTJ]

@Jimmy07 @ecidiego Thank you two for making this guide. I was able to complete my mock-install to verify function.



[Greg Lane]

Hi. I'm new to this forum, and connected mainly as I've been trying to work out how to add a factory front camera to my 2023 Wrangler Rubicon. Some of the trails I've been on showed me how useful such a camera would be. I don't think the front camera was an option in 2023, so there isn't a kit to install one. The after market cameras don't look good, and the factory camera appears to have it all. Does anyone know if this has been done? Most of the Gladiator parts look like they'll work OK, but the front grille with the camera mount is an issue-mine is the black one piece grille, and would not have had the camera mount in 2023. I believe continued...
