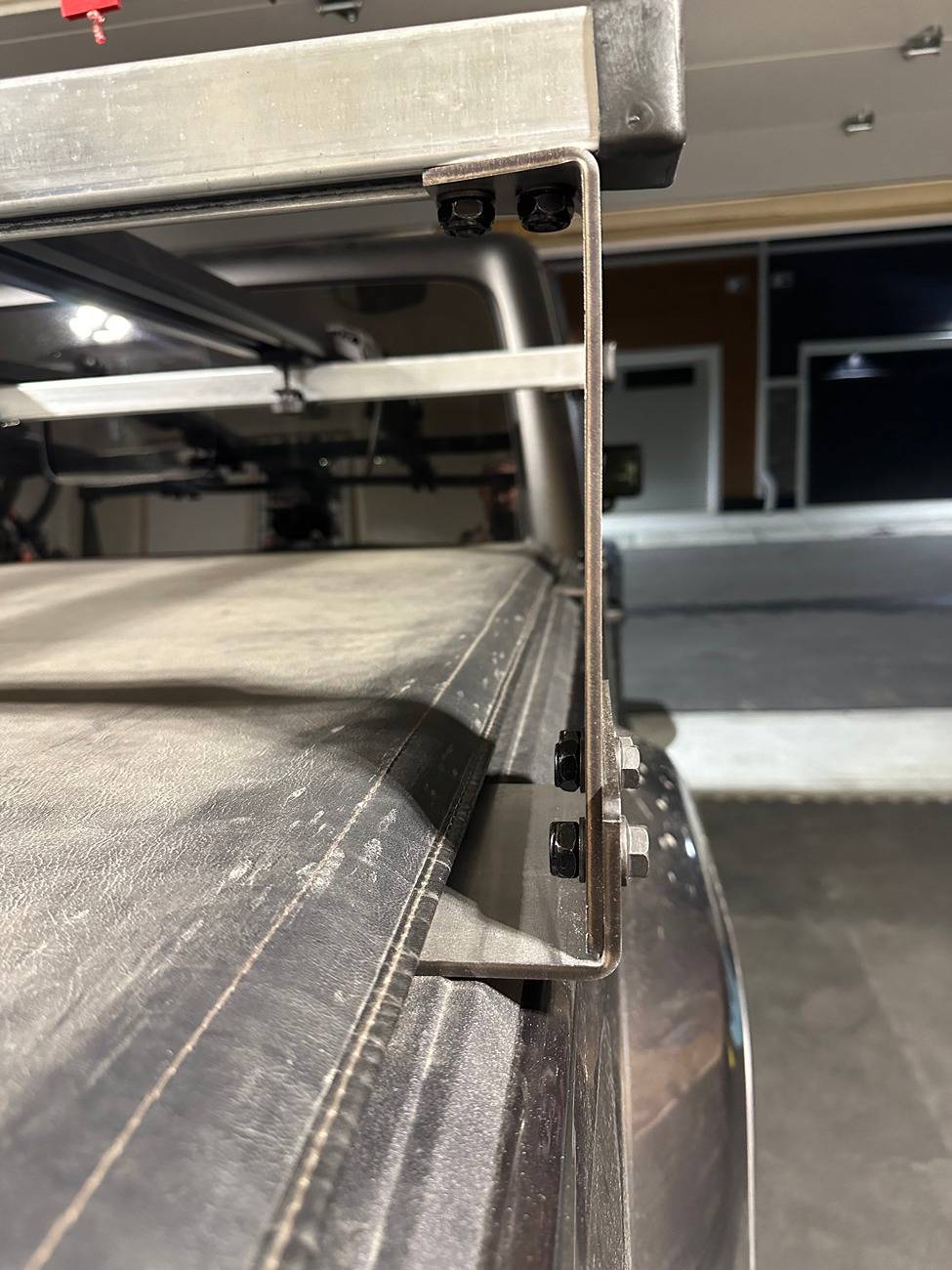

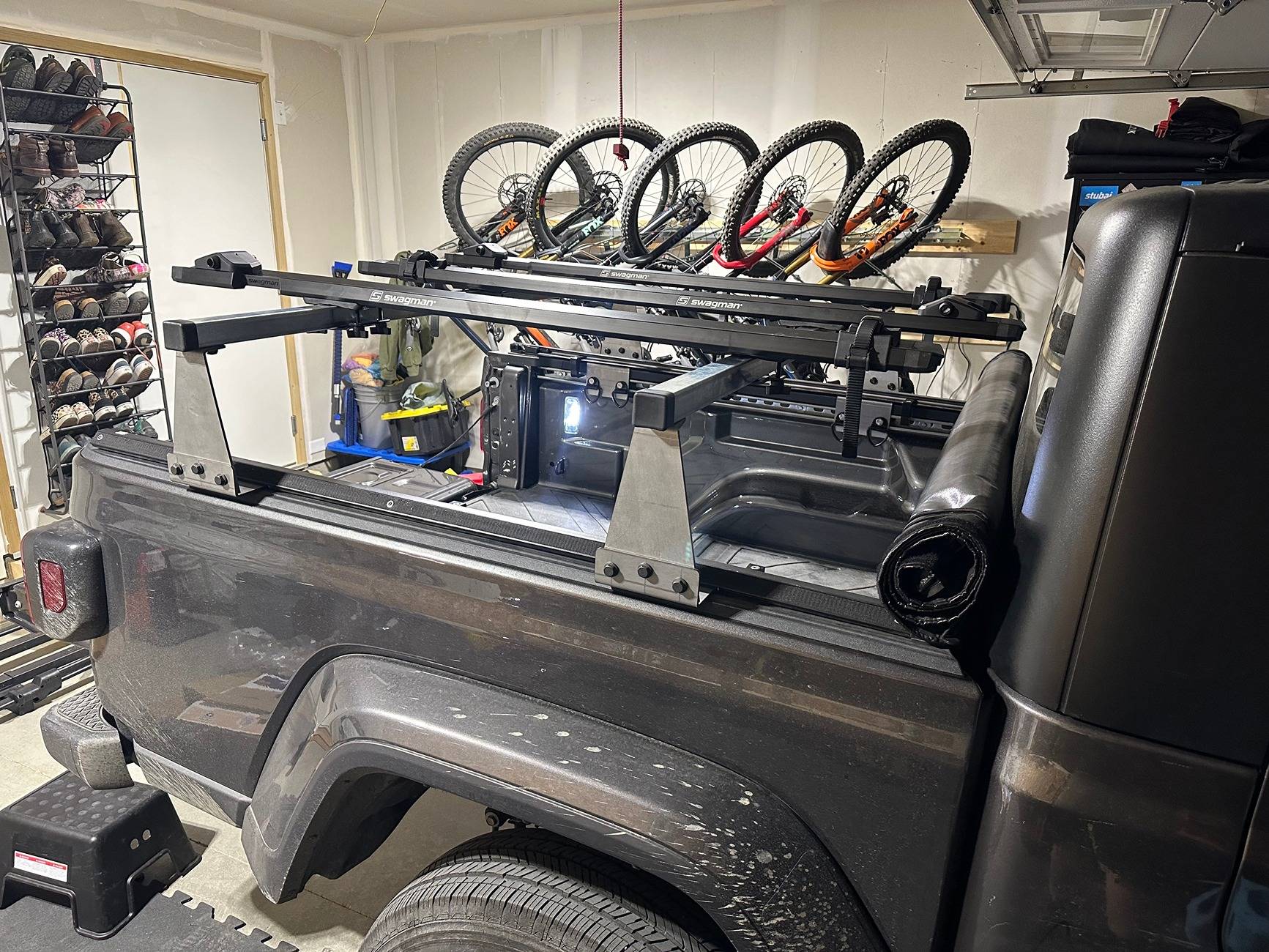

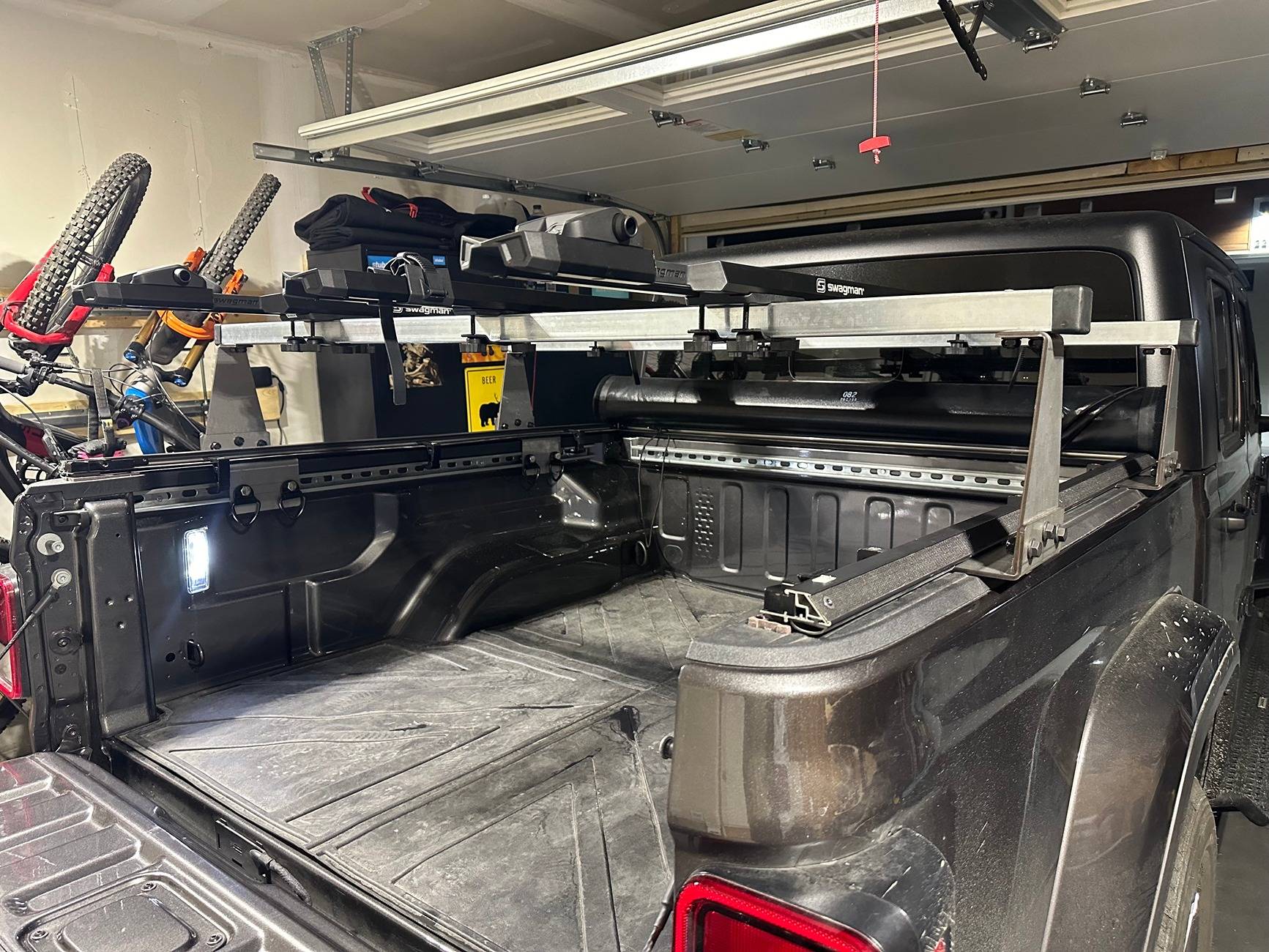

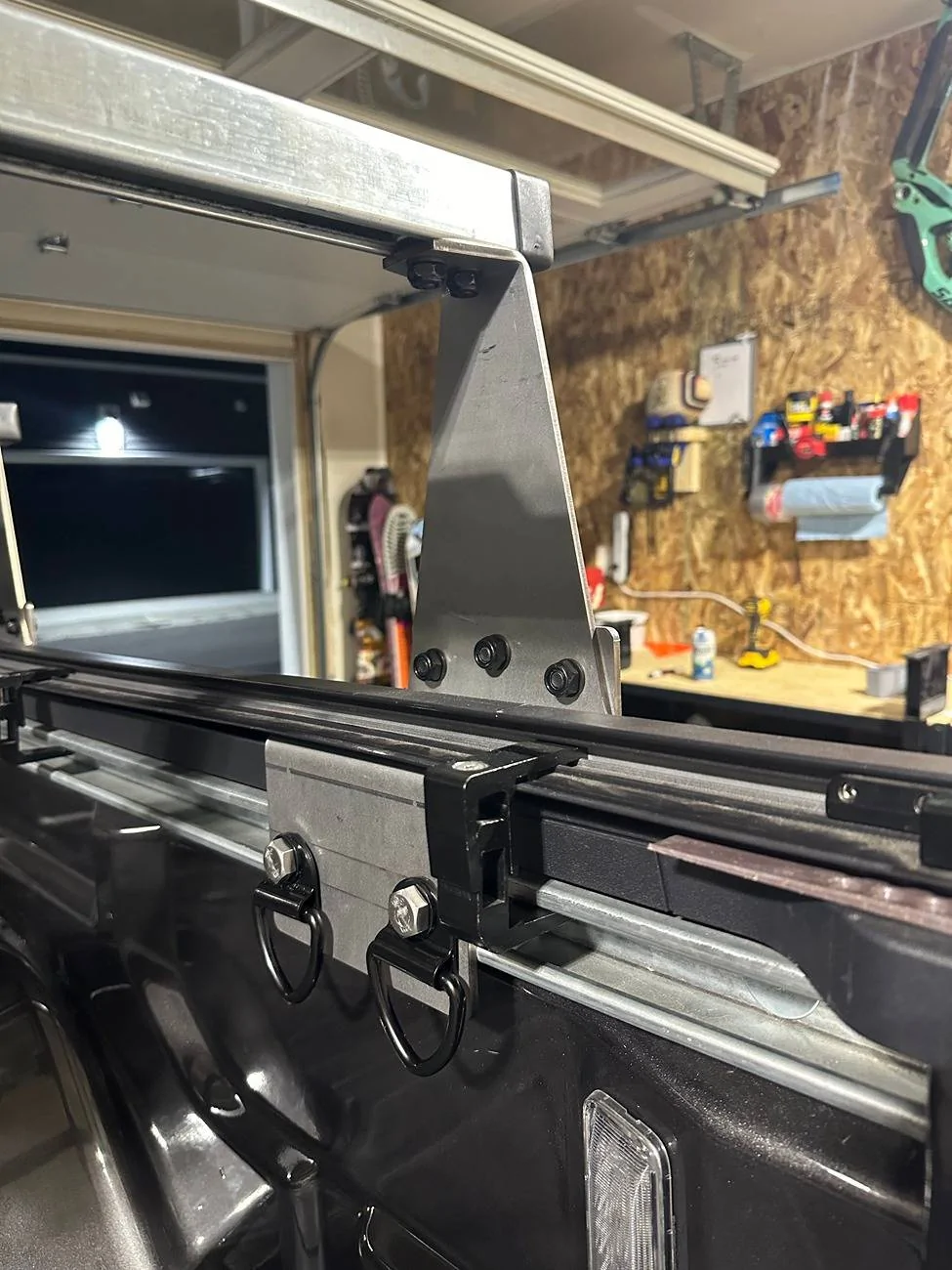

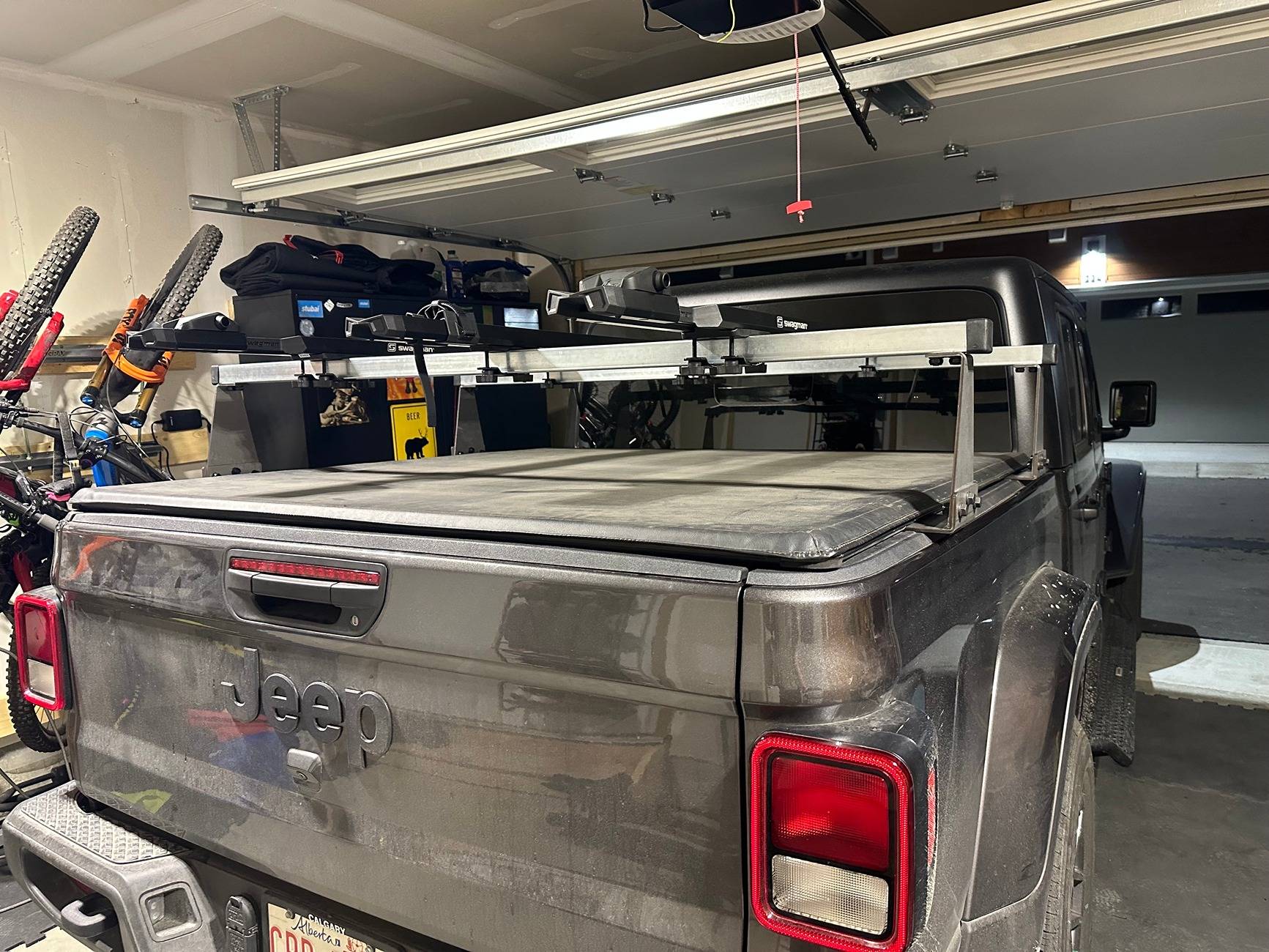

I'm building my idea of a perfect (for me) Gladiator rack

OP
OP
WhatExit?

WhatExit?

Well-Known Member
First Name
Dan
Joined
Sep 13, 2018
Threads
54
Messages
1,946
Reaction score
2,615
Location
48th State
Vehicle(s)
2020 JT Rubicon Launch Edition - Granite Crystal Metallic | 2017 Ford Raptor SuperCrew - Metallic
Vehicle Showcase
3
@WhatExit? thanks for the link. How did you secure the Apache case to the bar?
I put the case on the rack, positioned it where I wanted, made sure it was square/inline and then looked up through the rack's Unistrut/Powerstrut to mark the holes. Drilled holes and used SS bolts (from Lowe's - they have great Stainless Steel hardware at reasonable prices unlike Home Depot which doesn't), flat washers, lock/split washers and lock nuts (Stainless Steel lock nuts with nylon inserts in them - between them and the lock washers they'll never come undone).



CMT

New Member
First Name
Chris
Joined
Apr 29, 2021
Threads
0
Messages
3
Reaction score
0
Location
Michigan
Vehicle(s)
Tacoma
I own a Tacoma and this thread has been far more valuable than any Tacoma thread I have found regarding a DIY bed rack. I ended up having to make my own mounting brackets from scratch, as the CCC brackets would not fit with a Tacoma OEM hard tonneau cover. I also didn't want to spend $185 for the Max Modular brackets, especially since I would only need the bottom portion. $46 per bracket + shipping seems extreme to me. Anyway, I have two questions for you...

1) When mounting the apache case, did you do any weather-proofing to the holes in the case and/or mounting hardware?
2) I used the same 12 gauge unistrut and am wondering if/how you painted the inside curve of the lip at the bottom of the bar.

Thanks a ton...

OP
OP
WhatExit?

WhatExit?

Well-Known Member
First Name
Dan
Joined
Sep 13, 2018
Threads
54
Messages
1,946
Reaction score
2,615
Location
48th State
Vehicle(s)
2020 JT Rubicon Launch Edition - Granite Crystal Metallic | 2017 Ford Raptor SuperCrew - Metallic
Vehicle Showcase
3
I own a Tacoma and this thread has been far more valuable than any Tacoma thread I have found regarding a DIY bed rack. I ended up having to make my own mounting brackets from scratch, as the CCC brackets would not fit with a Tacoma OEM hard tonneau cover. I also didn't want to spend $185 for the Max Modular brackets, especially since I would only need the bottom portion. $46 per bracket + shipping seems extreme to me. Anyway, I have two questions for you...

1) When mounting the apache case, did you do any weather-proofing to the holes in the case and/or mounting hardware?
2) I used the same 12 gauge unistrut and am wondering if/how you painted the inside curve of the lip at the bottom of the bar.

Thanks a ton...

Hi Chris, glad you find this info/thread helpful! I understand you didn't want to pay the Max Modular guys for the parts you don't need. I think they'd rather not help people make their own racks so it's take-it-or-leave-it for them. There will certainly be other bracket options so it will be their loss.

As for the long gun case (used for off road recovery, first aid, air compressor, etc.), no need to weather proof the holes as I used washers inside and outside (underside). And you could easily buy some rubber sheeting and put that on both sides of the plastic case held in place by the washers. No water will get in if you do that but I'm skeptical of any water getting in from the underside anyway - the holes are barely larger than the bolts.

Unistrut - just rattle canned it from every angle. As long as you don't overspray/glob it on there the spray will get in most places. And inside those 2 tiny curves/rounded edges, it's so hard to see in there no one will notice if it's completely spray painted.

Post up pics of your work. I look forward to seeing what you're creating!


CMT

New Member
First Name
Chris
Joined
Apr 29, 2021
Threads
0
Messages
3
Reaction score
0
Location
Michigan
Vehicle(s)
Tacoma
Thanks for the reply. I should have clarified that I'm not so concerned about the appearance of the paint job as I am about potential rust. I'm thinking that if I can't get paint into that bottom groove, I may just try to run a bead of clear caulk to fill it.

OP
OP
WhatExit?

WhatExit?

Well-Known Member
First Name
Dan
Joined
Sep 13, 2018
Threads
54
Messages
1,946
Reaction score
2,615
Location
48th State
Vehicle(s)
2020 JT Rubicon Launch Edition - Granite Crystal Metallic | 2017 Ford Raptor SuperCrew - Metallic
Vehicle Showcase
3
Thanks for the reply. I should have clarified that I'm not so concerned about the appearance of the paint job as I am about potential rust. I'm thinking that if I can't get paint into that bottom groove, I may just try to run a bead of clear caulk to fill it.

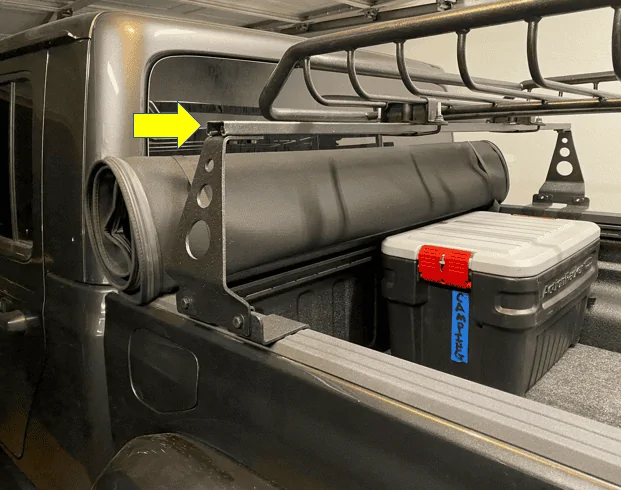

You're talking about this?

Screen Shot 2021-04-29 at 3.40.32 PM.png



CMT

New Member
First Name
Chris
Joined
Apr 29, 2021
Threads
0
Messages
3
Reaction score
0
Location
Michigan
Vehicle(s)
Tacoma
You're talking about this?

Screen Shot 2021-04-29 at 3.40.32 PM.png

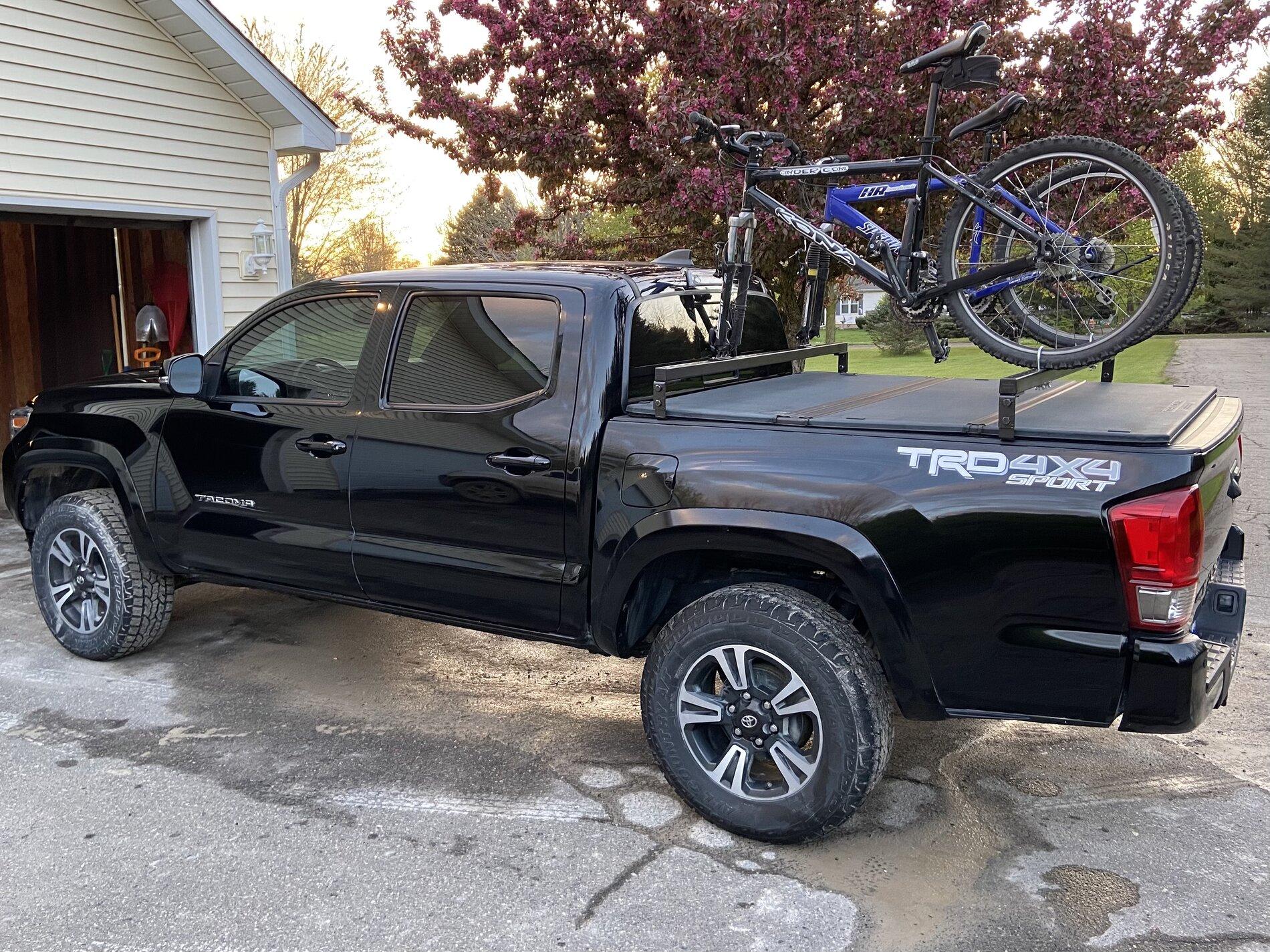

Yes- the inside of the curved channel at the bottom going across the whole bar (the channel you could roll a bb down if you tipped the bar). I get a decent amount of precip. where I live so I'm thinking that channel will likely collect water. I'll probably need to fill it with something. Here's a quick pick of the maiden voyage this morning.
You're talking about this?

Screen Shot 2021-04-29 at 3.40.32 PM.png
Yes- the inside of the curved channel at the bottom going across the whole bar (the channel you could roll a bb down if you tipped the bar). I get a decent amount of rain where I live so I'm thinking that channel will likely collect water. I'll probably need to fill it with something. Here's a quick pick of the maiden voyage this morning.


MPMB

Well-Known Member
First Name
Michael
Joined
Apr 30, 2021
Threads
5
Messages
901
Reaction score
1,178
Location
Washington
Vehicle(s)
'21 JTR - SG
Occupation
Check your inbox.
Thanks for the reply. I should have clarified that I'm not so concerned about the appearance of the paint job as I am about potential rust. I'm thinking that if I can't get paint into that bottom groove, I may just try to run a bead of clear caulk to fill it.
Or you can flip the unistrut over.


GreyGhost

Well-Known Member
First Name
Sam
Joined
Oct 21, 2020
Threads
2
Messages
61
Reaction score
29
Location
Texas
Vehicle(s)
Jeep Gladiator 2020
Occupation
Retired

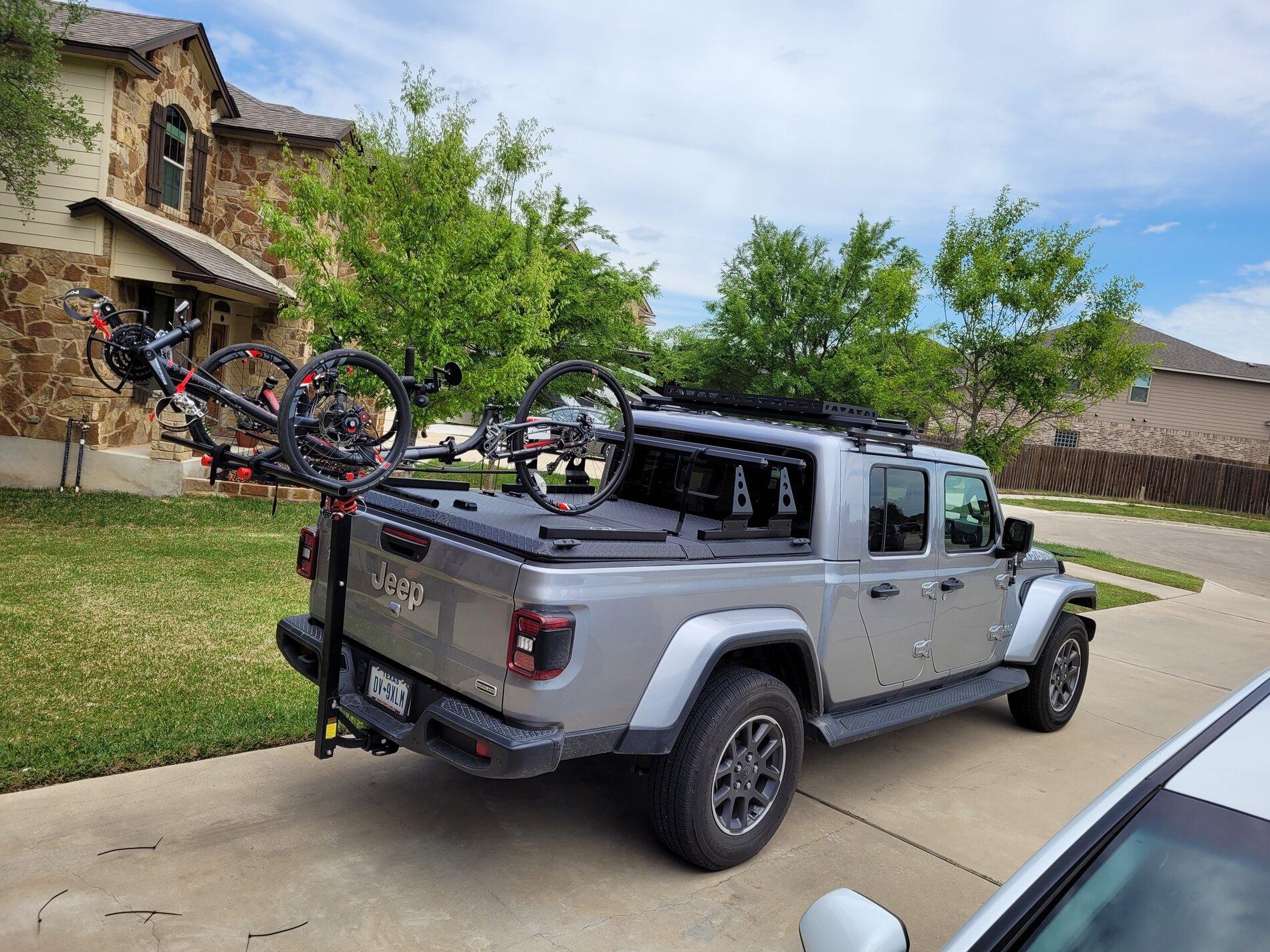

Diy rack on Diamondback cover recumbent bike on....
Rack bike jeep.jpg

OP
OP
WhatExit?

WhatExit?

Well-Known Member
First Name
Dan
Joined
Sep 13, 2018
Threads
54
Messages
1,946
Reaction score
2,615
Location
48th State
Vehicle(s)
2020 JT Rubicon Launch Edition - Granite Crystal Metallic | 2017 Ford Raptor SuperCrew - Metallic
Vehicle Showcase
3

clubmanager

Well-Known Member
First Name
John
Joined
Aug 18, 2021
Threads
20
Messages
110
Reaction score
43
Location
NW Arkansas
Vehicle(s)
None
Yes! I’m really keen on a hard tonneau but would like a rack as well. This is the first I’ve seen.....sorry to resurrect an old thread but more intel would be appreciated!



.:eMETAL:.

Well-Known Member
First Name
Erick
Joined
Nov 1, 2021
Threads
5
Messages
53
Reaction score
143
Location
Maine
Vehicle(s)
2022 Jeep Gladiator Mojave
Occupation
Hospitality
This thread is just gold. Plain and simple… gold.

My Mojave is on order with a 12/1 build date and I’m just roaming the ever living intrwebs for this exact thread. Now I realize that my mopar hard tonneau probably won’t work with this but I’ve already decided to ditch it and go with the bakflip revolver and this will work, I just know it. I may plan to run 3 of these towers on each bed side just for the multiple rotopax mounting capabilities.

pure gold! Thank you WhatExit? !!!


aqcjeepGlad

Well-Known Member
First Name
Tony
Joined
Jul 1, 2021
Threads
0
Messages
72
Reaction score
37
Location
South
Vehicle(s)
Mojave

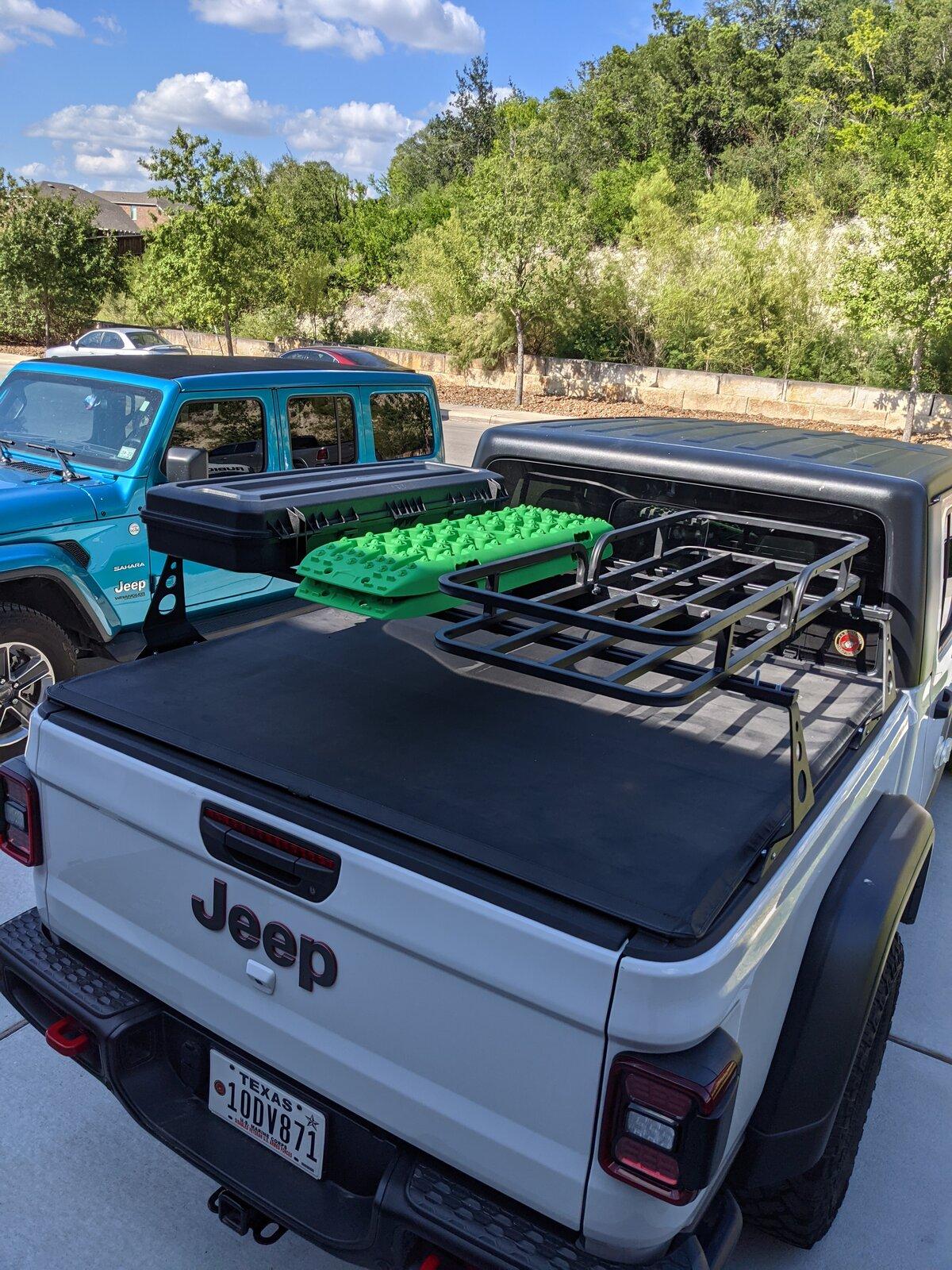

Here is my rack, will be mounting a hi lift next to the basket
Looks great!!! What tonneau cover is that? Also what did you use to attach the towers to? The same test brackets as whatexit? used or something else? Thanks.




Top
