I thought I read here that the diff cover bolts were a one time use bolt. Seems strange if so to replace them when changing the fluid.
Sponsored
Sponsored
Need to change diff fluid
- Thread starter j.o.y.ride
- Start date
- Watchers 5
ShadowsPapa
Well-Known Member
- First Name
- Bill
- Joined
- Oct 12, 2019
- Threads
- 180
- Messages
- 29,634
- Reaction score
- 35,263
- Location
- Runnells, Iowa
- Vehicle(s)
- '22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
- Occupation
- Retired auto mechanic, frmr gov't ntwrk security admin
- Vehicle Showcase
- 3
There are two reasons for "one time use" bolts -
Those that stretch to yield for torque purposes (connecting rod bolts, among others, like certain suspension bolts)
or
those that are treated with a thread locking compound, such as the steering pitman shaft nut.
If it's the latter, and it certainly has to be since those aren't torqued enough for any type of stretch, then one could clean them and apply thread locker (and should - because it also helps seal them besides preventing them from backing out from low torque against a thin cover)
With the trouble Jeep is having on transmission pan leaks - thanks for the idea - I may look into trying to find the torque settings and if the Jeep specs say they are "one time use" bolts for the transmission pan -then try to find out if the Jeep techs at dealerships are using them over again.
BearFootSam
Well-Known Member
Now it's made with bering seal oil.
Hootbro
Well-Known Member

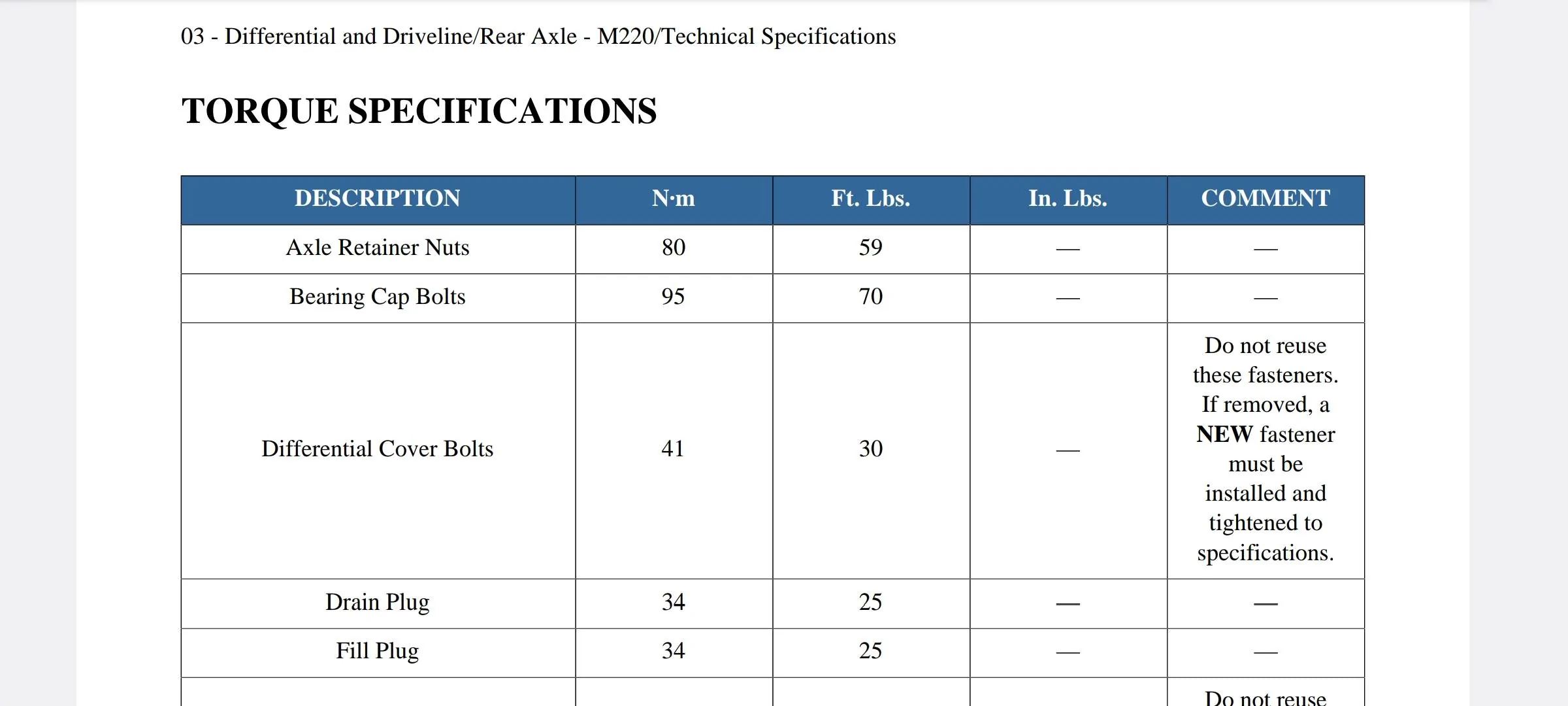

They are one time use bolts if you expect to torque to spec of 30 ft-lbs. Like @ShadowsPapa mentioned, they are torque to yield and stretch.
That being said, if you back the torque off to 25 ft-lbs, you can probably reuse them. Reusing them and going to 30 ft-lbs and you have about a 50/50 chance of snapping the head off.
legacy_etu
Well-Known Member
Strange that they're TTY bolts. I wouldn't have expected that. I would have expected shadowspapa thoughts around the thread-locker being the reason.They are one time use bolts if you expect to torque to spec of 30 ft-lbs. Like @ShadowsPapa mentioned, they are torque to yield and stretch.
That being said, if you back the torque off to 25 ft-lbs, you can probably reuse them. Reusing them and going to 30 ft-lbs and you have about a 50/50 chance of snapping the head off.
Sponsored
Hootbro
Well-Known Member
It could be the thread locker and my TTY statement misplaced. I just have learned the hard way that reusing them and taking to max torque, they tend to snap off sometimes. I think the reusable gasket material does not give a good feedback to let you know when you are about to torque them to fail.
ShadowsPapa
Well-Known Member
- First Name
- Bill
- Joined
- Oct 12, 2019
- Threads
- 180
- Messages
- 29,634
- Reaction score
- 35,263
- Location
- Runnells, Iowa
- Vehicle(s)
- '22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
- Occupation
- Retired auto mechanic, frmr gov't ntwrk security admin
- Vehicle Showcase
- 3
The fact that the cover is not very thick means there's little bolt shank to stretch and warn you by "feel".
Question -
I've not had my own differential covers off as of yet. That will be in the future. So I've not personally seen the cover seal these use. Are they at all like used in the AMC 20 (which Dana bought the rights to) where it's square cut o-ring in a channel in the housing?

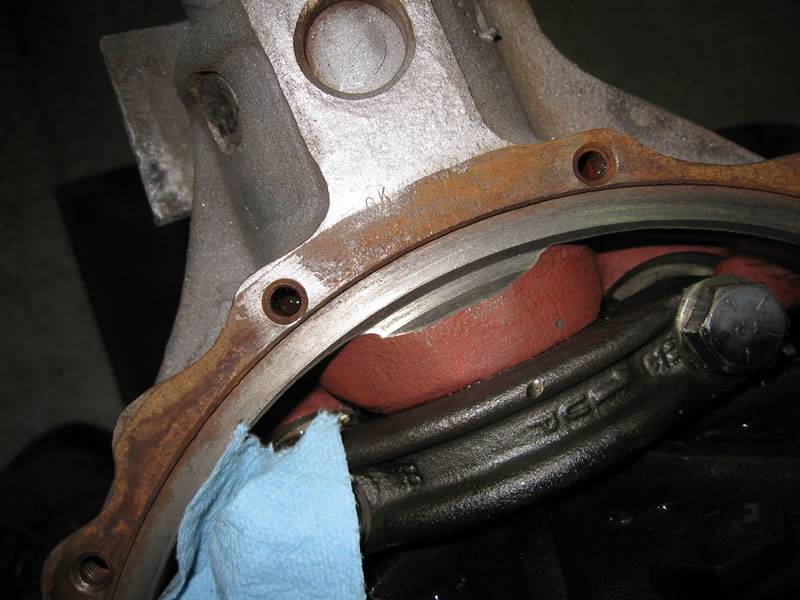

Here's a 20 I worked on years ago, you can see where the square-cut o-ring fits just inside the bolts. It allowed you to torque the bolts down and not distort a paper/fiber/cork gasket at all. These almost never leaked.
ShadowsPapa
Well-Known Member
- First Name
- Bill
- Joined
- Oct 12, 2019
- Threads
- 180
- Messages
- 29,634
- Reaction score
- 35,263
- Location
- Runnells, Iowa
- Vehicle(s)
- '22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
- Occupation
- Retired auto mechanic, frmr gov't ntwrk security admin
- Vehicle Showcase
- 3
Are you being straight with us?
Never mind, some won't get it...........
legacy_etu
Well-Known Member
Yeah, I love that design. No worries about crushing the seal with that.The fact that the cover is not very thick means there's little bolt shank to stretch and warn you by "feel".
Question -
I've not had my own differential covers off as of yet. That will be in the future. So I've not personally seen the cover seal these use. Are they at all like used in the AMC 20 (which Dana bought the rights to) where it's square cut o-ring in a channel in the housing?
Here's a 20 I worked on years ago, you can see where the square-cut o-ring fits just inside the bolts. It allowed you to torque the bolts down and not distort a paper/fiber/cork gasket at all. These almost never leaked.
Minty JL
Well-Known Member
- First Name
- Jeremy
- Joined
- May 15, 2019
- Threads
- 14
- Messages
- 2,843
- Reaction score
- 4,099
- Location
- Ft Meade, MD - AOR
- Vehicle(s)
- 23 XC90 - 23 JTM - 19 JLUR - 04 355 ZQ8
- Occupation
- USA(R), DoD Field Ops Engineer
You beat me to it
Sponsored
ShadowsPapa
Well-Known Member
- First Name
- Bill
- Joined
- Oct 12, 2019
- Threads
- 180
- Messages
- 29,634
- Reaction score
- 35,263
- Location
- Runnells, Iowa
- Vehicle(s)
- '22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
- Occupation
- Retired auto mechanic, frmr gov't ntwrk security admin
- Vehicle Showcase
- 3
whysoserious
Well-Known Member
- First Name
- Joe
- Joined
- Mar 20, 2023
- Threads
- 5
- Messages
- 266
- Reaction score
- 434
- Location
- Central Texas
- Vehicle(s)
- 2021 JT Mojave, 2006 Rubicon
- Occupation
- Professional former employee
Hah!This guy found a way to refill when the plug wouldn't come out..
