Sponsored

On Board Air: Pre-Fab’d mounts/DIY & Chucks (Where & Why)

NGNERD

Well-Known Member
Joined
Jan 19, 2020
Threads
8
Messages
154
Reaction score
130
Location
VA
Vehicle(s)
2020 LE Gladiator Rubicon GCM

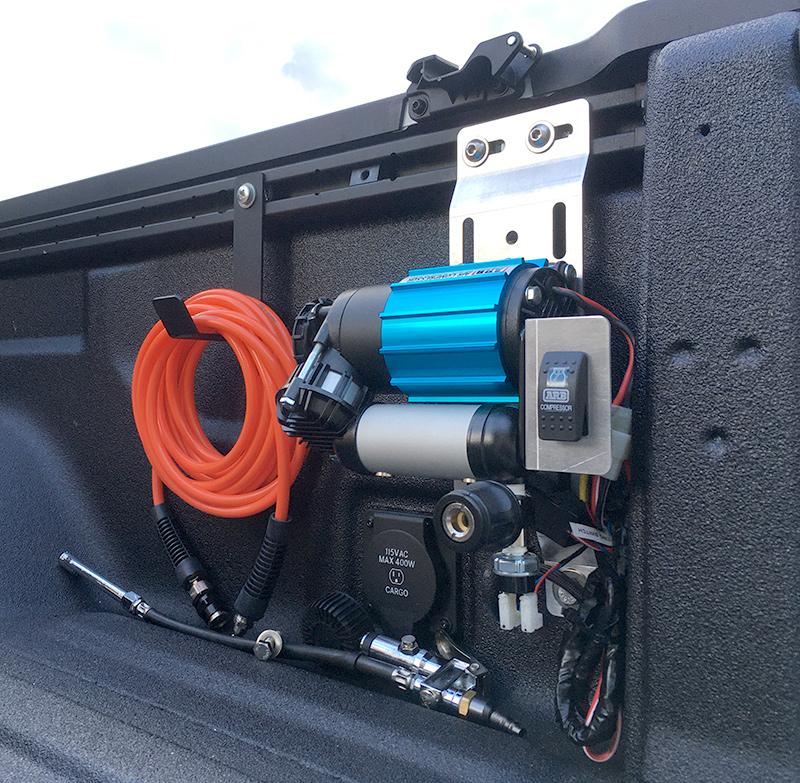

I offer a few different mounting options for the JT. I have one for the bed that mounts the single ARB compressor and one that holds the Twin ARB compressor and it also has an optional protective guard. No pics to show yet, but I also have a universal mount that works with the single or twin that mounts in the cab with a few different air chuck solutions. I am finishing prototypes within the next few days and be able to show the pre-production pieces for that one. Let me know if anyone has any questions.
for more information.



Hi

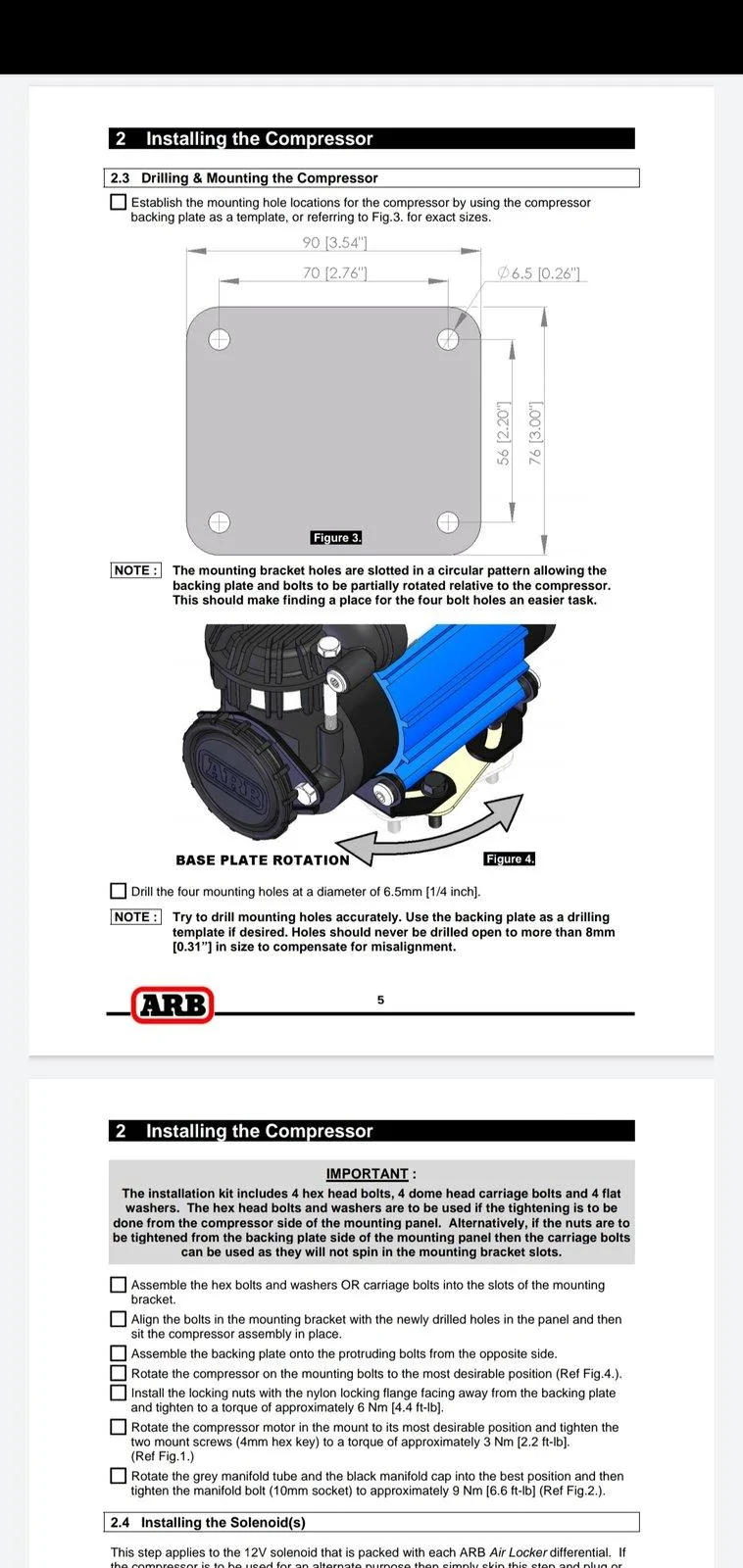

I have an older ARB CKSA12 and I wanted to make sure mine would fit your plate before I bought it so I have attached a plate diagram from the instructions. Also, I plan on using mine for airing accessories only like yourself and since my wiring harness won't reach all the way back can I ask if you just ran your own wiring and if so what gague wire?
Thanks for your help



d k

Well-Known Member
First Name
David
Joined
Dec 19, 2017
Threads
14
Messages
284
Reaction score
96
Location
Denver
Vehicle(s)
FJ Cruiser
Why is the ARB compressor so popular?

It seems very small for the price.

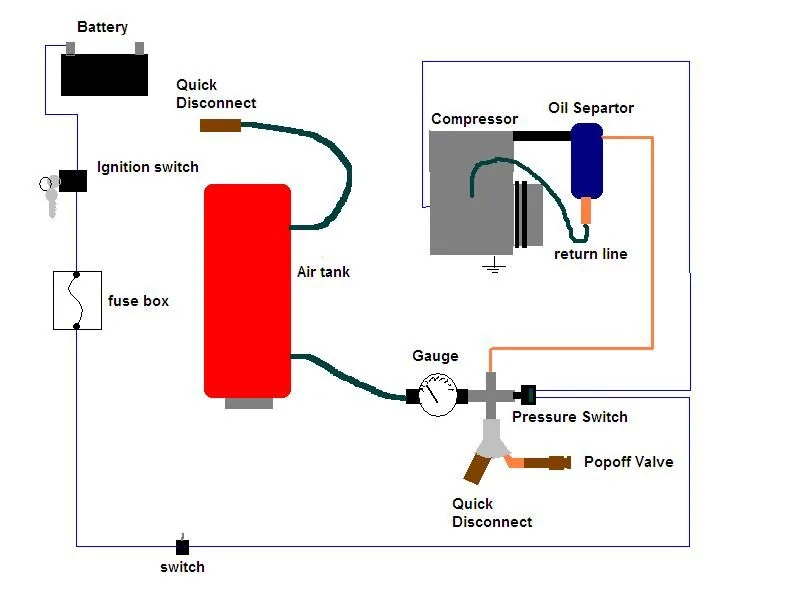

I would much rather have a seperate bigger compressor somewhere and run a line to a medium sized air tank permanently mounted somewhere on the truck. From there run permanent lines to the back and front with a quick connect fitting.


Sponsored

813 Fabrication & Design

Rock Sponsor (Level 1)
First Name
Jeremy
Joined
Dec 21, 2019
Threads
43
Messages
745
Reaction score
989
Location
Louisville, KY
Website
www.813fabrication.com
Vehicle(s)
2020 Jeep Gladiator Rubicon Launch Edition
Hi
I have an older ARB CKSA12 and I wanted to make sure mine would fit your plate before I bought it so I have attached a plate diagram from the instructions. Also, I plan on using mine for airing accessories only like yourself and since my wiring harness won't reach all the way back can I ask if you just ran your own wiring and if so what gague wire?
Thanks for your help

Jeep Gladiator On Board Air: Pre-Fab’d mounts/DIY & Chucks (Where & Why) Screenshot_20200722-124602_Drive
That looks like the same mounting plate for the newer single CKMA12. The Single compressor plate I have for the bed will work for that one. If using the in-cab mount for behind the rear drivers seat the one mount I have will work, it fits both the single and twin compressors.





Squidly

Well-Known Member
First Name
Rod
Joined
Nov 25, 2019
Threads
1
Messages
83
Reaction score
77
Location
DFW Texas
Vehicle(s)
2020 JT, 2006 LJ
Why is the ARB compressor so popular?

It seems very small for the price.

I would much rather have a seperate bigger compressor somewhere and run a line to a medium sized air tank permanently mounted somewhere on the truck. From there run permanent lines to the back and front with a quick connect fitting.
You can absolutely do that with the ARB, but the reason why they're popular, is because they simply work, and work really really well. Physical size has nothing to do with it.


813 Fabrication & Design

Rock Sponsor (Level 1)
First Name
Jeremy
Joined
Dec 21, 2019
Threads
43
Messages
745
Reaction score
989
Location
Louisville, KY
Website
www.813fabrication.com
Vehicle(s)
2020 Jeep Gladiator Rubicon Launch Edition
Why is the ARB compressor so popular?

It seems very small for the price.

I would much rather have a seperate bigger compressor somewhere and run a line to a medium sized air tank permanently mounted somewhere on the truck. From there run permanent lines to the back and front with a quick connect fitting.
I think it is really how much space do you want to take up. I had the ViAir Constant Duty setup first with 3 gallon tank but for me I mostly use mine for biking more than Jeepin, so I like the smaller setup.


booneja

Well-Known Member
Joined
Jul 6, 2020
Threads
18
Messages
538
Reaction score
510
Location
VI, canada
Vehicle(s)
2020 Gladiator Sport (hers) and Overland (His)
Occupation
RCAF Veteran/ Engineer
Vehicle Showcase
1
Who makes this? Do you have links for the other options you pictured?
THis is definitely something I'm considering, another option for me (once the overland rack form Maximus-3) is the top of bed control unit, with compressor mounted under hood (for neat appearances)


NGNERD

Well-Known Member
Joined
Jan 19, 2020
Threads
8
Messages
154
Reaction score
130
Location
VA
Vehicle(s)
2020 LE Gladiator Rubicon GCM
That looks like the same mounting plate for the newer single CKMA12. The Single compressor plate I have for the bed will work for that one. If using the in-cab mount for behind the rear drivers seat the one mount I have will work, it fits both the single and twin compressors.

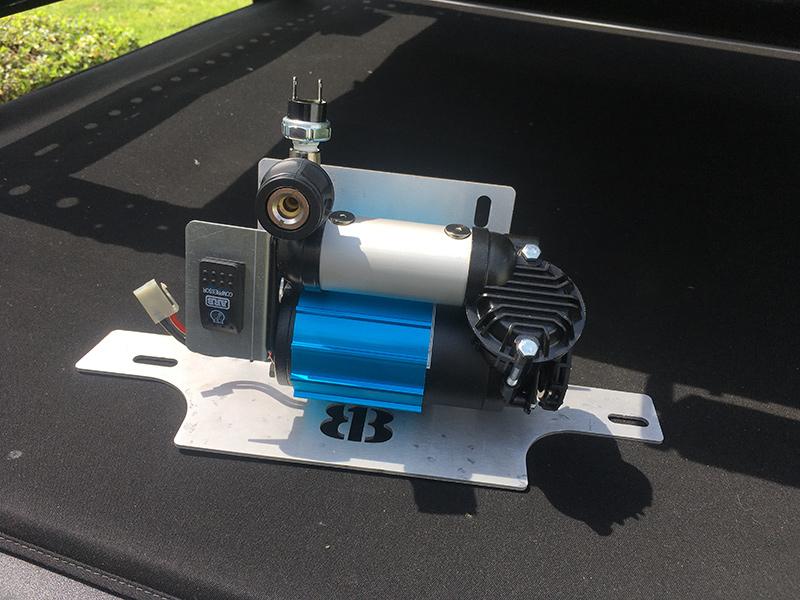

Jeep Gladiator On Board Air: Pre-Fab’d mounts/DIY & Chucks (Where & Why) behind-seat-6


Jeep Gladiator On Board Air: Pre-Fab’d mounts/DIY & Chucks (Where & Why) behind-seat-6
Thanks. Just ordered.


Sponsored

d k

Well-Known Member
First Name
David
Joined
Dec 19, 2017
Threads
14
Messages
284
Reaction score
96
Location
Denver
Vehicle(s)
FJ Cruiser
it wouldn't be too hard, but some provision needs to be made to feed some oil on the intake side to keep the piston lubricated as freon has a fair amount of lubricity.


I have not seen it done, but sounds interesting.
Sponsored






Top
