On Board Air: Pre-Fab’d mounts/DIY & Chucks (Where & Why)

WhatExit?

Well-Known Member
First Name
Dan
Joined
Sep 13, 2018
Threads
54
Messages
1,944
Reaction score
2,663
Location
48th State
Vehicle(s)
2020 JT Rubicon Launch Edition - Granite Crystal Metallic | 2017 Ford Raptor SuperCrew - Metallic
Vehicle Showcase
3

DiscoDino

Well-Known Member
First Name
Nadim
Joined
Dec 10, 2019
Threads
9
Messages
167
Reaction score
239
Location
Dubai
Vehicle(s)
2020 Jeep Gladiator, 1991 Land Rover Defender, 1983 Land Rover Defender, 2015 Mercedes G Wagon

813 Fabrication & Design

Rock Sponsor (Level 1)
First Name
Jeremy
Joined
Dec 21, 2019
Threads
43
Messages
745
Reaction score
989
Location
Louisville, KY
Website
www.813fabrication.com
Vehicle(s)
2020 Jeep Gladiator Rubicon Launch Edition

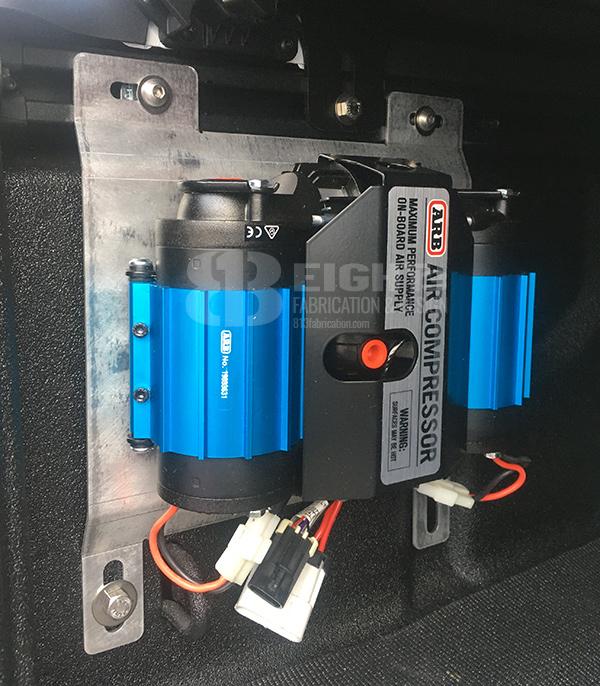

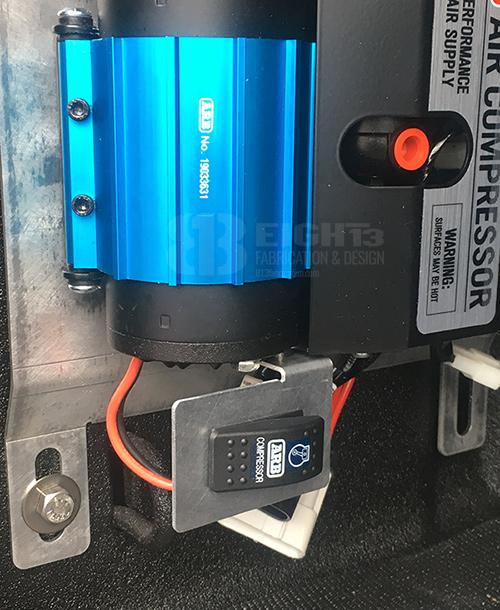

I offer a few different mounting options for the JT. I have one for the bed that mounts the single ARB compressor and one that holds the Twin ARB compressor and it also has an optional protective guard. No pics to show yet, but I also have a universal mount that works with the single or twin that mounts in the cab with a few different air chuck solutions. I am finishing prototypes within the next few days and be able to show the pre-production pieces for that one. Let me know if anyone has any questions.
Jeep Gladiator On Board Air: Pre-Fab’d mounts/DIY & Chucks (Where & Why) twin2

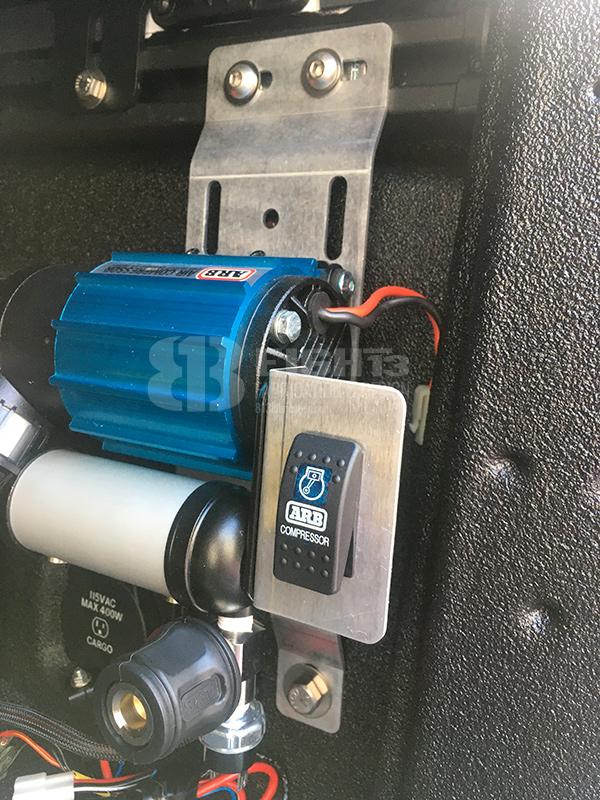

Jeep Gladiator On Board Air: Pre-Fab’d mounts/DIY & Chucks (Where & Why) twin-switch2
for more information.





Etoimos

Well-Known Member
First Name
Keith
Joined
Dec 3, 2018
Threads
17
Messages
445
Reaction score
608
Location
In the mountains
Website
adventuresofetoimos.com
Vehicle(s)
2020 JTR , 2012 JKUR
Vehicle Showcase
2
I offer a few different mounting options for the JT. I have one for the bed that mounts the single ARB compressor and one that holds the Twin ARB compressor and it also has an optional protective guard. No pics to show yet, but I also have a universal mount that works with the single or twin that mounts in the cab with a few different air chuck solutions. I am finishing prototypes within the next few days and be able to show the pre-production pieces for that one. Let me know if anyone has any questions.
I'm interested to see what you have for bed mounted twin ARB setups.


FR33DOM

Well-Known Member
First Name
Michael
Joined
Sep 22, 2019
Threads
16
Messages
268
Reaction score
283
Location
Colorado Springs, CO
Vehicle(s)
2011 Hyundai Veracruz & 2020 Jeep Gladiator Rubicon LE
I offer a few different mounting options for the JT. I have one for the bed that mounts the single ARB compressor and one that holds the Twin ARB compressor and it also has an optional protective guard. No pics to show yet, but I also have a universal mount that works with the single or twin that mounts in the cab with a few different air chuck solutions. I am finishing prototypes within the next few days and be able to show the pre-production pieces for that one. Let me know if anyone has any questions.

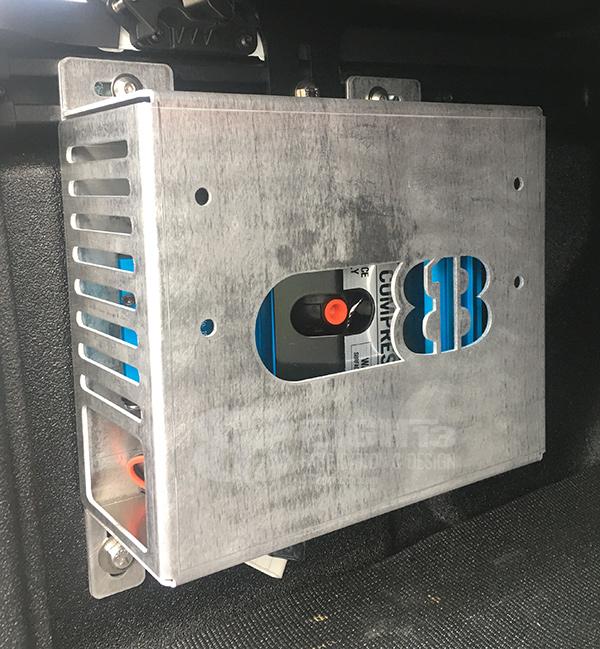

Jeep Gladiator On Board Air: Pre-Fab’d mounts/DIY & Chucks (Where & Why) guard3
Jeep Gladiator On Board Air: Pre-Fab’d mounts/DIY & Chucks (Where & Why) guard3
for more information.

Jeep Gladiator On Board Air: Pre-Fab’d mounts/DIY & Chucks (Where & Why) guard3


Jeep Gladiator On Board Air: Pre-Fab’d mounts/DIY & Chucks (Where & Why) guard3

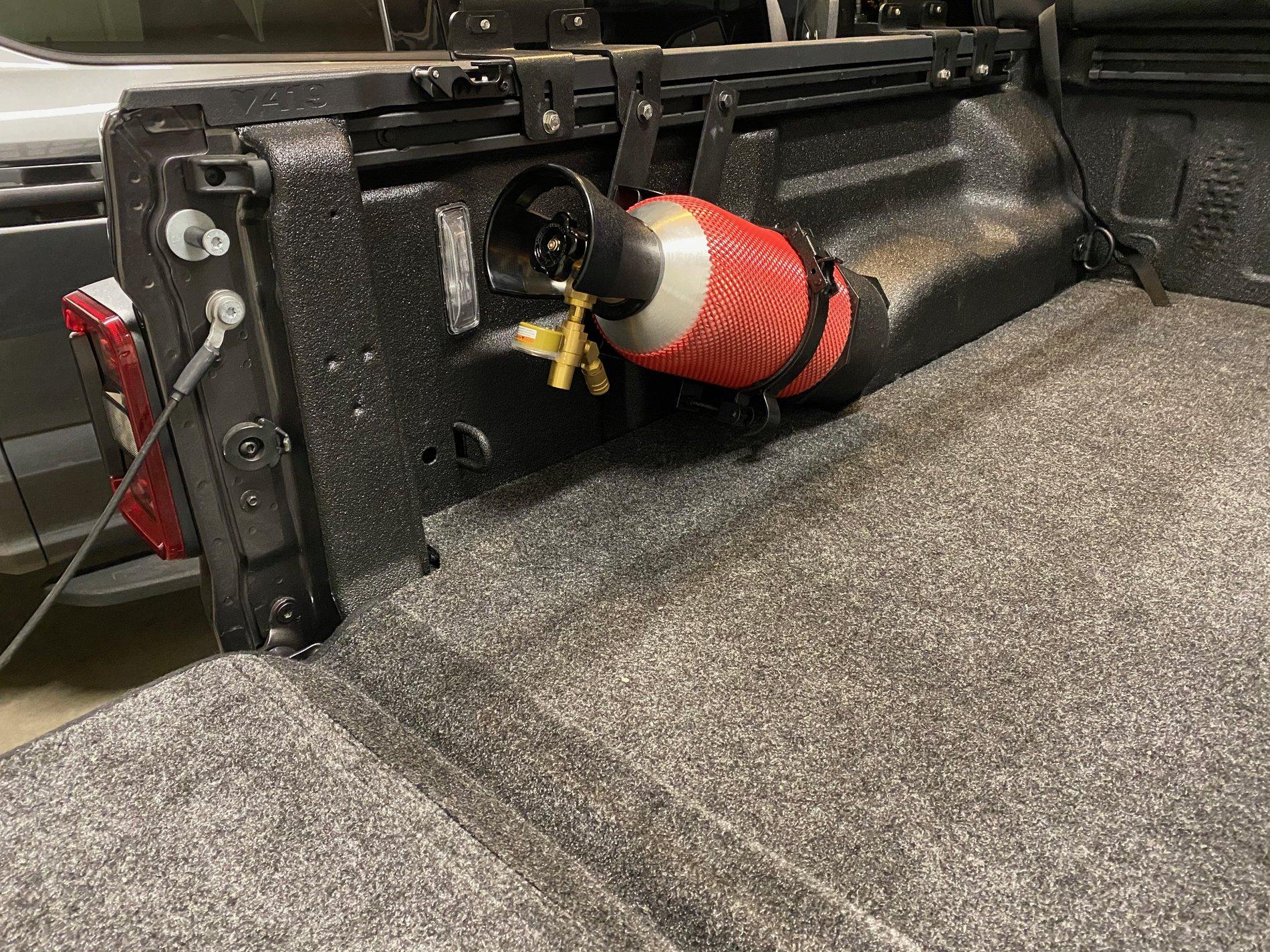

Any updates? Still trying to figure out best solution. I have a 10# power tank mounted in bed, but trying to figure out how to get an ARB twin in there or in the cab as a backup (or maybe future primary).


Sponsored

813 Fabrication & Design

Rock Sponsor (Level 1)
First Name
Jeremy
Joined
Dec 21, 2019
Threads
43
Messages
745
Reaction score
989
Location
Louisville, KY
Website
www.813fabrication.com
Vehicle(s)
2020 Jeep Gladiator Rubicon Launch Edition
Any updates? Still trying to figure out best solution. I have a 10# power tank mounted in bed, but trying to figure out how to get an ARB twin in there or in the cab as a backup (or maybe future primary).

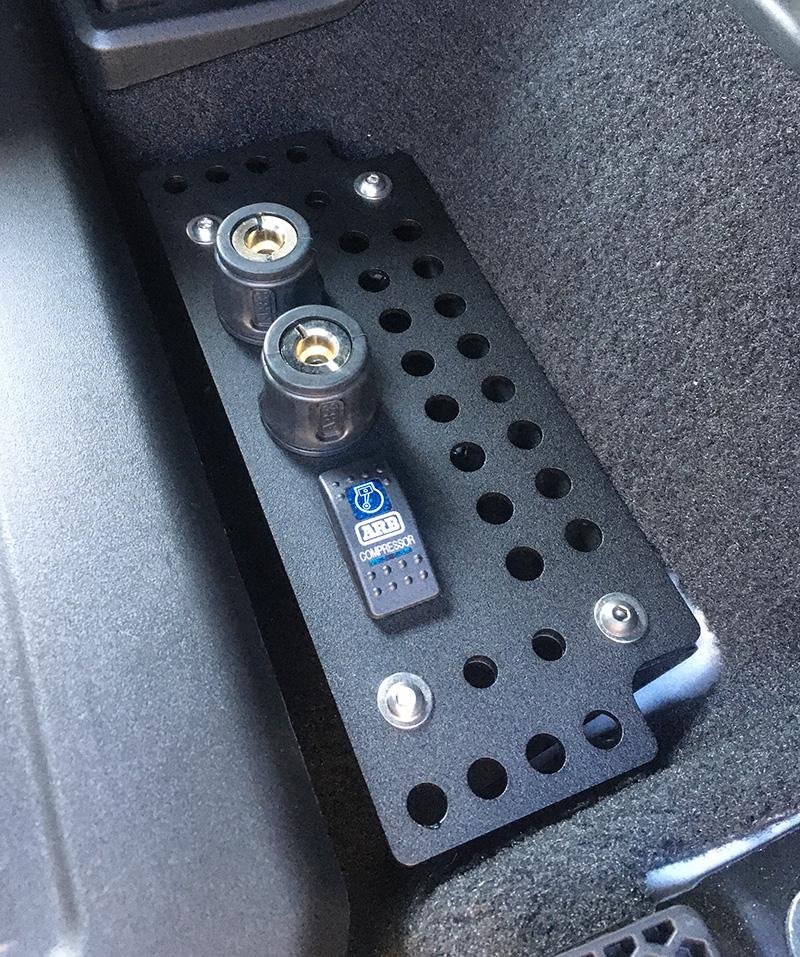

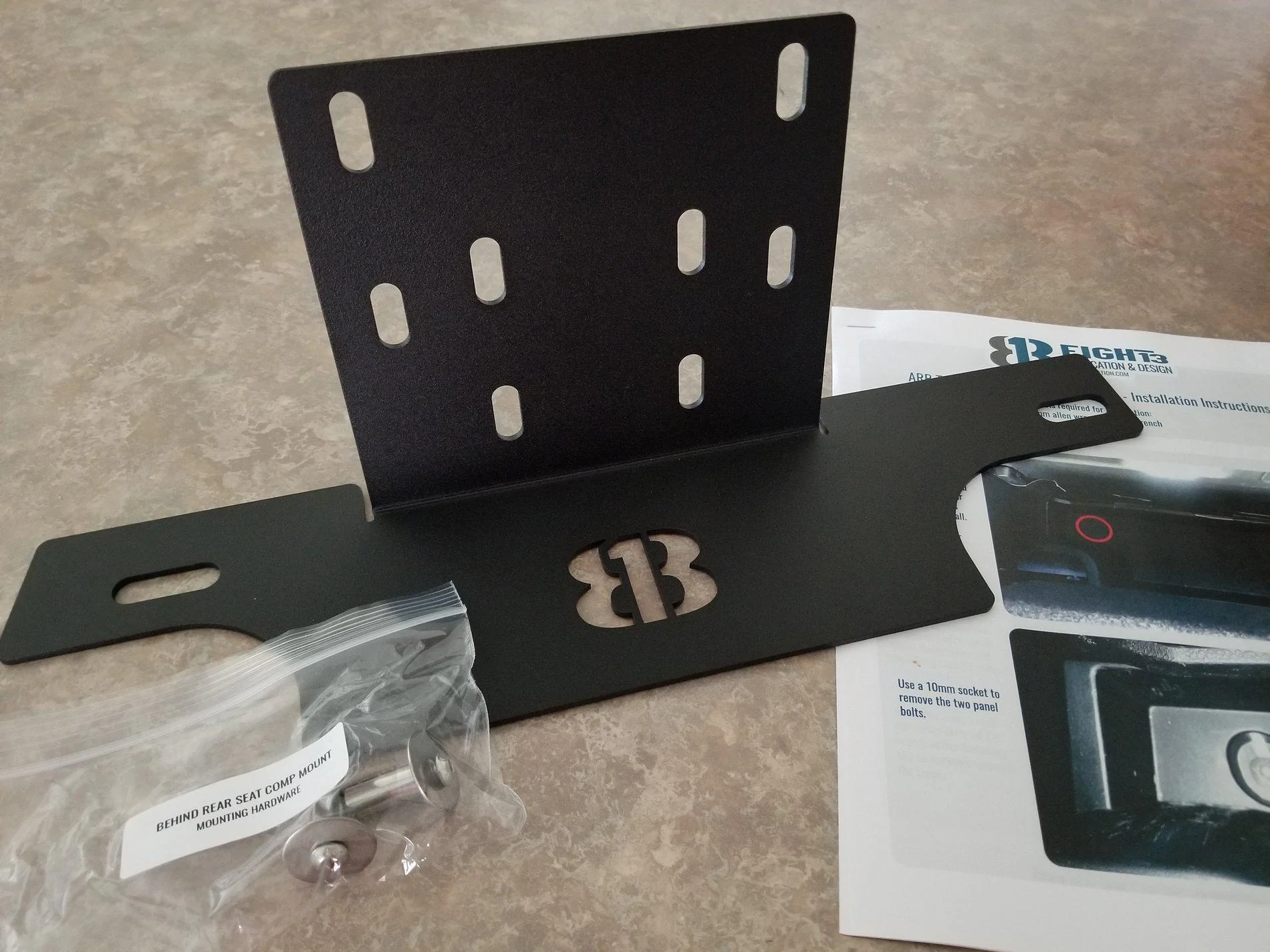

Hey, I just released a mount that hold either the twin or single ARB compressor. It mounts behind the rear seat on the driver's side. There is an optional dual air chuck / rocker switch plate that goes under the rear seat on driver's side. It replaces the stock plastic hardware box that holds all the door/top/windshield bolts. My plate still has holes for all the bolts, plus the 4 door stop bolts. message me direct if you want more info!





FR33DOM

Well-Known Member
First Name
Michael
Joined
Sep 22, 2019
Threads
16
Messages
268
Reaction score
283
Location
Colorado Springs, CO
Vehicle(s)
2011 Hyundai Veracruz & 2020 Jeep Gladiator Rubicon LE
Hey, I just released a mount that hold either the twin or single ARB compressor. It mounts behind the rear seat on the driver's side. There is an optional dual air chuck / rocker switch plate that goes under the rear seat on driver's side. It replaces the stock plastic hardware box that holds all the door/top/windshield bolts. My plate still has holes for all the bolts, plus the 4 door stop bolts. message me direct if you want more info!

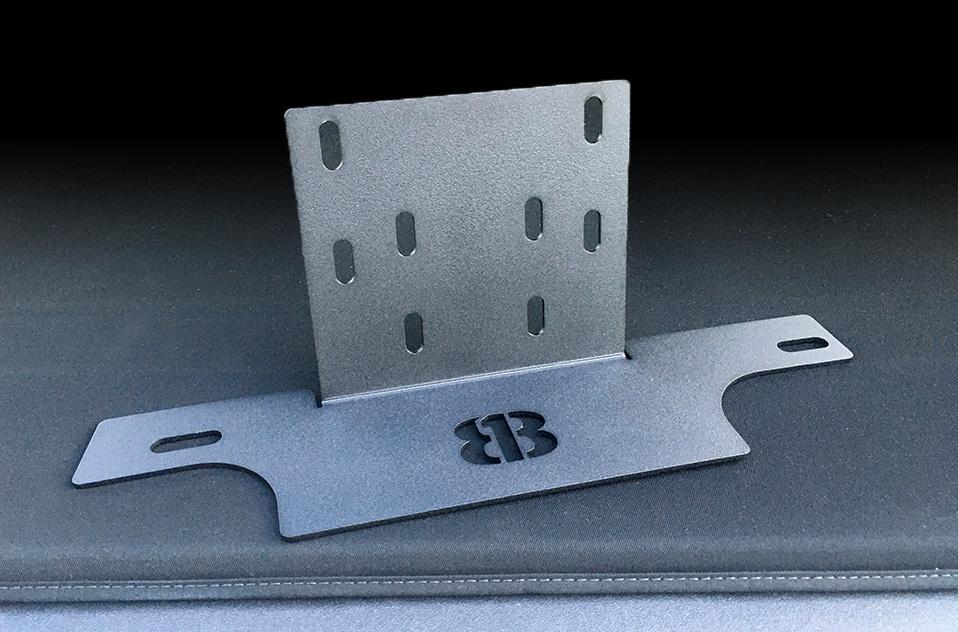

Jeep Gladiator On Board Air: Pre-Fab’d mounts/DIY & Chucks (Where & Why) behind-seat-2


Jeep Gladiator On Board Air: Pre-Fab’d mounts/DIY & Chucks (Where & Why) behind-seat-2
Sent a PM yesterday. I’m curious how the plumbing/electrical runs for both back seat options. With the kid seat in the back not sure the under seat option is feasible for me.

OP
OP
hawkijon

hawkijon

Well-Known Member
First Name
John
Joined
May 28, 2019
Threads
1
Messages
367
Reaction score
588
Location
Beaumont, Texas
Vehicle(s)
'20 Gator Clear JTR/'15 Jeep Grand Cherokee/ '78 Jeep CJ-5/'69 Chevelle
Sent a PM yesterday. I’m curious how the plumbing/electrical runs for both back seat options. With the kid seat in the back not sure the under seat option is feasible for me.
Jeremy (813FAB) did a quick youtube video to explain the configuration. It was up lastnight, but seems to be removed now. Maybe he is doing a revision. My bracket should be here this week and i will have a detailed plumbing/wiring/mounting install video to follow. You shouldnt have to worry about the back seat being an issue unless you utilize the long quick chuck.


darkhorse13

Well-Known Member
First Name
John
Joined
Jun 4, 2020
Threads
40
Messages
602
Reaction score
877
Location
Castle Rock, CO
Vehicle(s)
2020 JTR
Occupation
Data Analyst
I just ordered the ACM mount from Waya-Eddie-life store.

I know it's only a single compressor mount but I like having it completely out of the way.


MudderTruker

Well-Known Member
First Name
Mike
Joined
Aug 29, 2019
Threads
17
Messages
260
Reaction score
205
Location
Sydney, Australia
Vehicle(s)
Toyota Hilux SR5 and Jeep Renegade ... name is on the list for a Gladiator!
Occupation
Computer dude
I like having it completely out of the way
Are you not worried it is a little too open to the elements? What about water crossings?

I am totally in agreement in that I want it out of the way too, but I am just worried about above.


Sponsored

darkhorse13

Well-Known Member
First Name
John
Joined
Jun 4, 2020
Threads
40
Messages
602
Reaction score
877
Location
Castle Rock, CO
Vehicle(s)
2020 JTR
Occupation
Data Analyst
Are you not worried it is a little too open to the elements? What about water crossings?

I am totally in agreement in that I want it out of the way too, but I am just worried about above.

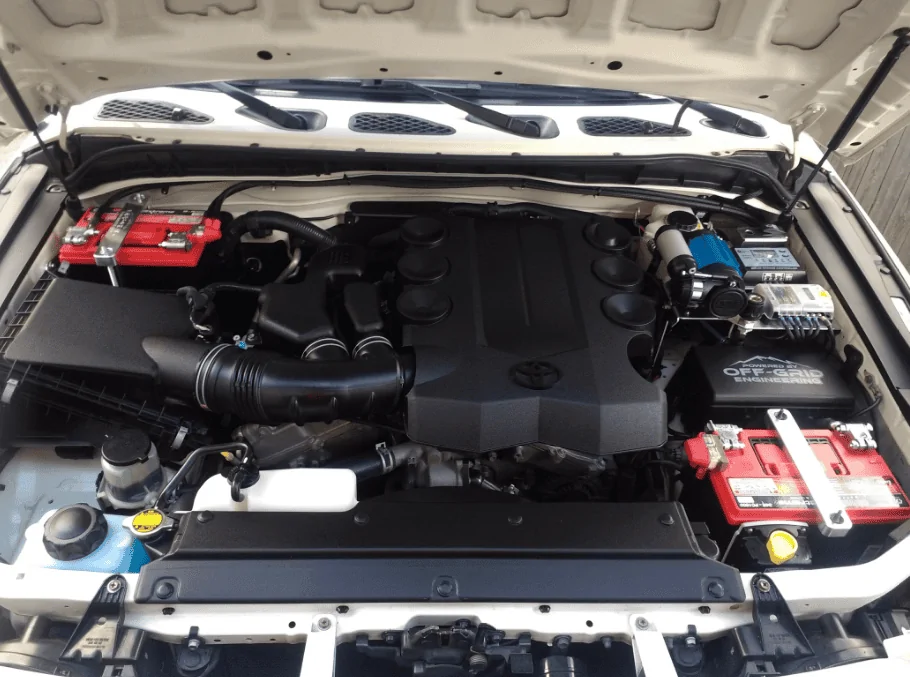

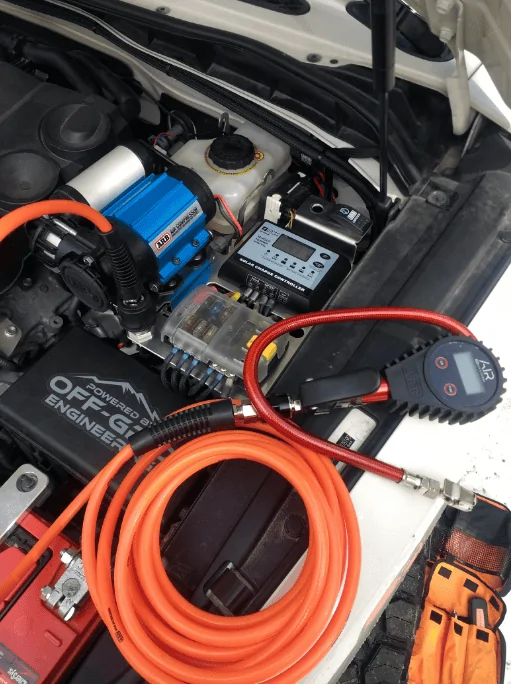

It's a concern but I've had a similar setup in my (now sold) FJ Cruiser for 3 years with no issues. In the engine bay of the FJC the ARB experienced heat, dust and lots of water (from OCD washing). It never skipped a beat. I don't do deep water crossing in CO but I could see how submersion is a legitimate concern. As with any of our mods, this particular one fits my needs :)

The ACM mount does seem to be protected pretty well by the inner fender liner if you still hav yours in place.

John

Jeep Gladiator On Board Air: Pre-Fab’d mounts/DIY & Chucks (Where & Why) 1593614386144


Jeep Gladiator On Board Air: Pre-Fab’d mounts/DIY & Chucks (Where & Why) 1593614577479


813 Fabrication & Design

Rock Sponsor (Level 1)
First Name
Jeremy
Joined
Dec 21, 2019
Threads
43
Messages
745
Reaction score
989
Location
Louisville, KY
Website
www.813fabrication.com
Vehicle(s)
2020 Jeep Gladiator Rubicon Launch Edition
Jeremy (813FAB) did a quick youtube video to explain the configuration. It was up lastnight, but seems to be removed now. Maybe he is doing a revision. My bracket should be here this week and i will have a detailed plumbing/wiring/mounting install video to follow. You shouldnt have to worry about the back seat being an issue unless you utilize the long quick chuck.

Yes, I had the video up talking about a few different air line configurations and took it down for a revision. Once I had it up I spoke with a few others that mentioned the plastic press-to-connect tee joints had some issues and one reported rupture due to heat. I am revising and making a new video. Watch for it on my YouTube channel this week. https://www.youtube.com/channel/UCdp8yBwDt_F1qsBCyqHwiSA


Squidly

Well-Known Member
First Name
Rod
Joined
Nov 25, 2019
Threads
1
Messages
83
Reaction score
77
Location
DFW Texas
Vehicle(s)
2020 JT, 2006 LJ
Ordered the 813 mount for my ARB Twin and should be in this weekend ... super stoked to install it, been looking for a mount that simply works and is out of the way !!
