Petrol: auxiliary fuel tank

[Danie]

Hi,
Does someone install an auxiliary fuel tank for their petrol JT Rubicon?
If yes, which brand and what are the pros and cons ?
Thanks in advance

Sponsored



[Mr._Bill]

Hi,
Does someone install an auxiliary fuel tank for their petrol JT Rubicon?
If yes, which brand and what are the pros and cons ?
Thanks in advance

There's a thread here somewhere showing an install of an auxiliary tank. There's a company in Australia that makes them.



[Moriarty]

Long Range Automotive in Australia

17 gallon auxiliary tank



[Josh00333]

Ya it's $$ and takes a lot of work, great youtube vid of it. It is a nice set up but was like 3k+ installed not counting the exh work.

I'm planning on a custom in bed tank, be 18-20 gal, 48W*6D*17H, should tuck up against the bed nicely and not take up to much space being 6=7" deep only.



[shrinkhead]

Ya it's $$ and takes a lot of work, great youtube vid of it. It is a nice set up but was like 3k+ installed not counting the exh work.

I'm planning on a custom in bed tank, be 18-20 gal, 48W*6D*17H, should tuck up against the bed nicely and not take up to much space being 6=7" deep only.

Keep us posted there. That was my plan as well and could even cover with bedliner so it blends right in



[smlobx]

Yep!
Did a LRA auxiliary tank and did a write up on it here…

https://www.jeepgladiatorforum.com/...ary-fuel-tank-installation.39230/#post-634432



[bgenlvtex]

Is petrol gasoline?

If so, yes.

17 gallon aluminum mounted against the front of the bed.

Unfortunately Verizon 5G sucks more ass than all of Congress cumulatively so I can't post a picture.



[Moriarty]

Yep!
Did a LRA auxiliary tank and did a write up on it here…

https://www.jeepgladiatorforum.com/...ary-fuel-tank-installation.39230/#post-634432

I installed the same pre-production tank that you have in our JTR.



[ACAD_Cowboy]

@bgenlvtex

Is it a fuel cell type gasoline tank or just a box like a diesel type?

Using a diesel type bed or deck tank with gasoline gives DOT the willys (willis?!) in a bad way.



[bgenlvtex]

@bgenlvtex

Is it a fuel cell type gasoline tank or just a box like a diesel type?

Using a diesel type bed or deck tank with gasoline gives DOT the willys (willis?!) in a bad way.

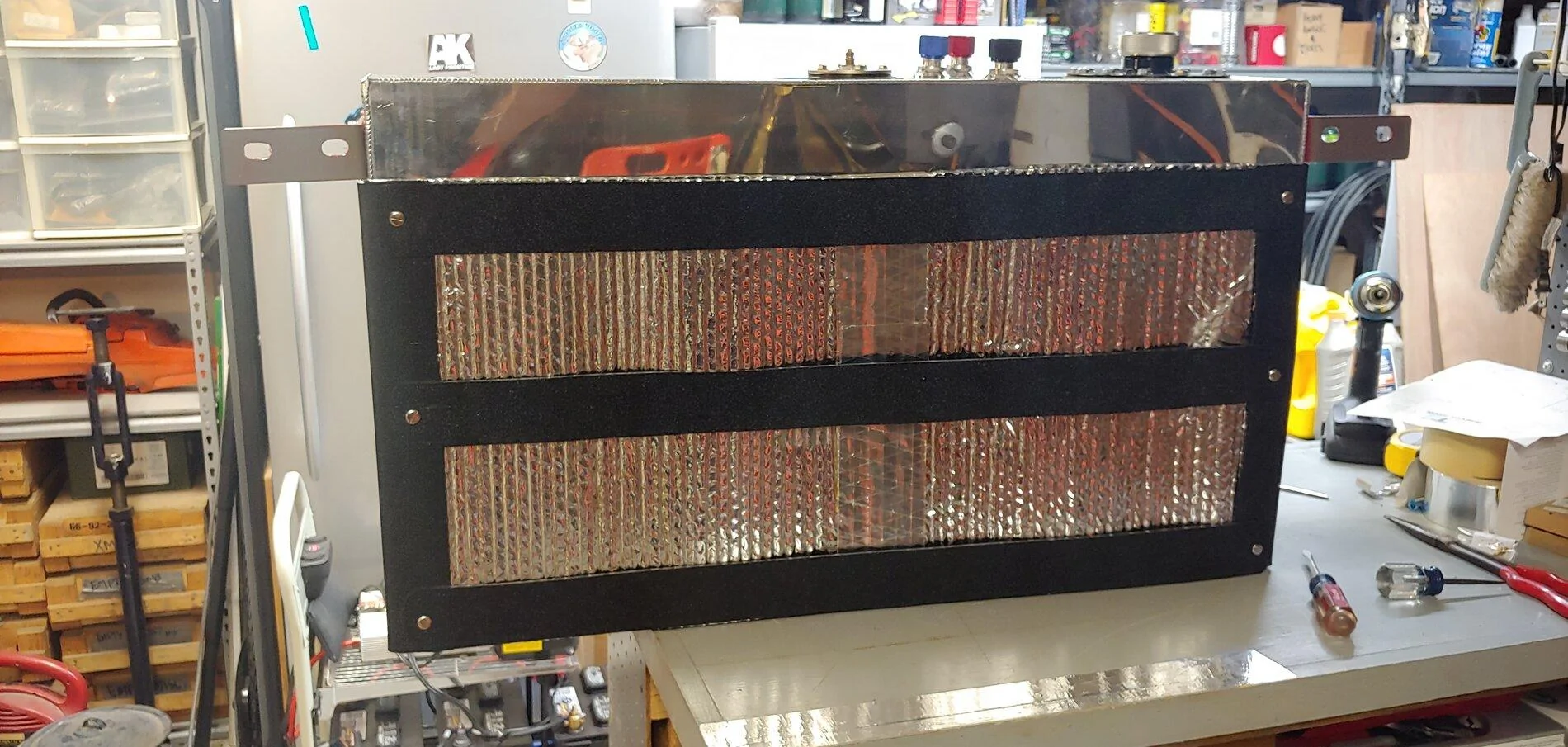

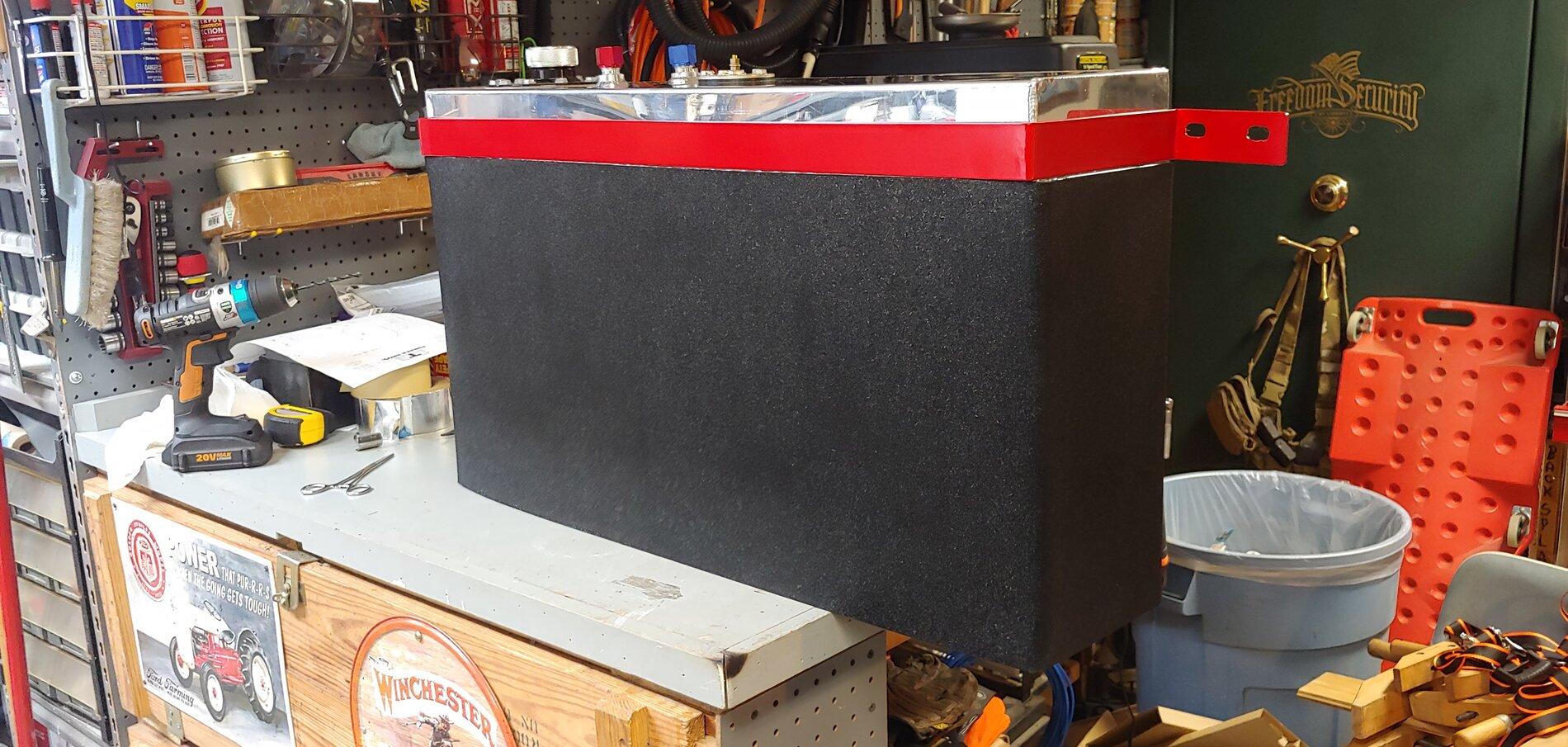

it is a welded aluminum tank, 17 gallons , DOT is not concerned with anything under 20 gallons. You can find them on ebay listed as "racing fuel cells" I wrapped it in reflectix insulation, armored it with .125" Kydex, and strapped it to L Track rail with 1.5"x .125" mild steel strapping. It has a roll over valve that is vented to a home brewed charcoal canister, with is vented out of the bed using a draft/venturi tube.

I've posted some pictures here before I "upgraded" to 5G which crippled my ability to share pics. I try not to harbor malice but I hope the Verizon engineers finger punches through the toilet paper every time he wipes his ass for the rest of his life.



[The White Rabbit]

Is petrol gasoline?

If so, yes.

17 gallon aluminum mounted against the front of the bed.

Unfortunately Verizon 5G sucks more ass than all of Congress cumulatively so I can't post a picture.



[The White Rabbit]

it is a welded aluminum tank, 17 gallons , DOT is not concerned with anything under 20 gallons. You can find them on ebay listed as "racing fuel cells" I wrapped it in reflectix insulation, armored it with .125" Kydex, and strapped it to L Track rail with 1.5"x .125" mild steel strapping. It has a roll over valve that is vented to a home brewed charcoal canister, with is vented out of the bed using a draft/venturi tube.

I've posted some pictures here before I "upgraded" to 5G which crippled my ability to share pics. I try not to harbor malice but I hope the Verizon engineers finger punches through the toilet paper every time he wipes his ass for the rest of his life.



[bgenlvtex]

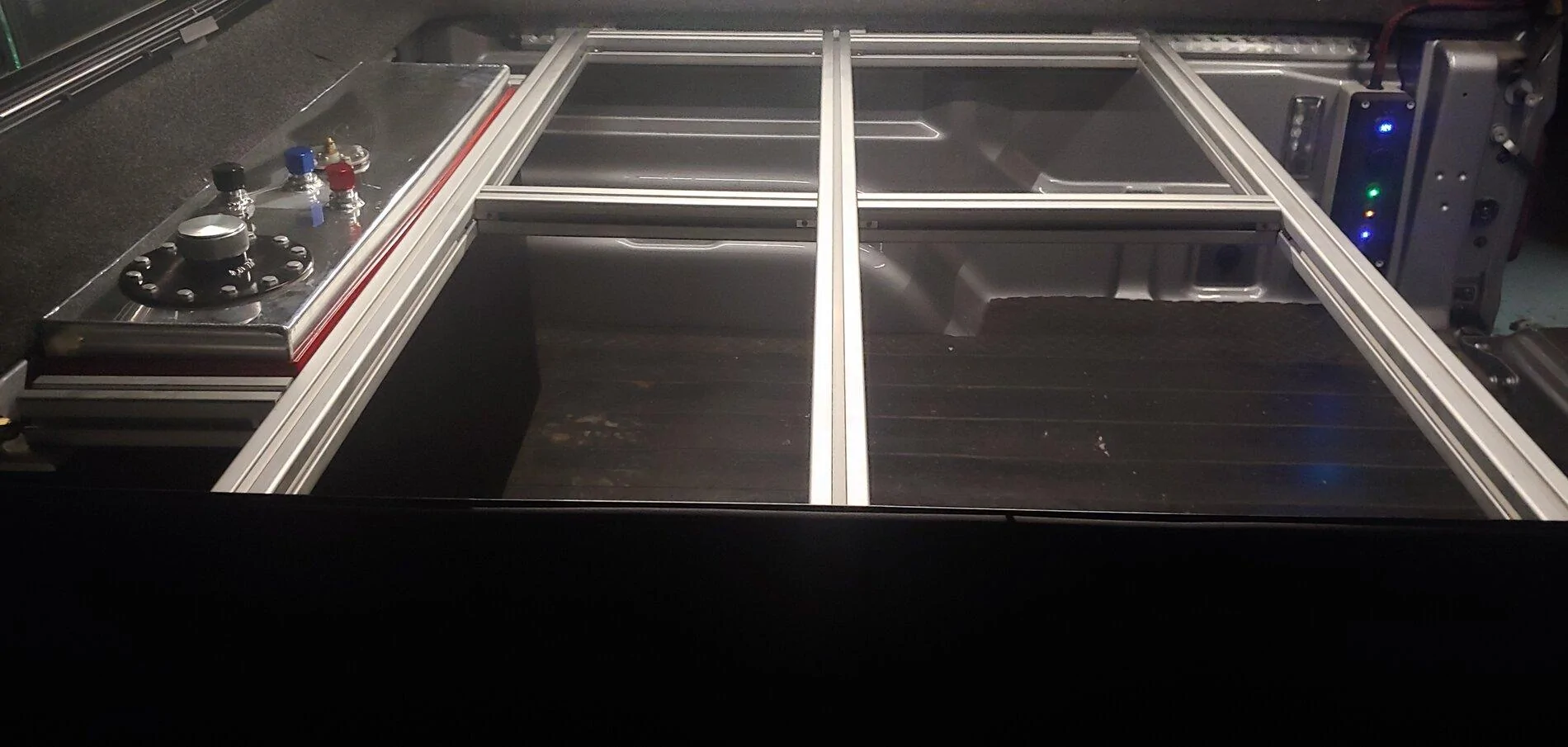

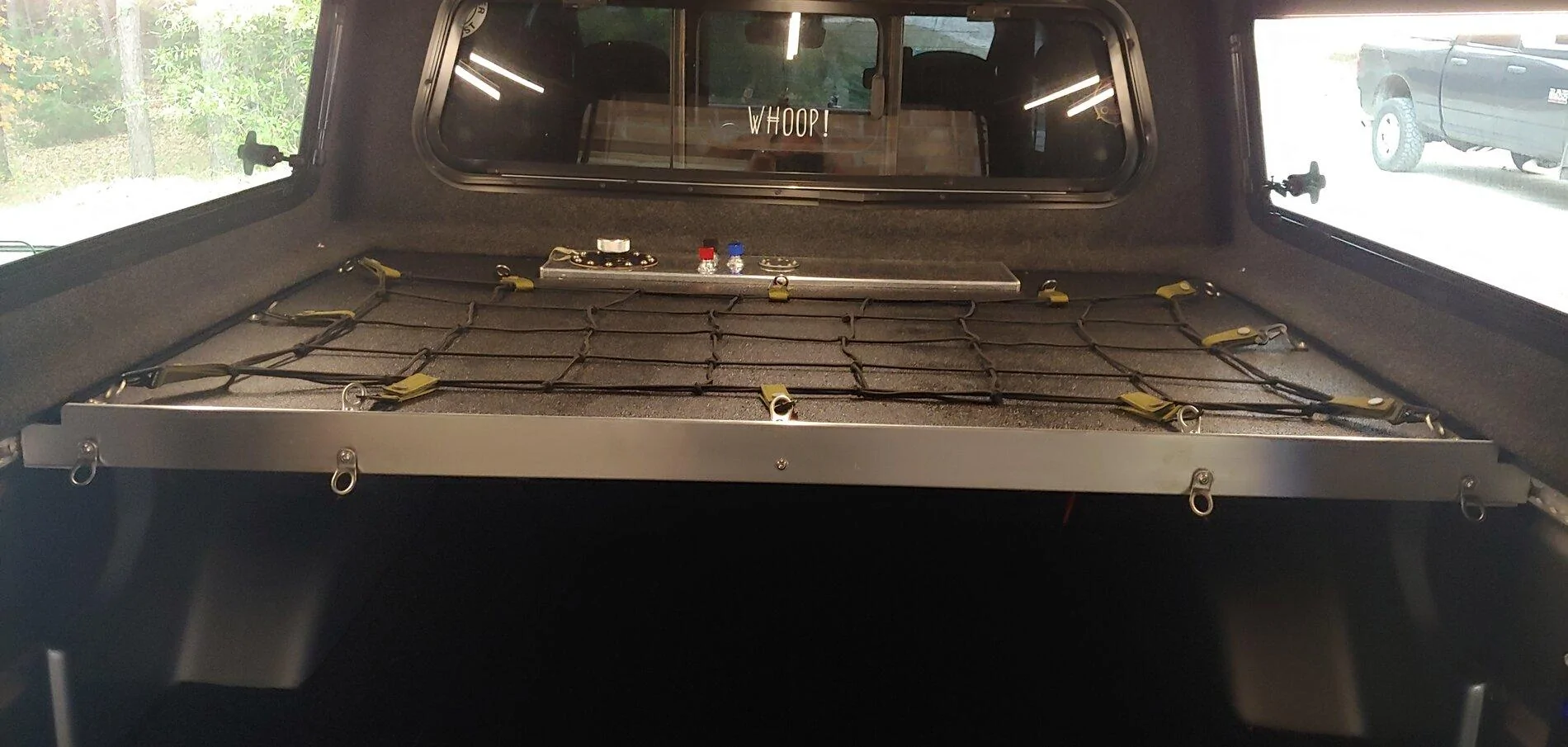

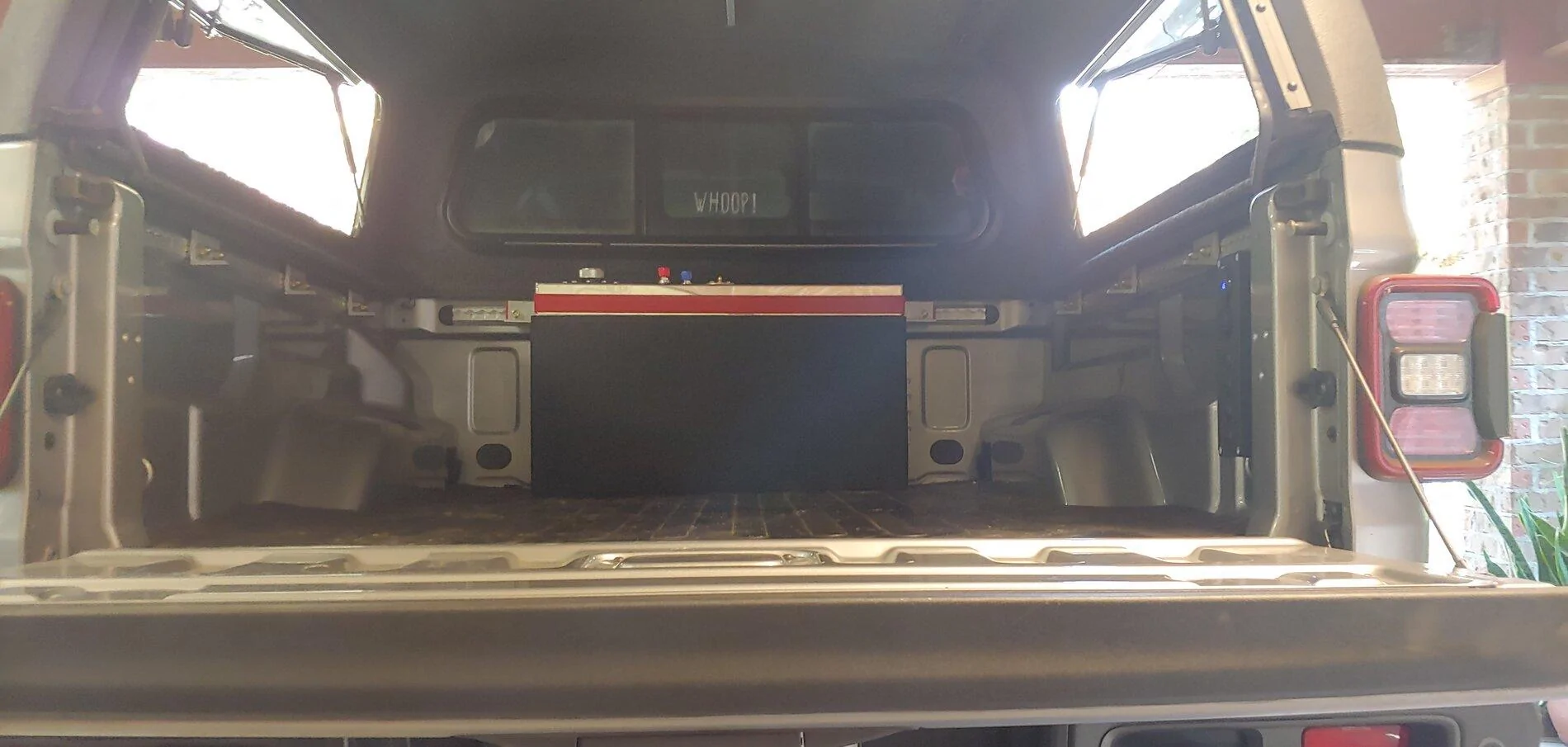

Pics added



[The White Rabbit]

Pics added

Not looking forward to tp finger punch pics.



[bgenlvtex]

Not looking forward to tp finger punch pics.

LOL, I'm not a Verizon engineer, scroll up^^^
