Prototype phone dock adaptor for key holder

Aarorei

New Member
First Name
Aaron
Joined
Jun 3, 2019
Messages
2
Reaction score
2
Location
Ohio
Vehicle(s)
Gladiator

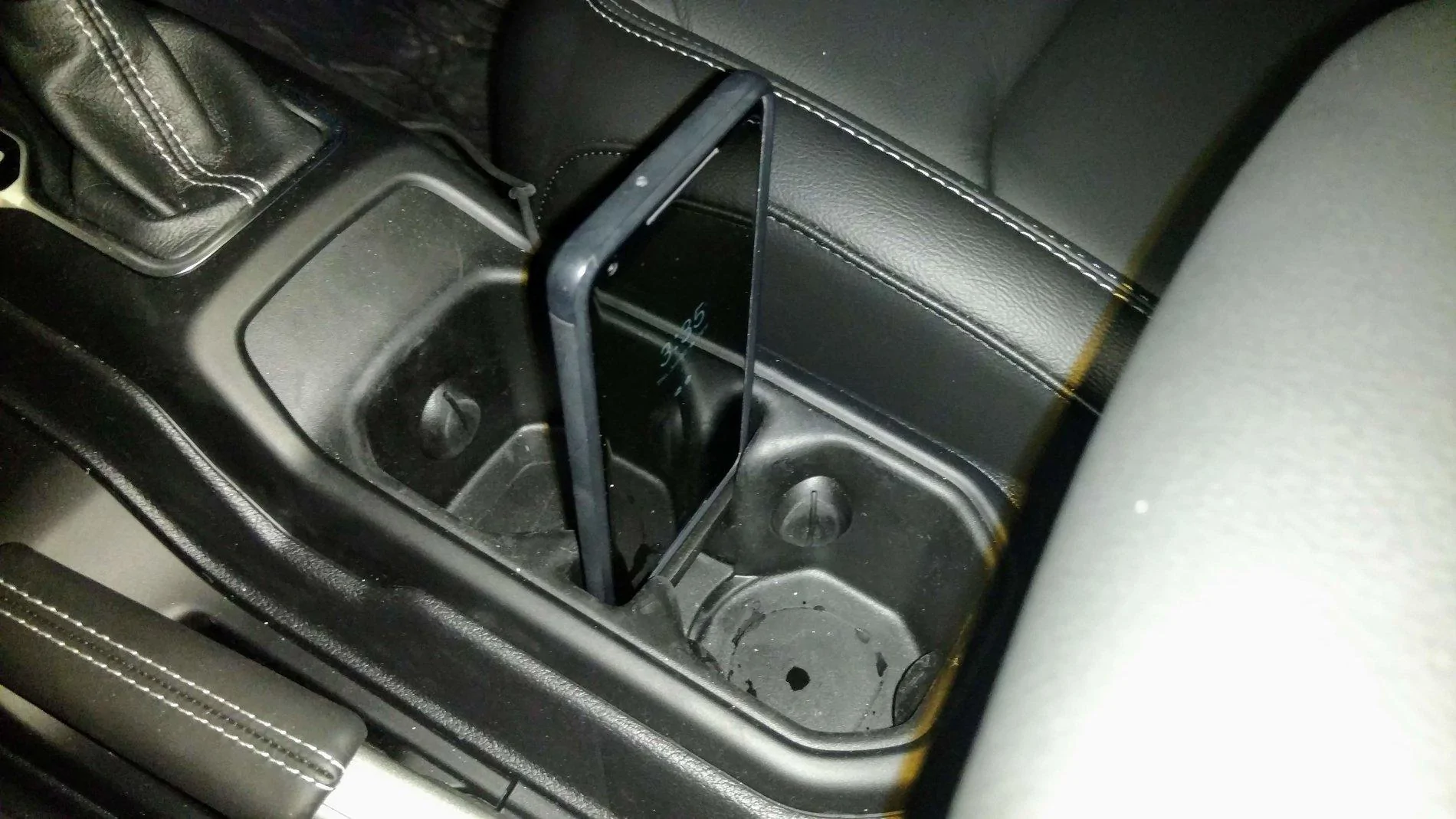

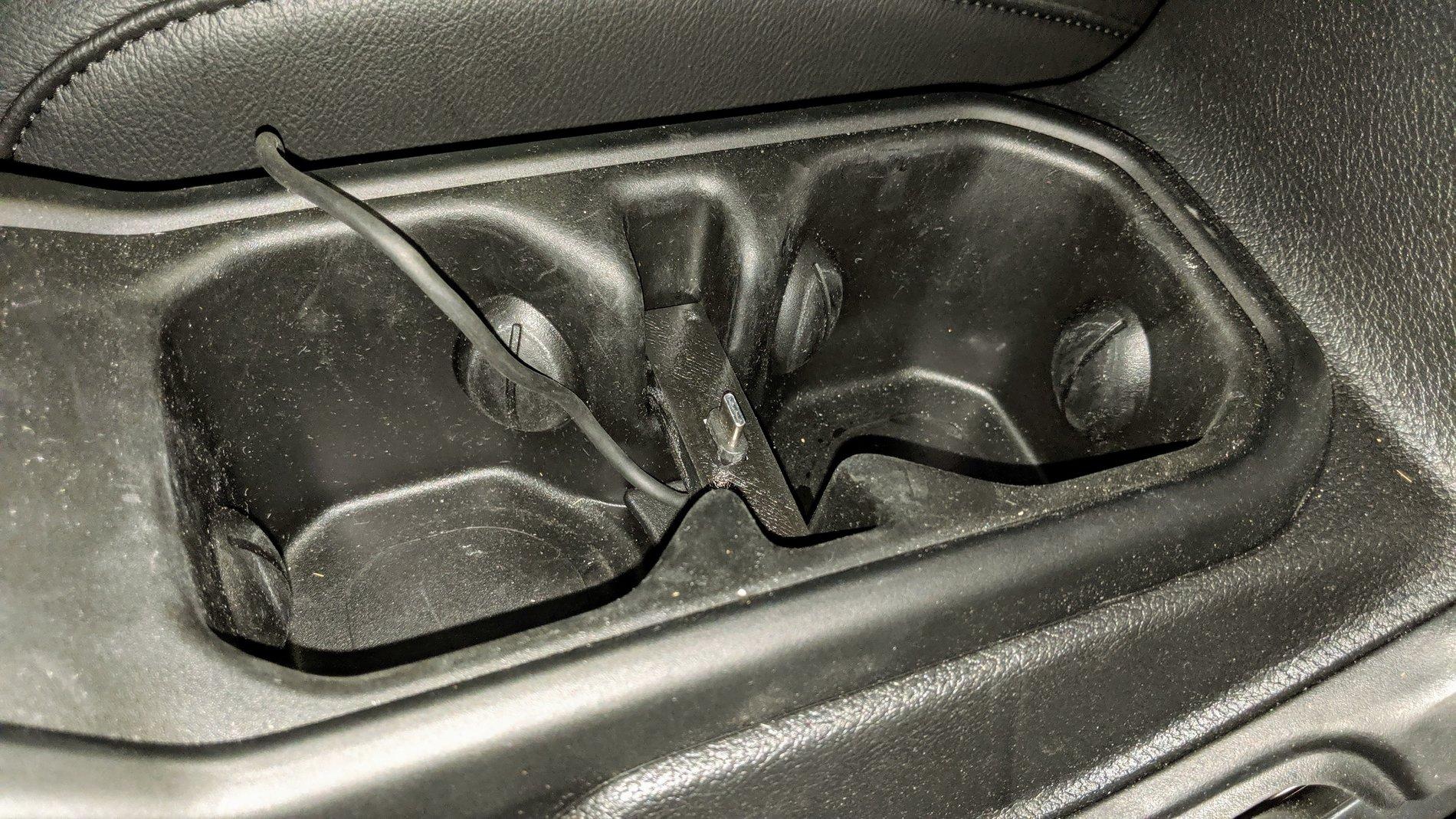

Prototype phone dock adaptor for key holder. Planning on routing cord under cupholder to center console USB.






Advertisement





bangolia

Well-Known Member
First Name
Bryan
Joined
Jan 8, 2019
Messages
815
Reaction score
988
Location
Garner NC
Vehicle(s)
2014 JKU
I like the idea!


chrcal14

Well-Known Member
Joined
Nov 15, 2018
Messages
655
Reaction score
886
Location
Western PA
Vehicle(s)
2020 JT Rubicon

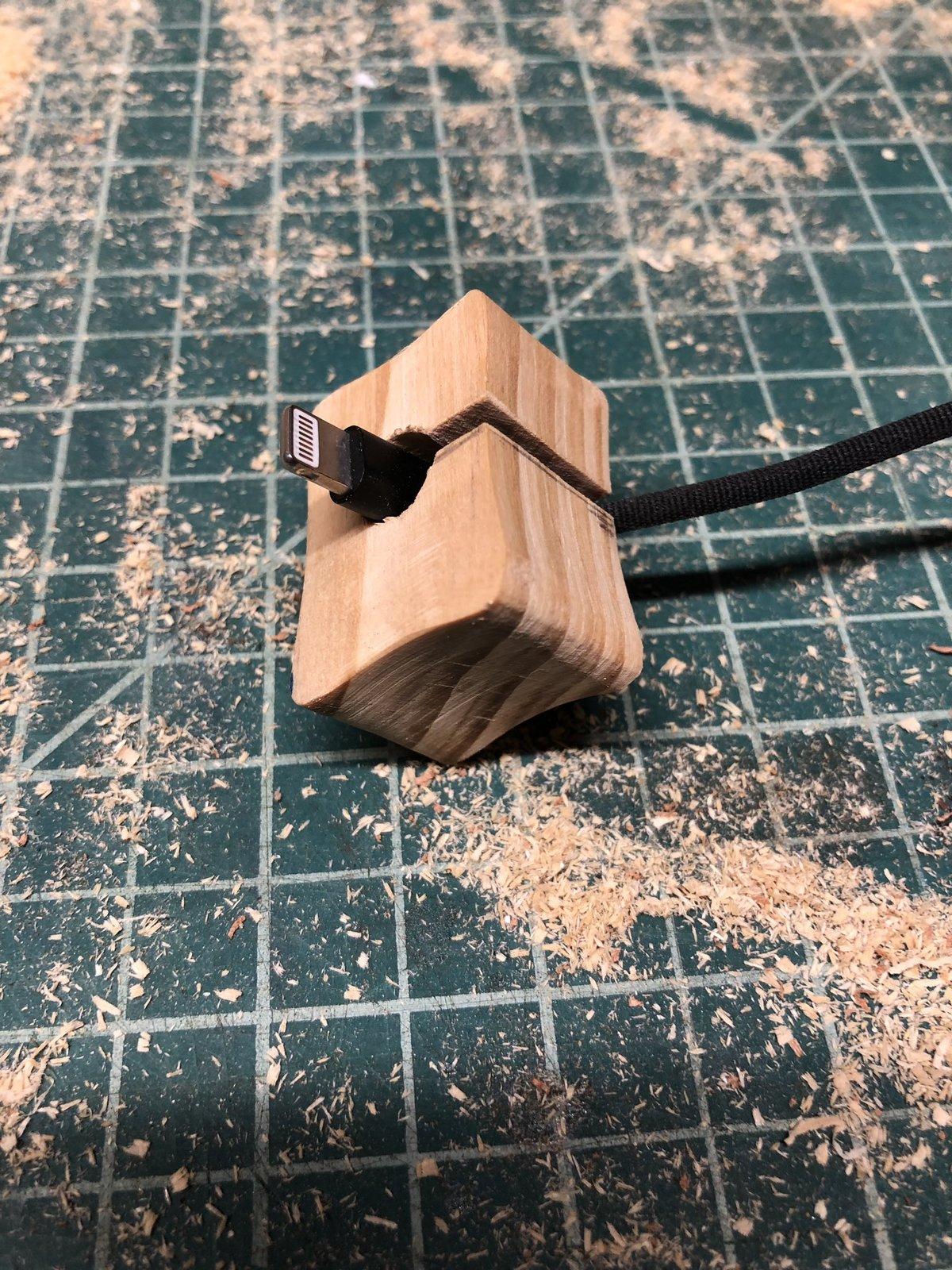

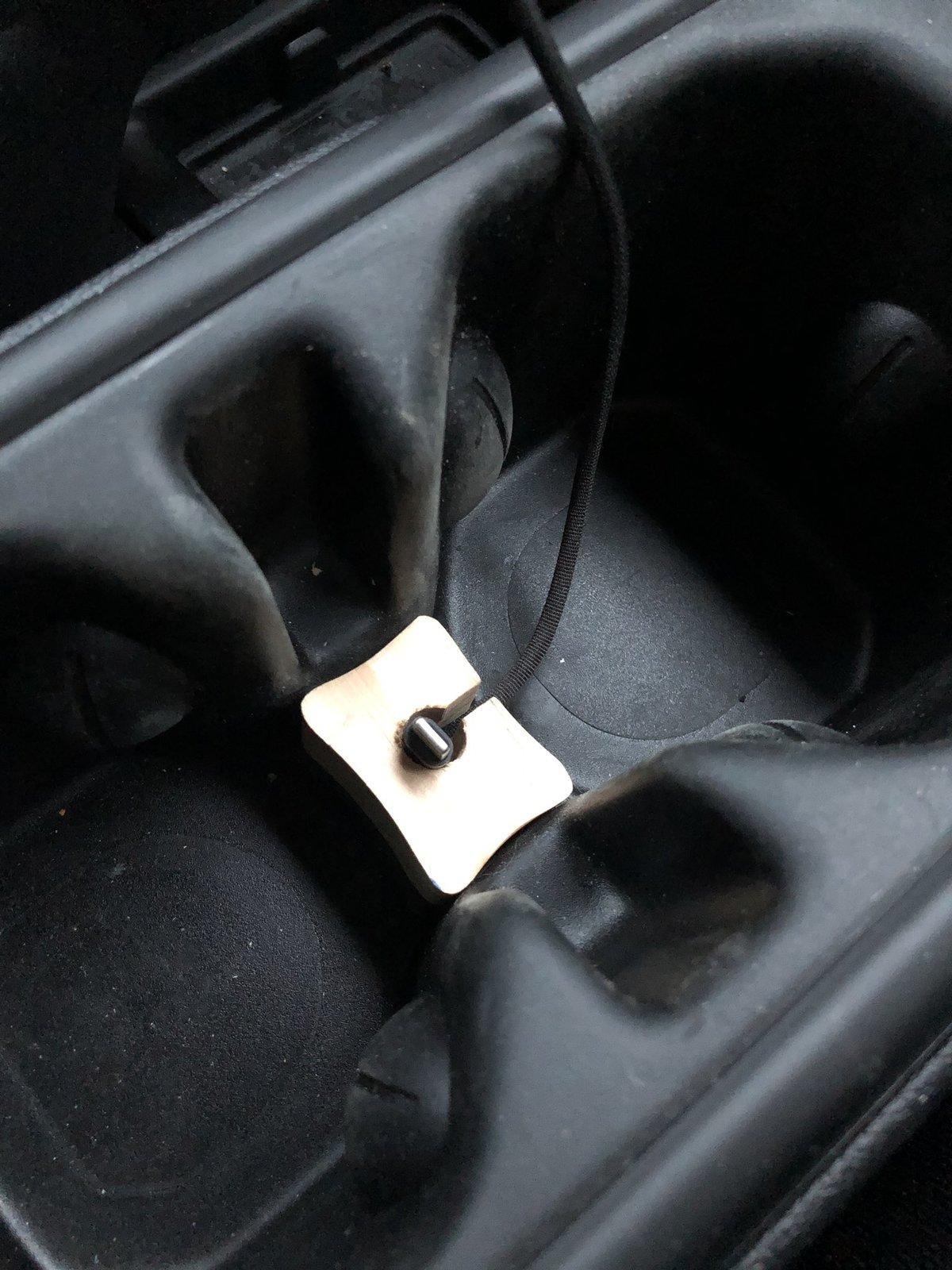

Plywood Rated construction, must be good.


JeepDreams

Well-Known Member
First Name
Laura
Joined
Jul 6, 2018
Messages
462
Reaction score
571
Location
California
Vehicle(s)
2016 Gobi Jeep Renegade. Priors: 2007 Rescue Green Jeep Wrangler Rubicon Unlimited
Interesting!


bolingde

Active Member
First Name
David
Joined
Jun 13, 2019
Messages
38
Reaction score
15
Location
North Carolina
Vehicle(s)
2020 Gladitor
Interesting, but I was just wondering has anyone thought about adding a wireless charging module? They are super thin but not sure if one would fit upright with the phone.


JT614

Well-Known Member
Joined
Jun 16, 2019
Messages
397
Reaction score
904
Location
Columbus, OH
Vehicle(s)
2020 Gladiator Overland, 2014 JGC Summit
Vehicle Showcase
1
Thanks for sharing! Great ideas are always copied!

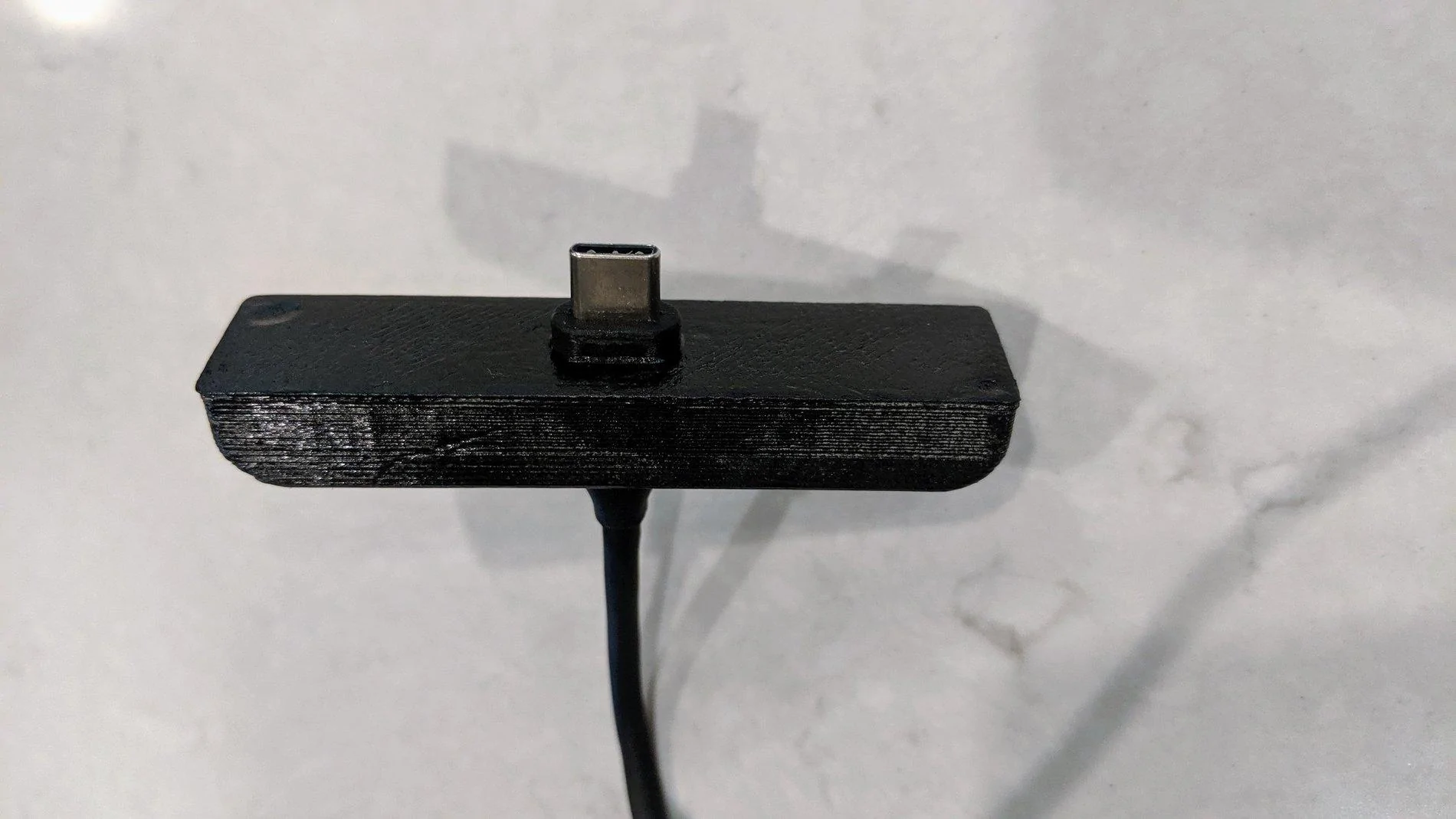

Here is my 3D printed solution. Fits like a glove! Now I just have to route the cable like you mentioned.






Last edited:

Delhux

Well-Known Member
Joined
Aug 23, 2019
Messages
235
Reaction score
304
Location
Boston, MA
Vehicle(s)
2020 Gladiator - Overland - Gator
Thanks for sharing! Great ideas are always copied!

Here is my 3D printed solution. Fits like a glove! Now I just have to route the cable like you mentioned.





Could you share the file for this one?


Slapping_Rabbits

Well-Known Member
First Name
Nirzwan
Joined
Apr 27, 2019
Messages
909
Reaction score
710
Location
Havre de grace md
Vehicle(s)
Jeep gladiator Rubicon, triumph rocket iii roadster
I don't have a 3d printer but always wanted one. Have you gotten much use out of yours?


Hawkeyes3312

Well-Known Member
First Name
Derek
Joined
Jul 17, 2019
Messages
361
Reaction score
420
Location
Iowa City, Iowa
Vehicle(s)
2020 Jeep Gladiator Rubicon Launch Edition
Thanks for sharing! Great ideas are always copied!

Here is my 3D printed solution. Fits like a glove! Now I just have to route the cable like you mentioned.





Neat Idea! Can I ask if this is for those that don't have the CarPlay option? I am just trying to understand the problem to solve and, if it's because of a lack of that feature, it makes perfect sense. I'd like something like this in my other Jeeps for certain then!


JT614

Well-Known Member
Joined
Jun 16, 2019
Messages
397
Reaction score
904
Location
Columbus, OH
Vehicle(s)
2020 Gladiator Overland, 2014 JGC Summit
Vehicle Showcase
1
Neat Idea! Can I ask if this is for those that don't have the CarPlay option? I am just trying to understand the problem to solve and, if it's because of a lack of that feature, it makes perfect sense. I'd like something like this in my other Jeeps for certain then!
Thanks. This is FOR the UConnect with Android Auto and the other one. Granted it could be used for just charging your phone too.


brancky3

Well-Known Member
First Name
Brandon
Joined
Aug 12, 2019
Messages
291
Reaction score
171
Location
Greenville, SC
Vehicle(s)
'20 Gladiator Sport S
This design worries me - seems like it would be very easy to accidentally knock the top of the phone and break something. I would be more comfortable putting it in the arm rest; however, then you really cant store much else in there unfortunately.


Hawkeyes3312

Well-Known Member
First Name
Derek
Joined
Jul 17, 2019
Messages
361
Reaction score
420
Location
Iowa City, Iowa
Vehicle(s)
2020 Jeep Gladiator Rubicon Launch Edition
Thanks. This is FOR the UConnect with Android Auto and the other one. Granted it could be used for just charging your phone too.
Ahh, so the goal is not use the USB and store your phone in the armrest? We've just been doing that with no issues, other than we, sometimes, forget to grab our phones on the way out of the vehicle.


Mr._Bill

Well-Known Member
First Name
Bill
Joined
Jul 22, 2019
Messages
1,200
Reaction score
765
Location
North Las Vegas, NV
Vehicle(s)
2020 Jeep Gladiator Overland 2013 Nissan Leaf SV
Vehicle Showcase
1
I just put the phone in the slot with the charging port facing up. I have the cable connected in the console and routed out the indent on the passenger side. My phone is just wide enough it won't slide all the way down into the slot. Enough fits to secure it for travel. This also keeps the cable out of the way as I use both drink holders.


JT614

Well-Known Member
Joined
Jun 16, 2019
Messages
397
Reaction score
904
Location
Columbus, OH
Vehicle(s)
2020 Gladiator Overland, 2014 JGC Summit
Vehicle Showcase
1
I don't have a 3d printer but always wanted one. Have you gotten much use out of yours?
In the first six months I used it a lot. Made all sorts of novelty things for practice, then started making practical things for around the house. Since then I use it only when there's a need, kinda like this project. 3D printers take lots of patience and practice, but it's a good hobby.


Craig rubi

Well-Known Member
First Name
Craig
Joined
Aug 30, 2019
Messages
74
Reaction score
37
Location
Ontario
Vehicle(s)
Gladiator Rubicon
Hi guys... A little off topic but hopefully not too much. I understand that the USB input is for my standard charging cable etc, but what about the USB c inputs? Would you use that with a double ended USB c cable ? And for what reason/benefit. Please excuse my obvious stupidity
Thanks
