MrClortho
Well-Known Member
I suggest you remove the aux battery all together before it leaves you walking...and it will. Your useless start/stop function will no longer work.
Sponsored
Sponsored
Start stop not working
- Thread starter Myronlucan
- Start date
- Watchers 10
Mr._Bill
Well-Known Member
- First Name
- Bill
- Joined
- Jul 22, 2019
- Threads
- 30
- Messages
- 5,301
- Reaction score
- 5,568
- Location
- North Las Vegas, NV
- Vehicle(s)
- 2023 Gladiator High Altitude - 2013 Nissan Leaf SV
- Vehicle Showcase
- 1
How old are the batteries?
Who did the load test?
Does the ESS screen show any message?
Wynfuller
Member
Batteries are 12 months old (both)and are 100%
load test said “good”

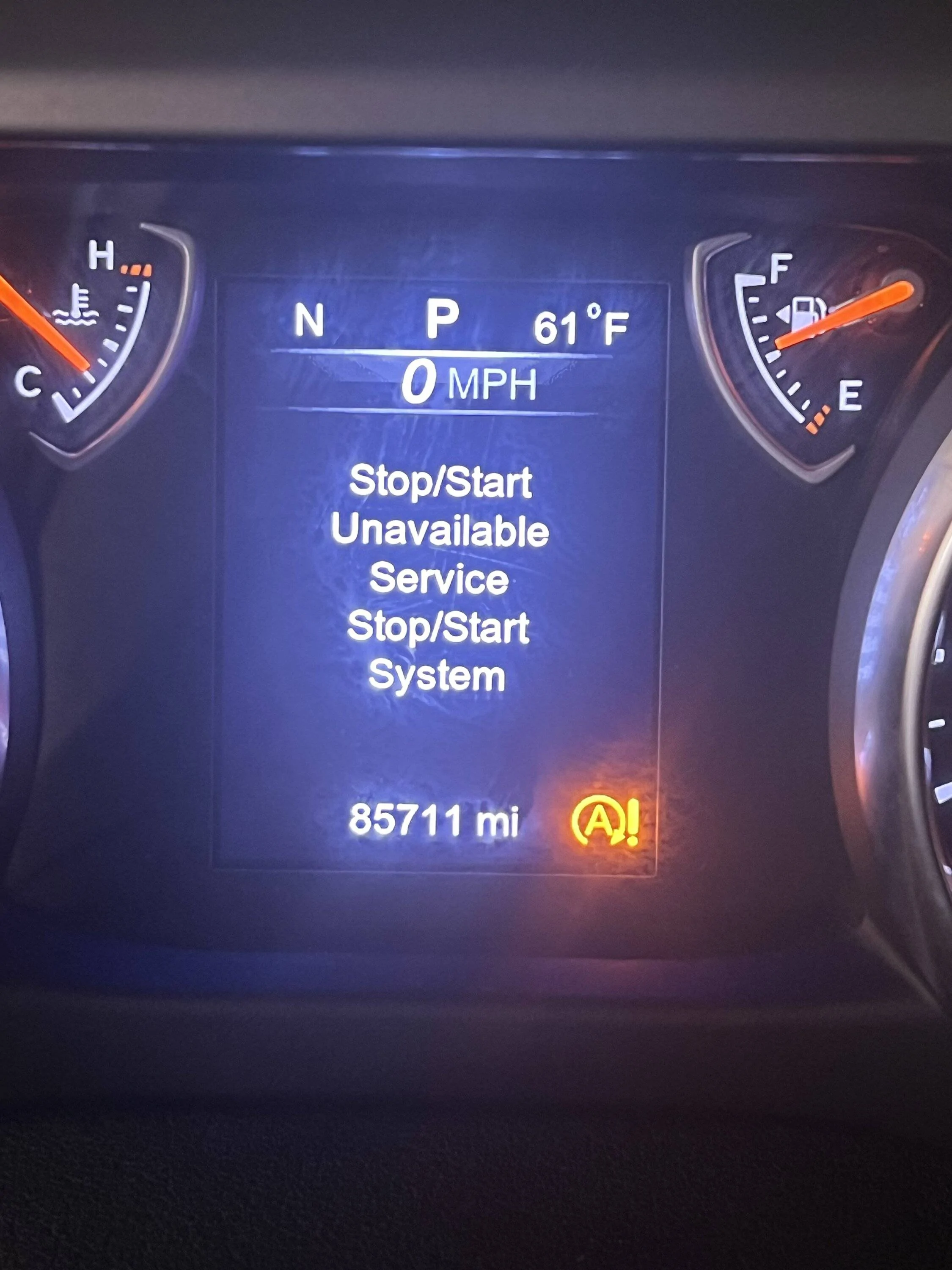

The screen says “start stop unavailable, service start stop system”
load test said “good”
The screen says “start stop unavailable, service start stop system”
Mr._Bill
Well-Known Member
- First Name
- Bill
- Joined
- Jul 22, 2019
- Threads
- 30
- Messages
- 5,301
- Reaction score
- 5,568
- Location
- North Las Vegas, NV
- Vehicle(s)
- 2023 Gladiator High Altitude - 2013 Nissan Leaf SV
- Vehicle Showcase
- 1
Did he check for any codes?
The ESS unavailable light and service message usually only shows when the Aux battery fails the startup test.
Check the high current fuse array on the end of the fuse box.
If you scroll to the ESS display on the center screen, does it show a more specific failure message?
Sponsored
Mr._Bill
Well-Known Member
- First Name
- Bill
- Joined
- Jul 22, 2019
- Threads
- 30
- Messages
- 5,301
- Reaction score
- 5,568
- Location
- North Las Vegas, NV
- Vehicle(s)
- 2023 Gladiator High Altitude - 2013 Nissan Leaf SV
- Vehicle Showcase
- 1

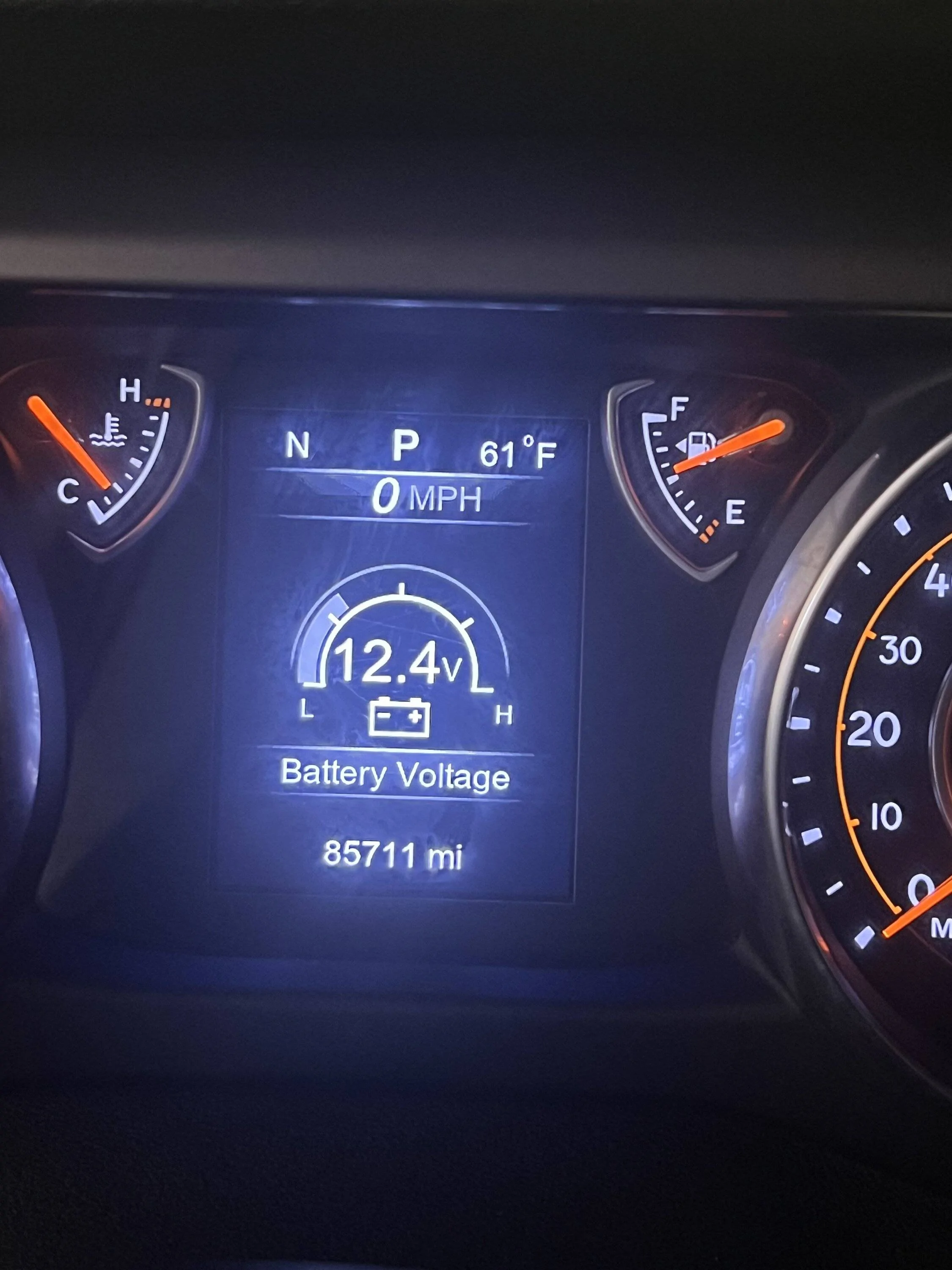

Take a voltage reading for each battery after it has sat for a few hours, and after sitting overnight.
What is the system voltage while the engine is running, when first started, and after about 30 minutes driving?
What is the system voltage while the engine is running, when first started, and after about 30 minutes driving?
Sponsored
Mr._Bill
Well-Known Member
- First Name
- Bill
- Joined
- Jul 22, 2019
- Threads
- 30
- Messages
- 5,301
- Reaction score
- 5,568
- Location
- North Las Vegas, NV
- Vehicle(s)
- 2023 Gladiator High Altitude - 2013 Nissan Leaf SV
- Vehicle Showcase
- 1
The only thing I can think of, at this point, would be one of the components in the circuitry that does the Aux battery test. It could be some other issue with the engine, but I would expect a check engine light and codes readable with a scanner.
Wynfuller
Member
That’s what is stumping us. When the light came on, I bought two batteries right away, we pulled the existing ones out and tested them and they both tested exactly the same as the new ones. It’s a head scratcher. I have an appointment with the dealer next week to see if they can figure it out and charge me an arm and a leg. I’ll post the results
Mr._Bill
Well-Known Member
- First Name
- Bill
- Joined
- Jul 22, 2019
- Threads
- 30
- Messages
- 5,301
- Reaction score
- 5,568
- Location
- North Las Vegas, NV
- Vehicle(s)
- 2023 Gladiator High Altitude - 2013 Nissan Leaf SV
- Vehicle Showcase
- 1
Maybe the relay box is stuck so that it is not able to get a reading from the Aux battery. Charging or replacing batteries usually clears the error. Something appears to be interrupting the current flow during the startup test.
Lost1wing
Well-Known Member
- First Name
- Tim
- Joined
- Dec 22, 2020
- Threads
- 18
- Messages
- 1,081
- Reaction score
- 916
- Location
- Georgia(south) almost Florida
- Vehicle(s)
- 2020 Jeep Gladiator Rubicon
- Occupation
- Retired AMT
With the key off, you can put your meter leads on N1 to ground and then N2 to ground, the voltage should be the same. Batteries should be in parallel. If you get 2 different readings, I would suspect n3 fuse, or power relay. Batteries are then separated and can not pass the start up test giving you the indication.
