Towing modifications??

LordEnzo

Well-Known Member
Joined
May 9, 2020
Messages
245
Reaction score
225
Location
Central Florida
Vehicle(s)
2020 Jeep Gladiator Sport S Max Tow
So far I have a brake controller to install and I’m about to purchase a used Curt WDH with sway control. The WDH is rated for 1500 lbs TW and 15000 lbs GWT.
Just because its rated that high, doesn't mean you will be capable of towing that high. Jeep will not cover damage (in that case negligence) for going above and beyond factory ratings. Having it for added strength when at factory ratings is ok tho. This will also be mentioned in the fine print of the WDH when purchased new. And 8k-10k WHD should be more than enough ( and I think the lowest rated I've seen for WHD).





Advertisement



Ferg

Well-Known Member
First Name
Michael
Joined
Aug 26, 2019
Messages
89
Reaction score
144
Location
Longview, TX, USA
Vehicle(s)
2020 Gladiator Sport
Vehicle Showcase
1
I use the Curt Echo brake controller (freaking LOVE it), the mirror extensions from the member on here (superbly made, BTW), and an anti-sway bar (just for peace of mind). I don’t use a WDH for my TT as it’s just barely at or under 3.5K# fully loaded and has a tongue weight of <300#. I’ve towed it about 5K miles thus far with no problems at all…pulls like a champ.


DAVECS1

Well-Known Member
First Name
David
Joined
Jan 24, 2020
Messages
763
Reaction score
894
Location
Peoria, IL
Vehicle(s)
2020 Gladiator Sport S Max Tow

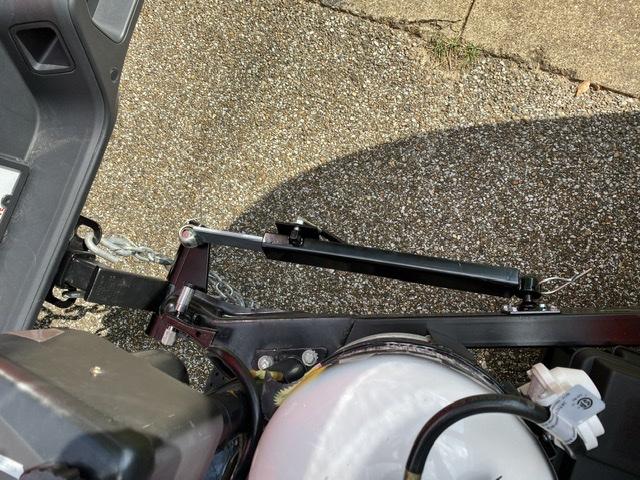

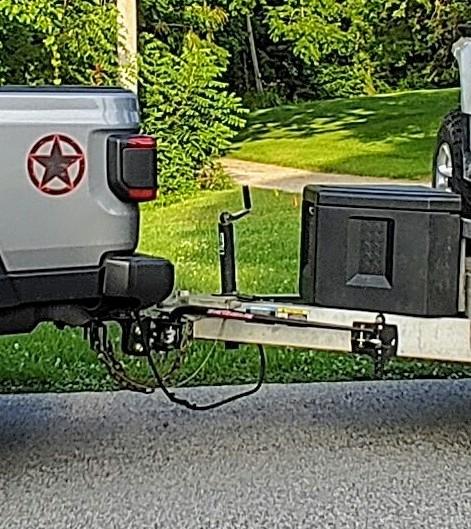

Here is my WDH. I need to look at exactly the spring weight. I got it from my local RV truck shop. They selected the spring weights. It does great truck rides even and smooth even with a lift.




OP
Jpeazy21

Jpeazy21

Well-Known Member
Joined
Jul 19, 2020
Messages
65
Reaction score
30
Location
Saint Johns, FL
Vehicle(s)
2020 Jeep Gladiator Sport 4x4 w/ Max Tow
Occupation
USN
  • Thread starter
  • Thread Starter
  • #19

Burton79

Well-Known Member
First Name
Jack
Joined
Sep 9, 2020
Messages
135
Reaction score
130
Location
Ohio
Vehicle(s)
Jeep JT
Occupation
Federal Government
I just read these don't fit the Gladiator. Is there something I am missing?
I came across the same exact thing but found out I had to do a bit of research for clarification. Air Lifts site is very general but I stumbled on CJ Off Roads YouTube channel one day and saw them.



Riccochet

Well-Known Member
Joined
Aug 22, 2020
Messages
322
Reaction score
367
Location
NC
Vehicle(s)
2012 Crush JKR | 2017 Ram Sport Sublime 1500 | 2021 JT Sport S Max Tow
I can attest to those Air Lift bags. I have my current Ram, and had them on my last Ram. They don't level out a load like a traditional air bag. But they do reduce the bounce and sag from heavier tongue weights. Rear end feels more planted.

OP
Jpeazy21

Jpeazy21

Well-Known Member
Joined
Jul 19, 2020
Messages
65
Reaction score
30
Location
Saint Johns, FL
Vehicle(s)
2020 Jeep Gladiator Sport 4x4 w/ Max Tow
Occupation
USN
  • Thread starter
  • Thread Starter
  • #22
I came across the same exact thing but found out I had to do a bit of research for clarification. Air Lifts site is very general but I stumbled on CJ Off Roads YouTube channel one day and saw them.

Do you have an onboard air compressor? How do you fill them?


Riccochet

Well-Known Member
Joined
Aug 22, 2020
Messages
322
Reaction score
367
Location
NC
Vehicle(s)
2012 Crush JKR | 2017 Ram Sport Sublime 1500 | 2021 JT Sport S Max Tow
Do you have an onboard air compressor? How do you fill them?

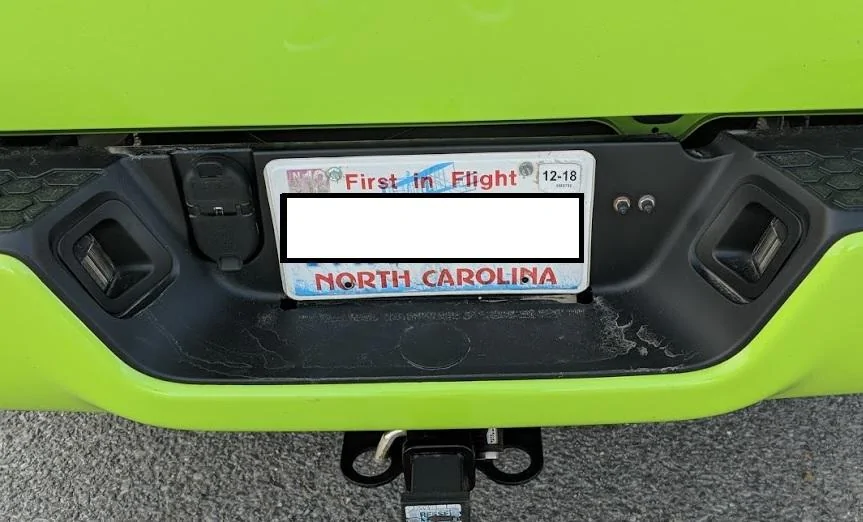

No compressor needed. They come with schrader valves that you can mount wherever. On my Ram I have them mounted next to the license plate in the back. I use a bicycle tire pump air them up. You only put 25-35 PSI in them. Takes a couple pumps per bag.



DankjeeP

Well-Known Member
First Name
Keith
Joined
Jan 13, 2021
Messages
192
Reaction score
143
Location
CA
Vehicle(s)
'21 JTR, '98 XJ, '17 FLHXS, '02 FLSTFI
Build Thread
Link
Occupation
HW Engineer

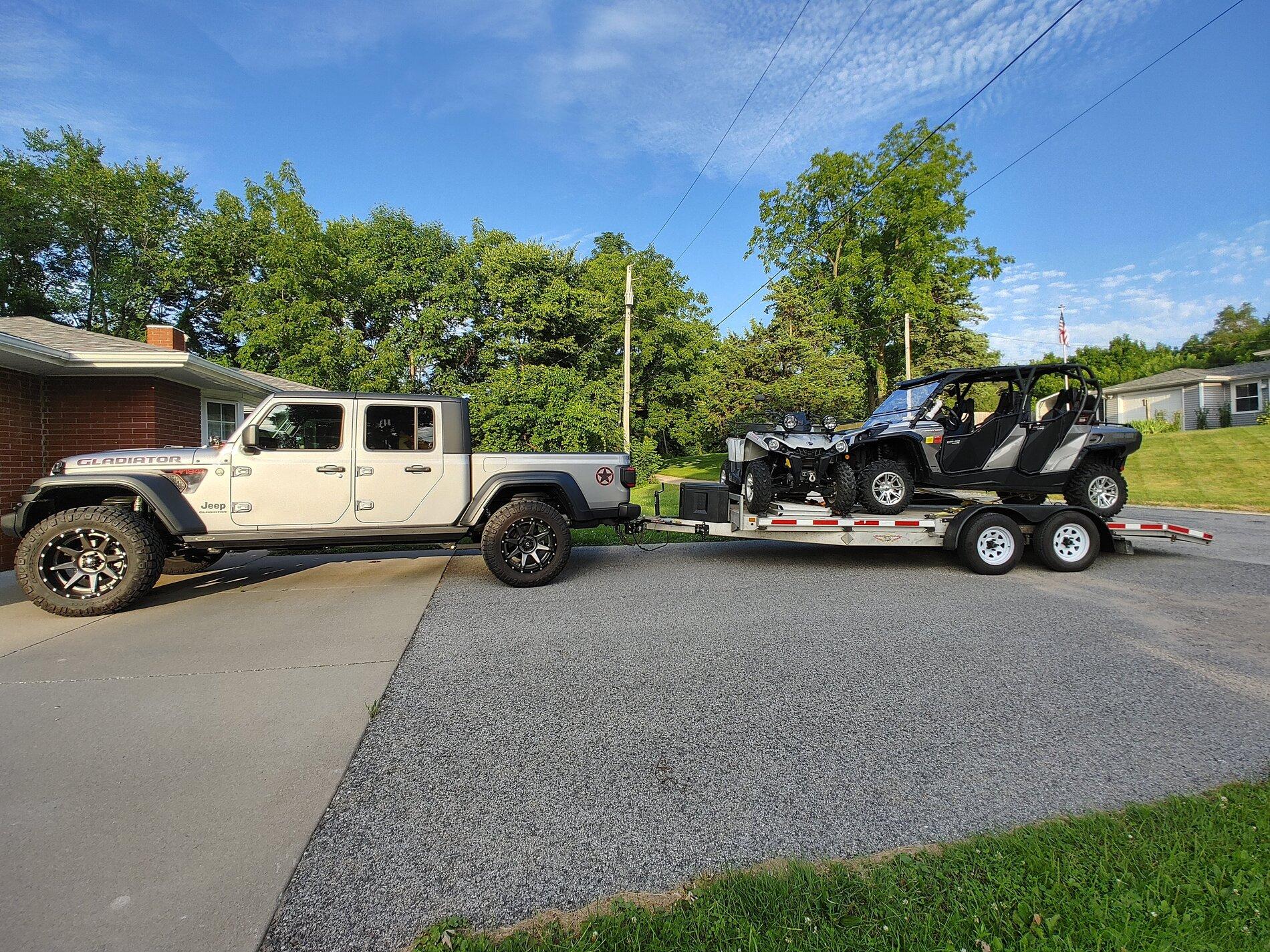

Hopkins Insight Brake Controller. Magnuson Supercharger, EAZ Lift Recurve G3 WDH. Diode Dynamics reverse lights in the bumper. 4awg rear battery connection for winch. Thing yanks cars, quads and side by sides beautifully on or off road
#1. Magnuson Supercharger
how is that working out? Any issues? That is not really a minor "towing mod" lol
#2 4awg rear battery connection for winch
I'm guessing a hitch mount portable winch plate? This is a nice feature. Do you have front mounted also or does it do double duty? I have a receiver on my XJ front bumper and thought about this option.


DAVECS1

Well-Known Member
First Name
David
Joined
Jan 24, 2020
Messages
763
Reaction score
894
Location
Peoria, IL
Vehicle(s)
2020 Gladiator Sport S Max Tow
#1. Magnuson Supercharger
how is that working out? Any issues? That is not really a minor "towing mod" lol
#2 4awg rear battery connection for winch
I'm guessing a hitch mount portable winch plate? This is a nice feature. Do you have front mounted also or does it do double duty? I have a receiver on my XJ front bumper and thought about this option.
Supercharger works out great. I have quads and a side by side I take offroading with my friends and family. With my whole family aboard and a full trailer. I am keeping or setting pace with two full size chevys and an F150 pulling similar cargo.

The 4awg actually has a connector at the hitch and I plug my trailer winch into it when a dead car or machine needs help getting on. It is just a small 4500 lb winch to get things up on to the trailer without using my back.
