Bed cover with rack

AMAGladiator

Well-Known Member
First Name
Corey
Joined
Oct 30, 2021
Threads
11
Messages
94
Reaction score
64
Location
Texas
Vehicle(s)
Gladiator Rubicon
I’m in the process of building my own. I wanted a bed rack but wasn’t really wanting to spend a grand on one. I’m in about $120 in parts to build this one myself. I say if you have the tools and the skills, take on the adventure yourself. I also like the satisfaction after it’s done.



Sponsored



aqcjeepGlad

Well-Known Member
First Name
Tony
Joined
Jul 1, 2021
Threads
4
Messages
169
Reaction score
145
Location
South
Vehicle(s)
Mojave
Likes nice so far, definitely like the price. Did you make the brackets that mount to the bed rail? Thanks


Sponsored

Fcmalie

Well-Known Member
Joined
Dec 8, 2018
Threads
20
Messages
577
Reaction score
522
Location
Ripon, California
Vehicle(s)
2018 JLU, 2021 Mojave
Build Thread
Link

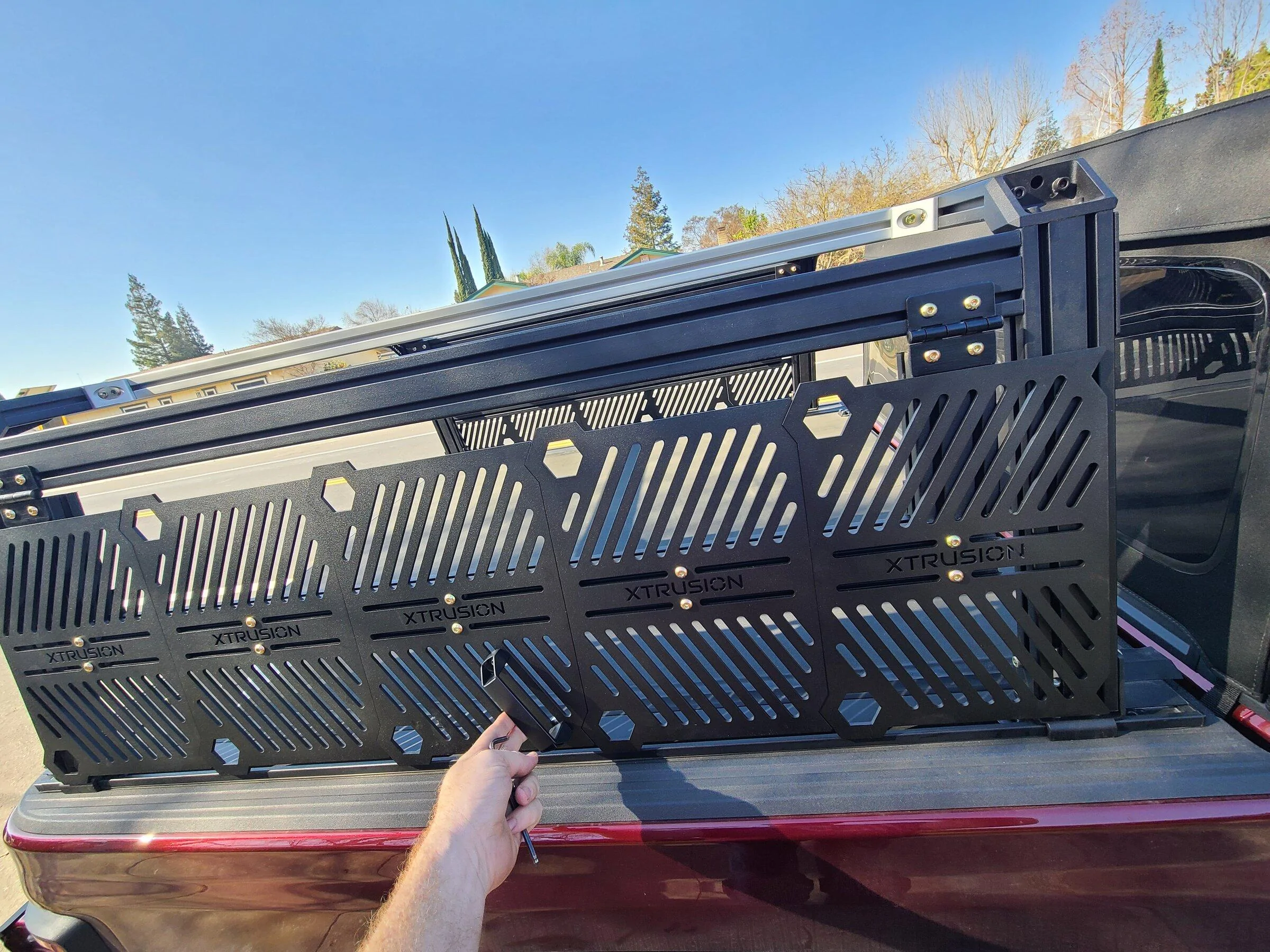

I'm loving mine, I am still working out some issues with my custom rack build, but they have a great product and customer support. They have some new items in the works to watch for too, a one piece molle panel to replace the side rails, fold down tables and other things.

Jeep Gladiator Bed cover with rack 20220207_111300
Jeep Gladiator Bed cover with rack 20220207_111311

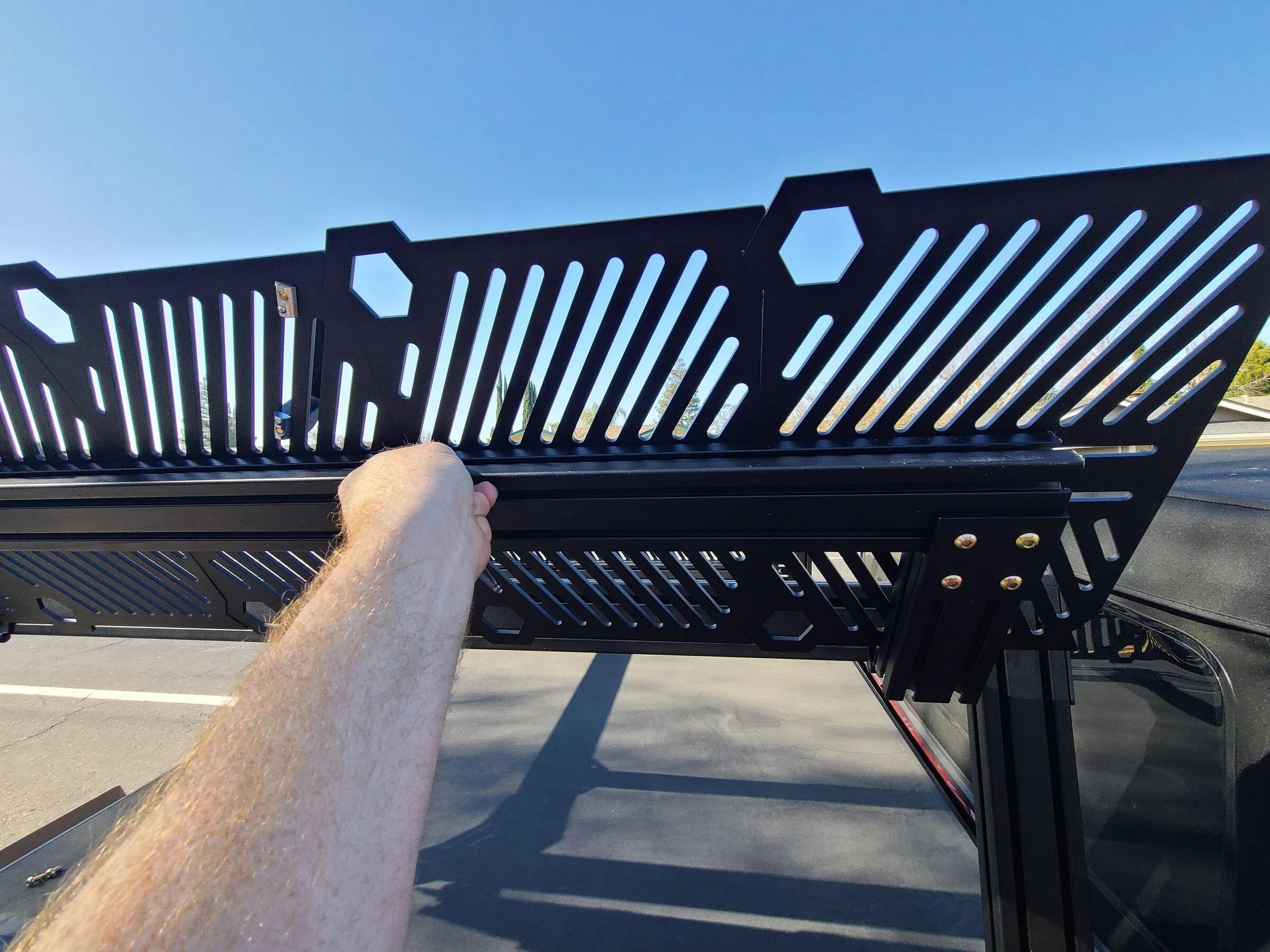

Still working out gas strut and latch fitment in my limited time off.


MER21

Well-Known Member
First Name
Mike
Joined
Mar 11, 2020
Threads
2
Messages
58
Reaction score
18
Location
Hoth
Vehicle(s)
Jeep Gladiator

Firesmith102

Member
First Name
Tim
Joined
Jan 4, 2022
Threads
2
Messages
18
Reaction score
16
Location
Ohio
Vehicle(s)
2021 gladiator rubicon
Occupation
Retired

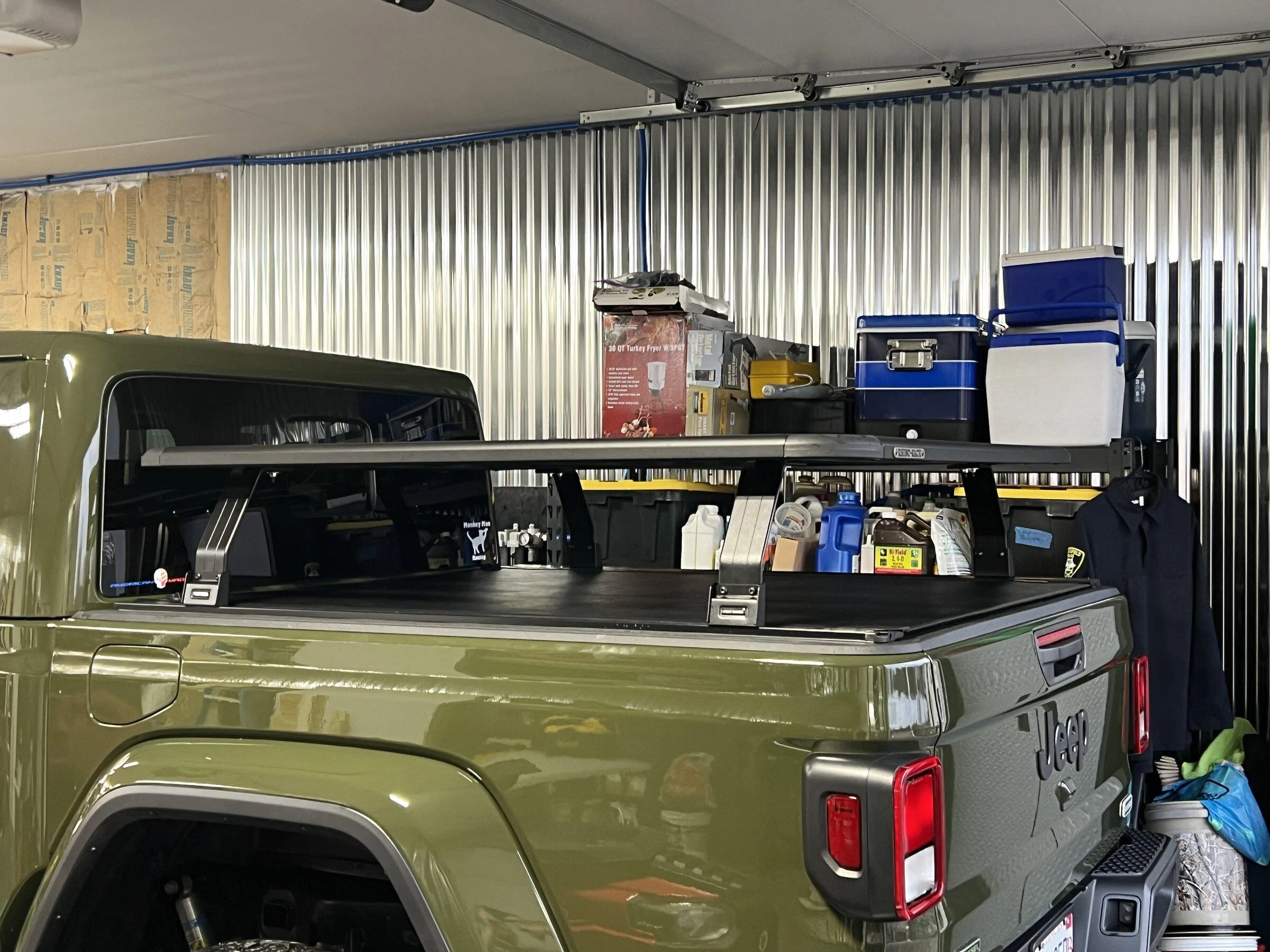

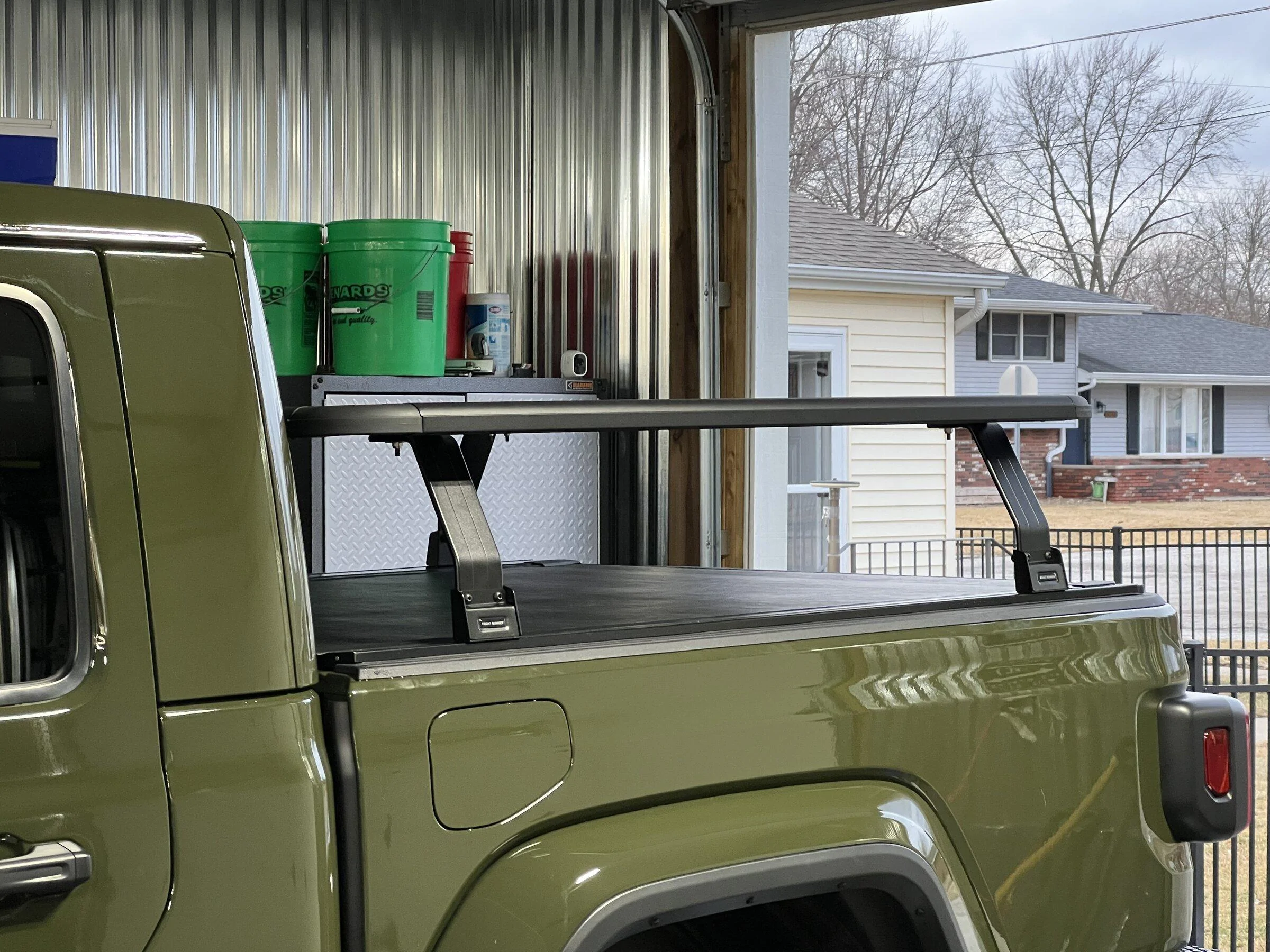

Just installed. Bak x4s with front runner legs (tall) and a rhino rack pioneer platform. The legs are tall enough that the cover rolls all the way up. Not too sure about the weight capacity, but it’s sturdy enough for my needs. Ie: Bikes, cargo box, etc.
Jeep Gladiator Bed cover with rack 20220207_111311

Jeep Gladiator Bed cover with rack 20220207_111311
What size pioneer platform are you ising? Thanks in advance.


capercrew02

Well-Known Member
First Name
Steven
Joined
May 26, 2018
Threads
2
Messages
212
Reaction score
271
Location
Corona,Ca
Vehicle(s)
Jeep WJ, BMW i3, Red JTR.
That’s a really great option! I have the same pioneer platform, I used the quick release rhino rack feet, but they wouldn’t clear the cover so if the rack was on I couldn’t roll it. I like this combo!
QUOTE="Calvinomics, post: 883330, member: 39850"]
Just installed. Bak x4s with front runner legs (tall) and a rhino rack pioneer platform. The legs are tall enough that the cover rolls all the way up. Not too sure about the weight capacity, but it’s sturdy enough for my needs. Ie: Bikes, cargo box, etc.
Jeep Gladiator Bed cover with rack 20220207_111311

Jeep Gladiator Bed cover with rack 20220207_111311

[/QUOTE]


Jlatusek

New Member
First Name
Jake
Joined
Mar 24, 2022
Threads
0
Messages
1
Reaction score
0
Location
CT
Vehicle(s)
Jeep gladiator
Occupation
Operations
So happy I found this thread and specifically this post!

Just ordered the x4s, will be here tomorrow and been chatting with frontrunner on which legs to buy. They mentioned they have 6” legs which will be too small and the 8” ones. Speaking to another gladiator owner in a Facebook group they said the 8” ones are tall enough but angle in too far so have trouble clearing the angles piece. Does your setup unroll freely or do you need to kind of finagle it past the front legs?

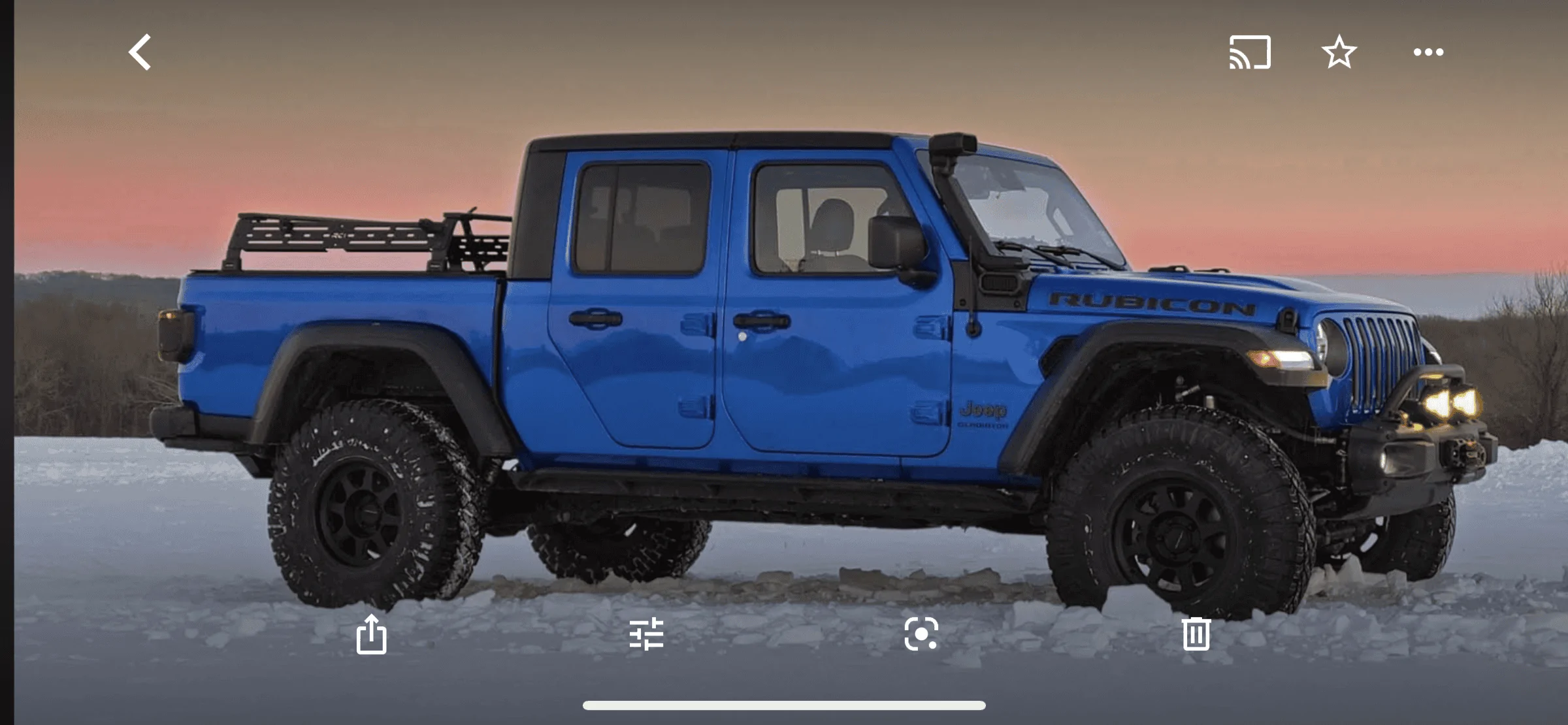

How has it been holding up? I’m going to buy cross bars and thinking about attaching a Molle panel between them like this.

thanks For sharing!

Jeep Gladiator Bed cover with rack EA0F1A40-5DAF-421C-839D-A5CD89B1773E




Just installed. Bak x4s with front runner legs (tall) and a rhino rack pioneer platform. The legs are tall enough that the cover rolls all the way up. Not too sure about the weight capacity, but it’s sturdy enough for my needs. Ie: Bikes, cargo box, etc.
Jeep Gladiator Bed cover with rack EA0F1A40-5DAF-421C-839D-A5CD89B1773E

Jeep Gladiator Bed cover with rack EA0F1A40-5DAF-421C-839D-A5CD89B1773E


Sponsored

TRI-JAB

Well-Known Member
First Name
Jason
Joined
Aug 25, 2019
Threads
33
Messages
1,023
Reaction score
1,639
Location
Northern South Carolina
Vehicle(s)
Samson-'20 Gladiator,'07 BMW Z4,'22 BMW M340 xDriv
Build Thread
Link
That’s a really great option! I have the same pioneer platform, I used the quick release rhino rack feet, but they wouldn’t clear the cover so if the rack was on I couldn’t roll it. I like this combo!
QUOTE="Calvinomics, post: 883330, member: 39850"]
Just installed. Bak x4s with front runner legs (tall) and a rhino rack pioneer platform. The legs are tall enough that the cover rolls all the way up. Not too sure about the weight capacity, but it’s sturdy enough for my needs. Ie: Bikes, cargo box, etc.

[/QUOTE]
Are these the legs you used?

https://ruggedoutlander.com/products/front-runner-pickup-roll-top-top-mount-leg-tall-pair


jimbom

Well-Known Member
First Name
Jim
Joined
Aug 16, 2019
Threads
2
Messages
733
Reaction score
765
Location
AZ
Vehicle(s)
2020 6-Speed Rubicon Gator Gladiator, 2015 Infiniti Q60 6-Speed Sport Coupe (wife's, really), 2003 5-speed Honda Civic Coupe, 1960-something Jeep Gladiator (Matchbox)

TRI-JAB

Well-Known Member
First Name
Jason
Joined
Aug 25, 2019
Threads
33
Messages
1,023
Reaction score
1,639
Location
Northern South Carolina
Vehicle(s)
Samson-'20 Gladiator,'07 BMW Z4,'22 BMW M340 xDriv
Build Thread
Link
I was getting excited as well, until I saw $150 for just 1 pair of legs.
Me too.... I picked up the platform and side rails. Now looking for a good way to attach to the X4S.


astronerd

Active Member
First Name
Mike
Joined
Nov 20, 2021
Threads
4
Messages
43
Reaction score
30
Location
Raleigh/Durham, NC
Website
www.astronerd.net
Vehicle(s)
22 JT Sport S, 14 Mustang GT/CS, 04 Honda Pilot
Occupation
Finance/Accounting
I am (not so patiently) awaiting the delivery of my JT Sport S. It’s primary duty will be a daily driver but secondarily for hauling around my Astronomy equipment and towing a small camper and maybe the very infrequent very mild wheeling. I often go on week long astronomy outings to remote areas away from city lights and have bring in everything with me and also haul it all out.

I originally thought a part-time softtopper like FAS-TOP would be the best solution but I wanted something with a bit more security when daily driving. I’d like to go with the Bak Revolver X4s and then cross bars to attach a cargo basket and maybe a bike rail. Has anyone used this cross bar and feet system by a company called TMS Link to Amazon Page? According the Q&As it can be mounted using T Slot hardware included.

I don’t need to worry about too much strength or weight as I won’t ever use a RTT on it, it will only be used to carry a bike, a camp kitchen table, chairs and other camping gear.

Any thoughts on the above referenced set of cross bars? Can anyone with a Bak RevolverX4s provide a measurement of how much clearance would be needed to clear the rail closest to cab?

Thanks!
-Mike


CoachA

Well-Known Member
First Name
Tom
Joined
Apr 17, 2022
Threads
4
Messages
169
Reaction score
318
Location
Damascus, MD
Vehicle(s)
2020 Jeep Gladiator Rubicon
Occupation
Teacher

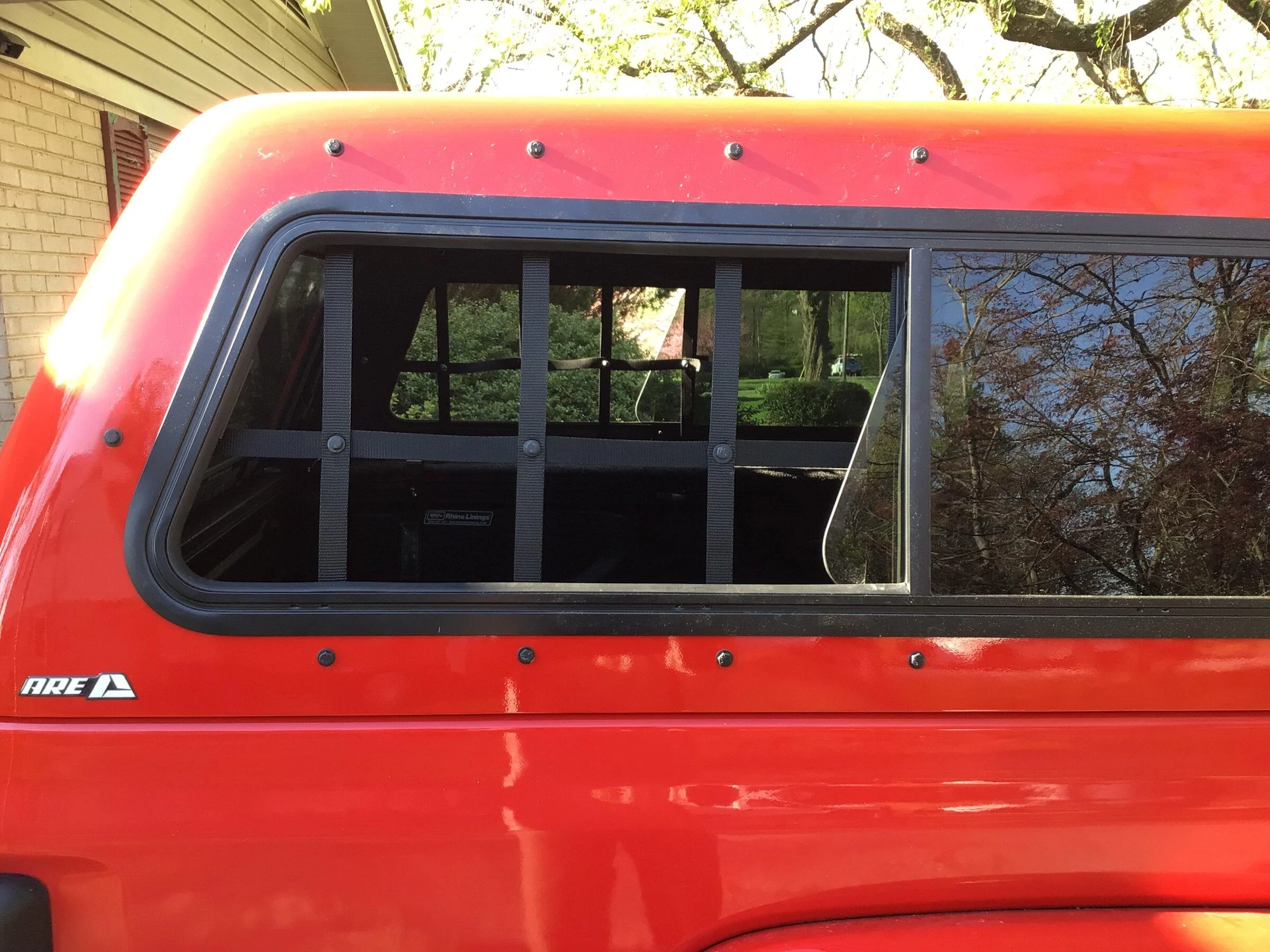

Only a few hours after having my ARE cap installed on my Gladiator, I found myself uninstalling the screen and pet mesh the cap came with, drilling up a storm into that gleaming new fiberglass and installing my DIY nylon webbing CRD (canine retention device). Works like a charm according to my 5 big dogs who can ride in back and stick out their heads to take the air without me worrying anybody might jump out. Even painted the bolts and washers flat black to preserve the No-chrome aesthetic.

Jeep Gladiator Bed cover with rack 1527ED2C-2980-4B0B-8FDD-DCB4B2D2C1D2
