Il take any advice on taking this lug nut out!

staying_tuned

Well-Known Member
First Name
Mike
Joined
Jan 11, 2021
Threads
54
Messages
777
Reaction score
1,215
Location
Kentucky
Vehicle(s)
Previous: TJx2, JKx1, JKUx1
Build Thread
Link
Occupation
Software Architect
Disappointed in the lack of momentum on this, was hoping to see a new stud on that going into the weekend hah. Between this and the custom LED tail light thread... Better than anything on prime. We're ALL rootin' for you!
Sponsored



Rusty PW

Well-Known Member
First Name
Russ
Joined
Jan 10, 2022
Threads
37
Messages
11,370
Reaction score
30,340
Location
Fayette Nam, Pennsyltucky
Website
www.youtube.com
Vehicle(s)
'22 JTRD, '11 370Z Nismo, '07 Honda VFR
Build Thread
Link
Occupation
Muff Diver
I've removed nuts like this before. Air powered pencil grinder (or Dremel) with a 1/8" burr bit. Grind 2 slots 180* apart the full length of the nut. Since the stud is shot. You can grind into that too since you will be replacing that too. Once you have both slots ground. Take a narrow chisel and hammer. Tap at the edge of the slots you just ground. The nut should peel back.

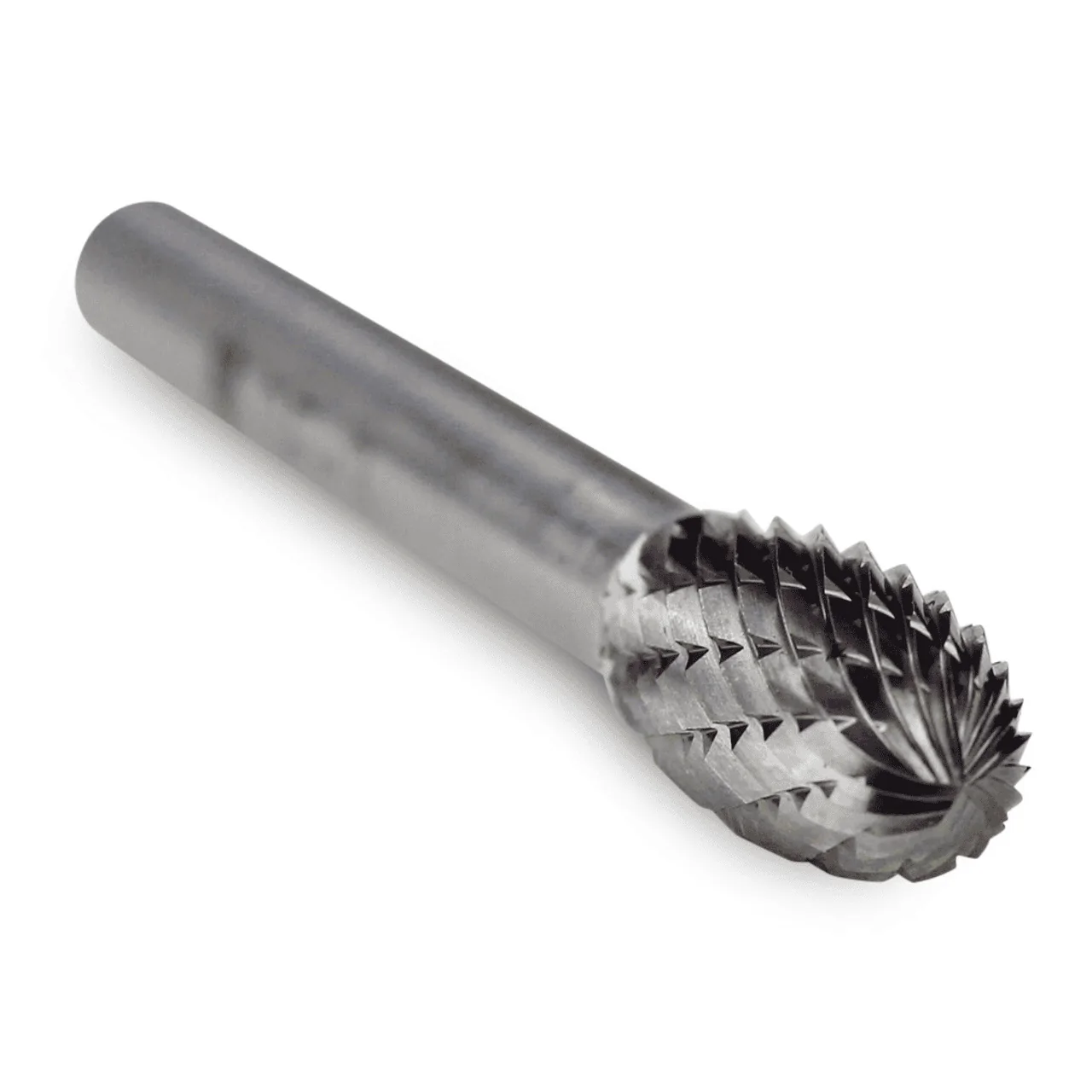

This shape would work. dip the end of the burr bit into ATF to lubricate it ever once in a while. Helps to keep it;s sharpness.

Jeep Gladiator Il take any advice on taking this lug nut out! 1688777526138

Last edited:

ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
247
Messages
40,445
Reaction score
53,878
Location
Runnells, Iowa
Vehicle(s)
'25 JTMX, '23 JLU 4xe, '82 SX4, '73 Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
I've removed nuts like this before. Air powered pencil grinder (or Dremel) with a 1/8" burr bit. Grind 2 slots 180* apart the full length of the nut. Since the stud is shot. You can grind into that too since you will be replacing that too. Once you have both splots ground. Take a narrow chisel and hammer. Tap at the edge of the slots you just ground. The nut should peel back.

This shape would work. dip the end of the burr bit into ATF to lubricate it ever once in a while. Helps to keep it;s sharpness.

I'll have to check - see if the search function here works, but for some reason the Dremel thing may have been mentioned. Not sure, will have to search and see if I can find such posts about using a Dremel in such a way......... just sounds SOOO familiar.


JTRDistraction

Well-Known Member
First Name
Christopher
Joined
Oct 16, 2022
Threads
1
Messages
151
Reaction score
251
Location
Green Cove Springs, Fl
Vehicle(s)
2022 Jeep Gladiator Rubicon
Occupation
Utility Substation Electrician
I'll have to check - see if the search function here works, but for some reason the Dremel thing may have been mentioned. Not sure, will have to search and see if I can find such posts about using a Dremel in such a way......... just sounds SOOO familiar.
Yes, but some people are visual learners and there was a nice big picture posted to show how pointy and round the attachment was.

I'm just waiting on the OPs post celebrating the nut removal. Or the video and police report of someone's JT burning down for unknown reasons. ?


Sponsored

Rusty PW

Well-Known Member
First Name
Russ
Joined
Jan 10, 2022
Threads
37
Messages
11,370
Reaction score
30,340
Location
Fayette Nam, Pennsyltucky
Website
www.youtube.com
Vehicle(s)
'22 JTRD, '11 370Z Nismo, '07 Honda VFR
Build Thread
Link
Occupation
Muff Diver

Sponsored

KEG2021

Well-Known Member
First Name
Kyle
Joined
Sep 13, 2021
Threads
2
Messages
48
Reaction score
63
Location
Georgia
Vehicle(s)
2015 Jeep jk willys, 2021 Jeep jt
Occupation
Welder
I'll have to check - see if the search function here works, but for some reason the Dremel thing may have been mentioned. Not sure, will have to search and see if I can find such posts about using a Dremel in such a way......... just sounds SOOO familiar.
Think it’s the wash rinse repeat culture…haha…third times a charm(or more)


AEsco48

Well-Known Member
First Name
AndresE
Joined
Oct 12, 2020
Threads
61
Messages
355
Reaction score
176
Location
Denver, CO
Vehicle(s)
2021 Rubicon Diesel
Occupation
Mech Engineer/MBA/Entrepreneur
Liquid nitrogen won't work on that/position/side of metal, so save your time and $.
Drilling from small to big is the only option.

If you could drill a small hole and crack the nut, but would likely need some type of fixed base drill.


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
247
Messages
40,445
Reaction score
53,878
Location
Runnells, Iowa
Vehicle(s)
'25 JTMX, '23 JLU 4xe, '82 SX4, '73 Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
Drilling from small to big is the only option.
The ONLY option? Sorry, but not.
IMO, the most difficult (as has already been discussed to death anyway)
Give me 10 minutes with it with my tools (and no drill - or a drill and one 1/8" bit)

There's been more than one great suggestion in the thread thus far. Drilling is the last I'd do. Too much effort, too much time.
To me, drilling through that stud would be the most time consuming. You'd either need to drill the entire length of the stud from the outer end to down just below the nut remains, or need to cut the stud off and drill through the depth of the nut into the stud, and changing out bits at least twice. By the time you have done that, the nut could be off.

If it was in my shop and by the time someone read this entire thread, I'd probably have it apart.
Sorry, I just would. Maybe that comes from dealing with that - and much worse, over several decades making money doing that sort of work.

It's up to the guy doing the work what method he chooses based on his abilities, the tools at hand, his confidence level and so on.
But my choice - not drilling the stud in order to save time, energy and effort.
A dremel would have it done, or a drill and small bit taken to the nut, then split it.


Big John

Well-Known Member
First Name
John
Joined
Sep 29, 2019
Threads
3
Messages
63
Reaction score
92
Location
Austin TX
Vehicle(s)
M715x2, 92 YJ, 20 Gladiator
Air die grinder with a carbide bit to remove the nut. Then a BFH to remove the lug.


Fstduc

Member
First Name
Matt
Joined
Feb 2, 2022
Threads
0
Messages
13
Reaction score
18
Location
Iowa
Vehicle(s)
2022 Gladiator Rubicon; 1941/42 Ford GPW
Occupation
Engineer
Two options as I see it.. various methods to weaken one side of the nut before going after it with the chisel to split it, etc.
or
Hard to tell from the picture, but I might try to take a socket that just big enough to fit over the stud, slide it down to the nut and spot weld it on, then remove. I'd try this first. If it doesn't work, then back to the chisel.
