Installing Mopar Rear Bed Rock Rails on Overland and Sport Gladiators

OP
ColoradoGlad

ColoradoGlad

Well-Known Member
Joined
Jun 28, 2019
Messages
182
Reaction score
197
Location
Colorado
Vehicle(s)
2020 Gladaitor
  • Thread starter
  • Thread Starter
  • #16
Thanks to being quarantined I finally had time to give this my attention today.

i used the pictured dremel bit and it made it a breeze to slowly and smoothly cut the bumper plastic.

I ordered basically the same trim as the OP and followed those steps.

VERY pleased with the end result!
Huge thanks to the OP for this.














Well done! Looks great and they will actually help when needed....
I'm still not a fan of any of the aftermarket bumpers out there right now, so I'm appreciating my setup.
Some of the aftermarket bumpers out there are actually pretty bad looking, some are "ok"...

Colorado Gladiator... '

BTW, Looks like a Vmax in the garage? At first I thought it was a Vrod...



Advertisement





Gren71

Well-Known Member
First Name
Matthew
Joined
Jul 9, 2019
Messages
779
Reaction score
575
Location
Delaware
Vehicle(s)
Jeep JT sports S
Occupation
TEMS
Vehicle Showcase
1
Well done! Looks great and they will actually help when needed....
I'm still not a fan of any of the aftermarket bumpers out there right now, so I'm appreciating my setup.
Some of the aftermarket bumpers out there are actually pretty bad looking, some are "ok"...

Colorado Gladiator... '

BTW, Looks like a Vmax in the garage? At first I thought it was a Vrod...
I wish!

thats my star Bolt 950


Sower3213

New Member
First Name
Bill
Joined
Jul 5, 2020
Messages
4
Reaction score
1
Location
Rapid City, SD
Vehicle(s)
2020 Jeep Gladiator Sport S
Occupation
Full-Time Volunteer
I noticed while ordering on any of the Mopar sites all of them will state that the bumper-to-frame-rail-bracket (Left and right) do not fit the Jeep Gladiator.... Whaaaaaat? However it lists the slider itself does fit. Of course that’s funny because as a couple of you have shown us, that’s not true w/o some modification. I’m ordering it anyway and I found the best price w/ cheapest shipping is factoryMopardirect.com.

OP
ColoradoGlad

ColoradoGlad

Well-Known Member
Joined
Jun 28, 2019
Messages
182
Reaction score
197
Location
Colorado
Vehicle(s)
2020 Gladaitor
  • Thread starter
  • Thread Starter
  • #19
I noticed while ordering on any of the Mopar sites all of them will state that the bumper-to-frame-rail-bracket (Left and right) do not fit the Jeep Gladiator.... Whaaaaaat? However it lists the slider itself does fit. Of course that’s funny because as a couple of you have shown us, that’s not true w/o some modification. I’m ordering it anyway and I found the best price w/ cheapest shipping is factoryMopardirect.com.
They fit fine...

The only thing that’s doesn’t just bolt up is having to trim a little bit of the plastic bumper...

If you can locate a Rubicon rear takeoff bumper, it’s 100% bolt on..

When installed it looks completely factory.,

good luck with the install..

CG...


TOMCENTRAL

New Member
First Name
Tom
Joined
Jun 18, 2020
Messages
1
Reaction score
0
Location
Arizona
Vehicle(s)
2020 Gladiator Sport S
Occupation
Retired/Medical & Military
If anyone is wondering if the Mopar Jeep Rear Bed Rock Rails will fit the Sport and Overland Models, they will with a little work..

There are 4 pieces to the rails, 1 frame bracket that attaches to the frame with 3 bolts and the Rock Rails themselves attach to the bumper with 2 bolts and 3 bolts to attach to the frame brackets.

The frame brackets were easy to find, the actual Rock Rails not so easy…
They obviously don’t come with any bolts or instructions.

I wanted the rails for some protection, but primarily wanted to fill in some of the Gap at the back of the Bed.
I always liked the look the Rails give the JT.

My guess is most after market rear bumpers will fill in the area the Rock Rails use now, and probably incorporate some type of step. *Rubicon owners in some cases might have to remove them if they go to an aftermarket Bumper.

I plan on staying with the stock bumper for now, so this was my best option. *Just about $400 for everything, which is a expensive for what it is…*

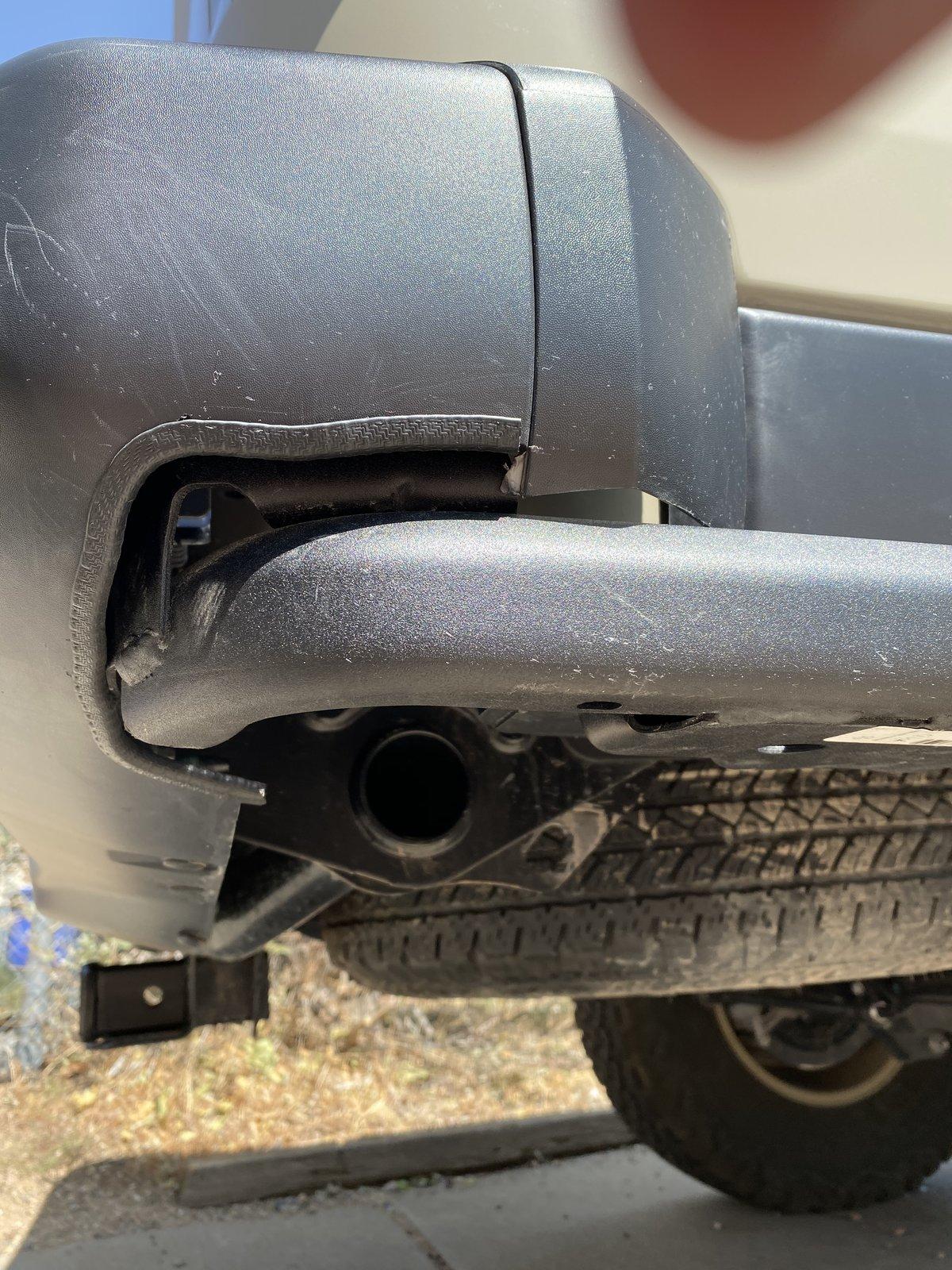

The one difficult part is trimming the bumper to accommodate the Rock Rail. You have to trim off about 3 inches in the pattern of the Rock Rail.

You also have to remove 2 brackets, 1 metal and one Plastic, on each side of the bumper for the Rock Rail to attach. The Rock Rail replaces these brackets.




If anyone else decides to do this here are a few suggestions.
  1. Don’t remove the bumper to trim it for the Rock Rail.
  2. Leave it in place and take your time to trim it out.
  3. How you trim/cut the bumper is very visible, so go slow and steady.
  4. I trimmed the bumper with a razor and then filed it to Rock Rail.
  5. I also used 1/8 edging trim to give it a better finished look.
This will work for now, but if a good "light weight" rear bumper becomes available, I'll have some rear rails for sale.


GladiusMaximus

New Member
First Name
Chris
Joined
Jun 21, 2020
Messages
4
Reaction score
2
Location
Massachusetts
Vehicle(s)
2020 Gladiator Max Tow, 2003 Suzuki SV650
Occupation
Engineer

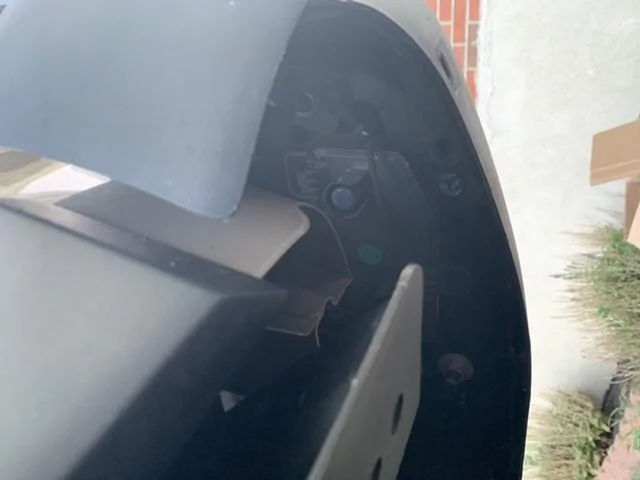

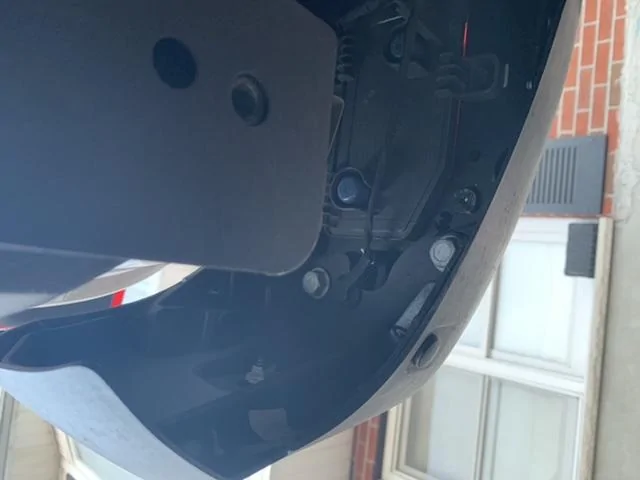

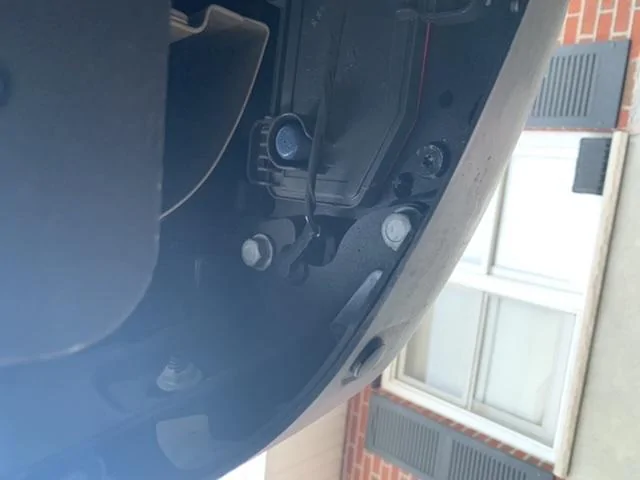

Has anyone installed this on a sport or overland with blind spot safety package? The reason I ask is that I have several prox sensors around the bumper and it looks like the plastic bracket that some have removed is what’s mounting the prox sensor in place. Not sure if I have enough space to mount the rails over the bracket and sensor. Don’t want to cut the bumper and find out that I’m out of luck. I took a pic of what I’m referring to on the LH & RH side.







GladiusMaximus

New Member
First Name
Chris
Joined
Jun 21, 2020
Messages
4
Reaction score
2
Location
Massachusetts
Vehicle(s)
2020 Gladiator Max Tow, 2003 Suzuki SV650
Occupation
Engineer
I guess I posted too soon. What I thought were the prox sensor leads were actually just plastic hangers for the prox wiring. I ended up pulling out the plastic and metal brackets on each side until I started running out of daylight. Got the sill boxes up and called it quits for the night. I took some more pics of the brackets that must be removed and will post tomorrow. I’ll also post the specifics on hardware used because I wasn't 100% sure based on the posts and available info. I ended up to going to Ace Harware with the sill boxes to make sure.

  • Like
Reactions: DHP

DHP

Well-Known Member
First Name
Heath
Joined
Jul 26, 2019
Messages
153
Reaction score
118
Location
Nashville
Vehicle(s)
Overland JT
I guess I posted too soon. What I thought were the prox sensor leads were actually just plastic hangers for the prox wiring. I ended up pulling out the plastic and metal brackets on each side until I started running out of daylight. Got the sill boxes up and called it quits for the night. I took some more pics of the brackets that must be removed and will post tomorrow. I’ll also post the specifics on hardware used because I wasn't 100% sure based on the posts and available info. I ended up to going to Ace Harware with the sill boxes to make sure.
Much appreciated! Plan on doing this myself at some point


Blknblu

Well-Known Member
First Name
Bruce
Joined
Mar 5, 2020
Messages
249
Reaction score
278
Location
Omaha, Nebraska
Vehicle(s)
2009 Dodge Viper, 1968 Coronet R/T, 2011 Mopar 11. 2020 Gladiator Overland
Vehicle Showcase
1
I just got a set of the rear sliders with all hardware, but not sure i want to cut into bumper. I am looking for Rubi rear bumper now or retrofit without bumper brackets.

Bruce


GladiusMaximus

New Member
First Name
Chris
Joined
Jun 21, 2020
Messages
4
Reaction score
2
Location
Massachusetts
Vehicle(s)
2020 Gladiator Max Tow, 2003 Suzuki SV650
Occupation
Engineer
I just got a set of the rear sliders with all hardware, but not sure i want to cut into bumper. I am looking for Rubi rear bumper now or retrofit without bumper brackets.

Bruce
Cutting was pretty easy. I rough mounted the left on the right and right on left upside down since they are mirror images and traced the outline. I then used a sharp razor blade knife and trimmed away the necessary areas. I bought some 1/8” trim from McMaster as suggested in a previous post but may not use it since my cuts were extremely close to the rail outline.
I’m on vacation with the family in NH this week so sorry didn’t get to follow up with hardware info and finished pics but I will next week.
Side note: Went to Jericho Mountain this afternoon just to check it out and spoke with the park attendant. He said a stock Jeep can do the green trails there but you need a winch & tree saver for them to let you in. No winch yet so I’ll have to come back next summer.


DHP

Well-Known Member
First Name
Heath
Joined
Jul 26, 2019
Messages
153
Reaction score
118
Location
Nashville
Vehicle(s)
Overland JT
I just got a set of the rear sliders with all hardware, but not sure i want to cut into bumper. I am looking for Rubi rear bumper now or retrofit without bumper brackets.

Bruce
I just took my bumper off to install a second tow hook. I wouldn’t worry about cutting into this bumper. It’s extremely light and plastic. Just a dremel sanding wheel and cutting wheel should get this taken care of easily


atxatxatx

Well-Known Member
Joined
Aug 13, 2020
Messages
48
Reaction score
47
Location
Austin
Vehicle(s)
JK Wrangler Winter edition (sold), WK2 Grand Cherokee, Gladiator Mojave
I was curious about adding these to my Mojave.

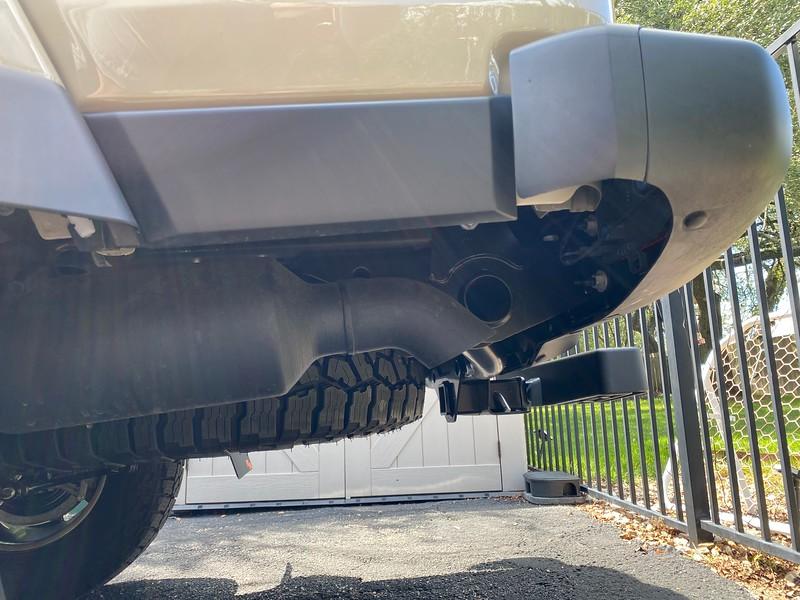

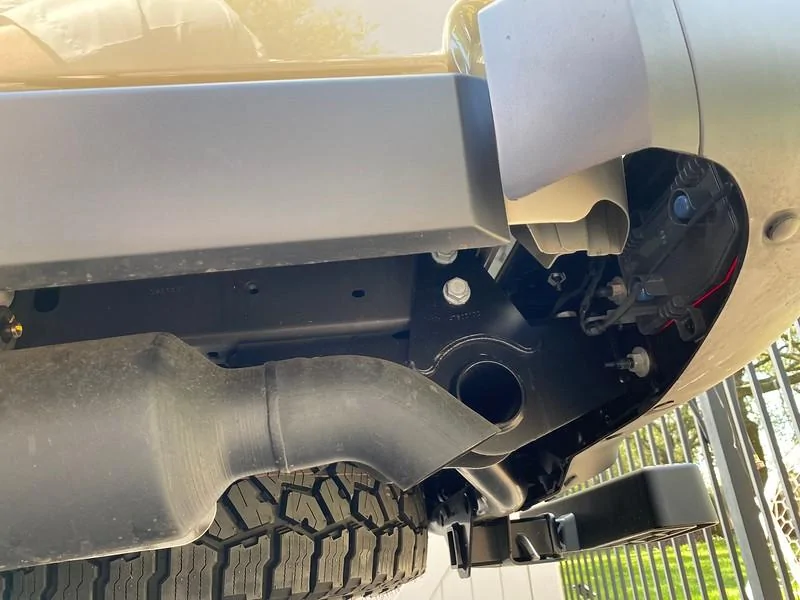

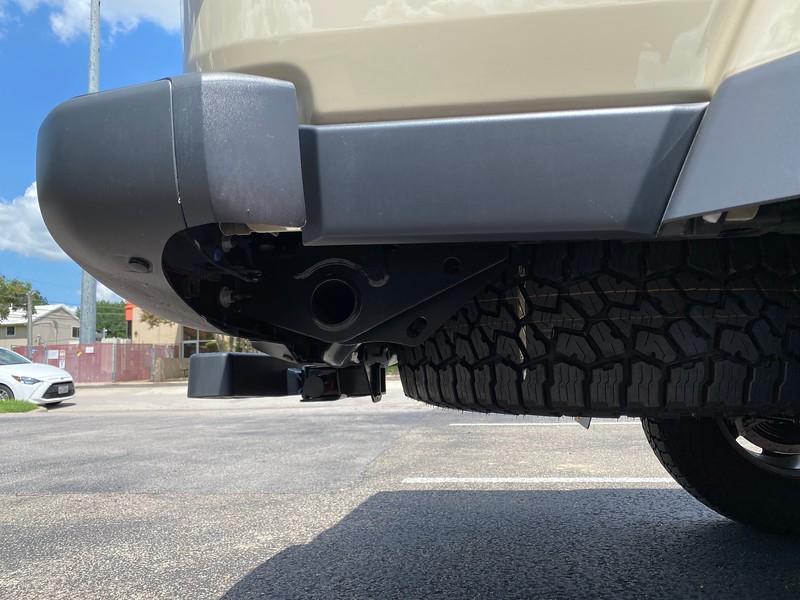

Mojave comes with a plastic bumper, but can you tell from these photos if this "Mojave" bumper already has the precut shape for these rear rails to work without cutting the bumper ?

Also if you guys have some photos of how the brackets attach it would be appreciated, thanks.







MainePure

Member
Joined
Sep 14, 2020
Messages
8
Reaction score
5
Location
Maine
Vehicle(s)
2021 Gladiator Sport
I like this upgrade. Looks good and seems like it makes good sense to have it. Thanks.


andrew8404

Well-Known Member
First Name
Andrew
Joined
Aug 21, 2020
Messages
91
Reaction score
64
Location
Albuquerque
Vehicle(s)
Gladiator Sport S
Occupation
Paramedic

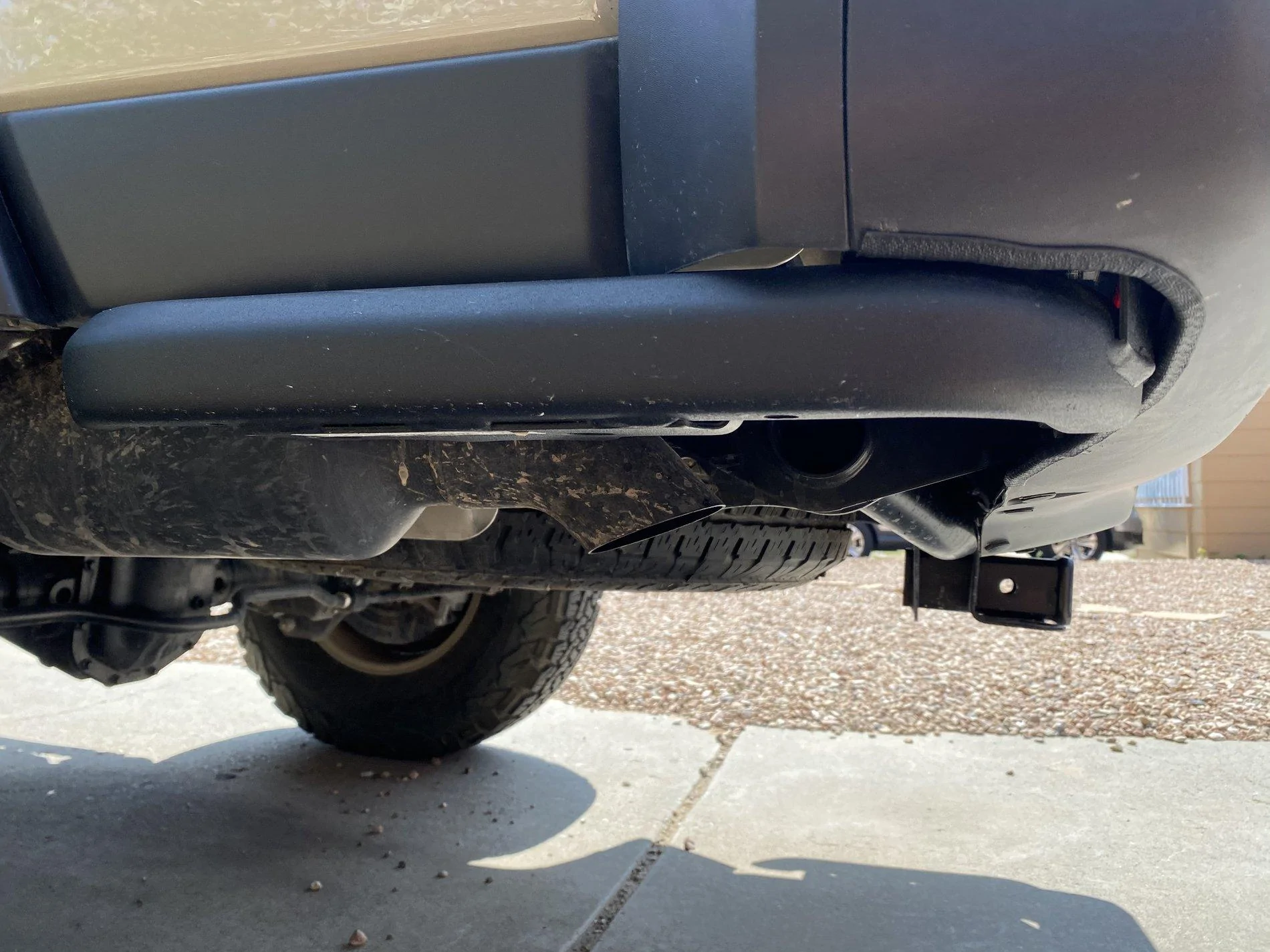

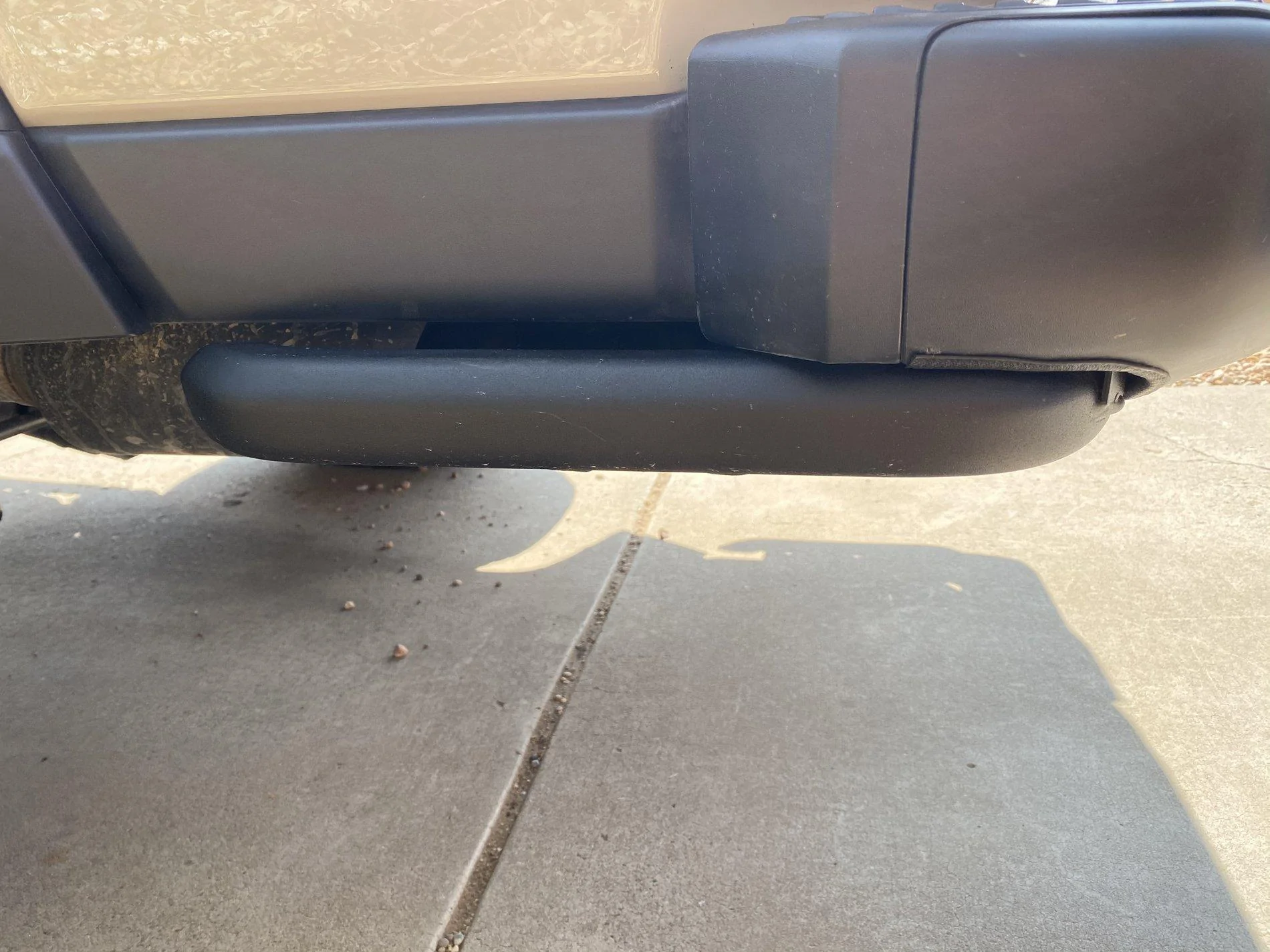

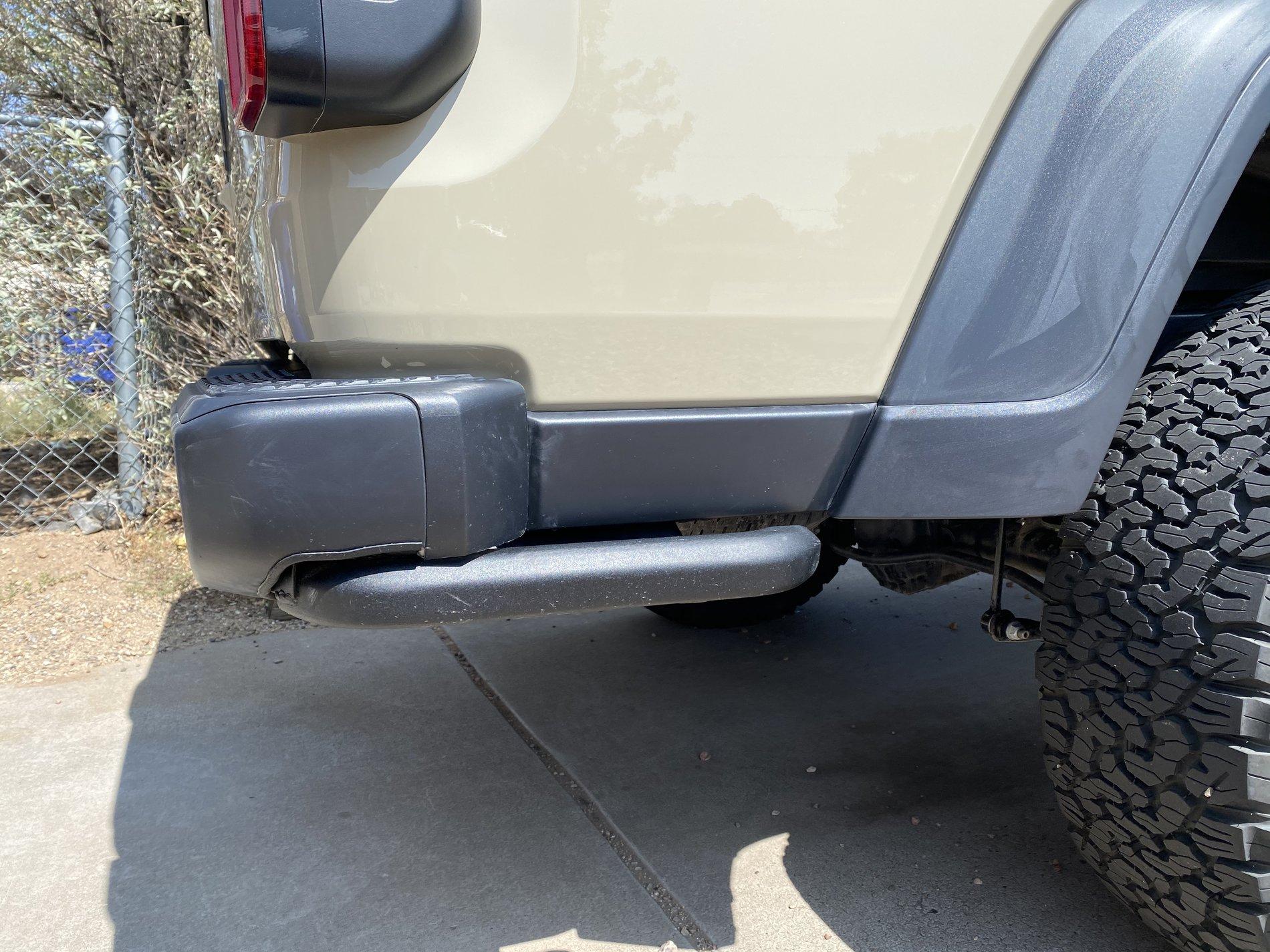

Found the bracket and sliders on eBay fresh take offs for 300 total. Still not ideal but better then full price. Just finished the mod and still short two bolts. Need a little adjustment but so far looks good. This will work until a new bumper comes along.
