Installing Mopar Rear Bed Rock Rails on Overland and Sport Gladiators

andrew8404

Well-Known Member
First Name
Andrew
Joined
Aug 21, 2020
Messages
117
Reaction score
78
Location
Albuquerque
Vehicle(s)
Gladiator Sport S
Occupation
Paramedic
I was curious about adding these to my Mojave.

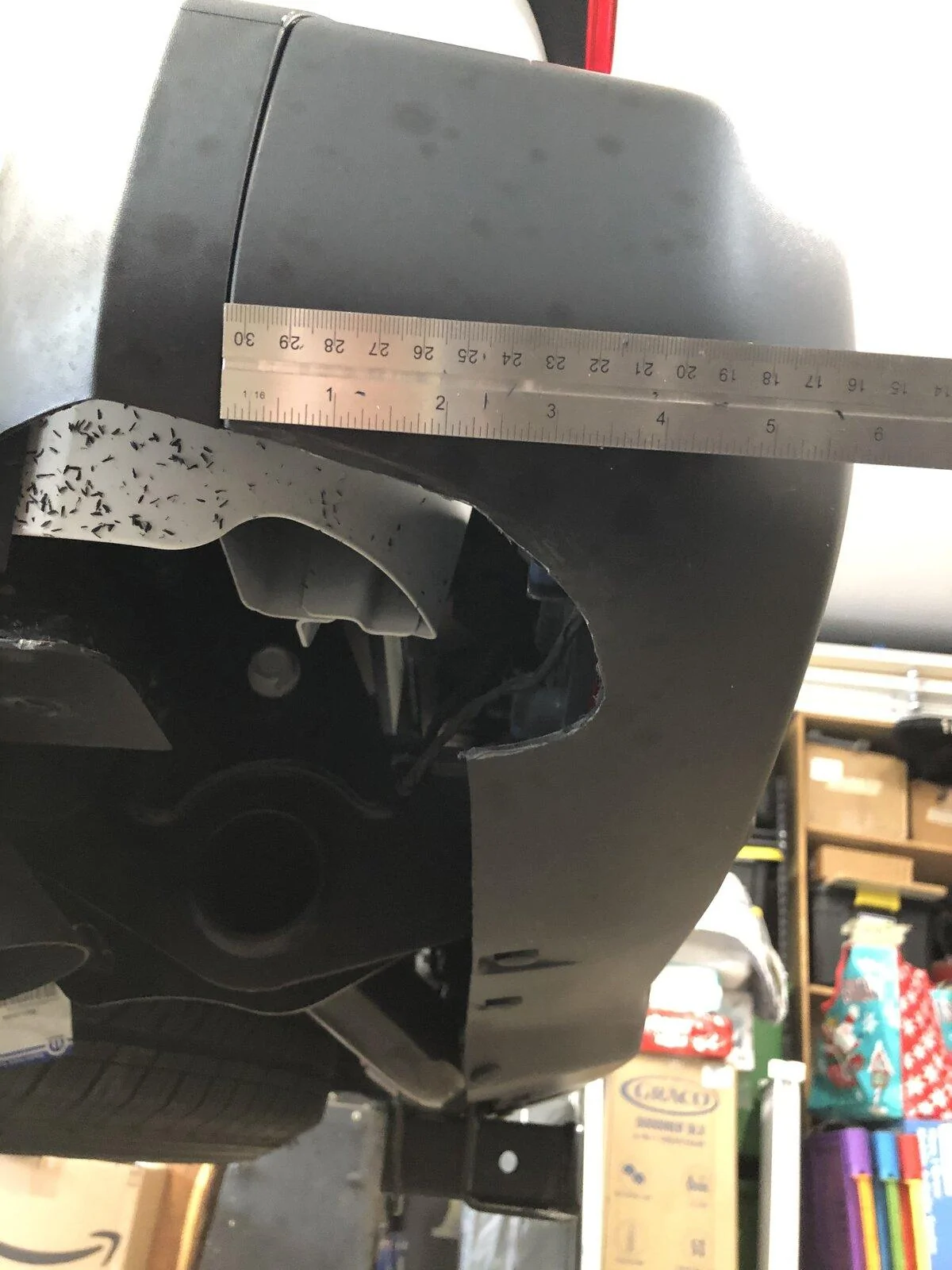

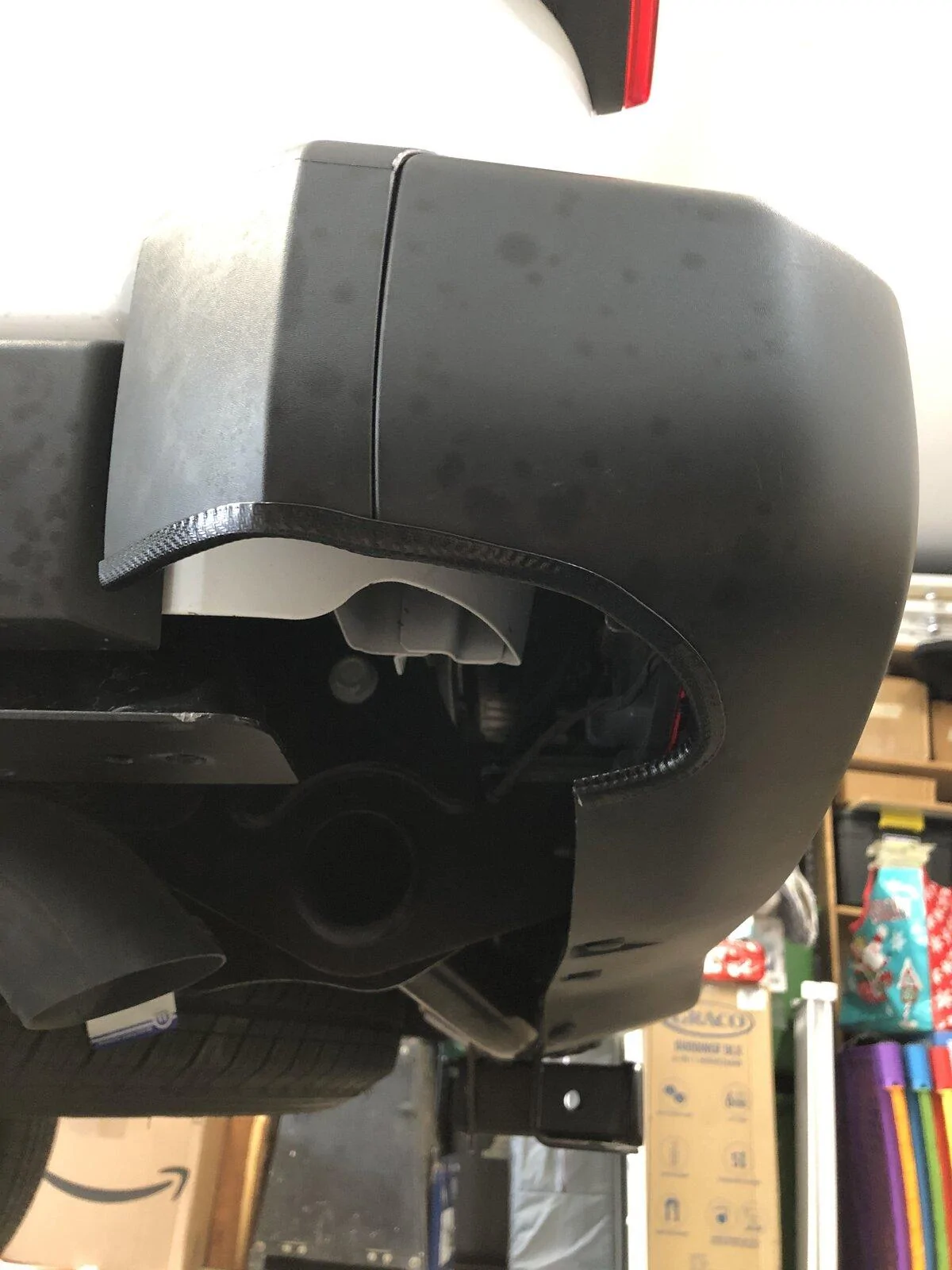

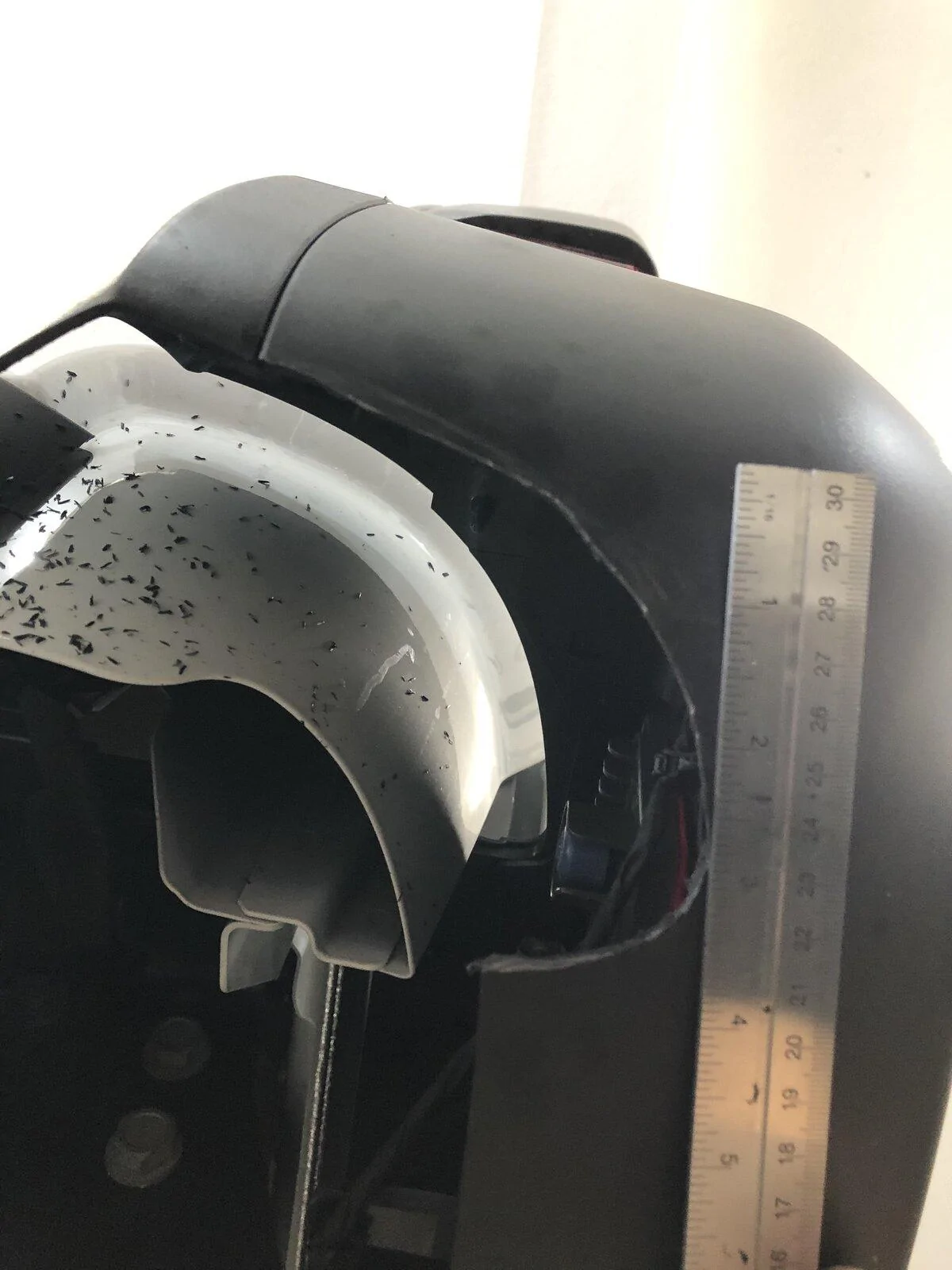

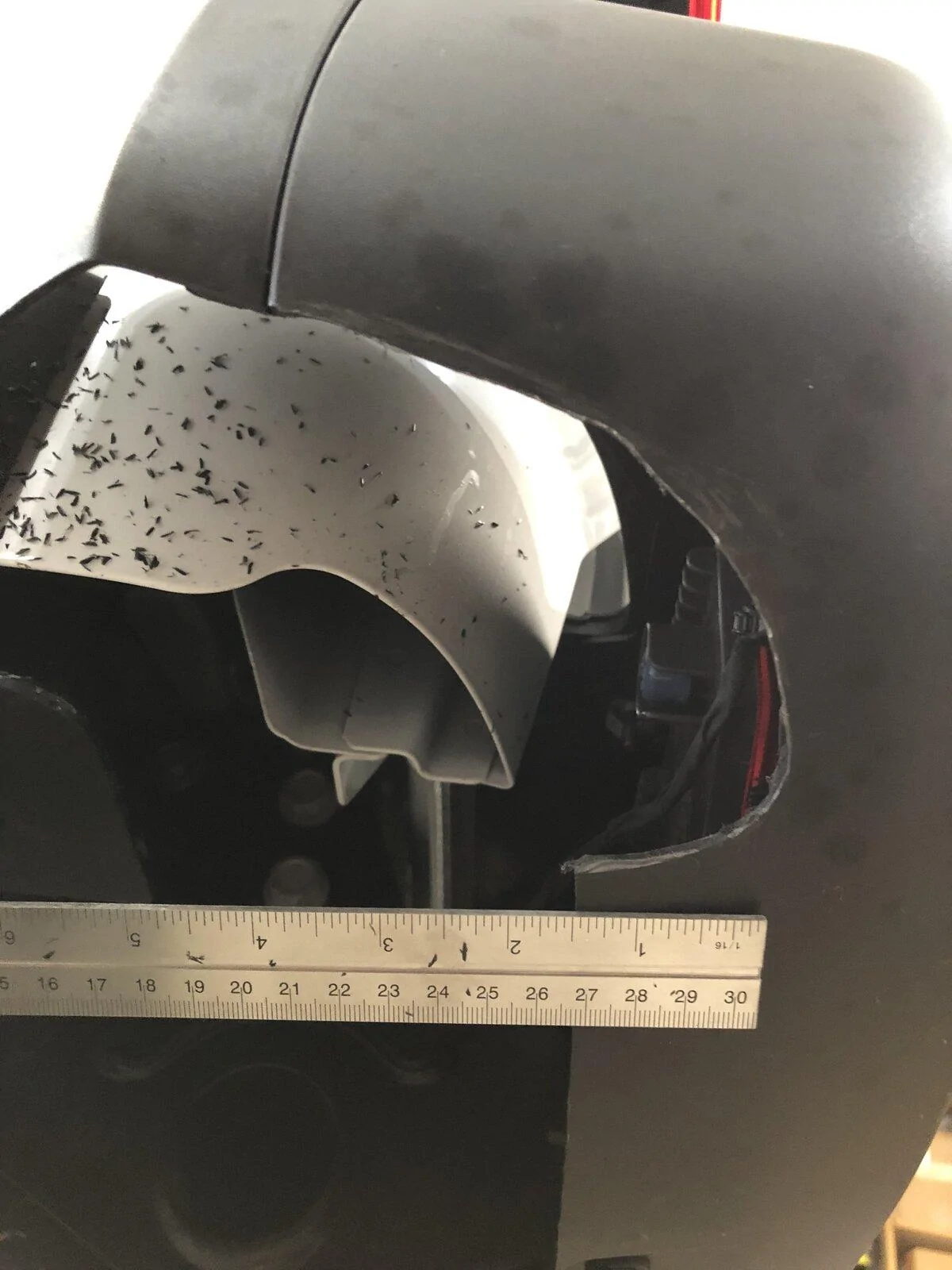

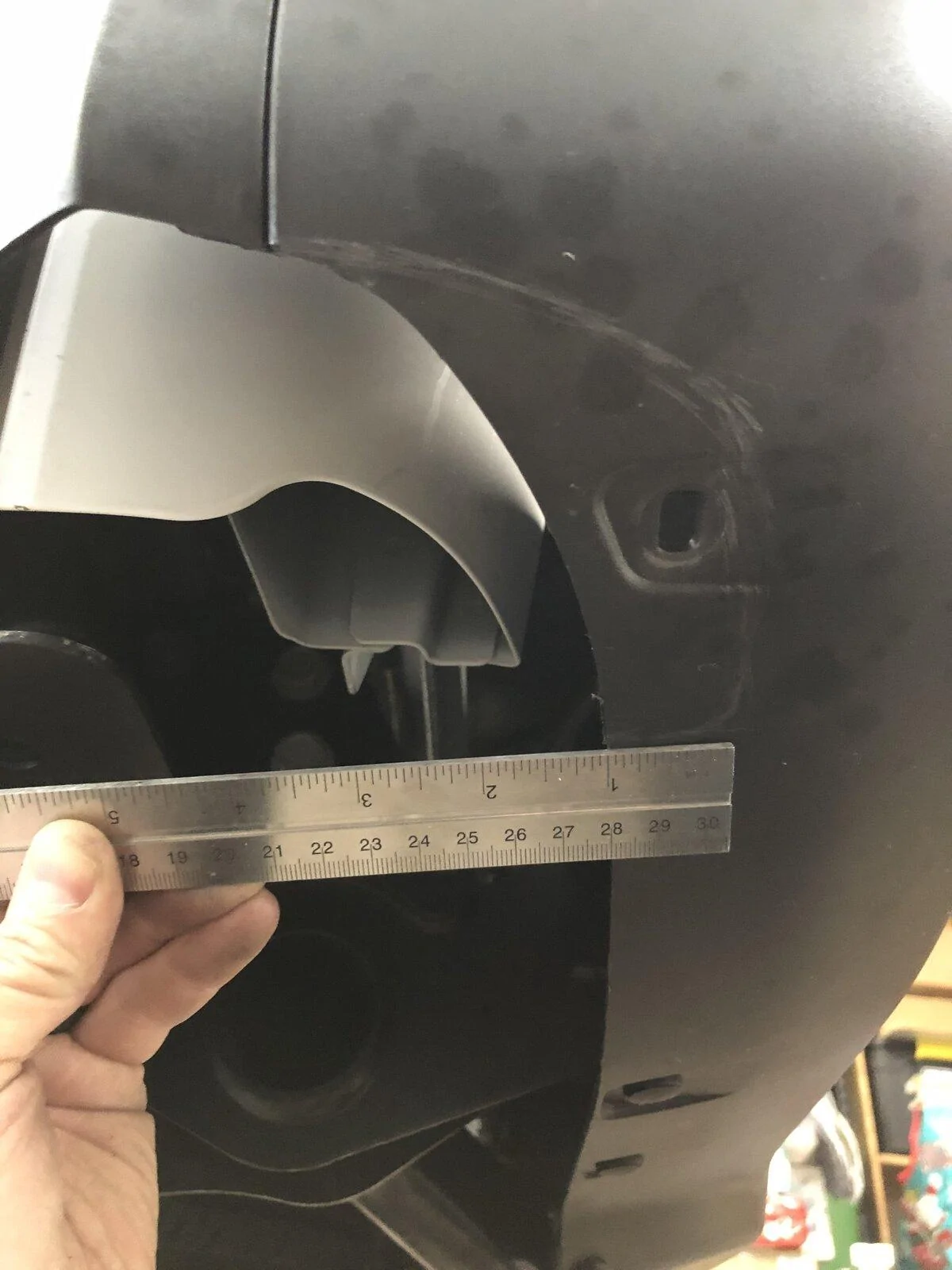

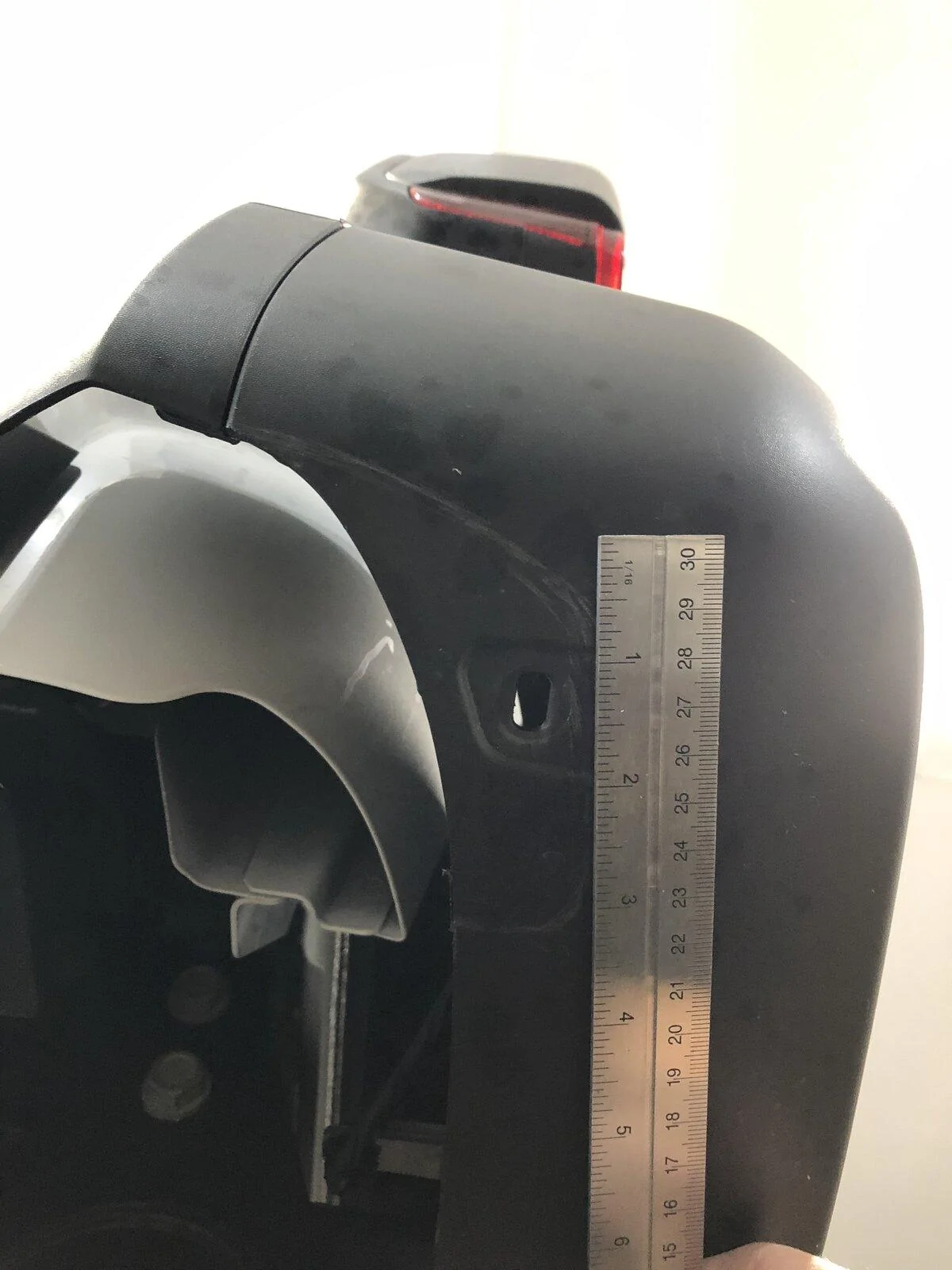

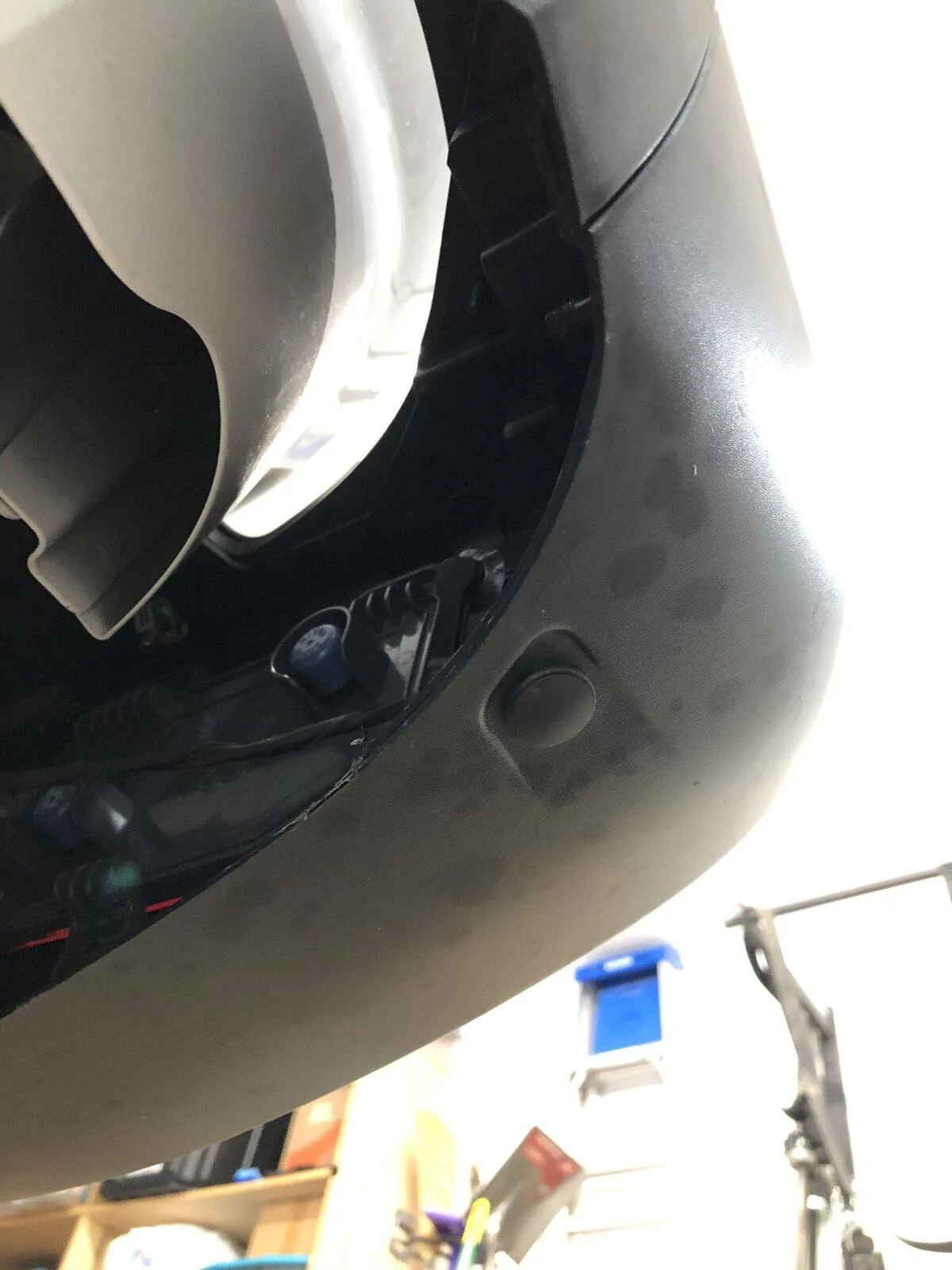

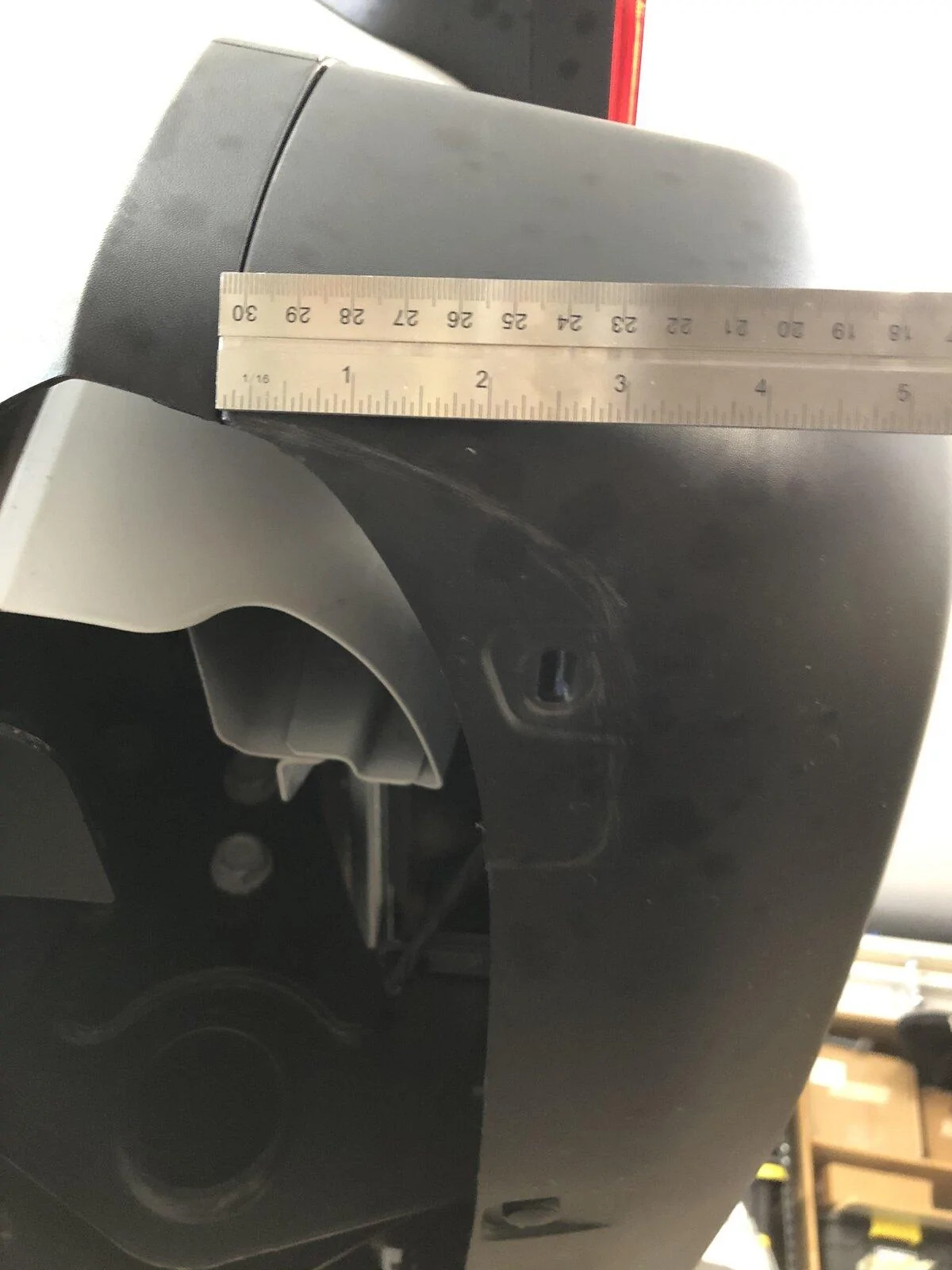

Mojave comes with a plastic bumper, but can you tell from these photos if this "Mojave" bumper already has the precut shape for these rear rails to work without cutting the bumper ?

Also if you guys have some photos of how the brackets attach it would be appreciated, thanks.





no you will have to cut and no you don’t have the bracket. The part numbers are listed above in this post. I would probably just buy the Motobuilt ones since they work with the sliders I believe. Shows a picture which the Jeep made ones looks similar.

https://motobilt.com/collections/je...r/products/gladiator-rear-bumper-frame-mounts



Advertisement





atxatxatx

Well-Known Member
Joined
Aug 13, 2020
Messages
71
Reaction score
61
Location
Austin
Vehicle(s)
JK Wrangler Winter edition (sold), WK2 Grand Cherokee, Gladiator Mojave

EXTORTION

Member
First Name
Carl
Joined
Sep 11, 2020
Messages
21
Reaction score
7
Location
St Charles MO
Vehicle(s)
2020 Jeep Gladiator Mojave
Occupation
Retired Law Enforcement

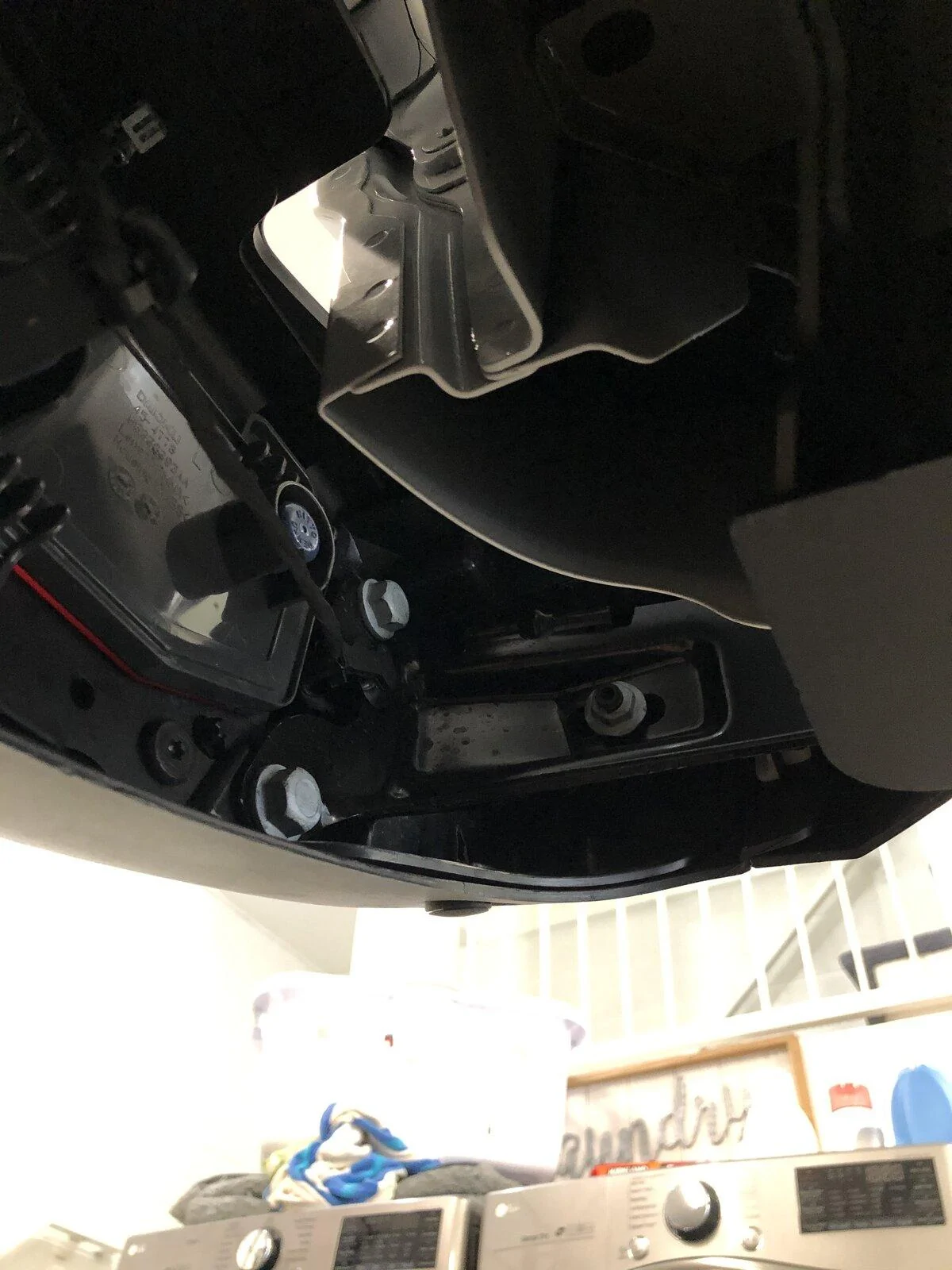

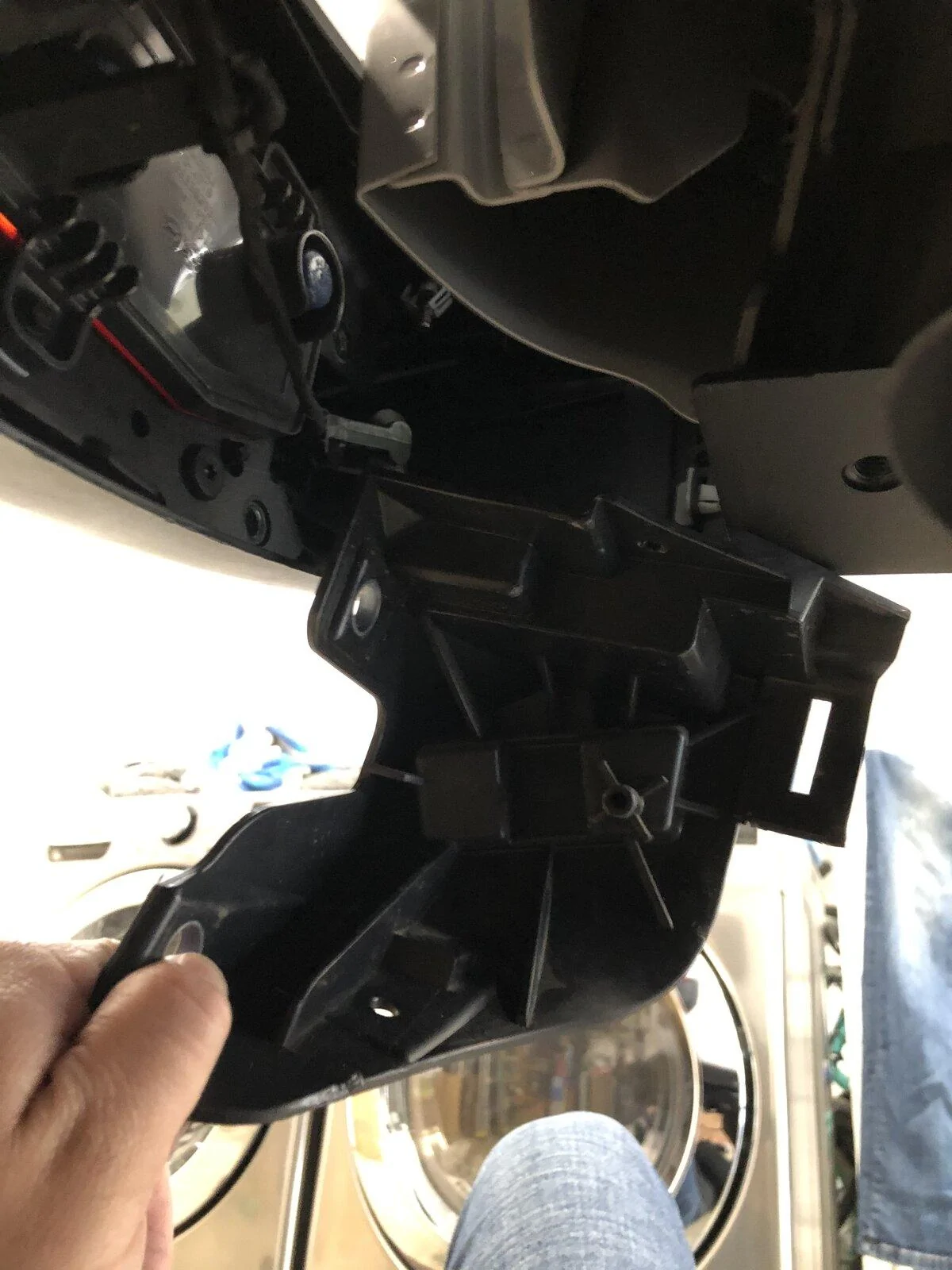

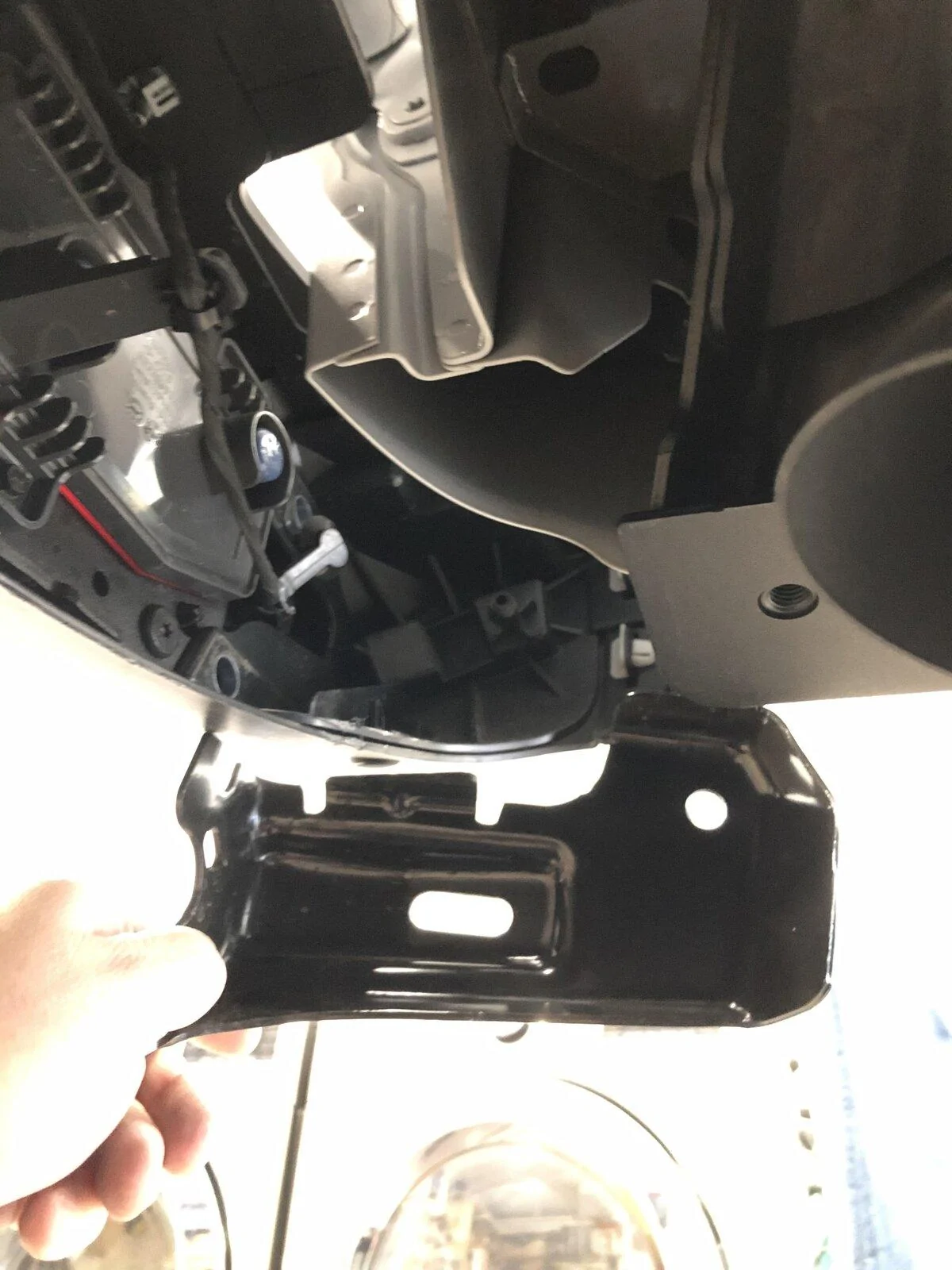

Any pictures of how and where the frame brackets attach to the frame. Wish there was a video of an install.


jtimbrook

Member
Joined
Sep 30, 2019
Messages
18
Reaction score
31
Location
TX
Vehicle(s)
2018 Jeep Rubicon, 1946 CJ2A
Very nice upgrade that's also on my to-do list!


Front Runner

Active Member
First Name
Chris
Joined
Aug 30, 2020
Messages
36
Reaction score
36
Location
Chattanooga
Vehicle(s)
2020 Gladiator Mojave, 2016 Cherokee Trailhawk
Occupation
Insurance

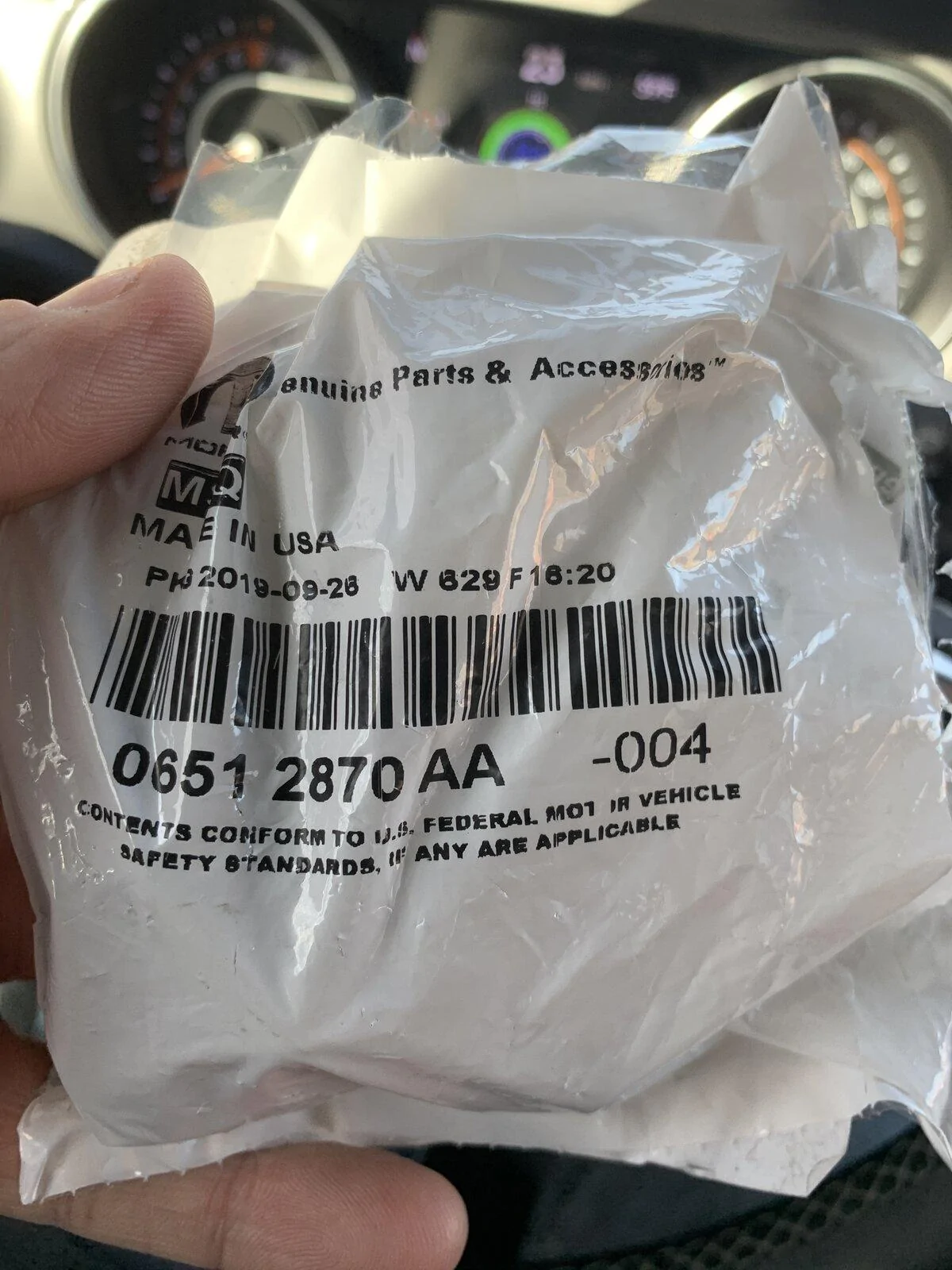

What are the size of part number of the torx bolts that attach the rail to the frame bracket and the rail to the bumper? I know there are 3 that go into each rail to mount to he bracket.


Sower3213

Member
First Name
Bill
Joined
Jul 5, 2020
Messages
10
Reaction score
6
Location
Rapid City, SD
Vehicle(s)
2020 Jeep Gladiator Sport S
Occupation
Full-Time Volunteer
What are the size of part number of the torx bolts that attach the rail to the frame bracket and the rail to the bumper? I know there are 3 that go into each rail to mount to he bracket.

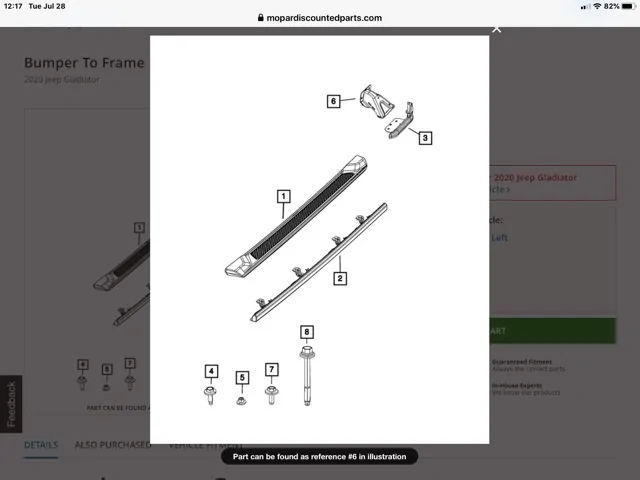

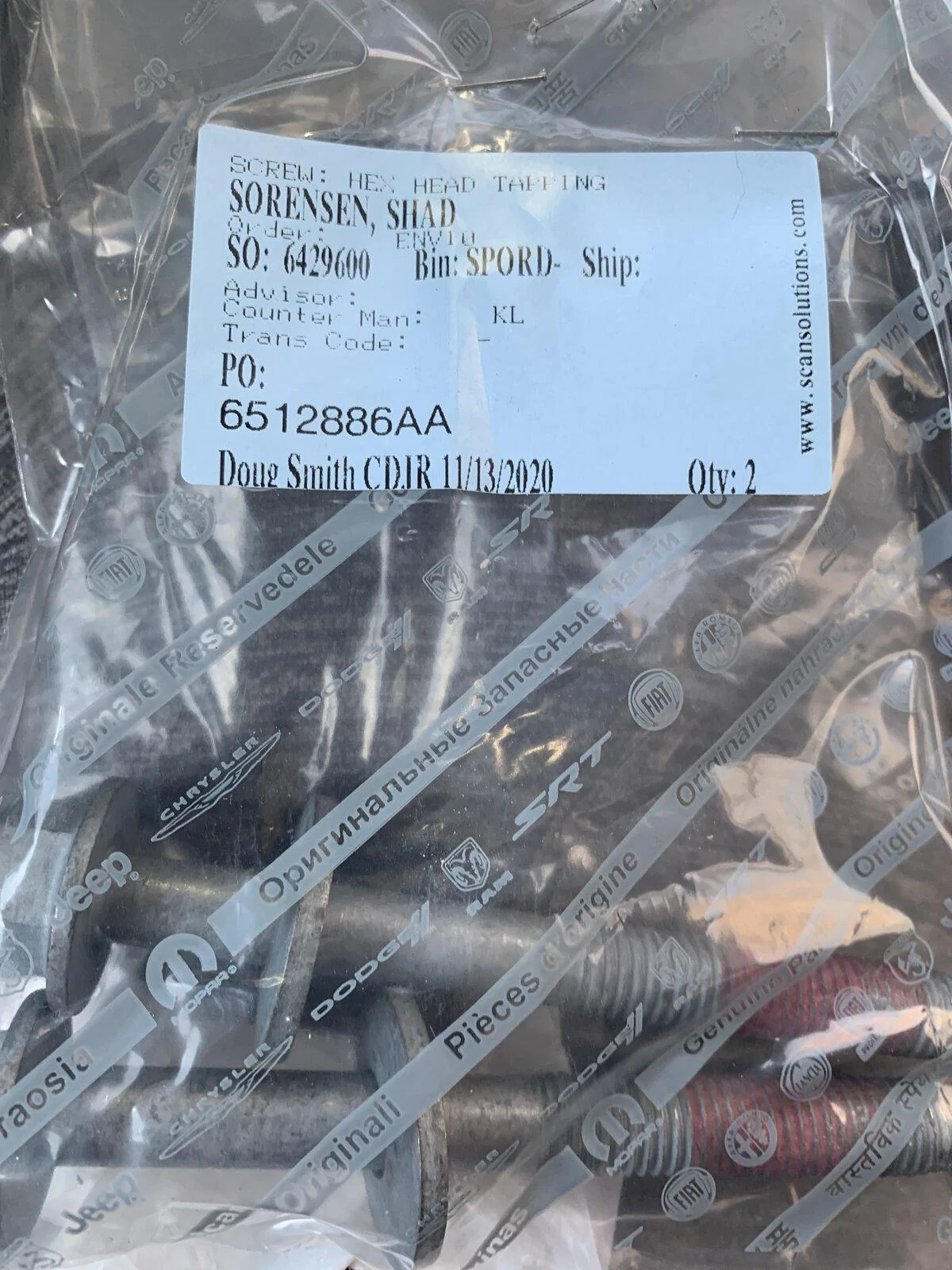

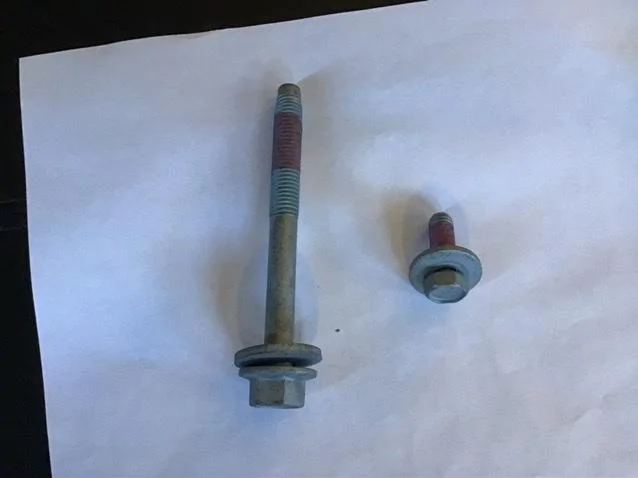

You need 5 small and 1 large bolt for each side. I just took the diagram photo to my local Jeep deal - Jim Click in Tucson (Great parts dept) and they knew exactly what I needed. I’m sure your local folks can take care of you.







Sower3213

Member
First Name
Bill
Joined
Jul 5, 2020
Messages
10
Reaction score
6
Location
Rapid City, SD
Vehicle(s)
2020 Jeep Gladiator Sport S
Occupation
Full-Time Volunteer
Sorry about that first photo, wasn’t suppose to attach.....


EXTORTION

Member
First Name
Carl
Joined
Sep 11, 2020
Messages
21
Reaction score
7
Location
St Charles MO
Vehicle(s)
2020 Jeep Gladiator Mojave
Occupation
Retired Law Enforcement
Got lucky, came across a JT Rubicon take off rear bumper, that I will be installing soon, now I won't have to trim the factory rear plastic bumper.
