"JEEP" tailgate badge mods?

Fawkes

Well-Known Member
First Name
Brandon
Joined
May 26, 2020
Messages
120
Reaction score
63
Location
Houston, TX
Vehicle(s)
2020 Gladiator
Occupation
Building engineer
Posted in @bangolia's post too, I used Plasti-dip to add a custom outline color without removing the badge.
OK so how would I go about doing that. Im putting the black vinyl on the gate and want black JEEP letters with red underneath. Can you tell me what I need to buy please?





Advertisement



Gatorized

Well-Known Member
Joined
Sep 13, 2019
Messages
1,213
Reaction score
998
Location
ME/NH
Vehicle(s)
‘06 CRV, ‘14 Mazda3, ‘20 JTR (Gator)
OK so how would I go about doing that. Im putting the black vinyl on the gate and want black JEEP letters with red underneath. Can you tell me what I need to buy please?
If you are pulling the letters off to add the vinyl, buy Rubicon letters - they are 2 piece with red underneath - and you may be able to get just the red part.


busglad

Well-Known Member
First Name
Edward
Joined
Apr 27, 2020
Messages
62
Reaction score
27
Location
Stafford, VA
Vehicle(s)
2020 Jeep Gladiator-Overland (Billet Silver), 2019 Audi A5 Cabriolet, 2016 NIssan Sentra SV
Occupation
US Federal Government Sr. Manager

Fawkes

Well-Known Member
First Name
Brandon
Joined
May 26, 2020
Messages
120
Reaction score
63
Location
Houston, TX
Vehicle(s)
2020 Gladiator
Occupation
Building engineer
If you are pulling the letters off to add the vinyl, buy Rubicon letters - they are 2 piece with red underneath - and you may be able to get just the red part.
That sounds reasonable. I didn't think they came apart. Would be ideal if they did


Gatorized

Well-Known Member
Joined
Sep 13, 2019
Messages
1,213
Reaction score
998
Location
ME/NH
Vehicle(s)
‘06 CRV, ‘14 Mazda3, ‘20 JTR (Gator)
That sounds reasonable. I didn't think they came apart. Would be ideal if they did
Someone posted pics- maybe earlier in this thread...


Fawkes

Well-Known Member
First Name
Brandon
Joined
May 26, 2020
Messages
120
Reaction score
63
Location
Houston, TX
Vehicle(s)
2020 Gladiator
Occupation
Building engineer
@AllMoparParts.com
Hey guys. Im going to be adding the solid black vinyl to the tailgate and need some badge advice . I have seen three different part numbers and was wondering the difference.
68352381AB
68352383AB
68352383AC
The pics all seem to show the same charcoal grey with red underlay. Am I missing something
My current is the sport solid black but wanted to change it to be more visible. DIfference?


Gatorized

Well-Known Member
Joined
Sep 13, 2019
Messages
1,213
Reaction score
998
Location
ME/NH
Vehicle(s)
‘06 CRV, ‘14 Mazda3, ‘20 JTR (Gator)
If you are pulling the letters off to add the vinyl, buy Rubicon letters - they are 2 piece with red underneath - and you may be able to get just the red part.
That sounds reasonable. I didn't think they came apart. Would be ideal if they did
Found the post separating the letters...

I have been asked by a couple people to explain how I did the 2 tone custom granite and orange Jeep badging so I figured I would post a little tutorial.



The first thing you will have to do is remove the emblems. There are a ton of YouTube videos out there on how to do this so I wont take much time explaining this part. Essentially I used 50# fishing line, slid it behind the letter and used this to separate the lettering form the adhesive. On the tailgate there are guide pins on the "J" and the "P" but that is all they are, they do not hold the unit in place at all. Use the line work it around until you reach the pin and then start form the other side doing the same. The letter will fall right out. Rub the majority of the adhesive off with your thumb or index finger and use isopropyl alcohol to remove the excess.

Now for the fun part, the supplies and tools you will need for this are pretty limited:
~Utility knife with extra blades
~Gorilla Glue
~ Removed (or preferably newly purchased(links at bottom)) emblems
~ Outdoor use double sided sticky tape


Step 1:
The Emblems are actually composed of 2 separate layers that are held together by several pins. If you turn the emblem over (after the adhesive is stripped away) you are able to see the locations of the pins.



You are able to wiggle a utility knife between the layers. Once in-between slide the knife around until you are up against the first pin, gently twist the utility knife and pop out or break the pin to separate. Work your way around the letter until you have done this to all the pins and the 2 layers come apart.




Step 2:
Paint. I painted mine with Mopar PL4 or Orange Crush paint. I will probably do this again in a few months with some new emblems and start with a nice coat of primer and then go into the colored paint. I think my finish is "good" but I would not qualify it as "great". I certainly learned a lot with the 3 separate sets I have done. My first attempt I had painted the whole emblem orange and attempted to remove the top section of paint. This is when I found out that the 2 broke apart. I essentially did this set all over and the results are better. Long story short, take your time, do it right and learn from my process and they will look great the first time.

Step 3:
Once you have applied 3-5 coats of paint to the bottom layer, let them dry for about 24 hours. After they have dried, put few drops of Gorilla glue on the center of the freshly colored lettering and line the granite top pice up before lowering it onto the glue. Recenter the top and hold it together with clamps as the 2 pieces permanently bond together.


Step 4:
Apply the double sided tape to the back of the emblems and they are ready to line up. I used a piece of painters tape on the truck where I wanted the lettering to go so I could insure they were properly lined up. I used my best judgment as far as distance between and thought I got pretty close.

Reference:
Small Side Jeep Emblems:
https://www.allmoparparts.com/sku-y...MIh_C9paKV5AIVCVYMCh34qw8lEAQYByABEgLyMPD_BwE
Large Tailgate Jeep Emblem:
https://www.ebay.com/i/153480772816...MIv_3j1qKV5AIVho7ICh1UJAumEAQYASABEgKQifD_BwE

Let me know if this was helpful and post some pictures of your custom lettering!


Gatorized

Well-Known Member
Joined
Sep 13, 2019
Messages
1,213
Reaction score
998
Location
ME/NH
Vehicle(s)
‘06 CRV, ‘14 Mazda3, ‘20 JTR (Gator)

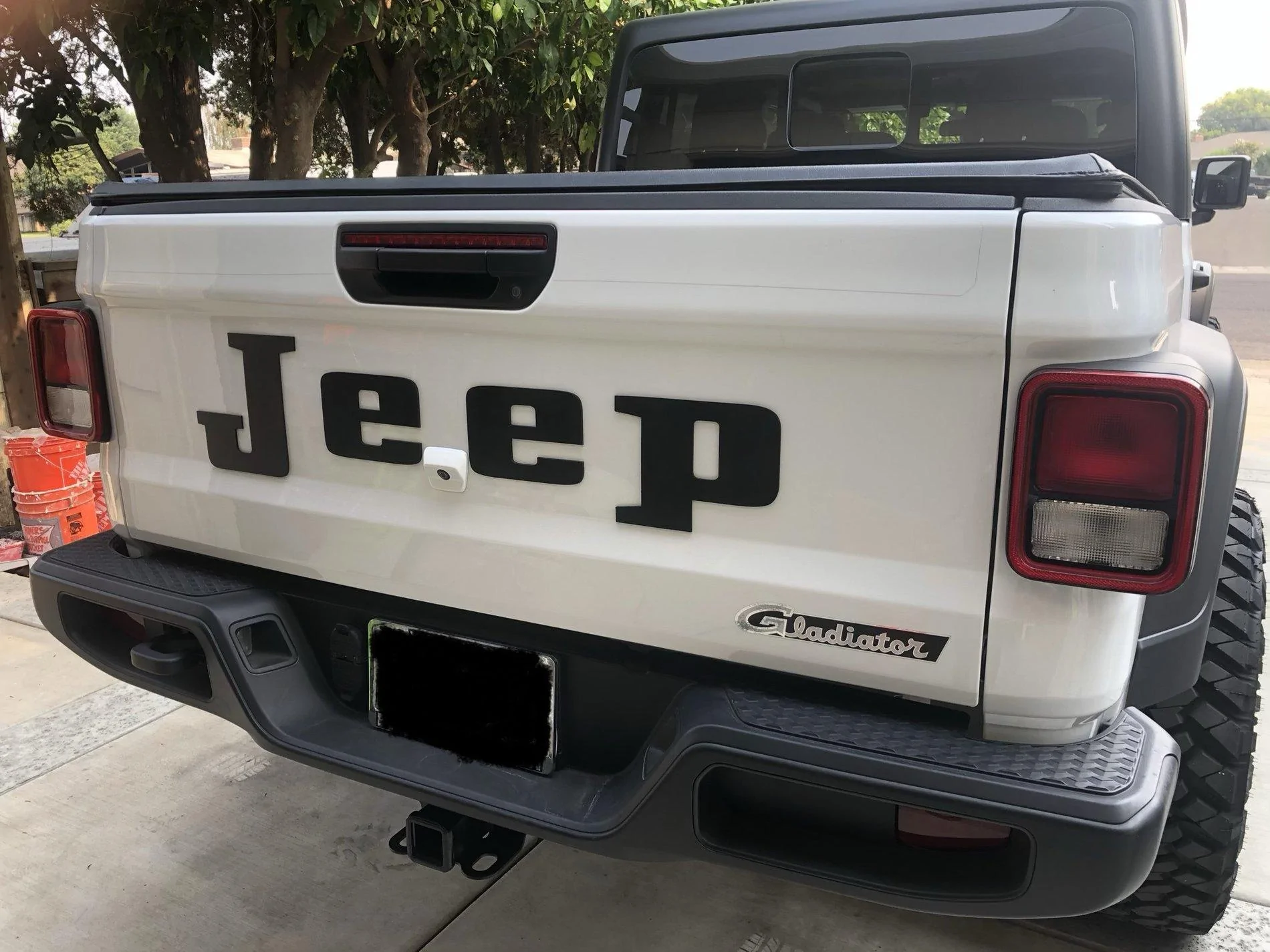

Got this done today....throwback

Very nice - did you have to fill the holes from the oem letters? Where did you get these?


rv_bb

Member
First Name
Rod
Joined
Aug 9, 2020
Messages
7
Reaction score
15
Location
Cali
Vehicle(s)
Gladiator
Very nice - did you have to fill the holes from the oem letters? Where did you get these?
I put a small strip of clear waterproof tape over the holejust for extra protection. I also made sure the “e”’s we’re covering the holes...I got the letters on eBay.


Hawkeyes3312

Well-Known Member
First Name
Derek
Joined
Jul 17, 2019
Messages
422
Reaction score
523
Location
Iowa City, Iowa
Vehicle(s)
2020 Jeep Gladiator Rubicon Launch Edition
It seems like everyone is yelling with their JTs. WHY IS THERE A NEED TO HAVE GIANT 'JEEP" or "GLADIATOR" EMBLEMS ON YOUR TRUCK!!!!!!!!

See, that's what that feels like! Simple is better...always.

Remember Tommy Hilfiger clothes from the 90s? Obnoxious brand displays on everyone's shirt; you don't see Porsche/Ferrari/Bugatti doing this. Respect your JT! (PSA)


rv_bb

Member
First Name
Rod
Joined
Aug 9, 2020
Messages
7
Reaction score
15
Location
Cali
Vehicle(s)
Gladiator
It seems like everyone is yelling with their JTs. WHY IS THERE A NEED TO HAVE GIANT 'JEEP" or "GLADIATOR" EMBLEMS ON YOUR TRUCK!!!!!!!!

See, that's what that feels like! Simple is better...always.

Remember Tommy Hilfiger clothes from the 90s? Obnoxious brand displays on everyone's shirt; you don't see Porsche/Ferrari/Bugatti doing this. Respect your JT! (PSA)

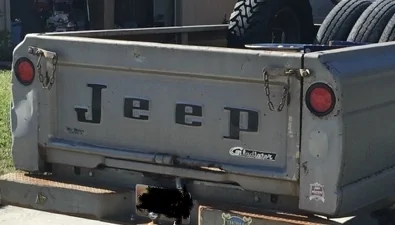

I did mine as an ode to the original gladiators and because I liked the tailgate on them. Respect your opinion, but I like it for my truck. To each their own I guess.


GatorJT

Member
First Name
Josh
Joined
Aug 15, 2020
Messages
20
Reaction score
52
Location
Baltimore
Vehicle(s)
2020 Jeep Gladiator
Occupation
Mortgage Banking
Vehicle Showcase
1

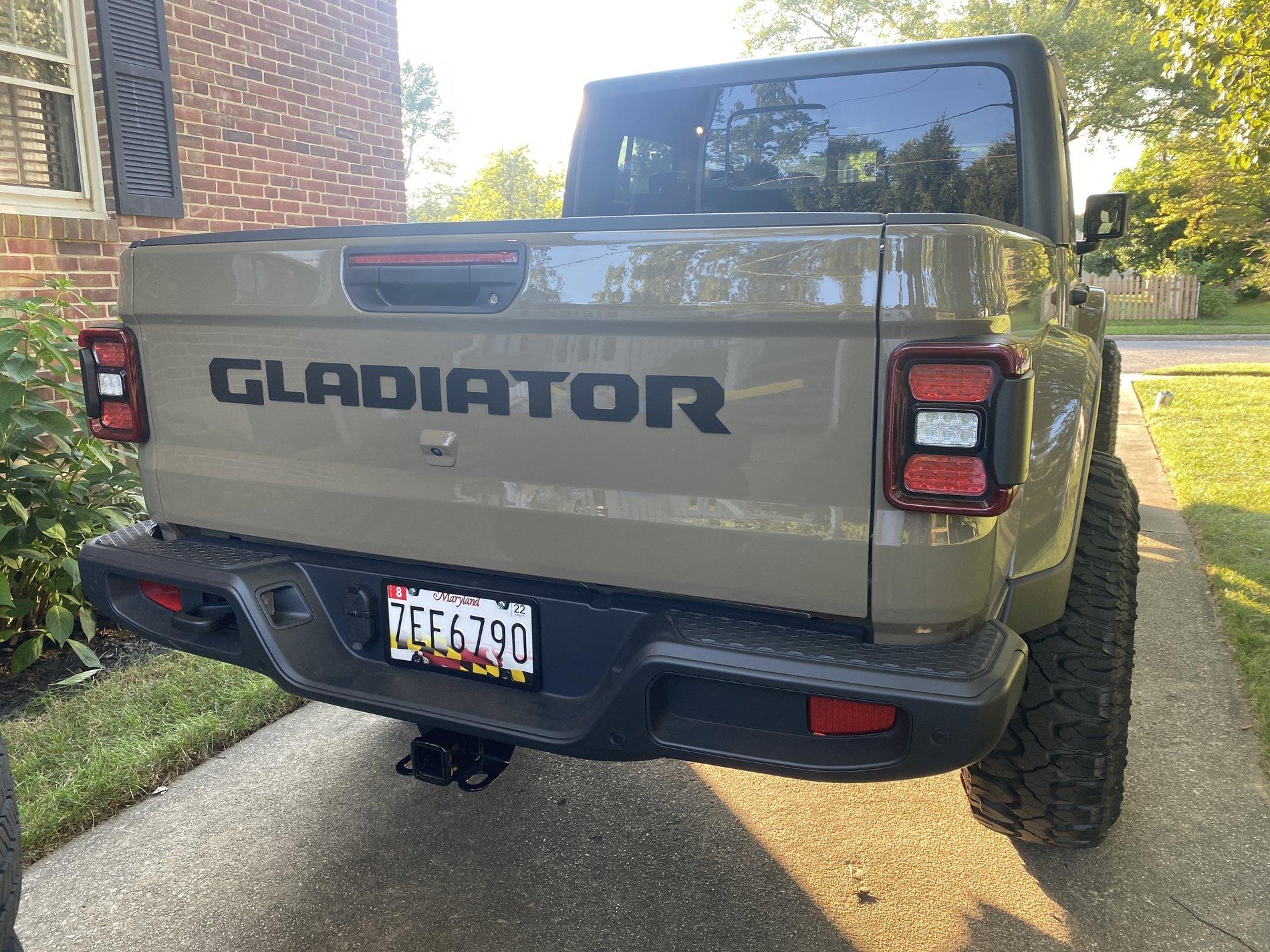

De-badged everywhere but added the Gladiator. I never was one to keep the badging on most of my cars like the clean look myself but saw this and was impressed with its clean lines and pop. I too did not like the JEEP on the back nor the sides!
