Just ordered this knock off steel bumper

[ShadowsPapa]

Did you have to trim it to get the winch to fit?

I did when I was using their winch plate, but I used a bulldog winch plate when I moved it over to my 2022 from the 2020 and I would not have needed to trim with that plate.

Sponsored



[UTDieselRubi]

I have a similar one as well, but I actually pulled the red tow hooks from the factory bumper and put them in the knock off. The one thing I didn't trust was those breaking if I needed them. Re-using the factory ones ensures that won't happen and the factory ones looked better. They fit perfectly and allow you to use the factory retaining nuts too.



[Tim Allan]

I am keeping the factory tow hooks.
@ShadowsPapa where did you trim?



[ShadowsPapa]

I am keeping the factory tow hooks.
@ShadowsPapa where did you trim?

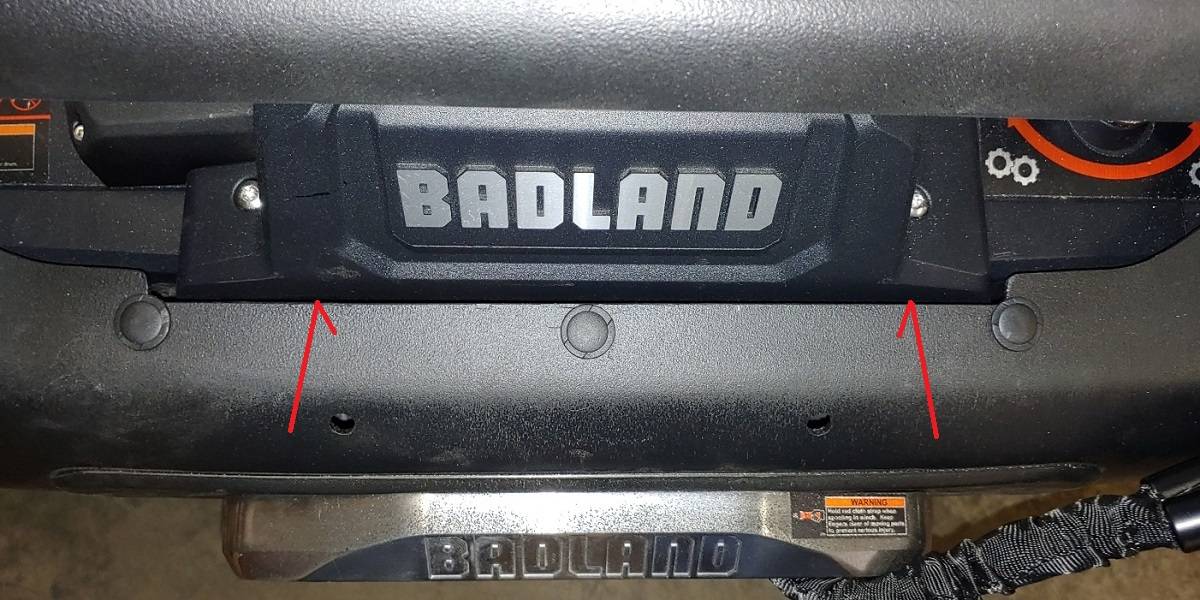

This area here - as the winch hit this edge -



[Tim Allan]

This area here - as the winch hit this edge -

What's different about the newer plate?



[Gregj]

If you need more room for the winch you can space the bumper out. A member here sells them already cut out.
Bumper spacer plates
The bolts are plenty long so you can add spacers till it fits.
Gregj



[ShadowsPapa]

If you need more room for the winch you can space the bumper out. A member here sells them already cut out.
Bumper spacer plates
The bolts are plenty long so you can add spacers till it fits.
Gregj

I also did that later.
But the other winch plate positioned the winch slightly differently.

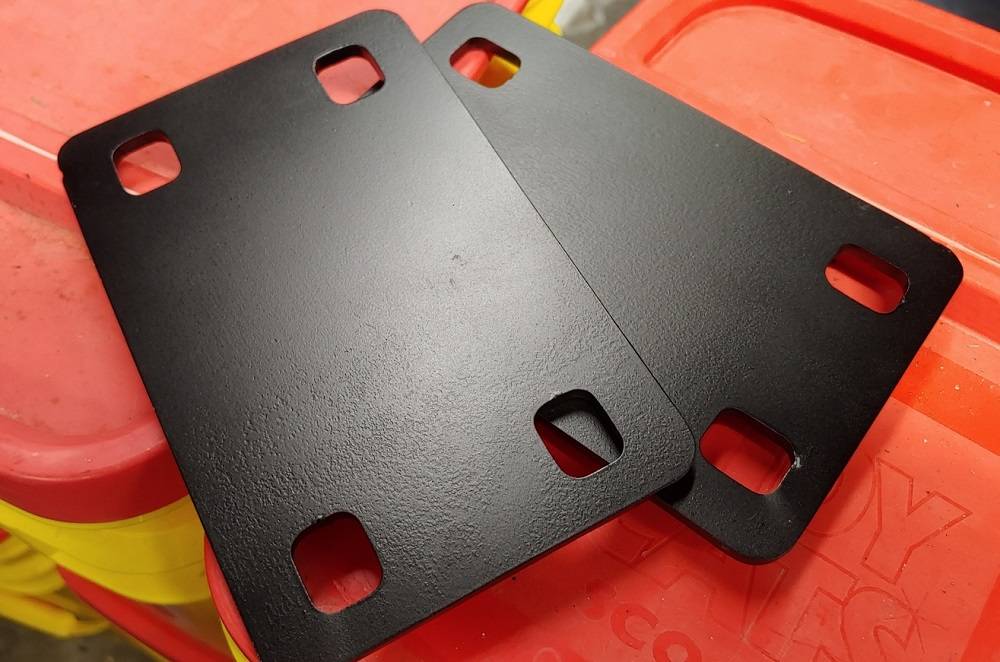

I have the plates - two pairs, different thicknesses. I used them on my 2022 and it did give more space. (while making the hook bolt/studs barely long enough to go through everything including the winch plate mounting flange)



[Stingray 5517]

What's different about the newer plate?

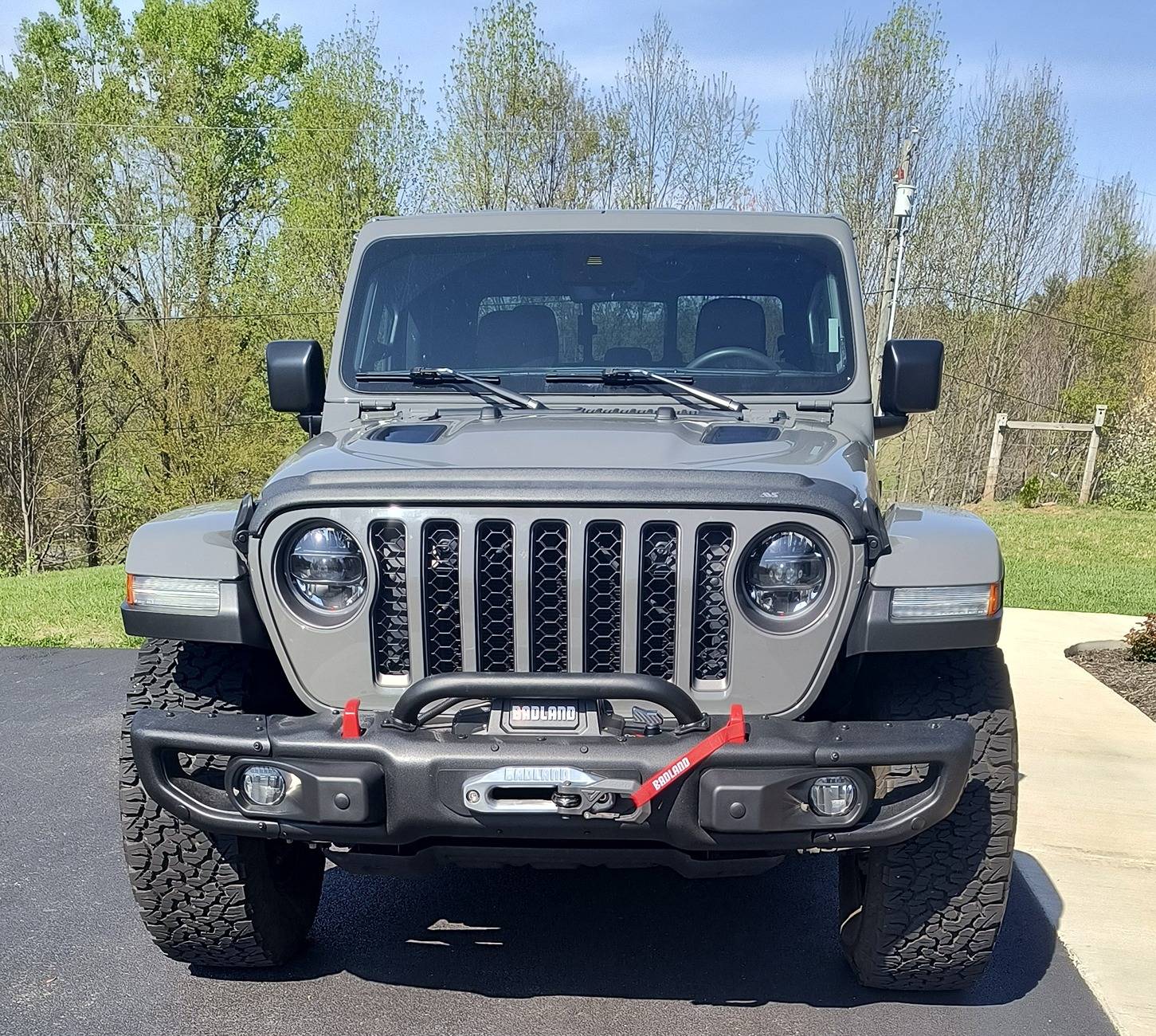

I had no issues with my Amazon knock off bumper. I completely covered the whole bumper inside and out including the hardware with 3 coats of rustolem spray. I added the hoop and that required me to trim the engagement lever on the winch. So far so good.



[ShadowsPapa]

If you need more room for the winch you can space the bumper out. A member here sells them already cut out.
Bumper spacer plates
The bolts are plenty long so you can add spacers till it fits.
Gregj

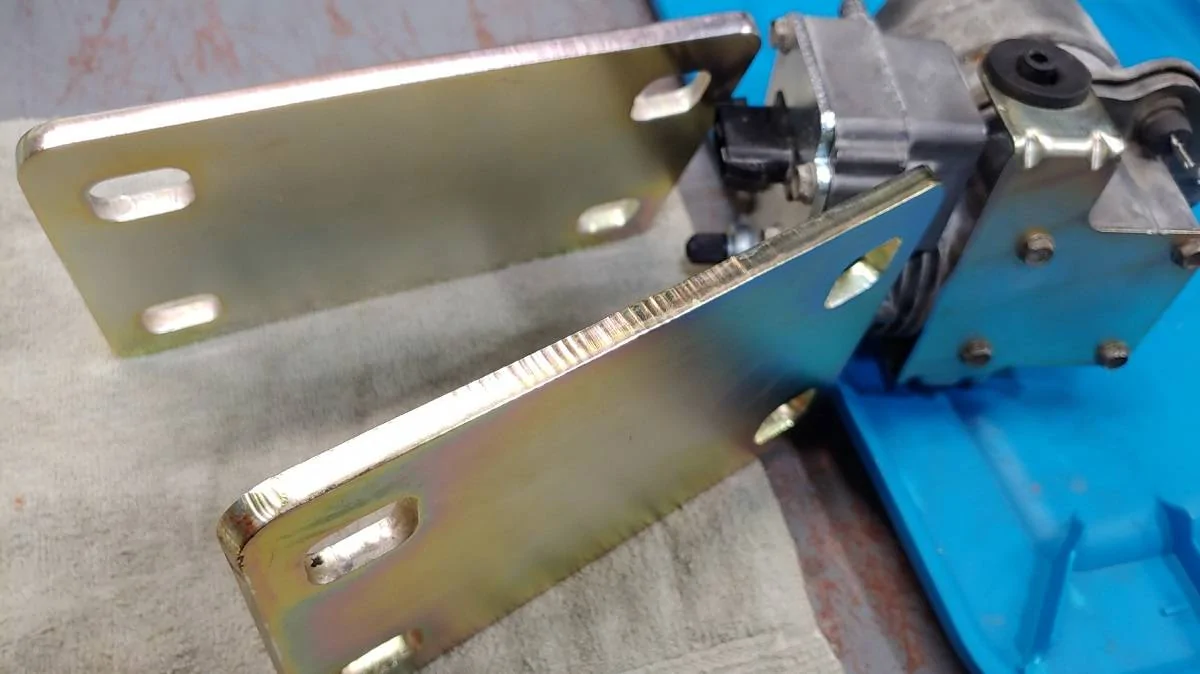

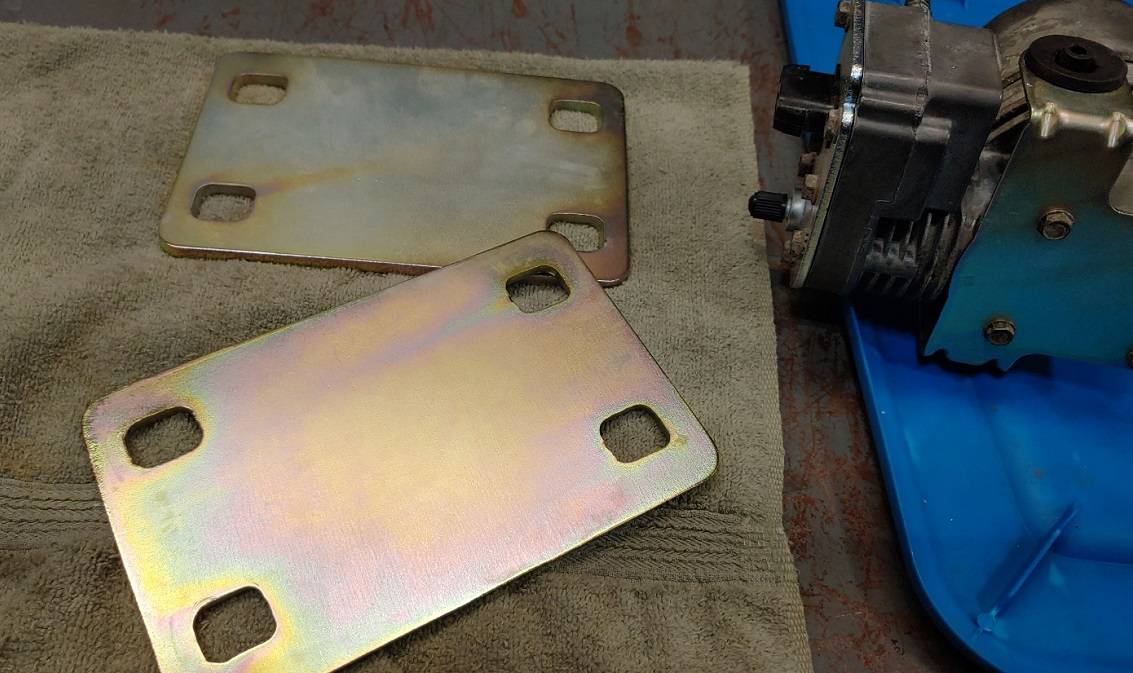

These - I plated a pair of them as I HATE RUST -



[Jerhemi]

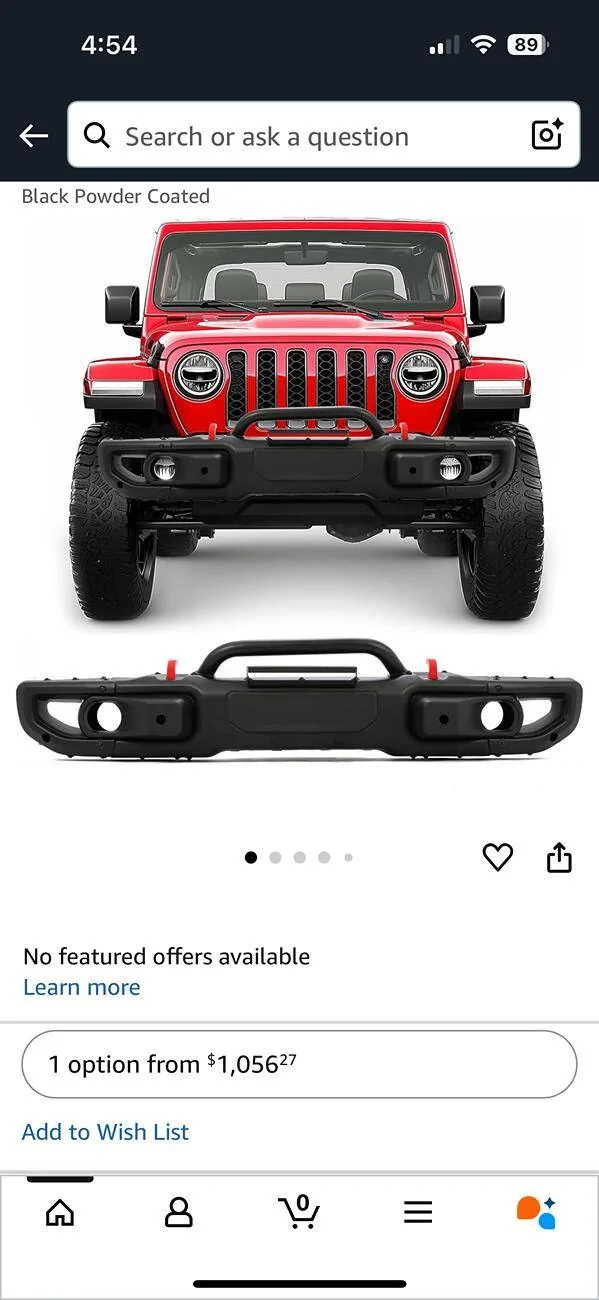

Tried to find that bumper on Amazon Canada. WTF



[Tim Allan]

those that have this bumper and winch, did you add a spacer to offset the sag?



[Stingray 5517]

those that have this bumper and winch, did you add a spacer to offset the sag?

Do you mean leveling kit? Yes I did a front 2 inch AEV suspension leveling kit.for stance and possible compensation for the bumper and winch.



[Tim Allan]

I had no issues with my Amazon knock off bumper. I completely covered the whole bumper inside and out including the hardware with 3 coats of rustolem spray. I added the hoop and that required me to trim the engagement lever on the winch. So far so good.

no spacers/trimming?



[Stingray 5517]

no spacers/trimming?

Nope none except for the engagement lever due to the hoop install.



[Empty Pockets]

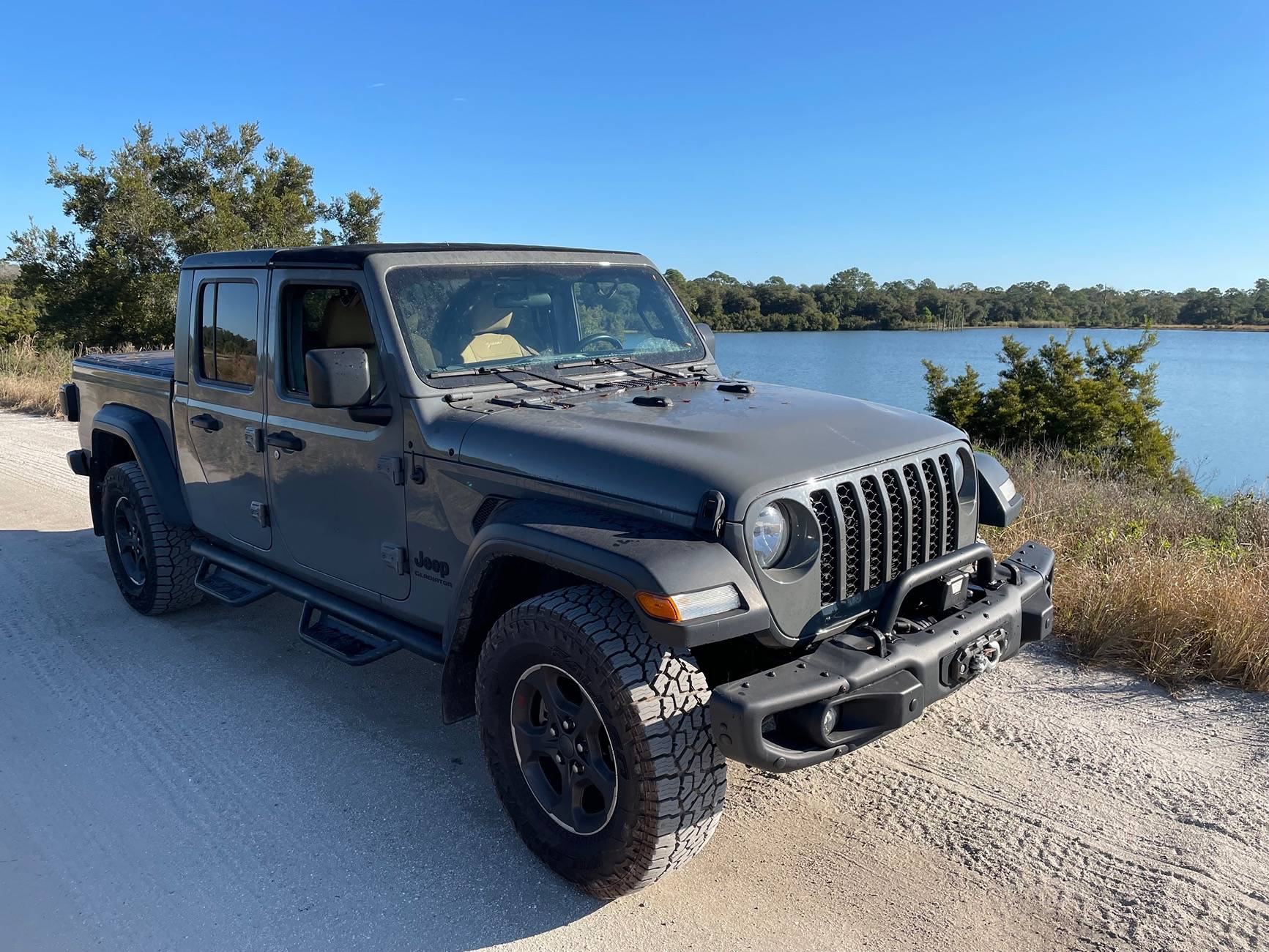

I bought one of these from an eBay seller. It’s been great. I, too, didn’t trust the tow hooks and swapped my originals in. I’ve had it 4 years and the paint is thinning just from sun and driving. I plan to coat it in bed liner this summer. The winch plate was fine for my Warn 8000 Lb. No flex when in use. All in all I think k it was a bargain.
