LED Bulb Replacement - IT WORKS!

  1. steffen707

    steffen707 Well-Known Member

    Vehicle(s):
    2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
    Joined:
    Jan 28, 2018
    Location:
    Middle Wisconsin
    Posts:
    7,032
    Liked:
    6,598
    well that's weird. Was your door open and nothing worked?

    These cars have auto-park. So if your seatbelt isn't fastened, and the door opens below a certain mph, the car will auto park.

    WARNING, DON'T KILL YOURSELF!

    I plugged seatbelt in, pulled ebrake hard, put in reverse, then opened door.

    If that still doesn't work for you.......i'm at a loss. Do you have a sport/overland or rubicon? you said you've got the 8.4" screen?

  2. Texas_Gladiator

    Texas_Gladiator Well-Known Member

    First Name:
    Chris
    Vehicle(s):
    2020 Gladiator, 1998 Wrangler
    Joined:
    Aug 7, 2019
    Location:
    Texas
    Posts:
    123
    Liked:
    197
    STILL waiting for my SV4's from HR, but just saw this and thought some folks might be interested... new reverse LED's....


    steffen707 likes this.
  3. steffen707

    steffen707 Well-Known Member

    Vehicle(s):
    2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
    Joined:
    Jan 28, 2018
    Location:
    Middle Wisconsin
    Posts:
    7,032
    Liked:
    6,598
    Holy big reverse bulb, awesome! but damn $90,
    https://headlightrevolution.com/2019-jeep-gladiator-jt-led-reverse-bulbs-1000-lumen/
    and the other lights, https://headlightrevolution.com/2019-jeep-gladiator-jt-led-rear-turn-signal-upgrade-kit/

    i think i'm just going to rock my $15 amazon ones. https://www.amazon.com/gp/product/B072FHNZKW/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1 i don't think those other bulbs will be $75 better.

    Texas_Gladiator likes this.
  4. Texas_Gladiator

    Texas_Gladiator Well-Known Member

    First Name:
    Chris
    Vehicle(s):
    2020 Gladiator, 1998 Wrangler
    Joined:
    Aug 7, 2019
    Location:
    Texas
    Posts:
    123
    Liked:
    197
    Yeah, IDK. But I ordered em lol.

    Should have all my lights swapped out with LED's by Tuesday. :)

    steffen707 likes this.
  5. joemussari

    joemussari Well-Known Member

    First Name:
    Joe
    Vehicle(s):
    Jeep Gladiator, Ducati Monster 1200
    Joined:
    Mar 14, 2019
    Location:
    Chester County
    Posts:
    77
    Liked:
    38
    i put the DRL in over the weekend and it keeps saying my turn signal lights are out. did i put it in the wrong spot or should i flip the bulb around? it still flashes normally and everything it just says i have bulbs out.

  6. Raven

    Raven Well-Known Member

    First Name:
    Chris
    Vehicle(s):
    2020 Gladiator Sport S Max Tow
    Joined:
    Aug 15, 2019
    Location:
    PA
    Posts:
    101
    Liked:
    71
    So I have a max tow sport S with the separate DRL and turn signals. I bought all 4 bulbs from Oracle, I plugged them in annnnnnnnnnd nothing. No turn signals, no DRL, nothing. Do I need the tazer to change the setting? I thought they would work but hyper flash, but they haven’t lit up at all.

  7. hivol13

    hivol13 Member

    First Name:
    John
    Vehicle(s):
    Red Gladiator Sport S (Max Tow)
    Joined:
    Jun 5, 2019
    Location:
    Louisville, Ky
    Posts:
    20
    Liked:
    7
    I dont know about the oracles, but the amazon lights worked just fine on my Max Tow. No tazer required. I do have the rear LEDs with blind spot sensors, though.

  8. Raven

    Raven Well-Known Member

    First Name:
    Chris
    Vehicle(s):
    2020 Gladiator Sport S Max Tow
    Joined:
    Aug 15, 2019
    Location:
    PA
    Posts:
    101
    Liked:
    71
    I would assume since you have LED tails your system was changed to accommodate that from factory

  9. steffen707

    steffen707 Well-Known Member

    Vehicle(s):
    2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
    Joined:
    Jan 28, 2018
    Location:
    Middle Wisconsin
    Posts:
    7,032
    Liked:
    6,598
    Sweet, please let me know how you like those reverse bulbs.

  10. OP
    OP
    mikesjt

    mikesjt Well-Known Member

    First Name:
    Mike
    Vehicle(s):
    99 Wrangler TJ Sport
    Joined:
    May 26, 2019
    Location:
    Dallas TX
    Posts:
    162
    Liked:
    205
    Garage Profiles:
    1
    Hey did your LED's plug in tight to the connector for the reverse lights? I tried a couple of bulbs from Amazon but they lacked having any kind of locking tab on the connector end of the bulb that plugs into the wiring harness connector so the bulbs would just fall out.
    I hope what I just said makes sense lol

  11. Texas_Gladiator

    Texas_Gladiator Well-Known Member

    First Name:
    Chris
    Vehicle(s):
    2020 Gladiator, 1998 Wrangler
    Joined:
    Aug 7, 2019
    Location:
    Texas
    Posts:
    123
    Liked:
    197
    Sooooo, slightly disappointed with Headlight Revolution right now. My first order with them was for the heads and fogs. I ordered the same bulbs as @WXman and that order was on B/O for a month. When they finally arrived, the heads worked great. Got them installed yesterday and working perfectly. But, the fogs don't fit. The collar is too big and won't allow the bulb to fully "seat" into the housing. Called HR, they honestly sounded like they had heard of this happening and said they would send me the correct bulbs. So I am now awaiting those.

    Fast forward to today, received my reverse and turn/brake lights. Got the brake lights in, no issues at all. But the reverse bulbs don't fit. The square connector on the bulb they sent me is way too big for the circular connector on the housing. So now I am waiting for HR to call me back and see how they are going to handle this one. The bulbs that fit work great, just frustrating to get two sets of wrong bulbs. :(

    steffen707 likes this.
  12. Slapping_Rabbits

    Slapping_Rabbits Well-Known Member

    First Name:
    Nirzwan
    Vehicle(s):
    Nissan rogue, triumph rocket iii roadster
    Joined:
    Apr 27, 2019
    Location:
    Havre de grace md
    Posts:
    655
    Liked:
    489
    I have the LED package and i get flashed all the time by oncoming drivers...and not in the good way!

  13. WXman

    WXman Well-Known Member

    Vehicle(s):
    2020 Jeep Gladiator
    Joined:
    Mar 1, 2017
    Location:
    Bluegrass region of Kentucky
    Posts:
    1,326
    Liked:
    1,310
    Occupation:
    Meteorology and Transportation
    That's odd. Mine popped right in exactly like the factory bulbs. Only change I had to make was inside the vehicle ECU. I turned on "LED" with the Tazer programmer to get the fogs to work properly.

    Did you by chance watch their latest video on how to install those tail light bulbs? One of those was a bit unconventional, but it goes right in.

  14. Texas_Gladiator

    Texas_Gladiator Well-Known Member

    First Name:
    Chris
    Vehicle(s):
    2020 Gladiator, 1998 Wrangler
    Joined:
    Aug 7, 2019
    Location:
    Texas
    Posts:
    123
    Liked:
    197

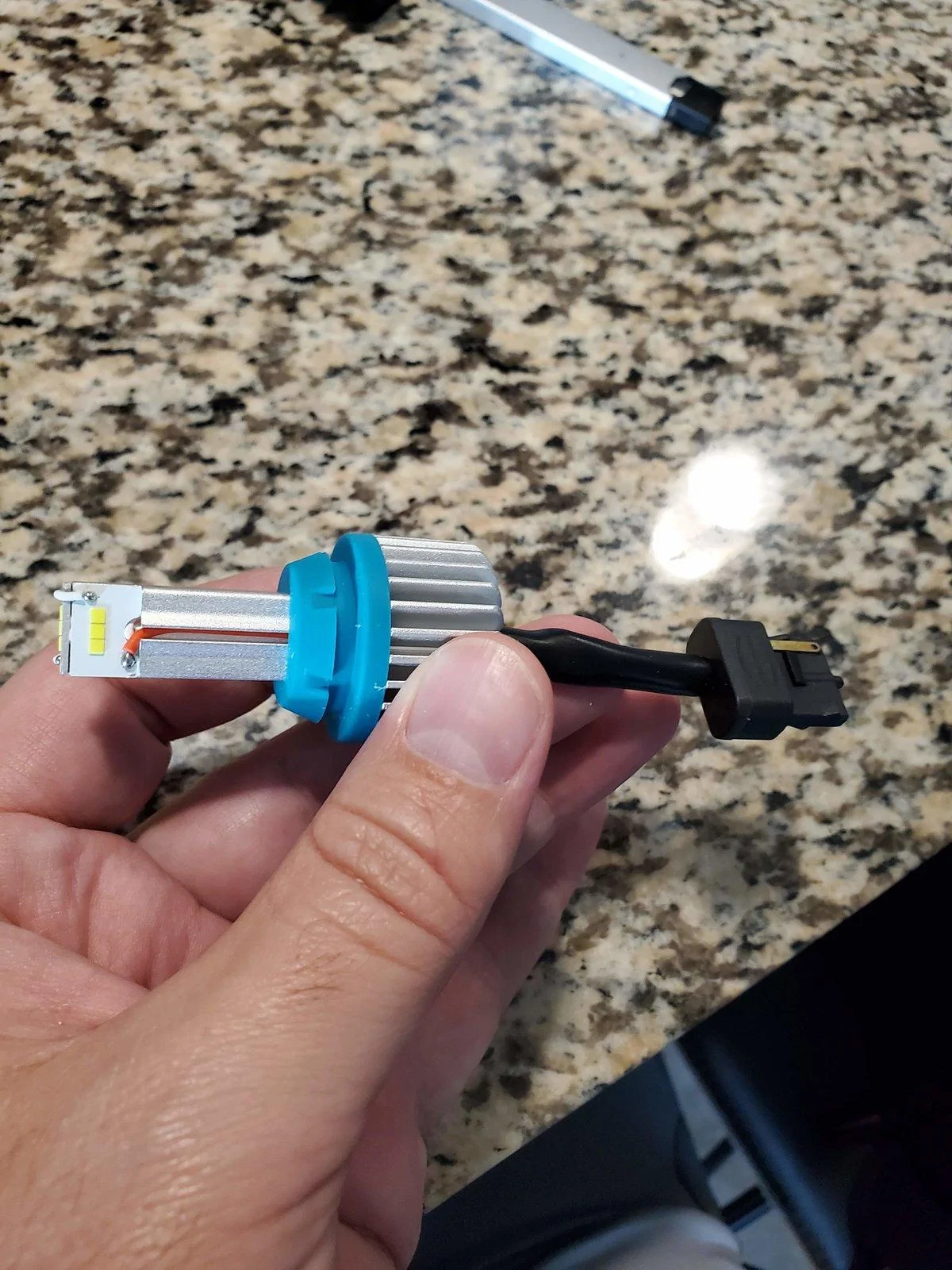

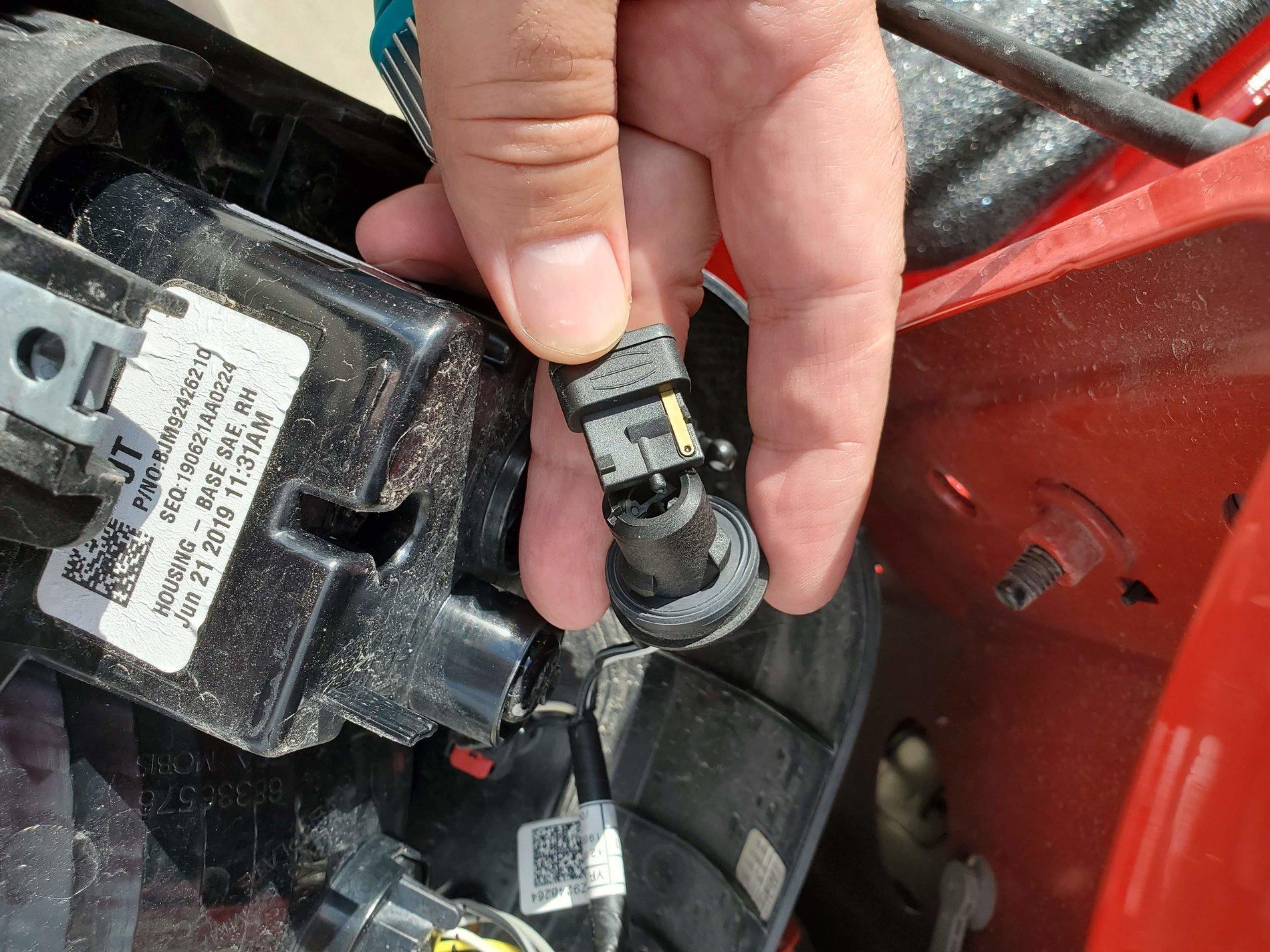

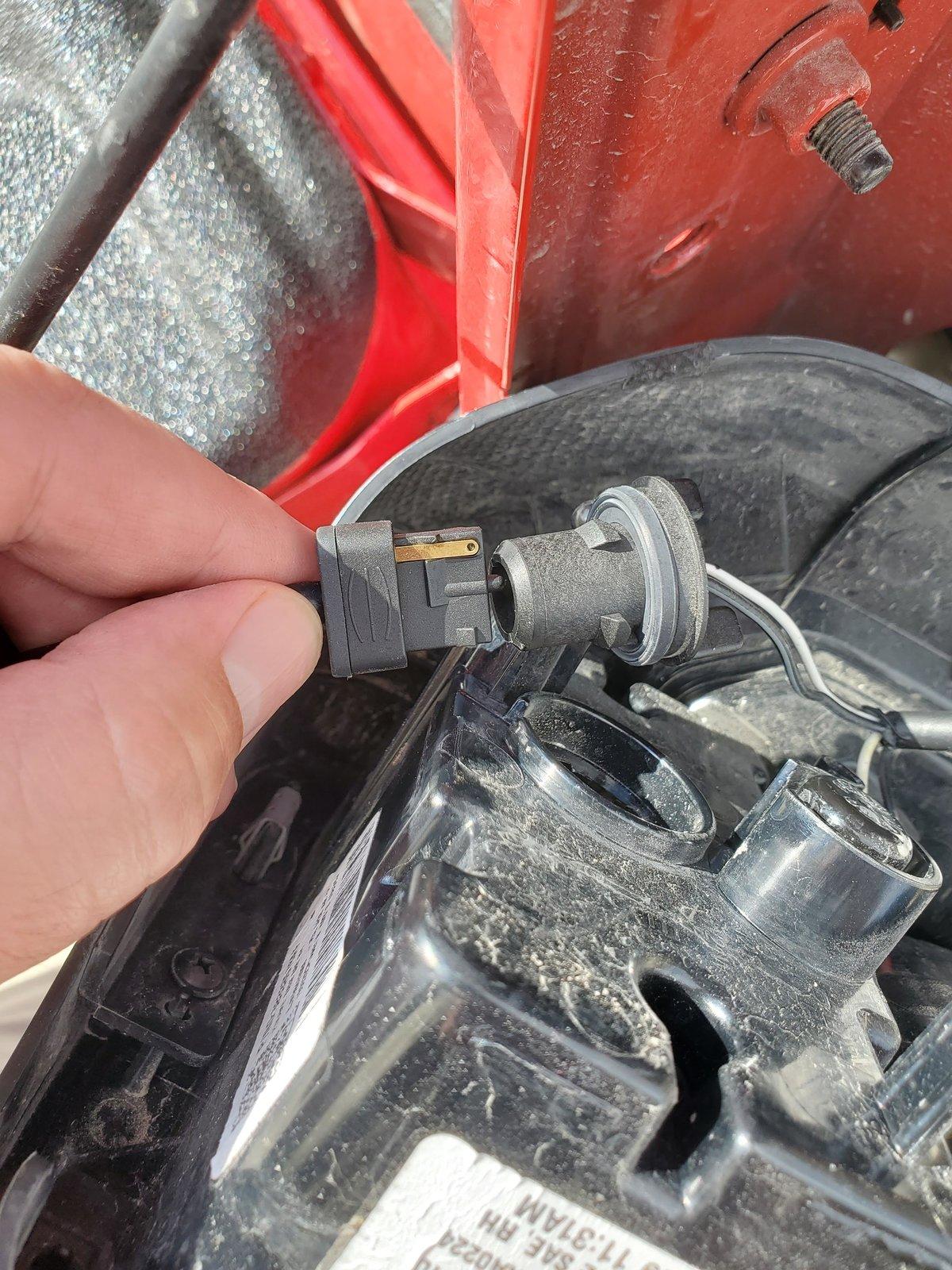

    Yes, definitely watched the video; that is how I found out about the reverse bulbs. I think I even clicked the link from their video to their website to make the purchase. After re-watching the video today and freezing it on the part that shows the new LED reverse bulb, I compared it to what they sent me, it doesn't even look like the same bulb. And here is a picture of that connector from the new bulb next to where it is supposed to plug in to the OEM harness, no way it fits:

    EDIT: HR called literally as I was hitting send. They saw these pictures in the email I sent them and said this was news to them. They thought all JT's had a standard bulb in non-LED models but apparently not. They are sending me some T15's same 1000 lumens. So, we shall see.



  15. Texas_Gladiator

    Texas_Gladiator Well-Known Member

    First Name:
    Chris
    Vehicle(s):
    2020 Gladiator, 1998 Wrangler
    Joined:
    Aug 7, 2019
    Location:
    Texas
    Posts:
    123
    Liked:
    197

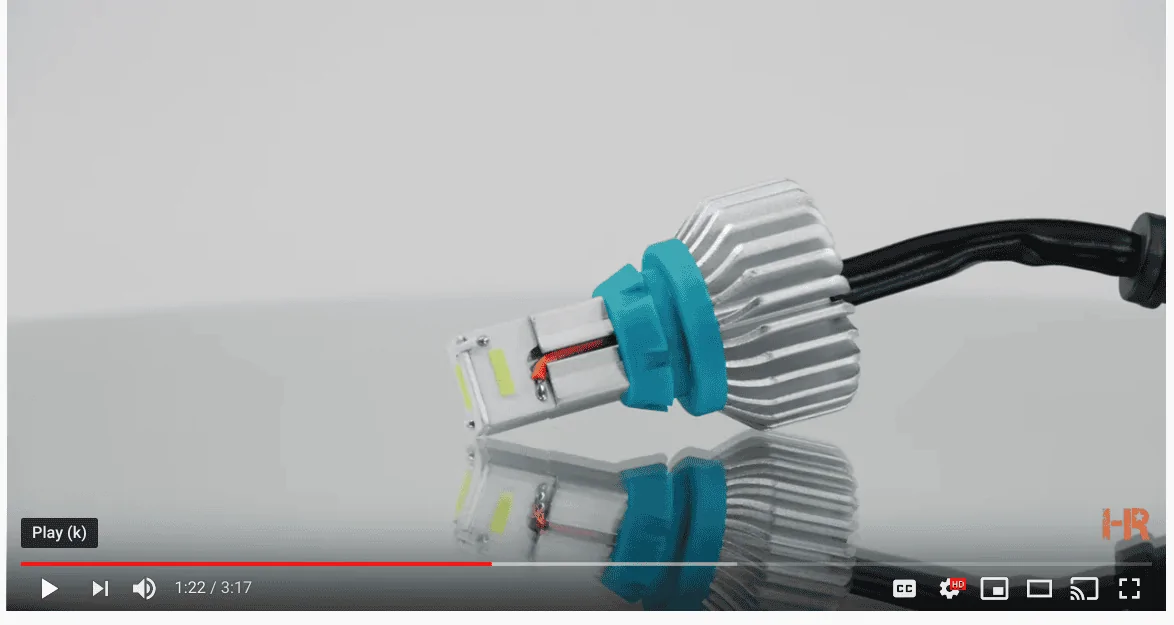

    Just another point of interest, here is the bulb they installed in the video and a photo of what was sent to me. They don't look the same, the bulb in the video looks shorter and stubby, mine is longer and has a metal sheath wrapped around it. I brought this to their attention several times but... idk.

    Screenshot 2019-11-20 at 2.39.41 PM.png


    steffen707 likes this.
